Ceramic Rubber Composite Lining Plate

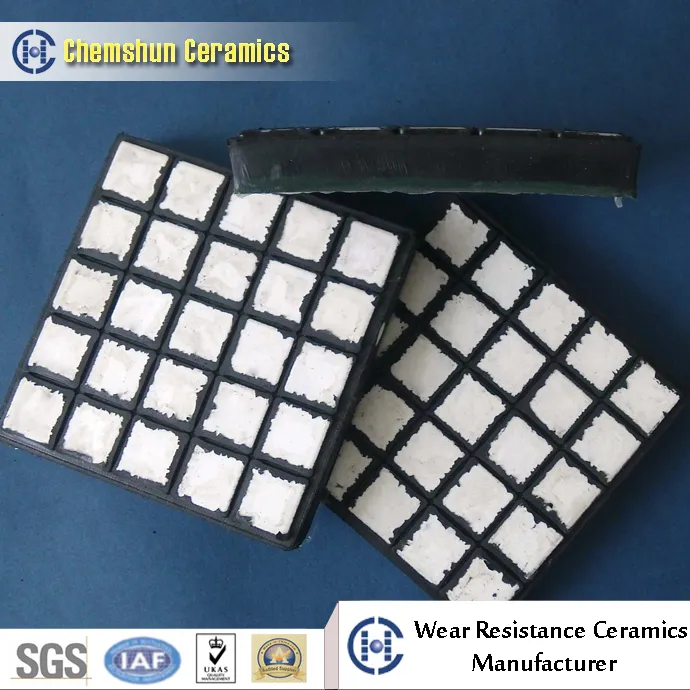

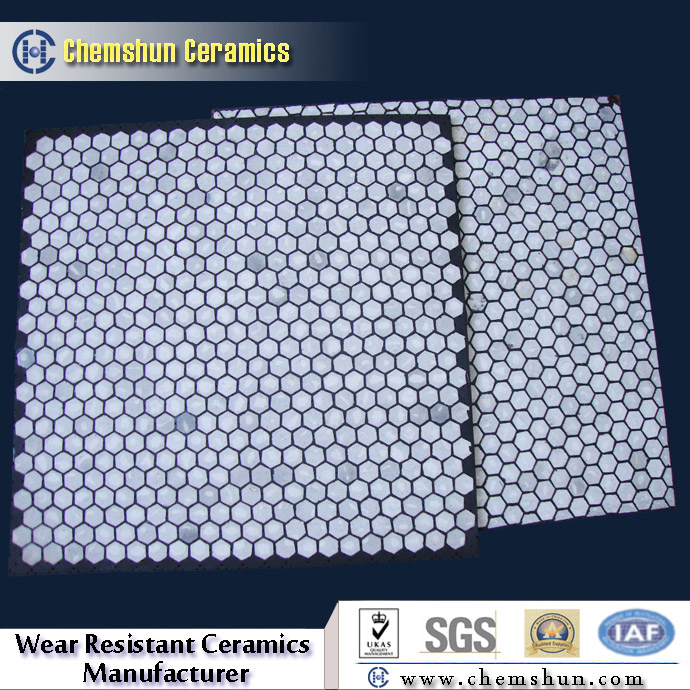

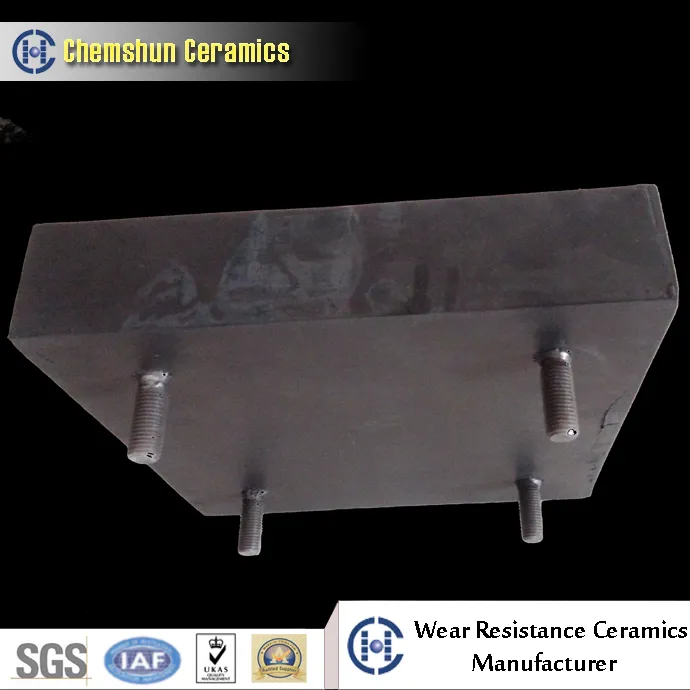

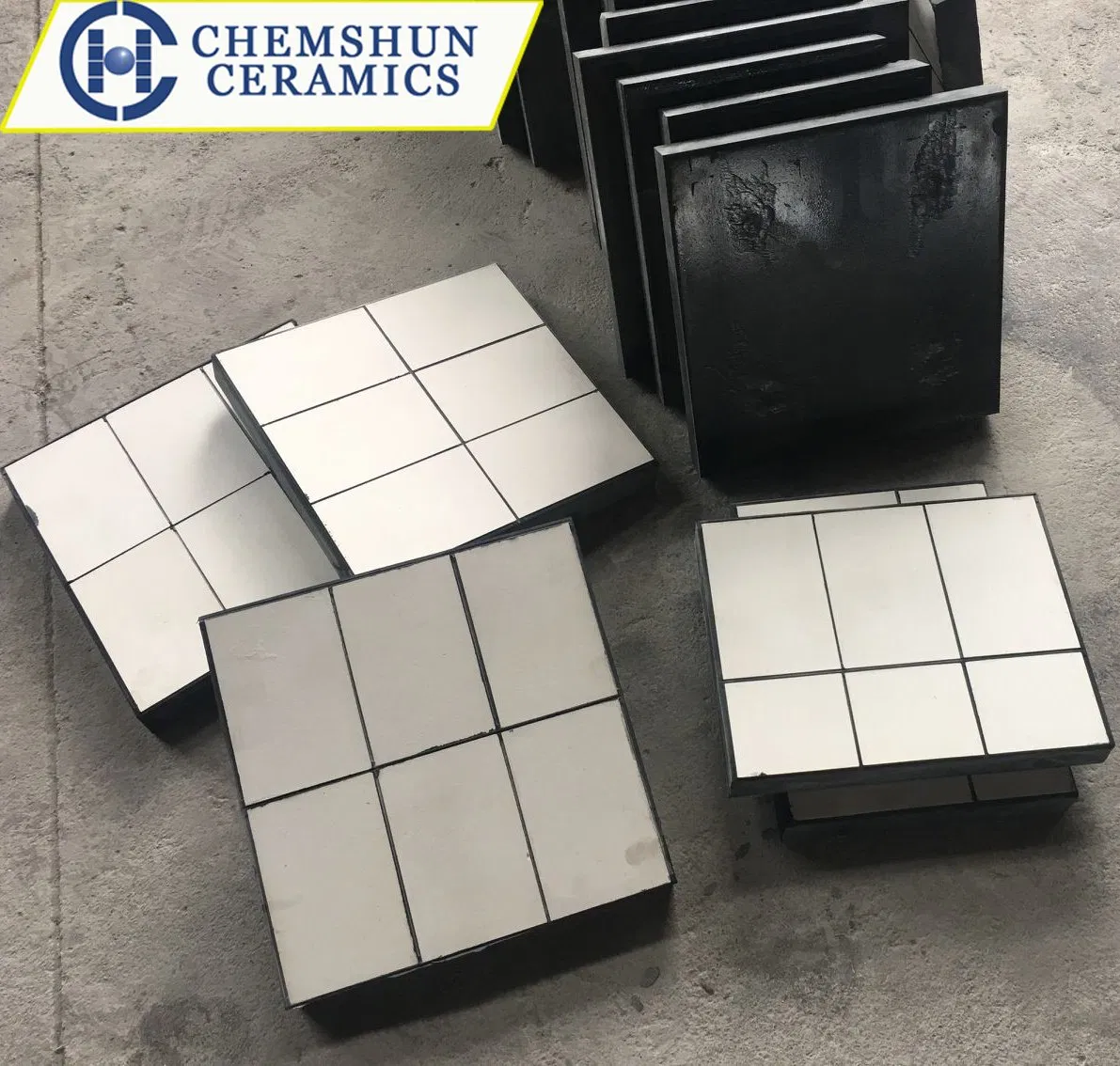

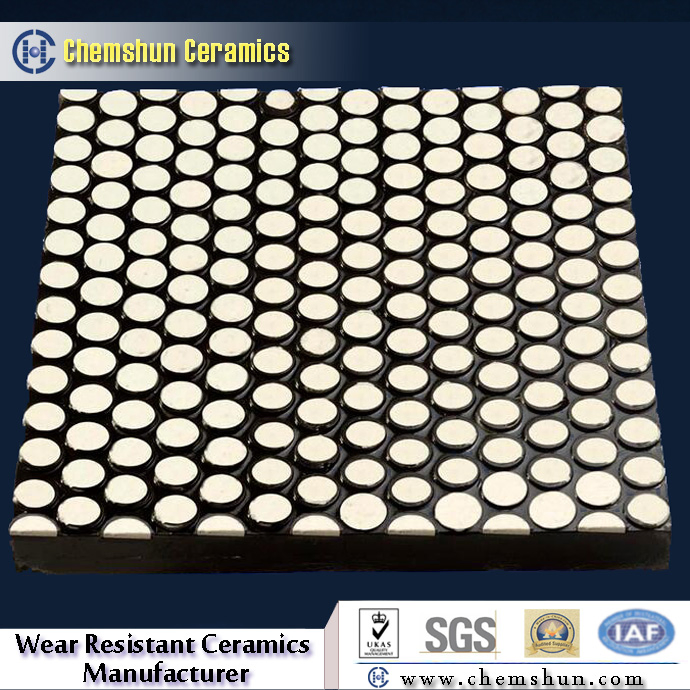

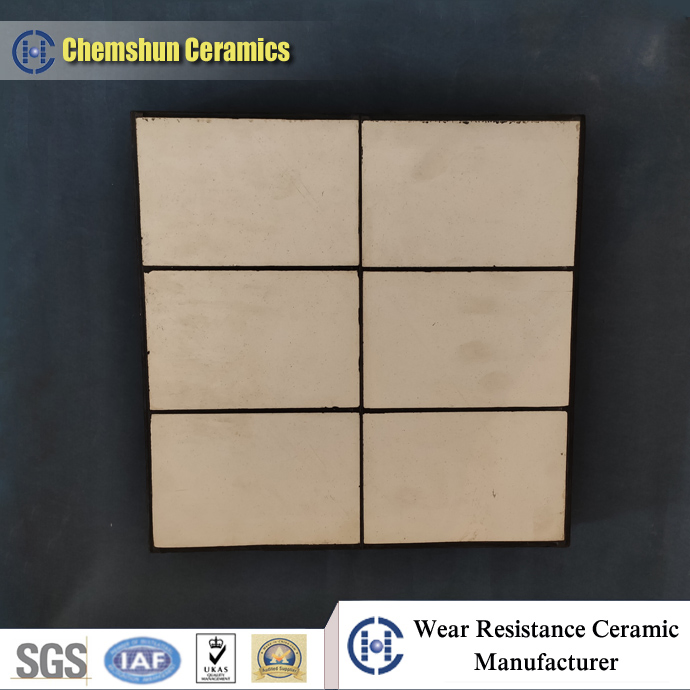

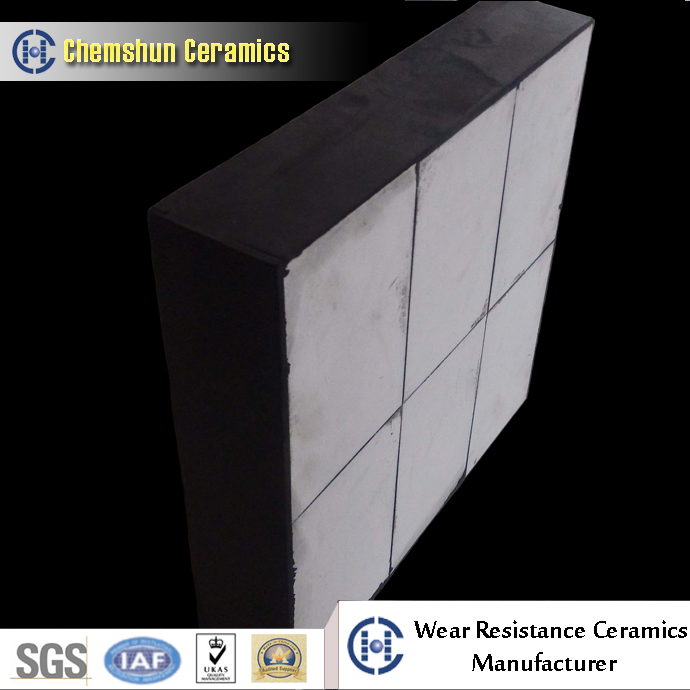

Ceramic rubber components also named wear ceramic liner, are perfect combination of hardness and flexibility. Small ceramic plates, hex tiles, or cylinders are vulcanized into the rubber backing with approximate 50 Shore A hardness, offering high impact resistance and noise reduction alongside excellent abrasion resistance. These plates are necessarily steel backed for use in heavy wear areas. Panels are engineered and designed to meet various industrial needs.
| Category | Item | Unit | Result |
|---|---|---|---|
| Alumina Ceramics | Alumina (Al2O3) | % | 92 / 95 |
| Alumina Ceramics | Density | g/cm3 | 3.64 |
| Alumina Ceramics | Hardness | Mohs | 9 |
| Rubber | Tensile Strength | MPa | 16 min |
| Rubber | Elongation | % | 400 min |
| Rubber | Abrasion Loss | mm3 | ≤80 |
| Peeling Strength | Rubber & Ceramic | kN/m | ≥12 |
| Industry | Equipment System | Equipment Parts |
| Cement | Raw mill system / Cement mill | Feed chute, Cyclone, Fan casing, Bunker |
| Steel | Feeding / Batching system | Hopper, Silo, Mixing barrel, Coke hopper |
| Thermal Power | Coal handling system | Coal Hopper, Coal Feeder, Separator pipe |
| Mining | Transporting material | Hopper, Silo, Chute |
