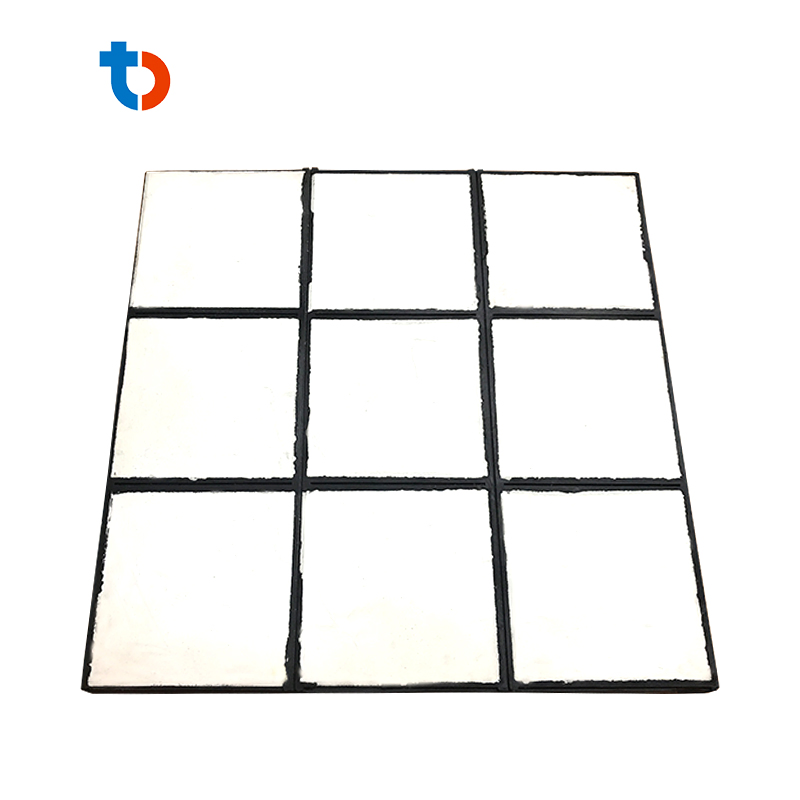

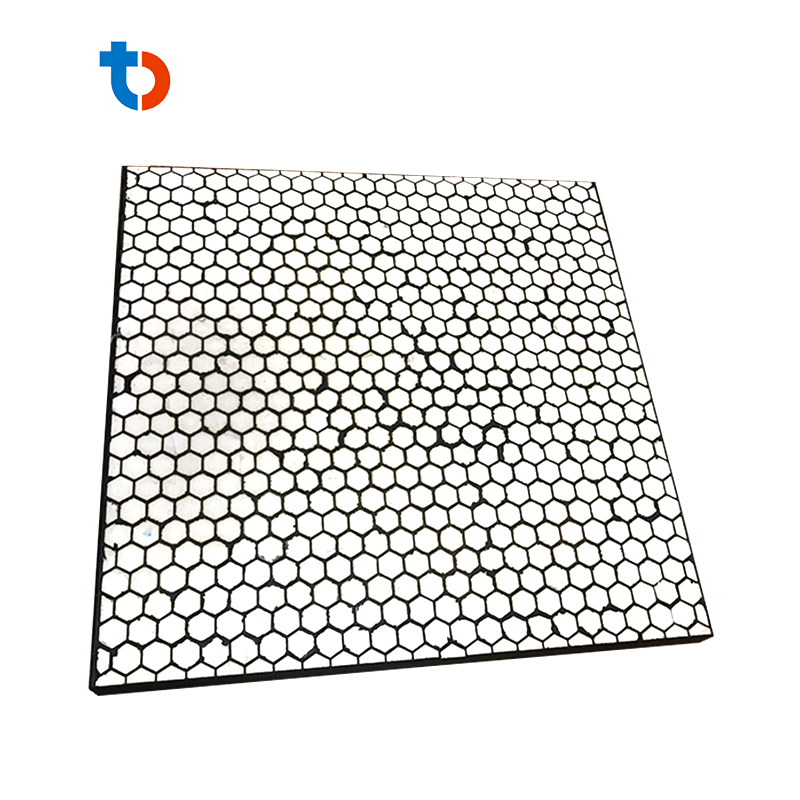

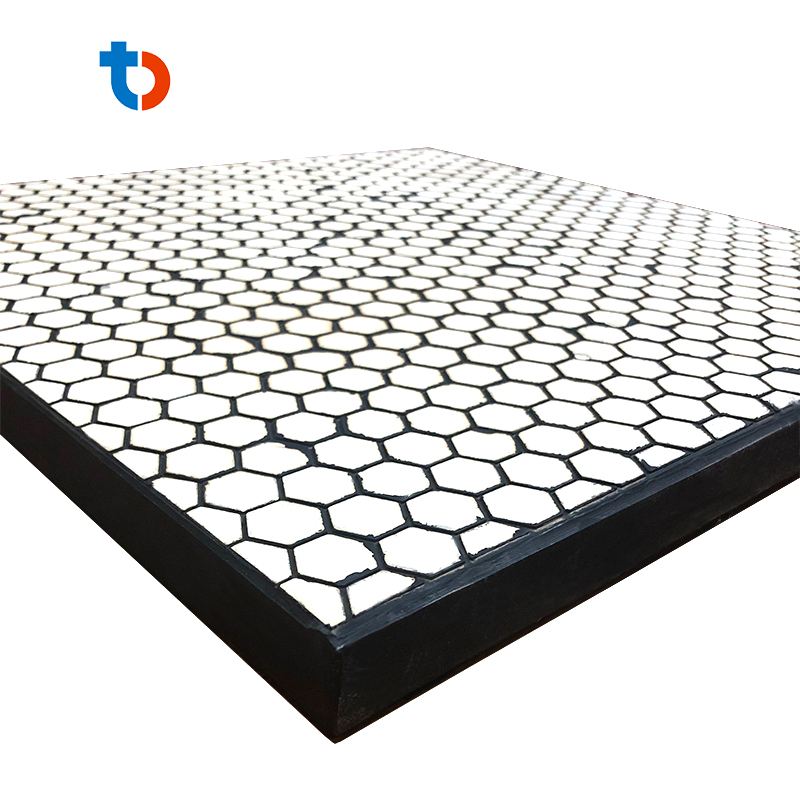

Ceramic Hexagon Tile Steel and Stud Backed Rubber Ceramic Wear Liner

1 / 5

Ceramic Hexagon Tile Steel and Stud Backed Rubber Ceramic Wear Liner

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Feature

Abrasion and Impact Resistance

Size

Customizable

Logo

Customizable

Tear Strength

≥520kn

Transport Package

Wooden

Specification

10x10x10

Origin

Henan

Capacity

50000 Square Meter/Year

Product Description

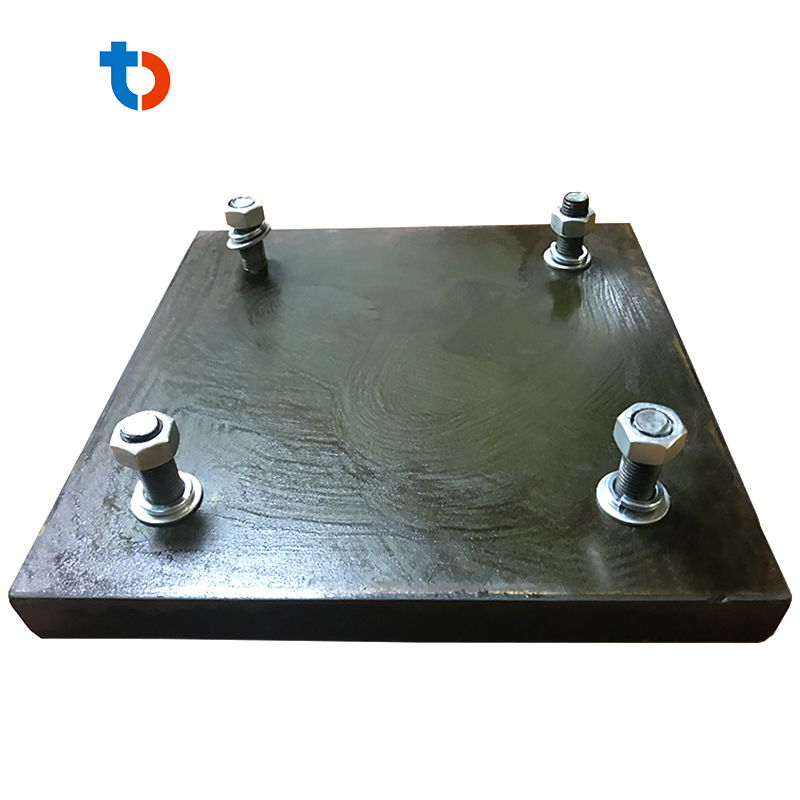

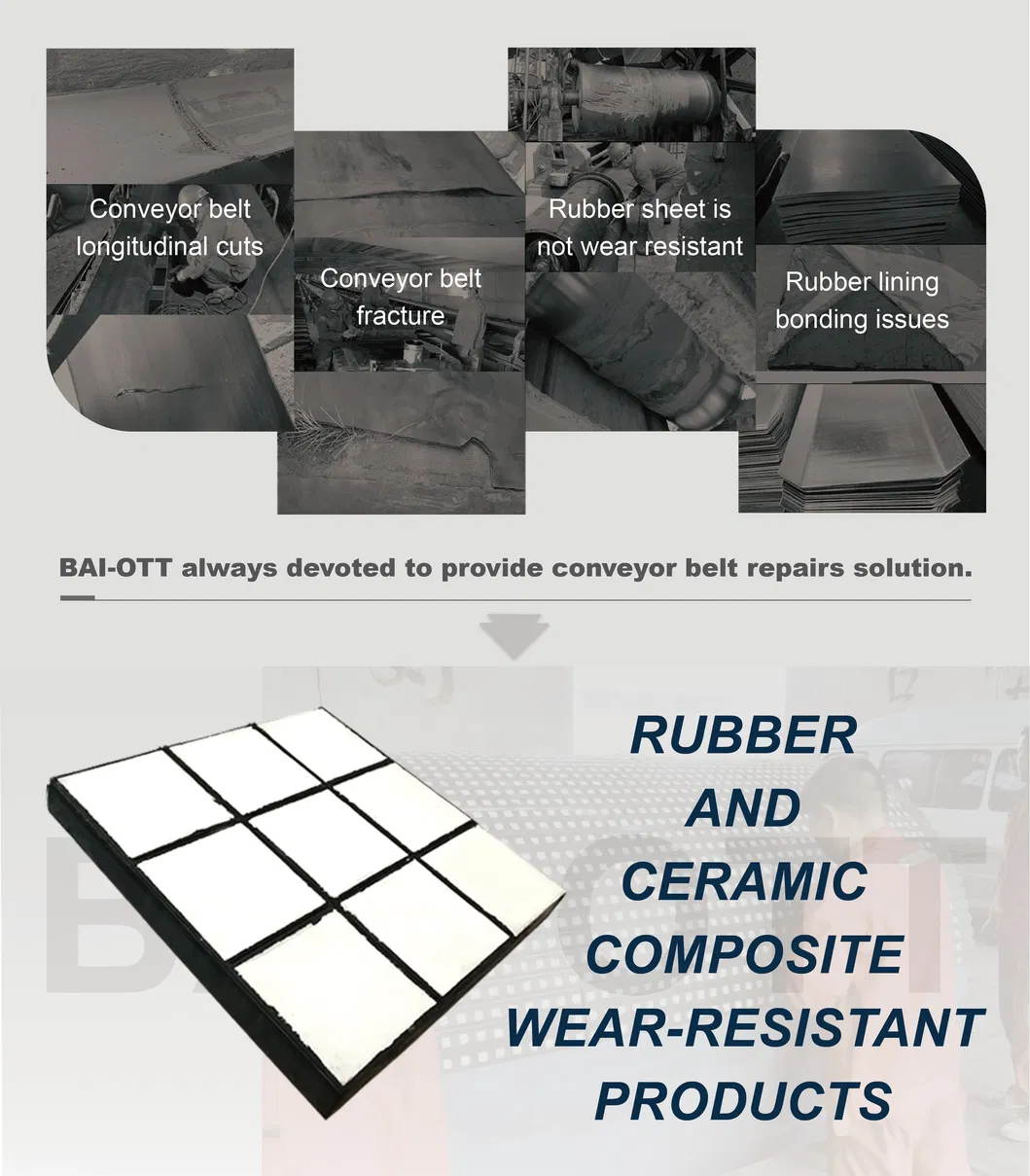

THE RUBBER AND CERAMIC COMPOSITE WEAR-RESISTANT PRODUCTS utilize a hot vulcanization process to integrate toughened ceramic sheets into a steel plate groove equipped with special rubber and countersunk bolts.

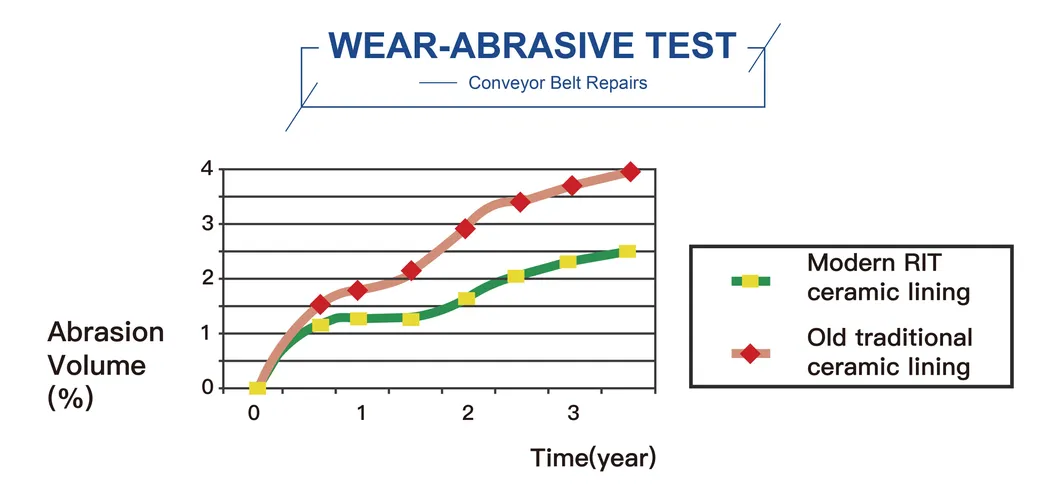

The use of wear-resistant ceramics can greatly save maintenance time and costs, increasing the service life of equipment by at least 10 times. Our unique toughening formula forms a strong crystal bond, enhancing impact resistance to 3-5 times that of standard ceramics.

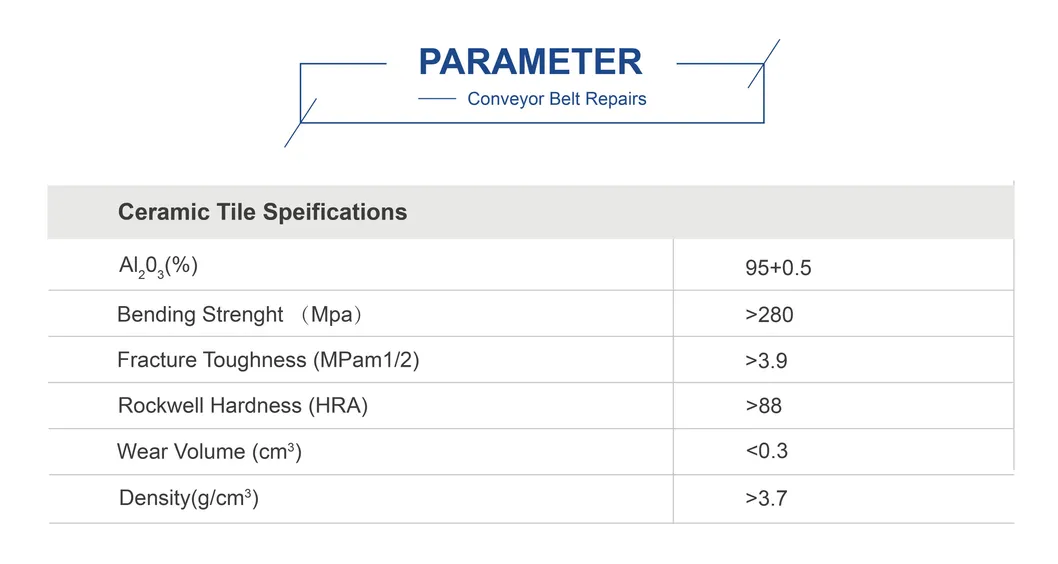

Raw materials consist of high-purity alpha alumina and crystal growth inhibitors. Advanced powder technology ensures uniform distribution and excellent flowability of the granulated powders.

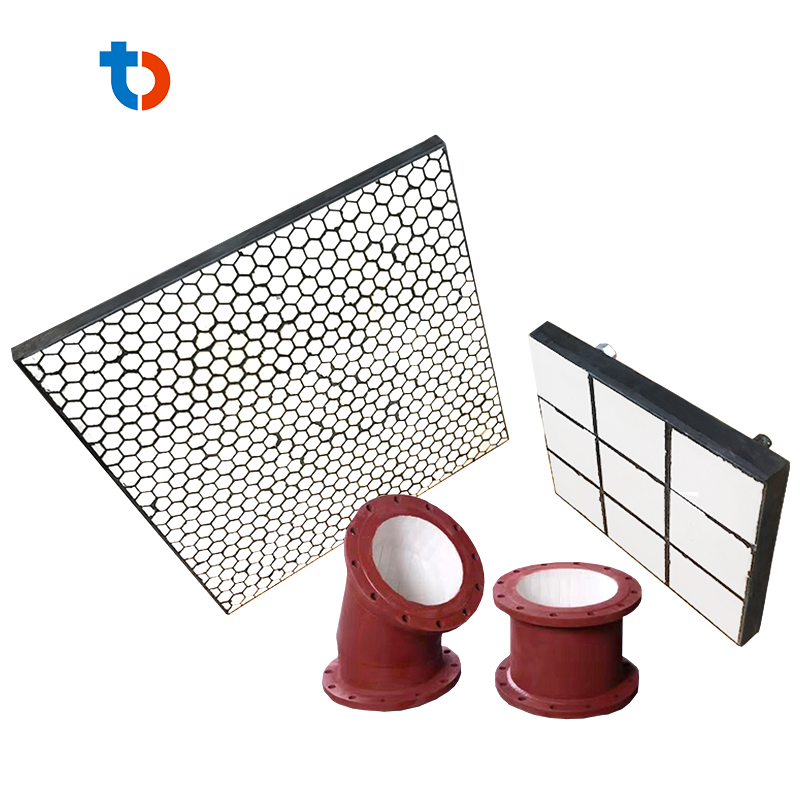

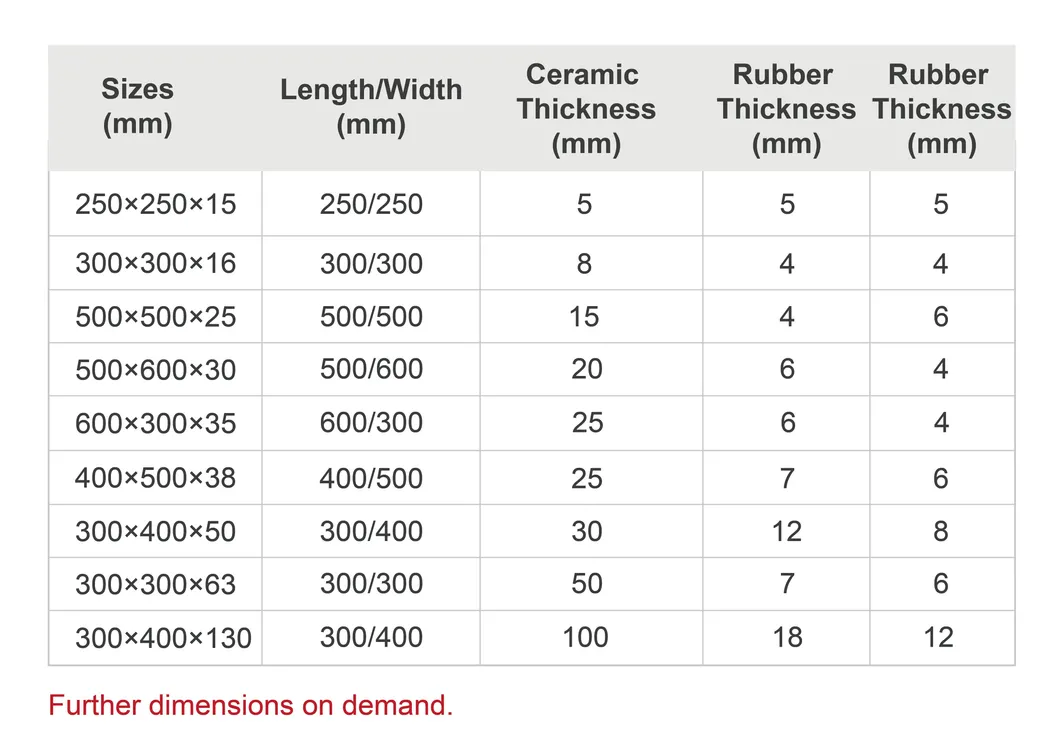

Available Specifications & Shapes

Square bricks: 10x10x2~10mm, 17.5x17.5x2~15mm, 20x20x2~15mm, 33x33x7~25mm, etc.
Ceramic plate: 100x100x6~50mm, 150x100X6~50mm, etc.
Hexagonal tiles: S12xT3~20mm, S19xT6~25mm
Ceramic tiles: 40x40x40mm, 32x32x22mm, 38x38x38mm, etc.
Ceramic cylinder/rod: 6x6mm, 15x15mm, 20x20mm, 31x31mm, 40x40mm, 50x50mm, etc.

Applications

Widely used in coal handling, material conveying systems, pulverizing systems, ash discharge, and dust removal systems. Ideal for thermal power, steel, smelting, machinery, mining, chemical, cement, and port industries.

Frequently Asked Questions

What are the primary benefits of using rubber and ceramic composite liners?

They offer exceptional abrasion and impact resistance, saving maintenance costs and extending equipment life by more than 10 times.

Can the dimensions and logo be customized for specific projects?

Yes, both the size and the logo are fully customizable to meet your specific equipment requirements.

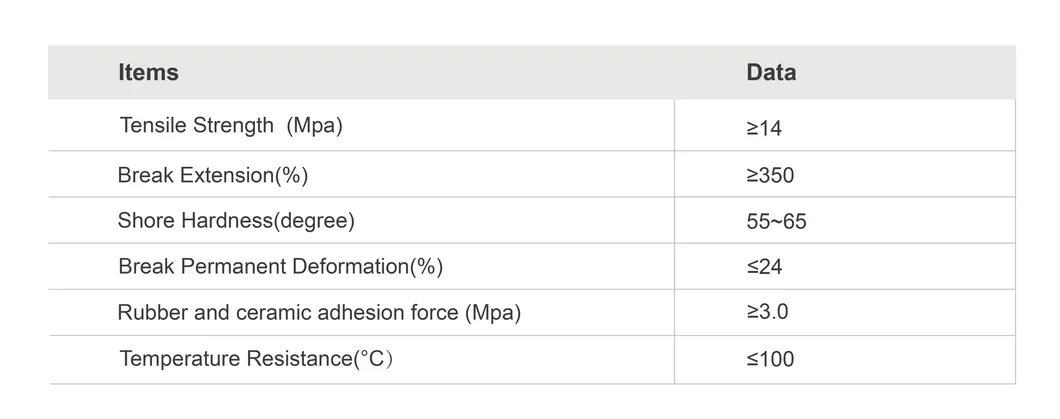

What is the tear strength of the rubber component?

The rubber used in our composite products has a tear strength of ≥520kn, ensuring high durability under stress.

What shapes are available for the ceramic components?

We offer a variety of shapes including square bricks, ceramic plates, hexagonal tiles, and ceramic cylinders or rods.

In which industries are these wear-resistant products typically used?

They are widely used in mining, steel, thermal power, cement, chemical, and port industries for material conveying and dust removal systems.

How does the impact resistance compare to standard ceramics?

Due to our unique toughening formula, our composite products provide 3 to 5 times the impact resistance of general standard wear-resistant ceramics.
