Resistant Abrasion Rubber Steel Backed Alumina Ceramic Wear Liner

1 / 5

Resistant Abrasion Rubber Steel Backed Alumina Ceramic Wear Liner

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Parameter	Details
Model	Rubber Backed Ceramic Wear Liner
Square Tile Sizes	10X10X3~10mm, 17.5X17.5X3~15mm, 20X20X3~15mm, etc.
Hexagonal Tile	S12.5xt3~20mm, S23.5xt6-25mm
Ceramic Cylinder	15X15mm, 20X20mm, 31X31mm, 40X40mm, 45X50mm
Production Capacity	400t/Month
Package Size	50.00cm * 50.00cm * 20.00cm

Product Overview

In aggressive industrial applications, equipment subject to high impact and high abrasion suffers from mechanical attack, chemical corrosion, or a combination of these factors. Composite ceramic wear liners are engineered for the toughest environments.

The solution features large, hard alumina ceramic bricks vulcanized into a wear-resistant rubber matrix. The elastic properties of the rubber act as a dampener, allowing the product to withstand extreme impact without fracturing the ceramic components.

🛡️ High Hardness: Exceptional surface protection.

💎 Abrasion Resistance: Superior wear life.

⚡ Impact Absorption: Rubber matrix dampens heavy blows.

🛠️ Easy Installation: Mount via epoxy resin or bolts.

Technical Parameters

Component	Attribute	Properties
Ceramic Tiles	Material	92%, 95%, T95%, 96%, ZTA Alumina
Ceramic Tiles	Thickness	3mm - 75mm
Rubber Matrix	Density	~1.4g/cm³
	Tensile Strength	≥15Mpa
	Shore Hardness	45-65 Shore A
	Working Temp	-50ºC - 200ºC
Steel Plate	Material & Size	Q235A Steel, 5-6mm Thickness

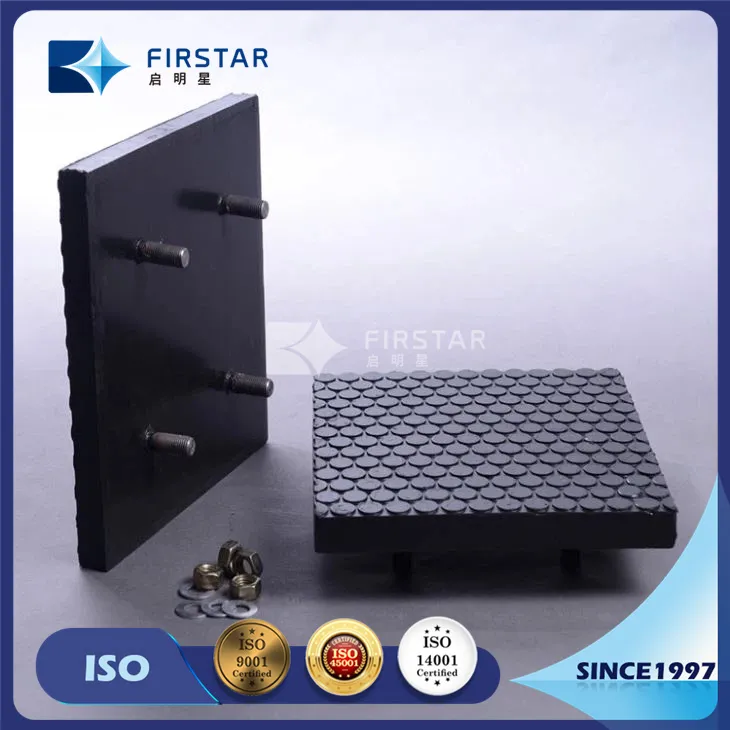

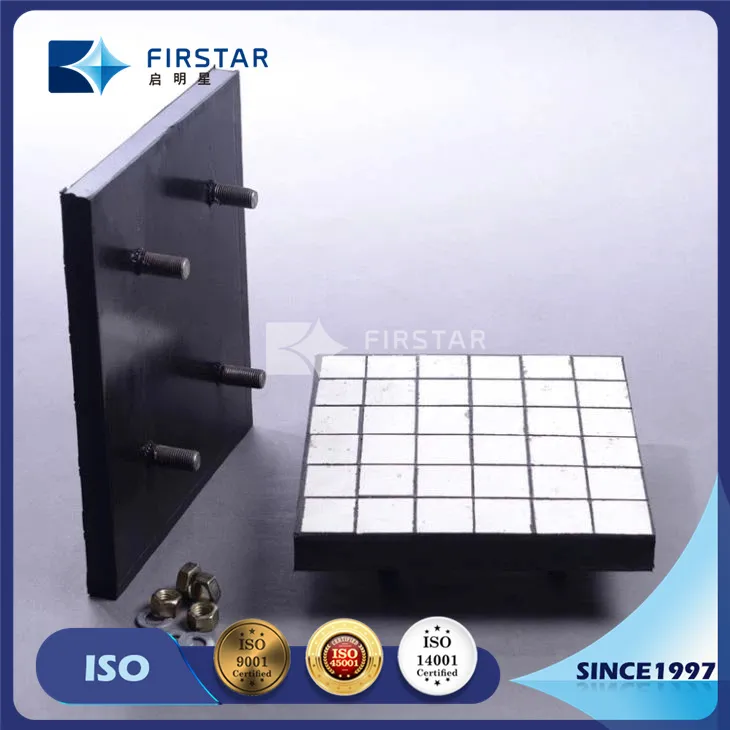

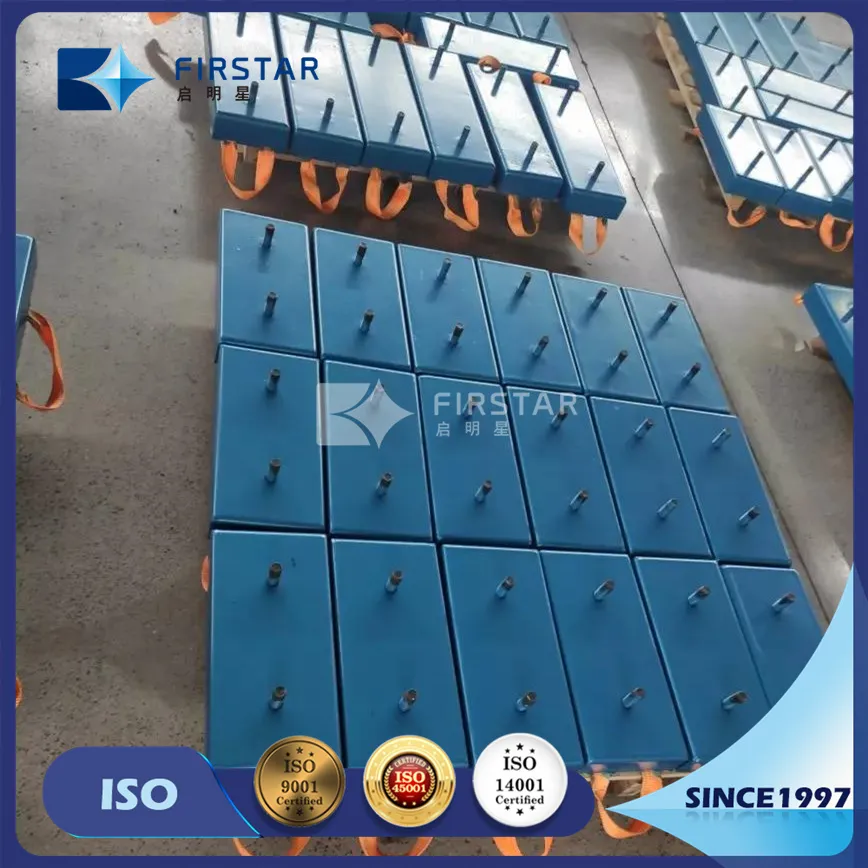

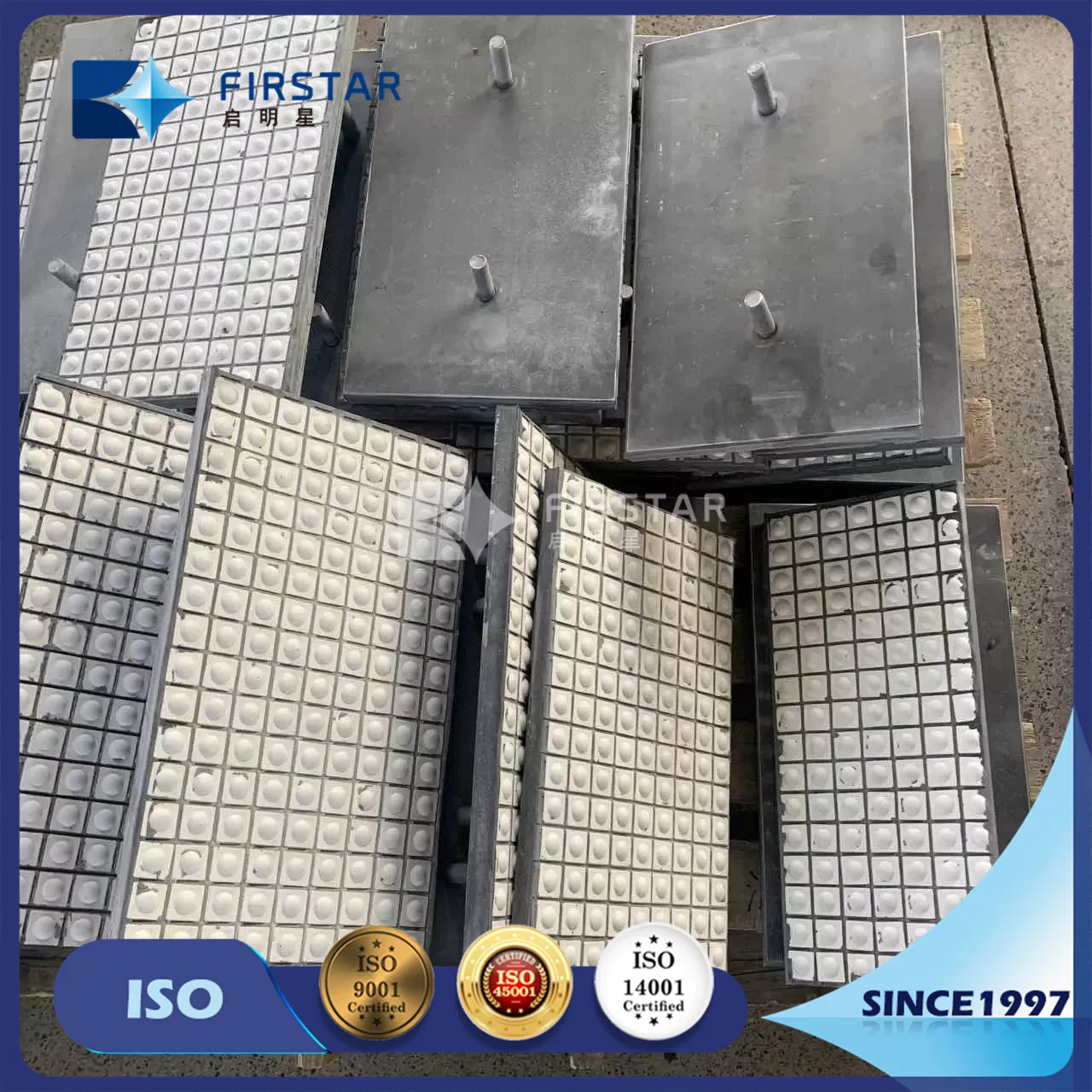

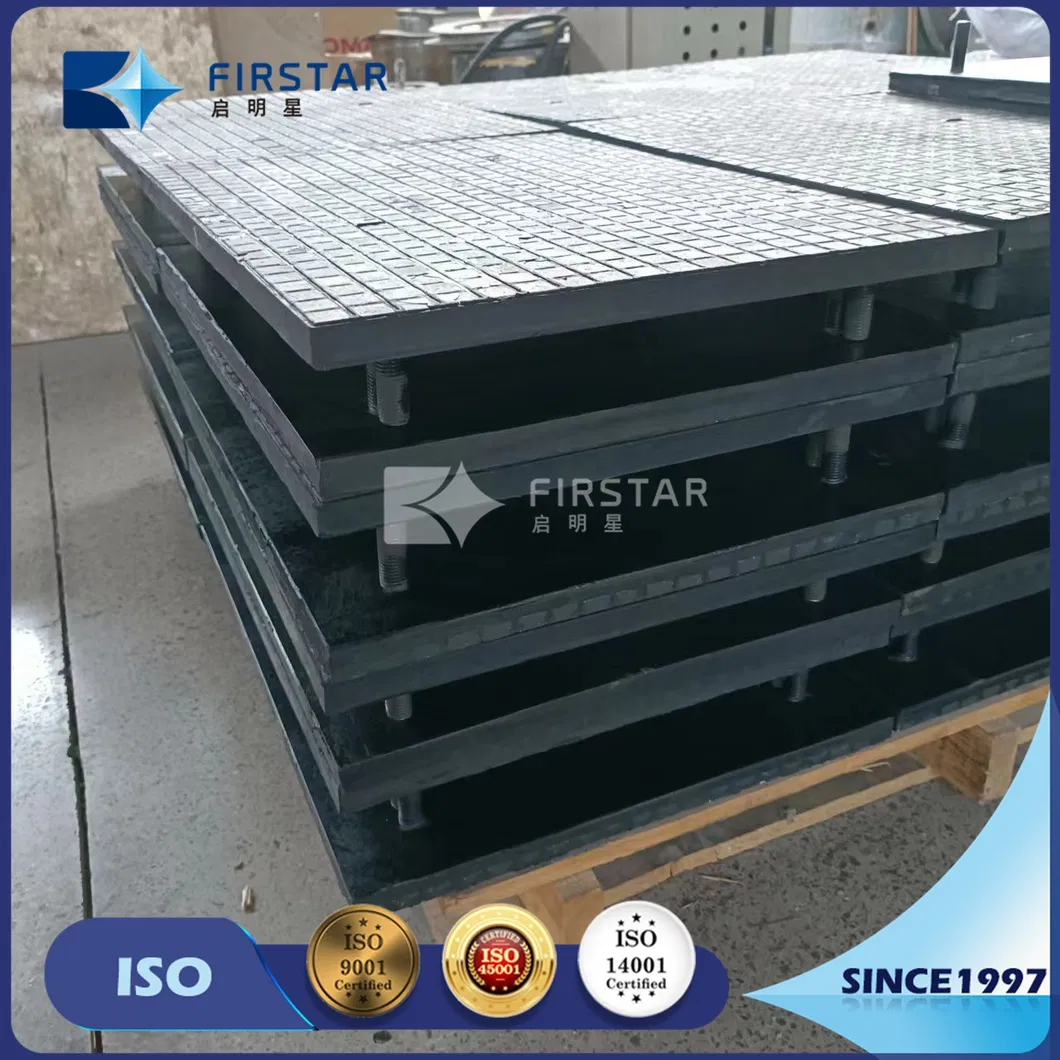

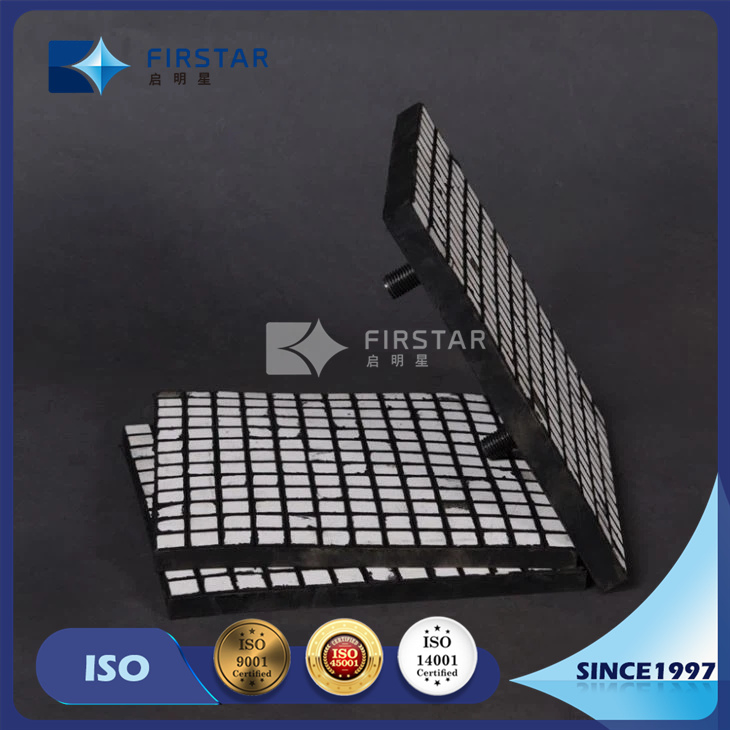

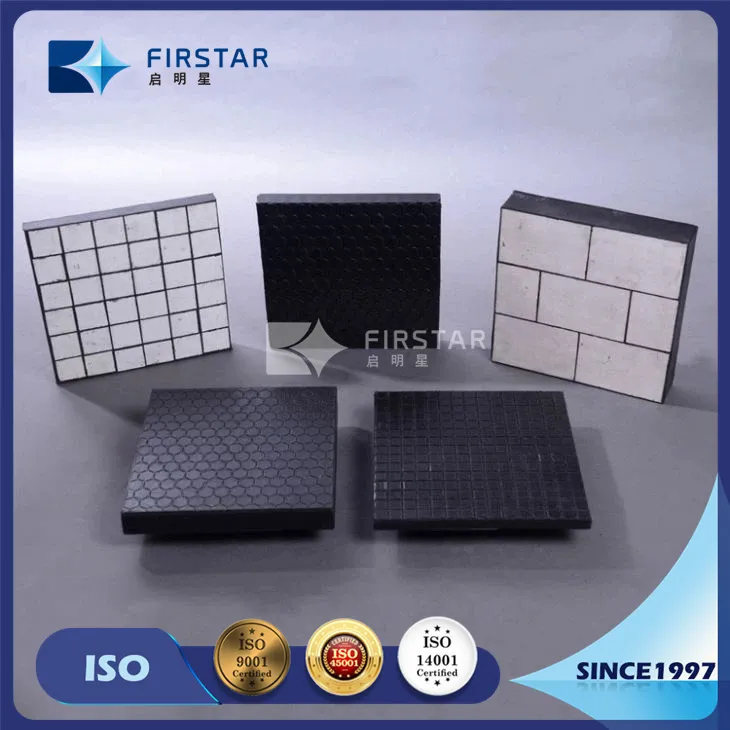

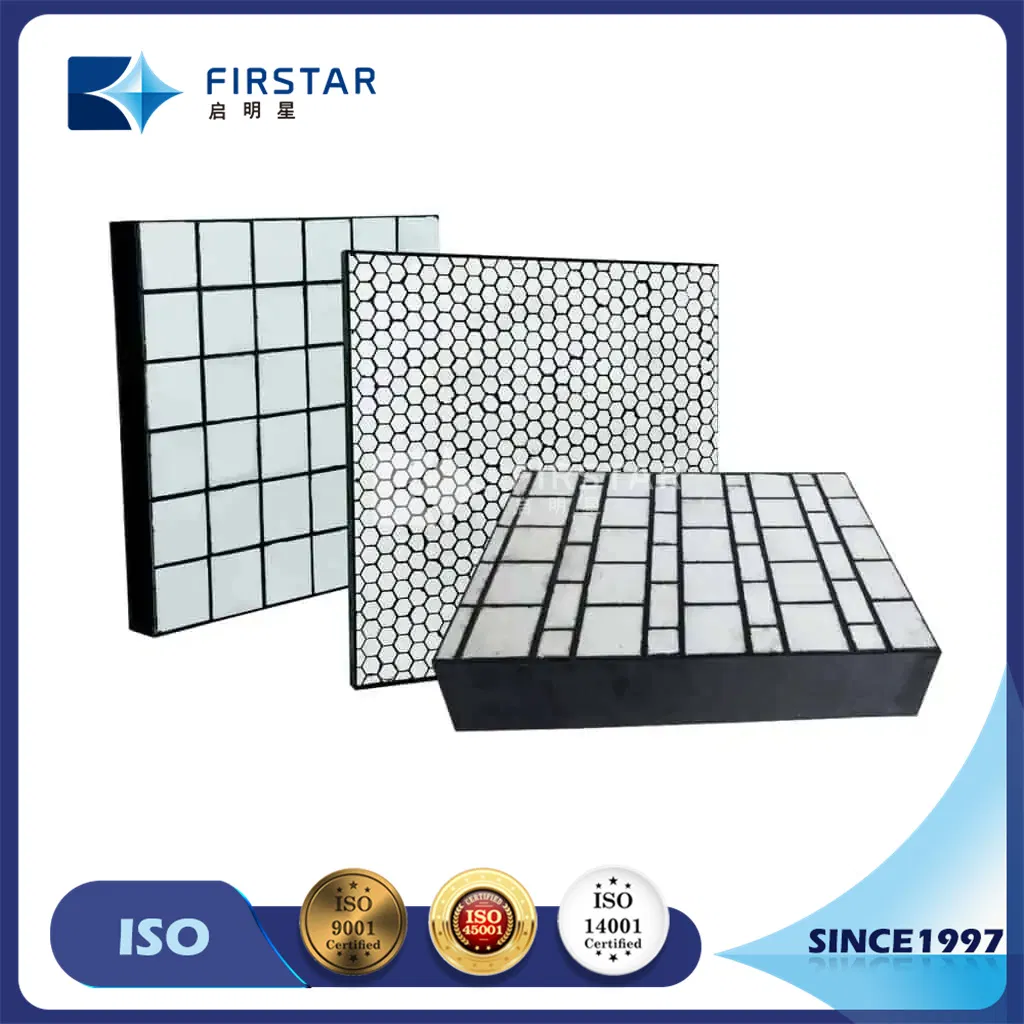

Detailed Product Display

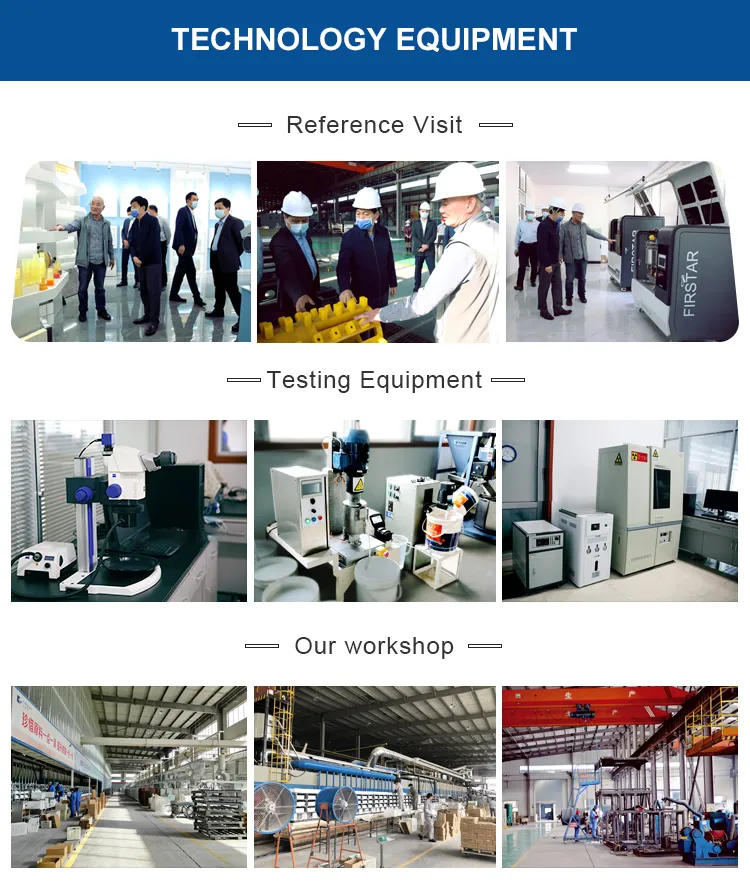

Capability & Quality Control

Our commitment to quality ensures increased efficiency and service life for all industrial equipment. We focus on product innovation and customized application techniques to solve specific wear challenges.

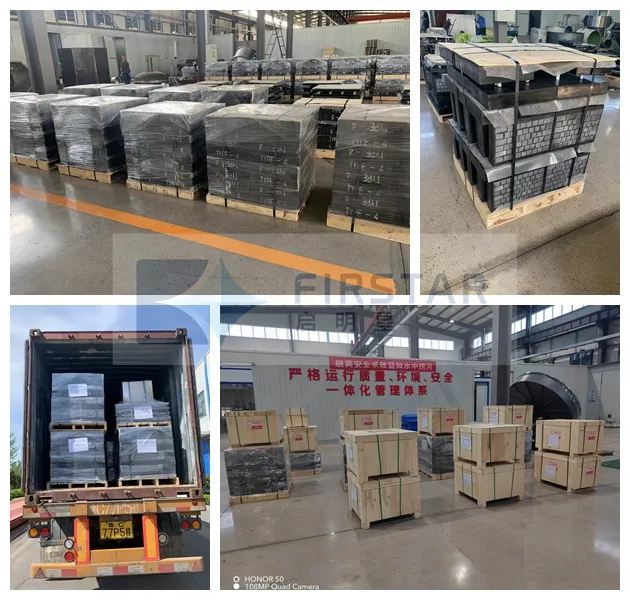

Packaging & Shipping

Frequently Asked Questions

What is your professional experience in ceramic wear liners?

We have 22 years of specialized experience in this industry, operating as a professional manufacturer focused on high-performance ceramic solutions.

What is the Minimum Order Quantity (MOQ)?

MOQ varies by product type. For standard ceramic grinding media or balls, the MOQ typically starts at 1 ton.

Can I request samples for testing?

Yes, we support small quantity sample orders prior to full-scale production. Free samples are available for certain items within 1kg.

What is the typical production lead time?

We maintain a large stock of standard specifications. Generally, orders are processed and ready within 7-10 days after deposit receipt.

What payment methods do you accept?

We offer flexible payment terms including T/T, L/C, and Western Union to accommodate international trade requirements.

How do I choose the right liner for high-impact areas?

For high-impact zones, we recommend rubber-backed ceramic composites. The rubber acts as a shock absorber while the ceramic provides the necessary abrasion resistance.
