Factory Supply Wear Resistant Rubber Backed Ceramic Mat of Chute Lining

i

Basic Specifications

Model NO.

150 * 50 * 15mm

Material

Alumina Ceramic

Standard

ISO9001

Type

Ceramic Plates

Hardness

Mohs 9

Ceramic

92% and 95% Alumina, Zta etc

Application

Chute Lining, Steel Plant, Power Plant

Characteristics

Impact Resistant, Wear Resistant

HS Code

6903900000

★

Product Overview

Our main business focus includes industrial ceramics, refractory materials, corundum wear-resistant ceramics, papermaking equipment and accessories, pulping equipment, slag removal equipment, wear-resistant pipes, and alumina ceramic parts. We specialize in thermocouple protection tubes, special-shaped fittings, pipe liner patches, and production of electronic insulation materials.

"Customer first, quality first! Your satisfaction is our unremitting pursuit!"

📋

Technical Parameters

Thickness	3~50mm or as Request	Content	92% Alumina, 95% Alumina, T95, Zta
Density	3.6 - 5.9 g/cm3	Compressive Strength	More Than 1050 MPa
Bending Resistance	>350 Mpa	Apparent Porosity	< 1%
Max Usage Temp	1800ºC	Volume Density	≥3.80 g/cm3

🖼

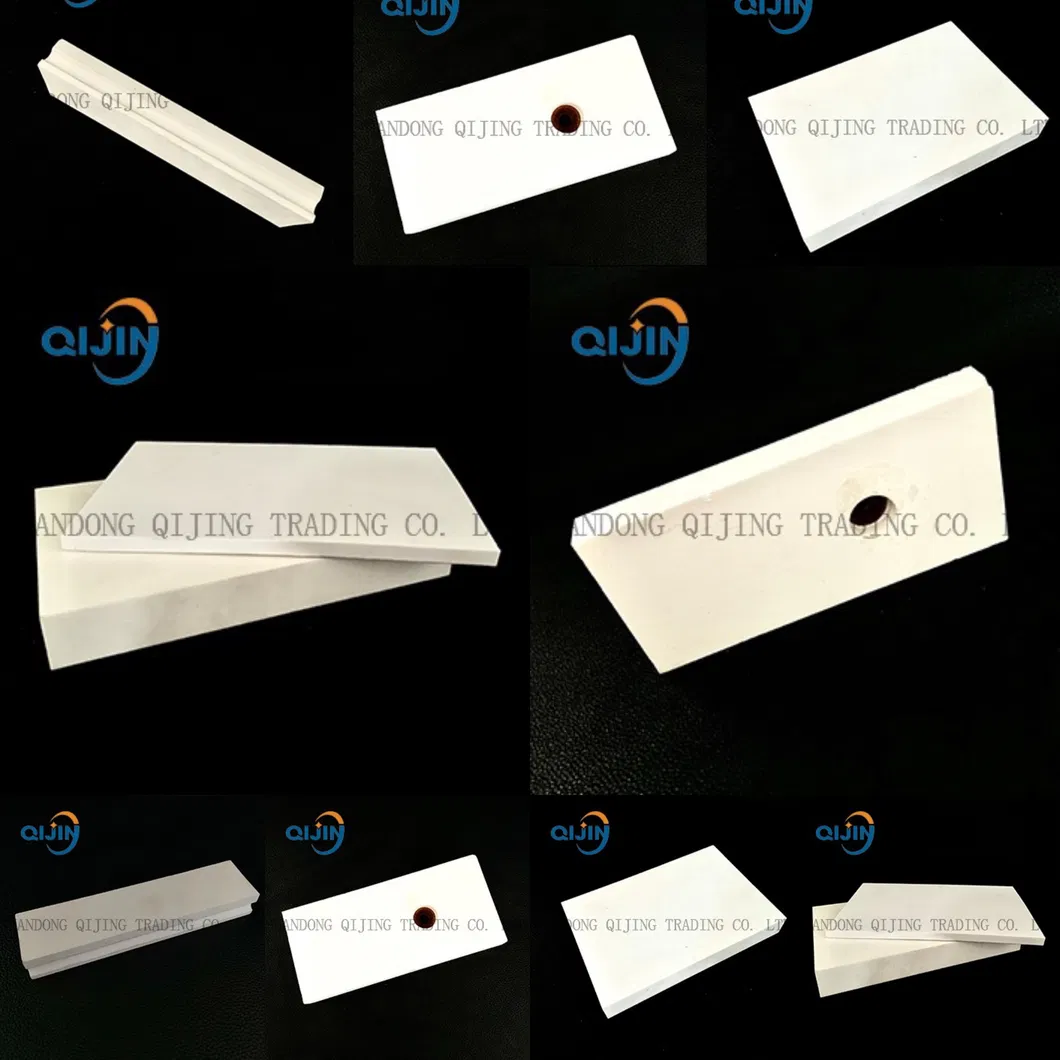

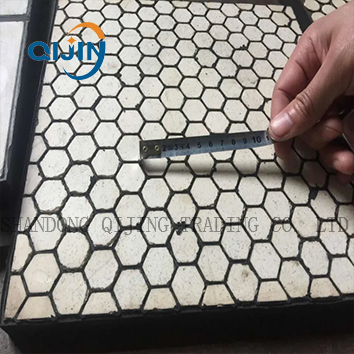

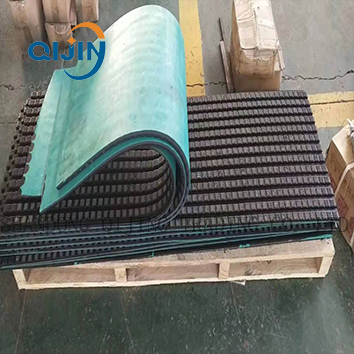

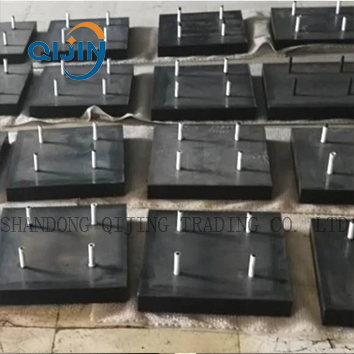

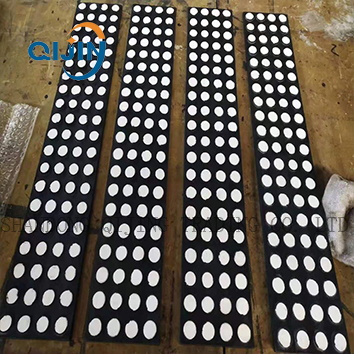

Product Display

⚙

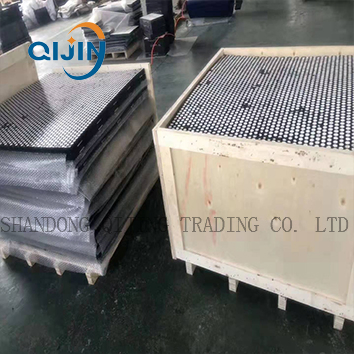

Transport & Installation

Handle with Care: High hardness but should be put gently to avoid serious collision with metal instruments.
Directivity: Bending pipes must be installed following the direction indicated by the arrow.
Alignment: Align with the center line; displacement should be controlled within 1.0mm.
Thermal Expansion: Expansion clearance can be reduced by 3-5mm as thermal expansion is 1/3 of steel.
Welding: Possible via 45°-60° "V" type slope Angle with 0.8-1.2mm gap.

?
