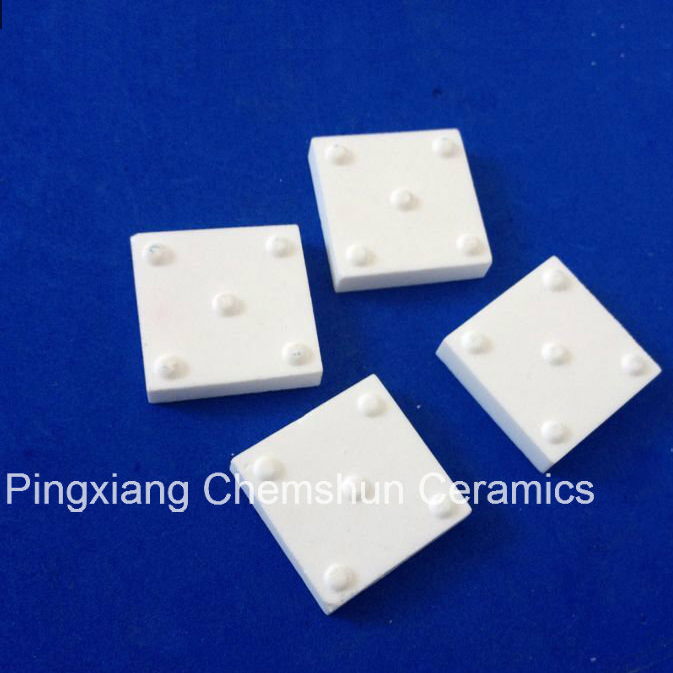

Alumina Oxide Ceramic Pulley Lagging Tile Lining (20*30*9+1 mm)

1 / 5

Alumina Oxide Ceramic Pulley Lagging Tile Lining (20309+1 mm)

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

chemshun ceramics

Materials

92% Al2O3 or 95% Al2O3

Density

>=3.60g/cm3

Appearance

Bumps, Dimples, Water Polished, Smooth

Use

Wear Resistance Part

Moh's Hardness

HS Code

690220

Production Capacity

350ton/Month

Product Description

Short Description: Alumina oxide ceramic lining pieces for lagging ceramics, providing exceptional wear protection.

Detailed Description: Ceramic lining pieces with salient points are widely applied for vulcanization in rubber. The combination of fine-grain alumina ceramic linings and a specially formulated rubber compound results in a dependable ceramic rubber pulley lagging in conveying applications under extreme operating conditions. The high wear resistance of the embedded ceramic cube ensures long-term maximum traction and elimination of belt slippage.

Product Features:

High hardness with Moh's hardness 9 grade
High abrasion and chemical resistance
Special dumps designed for more wear resistance
Light weight with various sizes

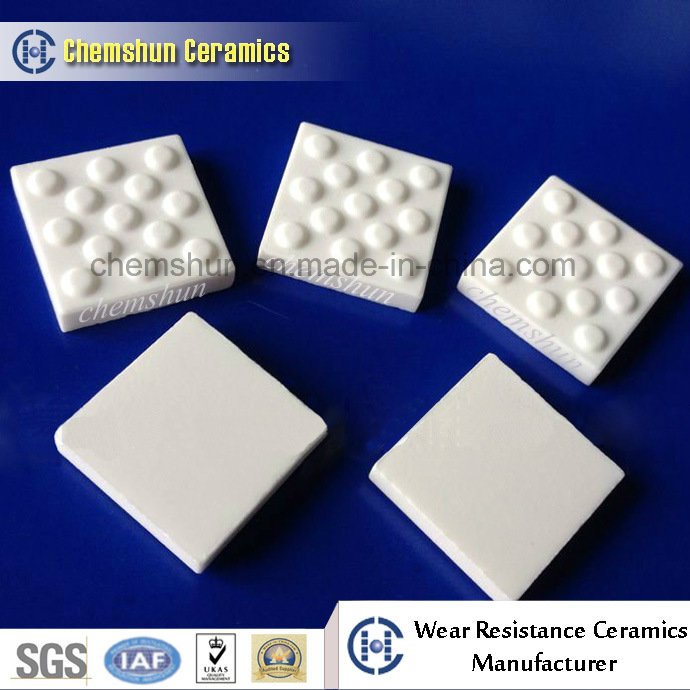

Alumina Ceramic Mosaic Tile Sizes

Product	Length(mm)	Width(mm)	Thickness including Dimple(mm)
Ceramic Tile with 5 dimples	20±0.3	20±0.3	5/6/7/8/9/10
Ceramic Tile with 13 dimples	20±0.3	20±0.3	5/6/7/8/9/10

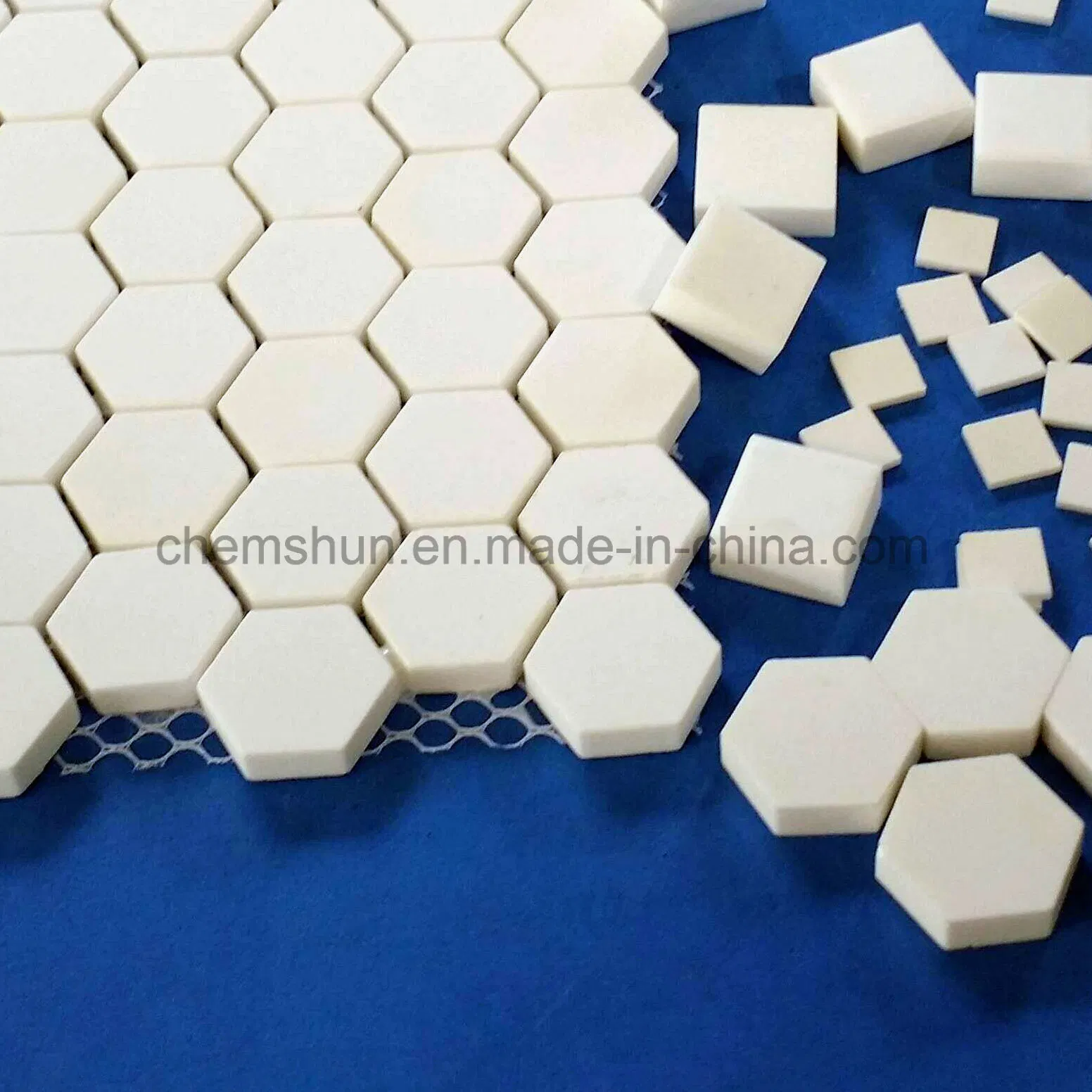

Hex.Tile	12	-	3/6/10/11/12/20/24/25

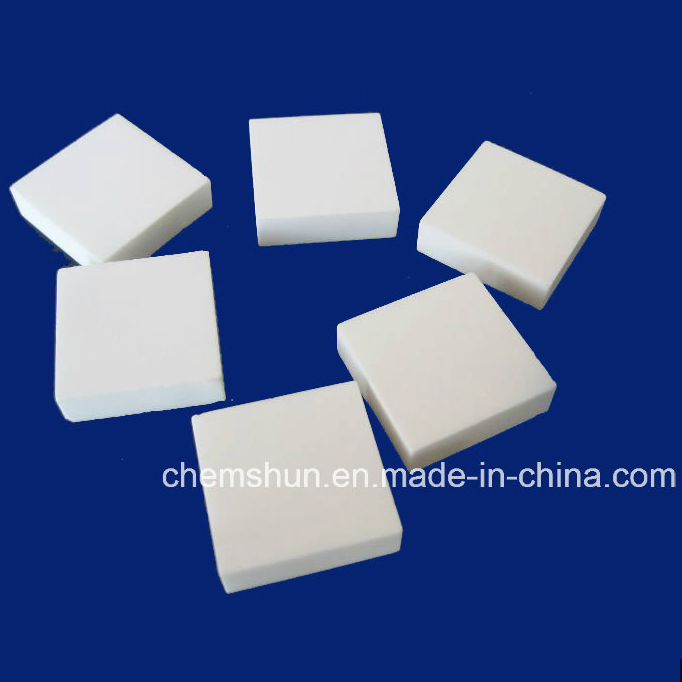

Square Tile	20	20	2~10

Technical Data

Attributes	Unit	92 Alumina	95 Alumina
Alumina Content	%	92	95
Density	g/cc	3.60	3.68
Flexural Strength	Mpa	280	300
Rock Well Hardness	HRA	80	86

Product Gallery

Frequently Asked Questions

Q1: What is the hardness of these ceramic tiles? The tiles feature a Moh's hardness of grade 9, providing excellent abrasion resistance.

Q2: What are the main applications for these ceramic linings? They are primarily used for pulley lagging, rubber ceramic sheets, and wear-resistant protection for mining and power equipment.

Q3: Do you provide samples for testing? Yes, samples are available and can be sent via international couriers like DHL, UPS, or FedEx.

Q4: What is the typical lead time for large orders? For large quantities, the delivery time is approximately 20-30 working days.

Q5: Can the ceramic tiles be customized? Yes, we offer various sizes including square, hexagonal, and tiles with different dimple patterns to meet specific industrial needs.
