📊 Basic Info.
Model NO.:chemshun ceramics
Certification:ISO, BSI, CE
Material:Alumina Ceramics
Feature:Wear Resistant
Corrosion Rate:0.001-0.01
Density:>=3.60g/cm3
Moh's:9
HS Code:690220
🛠️ Product Description

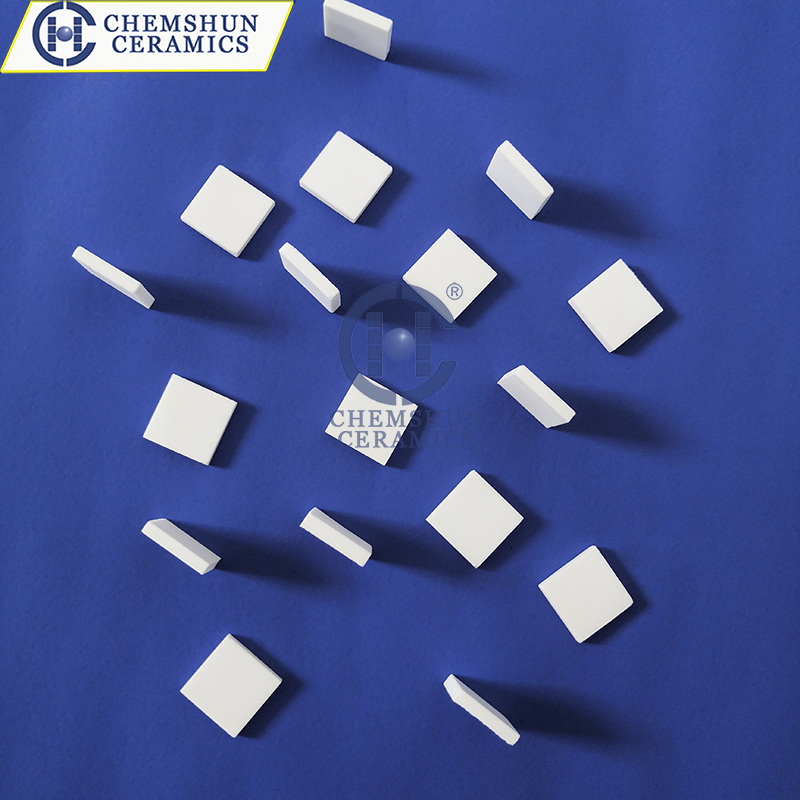

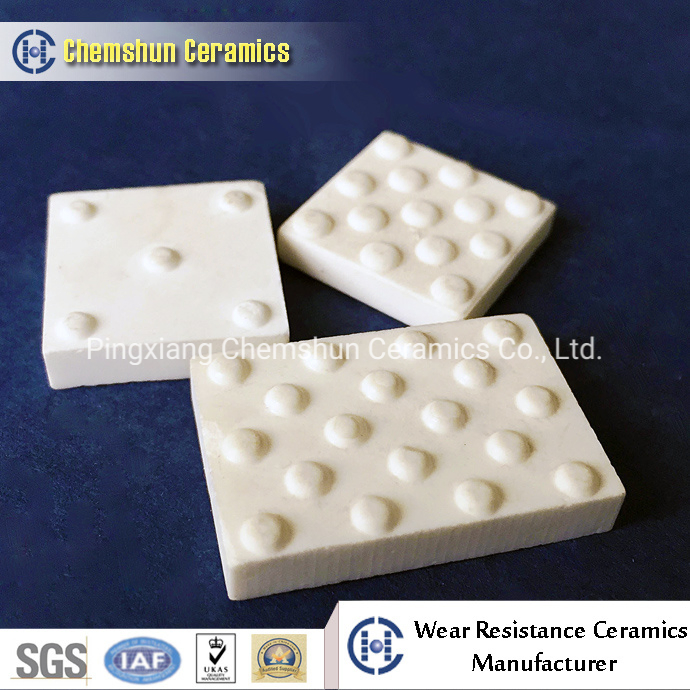

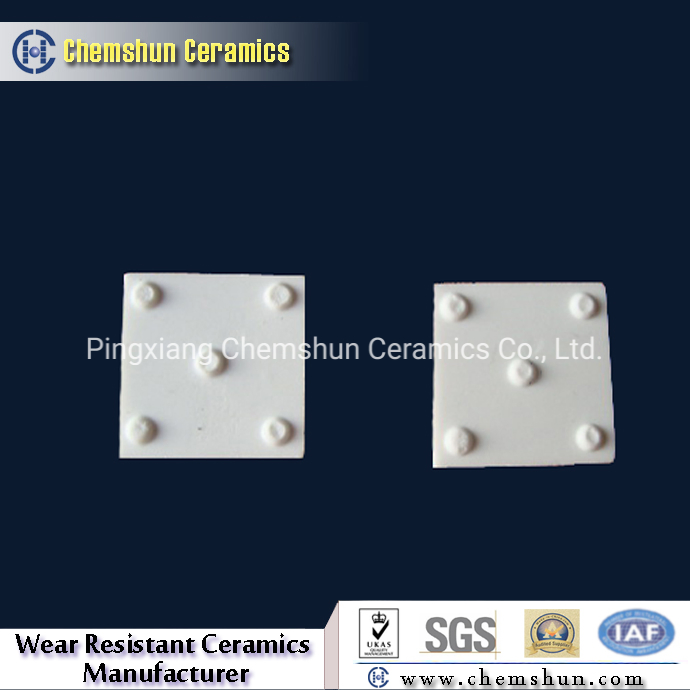

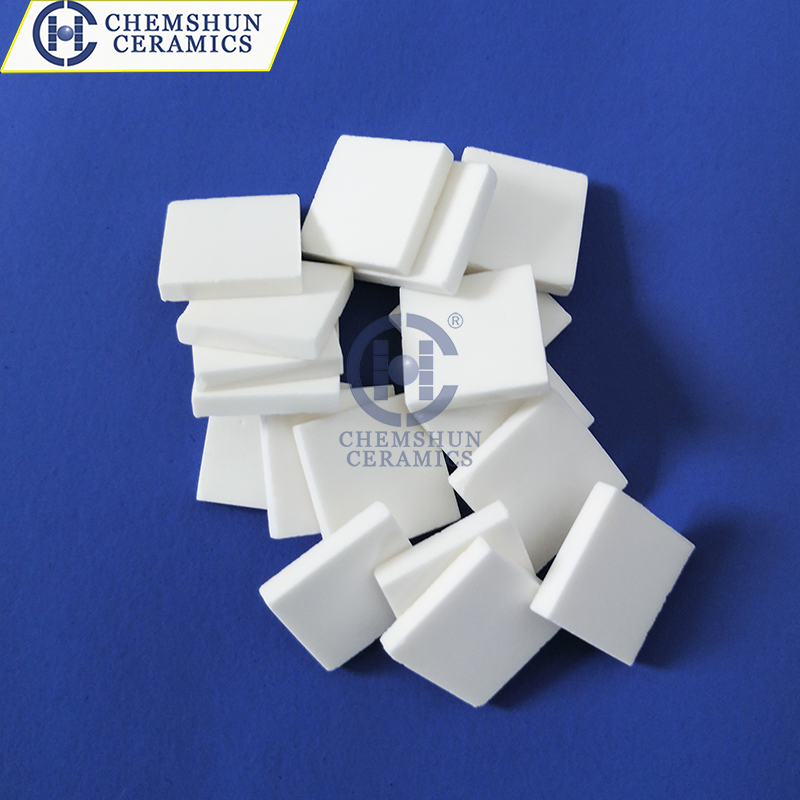

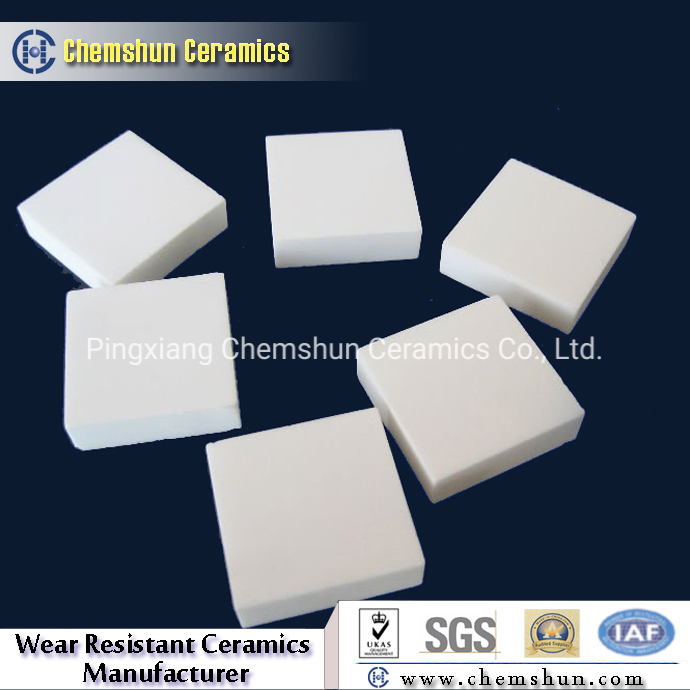

Aluminum Oxide Ceramic Tiles with Studs as Lagging Ceramics
Chemshun Ceramics manufactures kinds of ceramic lining pieces with salient point, which is widely applied for vulcanization in rubber. The combination of fine-grain alumina ceramic linings and a specially formulated rubber compound results in a dependable ceramic rubber pulley lagging in conveying applications under extreme operating conditions.
⭐ Key Features
- High hardness with Moh's hardness 9 grade
- High abrasion and chemical resistance
- Special dumps designed for more wear resistance
- Light weight with various sizes
🚀 Applications
Mining Industry (Coal, Ash, Sinter)
Cement Industries
Steel & Power Plants
Grinding systems & Mixer Application
Cyclones & Separator systems
Hopper & Chute Protection
📈 Technical Specifications
| Attributes |
Unit |
CHEMSHUN 92 |
CHEMSHUN 95 |
| Alumina Content |
% |
92 |
95 |
| Density |
g/cc |
3.60 |
3.68 |
| Flexural Strength |
Mpa |
280 |
300 |
| Rock Well Hardness |
HRA |
80 |
86 |
| Max Operation Temp |
°C |
1250 |
1250 |
📦 Packaging & Delivery
Delivery: 20-30 days working day for large quantity. Samples available via EMS, DHL, UPS, TNT, FedEx.

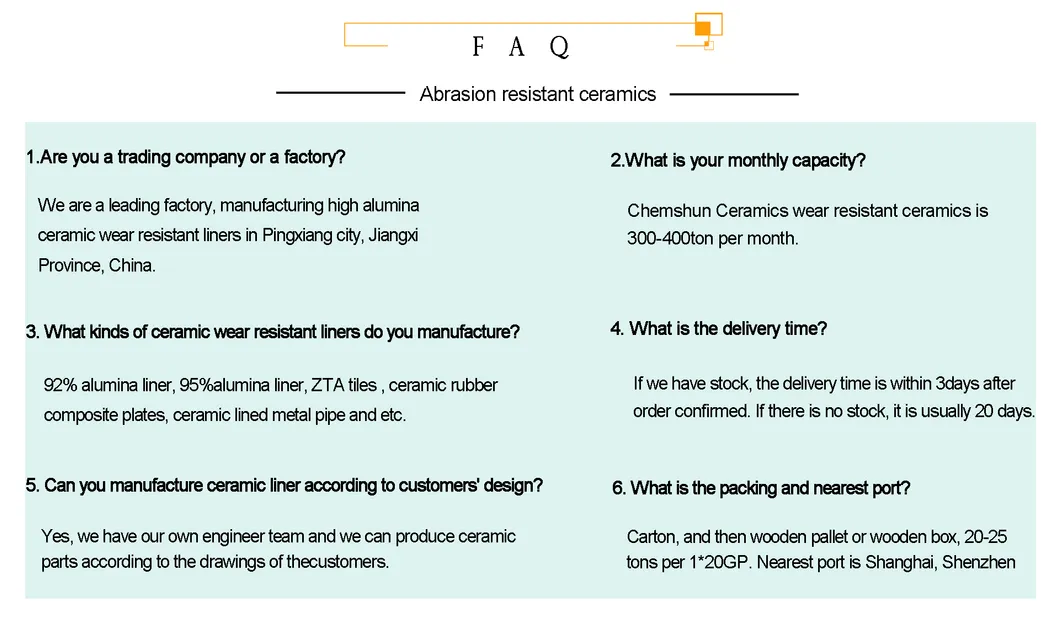

❓ FAQ
Q1: What is the Moh's hardness of these ceramic tiles?
The aluminum oxide ceramic tiles feature a Moh's hardness of grade 9, providing exceptional wear resistance.
Q2: Can these ceramics be used in high-temperature environments?
Yes, both CHEMSHUN 92 and 95 variants can withstand a maximum operation temperature of up to 1250°C.
Q3: What are the primary applications for studded ceramic tiles?
They are primarily used for pulley lagging in conveyor systems, chutes, hoppers, and pipes in the mining, steel, and cement industries.
Q4: What sizes are available?
Standard specifications include 20x20x5mm and 20x20x10mm, but custom sizes are available upon request.
Q5: How is the product packaged for export?
The tiles are typically packed in paper cartons and then secured on pallets for safe international transport.
Q6: Are samples available for testing?
Yes, samples are available and can be shipped via international couriers like DHL, UPS, or FedEx.
