Basic Specifications
Material:High Alumina Ceramic, Rubber, Steel Backing Plate
Type:Wear Resistant Ceramic
Description:500X500X8mm Cn Layer Backed Ceramic Wear Panel
Size:500X500X8/10/14/20mm, etc
Ceramic Shape:Square, Hex, Cylindrical, Bricks, etc
Al2O3 Content:92% or 95% Al2O3 Ceramic Tiles
Installation:Bonding or Bolted
Capacity:10000 PCS/Month
Origin:Henan, China
HS Code:6909120000
Product Description

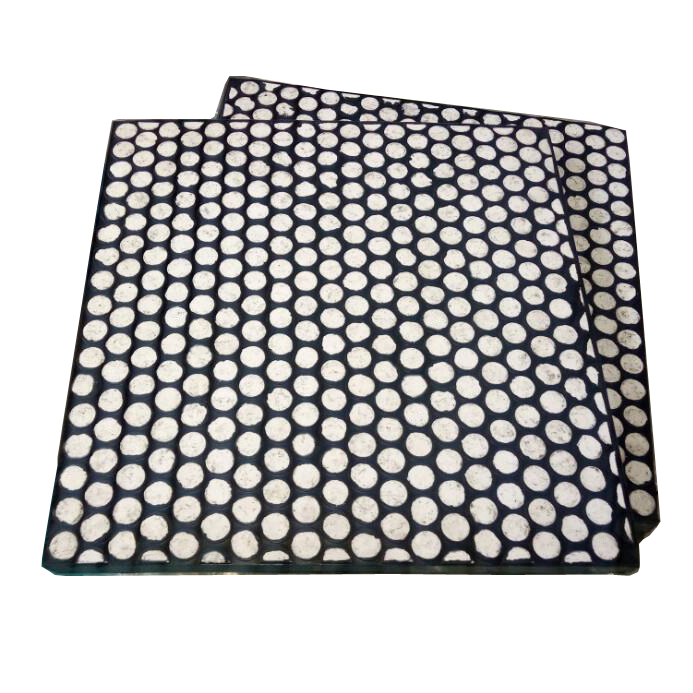

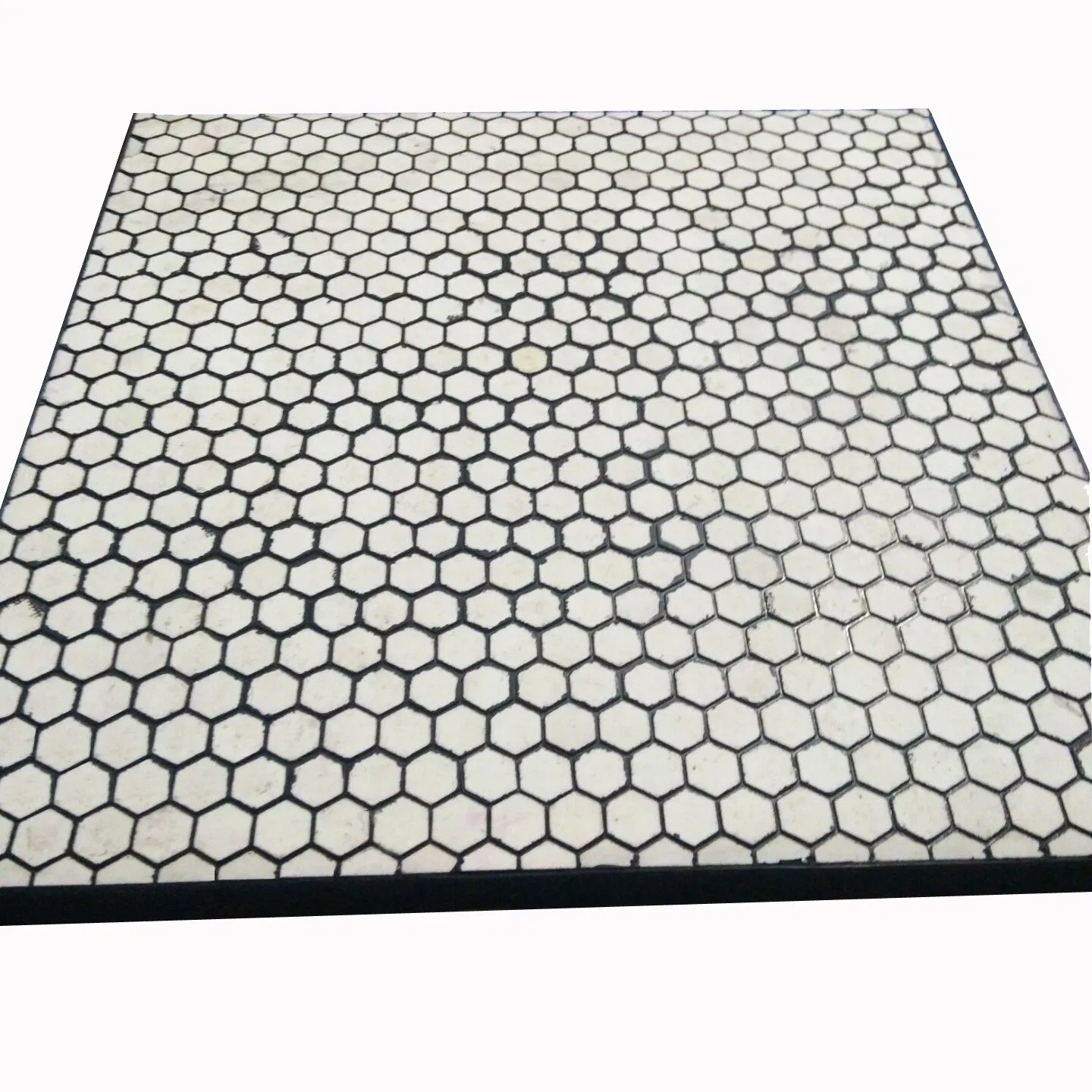

500x500x8mm CN Layer Backed Ceramic Wear Panel
Why Choose US
- Factory Direct Supply
- ISO9001 Certified Quality Management
- ISO14001 Environmental Management System
- ISO45001 Occupational Health and Safety
- Proven Quality & High Wear Performance

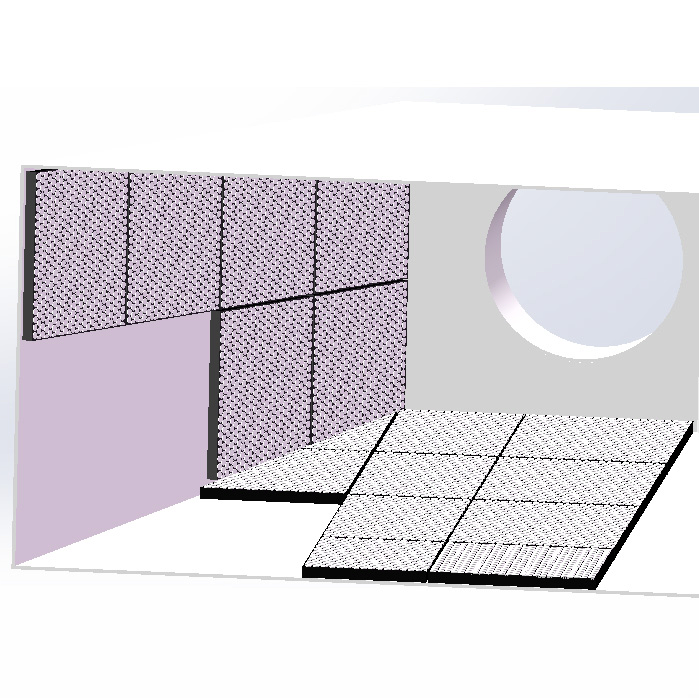

We produce ceramic wear panels of different sizes and configurations to suit different applications. Ceramic wear panels can be produced with CN bonding layer or with studs and steel plate.
Rubber Ceramic Wear Panel Features
- 92% or 95% high alumina ceramic tiles to deliver excellent wear resistance.
- Soft rubber layer to help absorb impact energy.
- CN bonding layer or steel plates with studs for easy installation.
- Custom ceramic wear panels as per requirements.

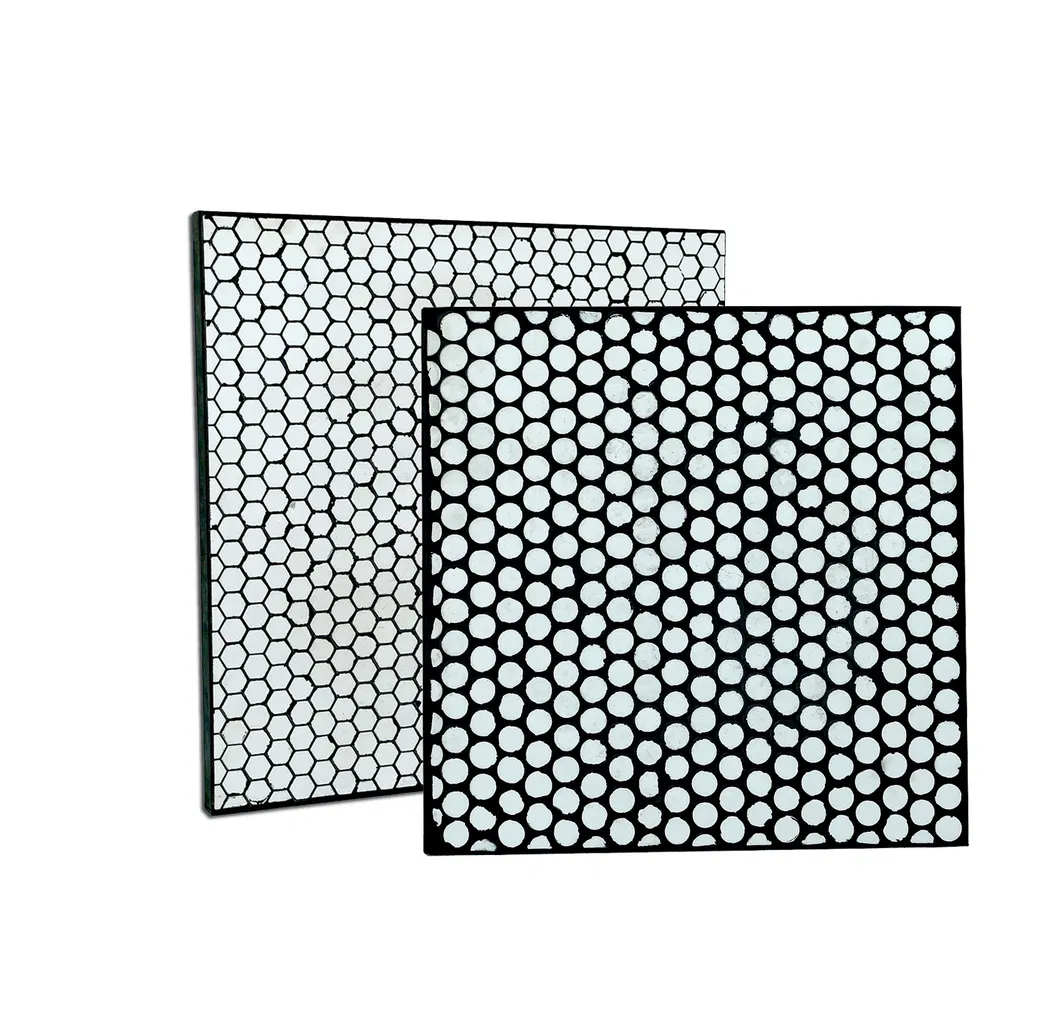

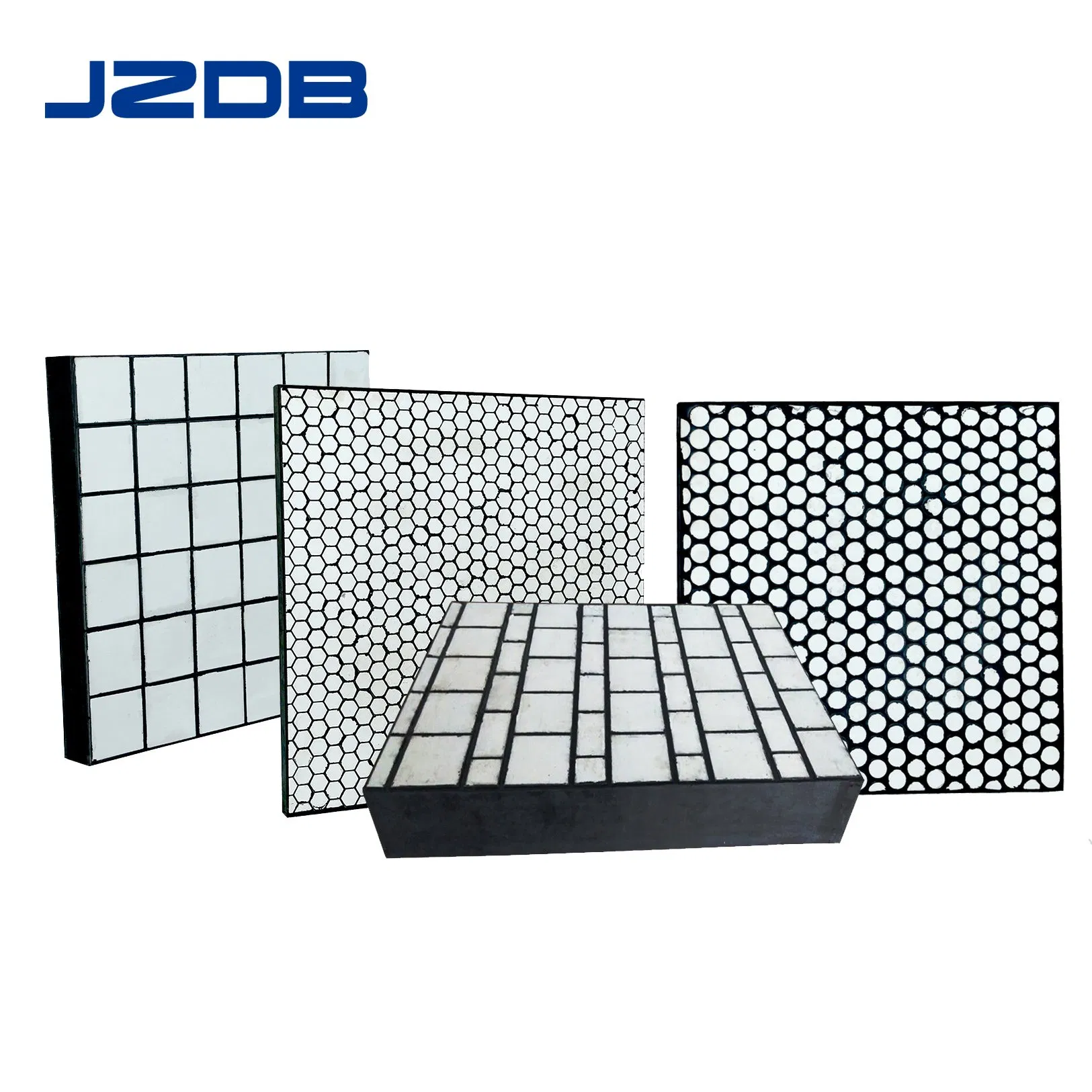

Ceramic Options & Shapes

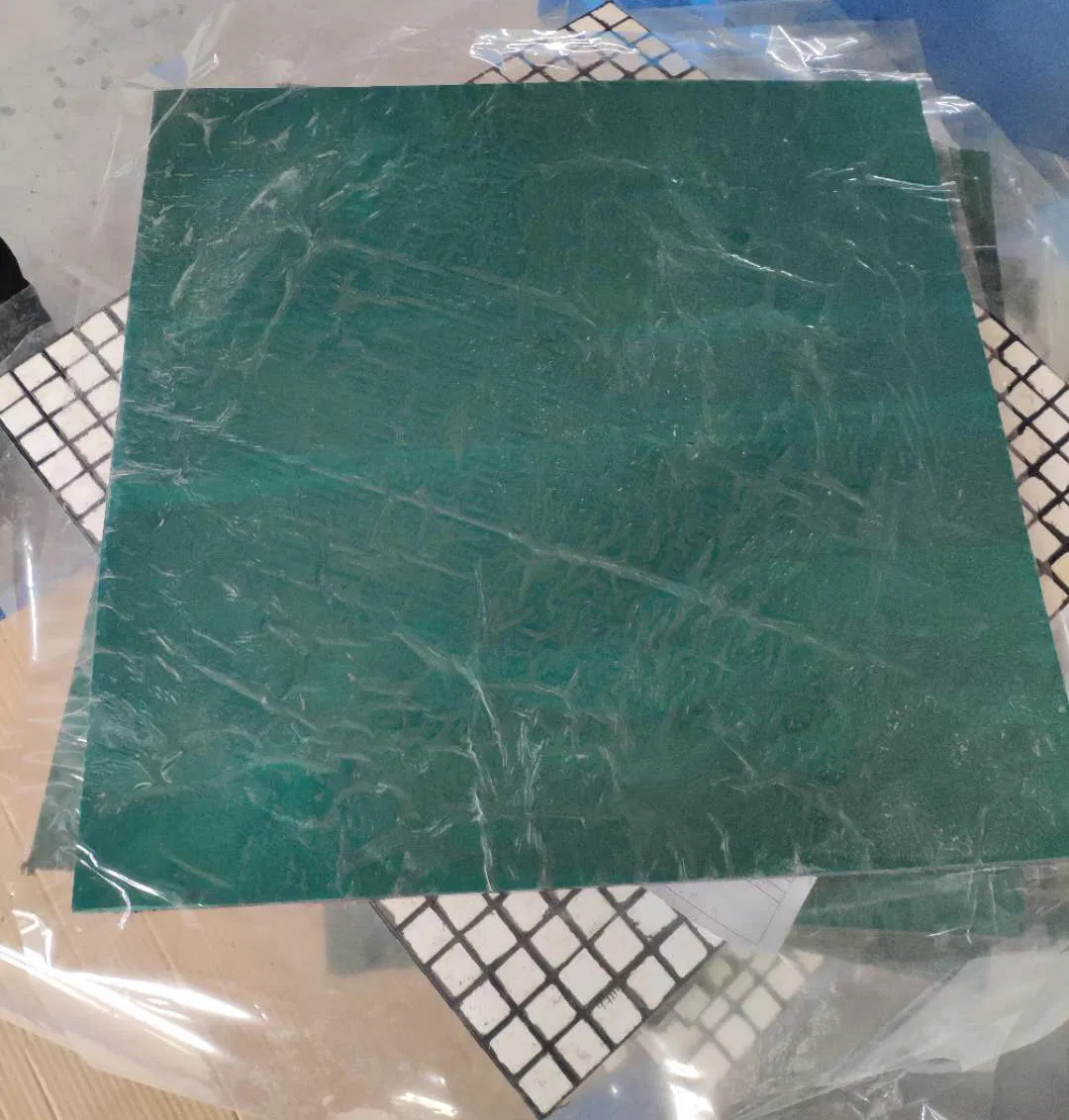

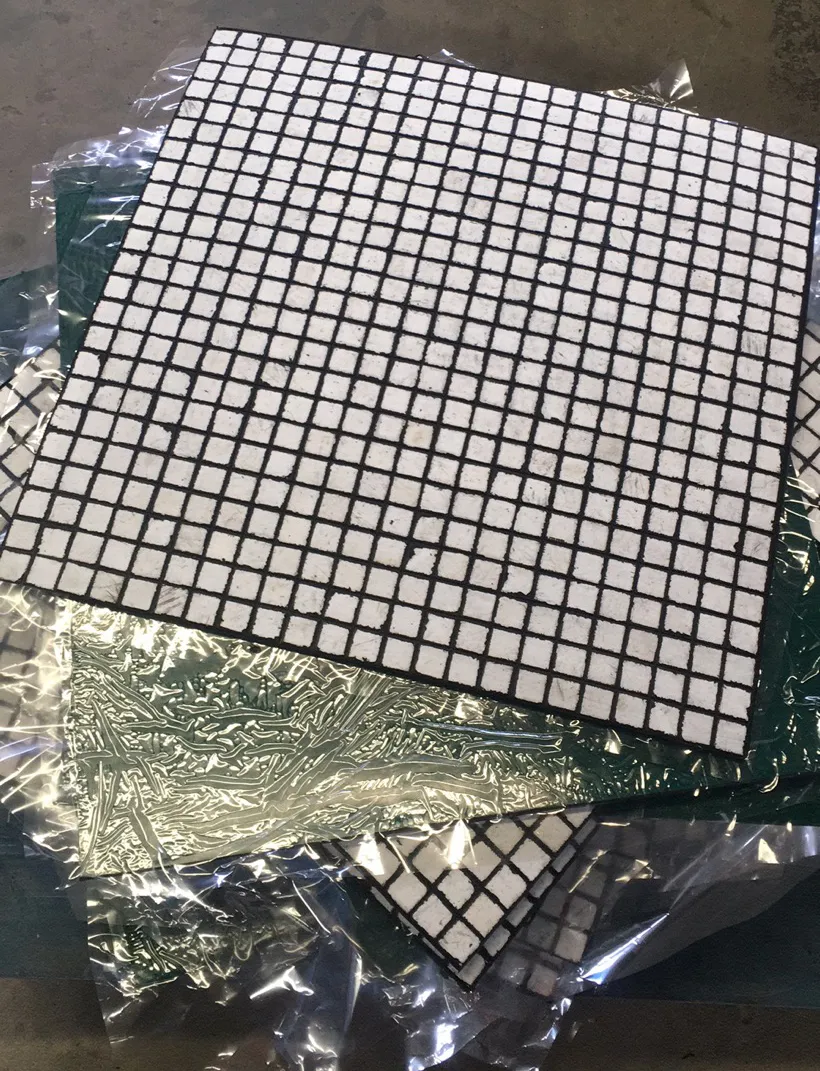

High alumina ceramic wear panels with CN bonding layer:
Alumina ceramic tiles: 92% or 95% Al2O3

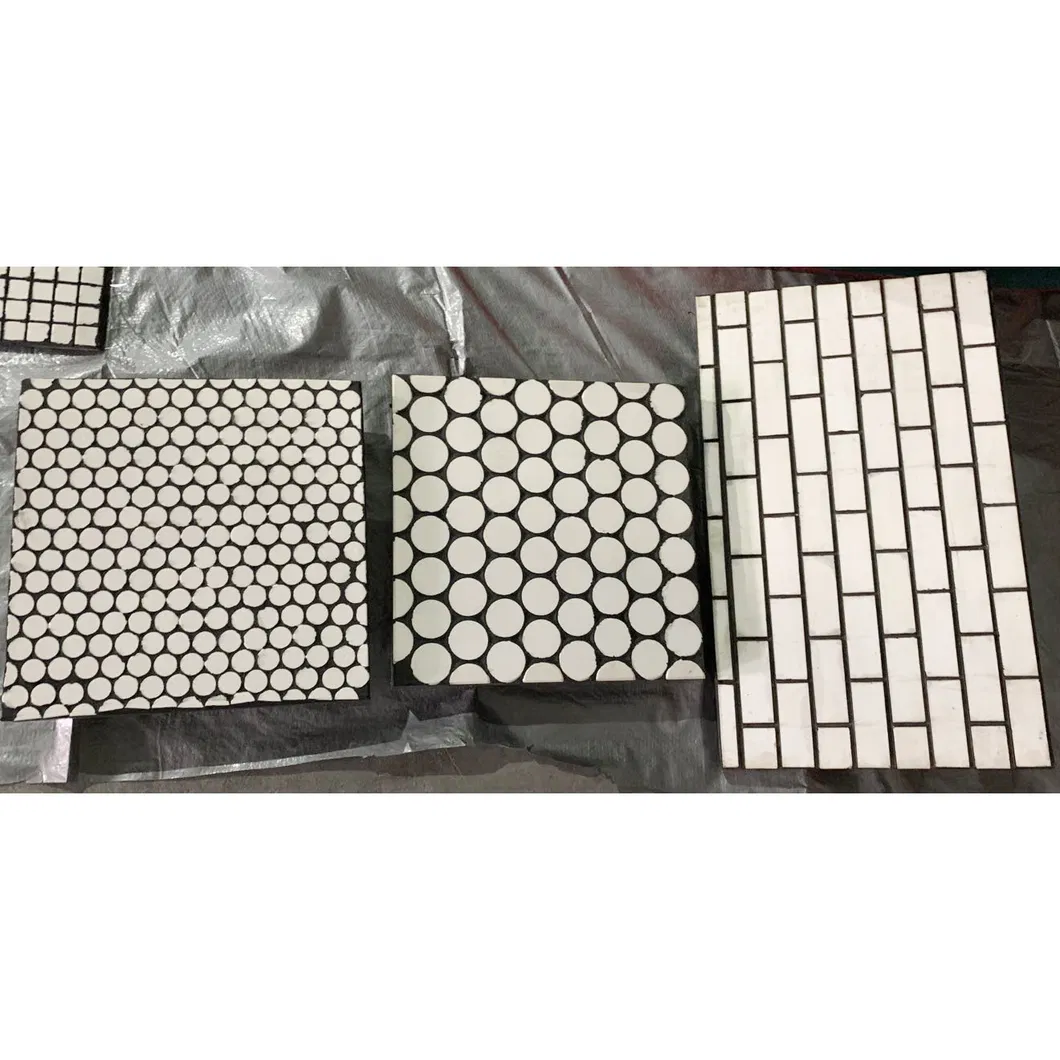

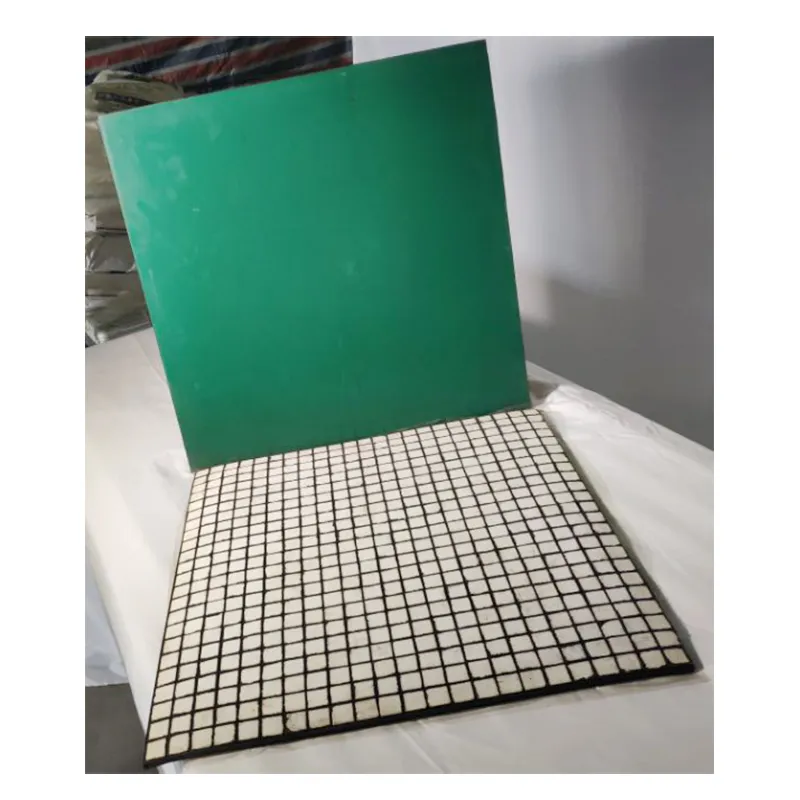

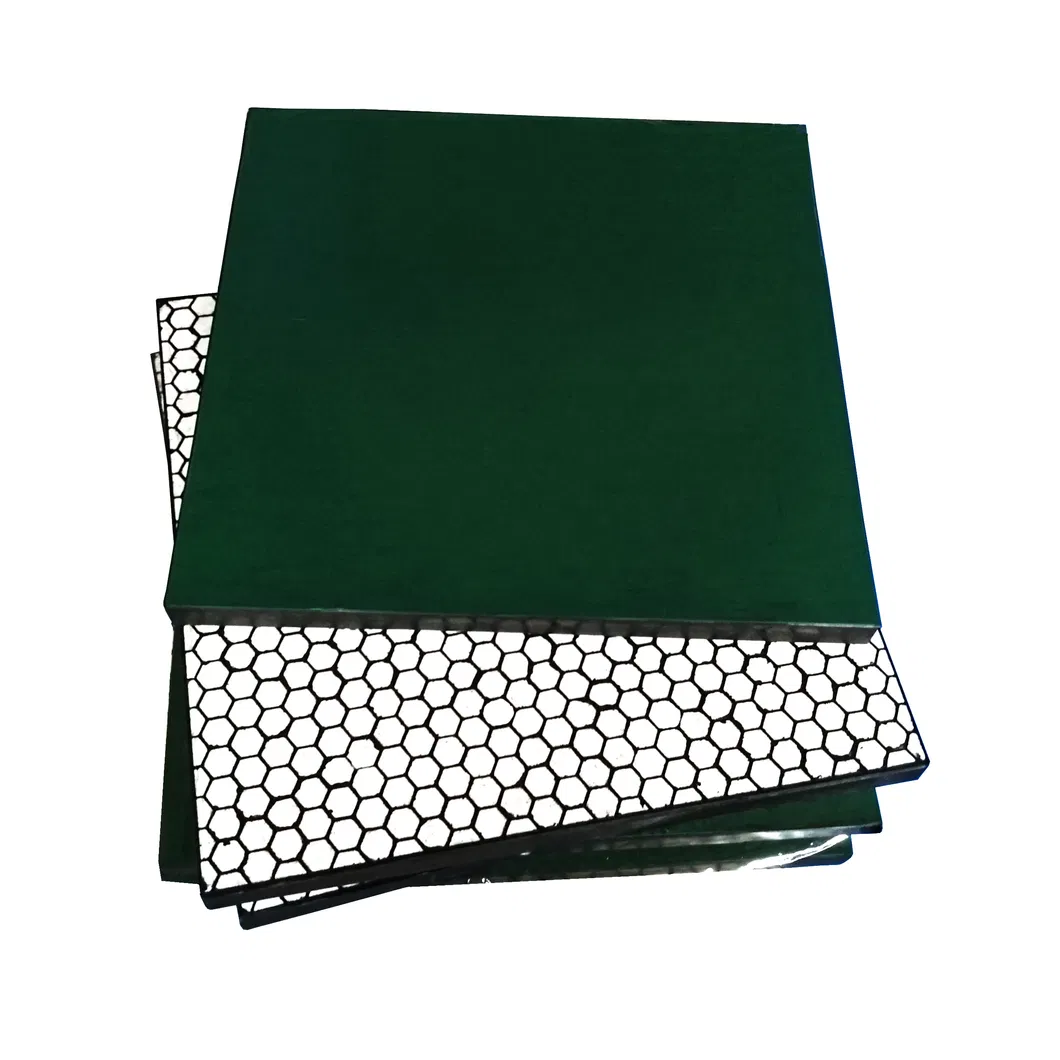

Shapes: ceramic bricks, cylindrical ceramic tiles, hexagonal or square ceramic tiles.
Available sizes: 500x500x6, 500x500x8, 500x500x15, 500x500x20, 500x500x25, 500x500x30, etc.
Professional Services
- Expert advice on selection of rubber ceramic lining.

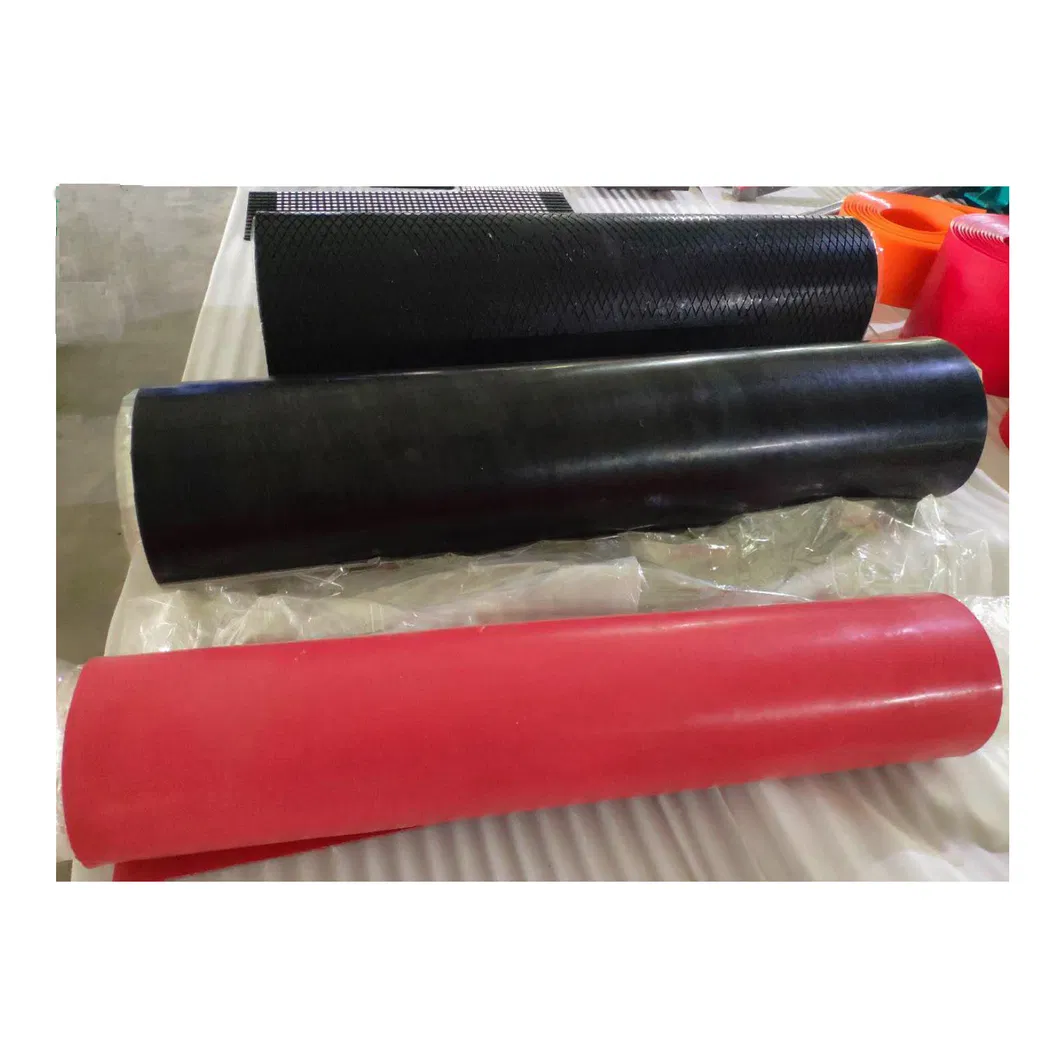

- Complete wear products: rubber ceramic lining, soft natural rubber lining, polyurethane lining.
- High bonding strength between ceramic and rubber to prevent detachment.
- Fully customized rubber ceramic lining products.
| Types |
Design & produce upon customers' request and usage |
| Payment Terms |
L/C, T/T |
| MOQ |
Small order or trail order is acceptable |
Frequently Asked Questions (FAQ)
Q1: What are the main materials used in your ceramic wear panels?
A: Our panels are composed of high alumina ceramic (92% or 95% Al2O3), premium natural rubber, and can include steel backing plates depending on the application.
Q2: What ceramic shapes are available for the liners?
A: We offer a variety of shapes including square tiles, hexagonal tiles, cylindrical ceramic tiles, and ceramic bricks to suit different wear patterns.
Q3: How are the ceramic wear panels installed?
A: Panels can be installed using a CN bonding layer for cold vulcanization/gluing or via a bolted system using steel plates with studs.
Q4: Can you provide customized sizes for specific conveyor chutes?
A: Yes, while our standard size is 500x500mm with various thicknesses, we specialize in producing custom rubber ceramic lining products tailored to your specific requirements.
Q5: How do you ensure the ceramics do not fall off the rubber backing?
A: We use a specialized vulcanization process that ensures an extremely high bonding strength between the ceramic tiles and the rubber base, preventing detachment even in high-impact environments.
Q6: What certifications do your products and factory hold?
A: Our factory is ISO9001, ISO14001, and ISO45001 certified, ensuring high-quality standards, environmental responsibility, and workplace safety.
