Basic Information
Model NO.:Chemshun Ceramics
Certification:ISO
Material:Alumina Ceramic
Feature:Wear Resistant
Alumina Content:92% Al2O3 or 95% Al2O3
Density:3.60g/cm3
Appearance:Square Tiles with Chamfer, Water Polished, Smooth
Application:Mining Industry, Power/Steel, Cement Plant
Export Markets:Global
Capacity:350ton/Month

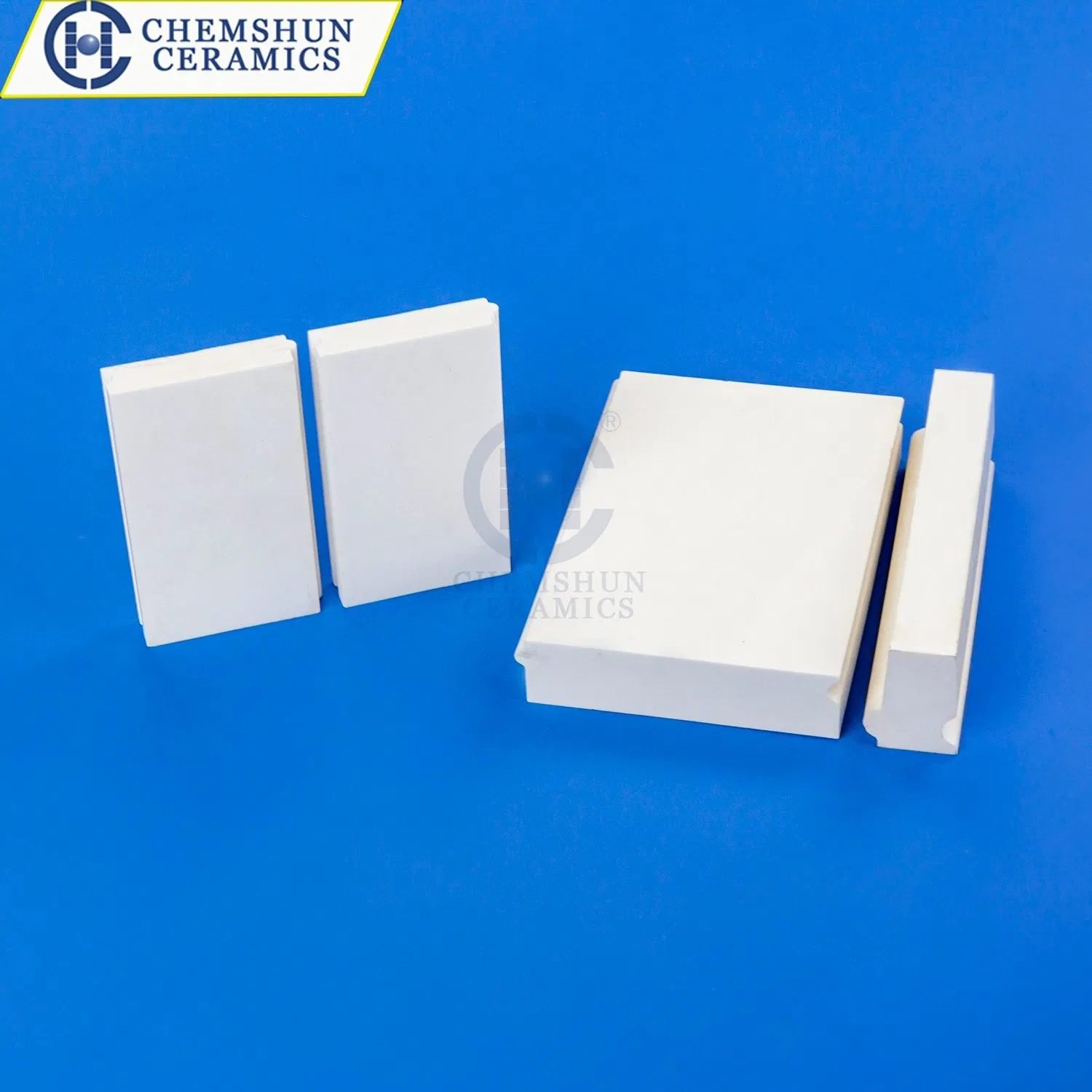

Alpha Alumina Ceramic Linings
Alpha Alumina Ceramic Linings as Wear Resistant Liner
Manufactures 92% & 95% alumina tile in a variety of standard shapes and sizes that can be installed economically and easily in different fields. We provide high-quality ceramic products designed for extreme durability.
Specializing in providing the best wear solutions as per engineering requirements to meet specific needs. Advanced techniques allow for manufacturing alumina ceramic in a variety of geometries from simple to complex shapes. Pre-engineered ceramics are offered based on application temperature, impact, and abrasion conditions.

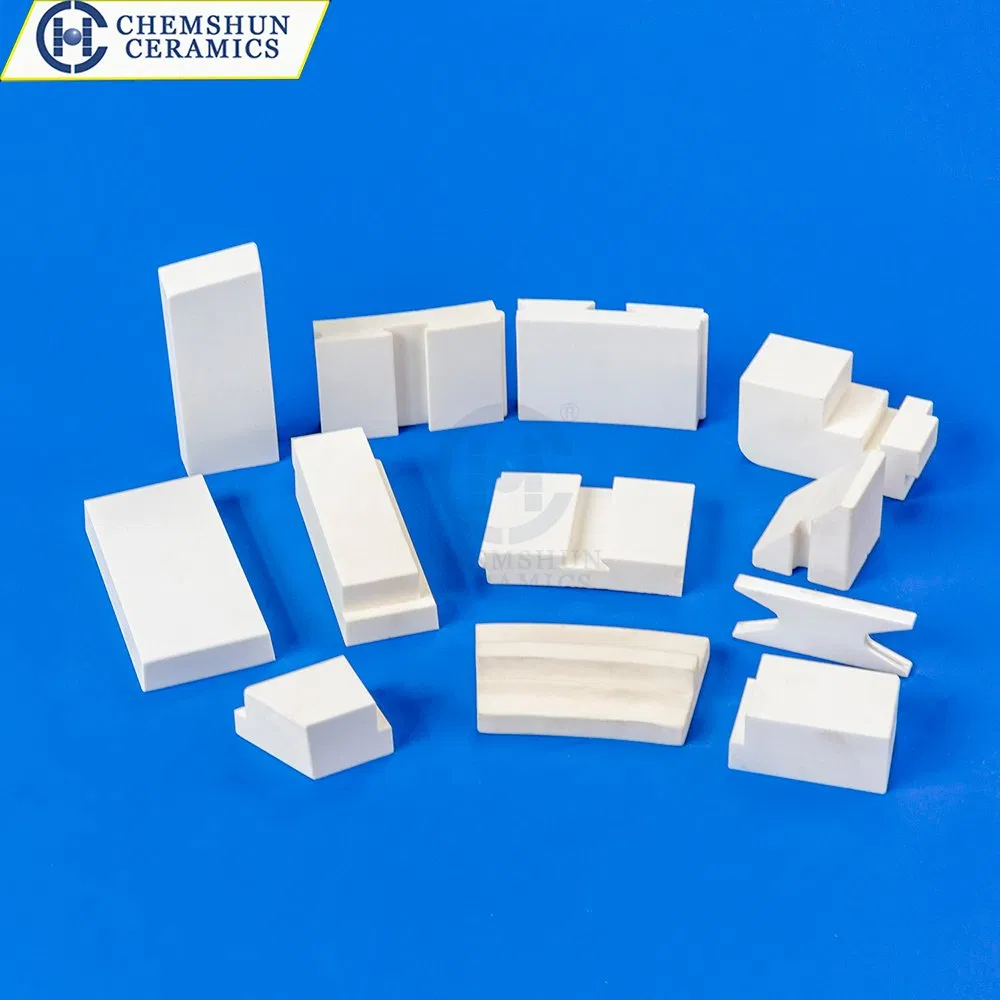

Standard Shapes and Sizes

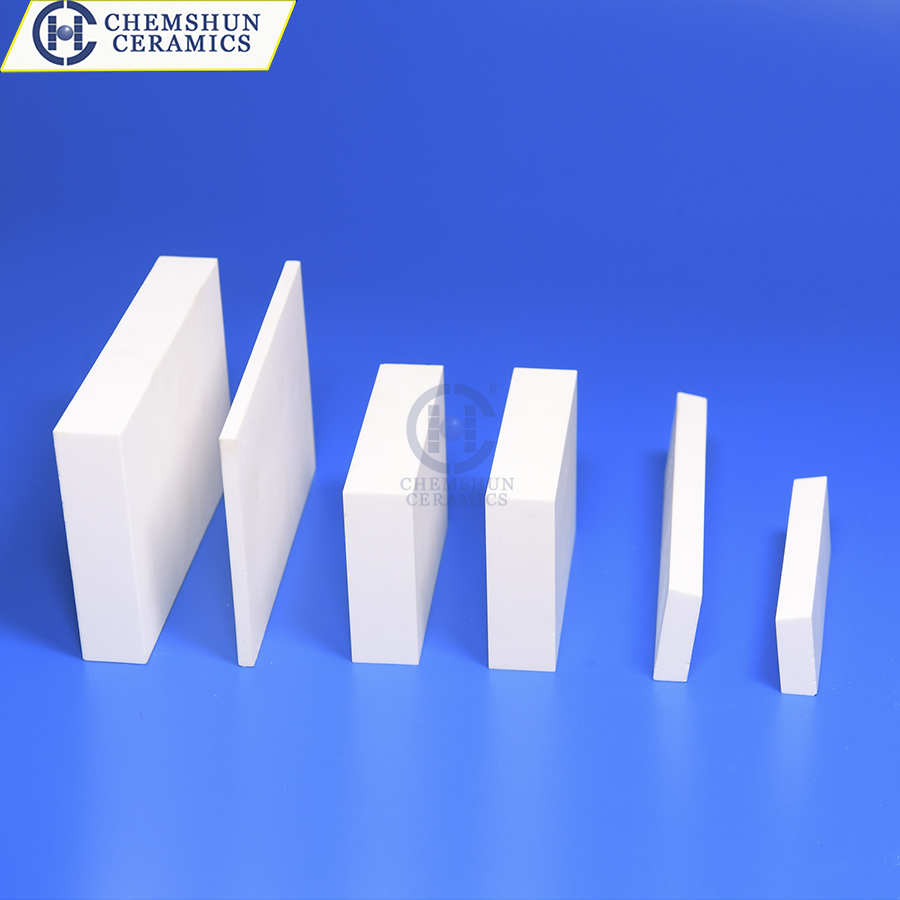

- Alumina Ceramic Plain Tiles: 150*100*6-50mm, 100*100*6-50mm, 120*80*6-50mm, 80*80*6-50mm, 50*50*6-50mm
- Weldable Tiles: Featuring center hole, ceramic plug and metal welding parts (150*100*12-50mm to 80*80*12-50mm)
- Hex Tiles: 12*3-25mm, 19*3-25mm (Available on mesh backing for concave/convex surfaces)
- Small Mosaic Tiles: 10*10*2-10mm, 17.5*17.5*3-15mm, 20*20*2-15mm, 33*33*4-25mm
- Dimple/Bump Tiles: 20*20*4-10mm (5 bumps), 20*30*5-10mm (18 bumps)
- Cylinders & Rods: 20*20mm, 21*21mm, 31*31mm, 32*31.5mm (Water polished with/without chamfer)

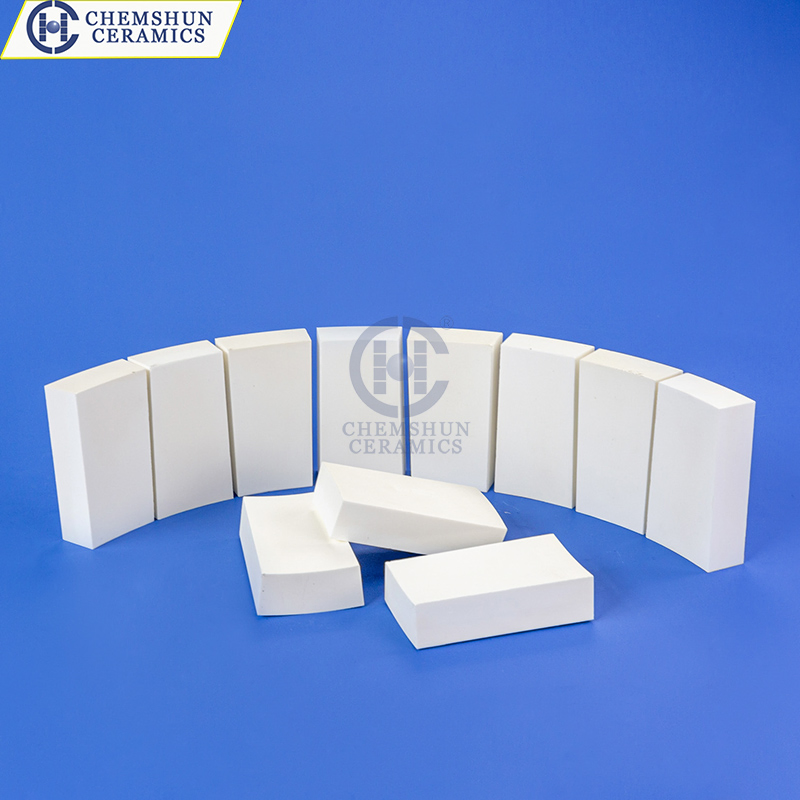

- Pipe/Trapezoid Tiles: Tapered side angles to fit various pipe sizes (150*53/49x13mm, etc.)

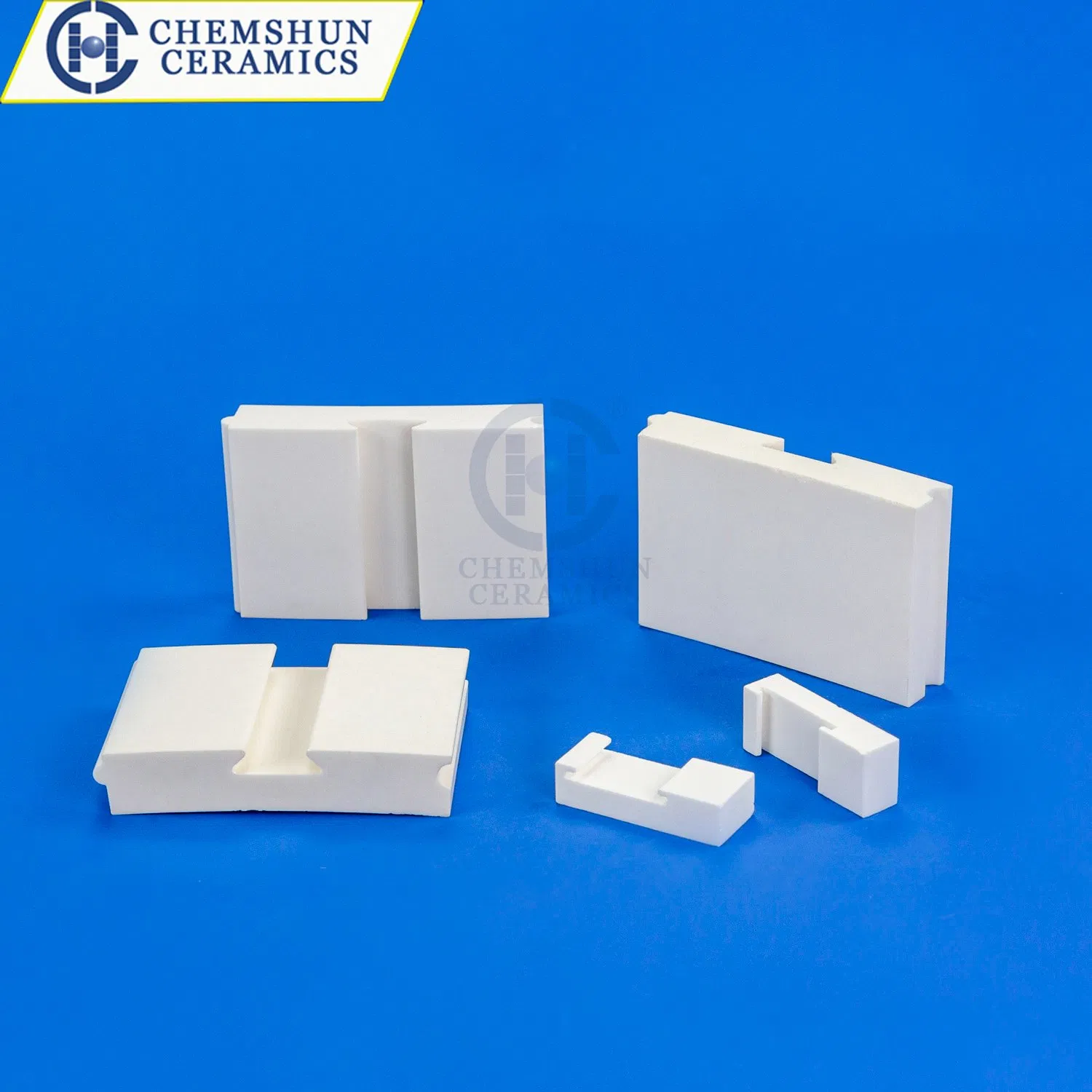

- Interlocking Tongue & Groove: 150*100*25mm, 40*40*40mm, 30*30*25mm
Technical Data Gallery
Technical Specification Table
| Item | Content |
| Alumina content | 92% |
| Density | ≥3.62g/cm3 |
| Abrasion loss | 0.014cm3/10minutes |
| Rockwell A hardness | ≥87HRA |
| Moh's hardness | 9 grade |
| Impact strength | ≥850Mpa |
| Bending strength | ≥290Mpa |
| Thermal conductivity | 20 W/m.k |
| Water Absorption | None |
| Surface | Smooth, clear, pure white |

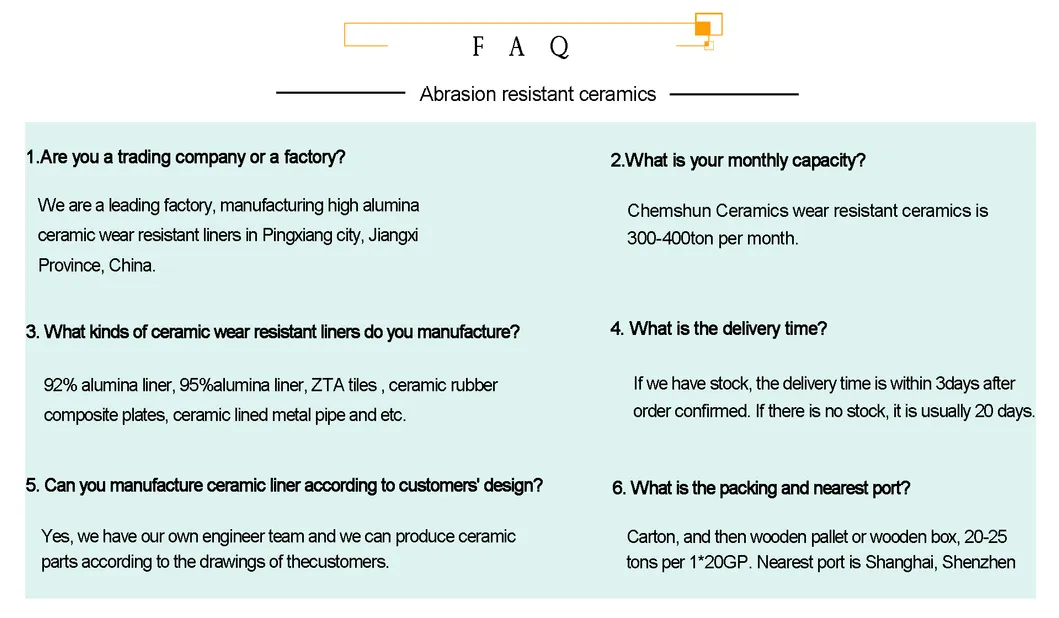

Frequently Asked Questions
Q1: What is the main material of these wear-resistant liners?
A: The liners are made of high-purity Alpha Alumina Ceramic, typically available in 92% and 95% Al2O3 content.
Q2: Can these tiles be used on curved surfaces?
A: Yes, our Alumina Ceramic Hex Tiles on mesh backing are specifically designed to fit concave or convex surfaces.
Q3: How are the weldable tiles installed?
A: Weldable tiles come with a center hole, a ceramic plug, and a metal welding part for secure mechanical attachment to equipment.
Q4: What industries benefit most from alumina ceramic linings?
A: They are widely used in the Mining, Power, Steel, and Cement industries for protecting hoppers, chutes, conveyors, and bunkers.
Q5: What is the hardness level of your 92% alumina ceramic?
A: It features a Rockwell A hardness of ≥87HRA and a Moh's hardness of 9 grade, providing excellent abrasion resistance.
Q6: Do you provide custom shapes?
A: Yes, besides standard shapes, we specialize in pre-engineered ceramics with custom geometries to meet specific technical requirements.
