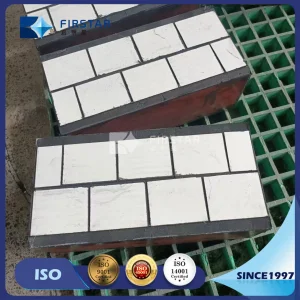

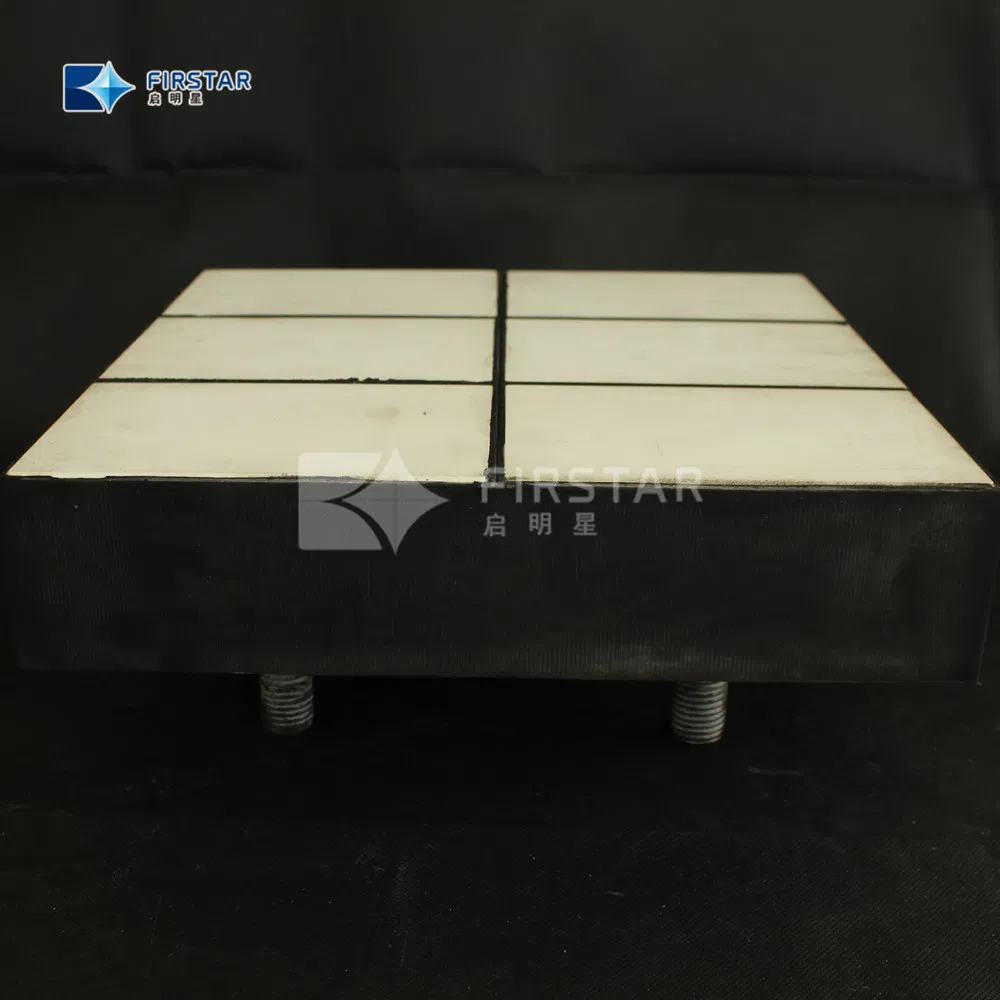

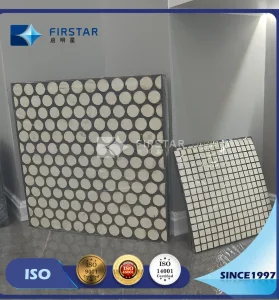

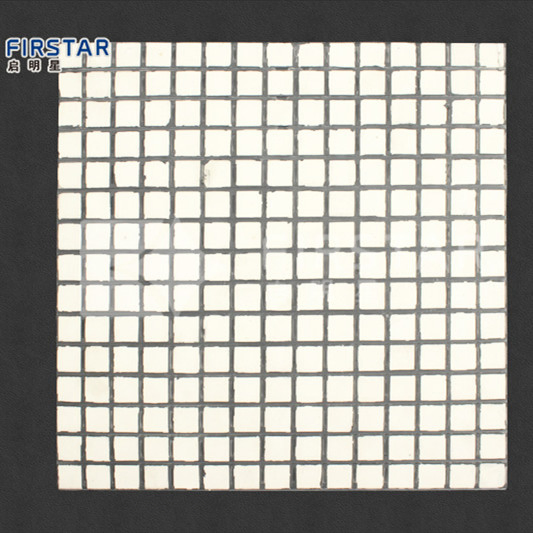

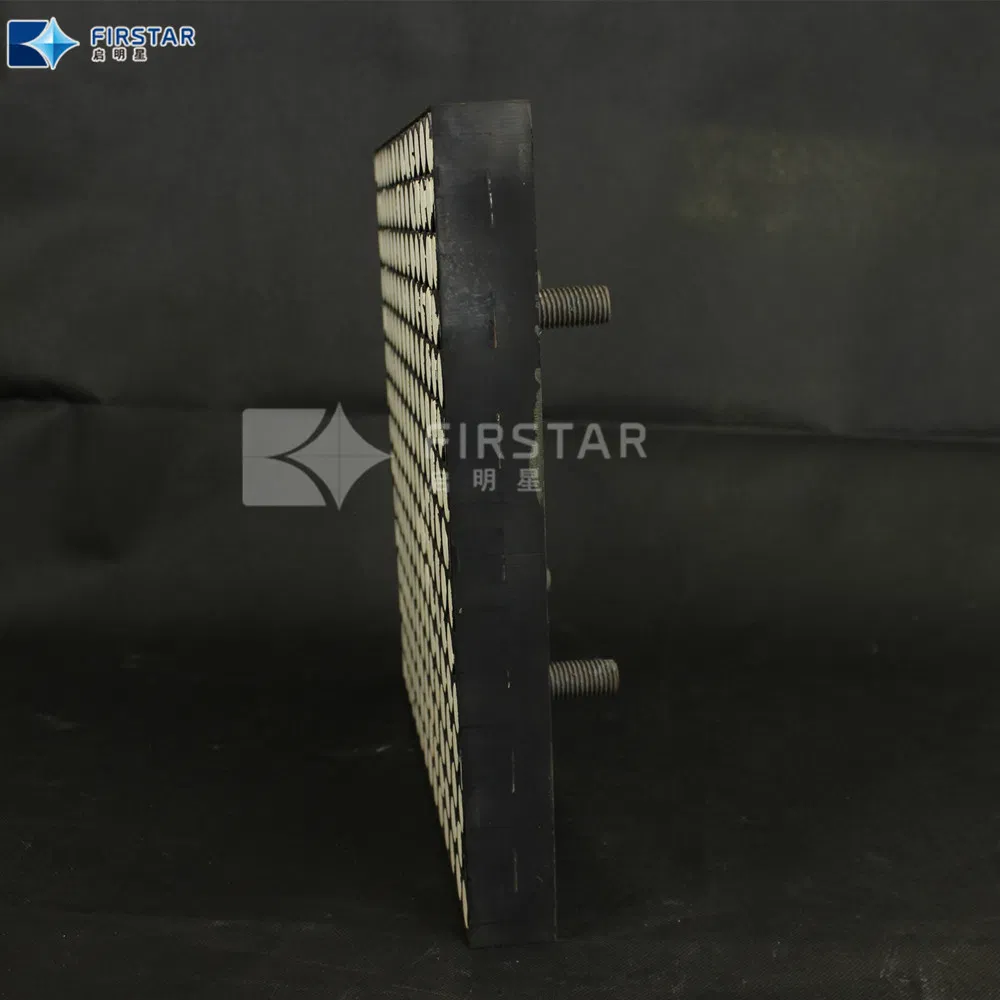

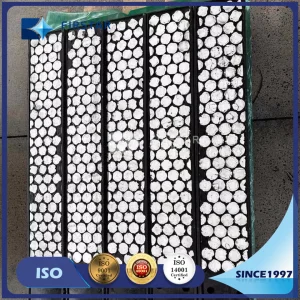

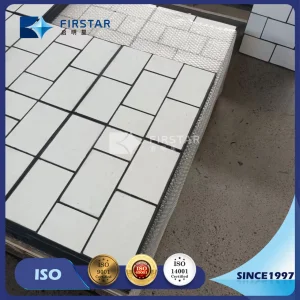

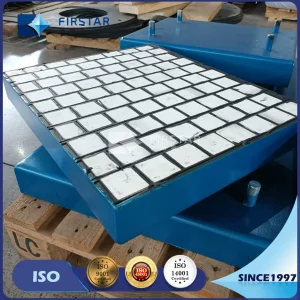

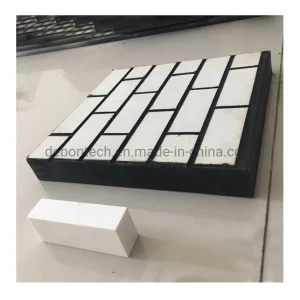

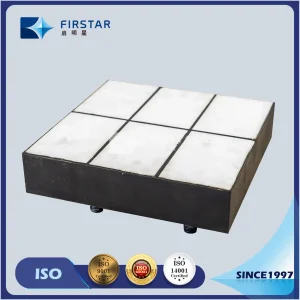

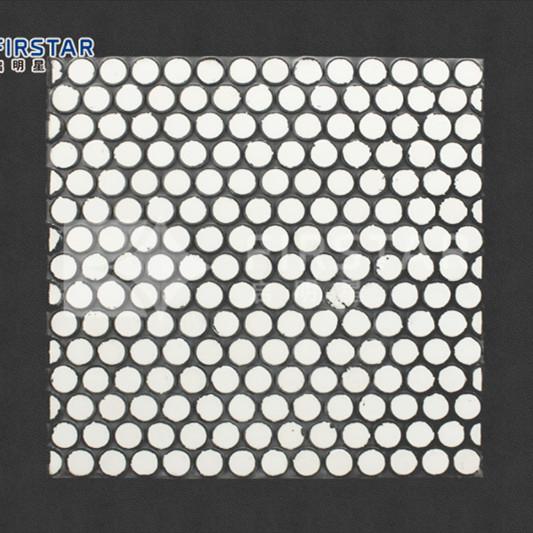

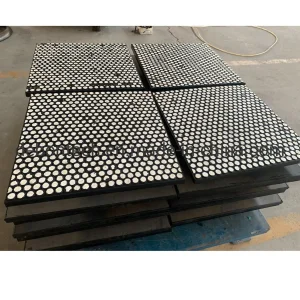

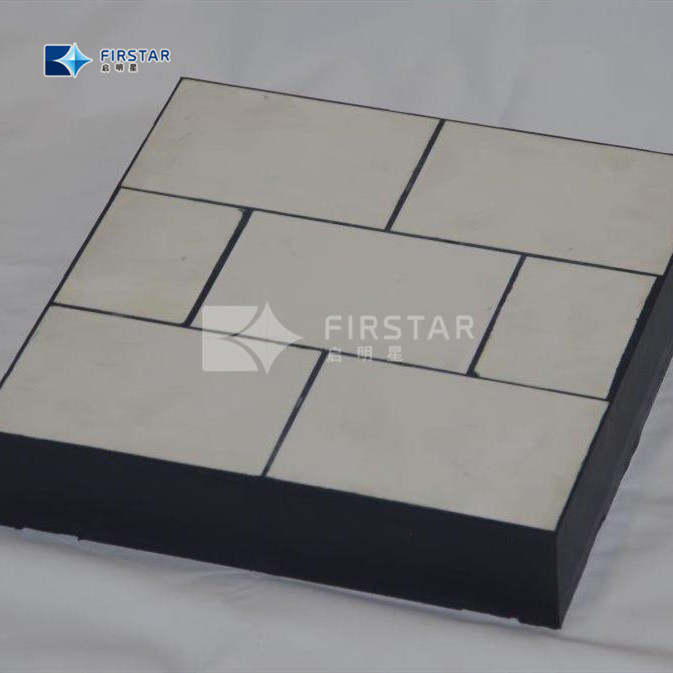

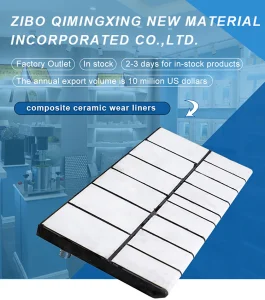

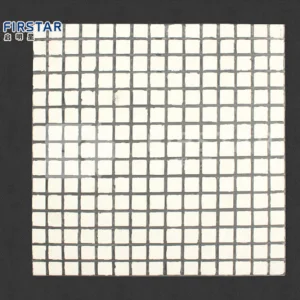

Wear Resistant Steel-Rubber-Ceramic composite Panel Vulcanized Ceramic liner Plates
In aggressive industrial applications, equipment inevitably suffers from high impact, high abrasion, mechanical attack, chemical attack, and corrosion. Composite ceramic wear liners are intended for the toughest applications. By vulcanizing large, hard ceramic bricks into a wear-resistant rubber matrix, the product combines extreme wear resistance with the impact-dampening properties of rubber.
🚀 Key Features:
| Material | Attributes | Properties |
|---|---|---|
| Ceramic Tiles | Material Grade | 92%, 95%, T95%, 96%, ZTA |
| Rubber | Component | Natural rubber, Nitrile-butadiene, Flame Retardant |
| Tensile Strength | ≥15Mpa | |
| Shore Hardness | 45-65 | |
| Temperature | -50ºC - 200ºC | |
| Steel Plate | Material | Q235A (Thickness: 5-6mm) |
| Component | Available Sizes (mm) |
|---|---|
| Whole Plate | 150x300, 300x300, 450x600, 500x500, 600x450 |
| Ceramic Tiles | Square: 10x10 to 150x100; Hexagonal: 12x3 to 19x25 |
| Thickness | Ceramic: 3-75mm; Steel: 3-10mm |
