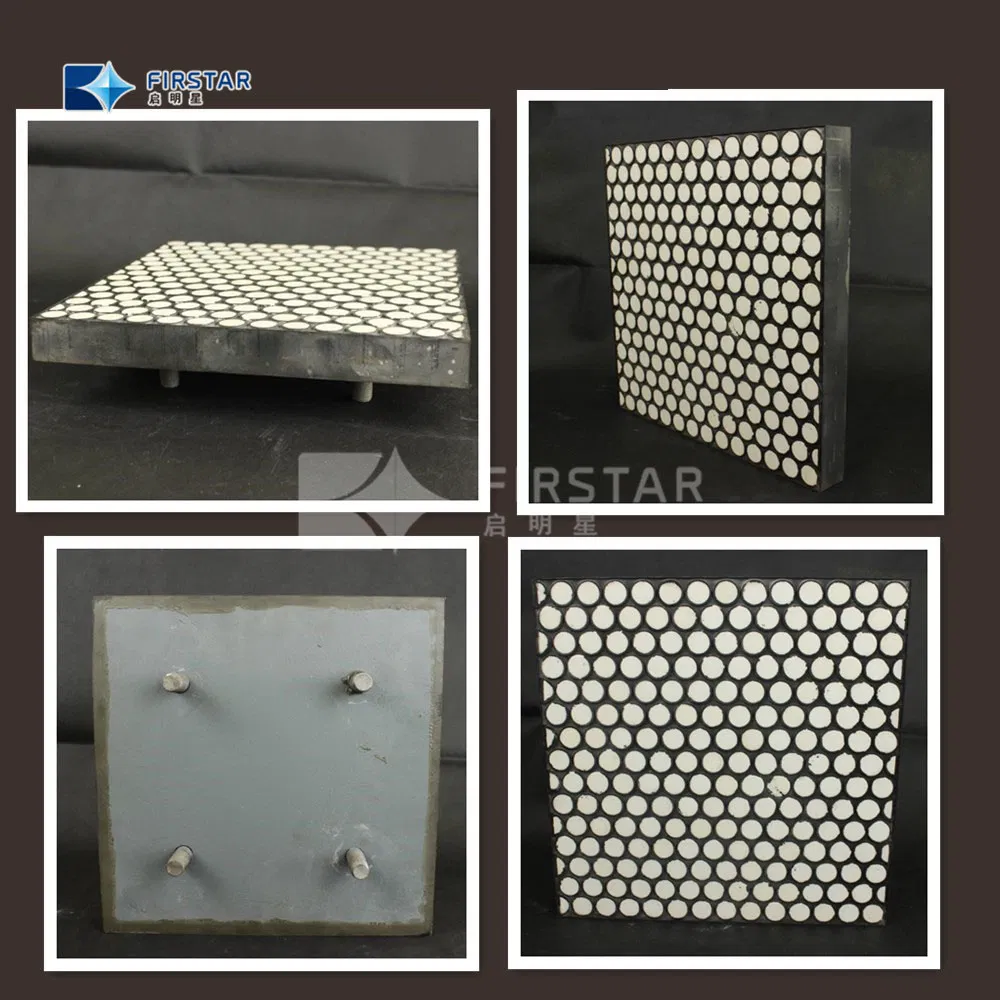

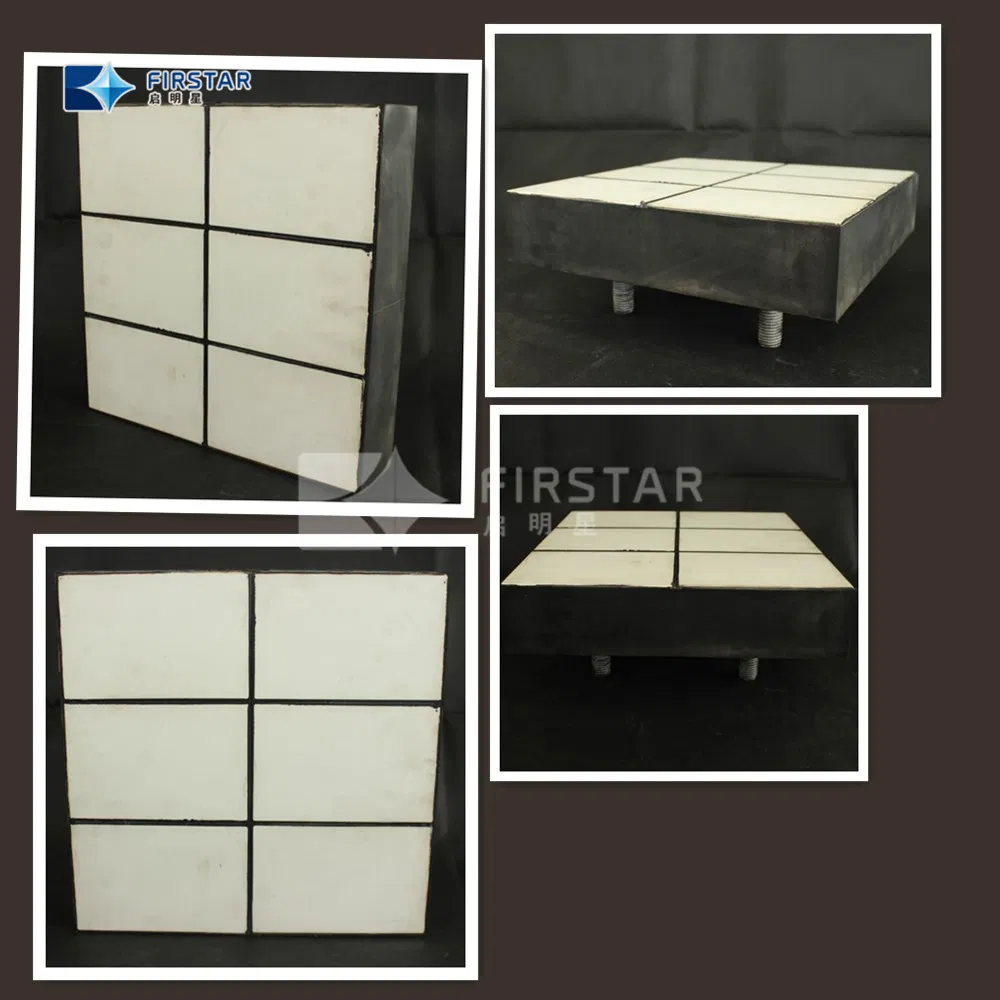

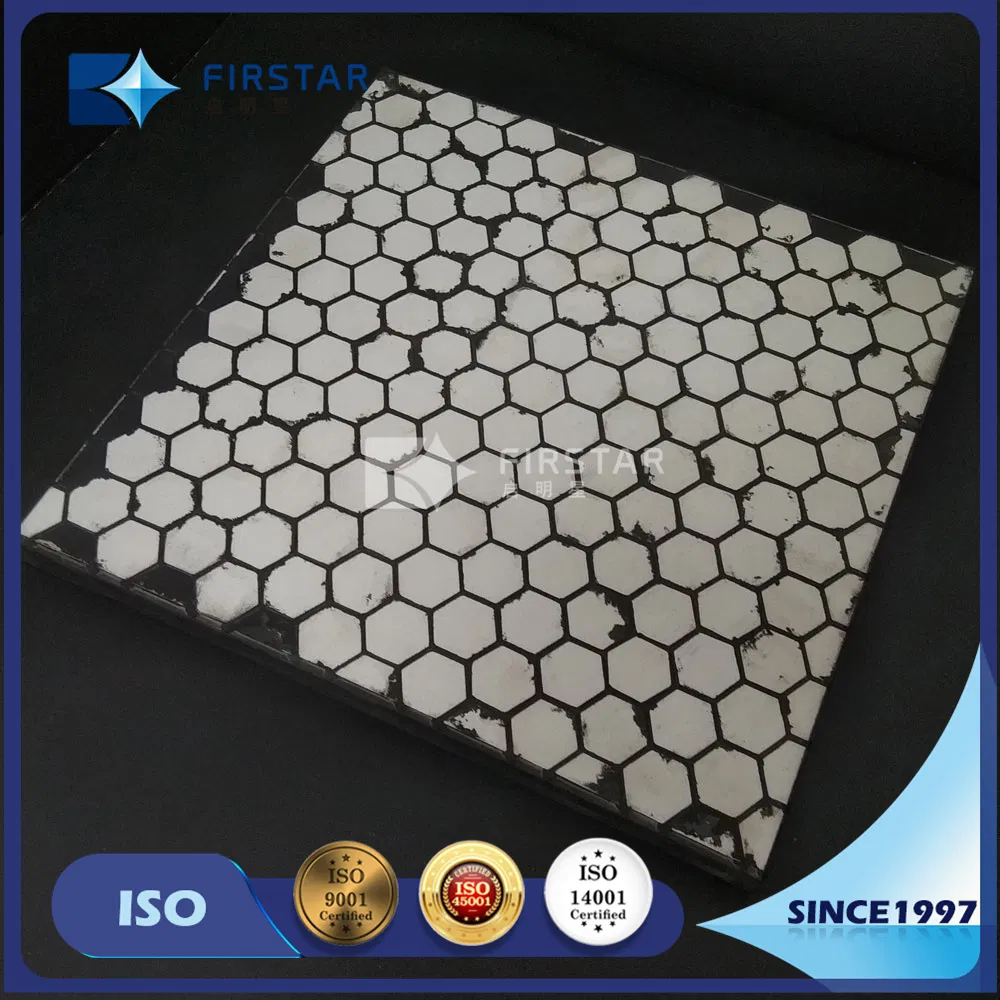

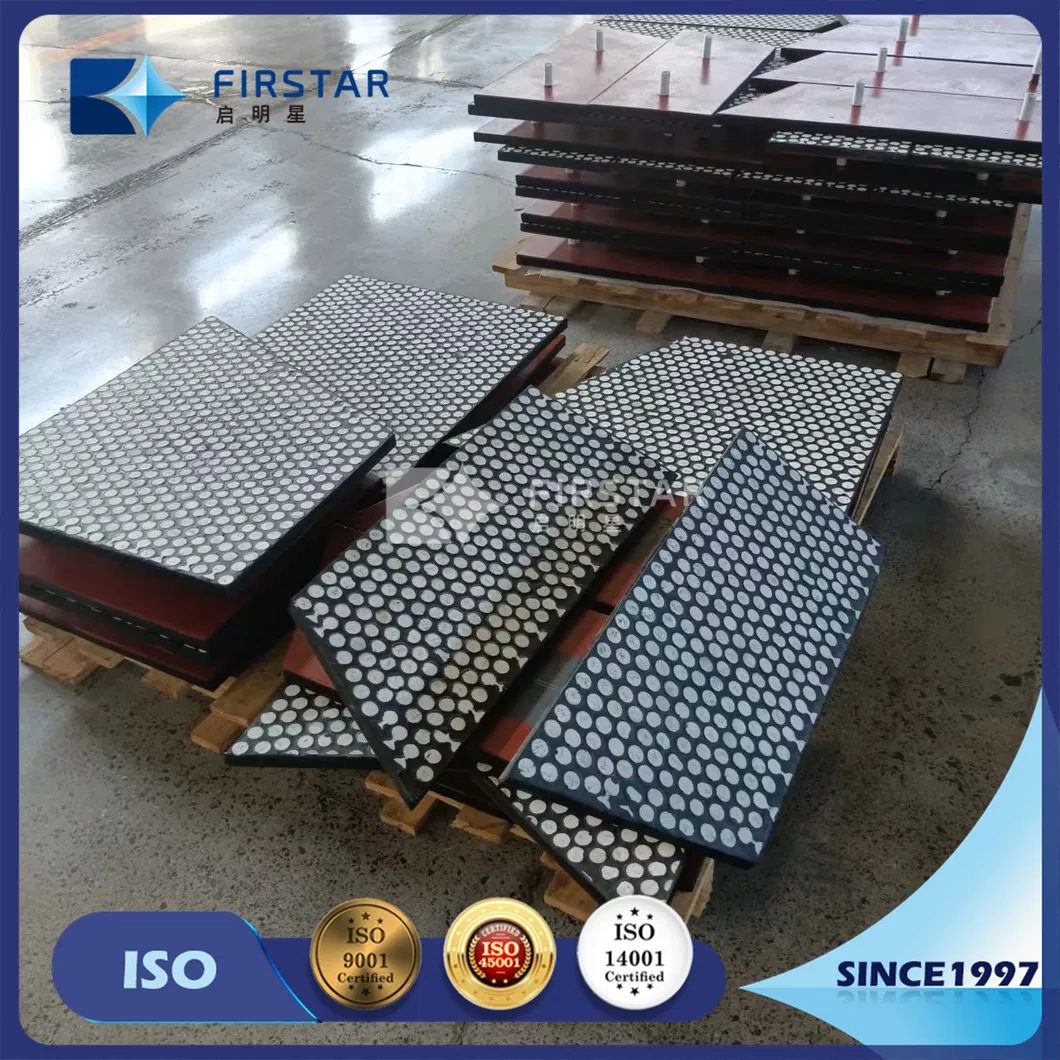

Ceramic Rubber compound lining plate is compounded by high alumina ceramics and excellent natural rubber through special process. The excellent damping performance of natural rubber greatly lowers the noise generated in the transportation, which fully settled a series of issues such as impact, abrasion and noise.

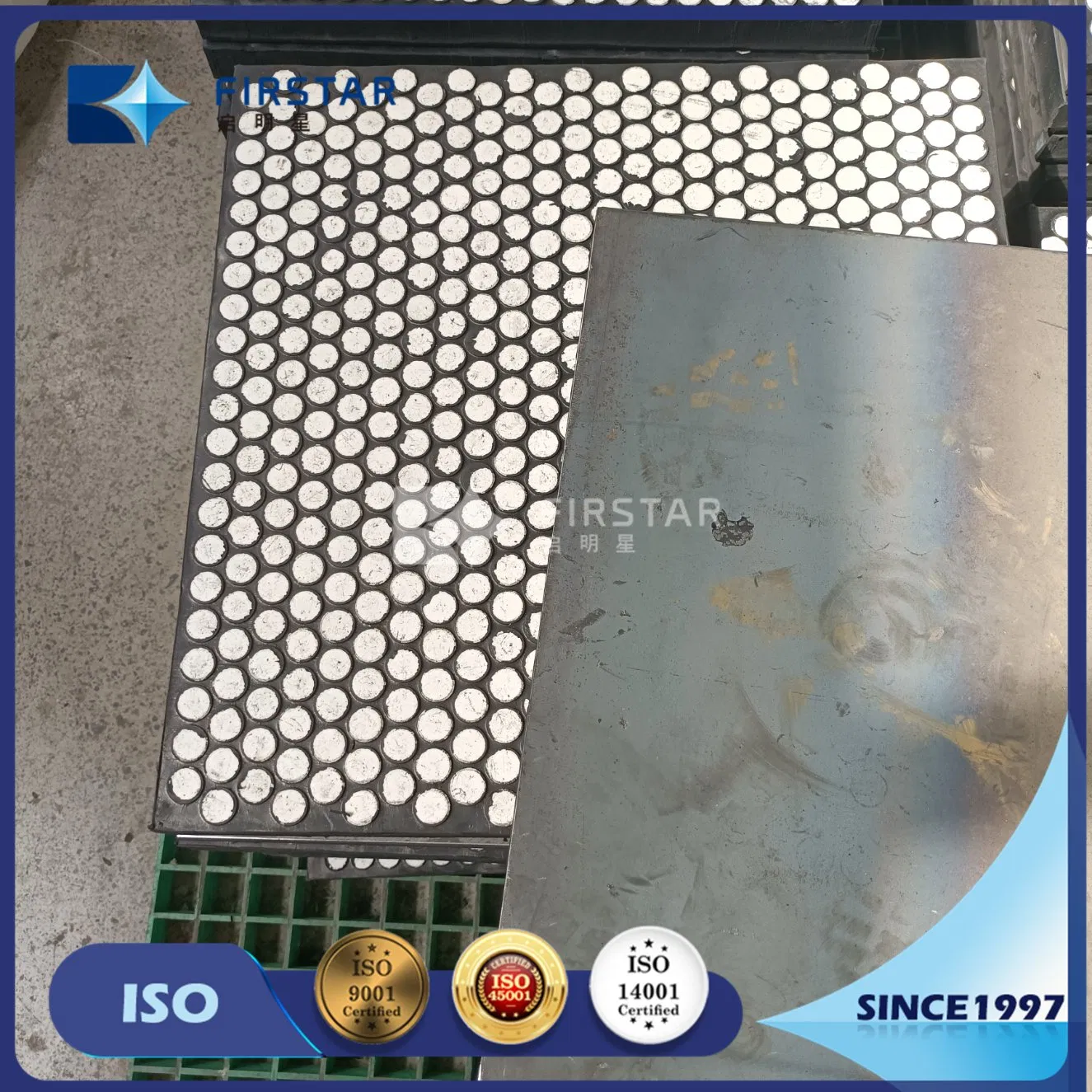

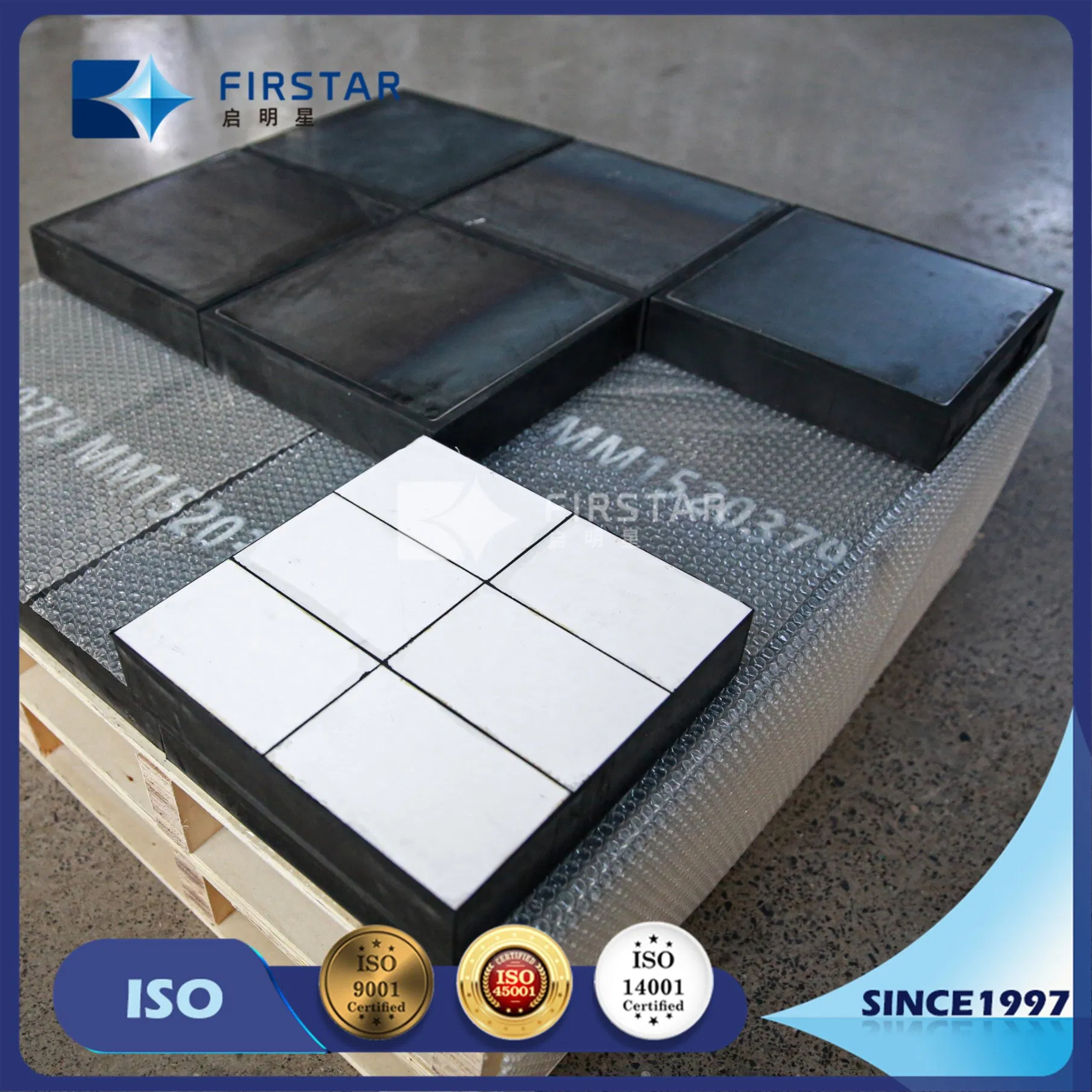

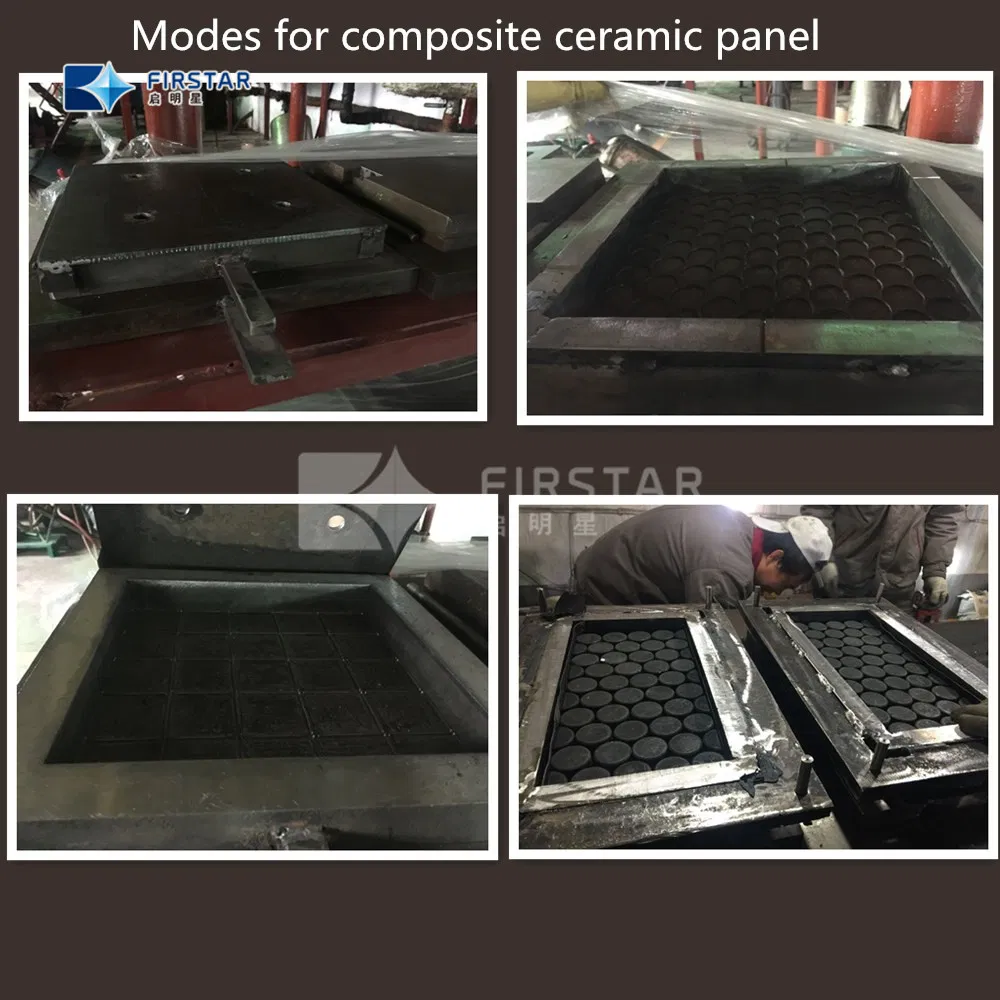

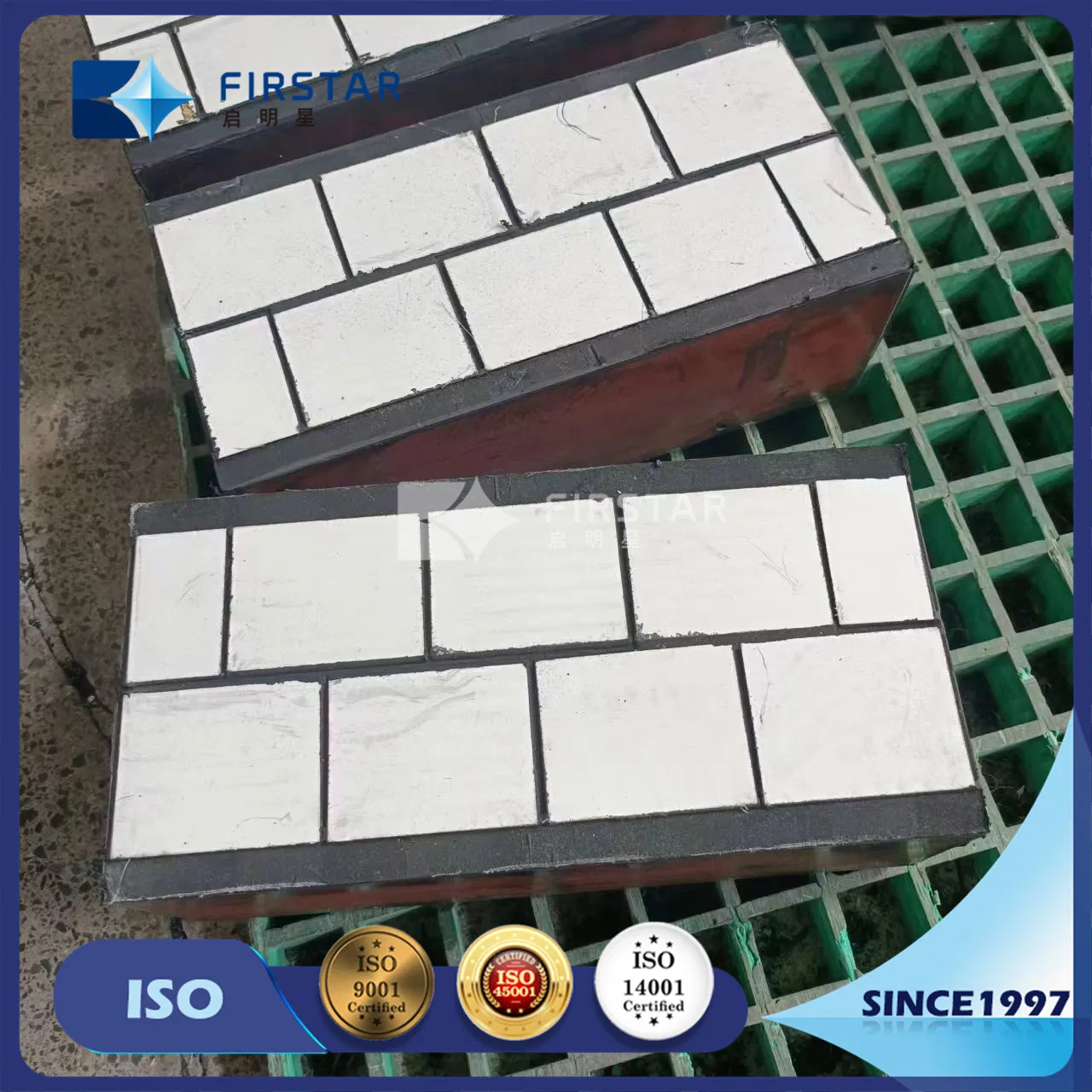

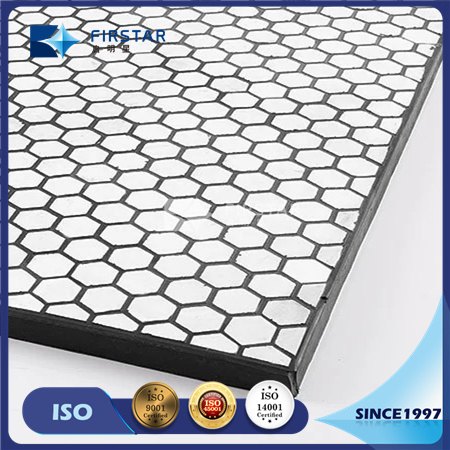

Wear-resistant ceramic composite lining is a composite of wear-resistant ceramics and rubber. Small square wear-resistant ceramics are vulcanized (inlaid) in special rubber at high temperature to form a wear-resistant ceramic rubber lining. High-strength organic adhesive is used to bond the lining plate to the inner shell steel plate of the equipment to form a strong and buffering anti-wear layer.
Application: Mainly used in coal conveying and ash discharge systems in thermal power plants, metallurgical iron and steel industries, and high wear parts of mine and mineral processing equipment such as pipes, tanks, deflectors, scrubbers, hoppers, and loading tanks.
| Material | Attributes | Properties |
|---|---|---|
| Ceramic Tiles | Material Content | 92%, 95%, T95%, 99%, ZTA |
| Rubber | Density | ~1.4g/cm3 |
| Tensile strength | ≥10.6Mpa | |
| Shore hardness | 65±5 | |
| Working temp | -50ºC to 200ºC | |
| Steel Plate | Material Type | Q235A (3-8mm thickness) |
| Adhesive | Peel strength | 48h N/2.5cm ≥120 |
