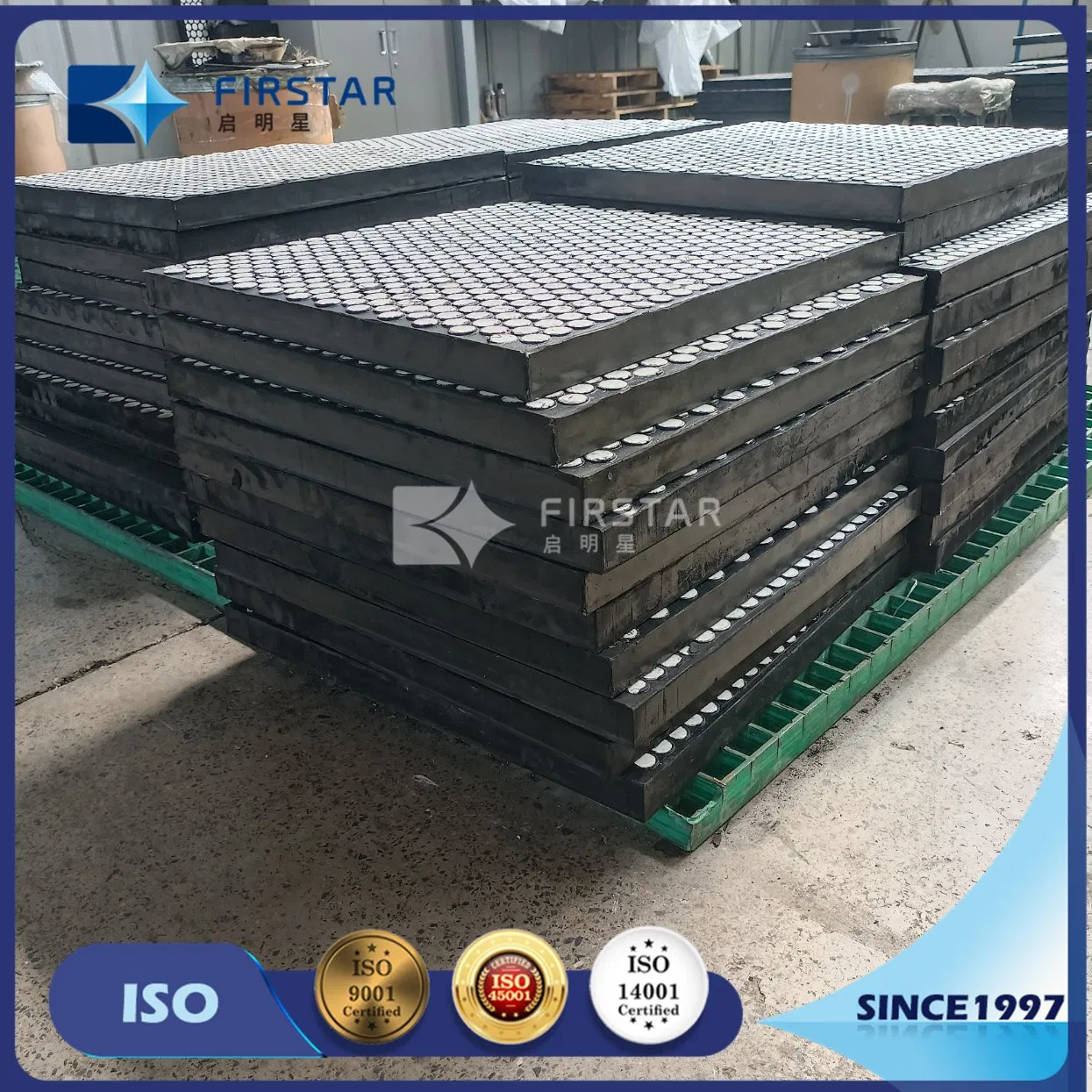

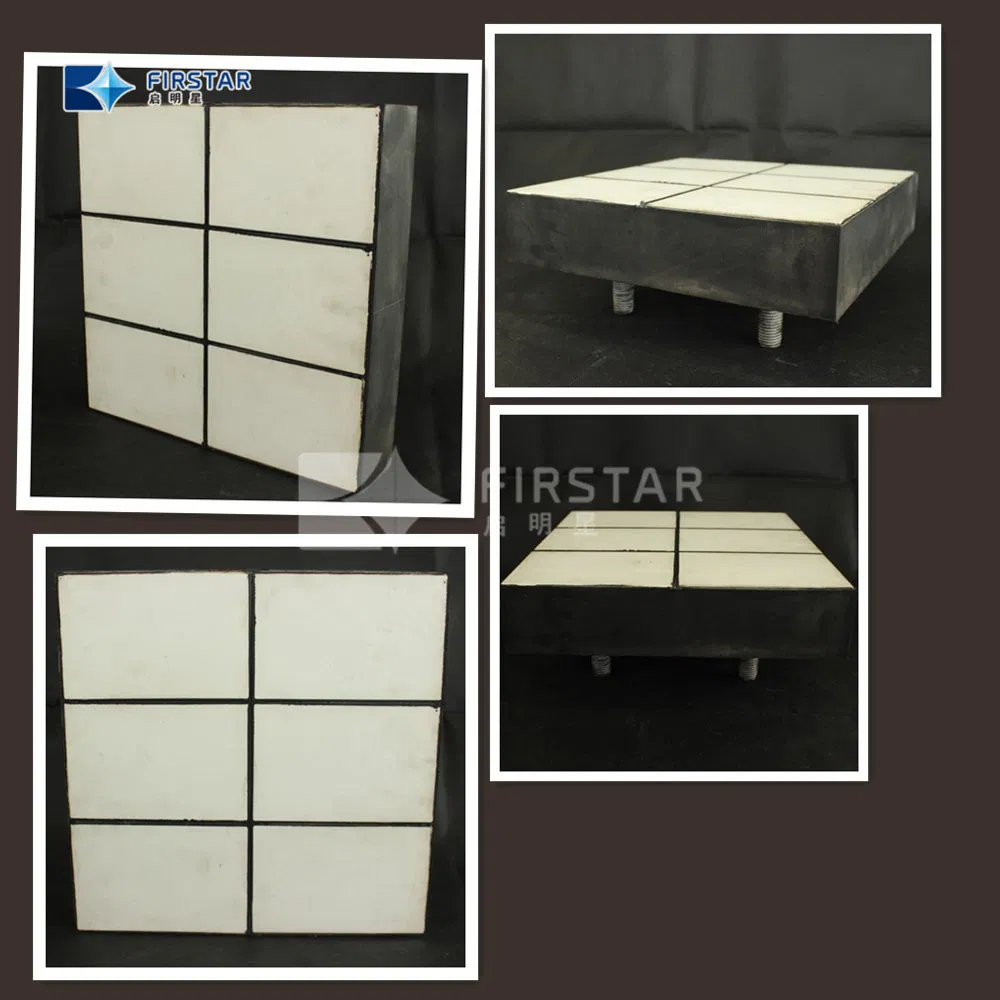

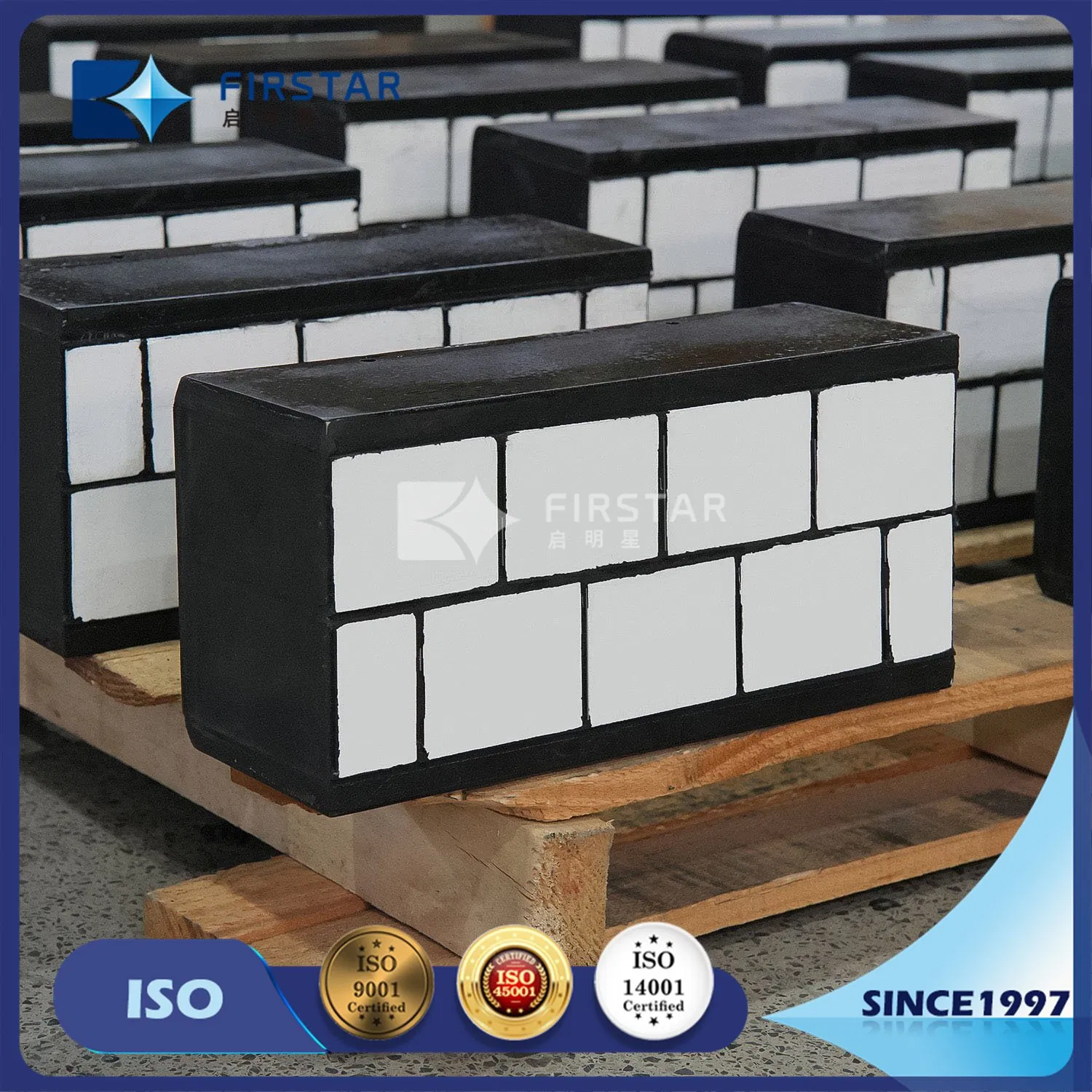

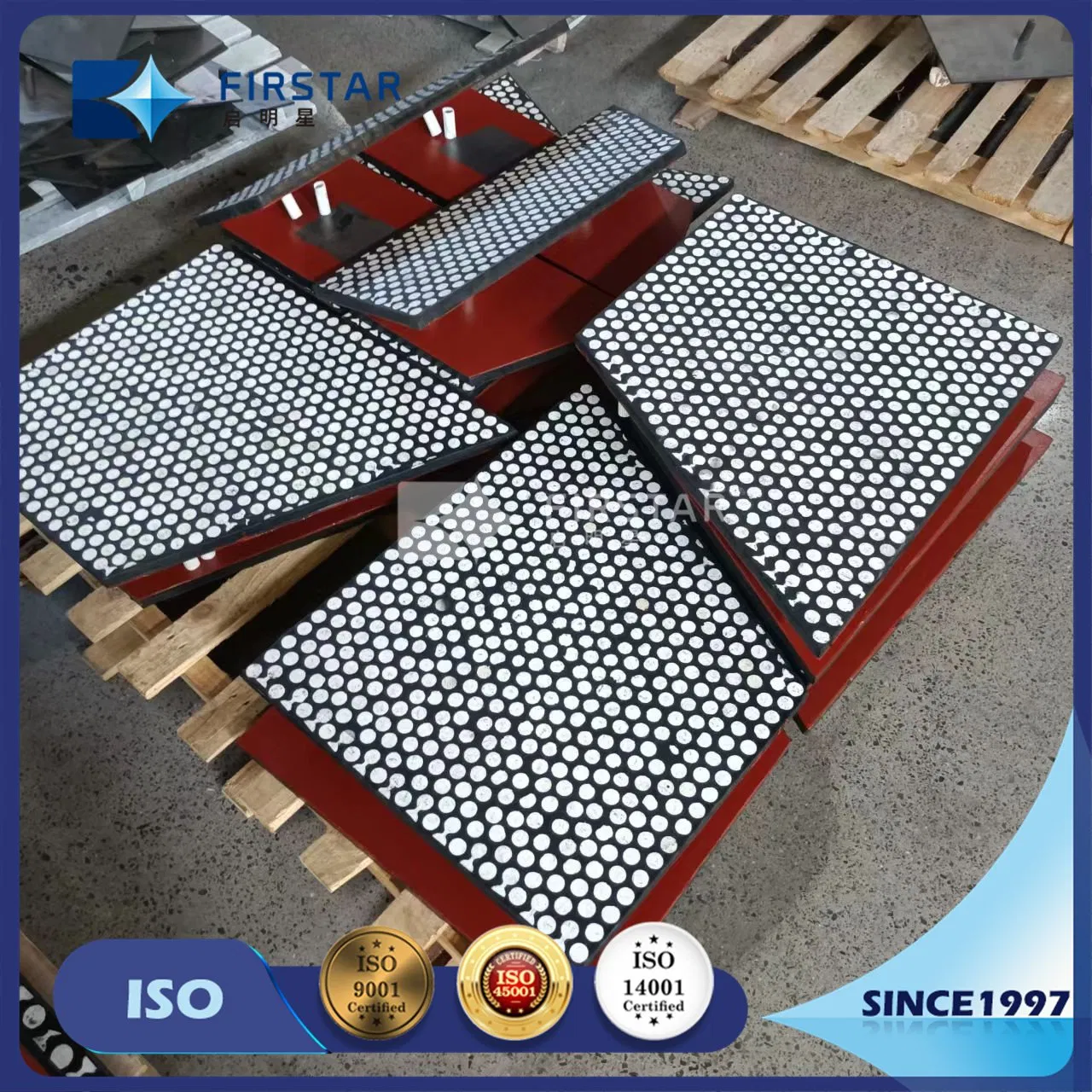

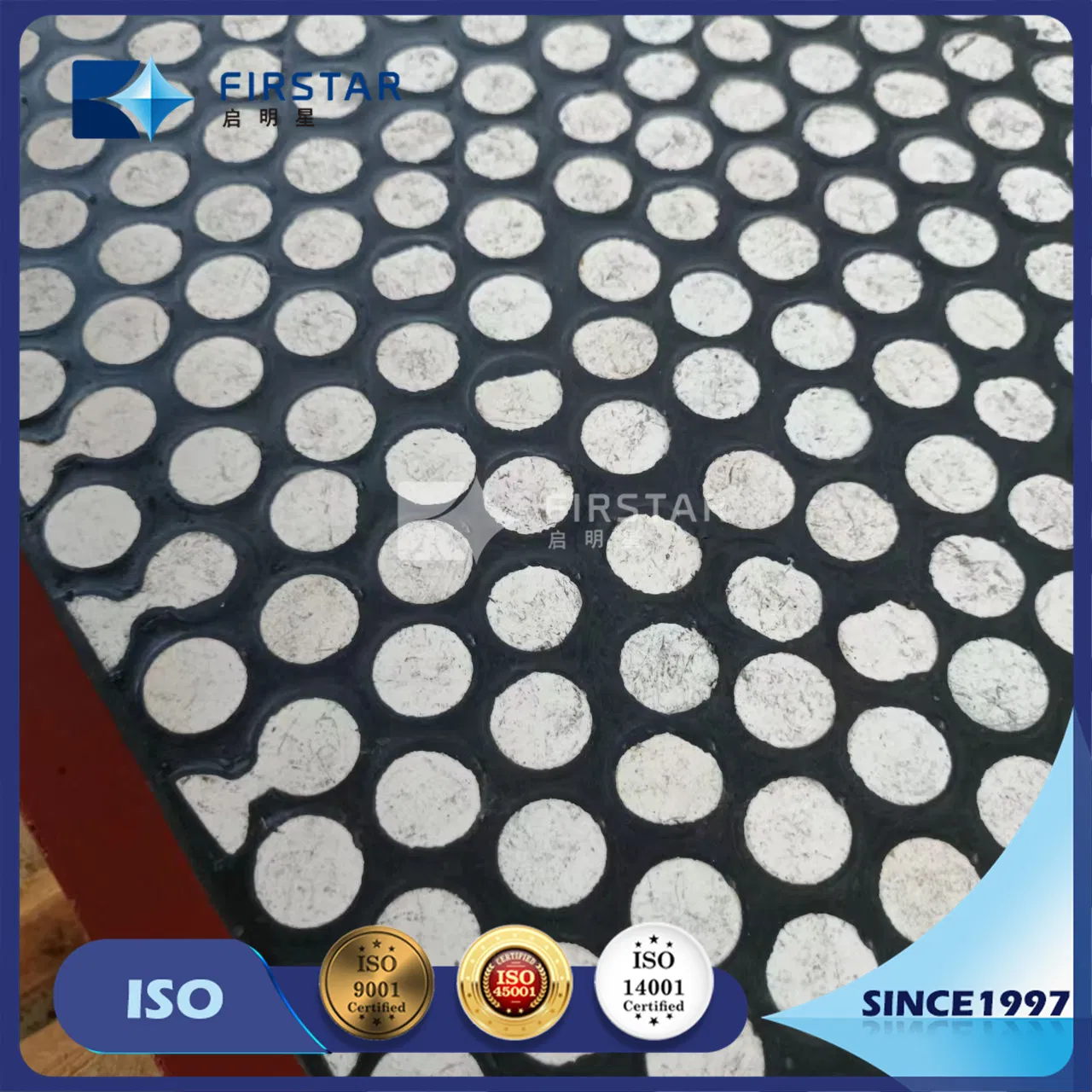

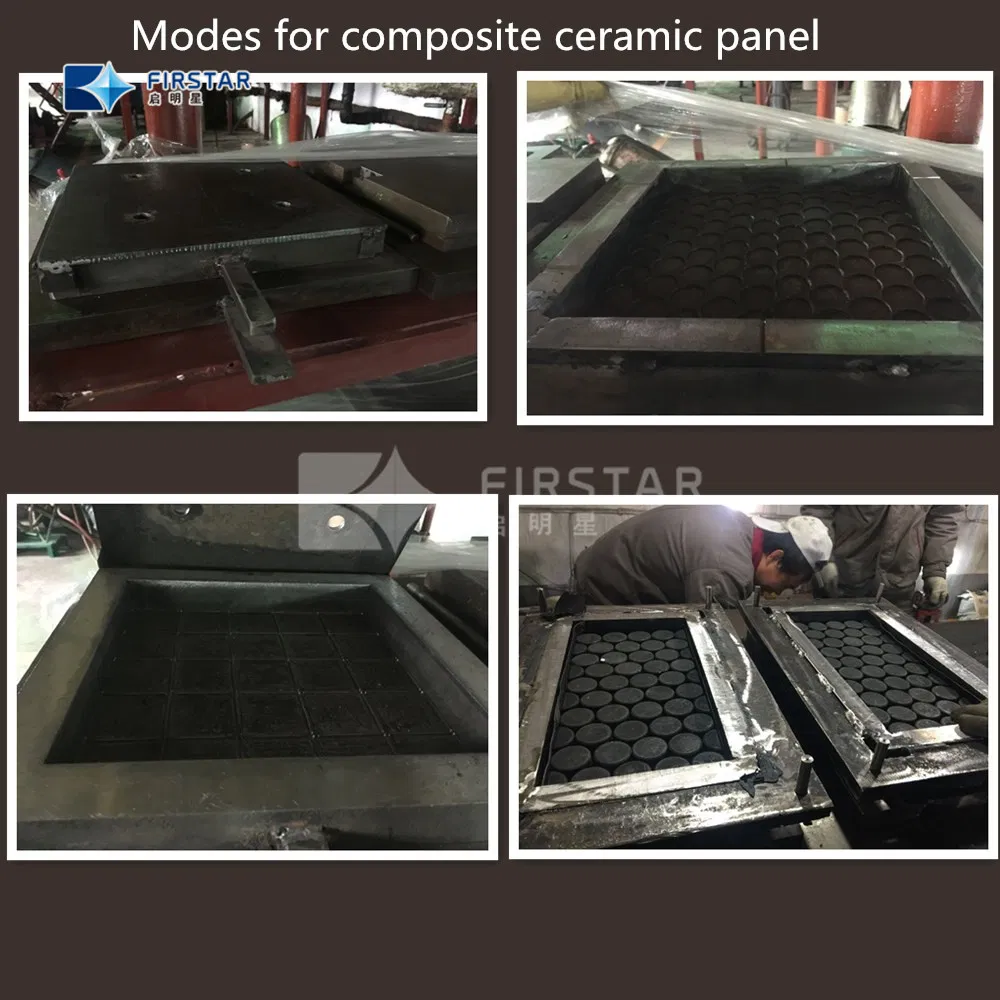

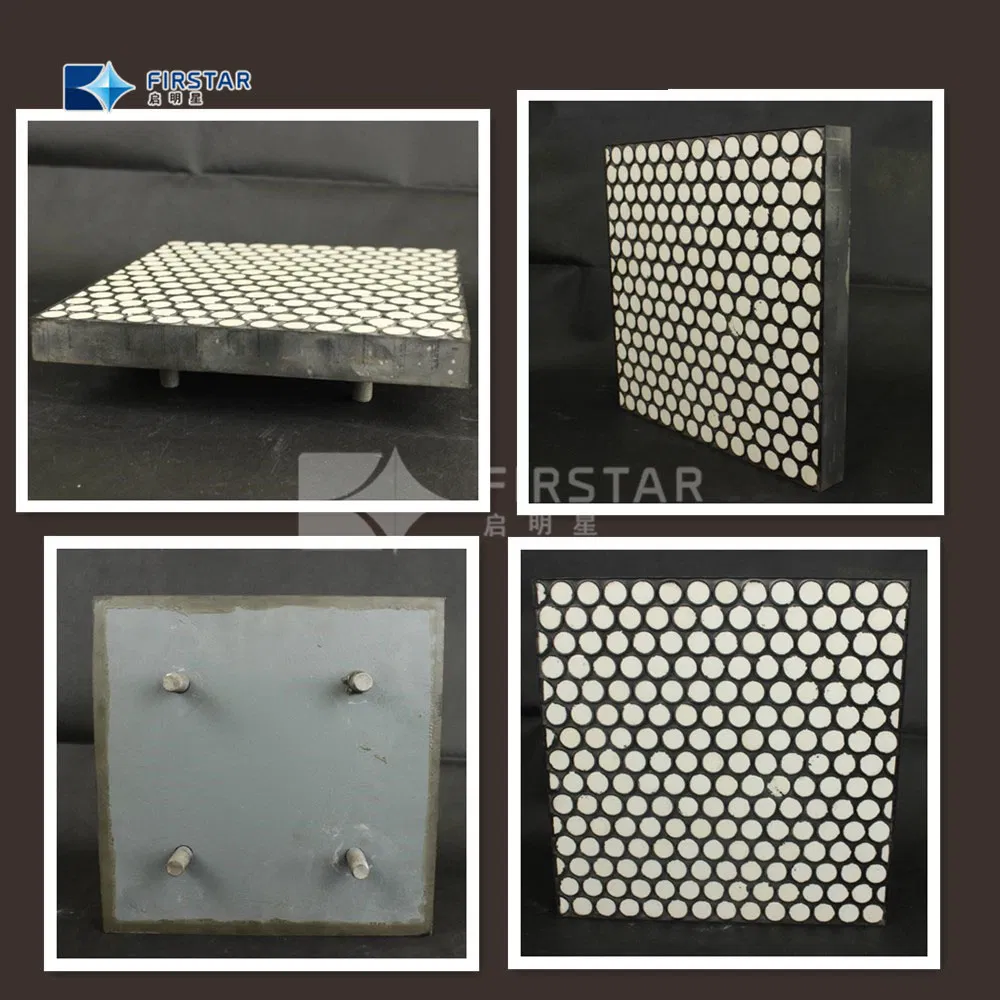

Impact resistant composite ceramic liners with rubber and steel backed. Ceramic rubber composite pads & plate utilize a rubber vulcanization process to embed wear-resistant ceramic into rubber, which is then adhered to equipment internals. These can also be vulcanized with steel plates and bolts as required.
Combines high wear-resistance of ceramics with the impact-resistance of rubber. Ideal for conveying systems operating under normal temperatures while bearing significant impact.
| Material | Attributes | Properties |
|---|---|---|
| Ceramic Tiles | Alumina Content | 92%, 95%, T95%, 99%, ZTA |
| Rubber | Density | ~1.4g/cm3 |
| Tensile strength | ≥10.6Mpa | |
| Shore Hardness | 65±5 | |
| Working Temp | -50ºC - 200ºC | |
| Steel Plate | Material & Thickness | Q235A / 3-8mm |
| Plate Size (mm) | Ceramic Size (mm) | Ceramic Thickness |
|---|---|---|
| 150x300, 300x300, 500x500, 600x450 | Square, Hexagonal, Dimple, Locking block | 3mm - 75mm |
| Character | 92 | 95 | T95 | 99 | ZTA |
| Density(g/cm³) | ≥3.6 | ≥3.65 | ≥3.7 | ≥3.83 | ≥4.15 |
| Bending Strength(MPa) | ≥220 | ≥250 | ≥300 | ≥330 | ≥400 |
| Rockwell Hardness (HRA) | ≥82 | ≥85 | ≥88 | ≥89 | ≥90 |

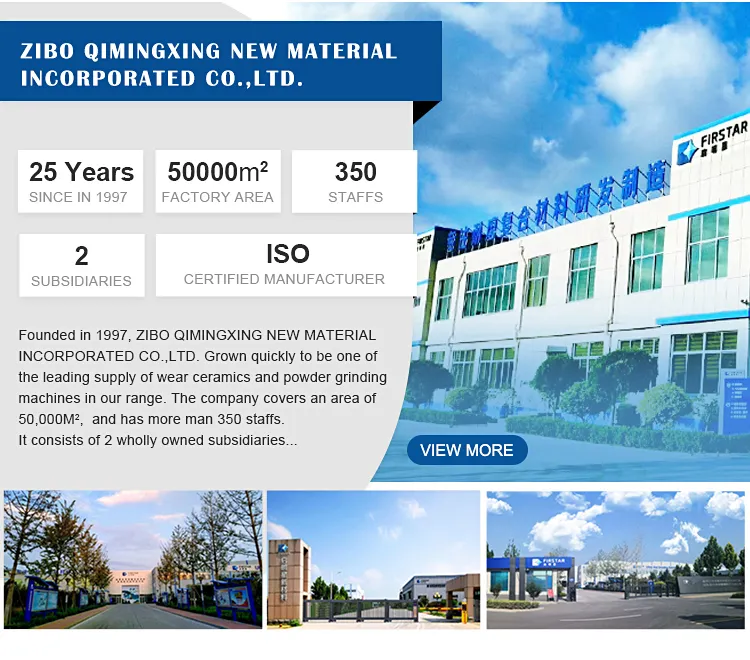

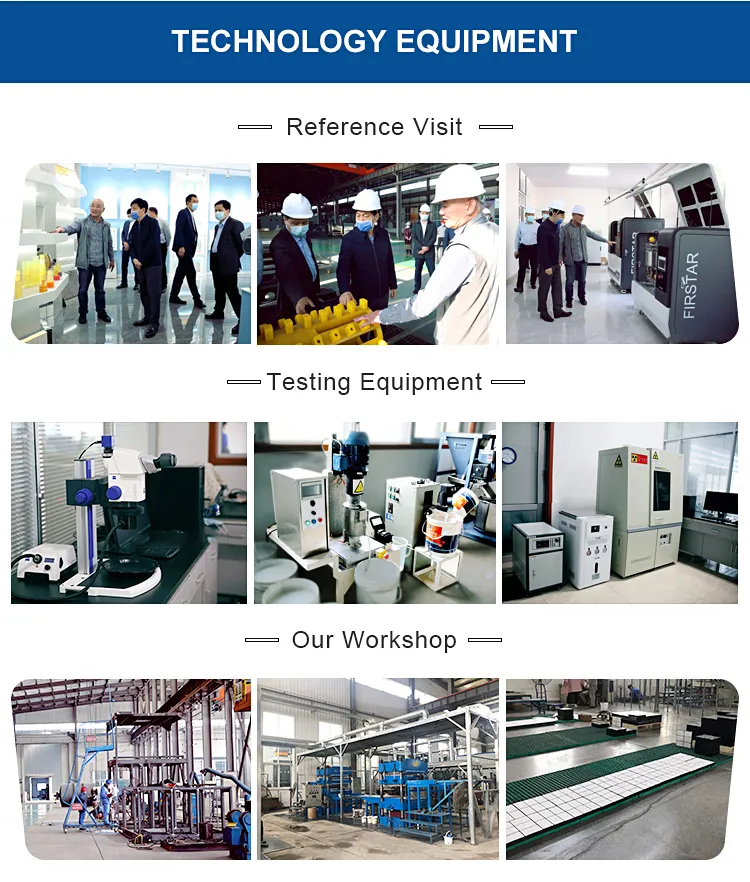

Established in 1997 with 25 years of experience in wear solution products. The facility spans a total construction area of 50,000 sqm and is ISO9001:2015 certified. We operate three own-designed production lines and provide wear resistant solutions to industries including Mining, Mineral, Power Generation, Iron, Steel, and Cement.
