Wear Resistant Alumina Rubber Backed Ceramic Tile

1 / 5

Wear Resistant Alumina Rubber Backed Ceramic Tile

Customization:	Available
Application:	Industrial Applications, Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard, Cement, Steel, Mining, Power Generation, Port
Function:	Wear Resistant

Send Inquiry

Product Description

Basic Info.

Model NO.

Chemshun Ceramics

Material

Alumina & Rubber

Standard

JIS, GB, DIN, BS, ASTM, AISI, SGS

Type

Wear Resistant Plate

Size

300*300mm 500*500mm

Feature

High Hardness, Impact Corrosion Resistance

Alumina Content

92% 95%

Acid/Alkali Resistance

Yes

HS Code

69091200

Capacity

5000ton/Month

Product Description

Wear Resistant Alumina Rubber Backed Ceramic Tile

Wear Resistant Rubber Ceramic Panels (wear ceramic liner) are made by combining wear-resistant alumina ceramics (cylinders, hexagons, or plates) vulcanized into a resilient rubber base. Selectable steel backing is also available for specific applications.

The alumina ceramic provides exceptional resistance to wear, while the elastic properties of the rubber effectively dampen impact forces that could otherwise crack the ceramics. This combination substantially reduces vibrations, noise, and impact shocks generated by heavy materials.

Technical Specifications & Application

Property	Details / Value
Alumina Content	Al2O3 92% / 95%
Ceramics Types	Square Mosaic, Rectangle, Plain, Hexagonal, Alumina Cylinder
Ceramic Thickness	15mm ~ 50mm
Rubber Thickness	3mm ~ 10mm
Standard Sizes	150300, 200200, 300300, 500500, 530*450mm

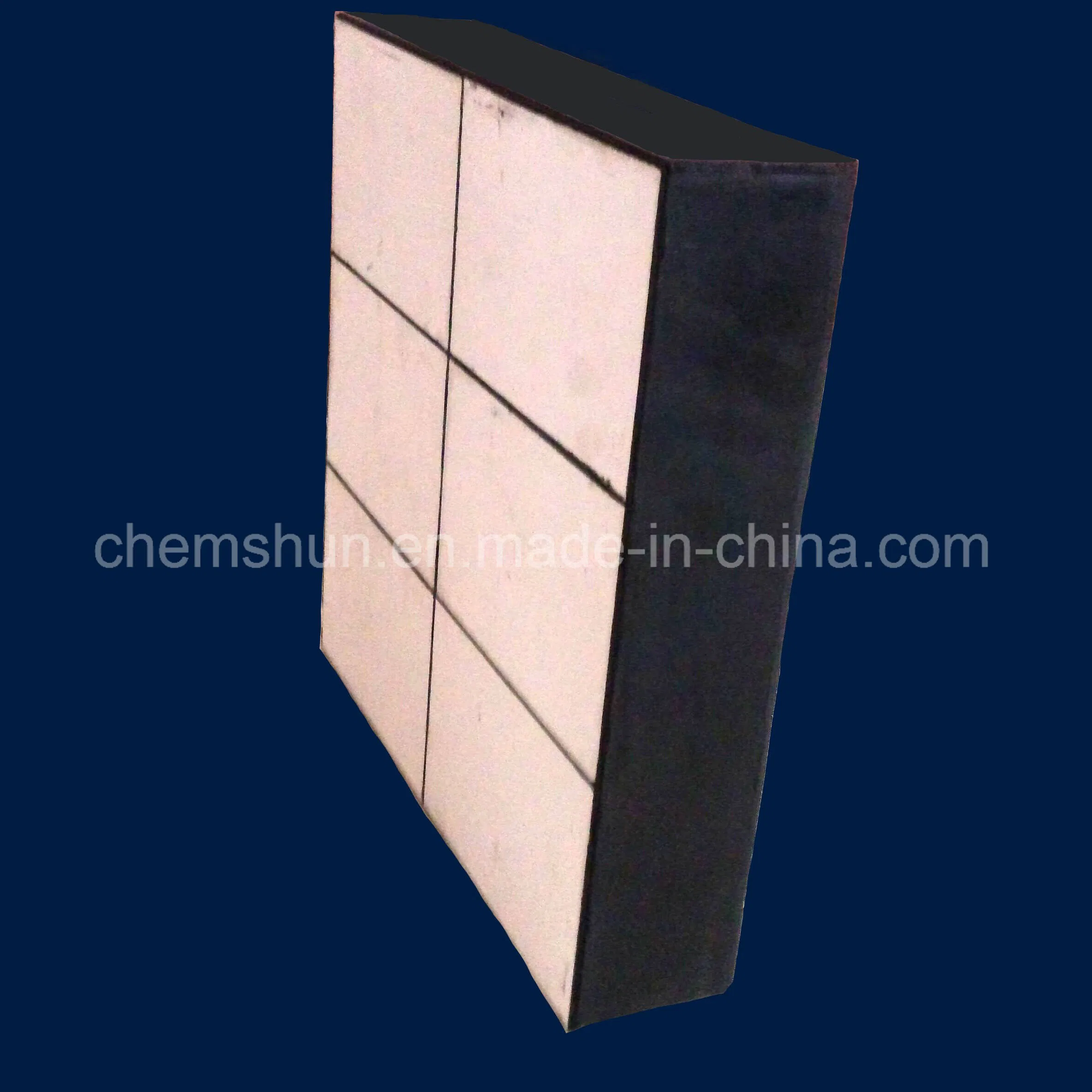

Alumina ceramic plain tile vulcanized in rubber

Ceramic hex tile impact resistant liners

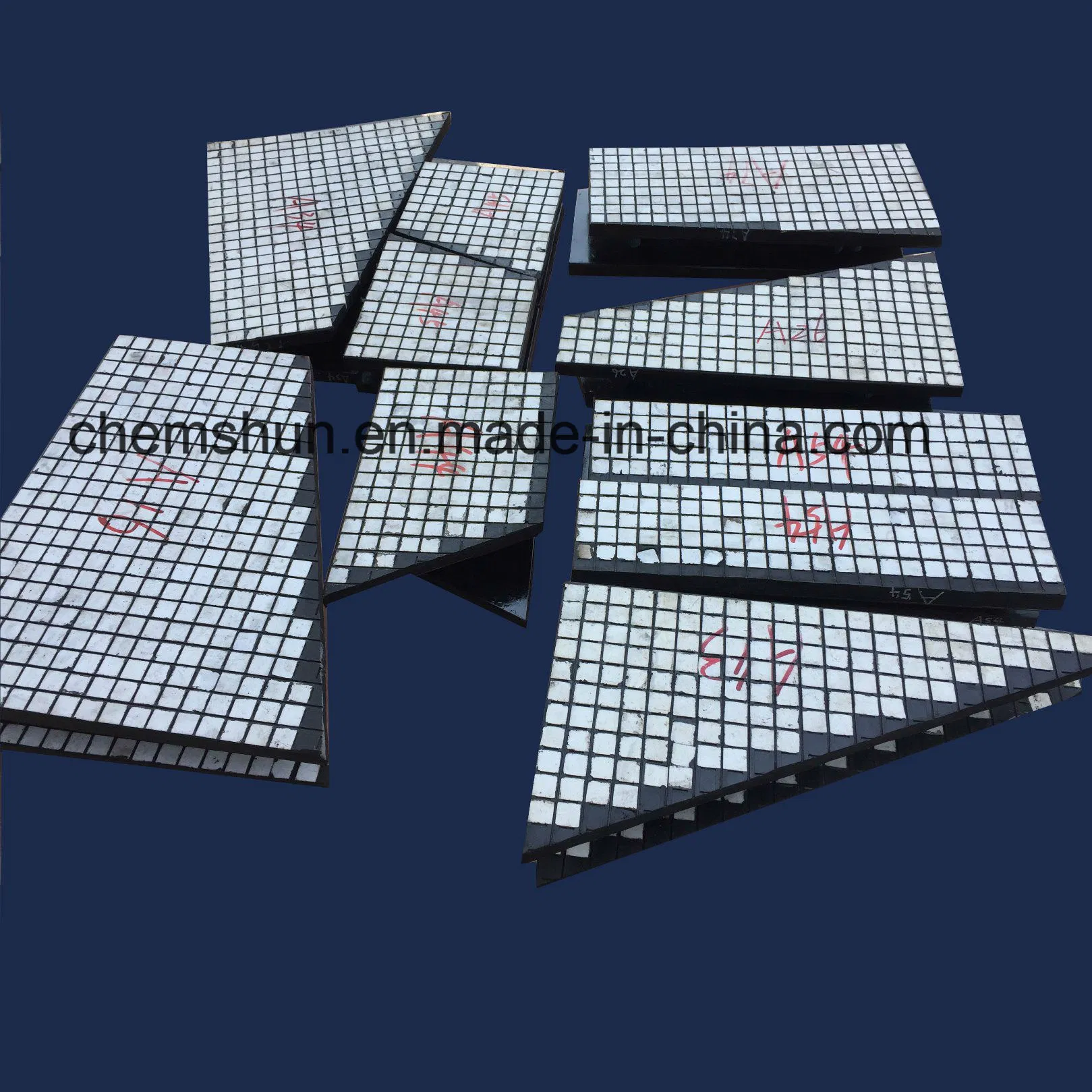

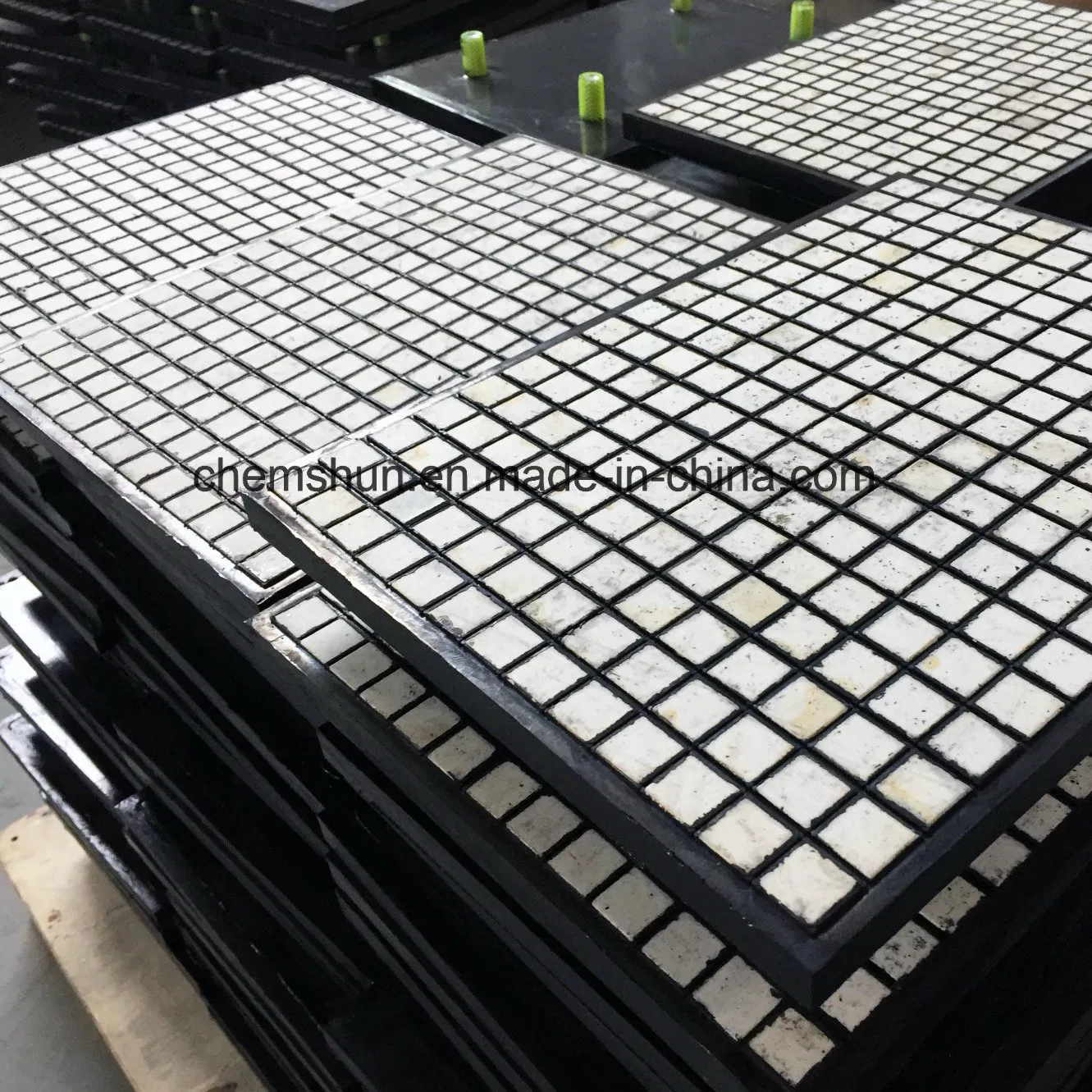

Square ceramic mosaic tile panels

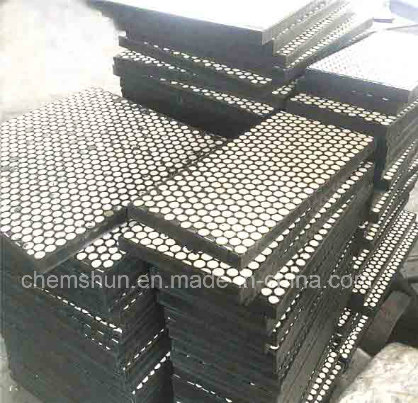

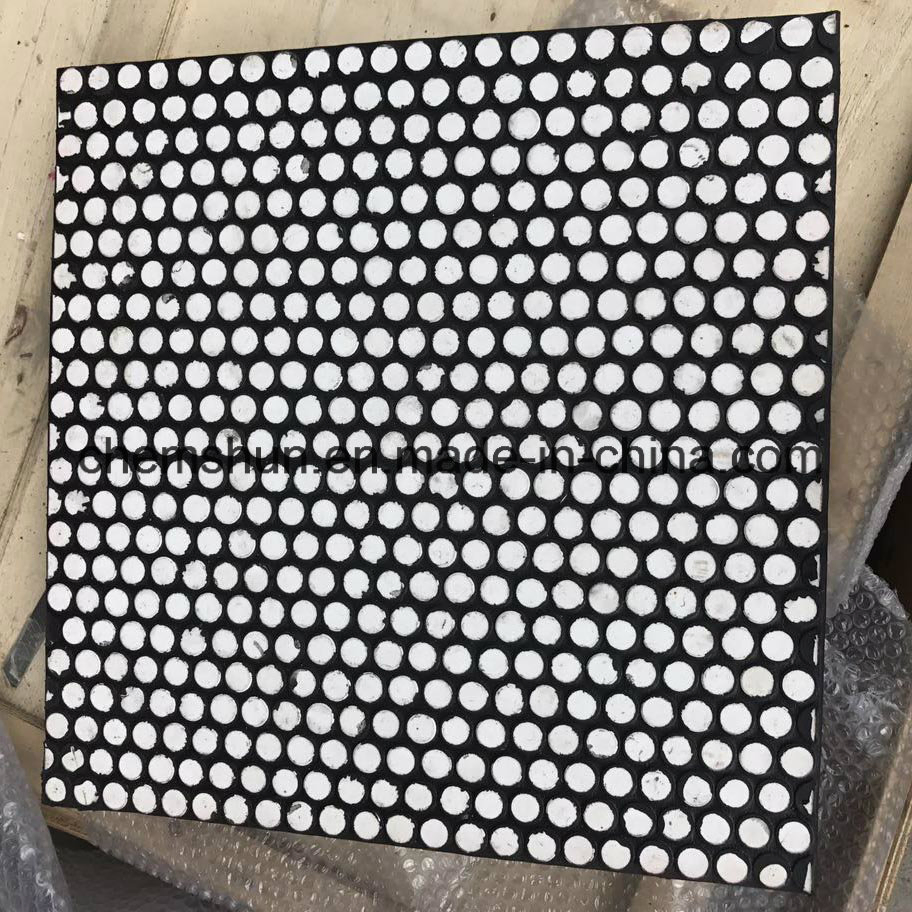

Wear-resistant ceramic cylinder liners

Frequently Asked Questions

Q1: What are the main benefits of rubber-backed ceramic liners?

The rubber backing absorbs impact energy to prevent ceramic cracking and significantly reduces noise and vibration in heavy-duty conveyor systems.

Q2: Which industries commonly use these wear-resistant plates?

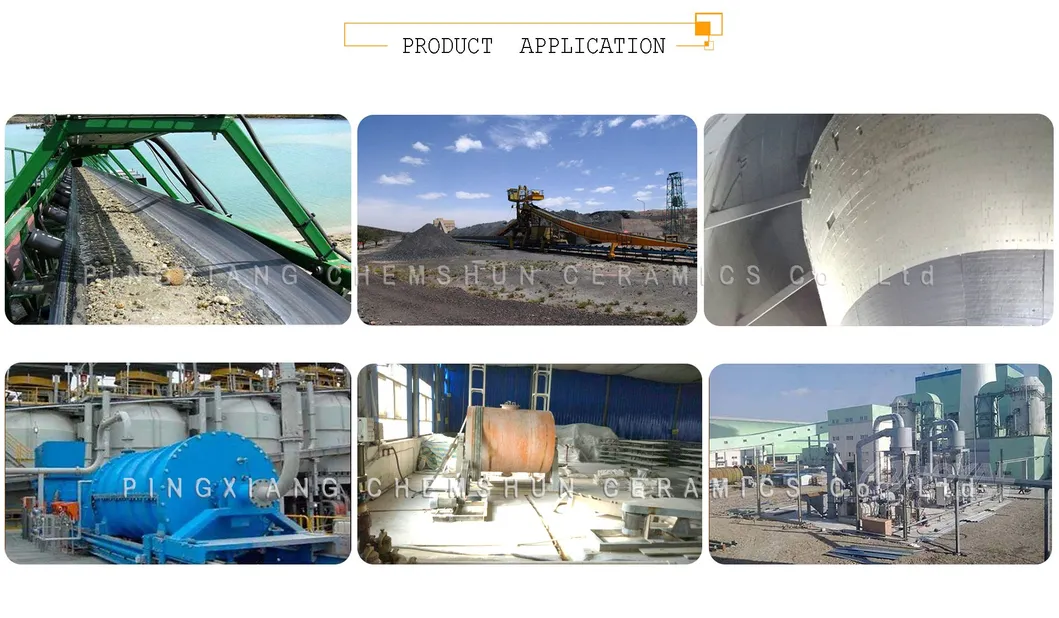

They are widely used in mining, coal-fired power plants, cement plants, steel industries, and port facilities for chutes, hoppers, and bins.

Q3: Can the size and shape of the ceramic tiles be customized?

Yes, we offer various shapes including square, hexagonal, and cylindrical tiles with customizable thickness from 15mm to 50mm based on specific drawings.

Q4: Are these panels resistant to chemicals?

Yes, the alumina ceramic material provides excellent acid and alkali resistance, making it suitable for harsh industrial environments.

Q5: What are the available mounting options?

The panels can be produced with just ceramic and rubber, or with an additional steel backing plate for mechanical fastening or welding.

Q6: What is the production capacity for these products?

Our production capacity is approximately 5000 tons per month, ensuring stable supply for large-scale industrial projects.
