Our organization specializes in powder handling and pneumatic conveying systems. With a state-of-the-art CAD design center, we develop cutting-edge engineering technologies for high-pressure dense phase and low-pressure thin phase pneumatic systems.
We provide clean, efficient, energy-saving, and environmentally friendly solutions for sectors such as petrochemicals, power, pharmaceuticals, food, building materials, ports, and mining.
| Definition | Also known as airflow transportation, using airflow energy to transport granular materials in a closed pipeline. |
| Types |

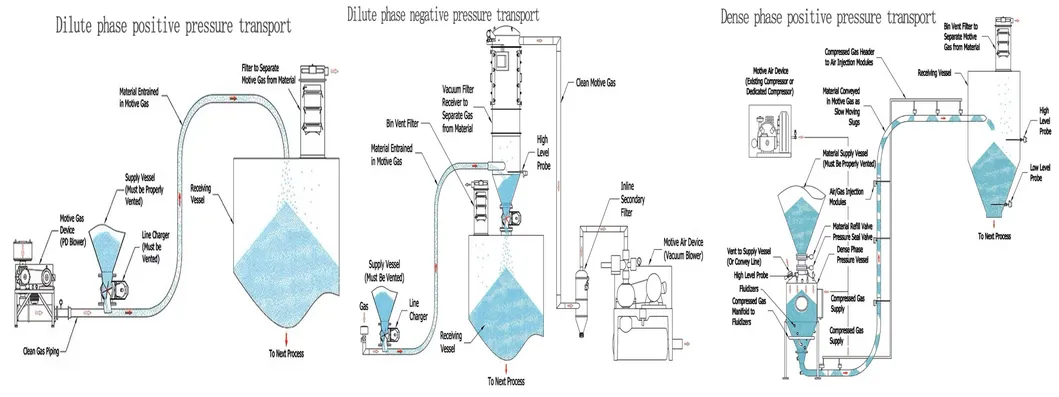

Dilute Phase: < 10kg/m², speed 18-30m/s, within 300m. Dense Phase: > 25 solid-gas ratio, high pressure, over 500m. Negative Pressure: Self-priming feeding, lower than atmospheric pressure. |

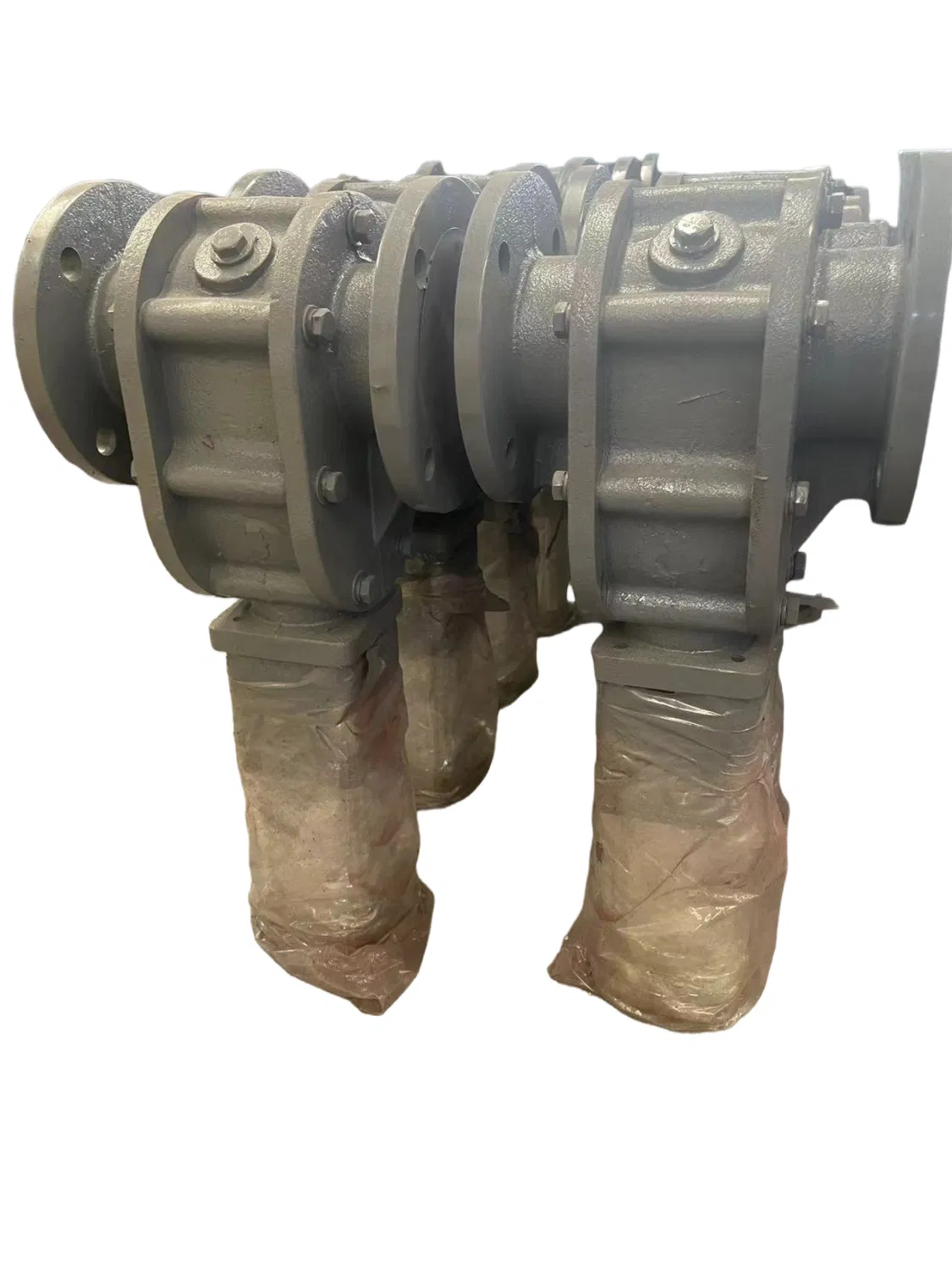

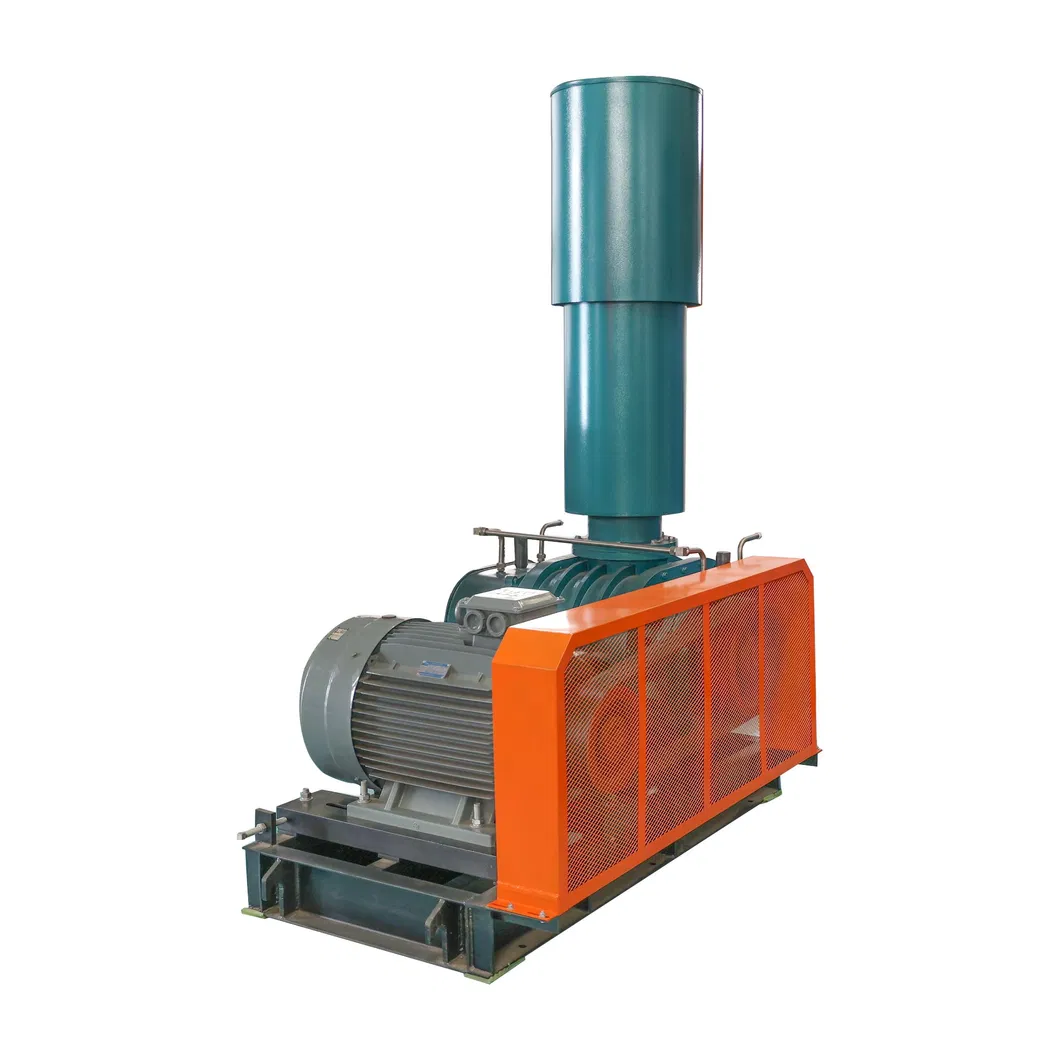

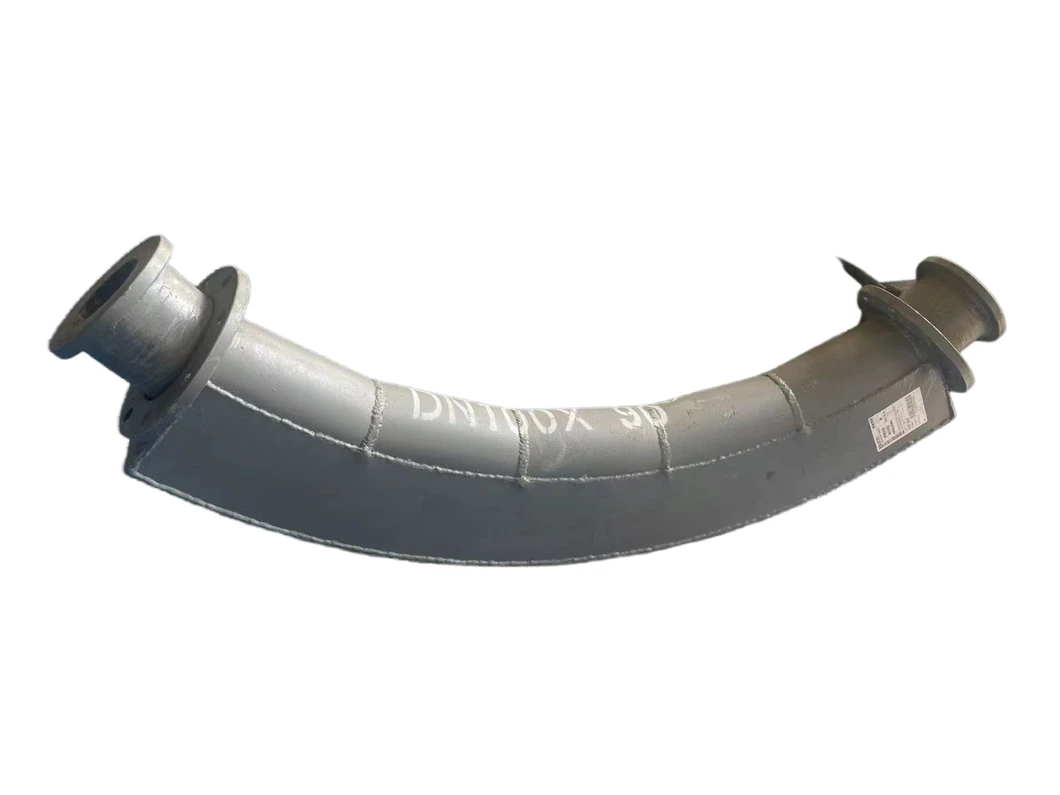

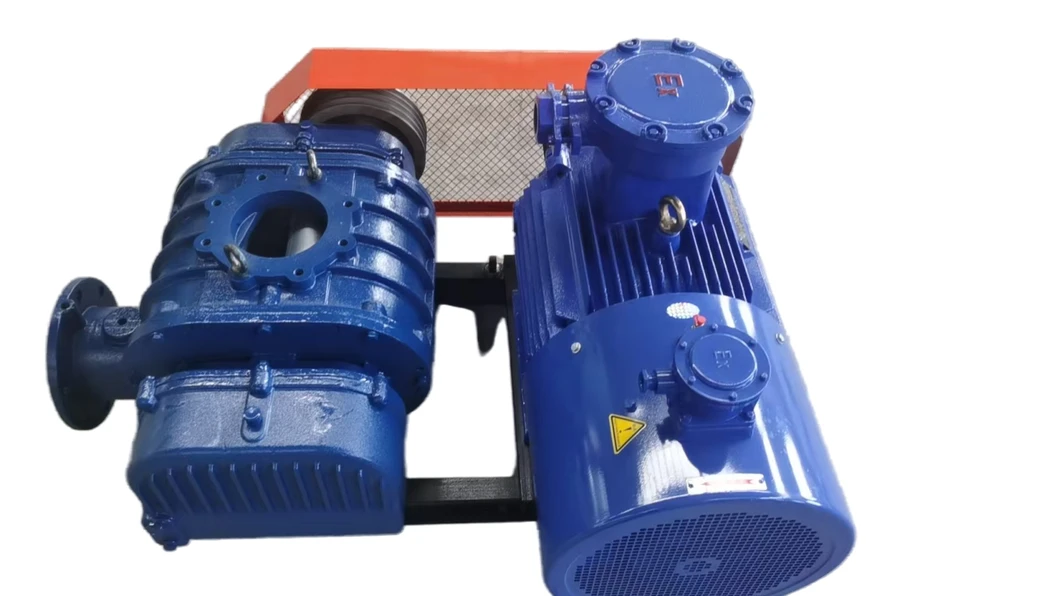

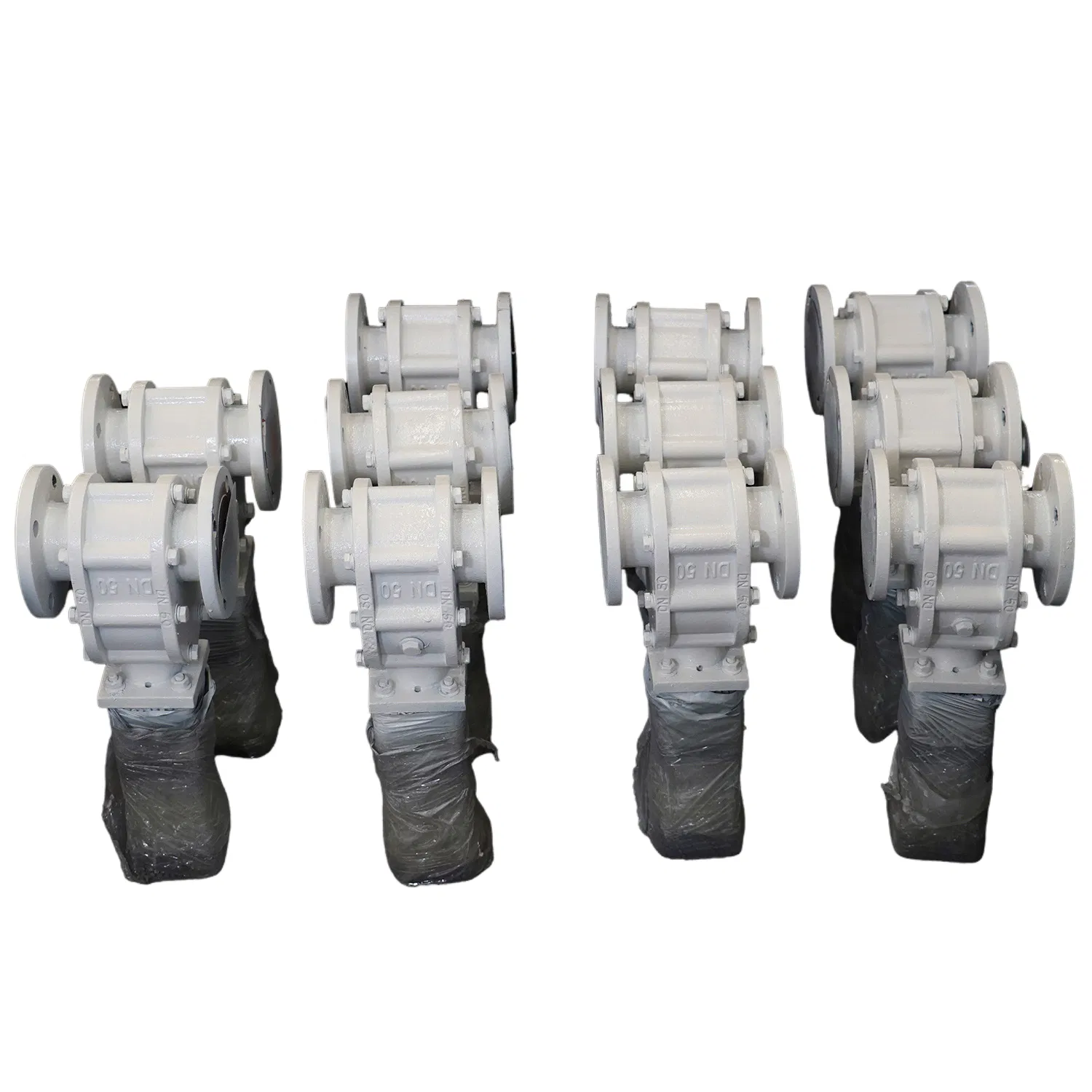

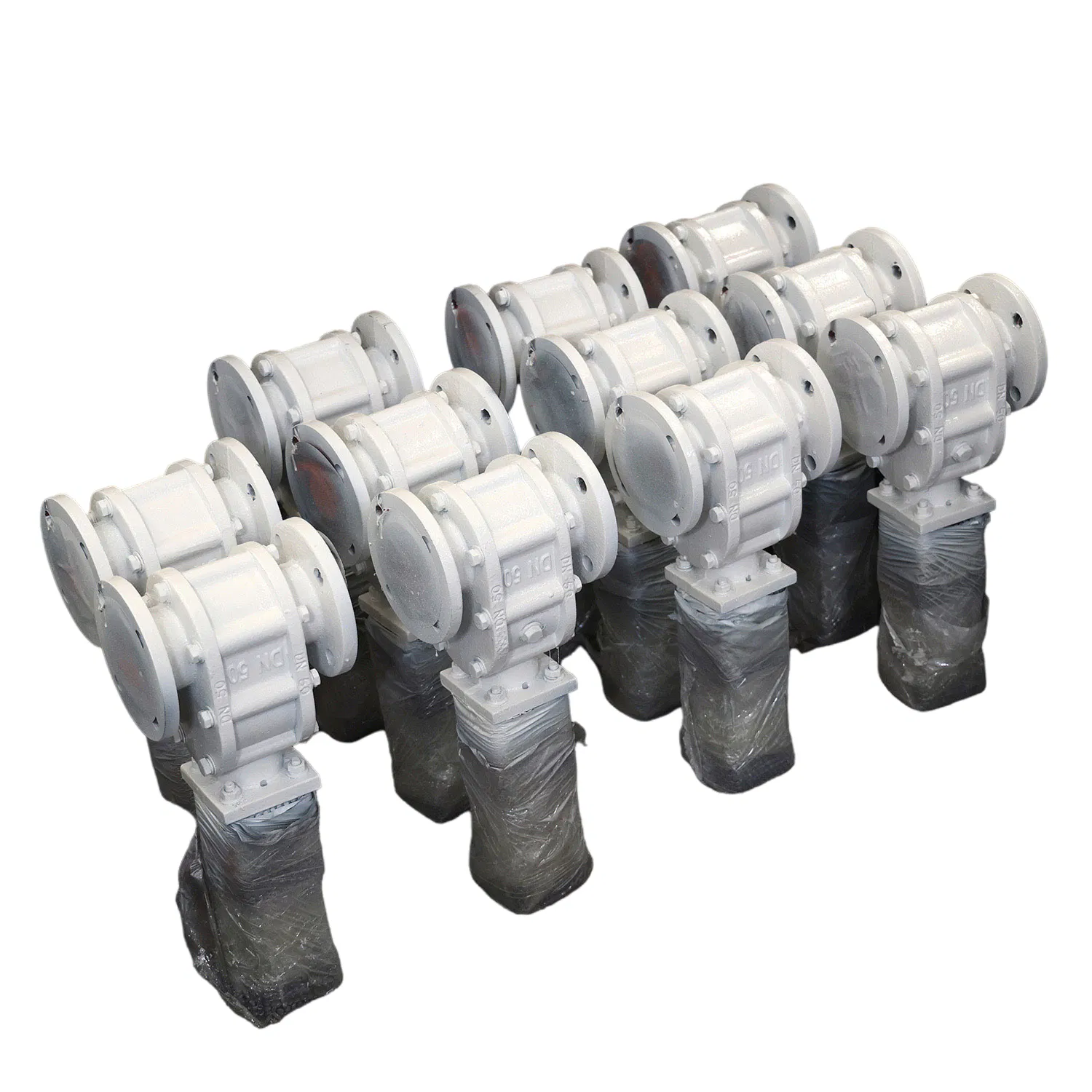

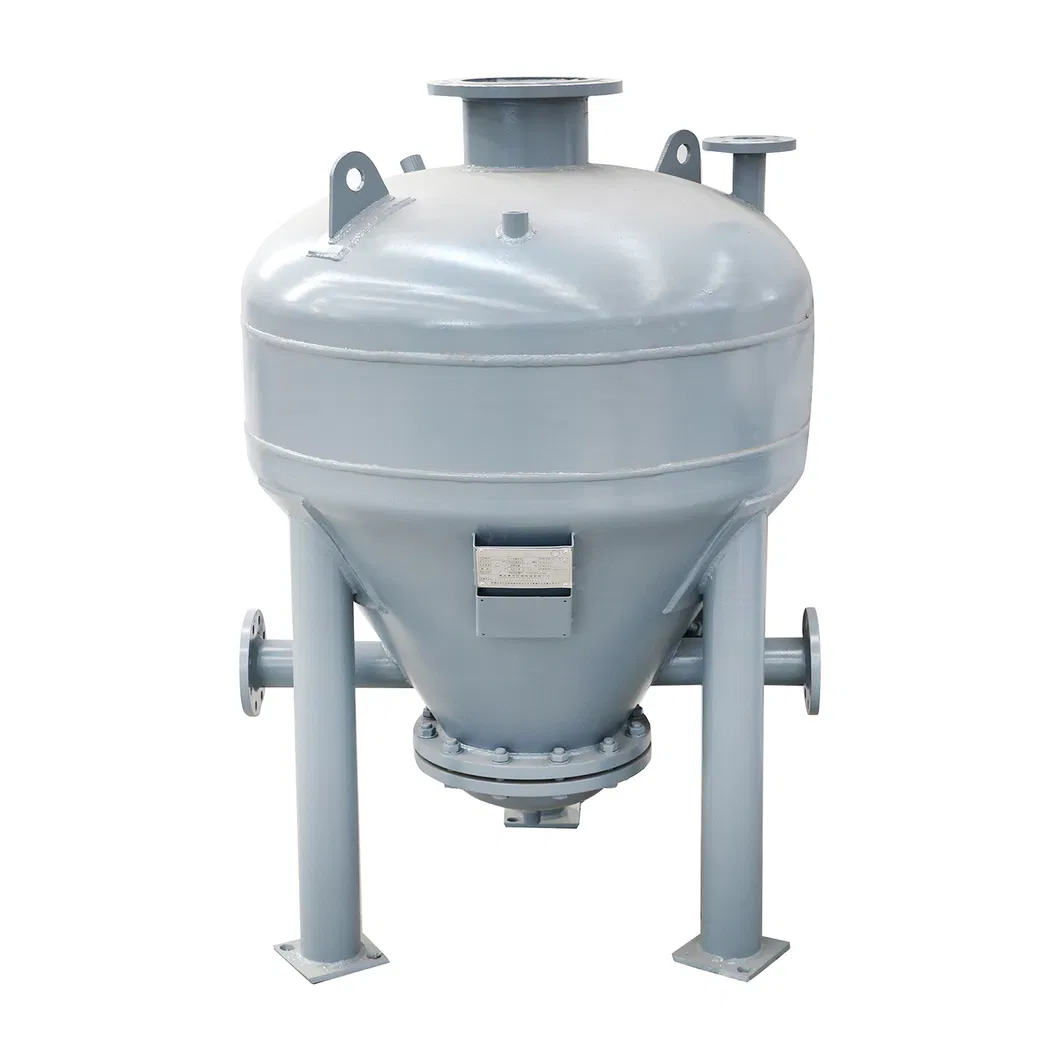

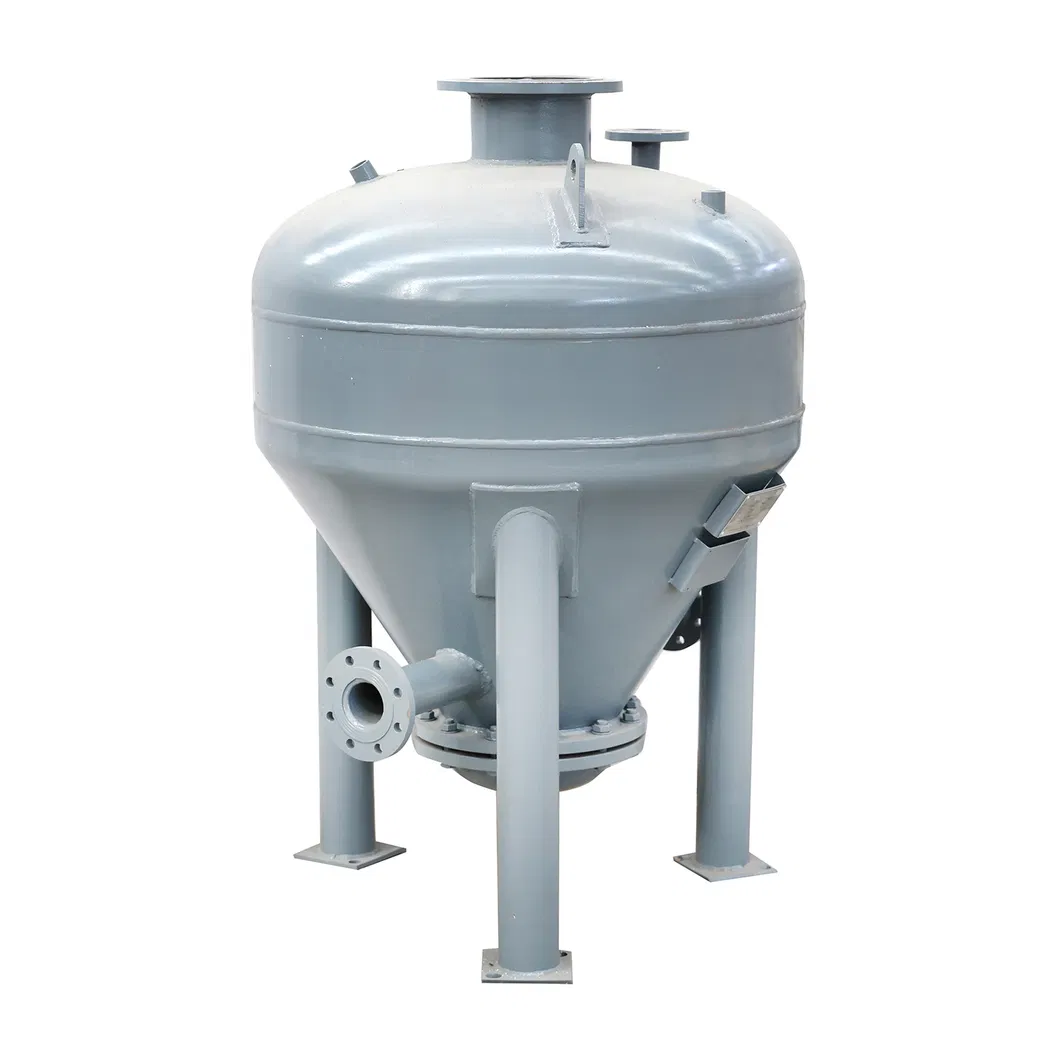

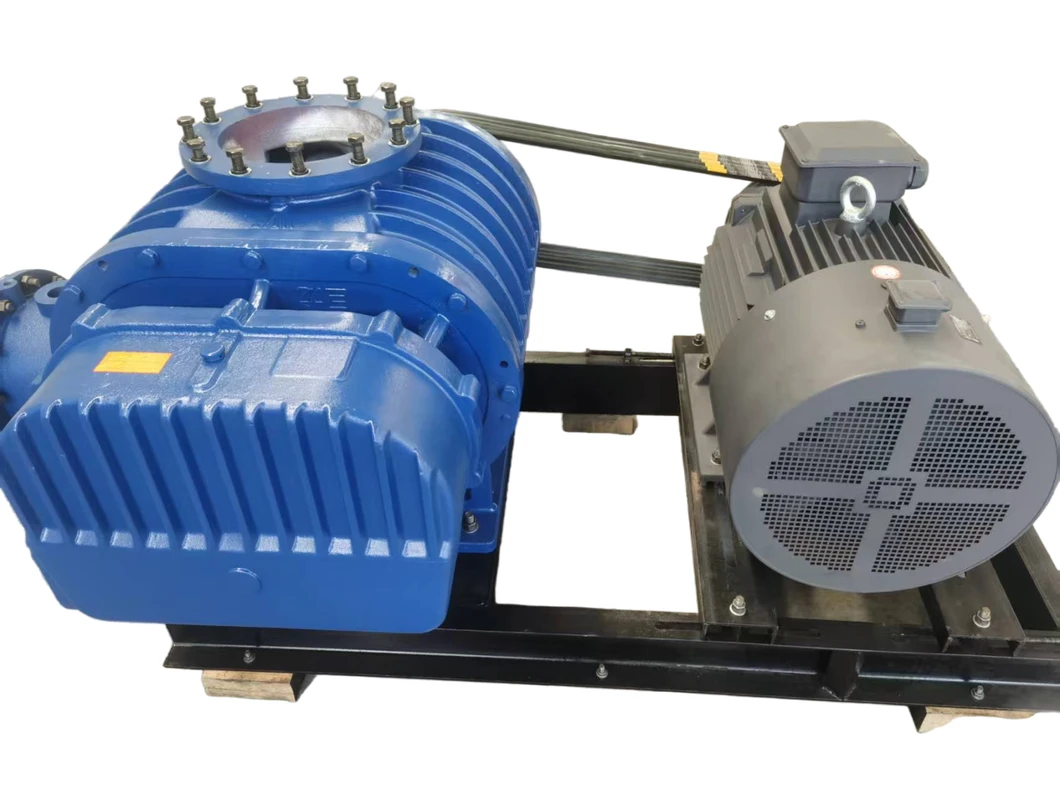

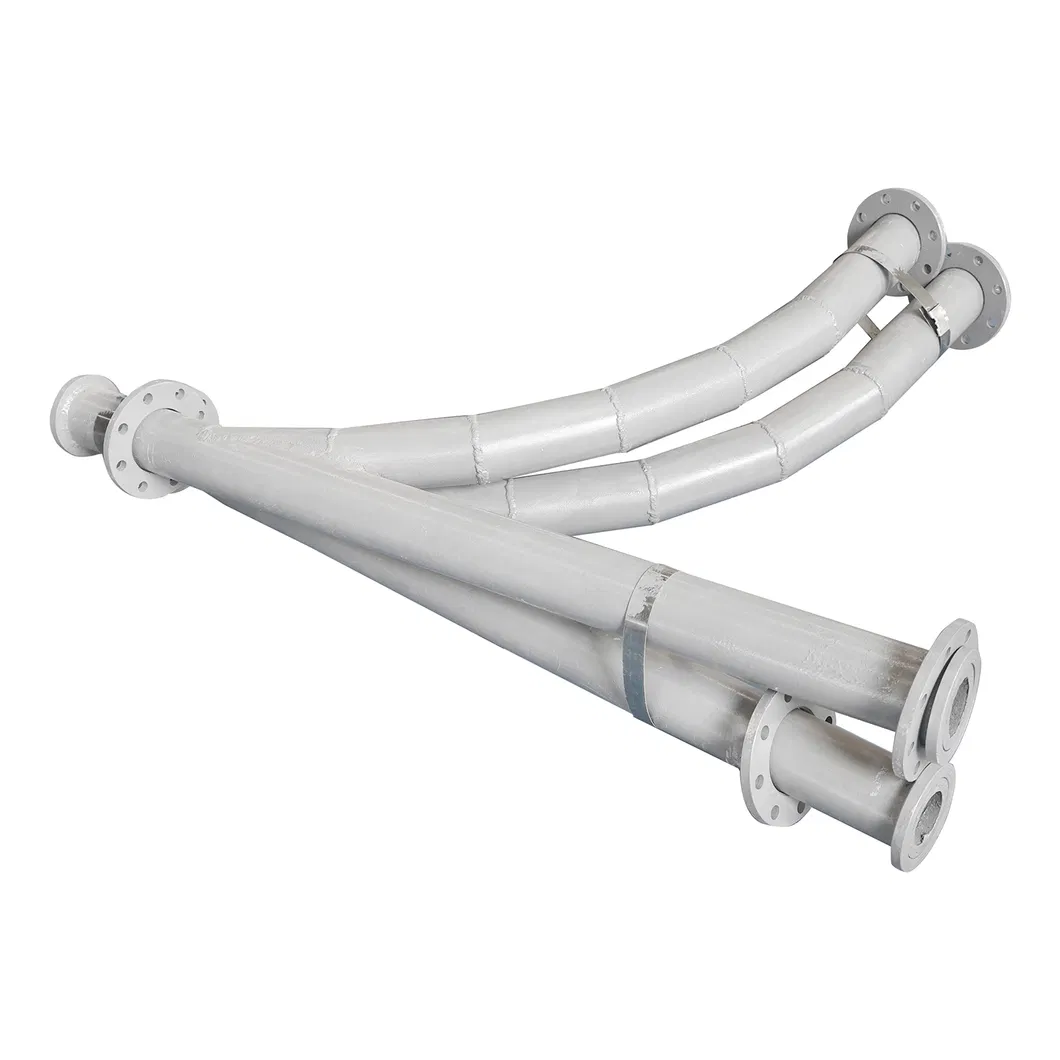

| Composition | Feeding devices (rotary valves), storage pumps, air compressors/fans, pipelines (carbon/stainless steel), separation devices (cyclones). |
| Advantages | Large capacity, high efficiency, no dust spill pollution, flexible layout, and highly automated. |
