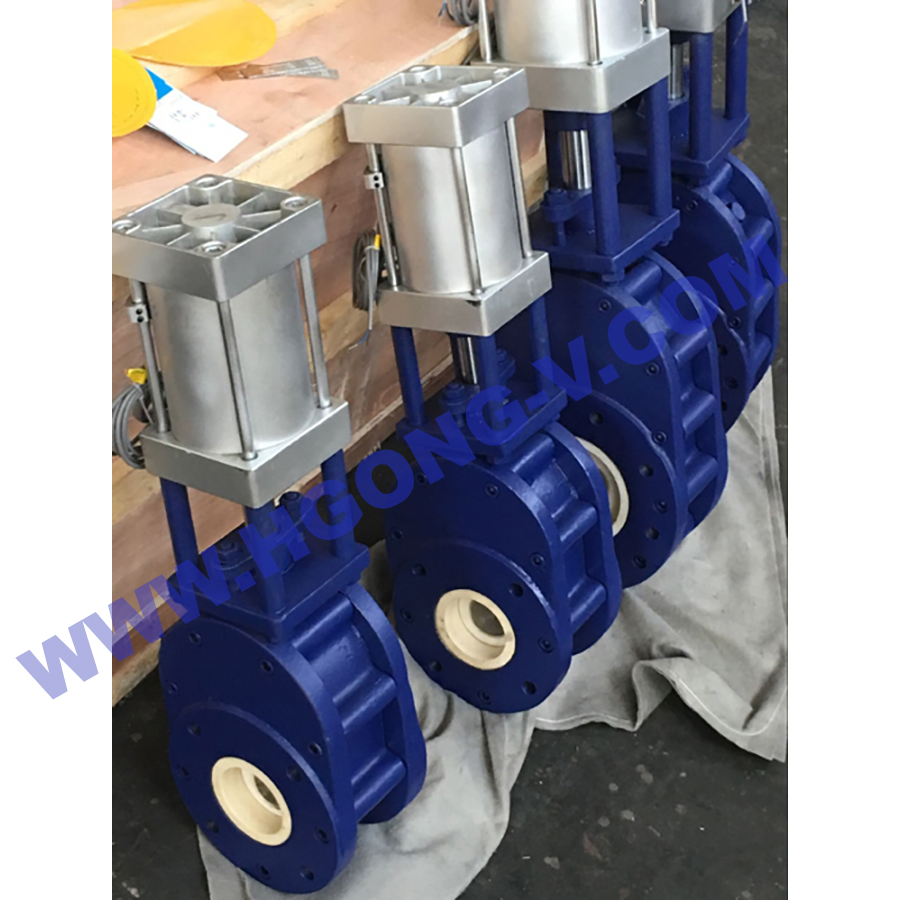

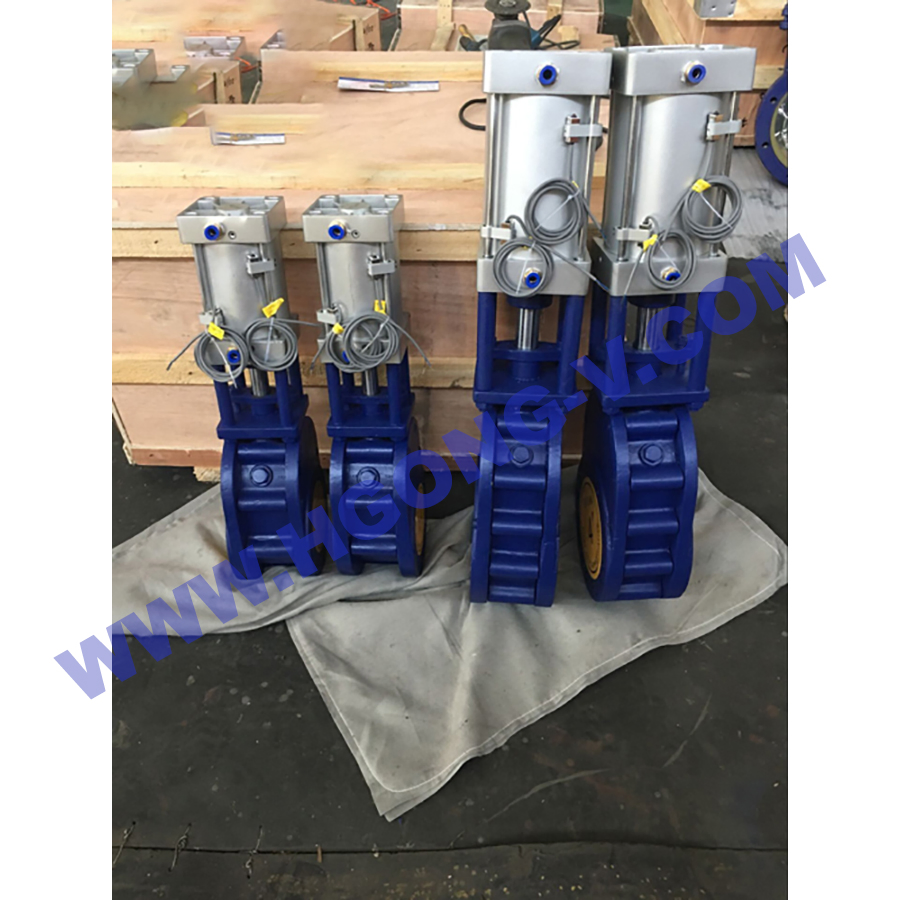

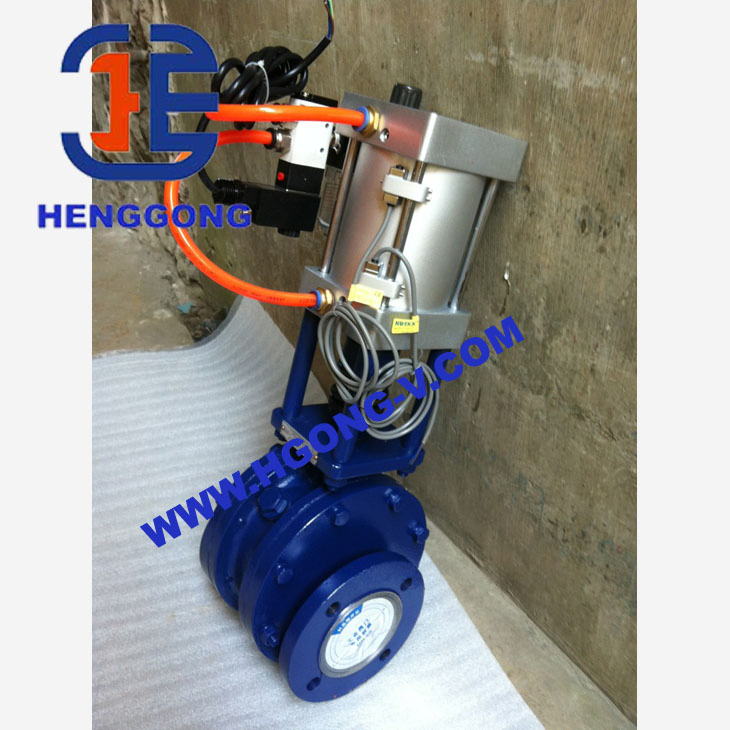

DIN Slurry Double Disc Cast Steel Lined Chemical Resistant 2500 Lb Ss 304 Pneumatic Ceramic Gate Valve

Our company owns advanced manufacturing technologies and testing equipment. Moreover, our products have passed the ISO9001 Quality System Certification and Pressure Equipment Direction EC Certification. From design to delivery, in each procedure, products are controlled strictly in accordance with ISO9001(CQC).

Ceramic Double Disc Gate Valve Standards Compliance:
MSS SP-81, JB/T 8691; Face to Face: MSS SP-81; Pre-temperature Rating: ANSI B16.34; Flanged Dimension: ANSI B16.5, DIN2533, JB79, GB/T 9113, HG20592; Inspect & Test: API 598, GB/T 13927, JB/T 9092.

Material Specifications:
- Carbon Steel: Cast Carbon Steel A216 Gr WCB Body and Bonnet. F316 Stem & Gate, Resilient or Metal Seating.
- Cast Iron: Cast Iron A126 GR. B Body and Bonnet. F304 Stem & Gate, Resilient or Metal Seating.
- Available also in low temperature steels, stainless steels, and duplex types.

Operations & Size:
Manual, Electric, Pneumatic and Hydrau-Pneumatic Actuator. Size Ranges from 2in to 60in (DN50~DN1500). Pressure Ratings: PN6, PN10, PN16, ANSI 125 & ANSI 150.
