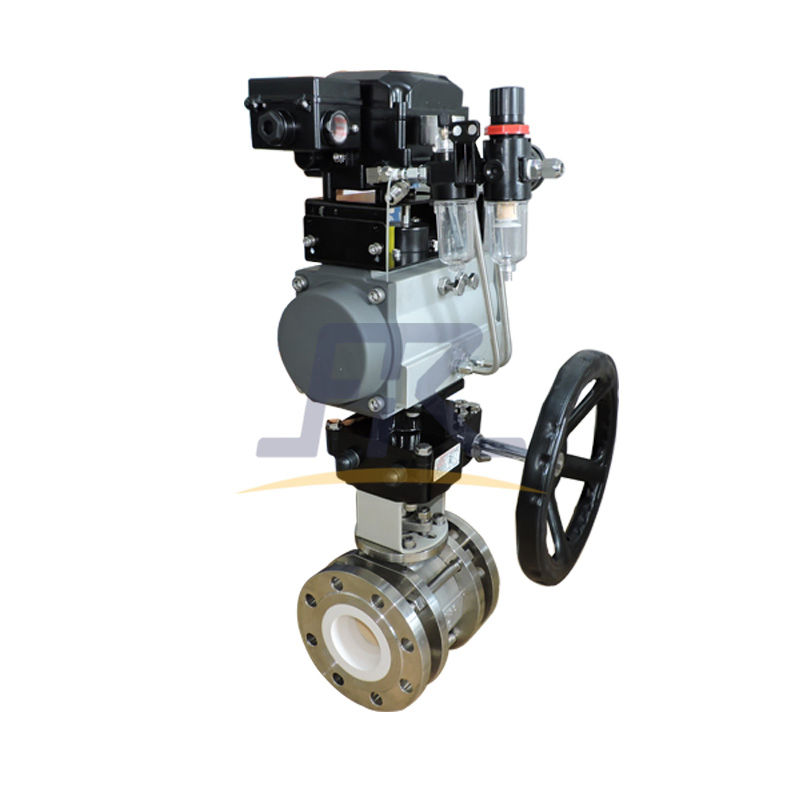

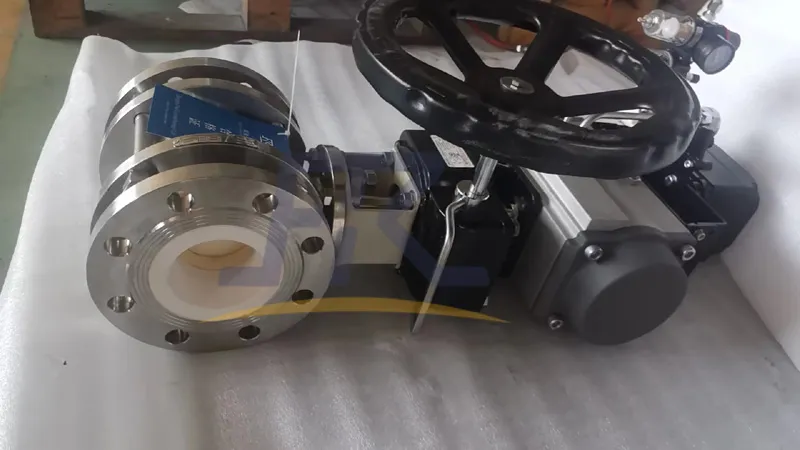

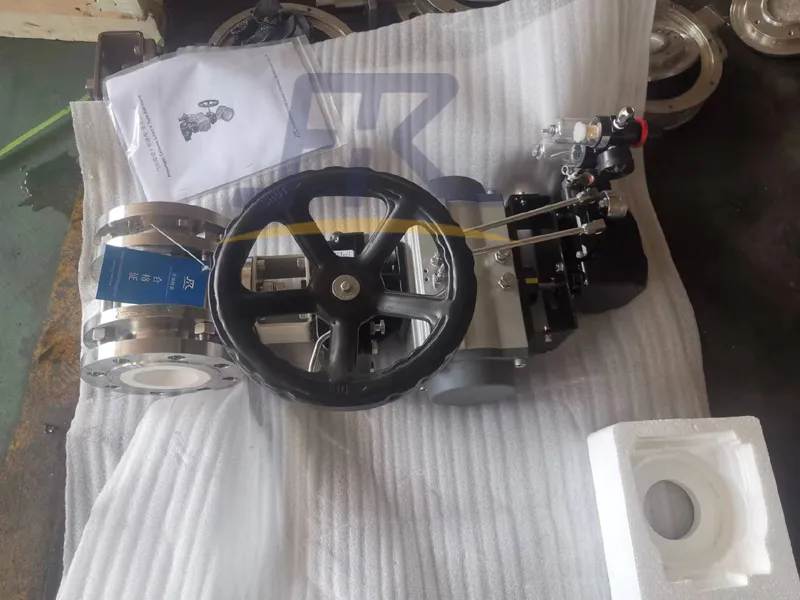

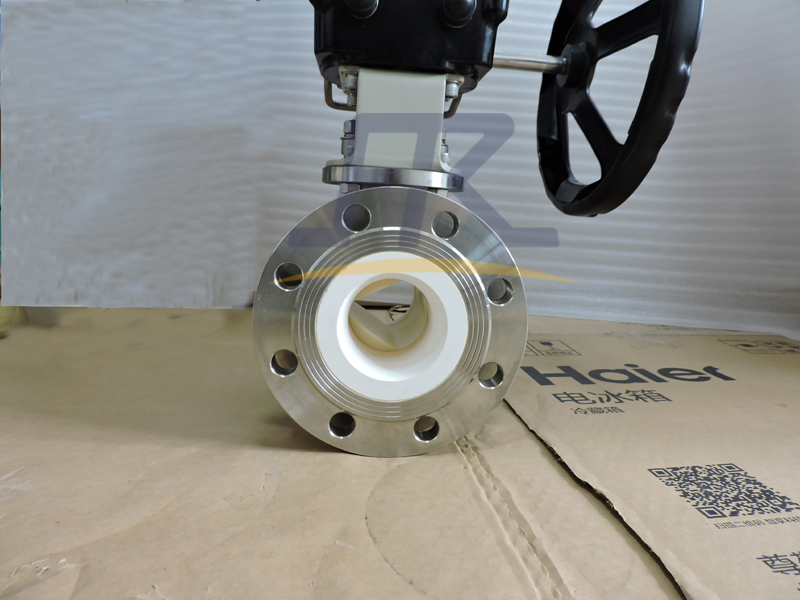

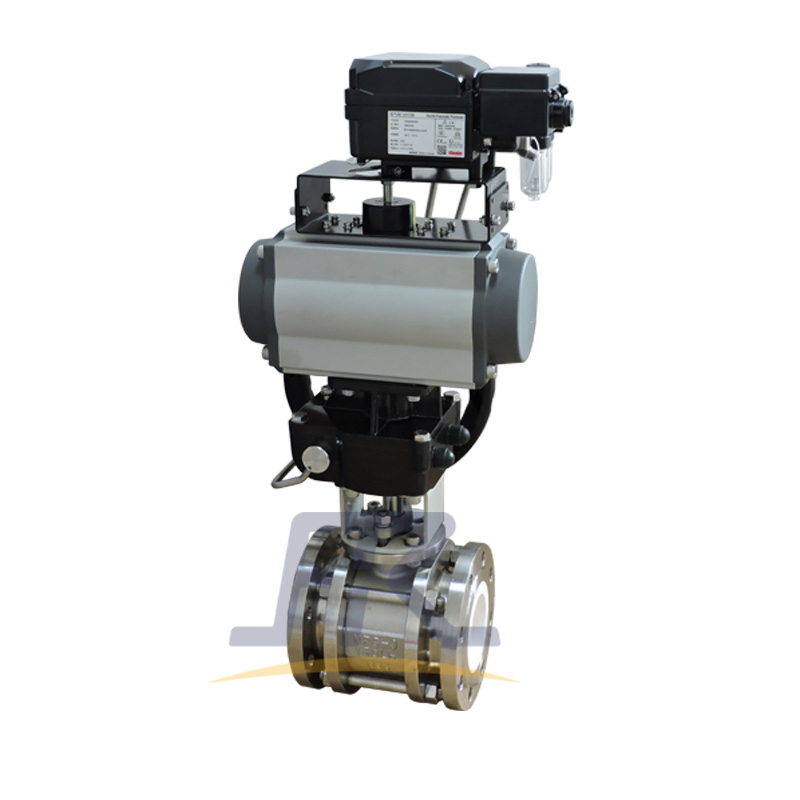

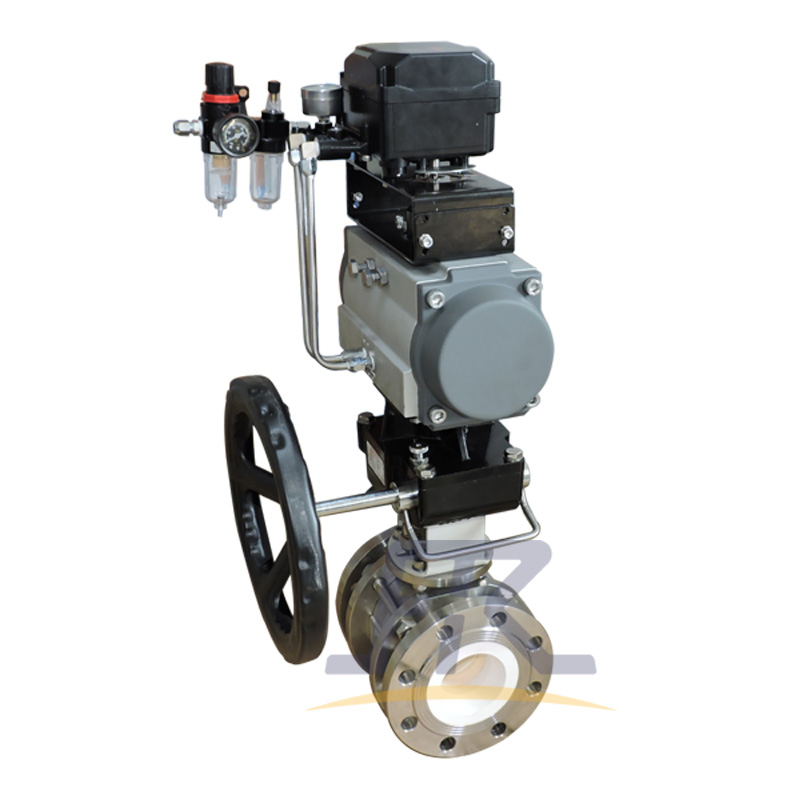

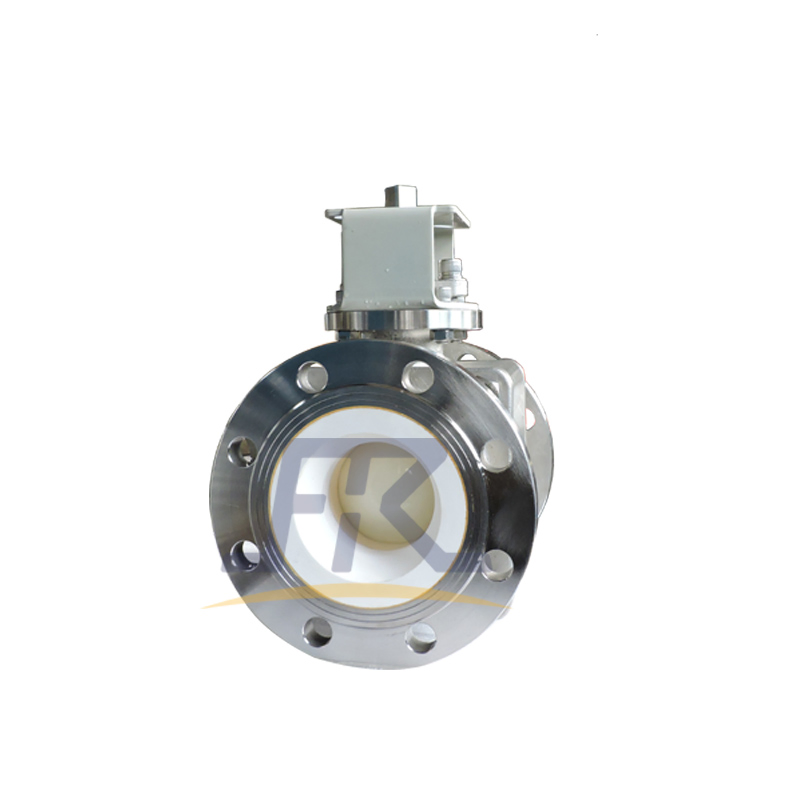

Pneumatic Ceramic Lined Floating Segment Control Ball Valves provide a V-port ceramic ball that offers precise throttling control in the valve's opening and closing, ensuring more accurate and flexible adjusting performance. The self-lubricating capability of engineering ceramic ensures excellent sealing after polishing. During the operation, the V-shaped channel and ceramic seat create a wedge-shaped shearing effect, capable of cutting off fibers and particles to prevent ball core sticking.
| No. | Parameter | Details |
|---|---|---|
| 1 | Size Range | NPS 2 ~ NPS 8 / DN50 ~ DN200 |
| 2 | Nominal Pressure | Class 150 / PN6 / PN10 |
| 3 | Applicable Temperature | 0 ~ 200ºC |
| 4 | Connection Type | Flange |
| 5 | Ball Material | ZrO2 Ceramic |
| 6 | Seat/Lining | Ceramic |
| 7 | Pressure Test | GB/T13927, API598 |
| 8 | Operating Type | Pneumatic |
Pneumatic Ceramic Lined Floating Segment Control Ball Valves serve a dual purpose, functioning as both On/Off valves and precise equal percentage throttling control valves. They are suitable for various challenging media including:
Water, Steam, Oil, Lime Slurry, Liquid Chlorine, Nitric Acid, Acetic Acid, Oxidizing Substances, and Urea.
A: The V-port design provides precise equal percentage throttling and a shearing effect that can cut through fibers and particles in the media.
A: The hardness of the ceramic material can reach higher than HRC80, providing excellent wear resistance.
A: Yes, the technical specifications indicate an applicable temperature range of up to 200ºC.
A: Yes, flange connection sizes can be customized according to requirements such as GB/T9113, ASME B16.5, or JIS B2220.
A: No, the straight-through design ensures there are no flow-blocking elements in the cavity, and the ZrO2 ceramic ball has self-cleaning properties.
A: This specific model is designed for pneumatic operation, allowing for fast and flexible adjustment.
