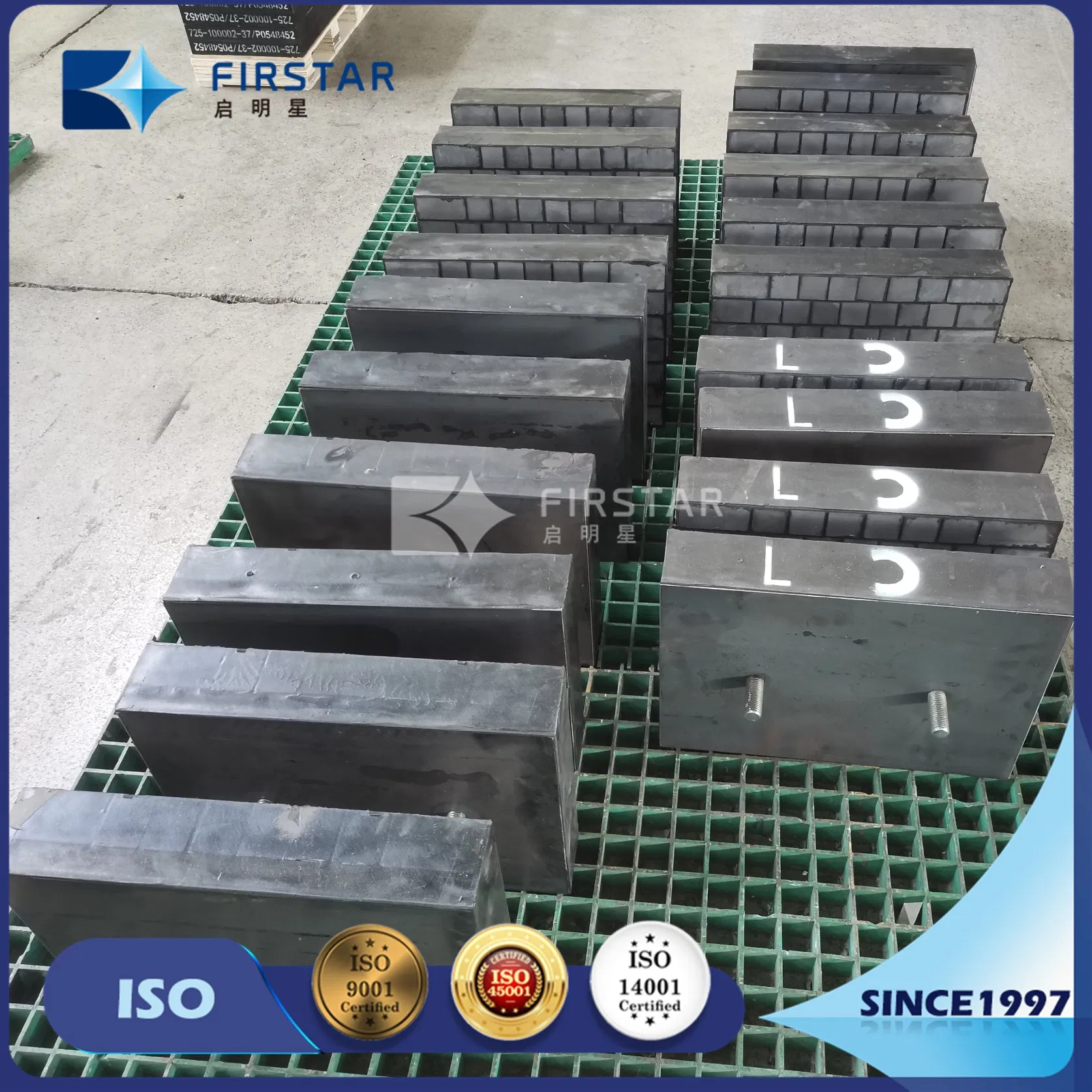

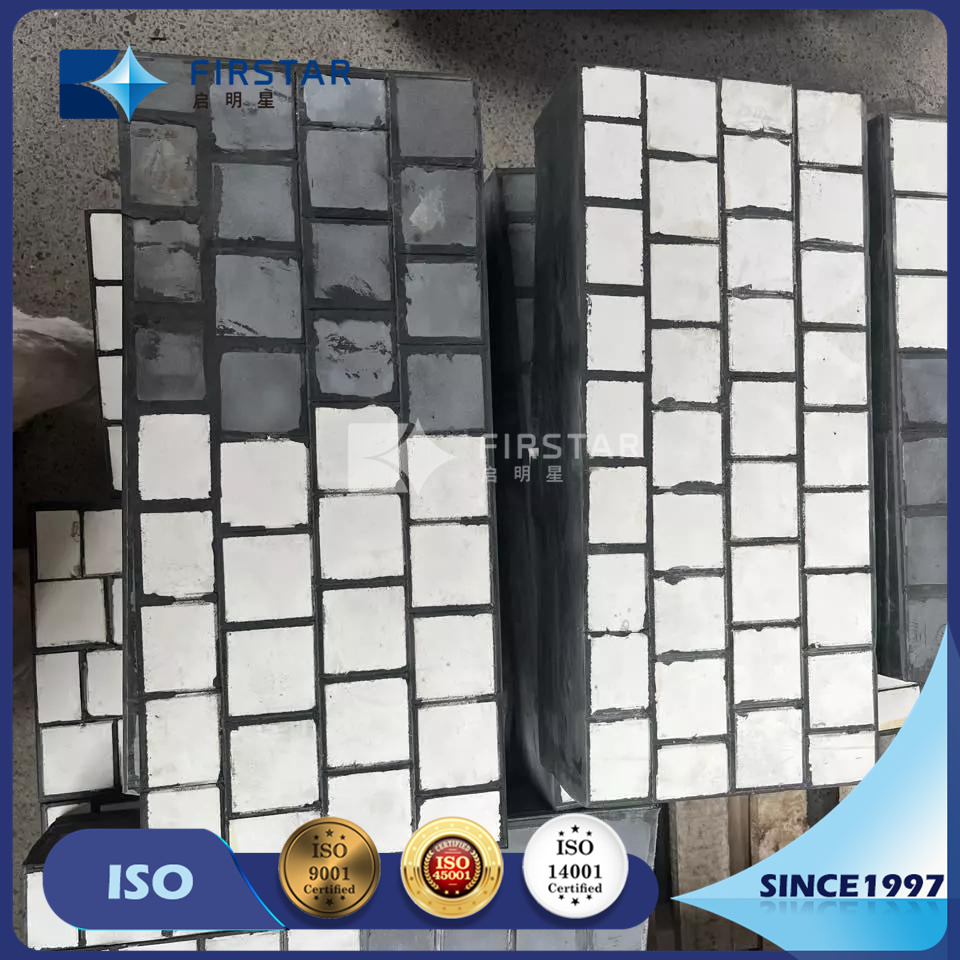

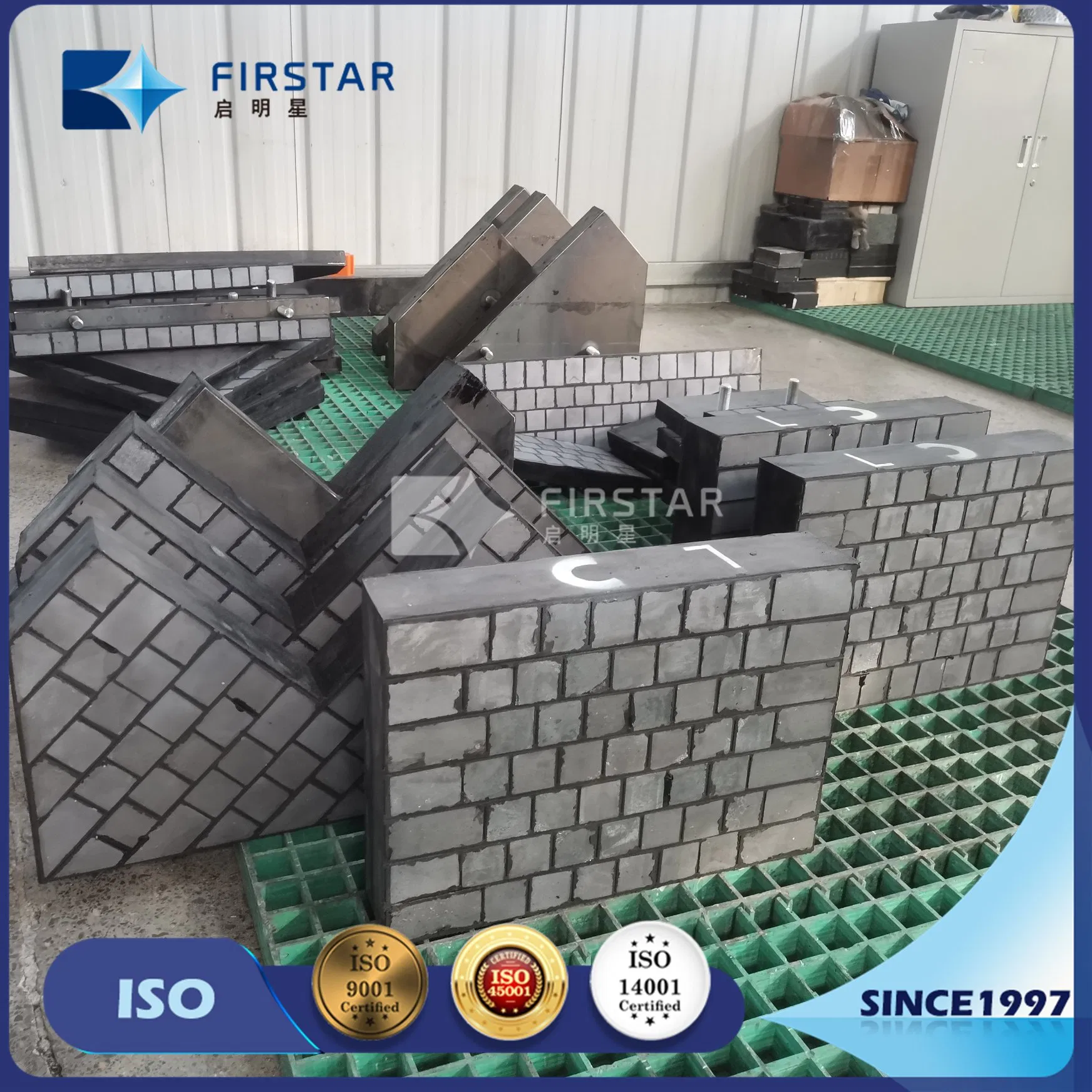

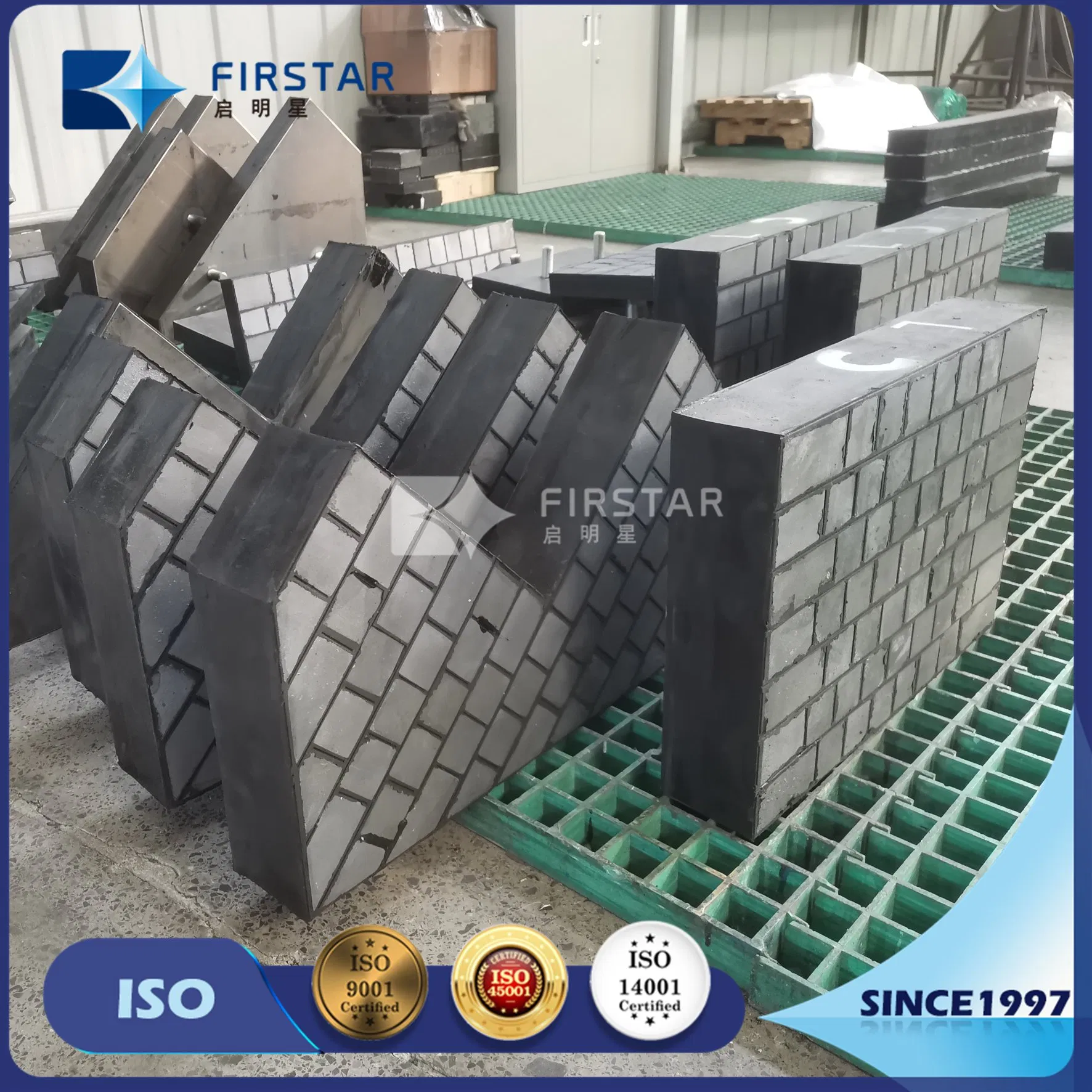

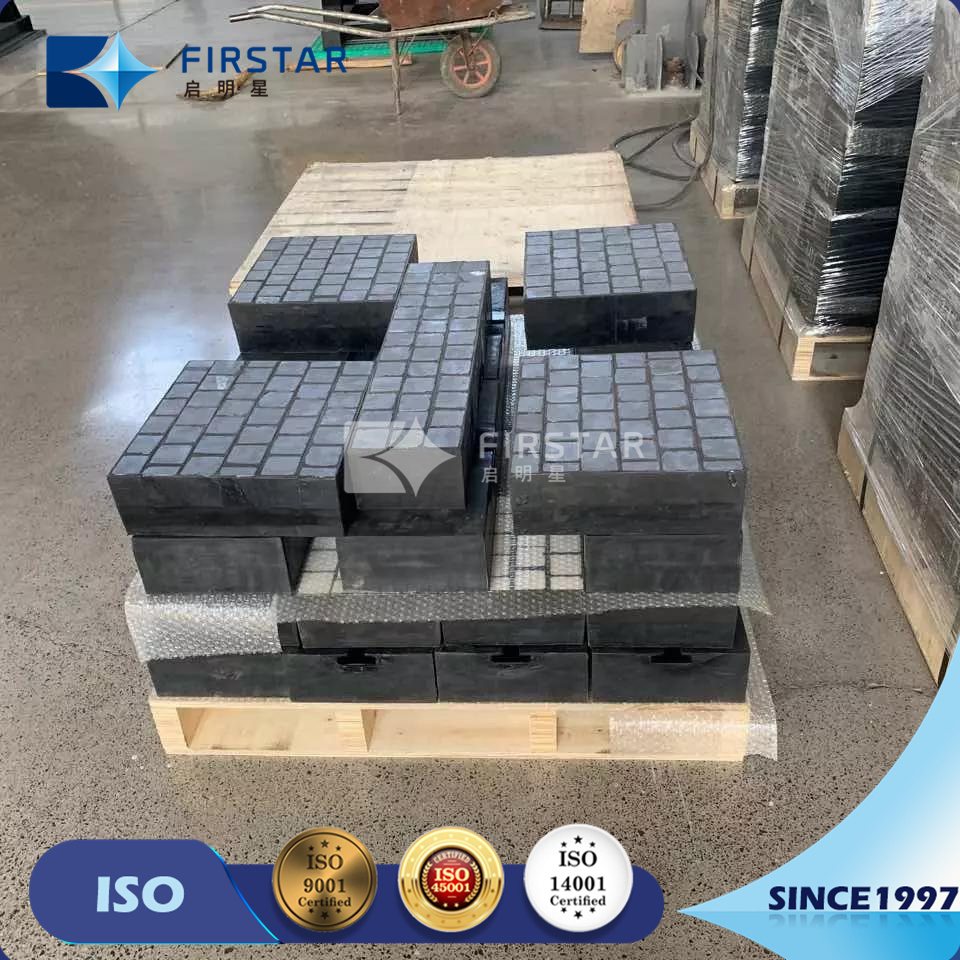

High Abrasion Absorbtion Silicon Carbide Ceramic and Rubber Composite Wear Liners Backed with Steel Plate
High Abrasion Absorbtion Silicon Carbide Ceramic and Rubber Composite Wear Liners Backed with Steel Plate
High Abrasion Absorbtion Silicon Carbide Ceramic and Rubber Composite Wear Liners Backed with Steel Plate
High Abrasion Absorbtion Silicon Carbide Ceramic and Rubber Composite Wear Liners Backed with Steel Plate
High Abrasion Absorbtion Silicon Carbide Ceramic and Rubber Composite Wear Liners Backed with Steel Plate
1 / 5
High Abrasion Absorbtion Silicon Carbide Ceramic and Rubber Composite Wear Liners Backed with Steel Plate
High Abrasion Absorbtion Silicon Carbide Ceramic and Rubber Composite Wear Liners Backed with Steel Plate
High Abrasion Absorbtion Silicon Carbide Ceramic and Rubber Composite Wear Liners Backed with Steel Plate
High Abrasion Absorbtion Silicon Carbide Ceramic and Rubber Composite Wear Liners Backed with Steel Plate
High Abrasion Absorbtion Silicon Carbide Ceramic and Rubber Composite Wear Liners Backed with Steel Plate

High Abrasion Absorbtion Silicon Carbide Ceramic and Rubber Composite Wear Liners Backed with Steel Plate

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications
Model NO.
Rubber Composite Wear Liners
Material
Alumina Ceramic, Resilient Rubber, Steel
Type
Wear Resistant Ceramic
Density
1.4G/Cm3
Tensile Strength
>14MPa
Elongation at Break
>250%
Shore Hardness
48-65
Thermal Conductivity
2W/M·K
Adhesive Strength
>3.5 MPa
Aging Period
>1.5 Years
Specification
500*500*63mm
HS Code
6909120000
Silicon Carbide Ceramic & Rubber Composite Wear Liners

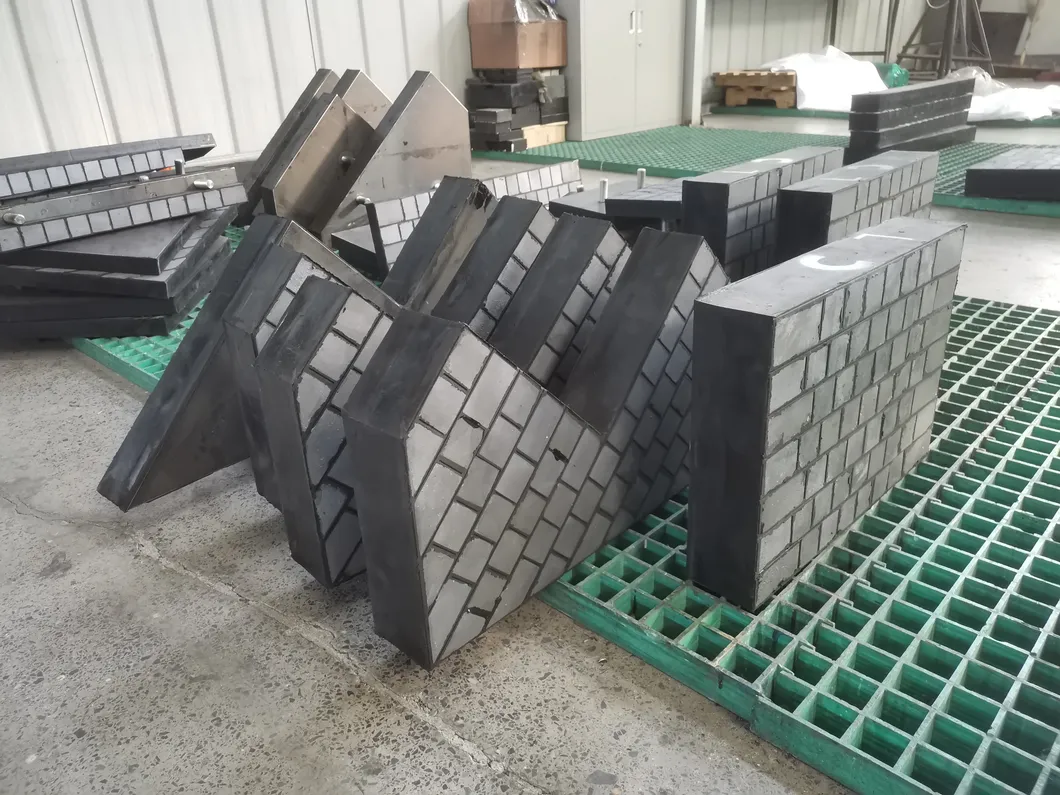

Ceramic Rubber Composite Wear Liner

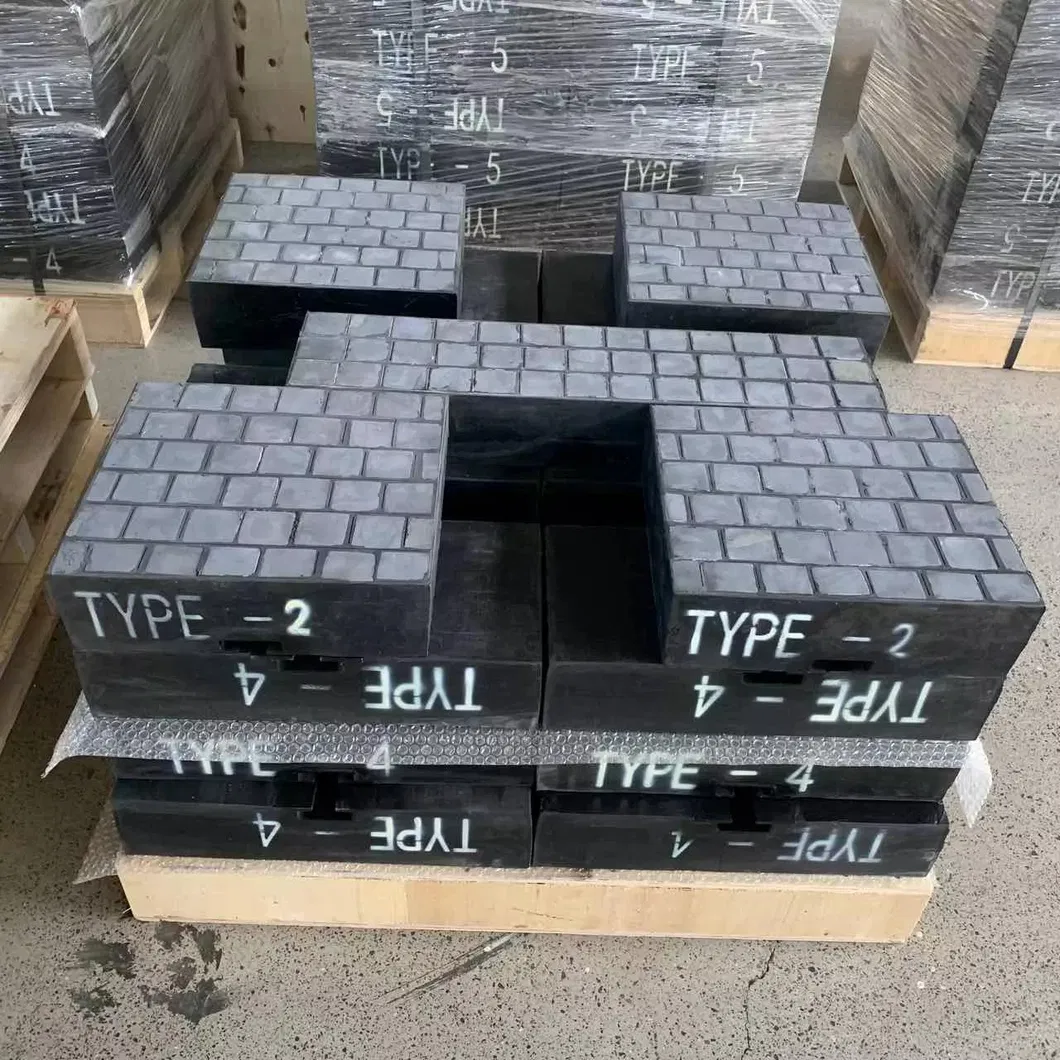

Wear Resistant Ceramic Pad
Product Description

Ceramic rubber composite pads & plates utilize a rubber vulcanization process to embed wear-resistant ceramic into a rubber base. This composite can be bonded to equipment surfaces using high-strength adhesive. Based on requirements, it can be vulcanized with a steel backing plate and optional mounting bolts.

Key Features

Combines the extreme wear-resistance of ceramics with the impact-resistance of rubber. Ideal for conveying systems operating under normal temperatures that require high impact absorption.

Industrial Applications
  • Pipes and Tanks
  • Deflectors and Launders
  • Spill Face Sloping Walls & Loading Chutes
  • Bins and Hoppers
  • Mill Feed Components
Component Attributes Properties
Ceramic Tiles Material Silicon carbide / Alumina
Rubber Density / Tensile ~1.4g/cm3 / ≥15Mpa
Rubber Working Temp -50ºC - 200ºC
Steel Plate Material / Thickness Q235A / 5-6mm
Adhesive Peel Strength 48h N/2.5cm ≥120
Production & Quality Control

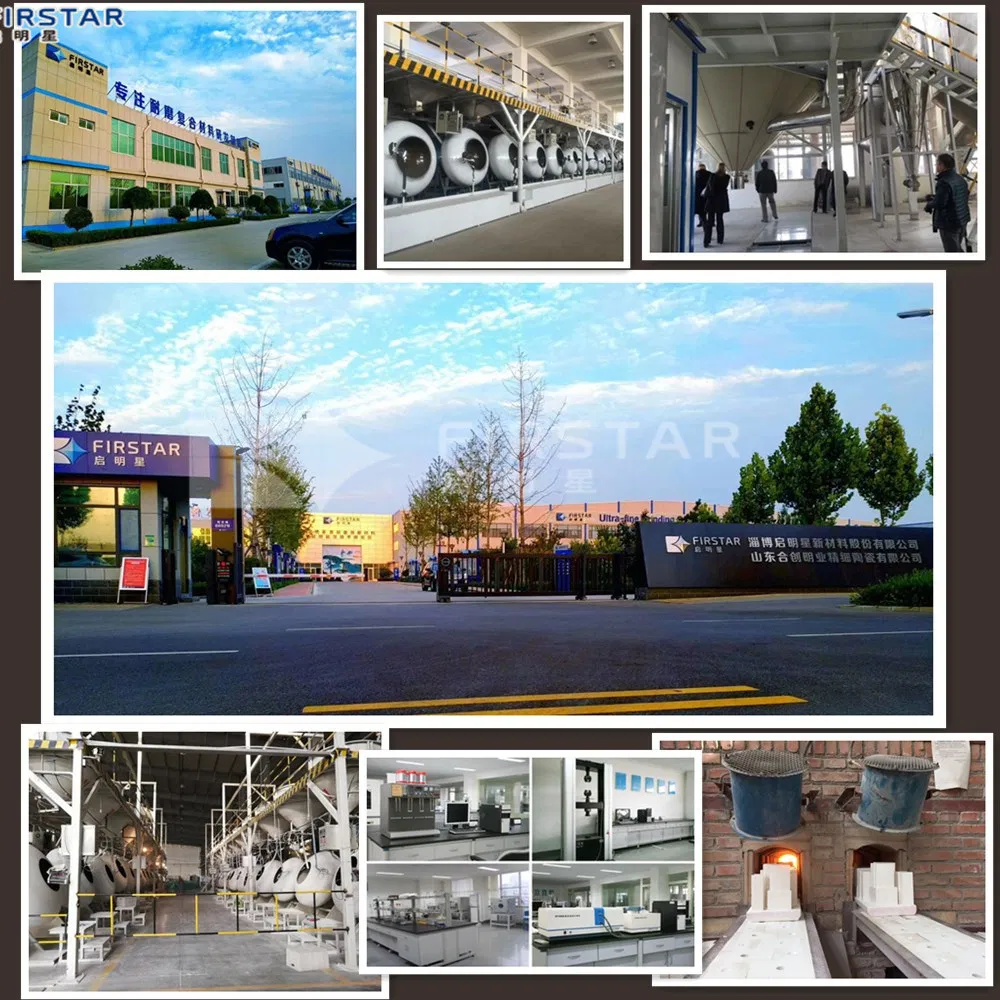

Production Facility

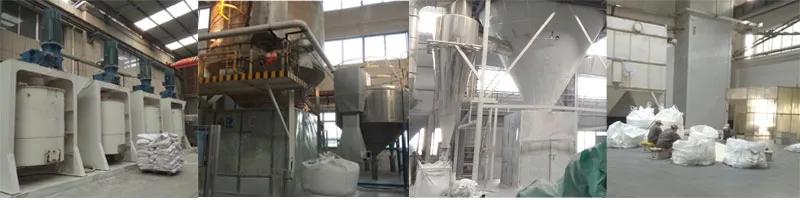

Manufacturing Process
Workshop
Quality Inspection

Specializing in the production of HC series wear-resistant ceramic liners, including alumina, zirconium silicate, and ZTA liners. Our facility spans 50,000 sqm with ISO9001:2000 certification and advanced own-designed production lines.

Frequently Asked Questions
Are you a trading company or manufacturer?
We are a specialized manufacturing factory with over 20 years of experience in wear solution products.
Can I request free samples for testing?
Yes, we offer free samples. The air shipping fee for samples is typically returned upon placement of a bulk order.
What is the typical delivery timeframe?
For in-stock goods, it is 5-10 days. For custom or bulk orders, it generally takes 15-30 days depending on the quantity.
What are your standard payment terms?
Our standard terms are 30% T/T in advance, with the remaining balance due before shipment.
Do you support customized packaging and sizes?
Yes, both the dimensions of the ceramic plates and the shipping marks/packaging can be fully customized to meet your requirements.
What materials are used in the composite liners?
The liners consist of high-alumina or silicon carbide ceramics, resilient natural or nitrile rubber, and Q235A steel backing plates.
