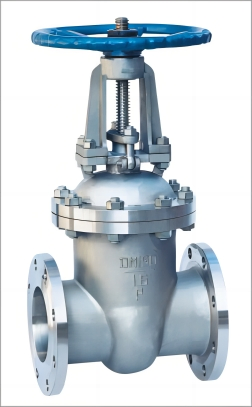

High-Performance Ceramic Lined Gate Valve for DN50/150/300/500 Applications

Customization:	Available
Media:	Oil
Temperature:	Ordinary Temperature

Basic Information

Model NO.

Z644tc-10c

Type

Straight-through

Material

Carbon Steel

Connection Form

Flange

Pressure

Ordinary Temperature

Actuator

Manual

Seal Surface

Parallel Gate Valve

Usage

Flow Control

Standard

ANSI

Sealing Material

Engineering Ceramic

Product Description

The electro-hydraulic anti-abrasive knife gate valve is specially developed for the two-phase flow of solid and liquid. Taking engineering ceramics as the main material for throttling element, ceramic gate valve is widely used in coal washing industry, steel industry and mining industry.

Key Features

Sealing surface made of toughened ceramics with abrasion resistance.
Short structure length and light weight for easy installation.
Bottom of the disc can be permeated with WC to avoid erosion during throttling.

Size	2"~32" DN50~DN800
Pressure	Class 150 PN1.6~PN20.0 MPa
Body material	WCB, CF8, CF8M, CF3, CF3M etc.
Sealing material	Toughened engineering ceramic
Driving method	Electro-hydraulic

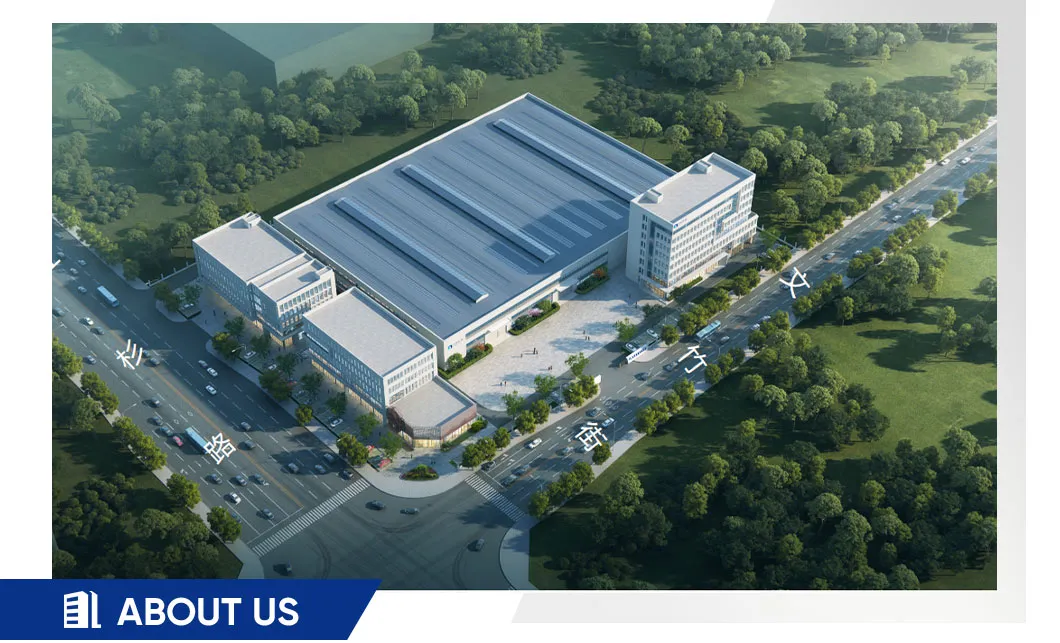

Professional Capabilities

A high-tech enterprise integrating research, development, design, and manufacturing of intelligent industrial valves. Recognized as a provincial-level enterprise technology center and a national high-tech enterprise with high growth potential. The company is the core drafting unit for eight national and industry standards.

Products are widely applied in petrochemical, power, steel, heating, metallurgy, and coal chemical engineering industries. The technical department includes a CAD design studio and research and development center, holding various international certifications including ISO, CE, and SIL safety certification.

Our Advantages & Certifications

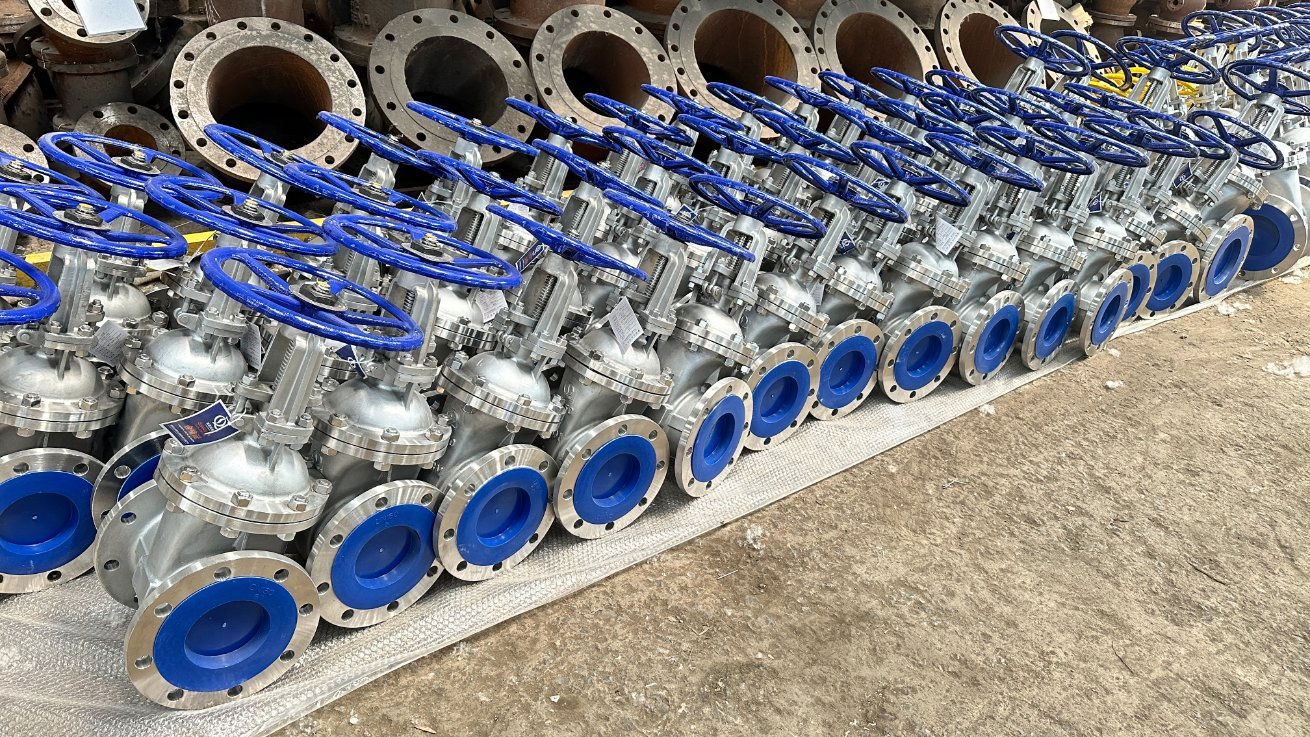

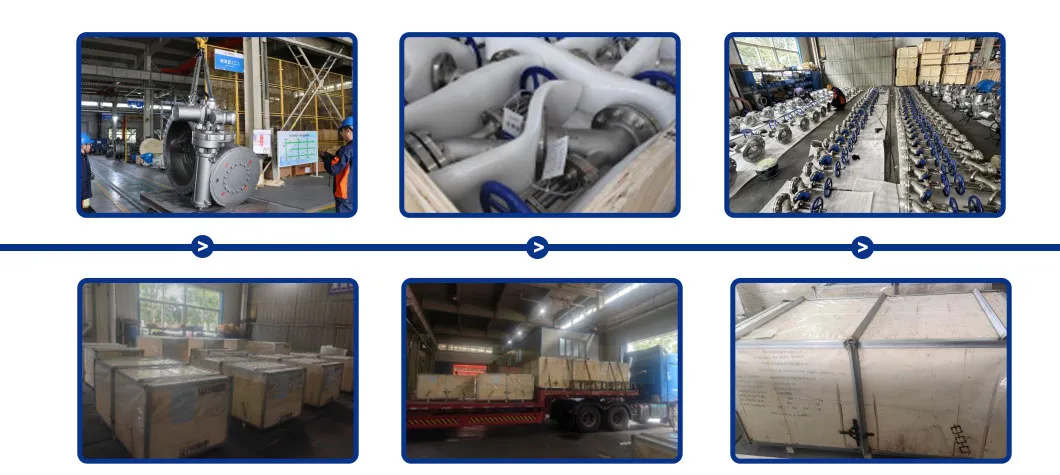

Packaging & Shipping

Frequently Asked Questions

What causes leakage at the stem extension?

There are two main reasons: sealing ring damage or sealing ring wear and aging. The solution is to replace the sealing ring.

How to solve leakage at the valve and pipe connection?

Repair the sealing surface, clean any dirt, replace the gasket, or ensure the flange bolts are pressed evenly.

What causes internal leakage in the valve?

Internal leakage is mainly caused by debris on the sealing surface or damage to the sealing surface. Removing debris and repairing the sealing pair is required.

Why is the valve opening and closing inflexible?

This can be caused by actuator failure or foreign objects blocking the valve plate. Repair the actuator or remove the blockage carefully.

Can the valve actuator be adjusted by users?

The valve actuator is calibrated before leaving the factory. Non-professional personnel are strictly forbidden from adjusting it to avoid damage.

What industries use ceramic lined valves?

They are widely used in coal washing, steel, mining, petrochemical, and power industries, especially for handling abrasive solid-liquid flows.
