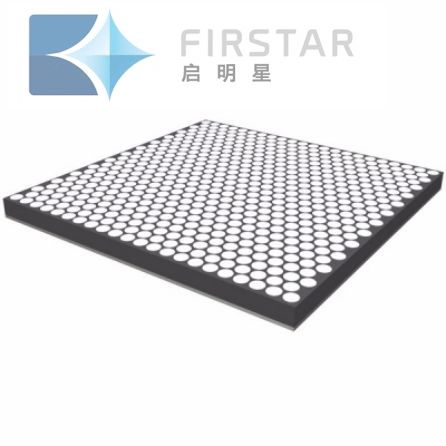

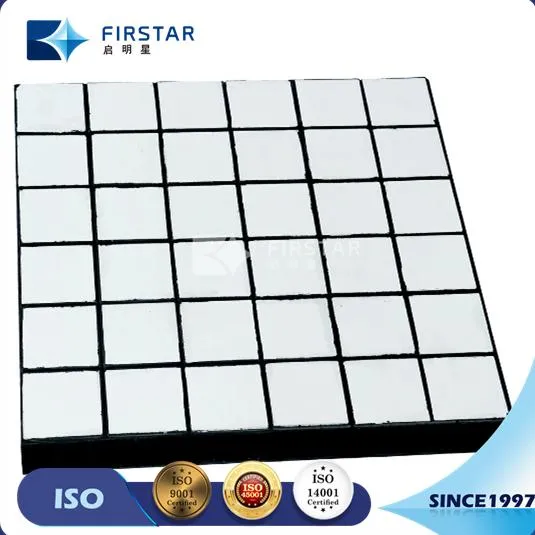

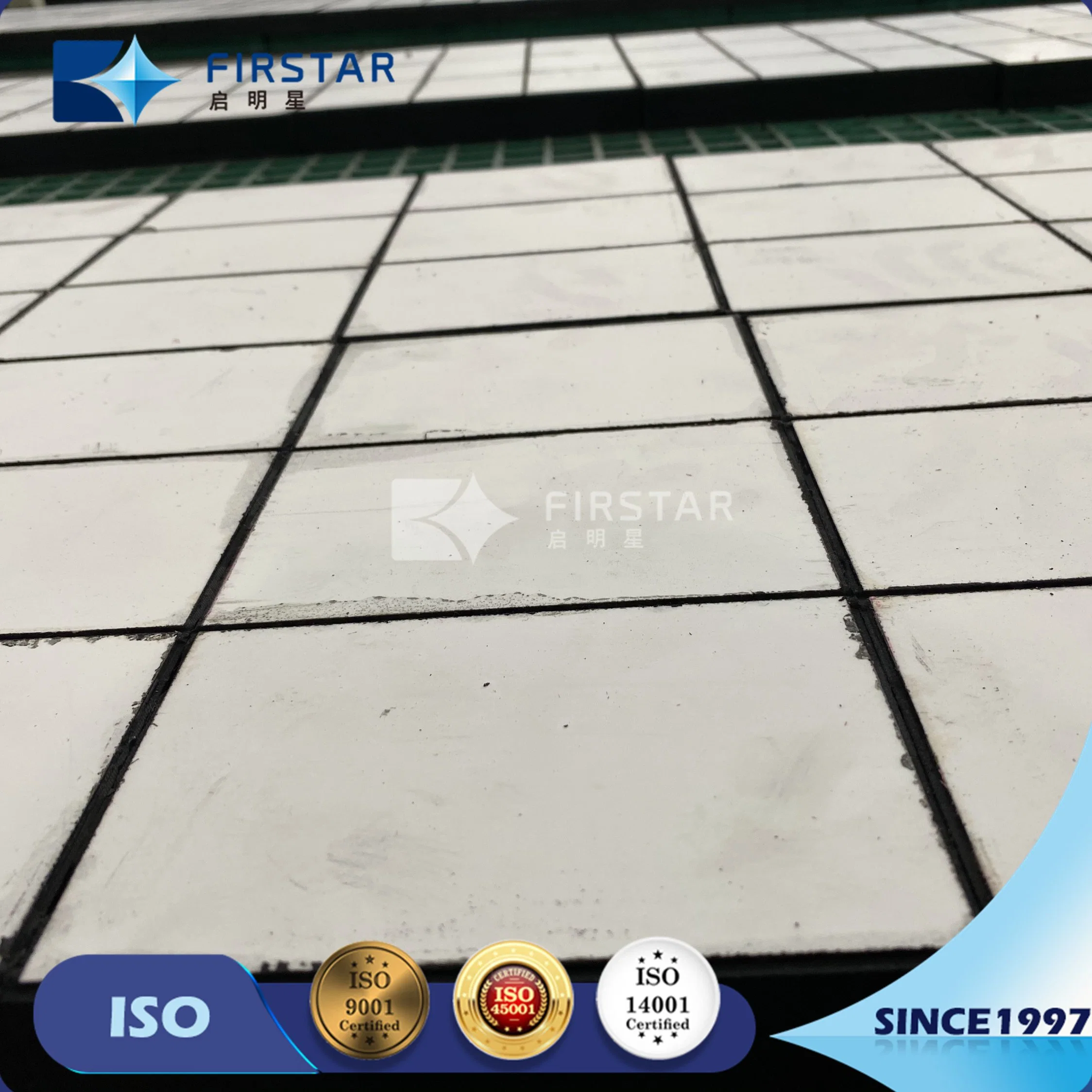

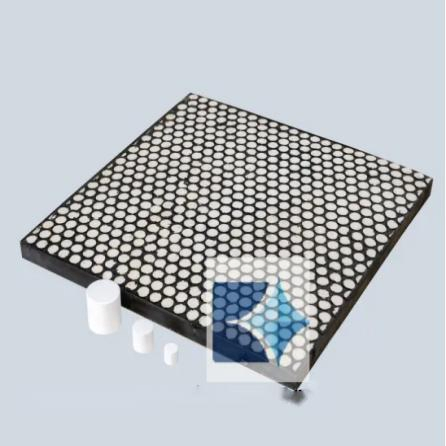

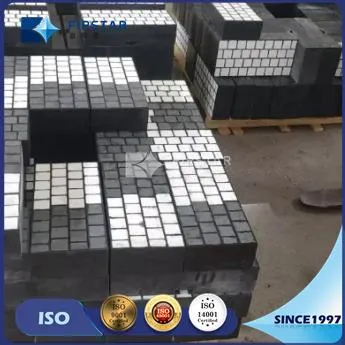

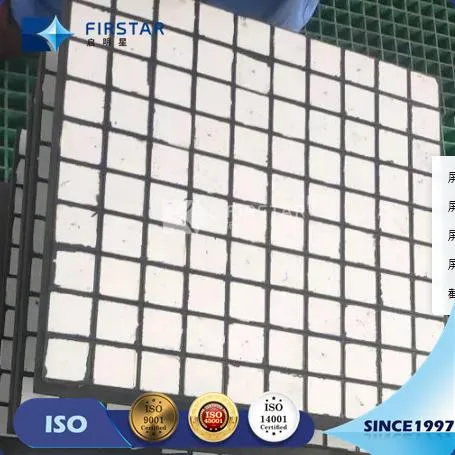

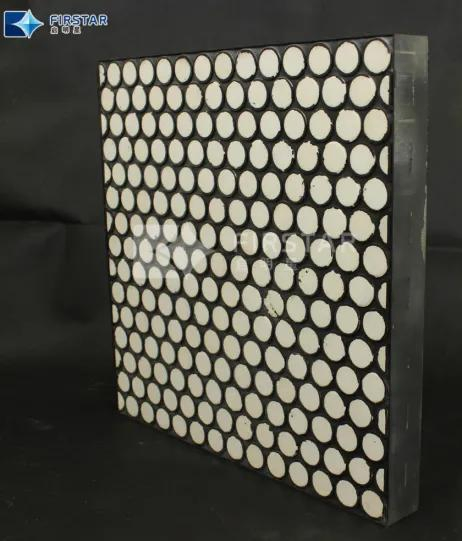

In aggressive industrial applications, equipment subject to high impact and high abrasion inevitably suffers mechanical attack, chemical attack, or corrosion. Composite ceramic wear liners are intended for the toughest applications. By vulcanizing large, hard ceramic bricks into a matrix of wear-resistant rubber, the elastic properties of the rubber act as a dampener, allowing the product to withstand significant impact without crushing the ceramics.
| Material Component | Attributes | Detailed Properties |
|---|---|---|
| Ceramic Tiles | Material Grade | 92%, 95%, T95%, 96%, ZTA Alumina |
| Working Temp | Up to 200ºC (Depending on rubber type) | |
| Rubber Matrix | Base Component | Natural Rubber, Nitrile-Butadiene, Flame Retardant |
| Tensile Strength | ≥15 Mpa | |
| Shore Hardness | 45-65 | |
| Adhesive Strength | Tile to Rubber: 1.2-3.0 Mpa | |
| Steel Plate | Material / Thick | Q235A / 5-6mm |

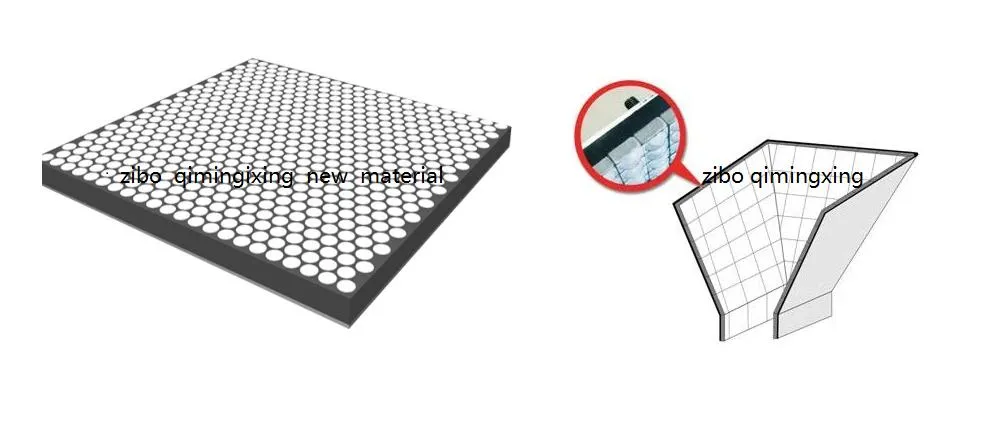

Ideal for lining equipment used in heavy material handling, including:
Operating from an 86,700 m² ISO-certified facility, we provide fully custom services including bespoke designs, specialized packing, and private labeling. Our quality control ensures satisfaction across all production stages, supported by a professional team with decades of industry experience.
