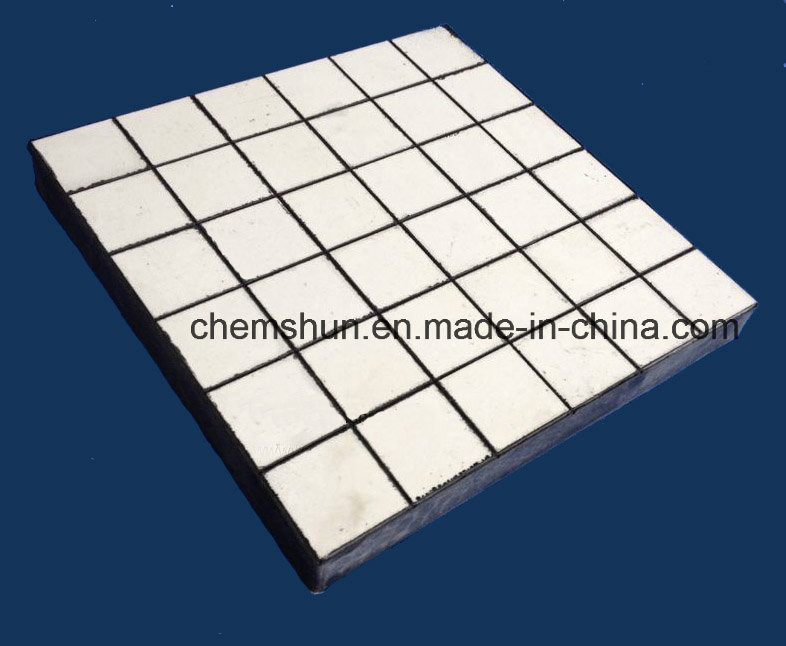

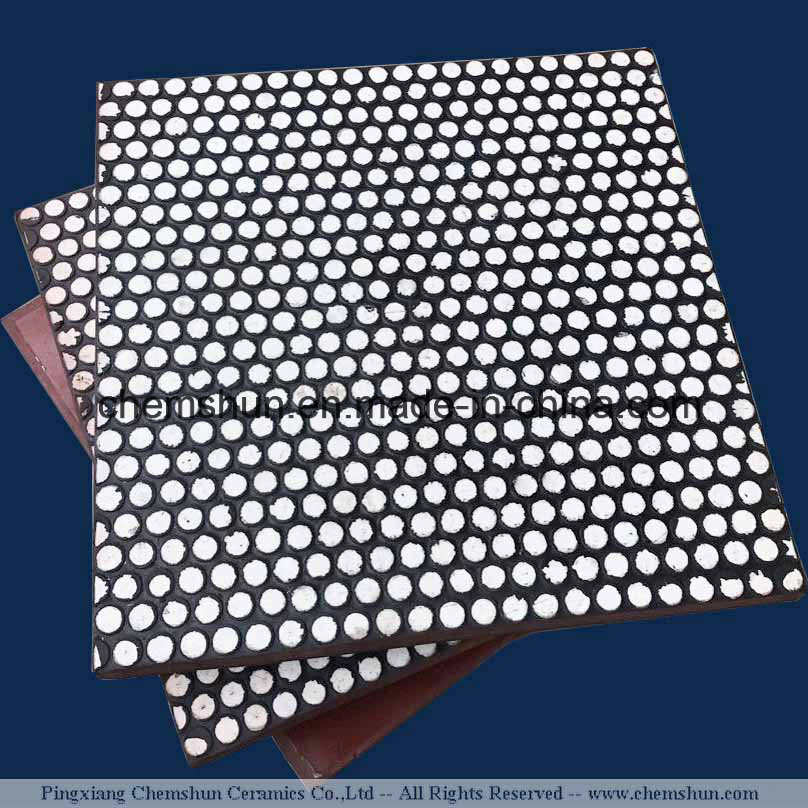

Chemshun Rubber Ceramic Composite Wear Liner Plate (300*300*37mm)

1 / 5

Chemshun Rubber Ceramic Composite Wear Liner Plate (30030037mm)

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Chemshun ceramics

Item

Rubber Ceramic Wear Liner Backed with Steel Plate

Ceramic

92% Alumina, 95% Alumina

Composition

Ceramic /Rubber, Ceramic/Rubber/Steel Plate

Application Field

Coal Feeding System, Milling System, Power Plant

Advantage

High Wear Resistant, Low Abrasion Loss

Available Size

300*300*32, 300*300*37, 300*300*63

Ceramic Shape

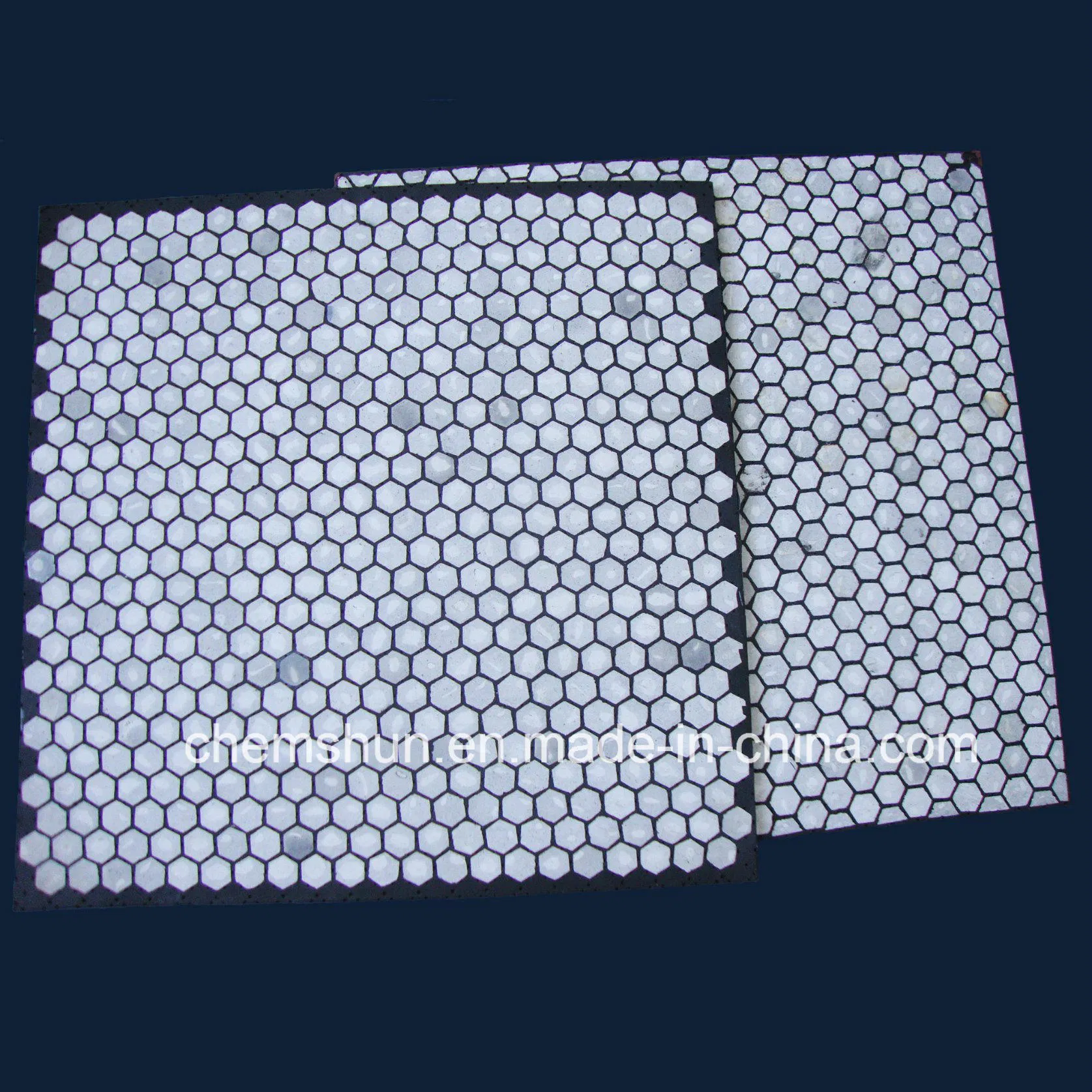

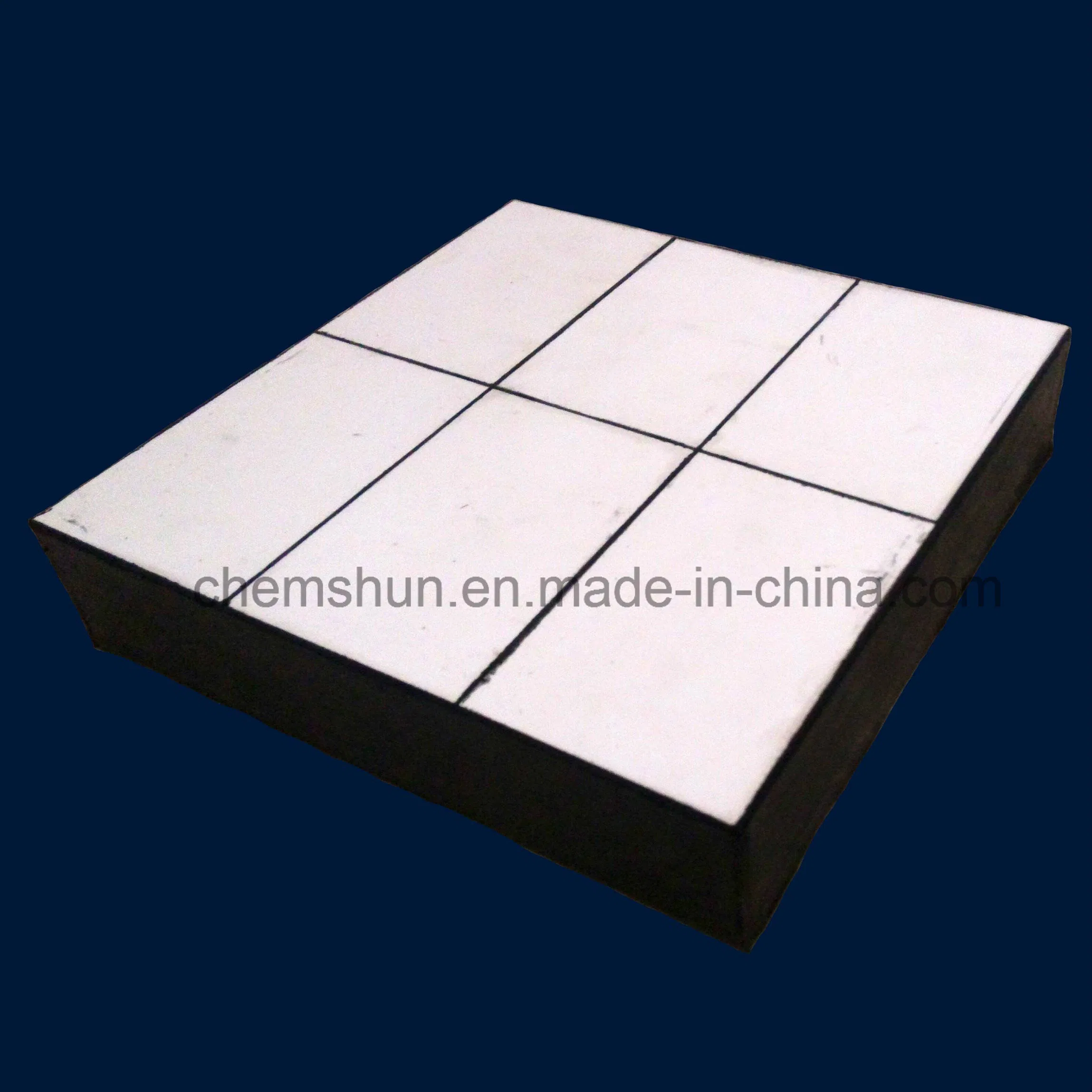

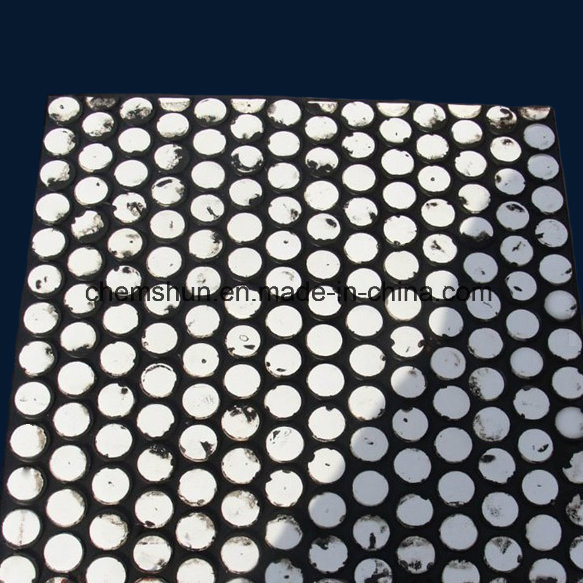

Ceramic Cylinder, Ceramic Hexagon, Alumina Tile

Usage

Wear Ceramic Liner with High Impact Resistance

Type

Ceramic Plates

Transport Package

Carton+Pallet

Specification

500*500*20mm, 500*500*29mm, 500*500*50mm

Origin

Pingxiang, China

HS Code

69091200

Production Capacity

4500ton/Year

Product Description

Ceramic rubber components has excellent hardness and flexibility as wear ceramic liner

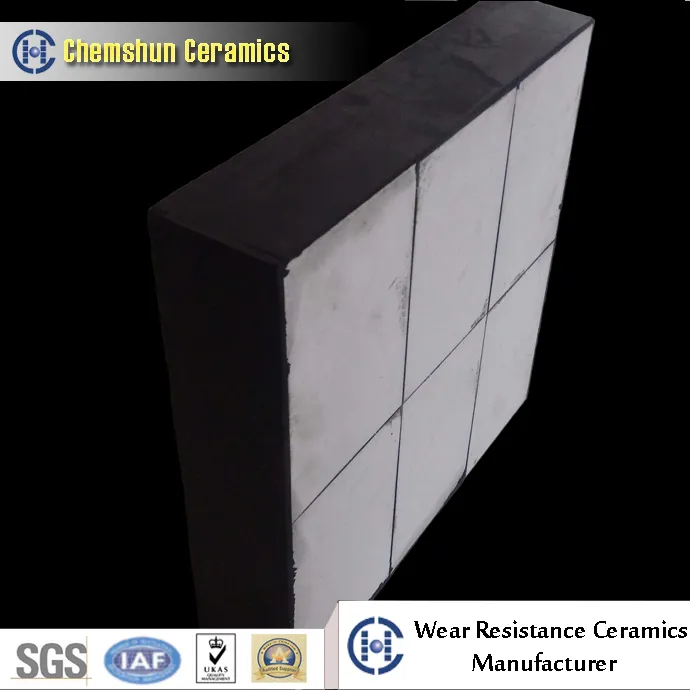

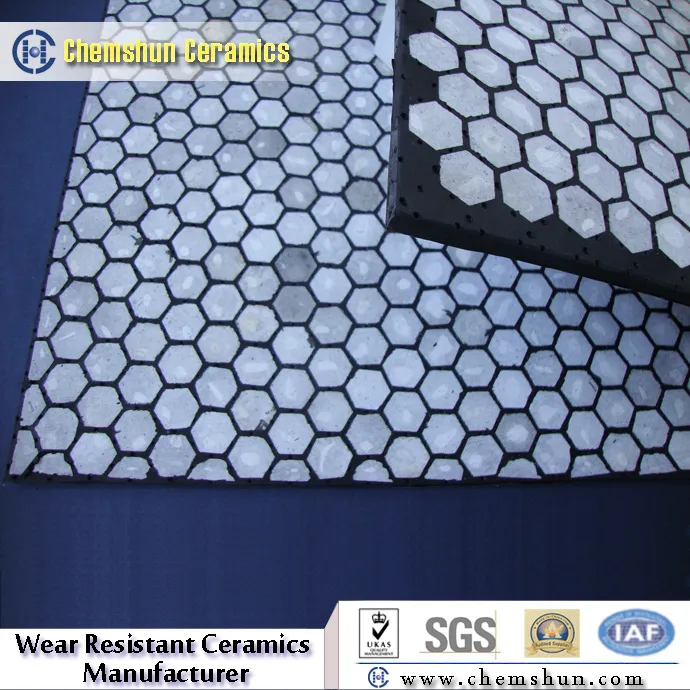

Wear Resistant Rubber Ceramic Panels is new generation composite panels, a combination of wear resistant alumina ceramic cylinders/ceramic tiles vulcanized in resilient rubber base. The alumina ceramic surface provides exceptional resistance to wear, while the elastic property of the rubber effectively dampens the impact forces which can crack the ceramics.

The panel is suitable for feeders, chutes, bins, transfer points, in conveyor systems, screen feed plates, mill discharge chutes, bunker etc. The major applicable industries are Coal fired power plants, cement plants, blast furnace plants and host of other industries which requires high impact abrasion resistant surfaces.

Product Features

High hardness
Superior abrasion and impact resistance
Corrosion and chemical resistance
Light weight
Easy installation by epoxy resin or bolt
Improve your working environment - noise, vibration and safety

Technical Specifications

Sheet Size (mm)	Ceramic + Rubber + Steel (mm)
30030037	25+6+6
30045037	25+6+6
30053037	25+6+6
35053037	25+6+6

Alumina Details

Item	Content/Index
Alumina content	92%
Density	≥ 3.62g/cm3
Compressive strength	≥850Mpa
Rockwell A hardness	≥87 HRA
Moh's hardness	9 grade
Bending strength	≥ 290 Mpa
Water absorption	None

Rubber Details

Item	Index
Tensile strength	>12MPA
Break extension	>250%
Shore hardness	55-65
Rubber and ceramic adhesion	>3.0Mpa
Rubber aging life	>15 years

Packaging & Shipping

Delivery: 15-30 days working day for large quantity. Samples usually by EMS, DHL, UPS, TNT, FedEx. Bulk orders are usually transported by sea.

Frequently Asked Questions (FAQ)

Q1: What are the main components of the composite wear liner? A: The liner is a combination of high-alumina ceramics (92% or 95% Al2O3), a resilient rubber base, and can be backed with a steel plate for added structural support.

Q2: How does the rubber backing improve performance? A: The rubber effectively dampens impact forces that might otherwise crack the ceramic tiles and significantly reduces noise and vibration during operation.

Q3: Where is this product typically used? A: It is ideal for high-impact and high-abrasion areas such as coal feeding systems, milling systems, chutes, bins, and transfer points in power plants and cement factories.

Q4: Can the size and shape be customized? A: Yes, we provide various ceramic shapes (cylinders, hexagons, tiles) and can design complicated shapes and various sizes according to customer requirements.

Q5: How is the wear liner installed? A: The liners are designed for easy installation using either high-strength epoxy resin bonding or mechanical bolting methods.

Q6: What is the typical lead time for production? A: Standard delivery takes 15-30 working days for large quantities, depending on whether the product is a standard size or a custom design.
