Chemshun High Alumina Ceramic Chemical Resistant Linings

1 / 5

Chemshun High Alumina Ceramic Chemical Resistant Linings

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

Chemshun Ceramics

Materials

92% Al2O3 or 95% Al2O3

Alumina Content

92% Al2o3 or 95% Al2O3

Density

3.60g/cm3

Appearance

Plain Plate, Plain Tile, Smooth

Application Method

Rubber Backed Ceramic, Lining Ceramic

Application Equipment

Hopper, Chute, Conveyer, Bunker

Application Industry

Mining, Power Plant, Steel Plant, Cement

Specification

150x100x6/12/13/20/25/30/50mm

HS Code

690220

Capacity

4200tons/Year

Product Description

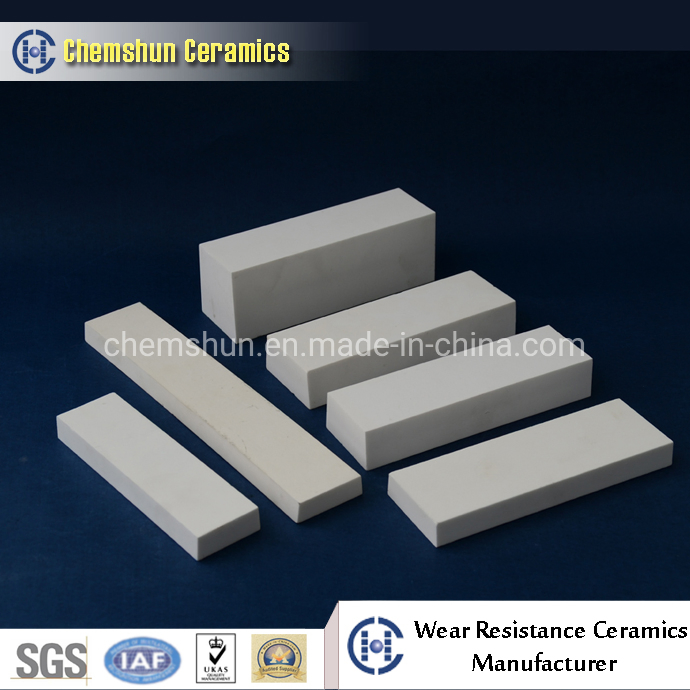

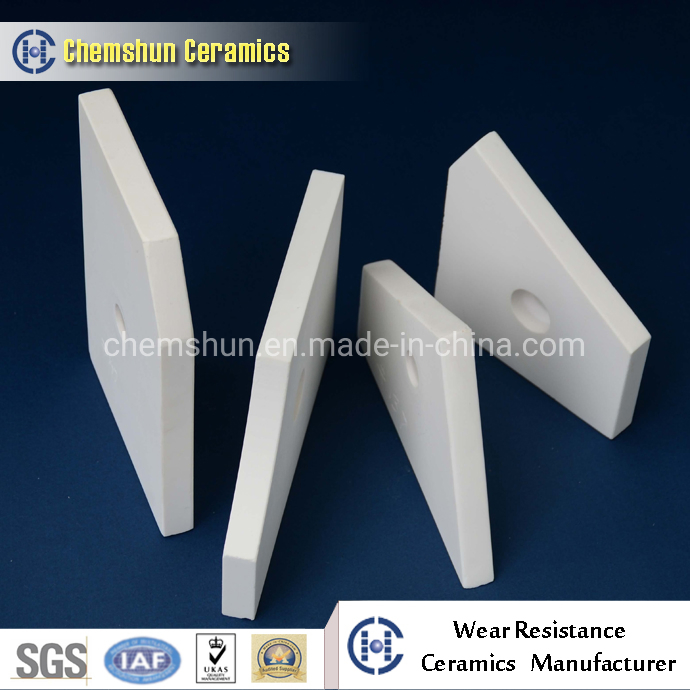

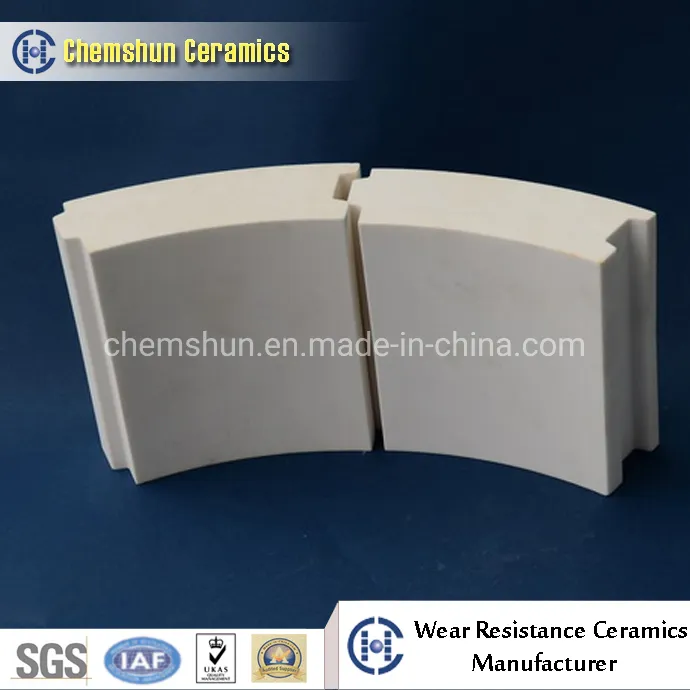

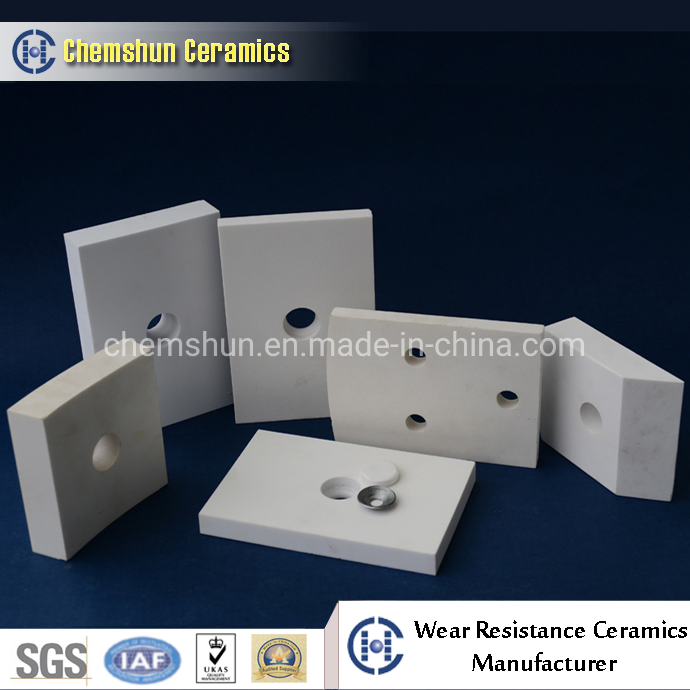

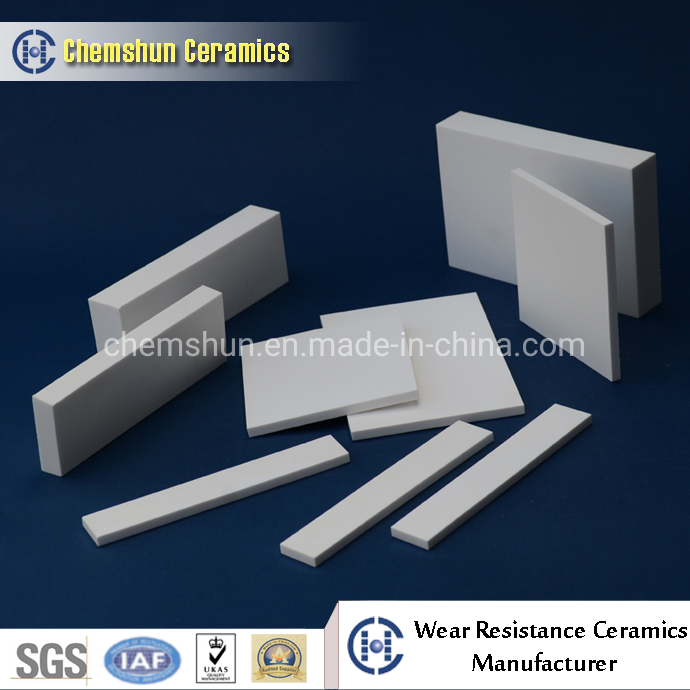

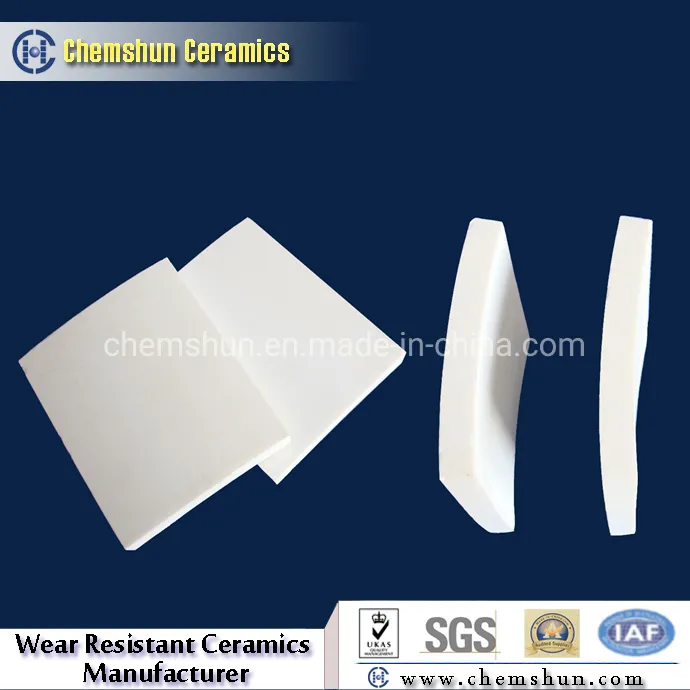

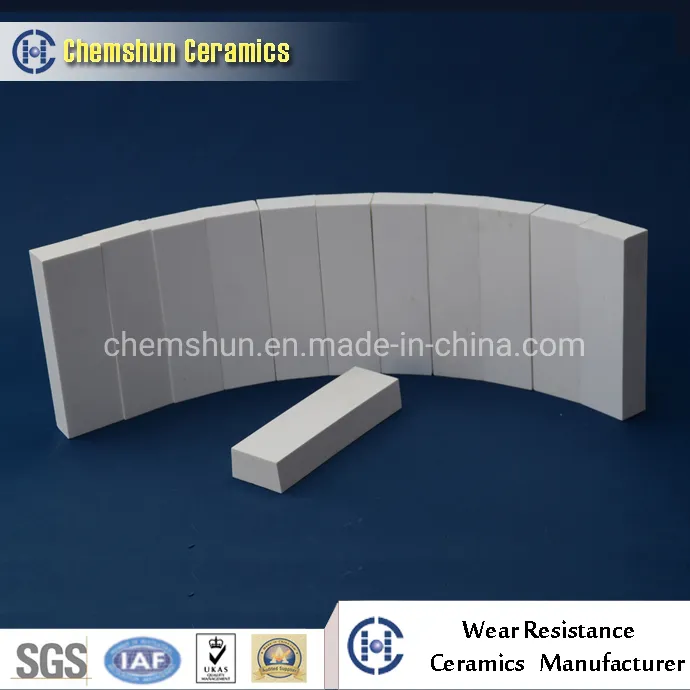

92% Alumina Ceramic Tile (92% AL2O3) Specifications: 150x100x6mm to 150x100x50mm

A professional manufacturer and exporter of wear resistance ceramic products. Product range including alumina plain tiles, alumina weldable plates, alumina mosaic pieces, square tiles, cylinders, and pipes. The annual output exceeds 25,000 tons with advanced facilities and strict quality control systems.

Raw Material & Production

Made from high purity, super fine high-quality grain alumina powder. Processed via spray-drying, cold isostatic pressing, and firing at 1520ºC ~ 1650ºC. Available in 92%, 95%, 97%, and 99% alumina content.

Material Advantages

High Hardness: Rockwell hardness HRA80-90, Moh's hardness grade 9 (second only to diamond).
Superior Abrasion Resistance: 171.5 times more wear-resistant than Chrome steel and 260 times more than manganese steel.
Light Weight: Density of 3.6-3.75g/cm3, only half the weight of steel, reducing equipment load.

Application Areas

Used for wear-and-impact-resistant ceramic rubber plates; grinding media for ceramics, chemicals, and mining; and components for ceramic bearings.

Technical Specifications

Attributes	Unit	CHEMSHUN92	CHEMSHUN95
Alumina Content	%	92	95
Density	g/cc	3.60	3.68
Flexural Strength	Mpa	280	300
Rock Well Hardness	HRA	80	86
Compressive Strength	Mpa	850	950-1000
Max Operation Temp	ºC	1250	1250

Frequently Asked Questions

Q: What is the main advantage of 92% Alumina Ceramic Tiles? A: They offer extreme hardness (Moh's 9) and superior abrasion resistance, significantly prolonging equipment life compared to steel.

Q: What are the available sizes for the ceramic linings? A: Standard sizes include 150x100mm with thicknesses ranging from 6mm to 50mm. Custom sizes are available on request.

Q: In which industries can these ceramics be applied? A: They are widely used in Mining, Power Plants, Steel Plants, Cement Plants, and Chemical industries for material handling equipment.

Q: Can these tiles handle high temperatures? A: Yes, both 92% and 95% alumina ceramics have a maximum operating temperature of 1250ºC.

Q: Are the products tested before shipment? A: All products undergo 100% testing before shipment, and third-party inspections are also accepted.

Q: Does alumina ceramic reduce the load on industrial equipment? A: Yes, with a density of 3.60-3.75g/cm3, it is only about half the weight of steel, effectively reducing the overall load.
