Ceramic Rubber Composite Liner with Abrasion Resistant Alumina Square Tile

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Chemshun ceramics

Material

Alumina Ceramics, Ceramics +Rubber

Process

Special Ceramic Plate

Type

Wear Resistant Ceramic

Standard

ISO

Item

Ceramic Rubber Backed Tile

Alumina Content

92% & 95%

Density

3.6~3.7g/Cc

Compressive Strength

850~1000MPa

Tile Type

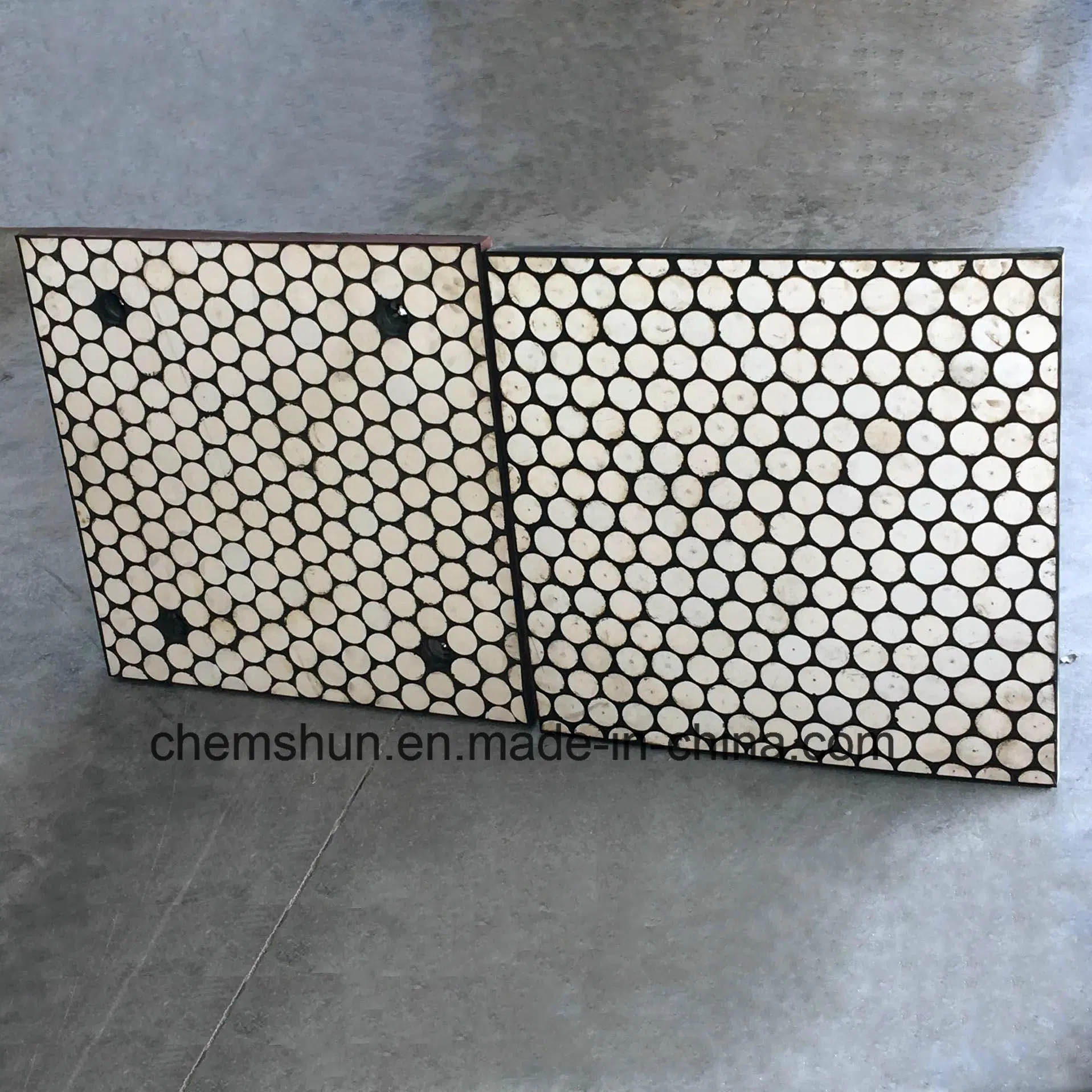

Square, Hexagon, Round

Size

Available and Customized Size

Production Capacity

5000ton

Product Description

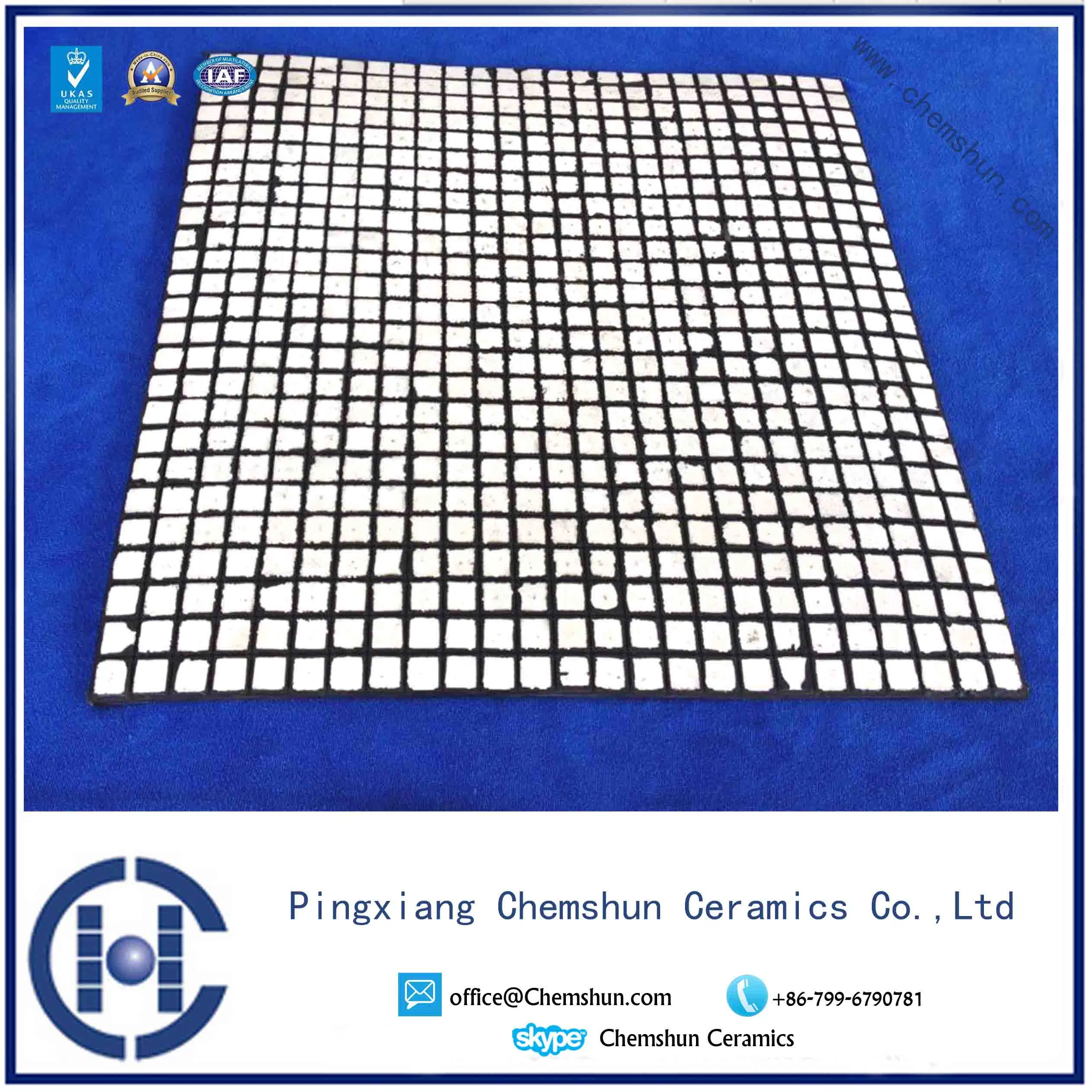

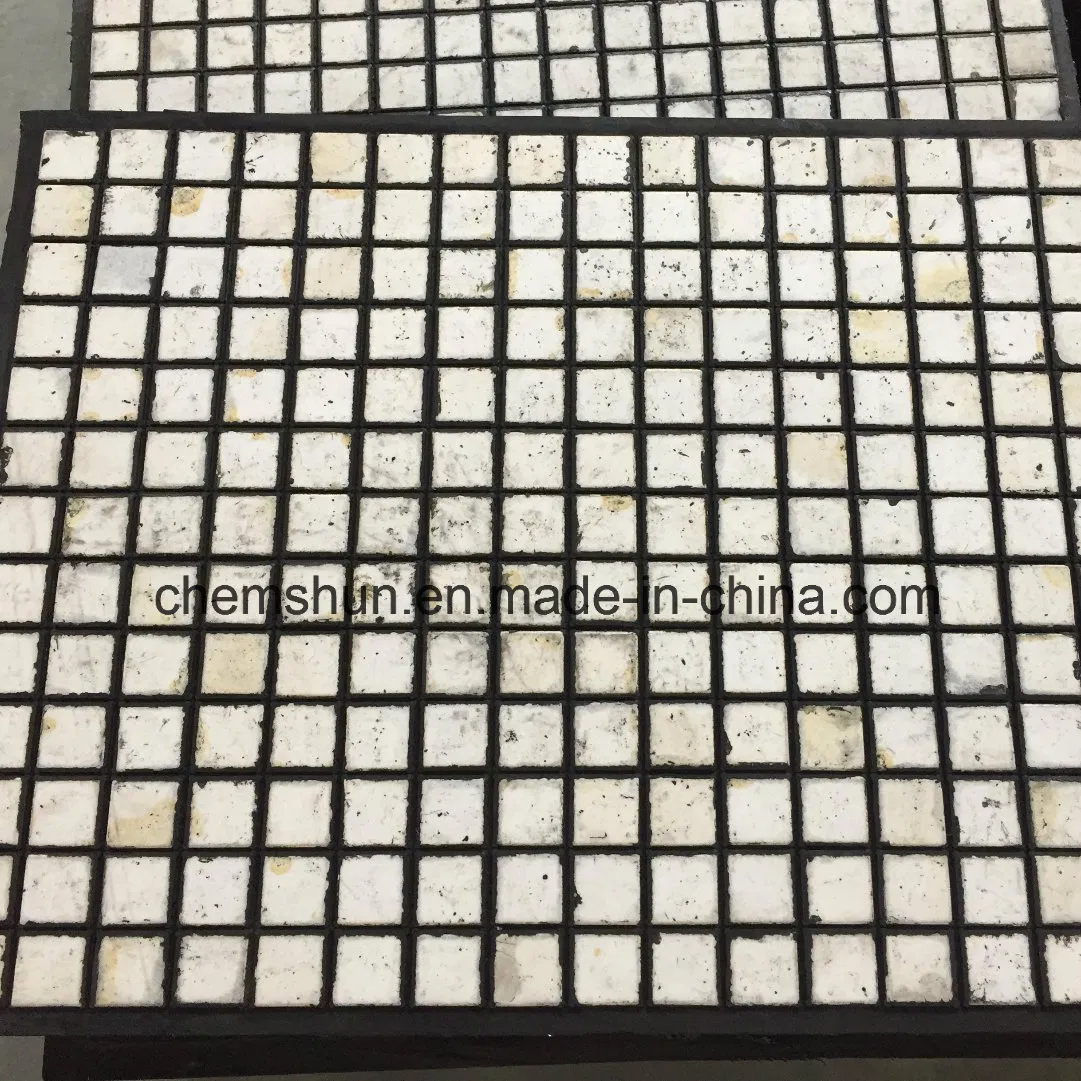

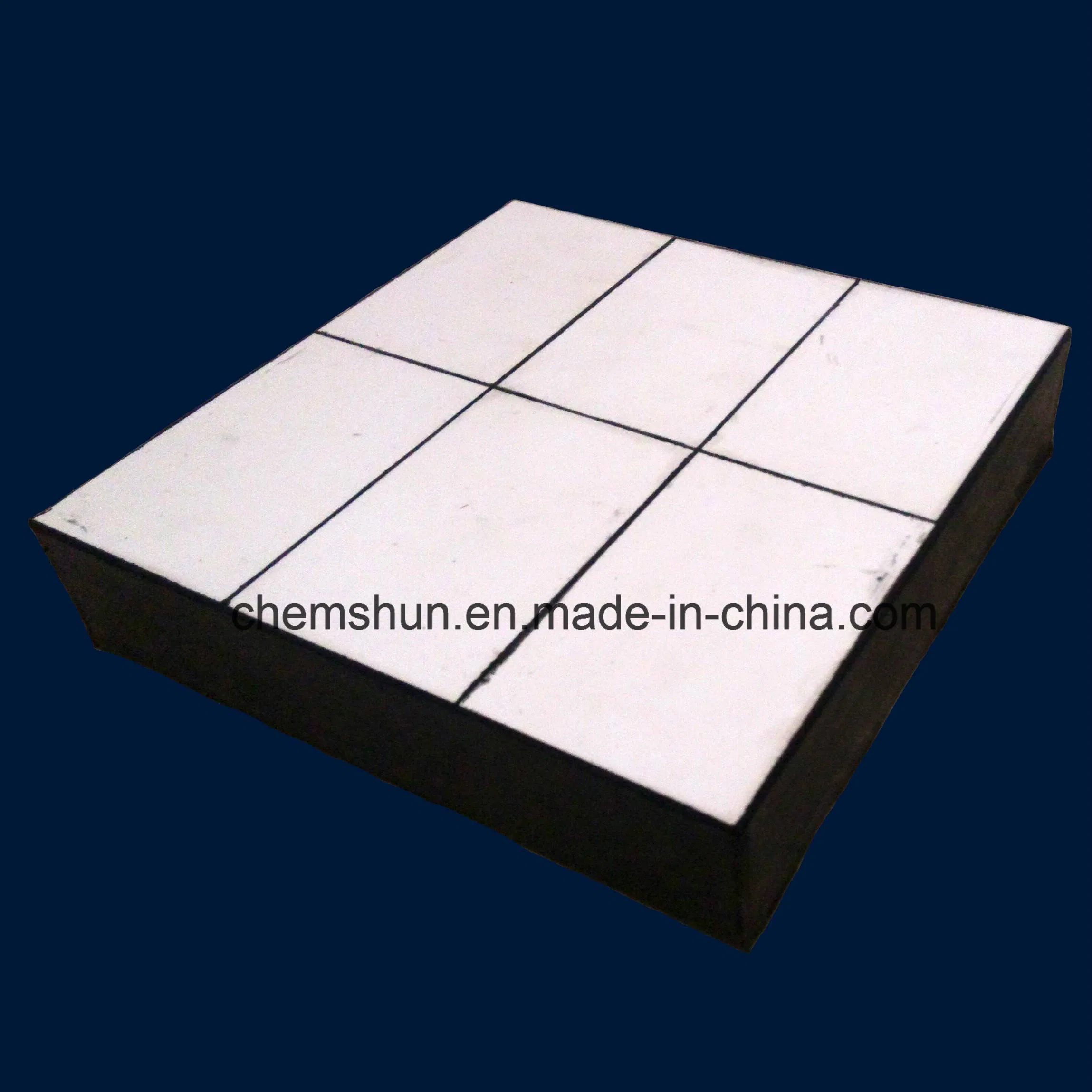

Ceramic Rubber Composite Liner with Abrasion Resistant Alumina Square Tile

Chemshun ceramic rubber components has excellent hardness and flexibility as wear ceramic liner. These components are perfect combination of hardness and flexibility. Small ceramic plates, hex tiles, or cylinders are vulcanized into the rubber backing (approximate 50 Shore A hardness), offering high impact resistance and noise reduction alongside excellent abrasion resistance.

Key Characteristics

High hardness for extreme durability
Superior abrasion and impact resistance
Corrosion and chemical resistance
Lightweight design for easy handling
Easy installation by epoxy resin or bolt
Improves working environment by reducing noise and vibration

Technical Specifications

Properties	Unit	92% Alumina	95% Alumina
Density	g/cc	≥3.6	≥3.7
Rockwell Hardness	HRA	80	85~88
Compressive Strength	Mpa	850	950~1000
Flexural Strength	Mpa	280	300
Max Using Temp	ºC	1250	1250

Application Industries

Mining

Hopper, Silo

Steel

Batching system, Sintered material transport

Cement

Raw mill system, Cyclone, Powder concentrator

Thermal Power

Coal handling, Ash discharge system

Port

Unloader's hopper, Transfer points

Chemical

Vibromill liner, Processing equipment

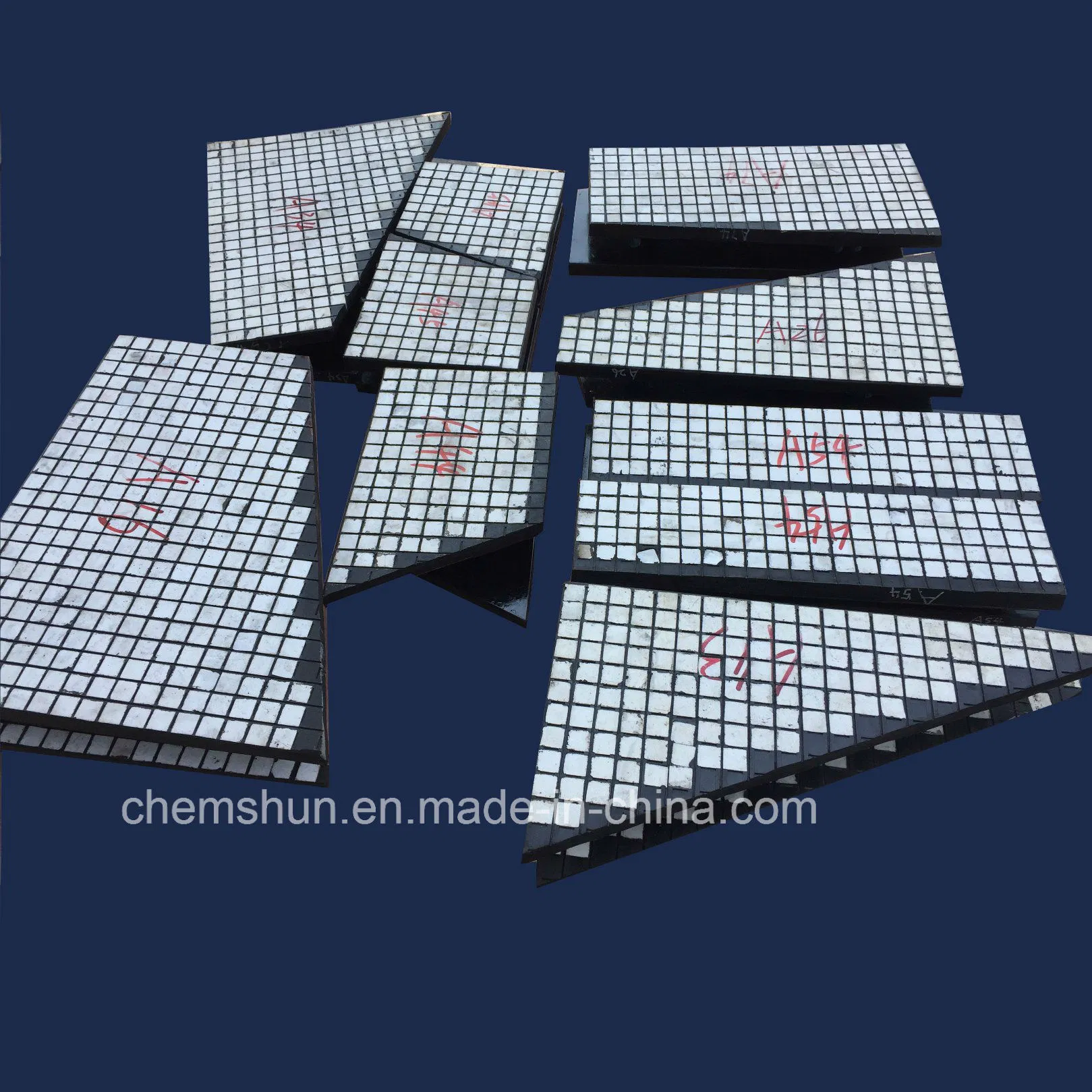

Product Showcase

Frequently Asked Questions

Q1: What are the main components of the ceramic rubber composite liner?

A: It is a combination of high-alumina ceramic tiles (92% or 95% Al2O3) vulcanized into a flexible rubber backing.

Q2: How is the liner installed on equipment?

A: The panels can be easily installed using epoxy resin bonding or mechanical bolting methods depending on the application requirements.

Q3: What industries benefit most from these liners?

A: These are widely used in mining, steel production, cement plants, thermal power stations, and chemical processing industries.

Q4: Can the size of the ceramic rubber panels be customized?

A: Yes, while standard sizes like 300*300mm and 500*500mm are common, we offer customized sizes based on specific client requirements.

Q5: What are the primary advantages of using rubber-backed ceramics?

A: They provide a unique balance of extreme hardness (abrasion resistance) and flexibility (impact resistance), while significantly reducing operational noise.

Q6: What is the temperature resistance of the alumina ceramics?

A: The alumina ceramic material itself can withstand temperatures up to 1250ºC, though the overall limit depends on the rubber backing properties.
