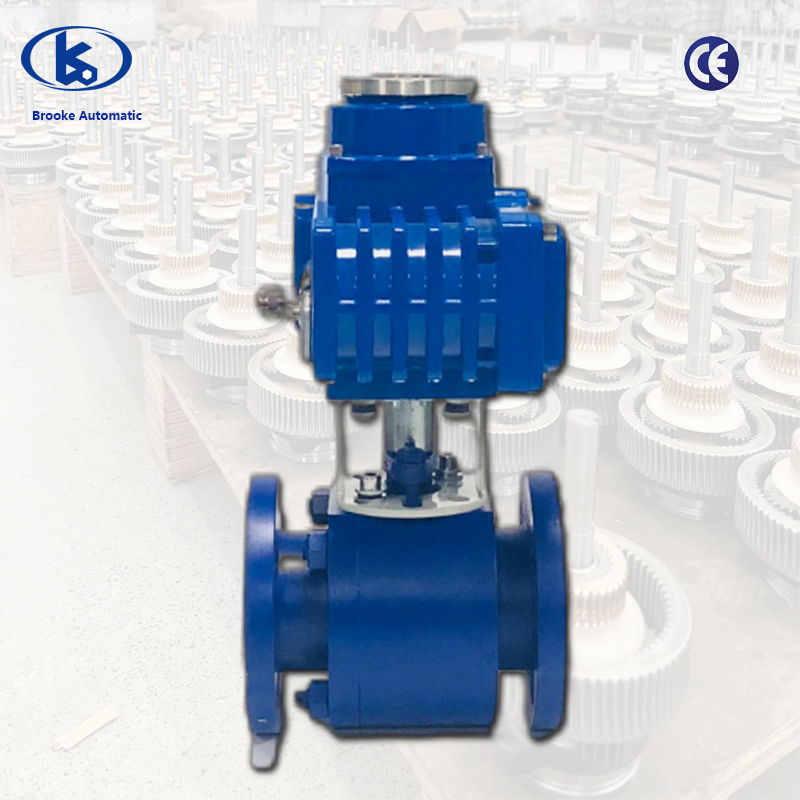

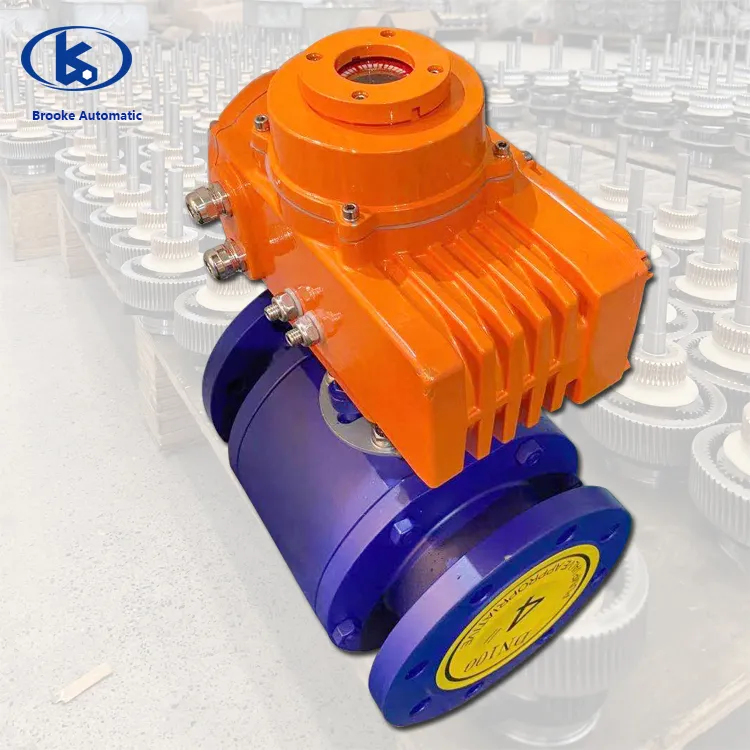

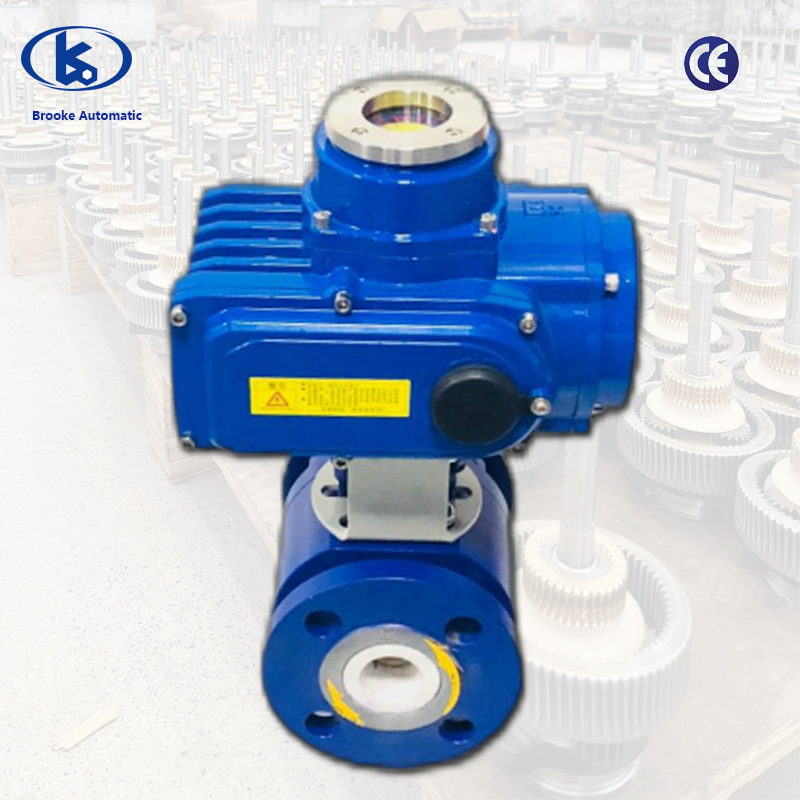

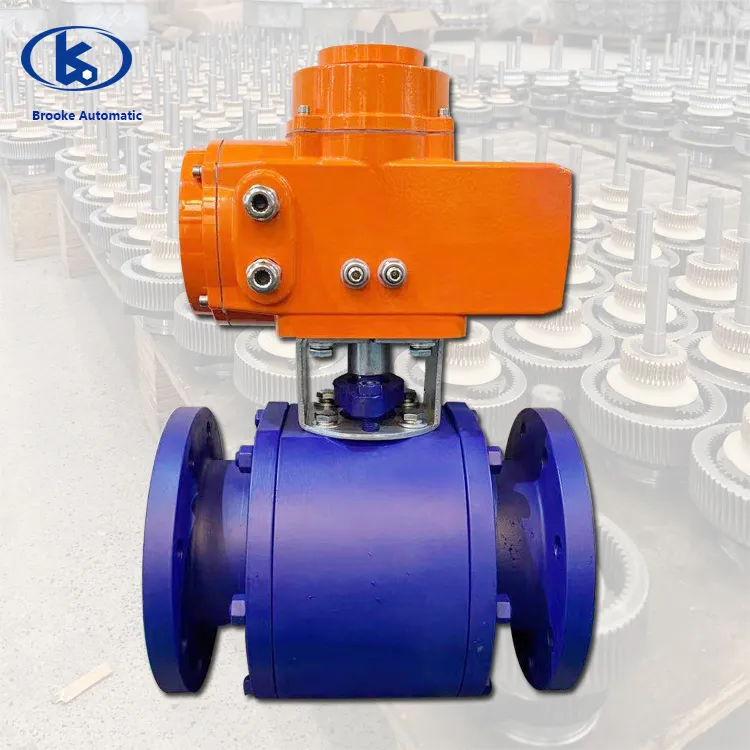

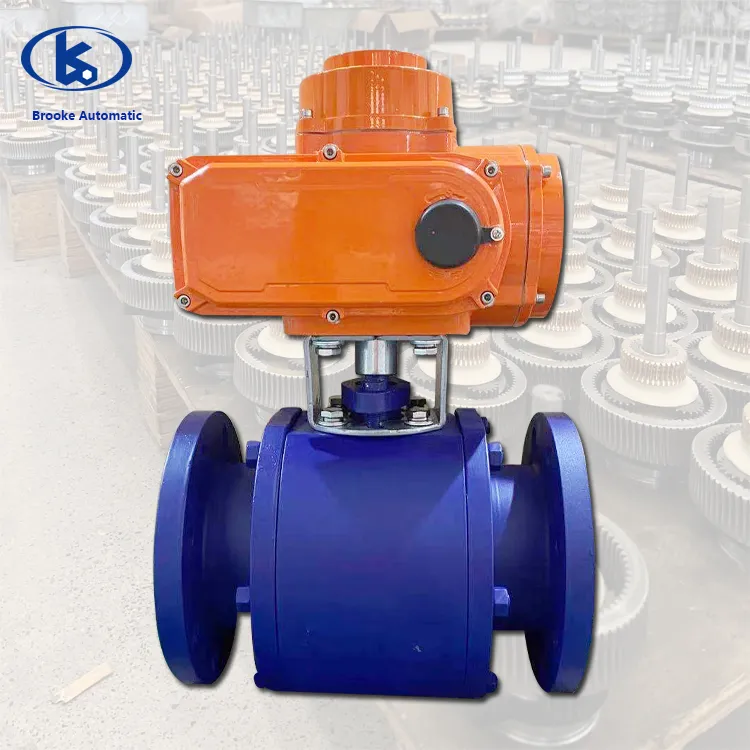

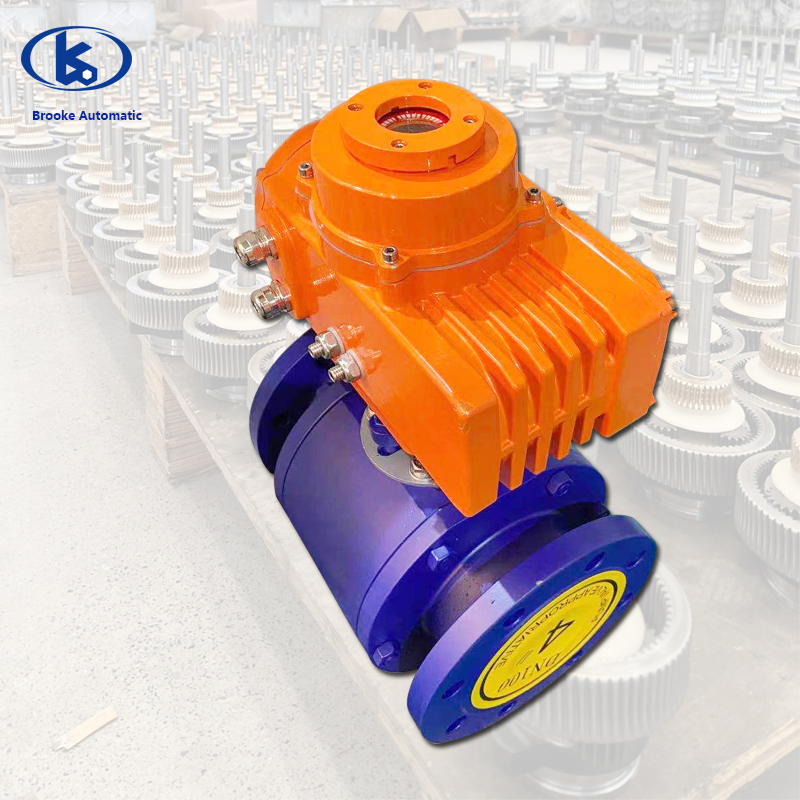

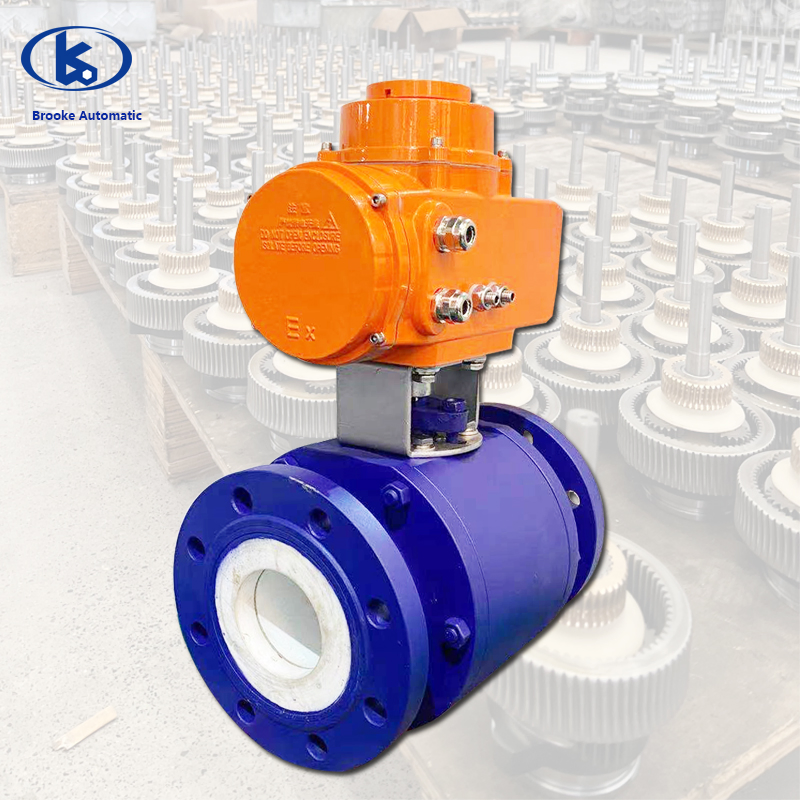

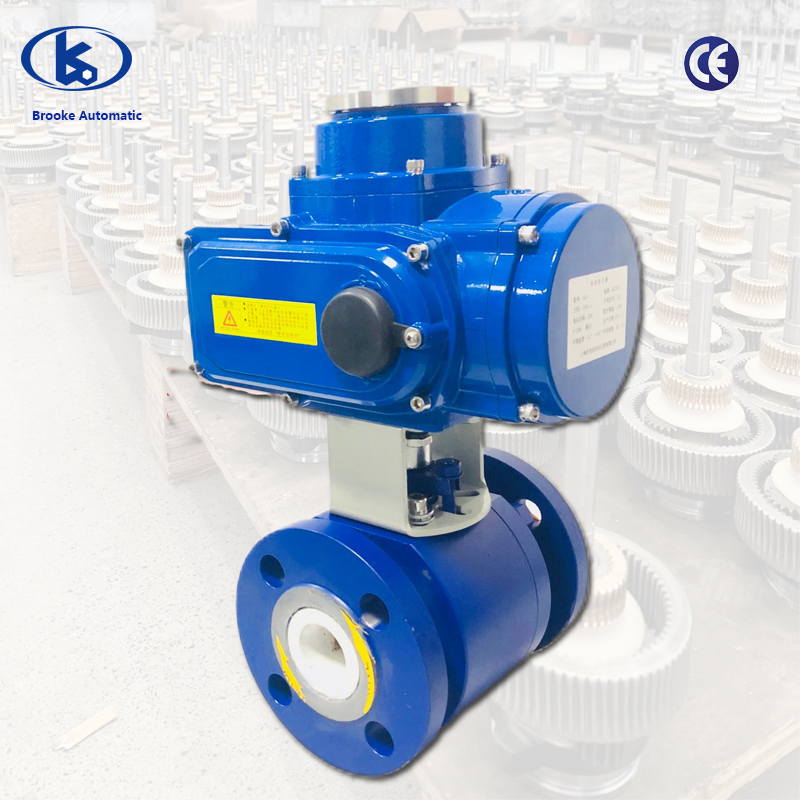

Ceramic Lined Flange Ball Valve 16kg Carbon Steel Strip Electric Actuator

1 / 5

Ceramic Lined Flange Ball Valve 16kg Carbon Steel Strip Electric Actuator

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Q41TC

Connection Form

Flange

Driving Mode

Electric

Nominal Pressure

Pn16~Pn100, Cl150~Cl600

Channel

Straight Through Type

Structure

Fixed Ball Valve

Type

Floating Ball Valve

Function

Blow-Down Valve, Relief Valve, Atmospheric Valve

Temperature

Normal Temperature

Standard

ANSI/ASME Standard Valves

Application

Industrial Usage

Port Size

DN15 to DN250

Body Material

Stainless Steel 304

Flow Characteristic

Quick-Opening, Approximate Equal-Percentage

Warranty

1 Year

Transport Package

Carton or Foam

Production Capacity

50,000 pieces/Year

Origin

China

📦 Packaging & Delivery

Package Size

30.00cm * 30.00cm * 6.00cm

Package Gross Weight

5.000kg

🔍 Product Description

Ceramic ball valves characteristics:
1. Wear resistance: High hardness and compressive strength maintain performance in harsh environments.
2. Corrosion resistance: Strong resistance to acids and alkalis due to stable chemical properties.
3. Sealing performance: Minimal thermal expansion ensures zero leakage.

Applications: Chemical industry, Petroleum, Electricity, Metallurgy, Mining, and Wastewater treatment.

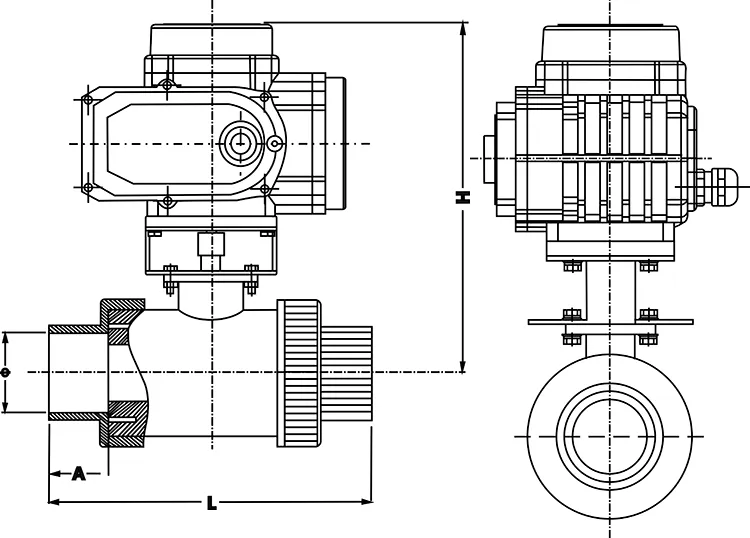

Nominal Diameter (mm)	Actuator	Φ	H2	H1	L
DN25	SQ-05	32	21.5	12.1	207
DN32	SQ-05	40	26.5	137	211
DN40	SQ-05	50	31	161	242
DN50	SQ-05	63	37.5	195	289
DN65	SQ-05	75	43.5	226	315
DN80	SQ-10	90	51	289	344
DN100	SQ-10	110	61	342	376

❓ FAQ

What are your main products?

Our main products are electric actuators, actuator valves, and valve actuator accessories.

Are you a manufacturer?

Yes, we are a manufacturer of pneumatic and electric actuators with our own factory, production lines, and an experienced team for customization.

How do you ensure product quality?

We utilize a strict quality control system for incoming and outgoing materials. Each product is tested before delivery, and we provide an 18-month warranty.

How long is the delivery time for a formal order?

Production usually takes 15-20 days. We monitor our supply chain closely to ensure on-time delivery.

Can I get samples to check quality?

Yes, we provide free samples. While the samples are free, the shipping costs are borne by the customer. Contact us to arrange delivery.
