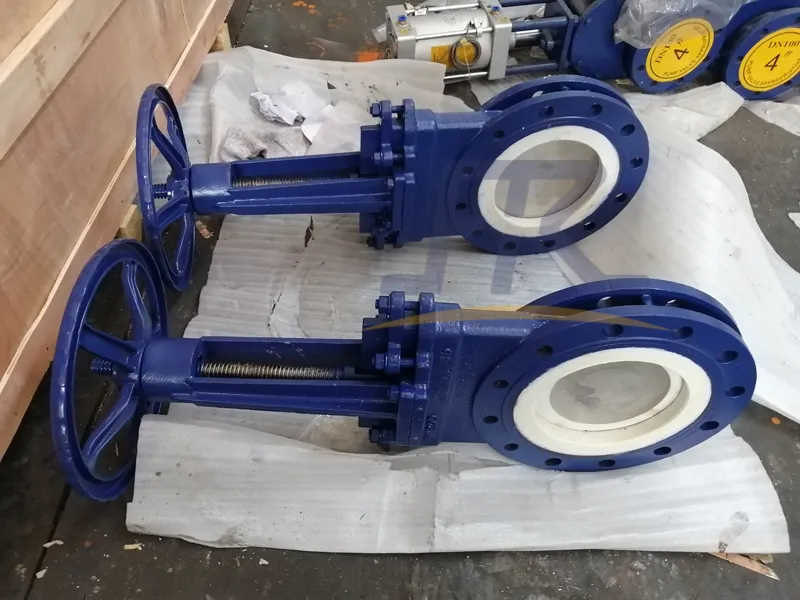

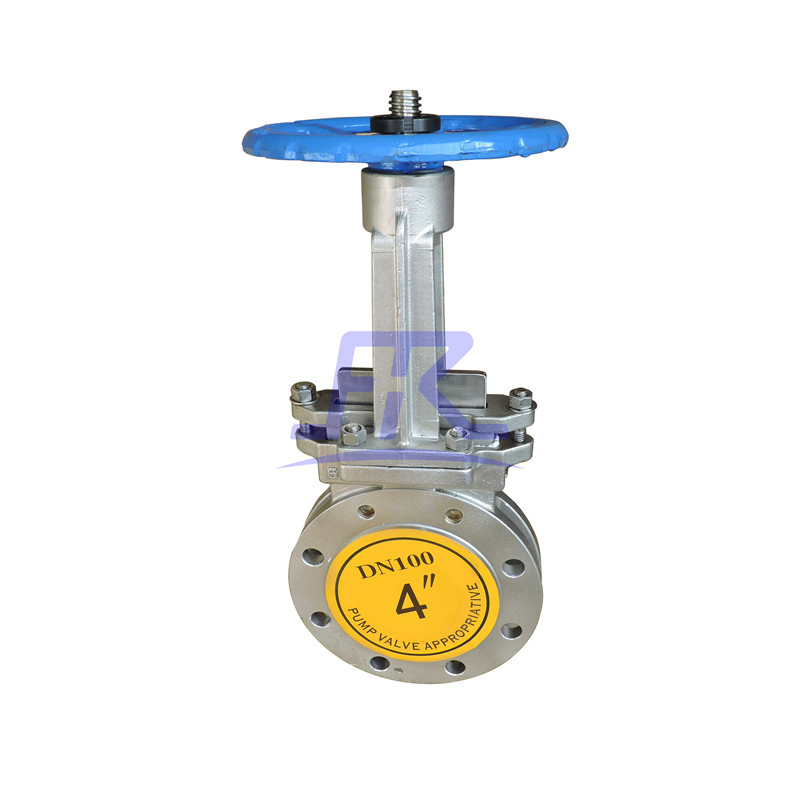

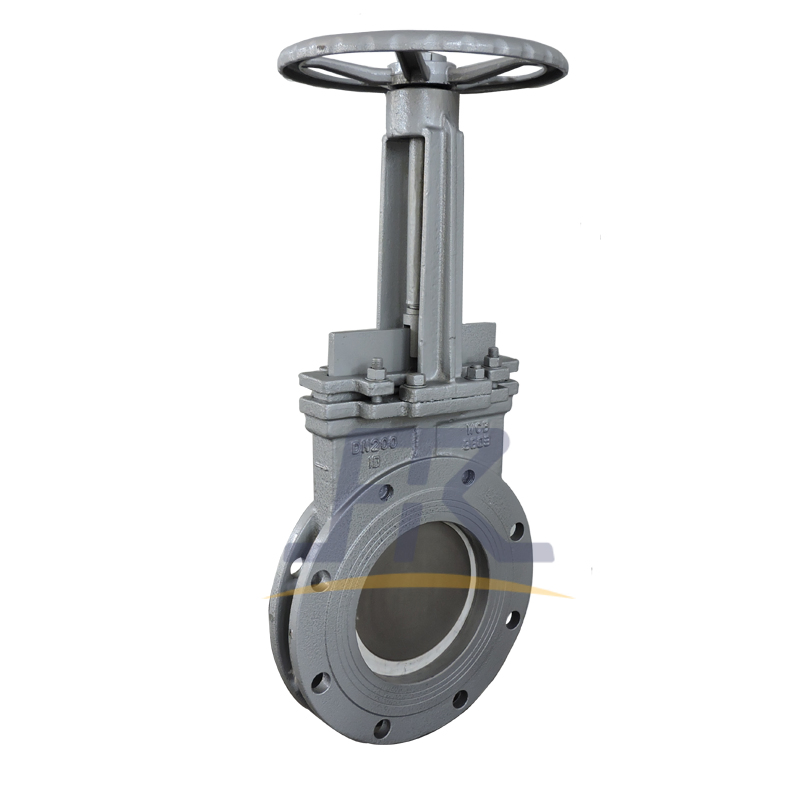

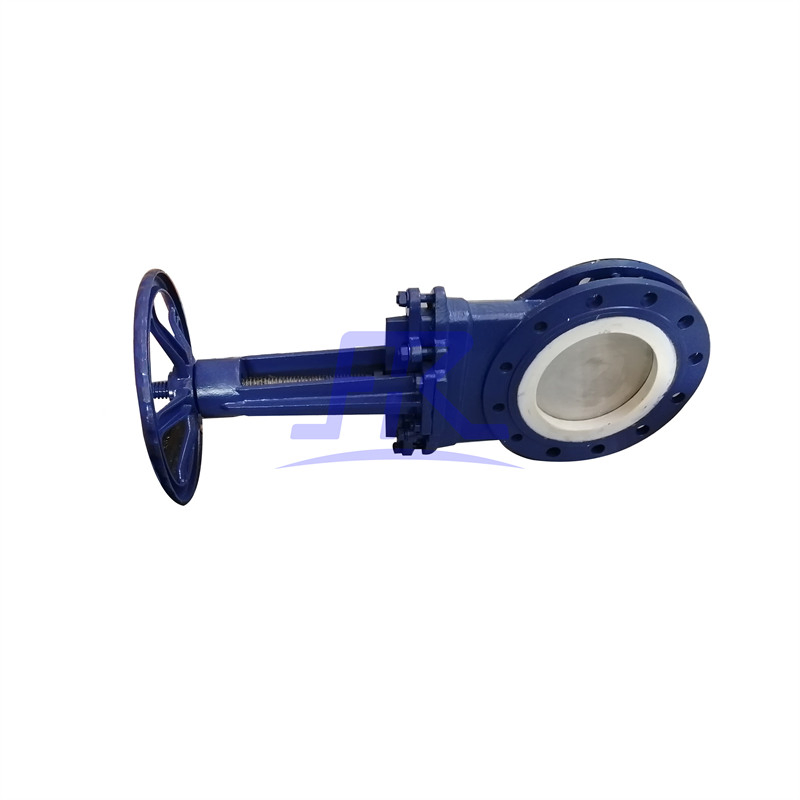

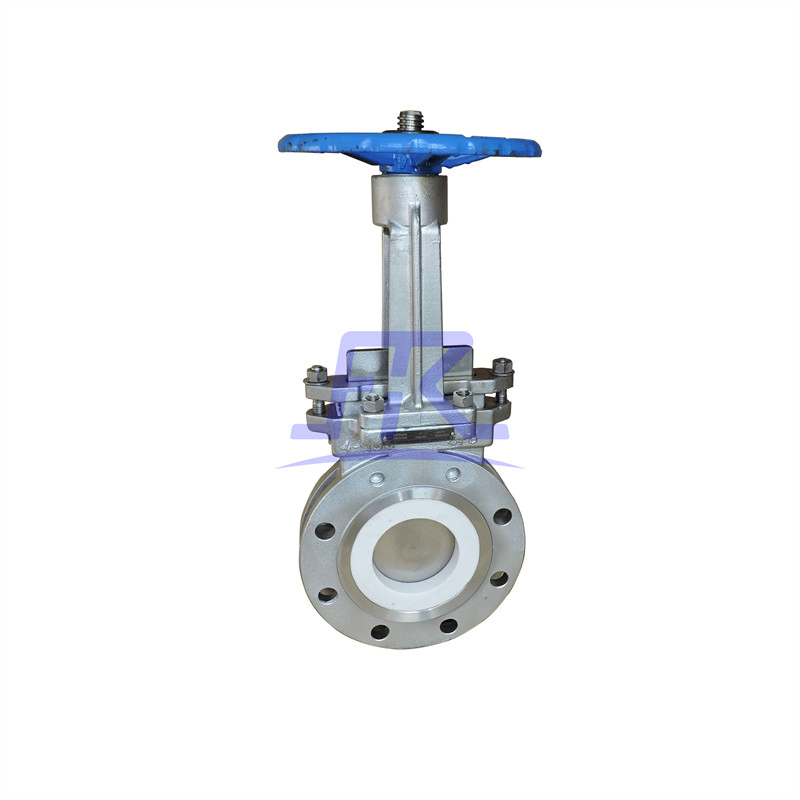

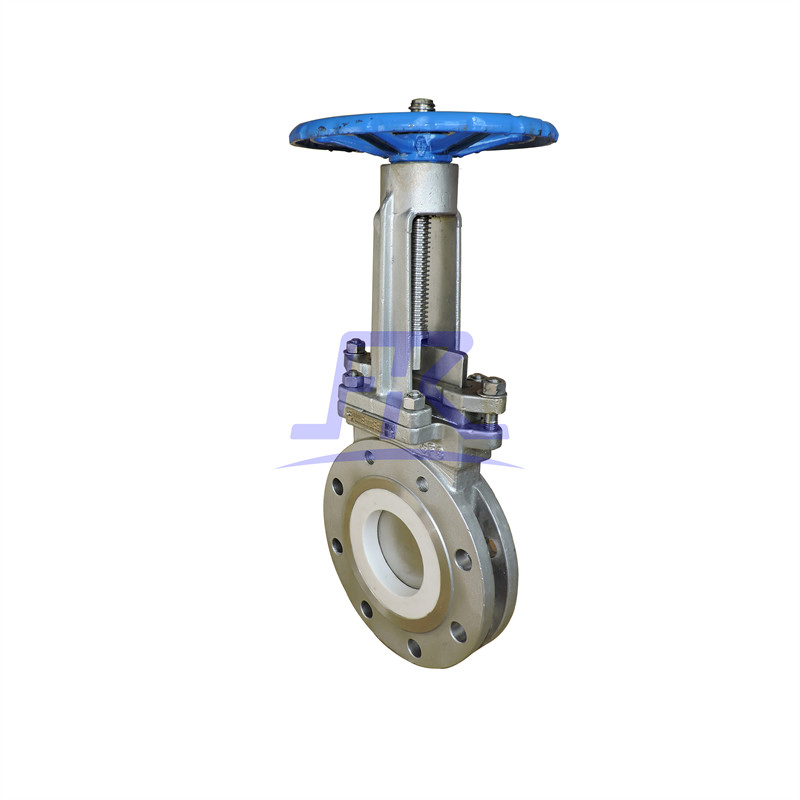

Wafer/Flanged Carbon Steel Ceramic Lined Slurry Knife Gate Valves are specifically designed as slurry gate valves. Featuring a simple yet robust structure, they are engineered to cut off media containing solid particles and fibers. While general metal-seated knife gate valves often fail under serious erosive conditions or when handling very hard particles, ceramic-lined versions are highly effective for media containing fibers and hard solid particles.
| No. | Parameter | Details |
|---|---|---|
| 1 | Size Range | NPS 2 ~ NPS 24, DN50 ~ DN600 |
| 2 | Nominal Pressure | Class 150 / PN10 / PN16 |
| 3 | Applicable Temperature | 0~200ºC |
| 4 | Connection Type | Flange, Wafer |
| 5 | Disc Material | Carbon steel+ceramic, stainless steel+ceramic |
| 6 | Seat Material | Ceramic |
| 7 | Pressure Test | GB/T13927, API598 |
| 8 | Face to Face | GB/T12221, ASME B16.10 |
| 9 | Flange Standard | GB/T9113, ASME B16.5, JIS B2220 |
| 10 | Operating Type | Manual, Electric, Pneumatic |

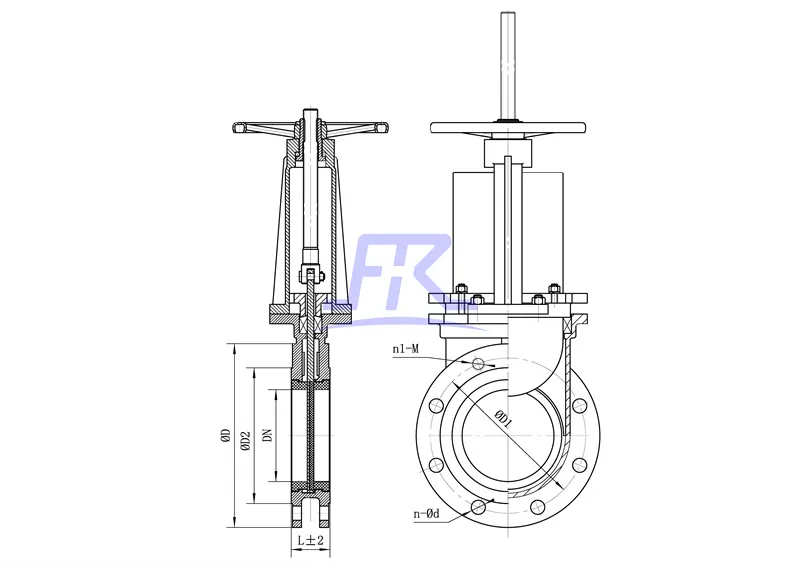

| DN | PN | L | D | D1 | D2 | n-∅d | n1-M |
|---|---|---|---|---|---|---|---|
| DN50 | PN10 | 43 | 165 | 125 | 100 | 2-∅18 | 2-M16 |
| DN100 | PN10 | 52 | 220 | 180 | 155 | 6-∅22 | 2-M20 |
| DN200 | PN10 | 60 | 340 | 295 | 266 | 6-∅22 | 2-M20 |
| DN300 | PN10 | 78 | 440 | 400 | 370 | 8-∅22 | 4-M20 |
| DN400 | PN10 | 102 | 565 | 515 | 482 | 10-∅26 | 6-M24 |
| DN600 | PN10 | 154 | 780 | 725 | 685 | 12-∅30 | 8-M27 |

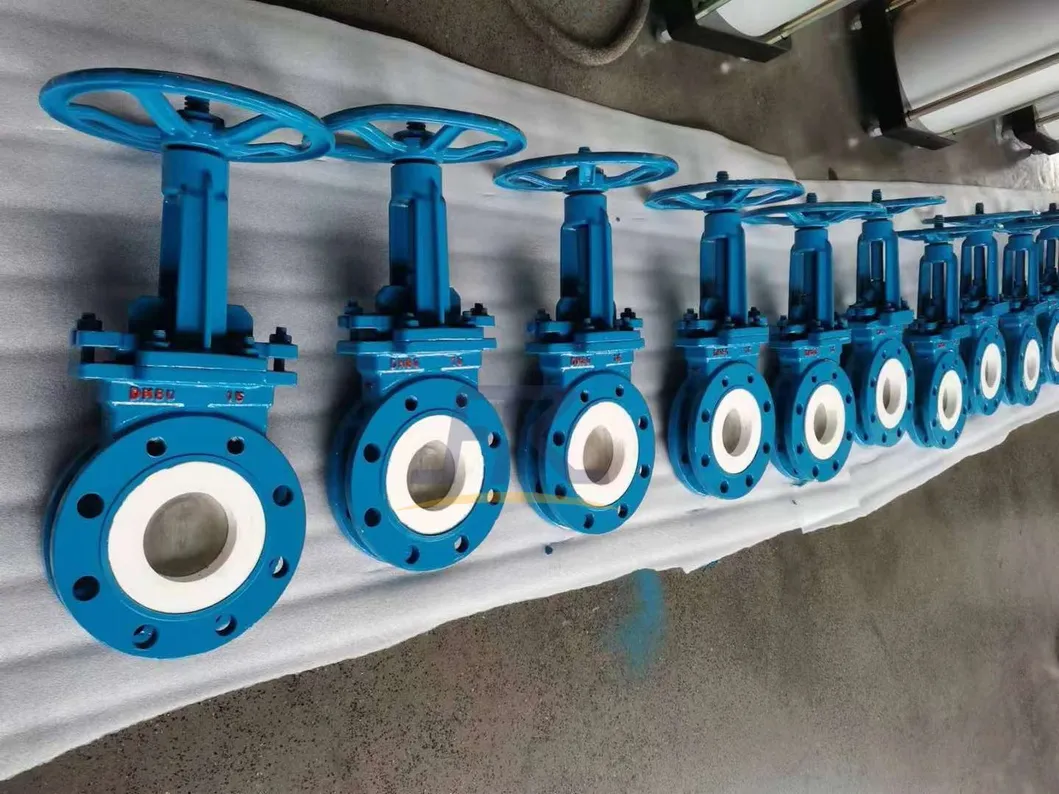

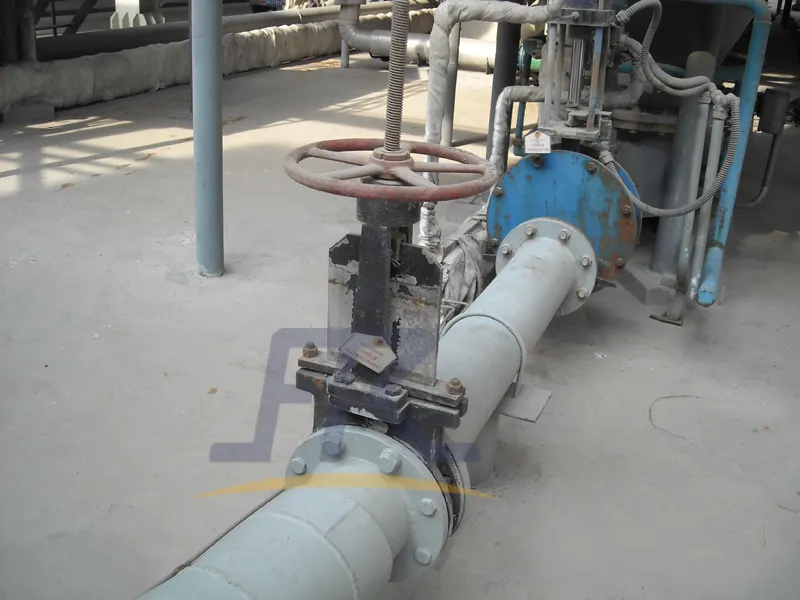

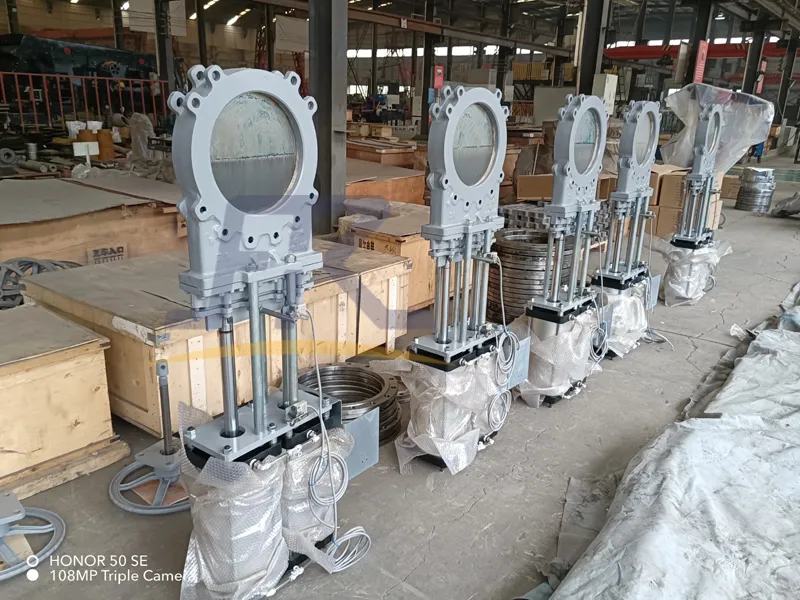

These valves are ideally suited for conveying systems handling liquid-solid or gas-solid two-phase media. Key applications include:
• Ash, mine residue, and coal residue in iron and steel plants.
• Ash conveying systems in power plants.
• Paper pulp in the paper industry.
• Sewage and slurry in decontamination plants.
• Heavy medium systems for coal mills.
