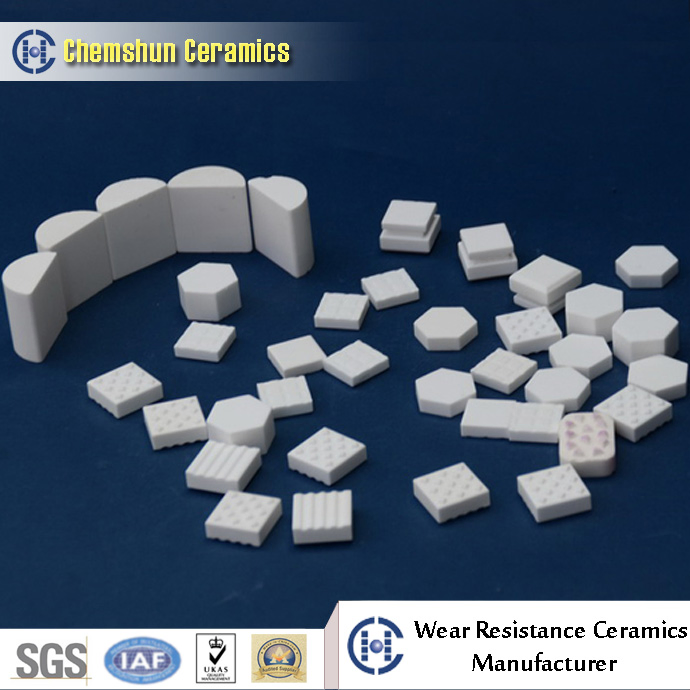

Alumina Ceramic Tile with Dimples for Pulley Lagging

1 / 5

Alumina Ceramic Tile with Dimples for Pulley Lagging

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

ceramic tile

Material

Alumina Ceramic

Alumina Content

92% or 95% Al2O3

Density

3.60 g/cm3

Hardness

Moh's 9

Feature

Dimple Tile / Wear Resistant

Surface Finish

Smooth

Installation

Adhesive Bonding / Vulcanized

Capacity

4200 tons/Year

Standard

ISO

📘 Alumina Ceramic Tile with Dimples

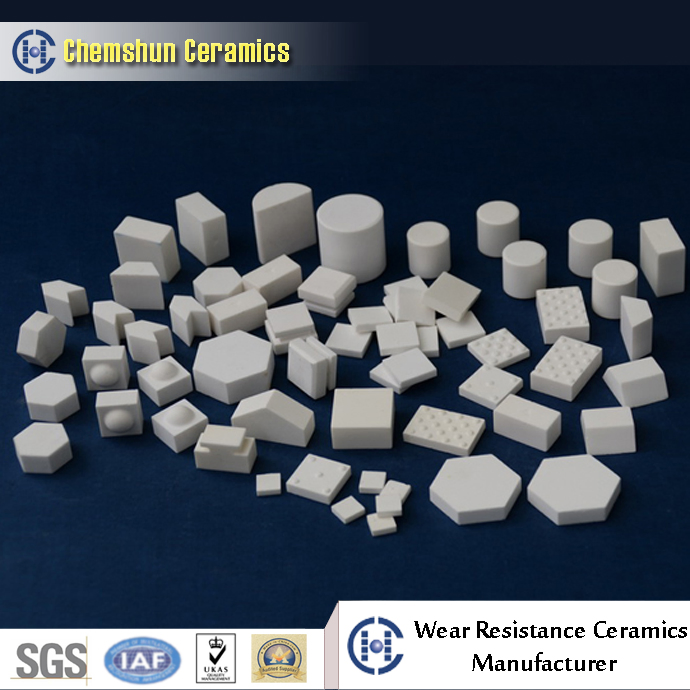

Available Product Series:

Hexagonal, square, rectangle tile with dimples
Ceramic block with interlock
Ceramic cylinder
Irregular custom ceramics
Ceramic tile mats

Product Characters:

High hardness (Moh's 9 grade)
Exceptional abrasion and chemical resistance
Special dimple design for enhanced wear resistance
Lightweight with various custom sizes

📏 Mosaic Tile Specifications

Product	Length (mm)	Width (mm)	Thickness incl. Dimple (mm)

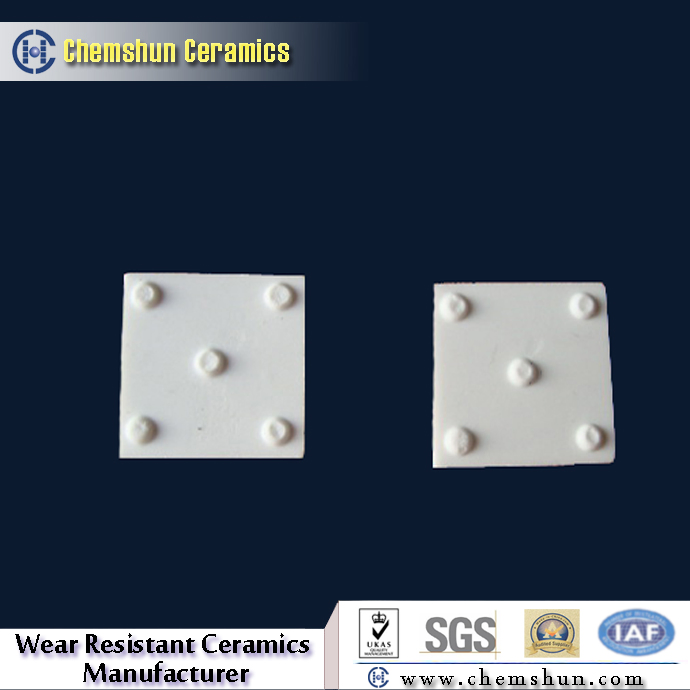

Ceramic Tile (5 dimples)	20±0.3	20±0.3	5/6/7/8/9/10

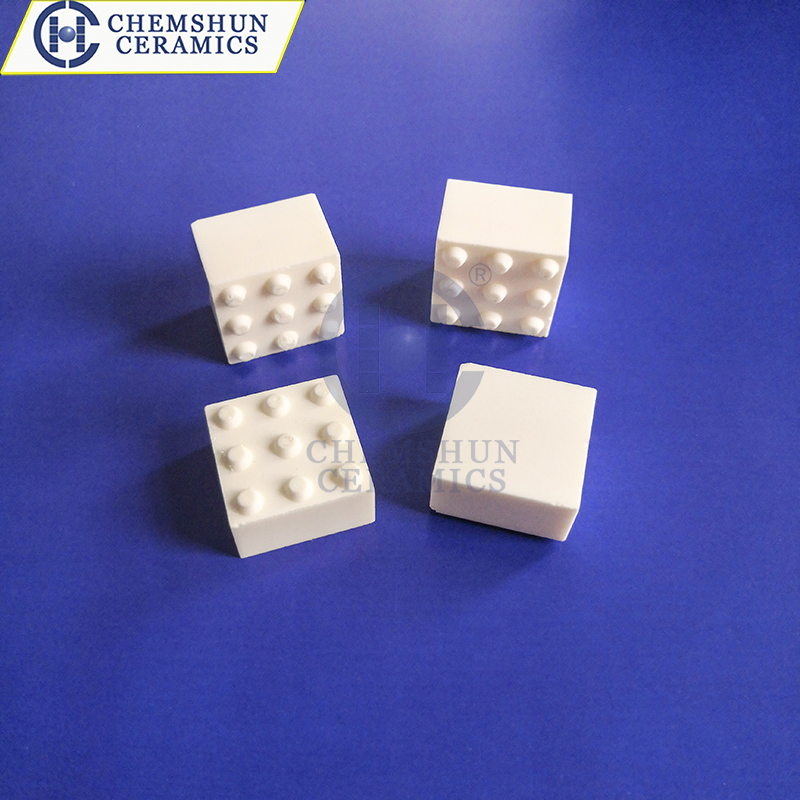

Ceramic Tile (13 dimples)	20±0.3	20±0.3	5/6/7/8/9/10
Hex Tile	12 - 19	-	3 to 25
Square Tile	17.5 - 20	17.5 - 20	2 - 10

🔬 Technical Data

Item	92 Al2O3 Series	95 Al2O3 Series
Density (g/cm3)	≥3.60	≥3.68
Water Absorption (%)	0	0
Bending Strength (Mpa)	255	275
Rockwell Hardness (HRA)	75	80

🖼️ Product Display

❓ Frequently Asked Questions

Q1: What are the primary applications for dimple ceramic tiles? A: They are mainly used for pulley lagging, hoppers, chutes, conveyors, and bunkers in industries like mining, power plants, and steel plants.

Q2: Can I request custom shapes and sizes? A: Yes, we provide tailor-made engineered ceramics and support OEM/ODM projects for specific industrial needs.

Q3: What is the hardness of these tiles? A: The alumina ceramic tiles feature a high Moh's hardness of 9 grade, providing excellent wear resistance.

Q4: Are samples available for testing? A: Yes, samples are available and we keep stock of standard sizes for quick delivery.

Q5: What is the typical installation method? A: The tiles are usually installed via adhesive bonding or integrated into rubber backing for pulley lagging systems.

Q6: What is your production capacity? A: Our facility has a production capacity of approximately 4200 tons per year.
