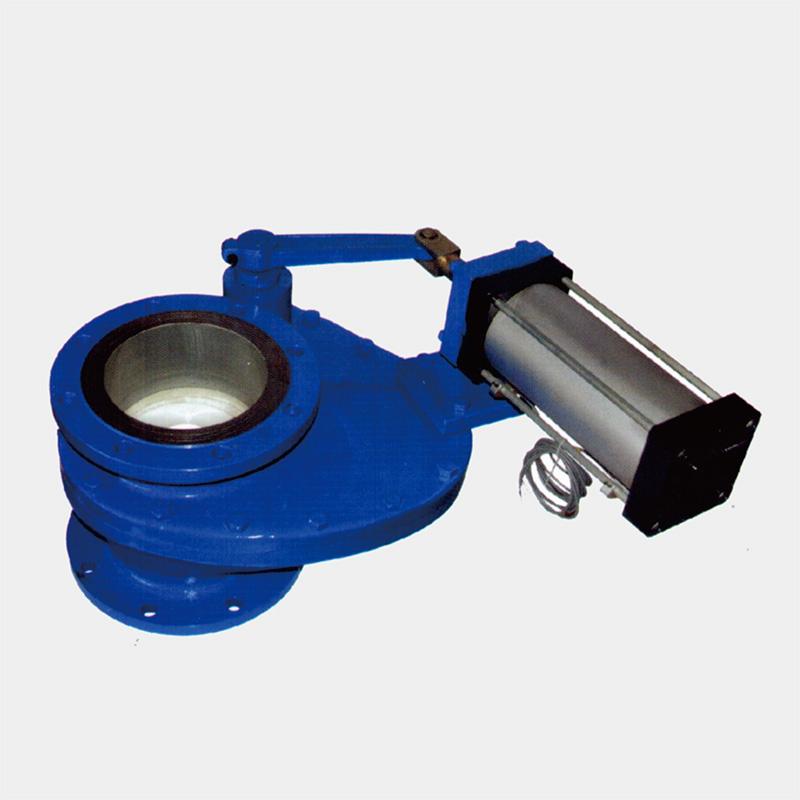

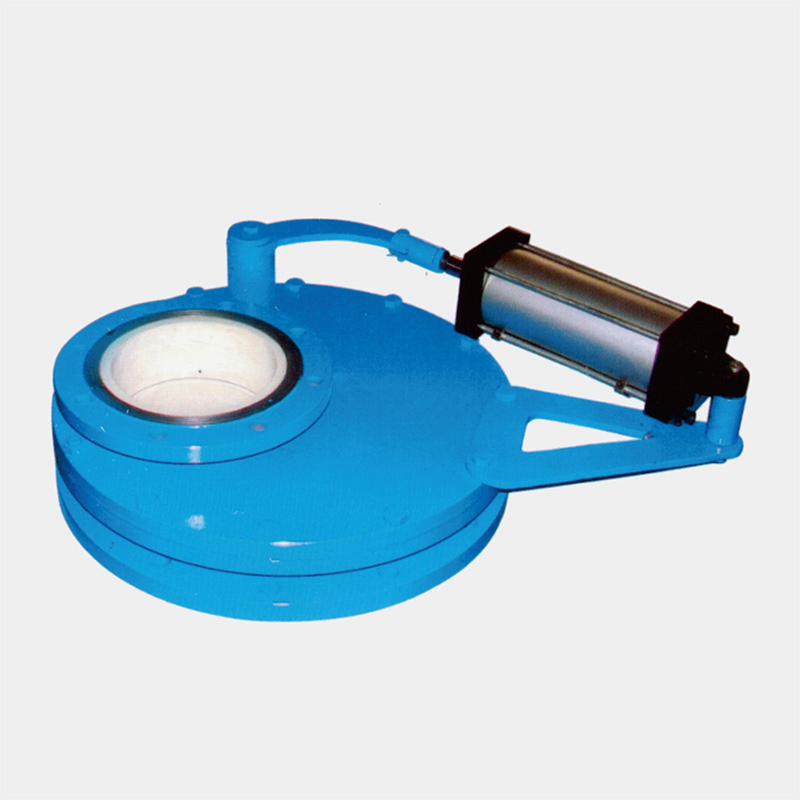

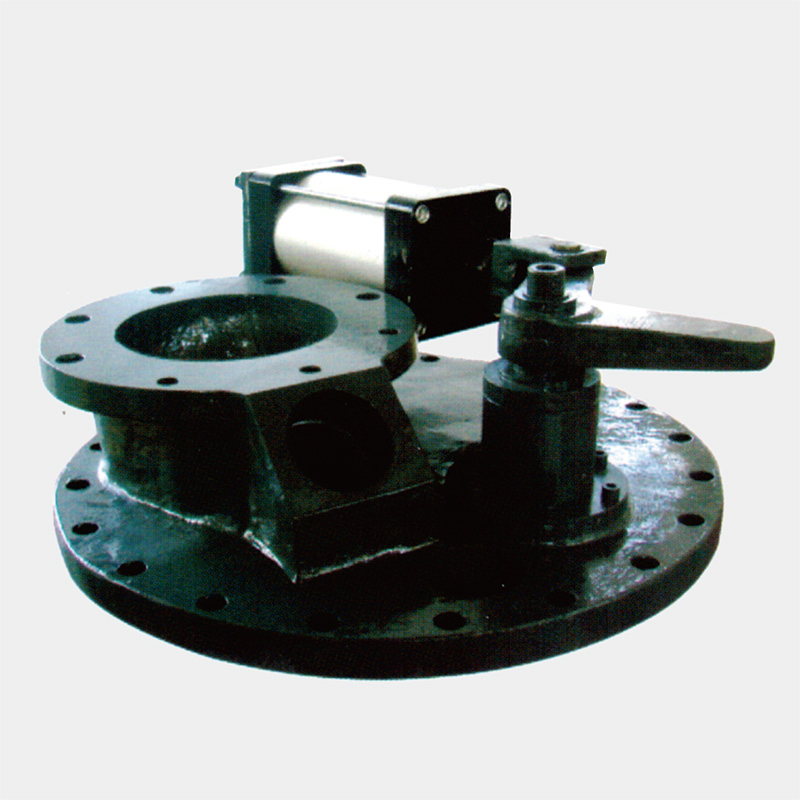

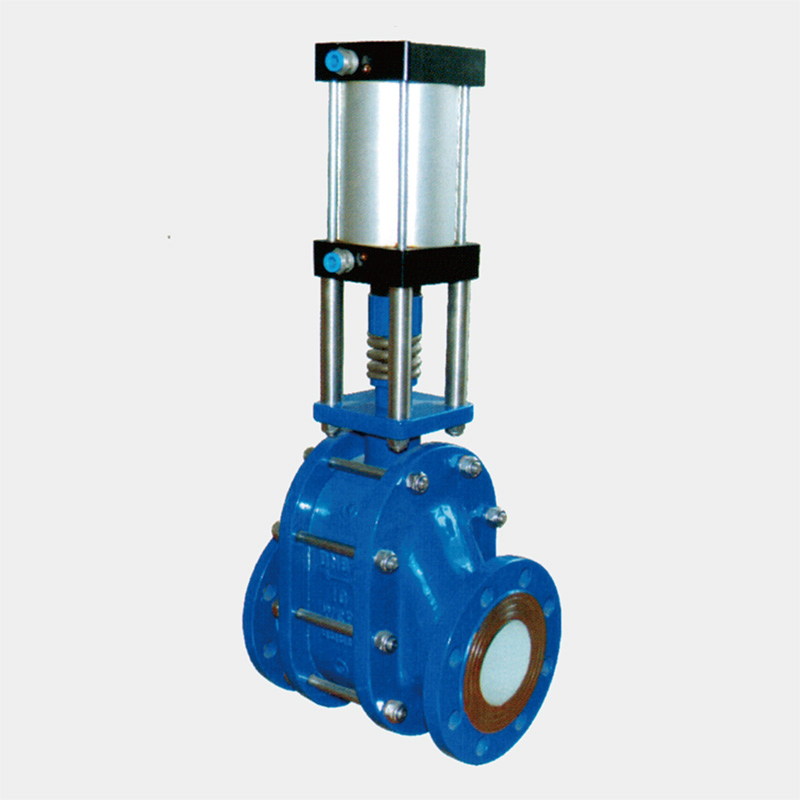

Alumina Ceramic Lined Inlet and Outlet Valve
Alumina Ceramic Lined Inlet and Outlet Valve
Alumina Ceramic Lined Inlet and Outlet Valve
Alumina Ceramic Lined Inlet and Outlet Valve
Alumina Ceramic Lined Inlet and Outlet Valve
1 / 5
Alumina Ceramic Lined Inlet and Outlet Valve
Alumina Ceramic Lined Inlet and Outlet Valve
Alumina Ceramic Lined Inlet and Outlet Valve
Alumina Ceramic Lined Inlet and Outlet Valve
Alumina Ceramic Lined Inlet and Outlet Valve

Alumina Ceramic Lined Inlet and Outlet Valve

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
VALVE
Type
Straight-through
Material
Carbon Steel
Connection Form
Flange
Pressure
Ordinary Pressure
Actuator
Pneumatic, Electric, Manual
Seal Surface
Parallel Gate Valve
Standard
GB, DIN, JIS, BSW, ANSI
OEM/ODM
Available
🛠️ Product Description
Applicable Media: Suitable for dry ash systems, slag slurry, water, steam, and other media.
Application Scope: Power generation, cement, metallurgy, mining, papermaking, and chemical processing systems.
Pneumatic Ceramic Discharge Valve (SZ644TC / SZ674TC) Diameter: DN40-300MM | Pressure: PN1.0-2.5MPa | Temp: ≤200ºC
Self-Compensating Discharge Valve Diameter: DN150-300MM | Pressure: PN1.6-2.5MPa | Temp: ≤425ºC
Performance Features
  • Innovative Design: Patented perforation design reduces startup load and prevents blockage.
  • Ceramic Sealing: Exceptional corrosion resistance and extended service life.
  • Self-Rotating Mechanism: Autonomous grinding maintains the sealing surface performance.
  • Eccentric Flow Path: Self-cleaning channel design enables vortex opening.
⭐ Performance Characteristics

Resistant to scouring and abrasion with a dual-valve plate sealing structure, ensuring reliable bidirectional sealing and low operational resistance.

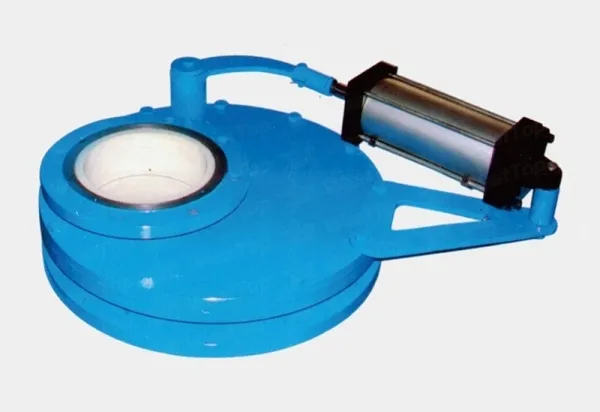

Pneumatic Ceramic Disc Valve Pneumatic Ceramic Disc Valve

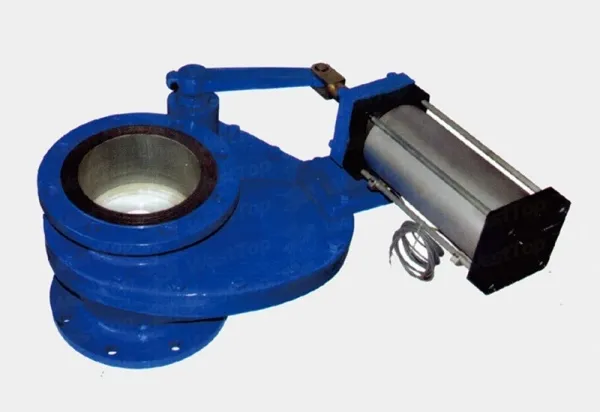

Pneumatic Swing Type Ceramic Feed Valve Pneumatic Swing Type Ceramic Feed Valve

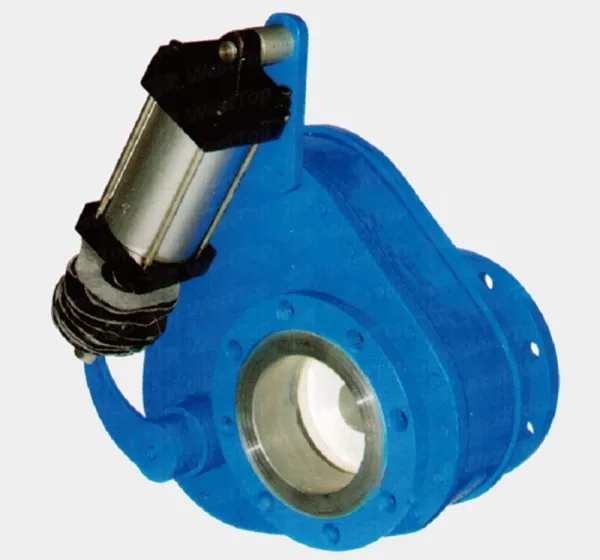

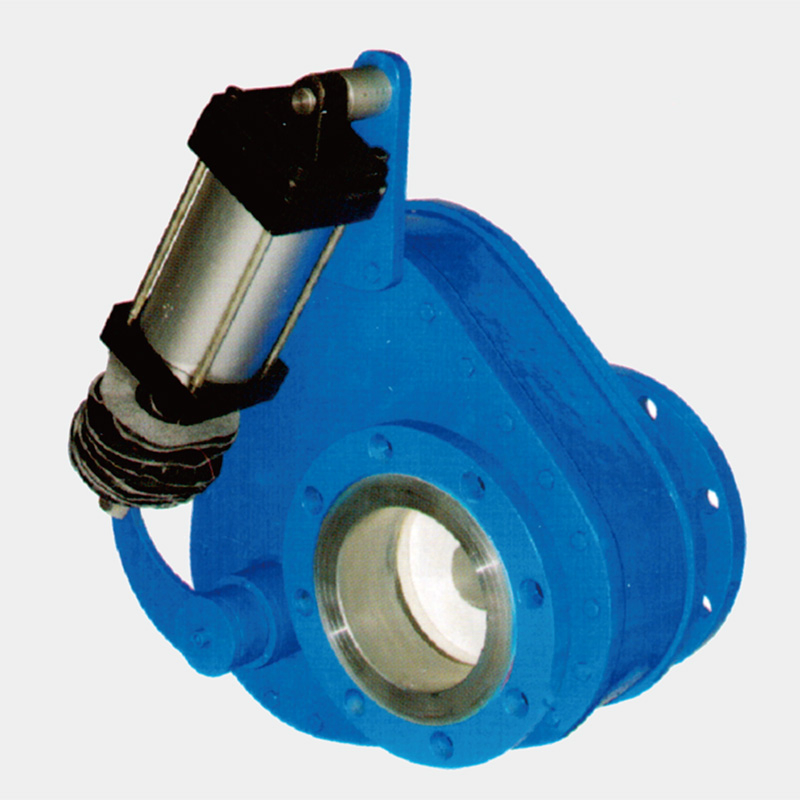

Pneumatic Ceramic Rotary Discharge Valve Pneumatic Ceramic Rotary Discharge Valve
🌍 Typical Application

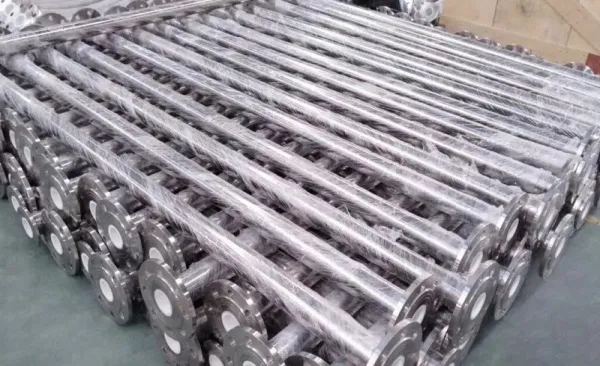

Application 1

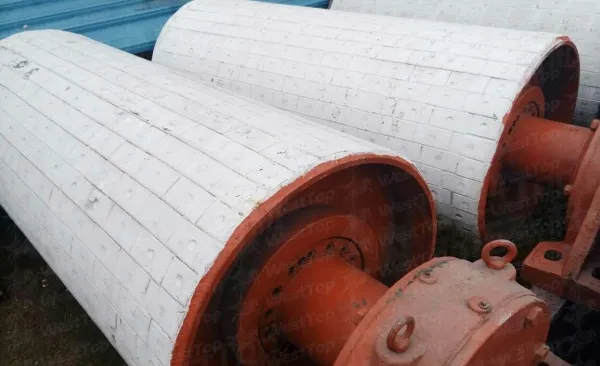

Application 2

Wear-resistant ceramics are widely used in industrial pipes and liners to slow down equipment wear, extend service life, and improve production efficiency.

ODM Services Include:
  • Design & Manufacturing
  • Professional Packing
  • Global Logistics Shipping
  • After-sales technical support
📦 Packaging & Shipping

We provide customized wooden case and iron frame packaging tailored to product size and transport requirements.

Packaging Details
🏢 Company Profile & Certificates

The company is a leading provider of advanced anti-wear and energy-saving technologies, dedicated to helping industrial clients worldwide cut costs and improve reliability. We serve critical industries including steel, thermal power, cement, coal, ports, and petrochemicals.

Company Advantages

We hold ISO9001, ISO14001, and ISO45001 certificates, ensuring the highest standards of quality and environmental management.

Certificates
❓ Frequently Asked Questions
Are you a professional manufacturer for industrial wear-resistant solutions?
Yes, we are a professional factory specializing in industrial wear-resistant products and ceramic-lined valves.
What media are your ceramic valves suitable for?
Our valves are ideal for dry ash systems, slag slurry, water, steam, and highly abrasive or corrosive materials.
Do you provide customized OEM or ODM services?
Yes, we provide a full range of OEM and ODM services, including customized design, manufacturing, and one-stop wear-resistant solutions.
What is the typical delivery time for orders?
Generally, delivery ranges from 15 to 45 days, depending on the quantity and specific customization requirements.
What certifications does your factory hold?
We have gained ISO9001 (Quality), ISO14001 (Environment), and ISO45001 (Health & Safety) certifications.
What are the key advantages of using ceramic sealing in valves?
Ceramic sealing offers exceptional hardness, superior corrosion resistance, and a self-cleaning mechanism that significantly extends the service life in harsh environments.
