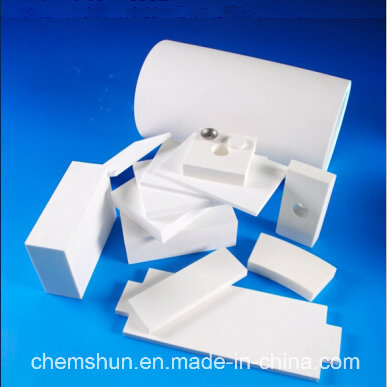

Abrasion Resistant Linings/ Wear Resistant Alumina Ceramic Lining Tiles

1 / 5

Abrasion Resistant Linings/ Wear Resistant Alumina Ceramic Lining Tiles

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Wear Resistant Linings

Installation

Bolt Fastening

Material

Alumina Ceramic

Shape

Custom Shape

Surface Finish

Smooth

Thickness

Customized

Type

Wear Resistant Plate

Alumina Content

92% Al2O3 or 95% Al2O3

Density

3.60 g/cm3

Appearance

Plain Plate, Plain Tile, Smooth

Acid Resistance

Yes

Alkali Resistance

Yes

Impact Resistance

Yes

OEM/ODM

Available

HS Code

690220

Product Description

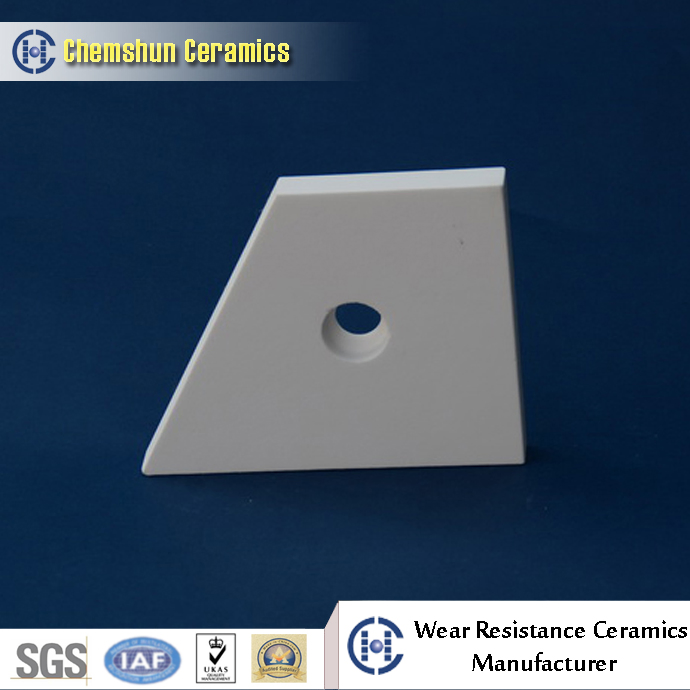

Abrasion Resistant Linings / Wear Resistant Alumina Ceramic Lining Tiles

92% Alumina Ceramic Tile (92% AL2O3) sizes: 150x100x6mm, 150x100x13mm, 150x100x25mm, 150x100x30mm, 150x100x50mm.

Raw Material:
Made from high purity, super fine high-quality grain alumina powder. Processed through spray-drying, cold isostatic pressing, and firing at 1520ºC~1650ºC. Available in 92%, 95%, 97%, and 99% alumina content.

Material Advantages:
• High Hardness: Rockwell hardness HRA80-90, Moh's hardness 9 (second only to diamond).
• Superior Abrasion Resistance: 171.5 times better than Chrome steel and 260 times better than manganese steel.
• Light Weight: Density is 3.6-3.75g/cm3, half the weight of steel, reducing equipment load.

Applications:
• Constructing ceramic rubber plates for wear-and-impact-resistant lining.
• Grinding media for ceramics, chemical, mining, metallurgical, and cement industries.
• Components for ceramic bearings.

Equipment Usage:

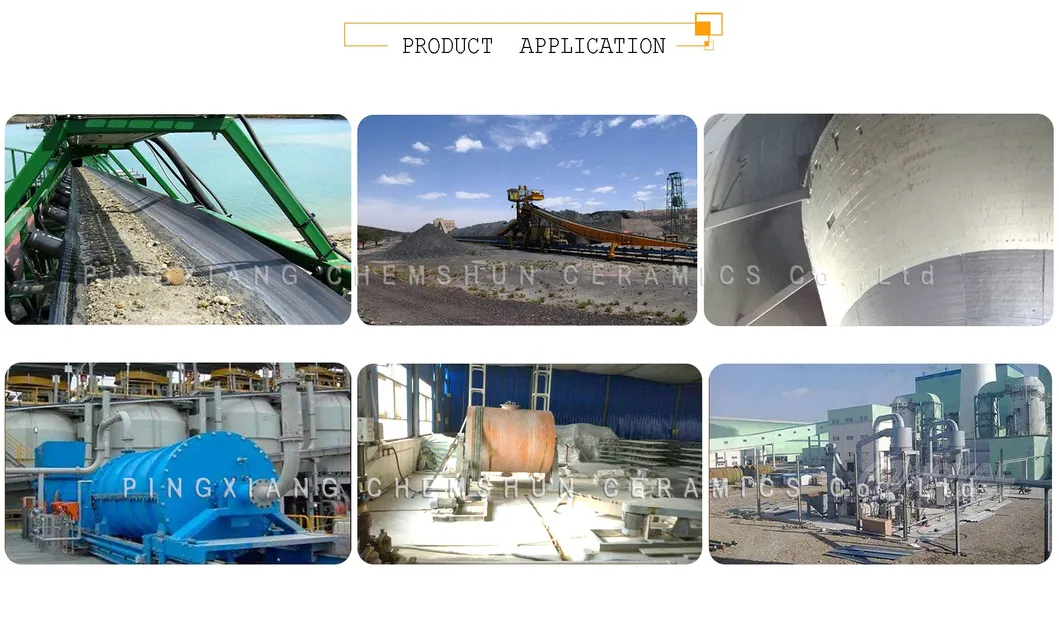

Suitable for Hoppers, Chutes, Conveyors, Bunkers, and Concrete Storage in Mining, Power Plants, Steel Plants, and Cement Industries.

Technical Specifications

Attributes	Unit	Type 92%	Type 95%
Alumina Content	%	92	95
Density	g/cc	3.60	3.68
Color	-	White	Pale Ivory
Water Absorption	%	0	0
Flexural Strength	Mpa	280	300
Moh's Hardness	Grade	9	9
Rockwell Hardness	HRA	80	86
Compressive Strength	Mpa	850	950-1000
Max Operation Temp	ºC	1250	1250

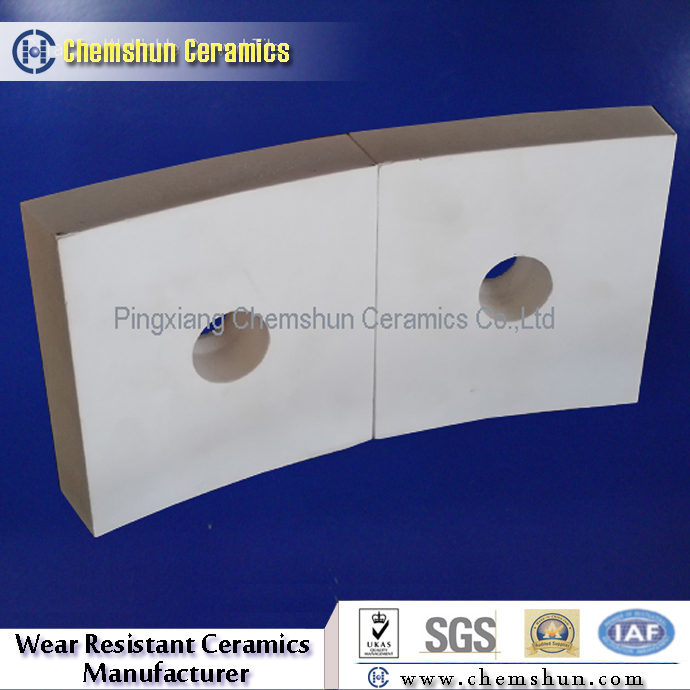

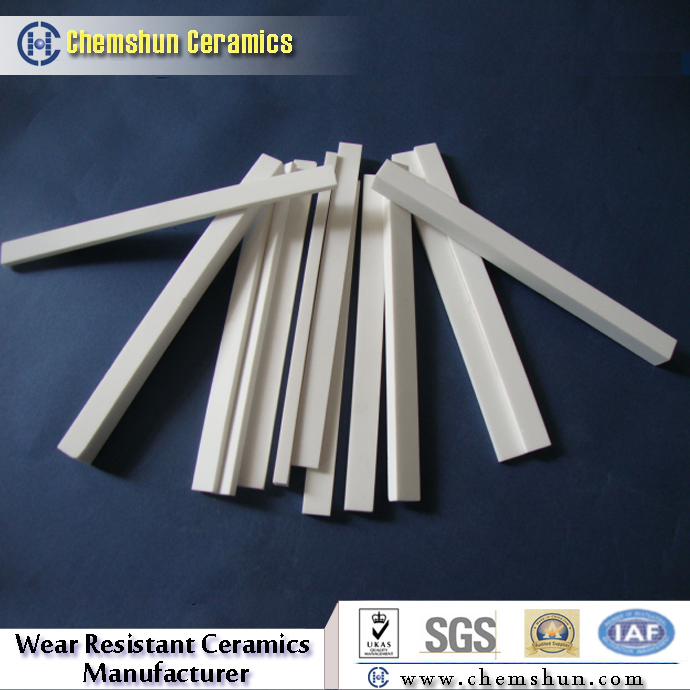

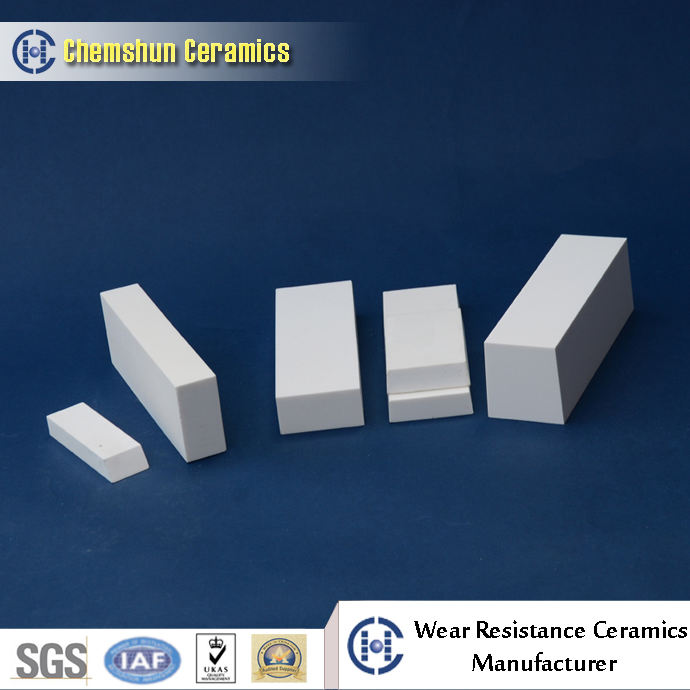

Product Display

Frequently Asked Questions

What is the hardness of these ceramic linings?

The Rockwell hardness is HRA80-90 and the Moh's hardness is grade 9, which is only slightly less than diamond, making it extremely wear-resistant.

Can the size and thickness be customized?

Yes, while standard sizes like 150x100mm are available in various thicknesses (6mm to 50mm), we can provide custom shapes and sizes based on specific requirements.

What industries are these linings suitable for?

They are widely used in the mining industry, power plants, steel plants, and cement plants for equipment like hoppers, chutes, and conveyors.

How does alumina ceramic compare to steel in weight?

The density is approximately 3.60 g/cm3, which is only about half the weight of steel, significantly reducing the load on industrial equipment.

Are the products resistant to chemicals?

Yes, these alumina ceramic linings offer excellent acid and alkali resistance, making them suitable for harsh chemical environments.

What is the maximum operating temperature?

The linings can withstand a maximum operating temperature of up to 1250ºC.
