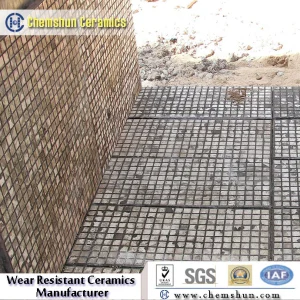

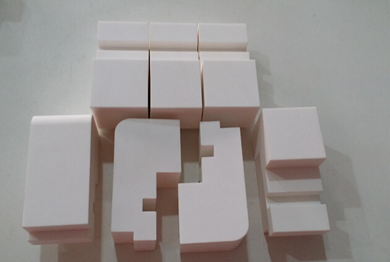

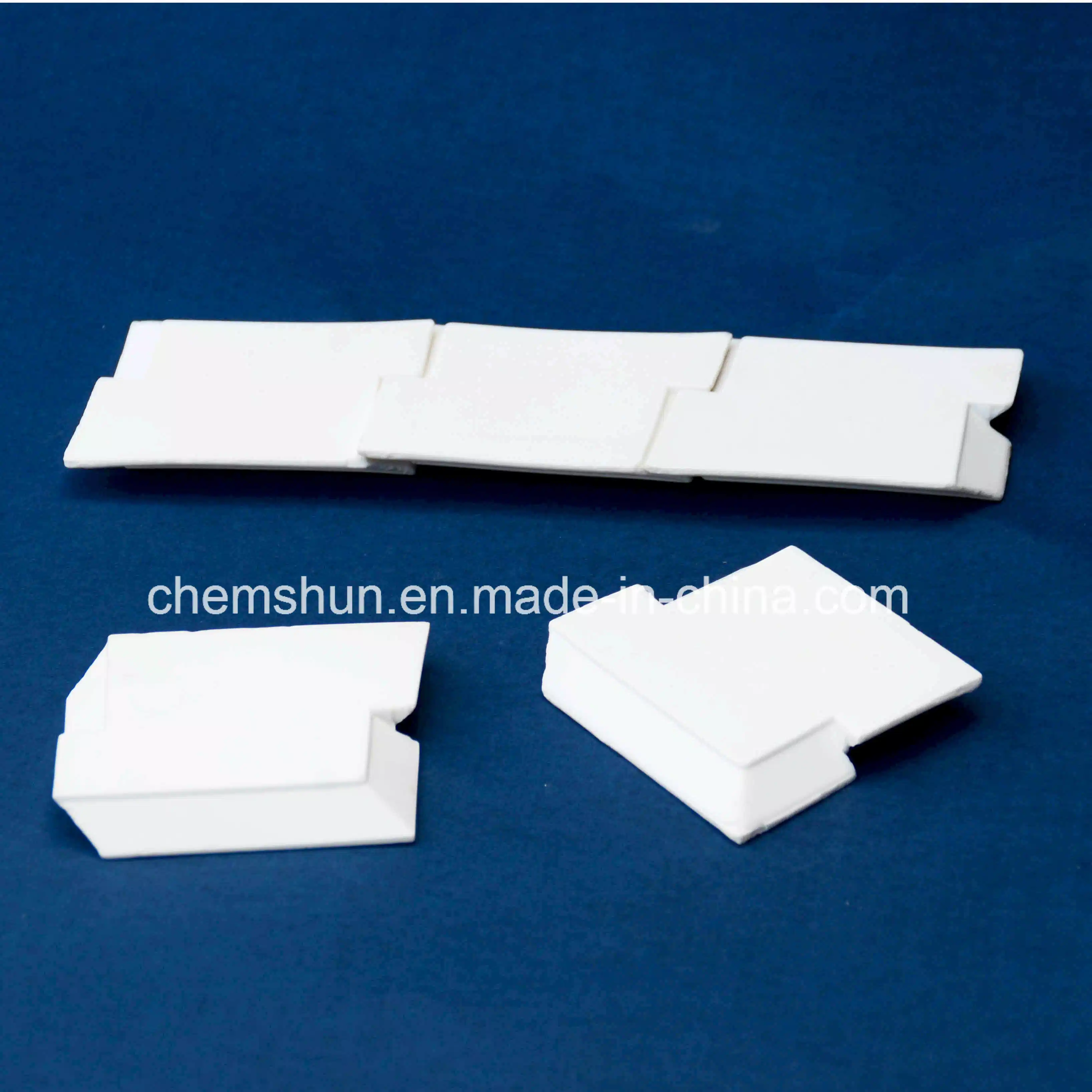

Wear resistant pre-engineering tile in a variety of geometric shapes from simple to complex, the ceramics can be engineered or mould to specific shapes to customer's requirement. Alumina ceramic liner has excellent abrasion resistance, hard resistant, corrosion resistance, it is widely used in the mining, power plant, steel plant, cement industries like chutes, hopper, bunker, cyclone, convey belt, etc.

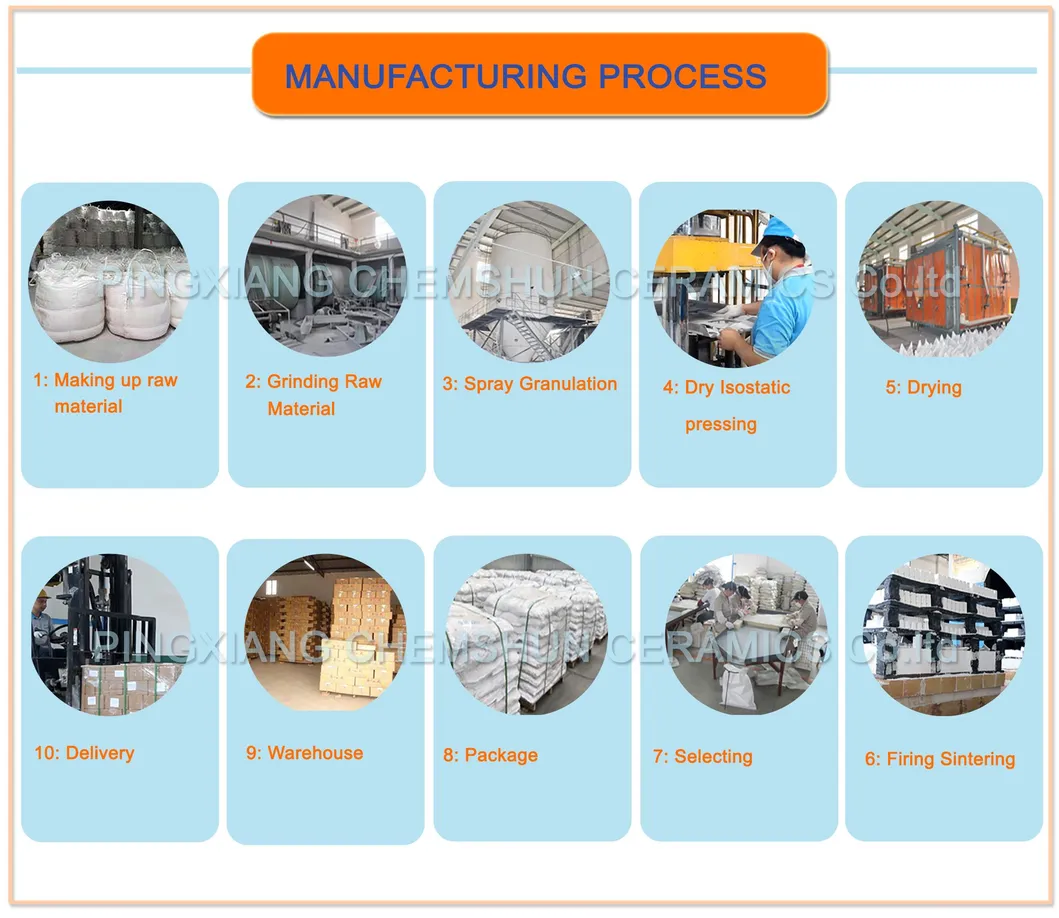

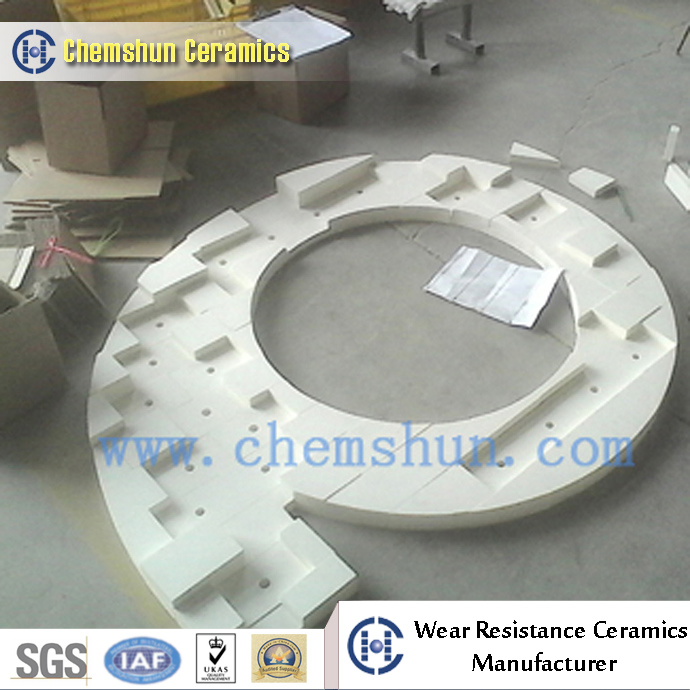

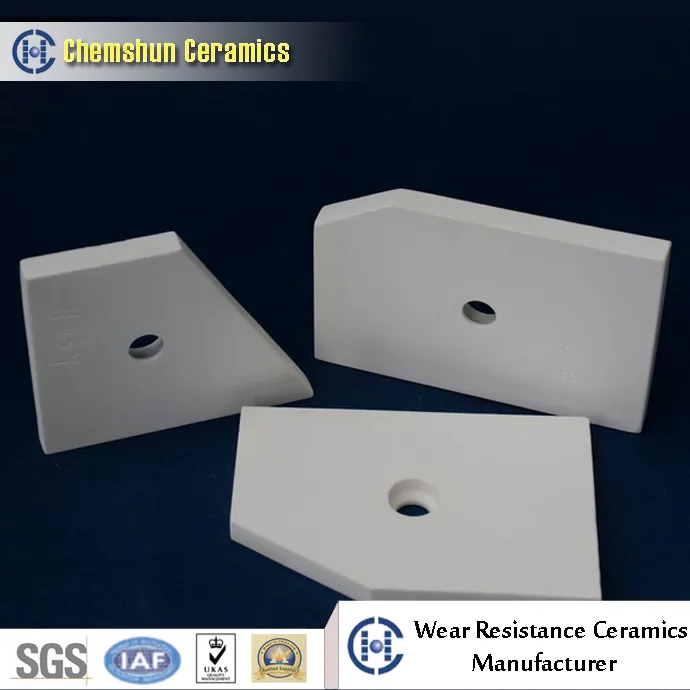

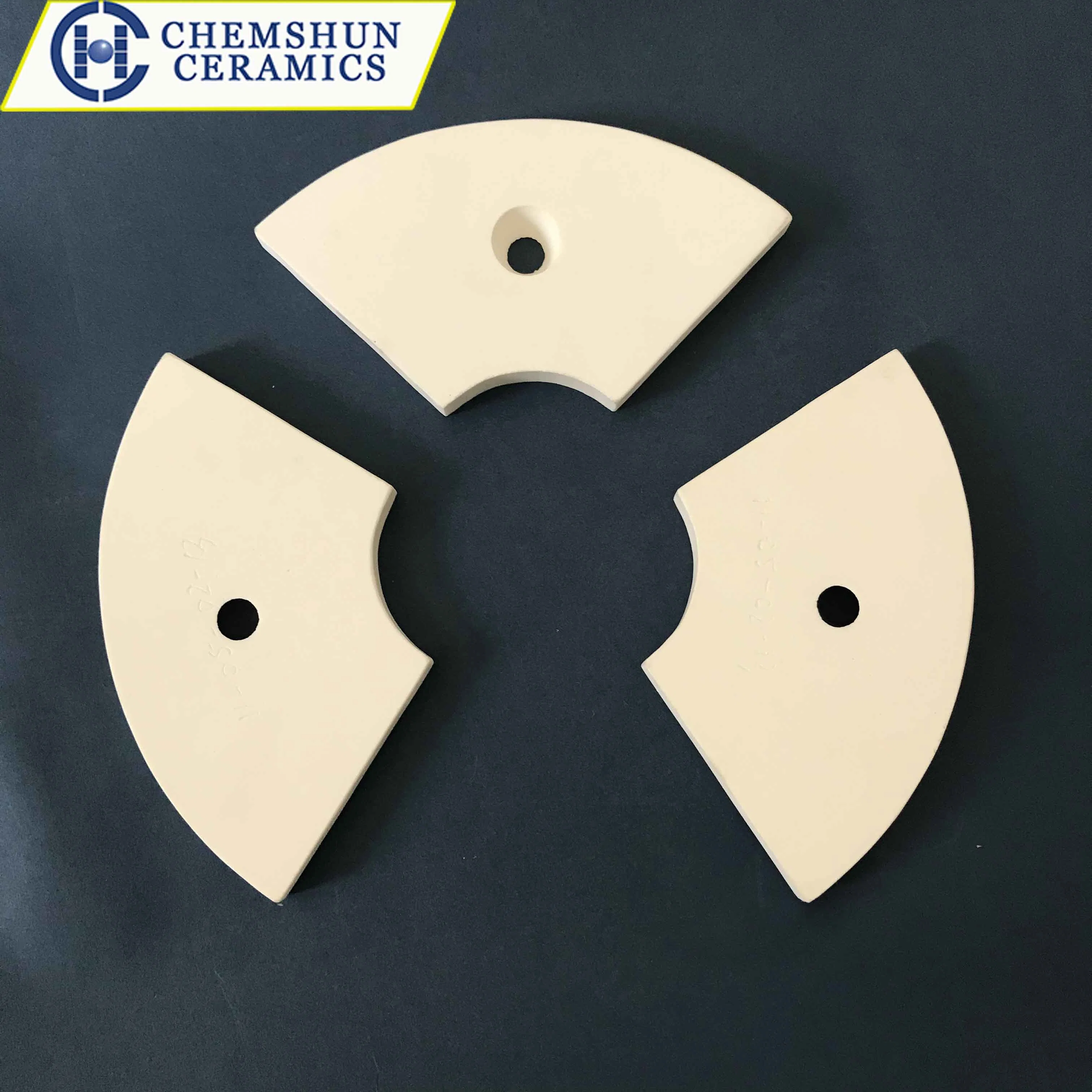

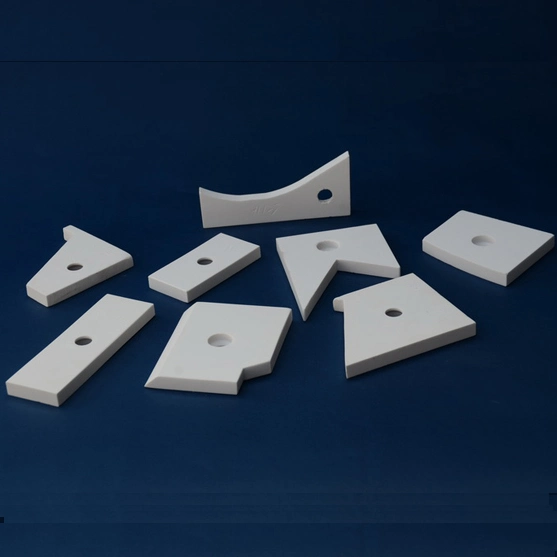

Engineered linings product is a speciality. We can supply a wide range of pre-engineered alumina ceramic tiles tailor-made to suit any type of application. CAD software is used to design wear resistant lining for customer's components. Machining before sintering makes us able to provide linings with complex and 3 dimensional shapes as a cost-effective solution.
| Industry | Equipment System | Equipment Parts |
|---|---|---|
| Cement | Raw mill system | Feed chute, retaining ring, scraper plate, cyclone, bunker |
| Steel | Batching system | Mixing bunker, mixing barrel, mixing disk, disk pelletizer |
| Thermal power | Coal handling system | Bucket wheel machine, coal hopper, coal feeder, orifice |
| Mining | Transporting material system | Hopper, silo |
| Attributes | Unit | 92% Alumina | 95% Alumina | ZTA |
|---|---|---|---|---|
| Density | g/cc | ≥3.60 | >3.65 | ≥4.2 |
| Flexural Strength | Mpa | 270-300 | 320 | 680 |
| Rockwell Hardness | HRA | 80-85 | 87 | 90 |
| Vickers Hardness | Kg/mm2 | 1000-1150 | 1200 | 1300 |
A1: They provide superior abrasion and corrosion resistance, reducing equipment downtime and maintenance costs while extending the service life of industrial machinery.
A2: Yes, CAD software is used to design custom linings, and machining before sintering allows for complex three-dimensional shapes to fit specific geometries.

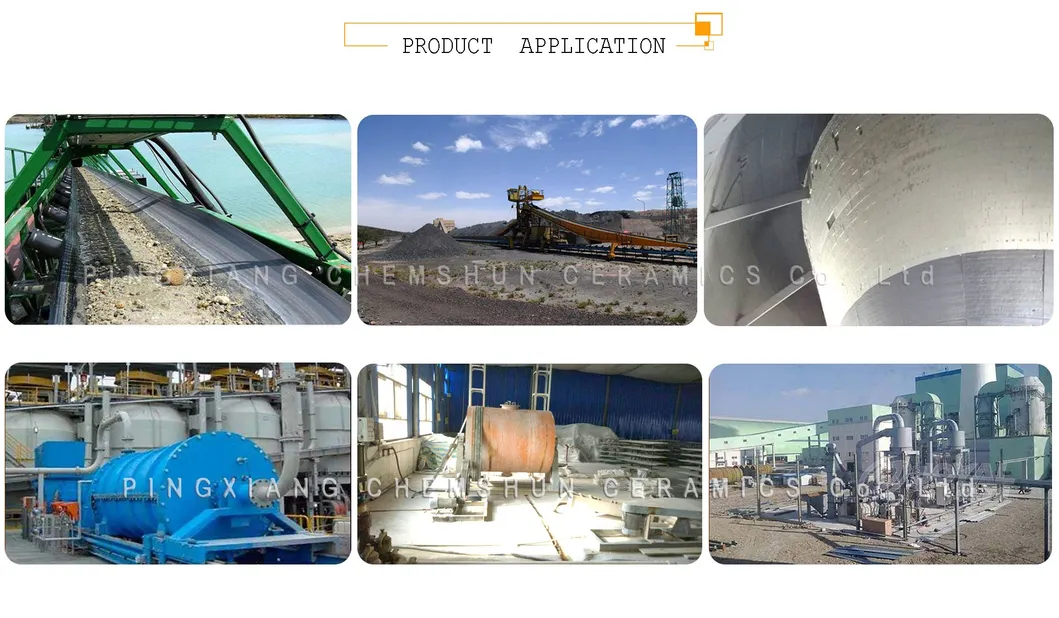

A3: They are widely used in mining, cement production, steel plants, thermal power plants, and chemical industries.

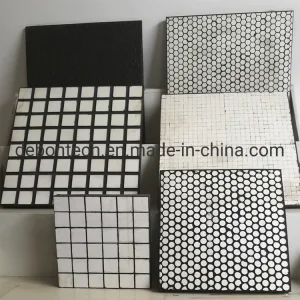

A4: Common methods include bolt fastening, direct bond adhesive, welding, and vulcanization into rubber-steel composites.
A5: Higher alumina content generally offers increased hardness and better wear resistance, while ZTA (Zirconia Toughened Alumina) provides significantly higher flexural strength and impact resistance.
A6: Depending on the material grade, they can operate at maximum temperatures ranging from 1450°C to 1500°C.
