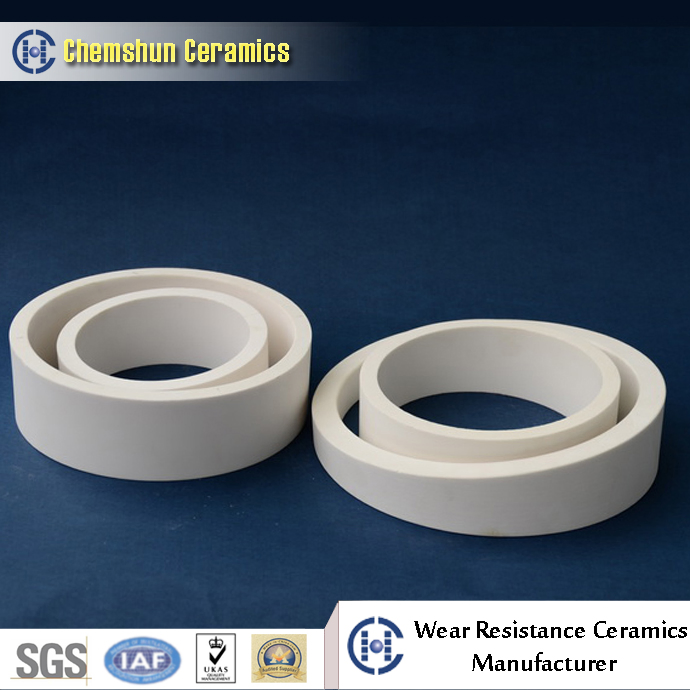

Alumina Ceramic Pipe Lining From Lined Pipe Supplier
Alumina Ceramic Pipe Lining From Lined Pipe Supplier
Alumina Ceramic Pipe Lining From Lined Pipe Supplier
Alumina Ceramic Pipe Lining From Lined Pipe Supplier
Alumina Ceramic Pipe Lining From Lined Pipe Supplier
1 / 5
Alumina Ceramic Pipe Lining From Lined Pipe Supplier
Alumina Ceramic Pipe Lining From Lined Pipe Supplier
Alumina Ceramic Pipe Lining From Lined Pipe Supplier
Alumina Ceramic Pipe Lining From Lined Pipe Supplier
Alumina Ceramic Pipe Lining From Lined Pipe Supplier

Alumina Ceramic Pipe Lining From Lined Pipe Supplier

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Material:
Alumina Ceramics
Type:
Wear Resistant Pipe
Refractoriness:
1580 < T < 1770 ℃
Shape:
Pipe / Bend
Alumina Content:
92% or 95% Al2O3
Density:
3.60-3.70 g/cm3
Hardness:
9 Moh's / 80-87 HRA
Capacity:
5000 Ton/Year
Alumina Ceramic Pipe Lining Overview

Ceramic lined pipe elbows are designed for extended service life in high wear pneumatic fly ash, bottom ash, bed ash and mill reject conveying applications. Ceramic steel composite pipe consist of single ceramic tubes sticked in steel pipe by epoxy resin adhesive glue. The single-piece ceramic pipe design eliminates potential erosion and failure points caused by manual assembly of tiled ceramic fittings, thereby reducing maintenance and lowering life-cycle cost.

Key Features
  • High Wear Resistance: Superior abrasion protection for industrial equipment.
  • Impact & Corrosion Resistance: Handles chemical and physical stress efficiently.
  • Easy Installation: Designed for short downtime and simple integration.
  • Low Maintenance: Reduces maintenance frequency and long-term costs.
  • Smooth Surface: Ensures free flow of materials without blocking.
Technical Specifications
Product ID (mm) OD (mm) Thickness (mm) R (mm) Degree
Straight Tube7610615//
Straight Tube15018517.5//
Bend76106154007.5
Bend15018517.515003
Industry Applications
Industry Equipment System Components
CementRaw mill & SinteringChutes, cyclones, pipelines
SteelFeeding & BatchingHoppers, silos, mixing barrels
PowerCoal handling & Ash dischargeCoal mill elbows, pulverized coal pipes
MiningMaterial TransportHydrocyclones, bins, silos
Visual Presentation

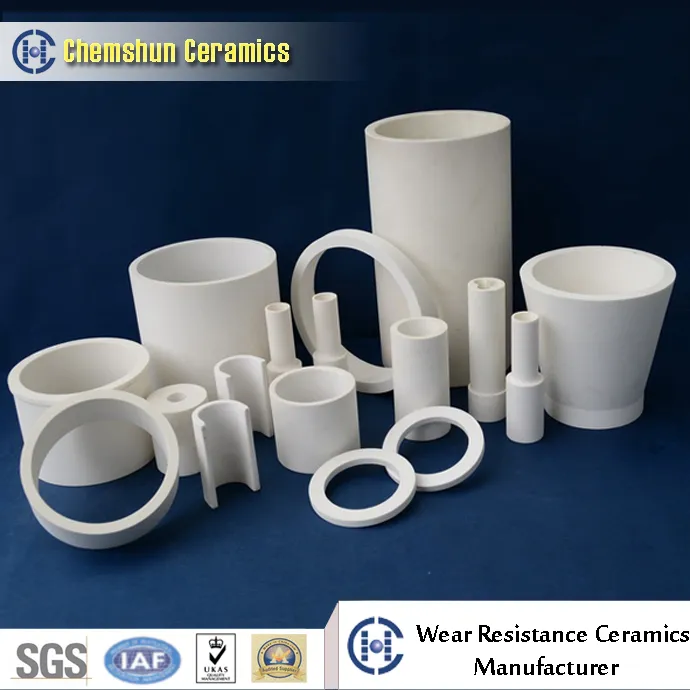

Alumina Ceramic Pipe

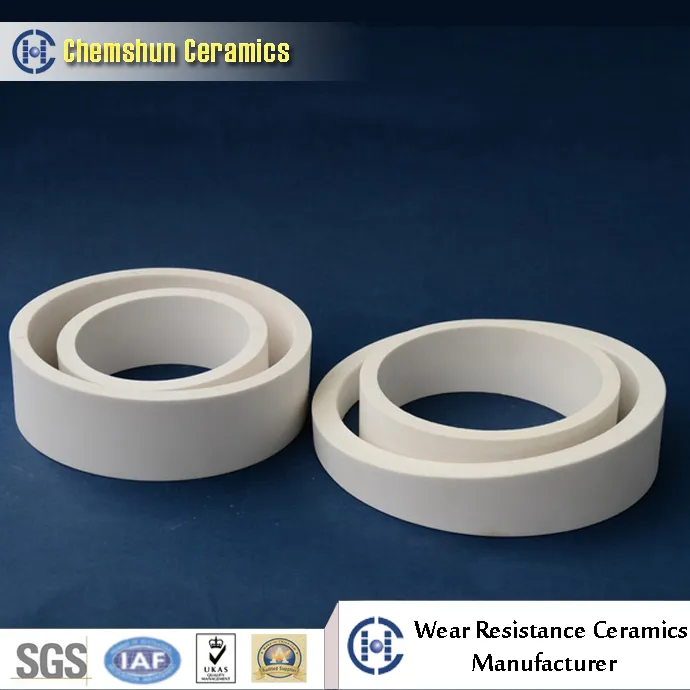

Ceramic Lining

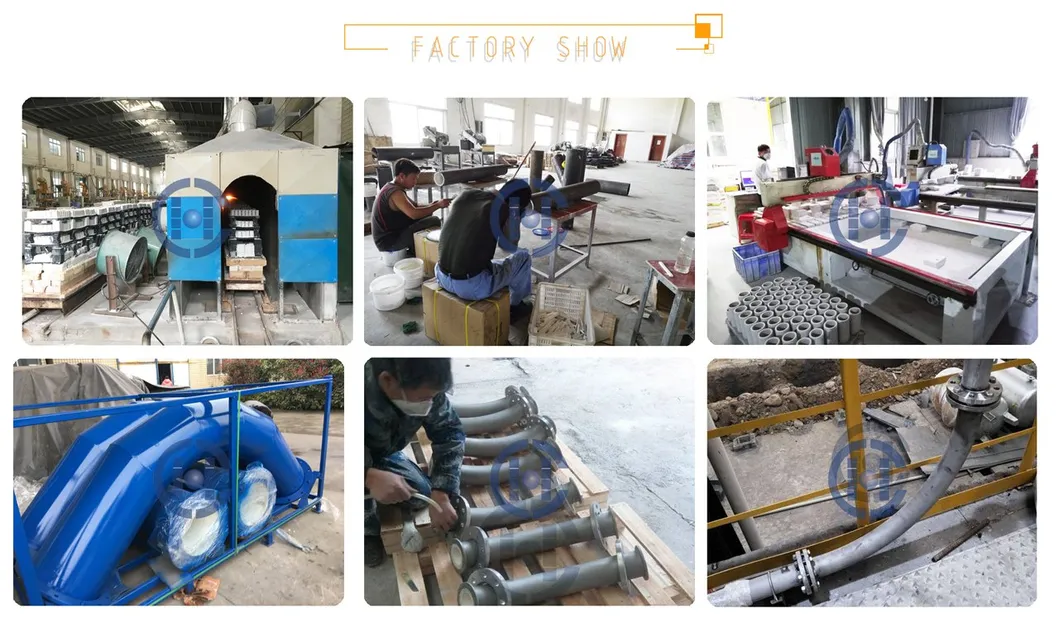

Production View 1

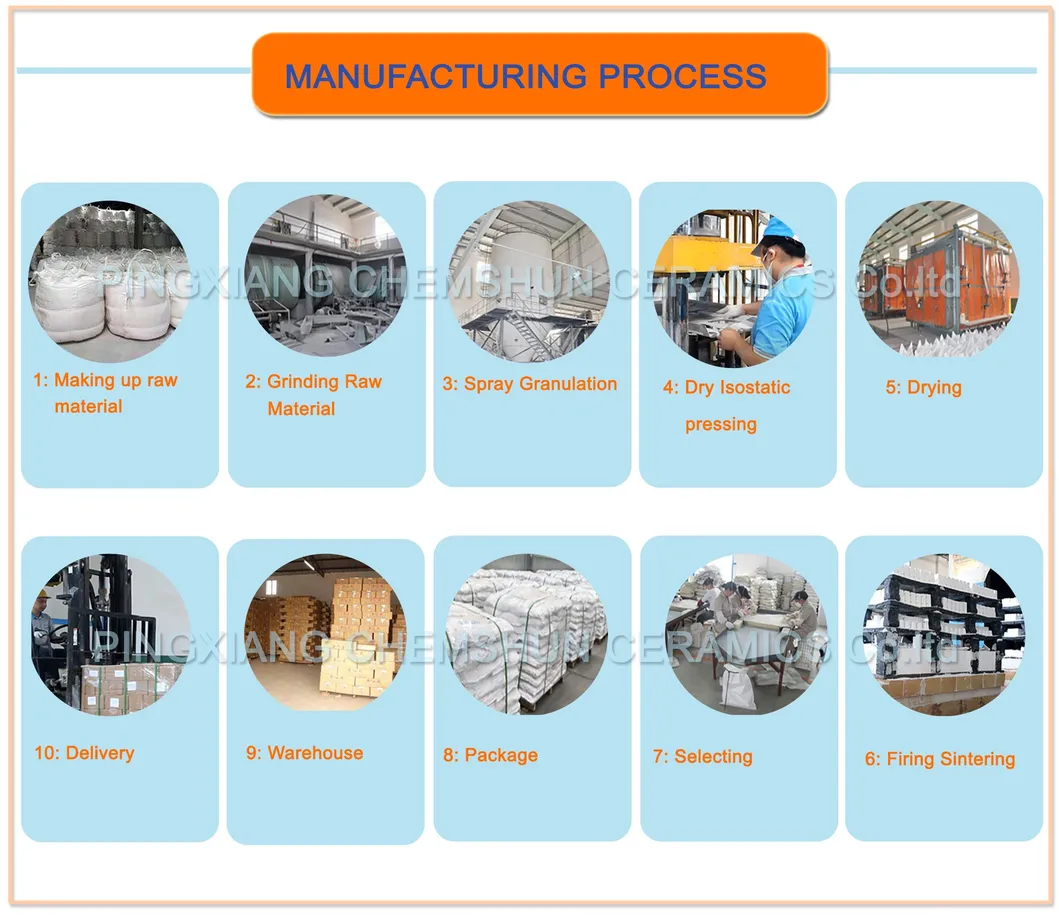

Production View 2

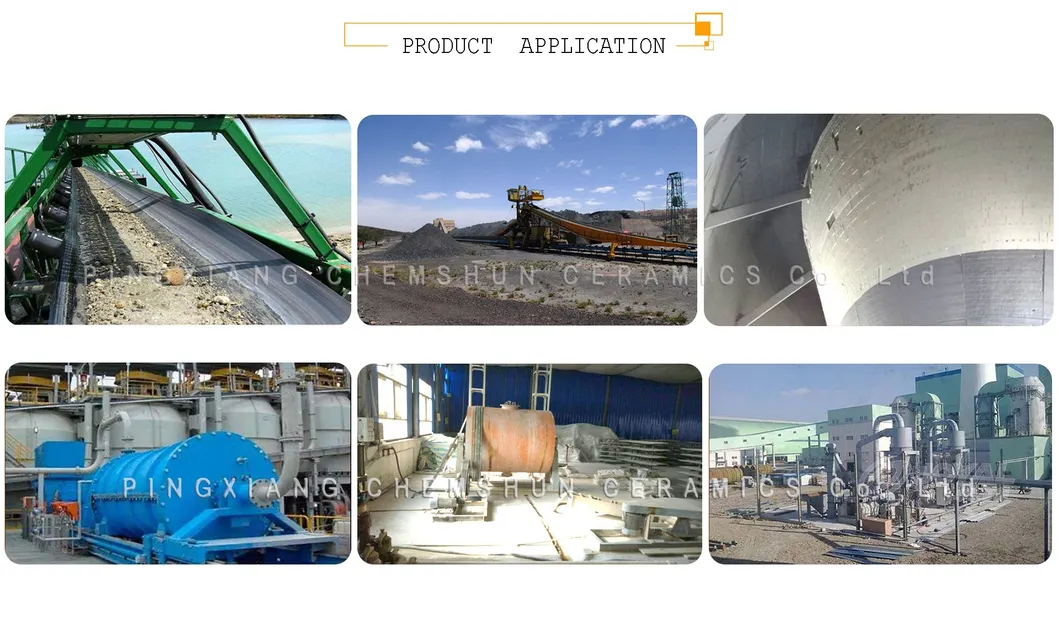

Production View 3
Application 1
Application 2
Quality Check 1
Quality Check 2
Packaging
Frequently Asked Questions (FAQ)
What are the primary advantages of ceramic lined pipes?
Ceramic lined pipes offer extreme wear resistance, high hardness (9 Moh's), and excellent corrosion resistance. They significantly extend the service life of conveying systems in high-abrasion environments compared to standard steel pipes.
Which industries typically use Alumina Ceramic Pipe Linings?
They are widely used in the mining, power generation (coal-fired plants), cement production, steel manufacturing, and chemical processing industries where bulk materials cause heavy equipment wear.
What is the difference between 92% and 95% Alumina content?
95% Alumina ceramics generally offer higher density and slightly better hardness and wear resistance than 92% Alumina, making them suitable for even more extreme abrasion conditions.
How is the ceramic lining fixed inside the steel pipe?
The single ceramic tubes or tiles are typically bonded to the inner surface of the steel pipe using high-strength epoxy resin adhesive or specialized inorganic glues capable of withstanding industrial temperatures.
Can these pipes handle high-temperature applications?
Yes, alumina ceramics have a high maximum operation temperature (up to 1450-1500ºC). However, the actual working temperature of a lined pipe is often limited by the adhesive used (e.g., epoxy resin).
Do you offer custom sizes and shapes?
Yes, complicated shapes and various sizes ranging from 10mm to 500mm can be designed and manufactured according to specific customer requirements and equipment layouts.
