📊 Basic Information
Model NO.:
Alumina ceramic tile
Installation:
Adhesive Bonding
Shape:
Custom, Hexagon, Cylinder, Cube
Thickness:
Customized Thickness
Alumina Content:
92% Al2O3
Production:
5000 Tons / Year
🛠️ Product Description

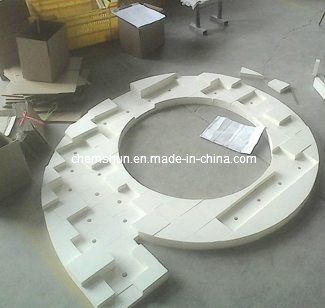

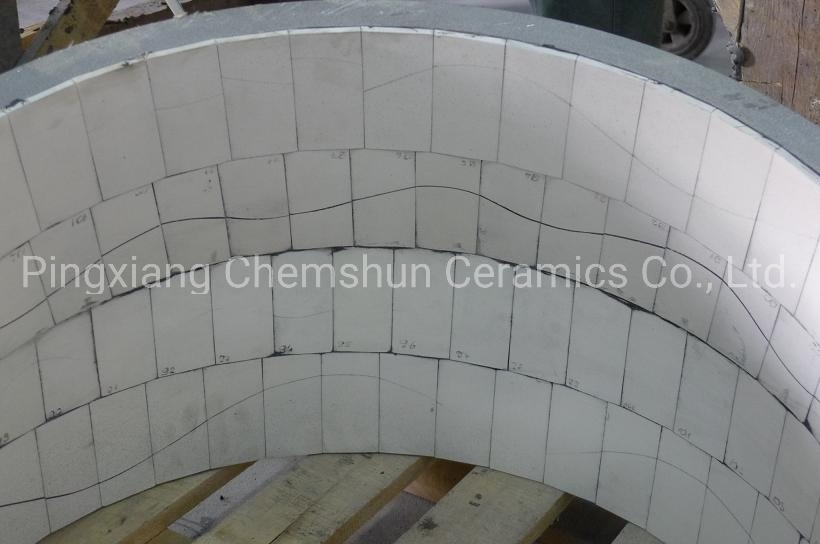

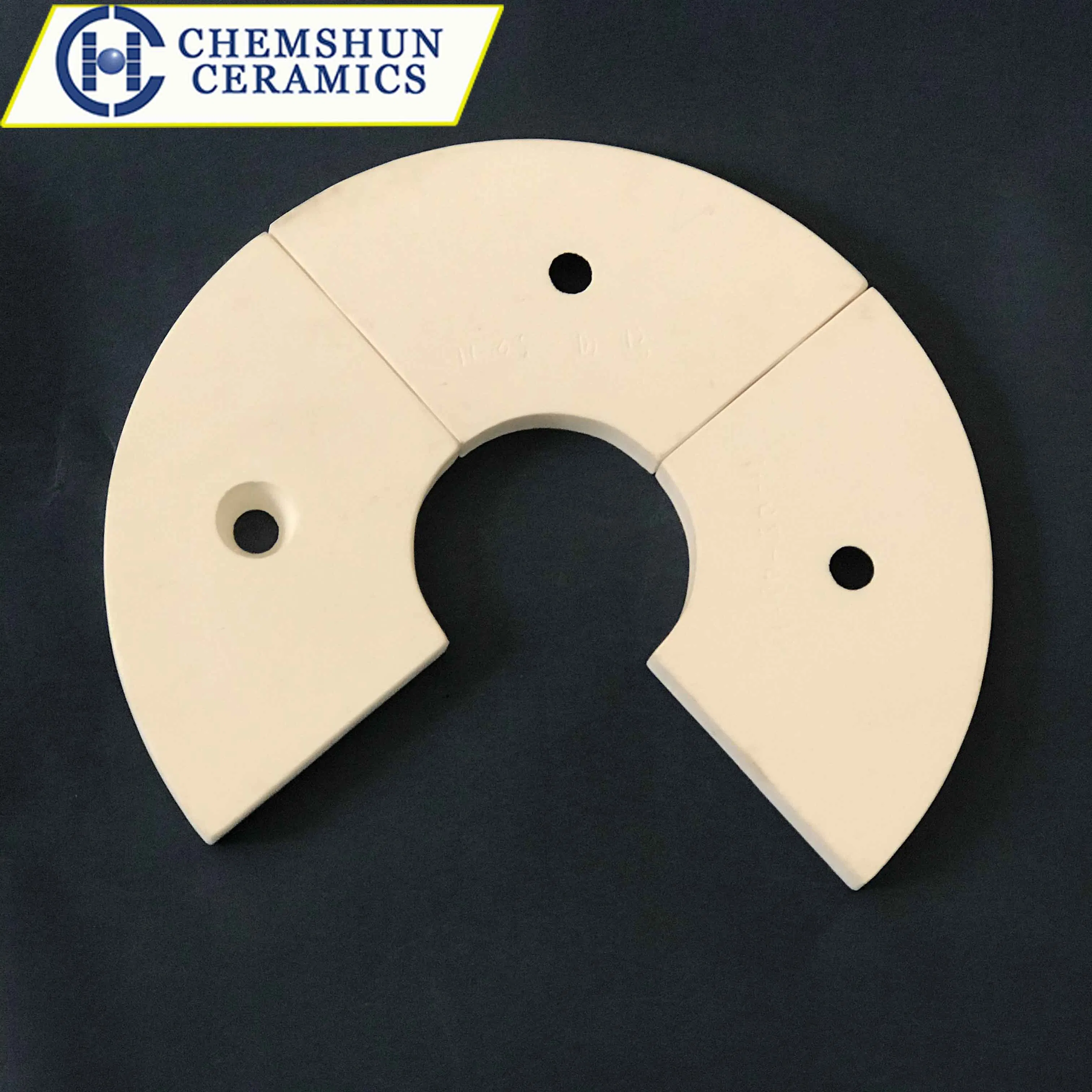

92% Alumina Ceramic Pre-Engineered Tile Lining for Lined Chute
Wear resistant pre-engineering tile in a variety of geometric shapes from simple to complex, the ceramics can be engineered or mould to specific shapes to customer's requirement. Alumina ceramic liner has excellent abrasion resistance, hardness, and corrosion resistance. It is widely used in mining, power plants, steel plants, and cement industries to reduce downtime and maintenance.
⭐ Key Features
- Excellent corrosion resistance
- Easily handled size and weight
- Excellent heat resistance
- Excellent impact resistance
- Fast and safe installation
- Lower production and maintenance cost

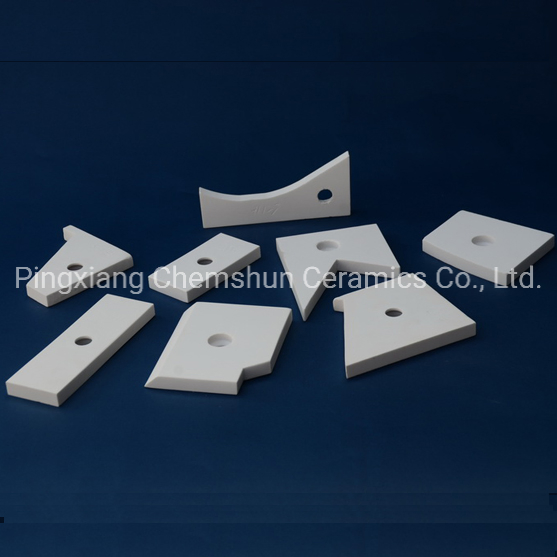

📐 Special Shapes Available

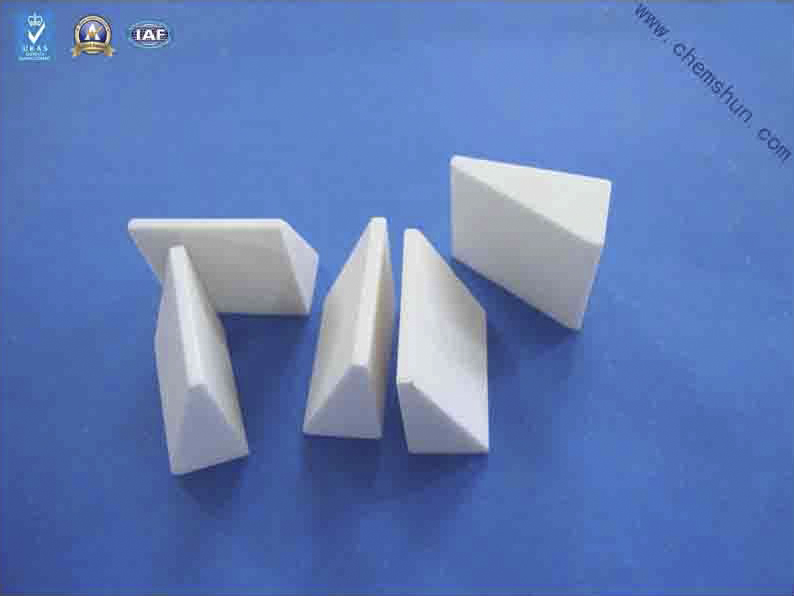

- Triangle shapes
- Multihole designs
- Arc shapes
- Polygon shapes
- Chamfered edges
📋 Technical Data Sheet
| Attributes |
Unit |
92 I Grade |
92 II Grade |
| Alumina Content | % | 92 | 92 |
| Density | g/cc | ≥3.60 | ≥3.60 |
| Water Absorption | % | <0.01 | <0.01 |
| Flexural Strength | Mpa | 270 | 300 |
| Rock Well Hardness | HRA | 80 | 85 |
| Max Operation Temp | ºC | 1450 | 1450 |
❓ Frequently Asked Questions
Q1: What are the primary applications for 92% alumina ceramic tiles?

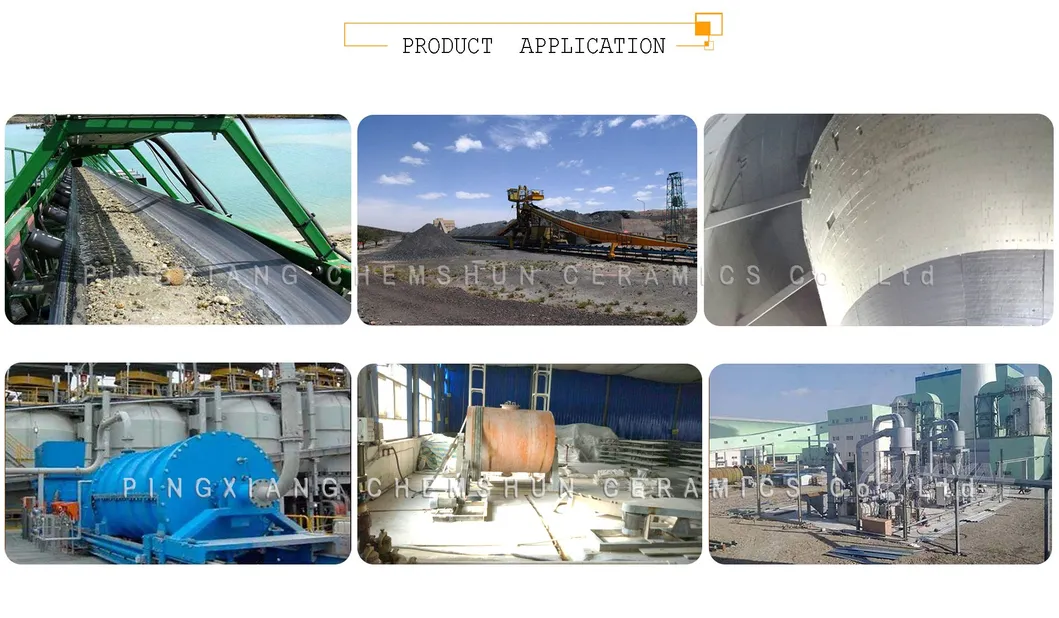

They are primarily used as wear-resistant linings in chutes, hoppers, pipes, cyclones, and conveyor belts within the mining, steel, and power industries.
Q2: Can the ceramic tiles be customized for specific equipment?
Yes, we provide pre-engineered tiles in various geometric shapes (triangles, polygons, arcs) and customized thicknesses to fit specific equipment designs.
Q3: How are these tiles installed?
The standard installation method is adhesive bonding, though weld-on options and other custom shapes are also available for different mounting requirements.
Q4: What is the maximum operating temperature for these ceramics?
These alumina ceramics can operate at a maximum temperature of up to 1450ºC, making them suitable for high-heat industrial environments.
Q5: What are the main benefits of using pre-engineered linings?
They offer superior impact and corrosion resistance, reducing equipment downtime and significantly lowering long-term maintenance costs.
Q6: What is the hardness level of your 92% alumina ceramic?
The material has a Moh's density grade of 9 and a Rockwell Hardness (HRA) ranging from 80 to 85, depending on the specific grade chosen.
