Product Description

Basic Information
Material:
Alumina Ceramics
Type:
Wear Resistant Ceramic
Standard:
ISO
Alumina Content:
92% or 95% Al2O3
Density:
3.60 g/cm3
Hardness:
High Hardness, High Wear Resistant
Application:
Mining, Power Plant, Steel, Cement
Equipment:
Hopper, Chute, Conveyer, Bunker
Specification:
150(L)x100(w)x6-50(T)mm
HS Code:
69091200
Product Overview

Alumina Ceramic tile liners are designed as per requirements combined with cost, installation, and effective application. Especially the tiles with tongues and grooves lock each other to increase connectivity in whole engineering. We offer Al2O3 92% and 95% ceramic tile liners for heavy industrial equipment.

Curved Alumina Cerami Wear Tile Alumina Ceramic Liner Wear Tile Lined Pipe
Ceramic Tile Liner Types

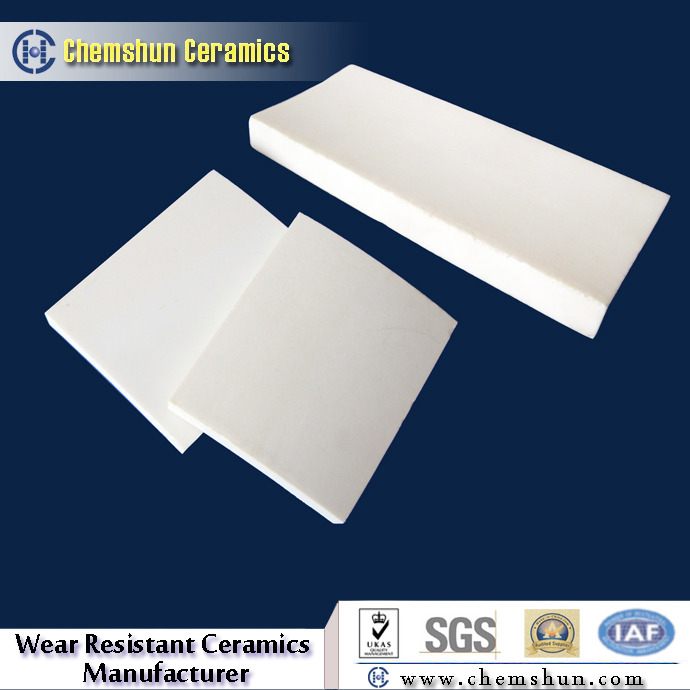

  • Alumina ceramic plain tile
  • Ceramic weldable tile liner

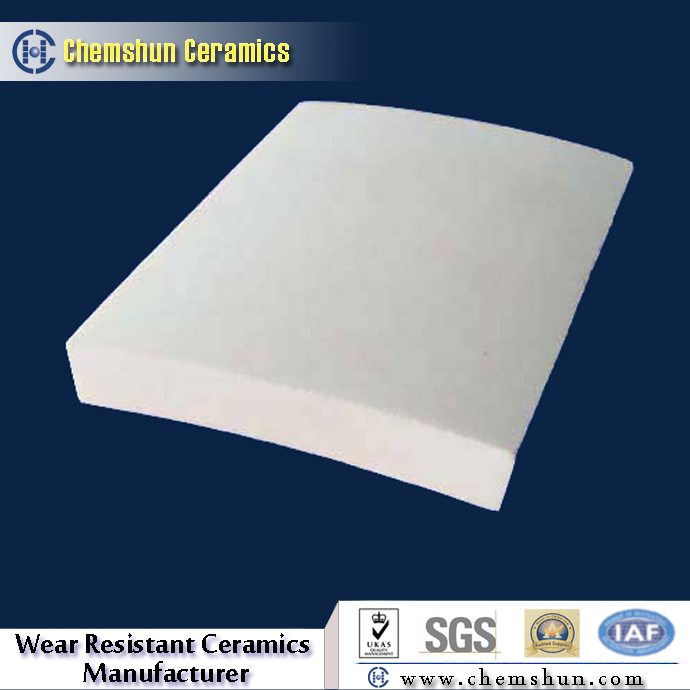

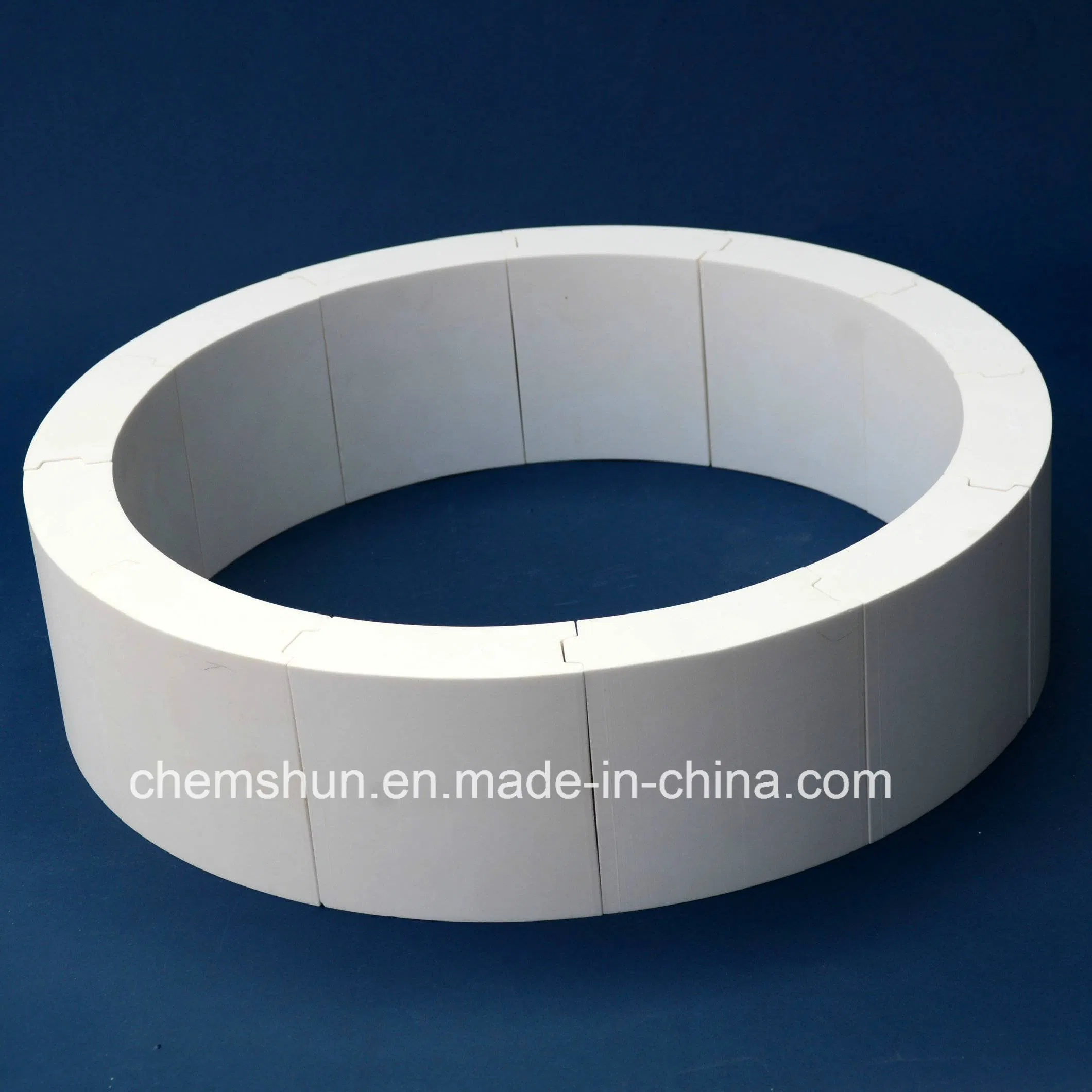

  • Ceramic curved pipe tile liner

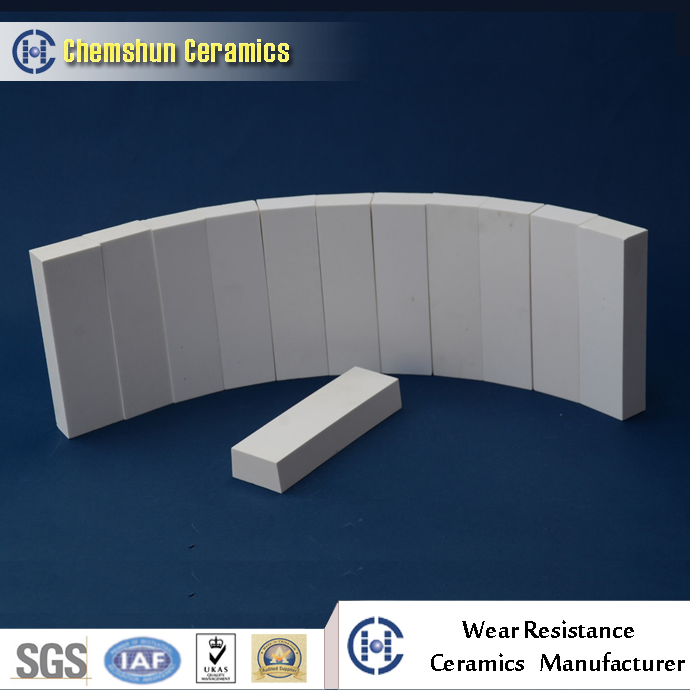

  • Ceramic arc pipe tile linings

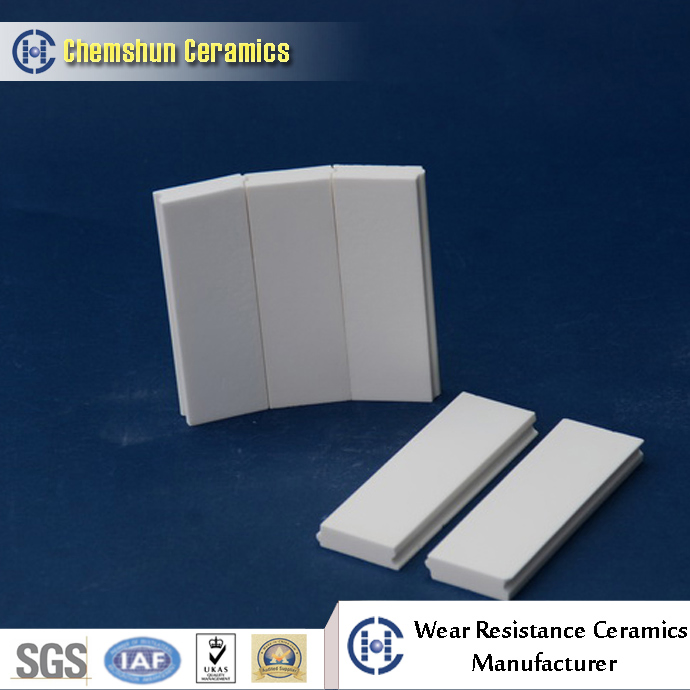

  • Ceramic tile with inter-locking
  • Alumina brick linings
  • Ceramic square / rectangle / hexagonal tile
Popular Sizes (Length*Width*Thickness)
Standard SizesInches (Approx)
100*100*20mm4"x4"x3/4"
150*100*13mm6"x4"x1/2"
150*100*25mm6"x4"x1"
150*100*50mm6"x4"x2"
228*114*25mm9"x4.5"x1"
Customized sizes acceptable for specific projects.
Key Advantages
  • High Durability: 10 times stronger than common pipes under same conditions.
  • Superior Flow: Little gap and smooth surface ensure free flow without blocking.
  • Easy Maintenance: Super wear-resistance reduces maintenance frequency and costs.
  • Tailor-Made: Professional industrial wear consult and engineered solutions available.
Technical Data Sheet
Attributes Unit 92% Alumina 95% Alumina
Density g/cc 3.60 3.68
Flexural Strength Mpa 280 300
Moh's Hardness Grade 9 9
Rockwell Hardness HRA 80 86
Max Operation Temp °C 1250 1250

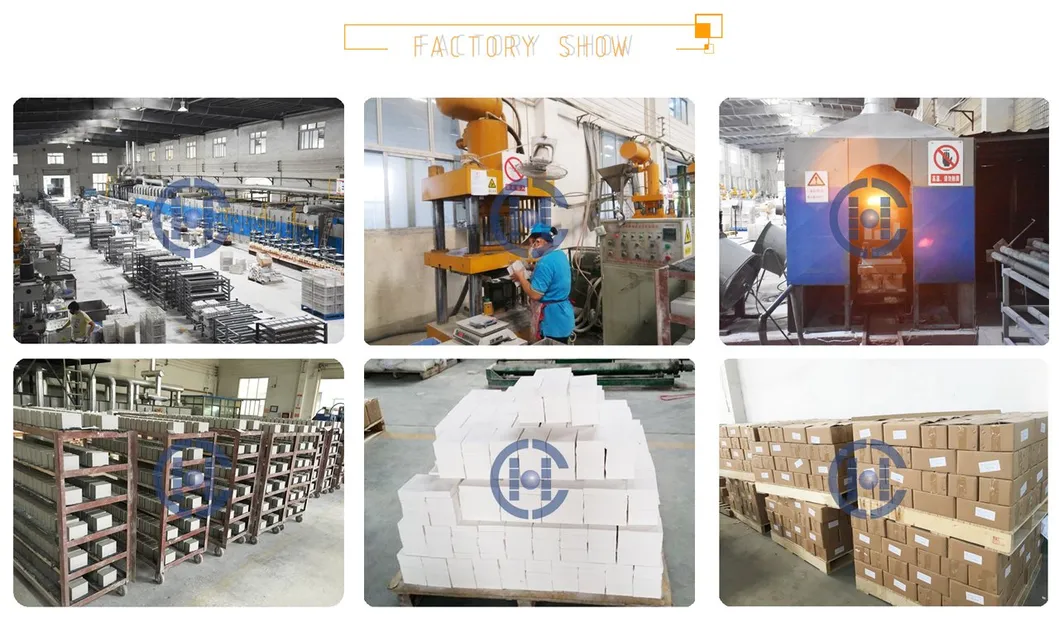

Industrial Application Production Capacity Quality Control
Frequently Asked Questions (FAQ)
Q1: What is the main benefit of interlocking alumina tiles? A: Interlocking tiles feature tongues and grooves that lock together, increasing structural connectivity and preventing tiles from dislodging in high-impact environments.
Q2: Can these ceramics withstand high temperatures? A: Yes, both 92% and 95% alumina ceramic tiles have a maximum operation temperature of 1250°C.
Q3: How are the ceramic liners installed on steel equipment? A: Depending on the application, they can be installed via direct bonding with epoxy resin or by welding through pre-formed holes in the tiles.
Q4: Are custom sizes available for specific pipe curvatures? A: Yes, we provide curved pipe tile liners and arc pipe linings tailored to specific equipment dimensions.
Q5: Which industries commonly use these wear-resistant tiles? A: They are widely used in the mining industry, power plants, steel plants, and cement production for lining hoppers, chutes, and conveyors.
Q6: What is the difference between 92% and 95% alumina content? A: 95% alumina content offers slightly higher density, flexural strength, and hardness (HRA 86) compared to the 92% version, providing enhanced wear protection.
