Hot Resistant 92% 95% Alumina Ceramic Wear Plate Lined Hopper for Cement
Hot Resistant 92% 95% Alumina Ceramic Wear Plate Lined Hopper for Cement
Hot Resistant 92% 95% Alumina Ceramic Wear Plate Lined Hopper for Cement
Hot Resistant 92% 95% Alumina Ceramic Wear Plate Lined Hopper for Cement
Hot Resistant 92% 95% Alumina Ceramic Wear Plate Lined Hopper for Cement
1 / 5
Hot Resistant 92% 95% Alumina Ceramic Wear Plate Lined Hopper for Cement
Hot Resistant 92% 95% Alumina Ceramic Wear Plate Lined Hopper for Cement
Hot Resistant 92% 95% Alumina Ceramic Wear Plate Lined Hopper for Cement
Hot Resistant 92% 95% Alumina Ceramic Wear Plate Lined Hopper for Cement
Hot Resistant 92% 95% Alumina Ceramic Wear Plate Lined Hopper for Cement

Hot Resistant 92% 95% Alumina Ceramic Wear Plate Lined Hopper for Cement

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Certification:
ISO
Material:
Alumina Ceramic
Feature:
Wear Resistant
Corrosion Rate:
0
Size:
150*100*6~50mm
Alumina Contents:
92% or 95%
Density:
3.6-3.7 g/cm3
Style:
Plain, Curved, Weldable
Application Field:
Hopper, Chute, Hydrocyclone, Pipe Fitting
Application Scope:
Mining, Power Plant, Steel Plant, Cement
Production:
4500 Ton/Year
Origin:
P. R. China
Product Description

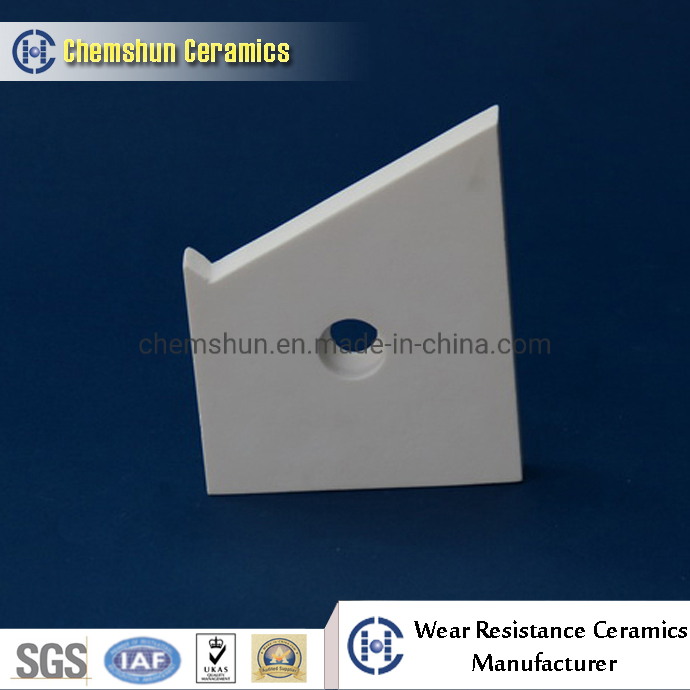

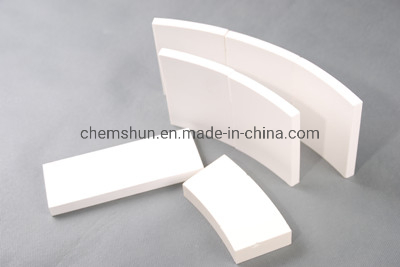

Hot Resistant 92% 95% Alumina Ceramic Wear Plate Lined Hopper for Cement

Wear Resistant Alumina Ceramic Plate with high wear resistance, acid and alkali resistance is effectively prolong the service life of equipment and considered to be the best choice of anti-wear and anti-corrosion material. It is featured by high wear-resistance, impact-resistance, easy operation properties, and is an ideal surface wear-resistant material for transfer equipment in oil, mine, coal fired power plant, cements, iron and steel plant, paper-making, textiles industries, etc.

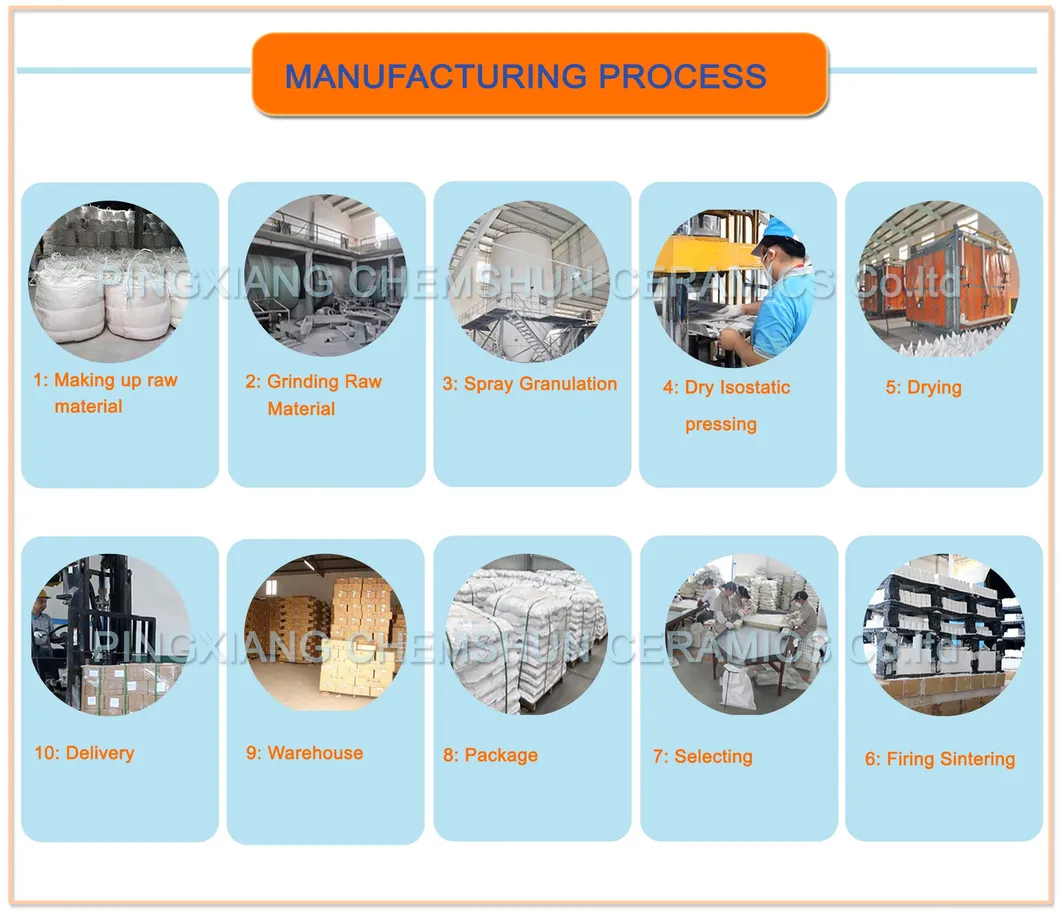

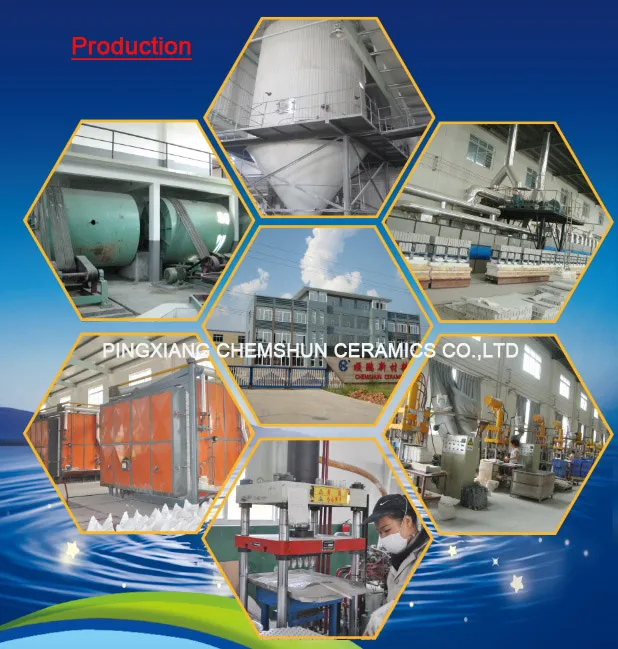

Production Process

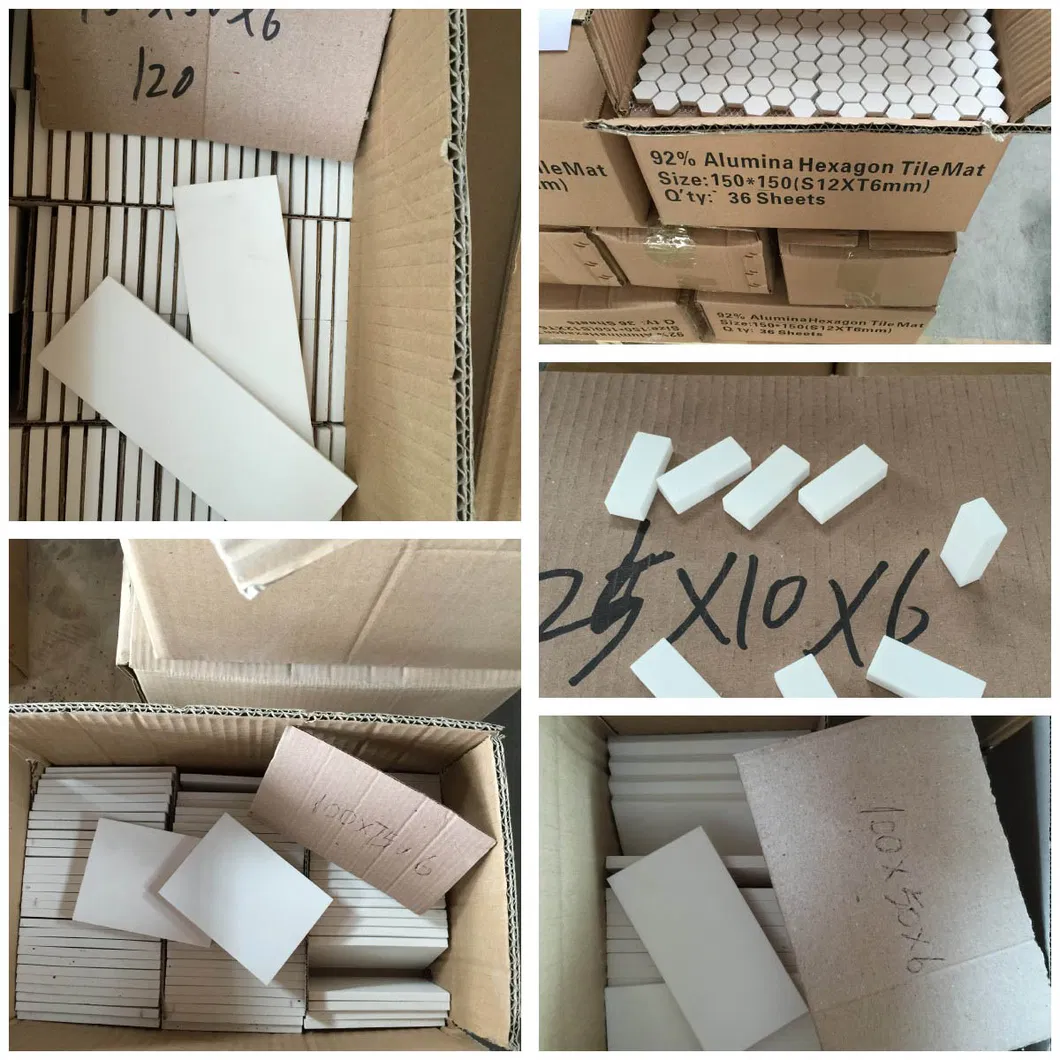

Ceramic Plate Application

Key Characteristics:

  • Excellent wear resistance and long working life.
  • Good impact resistance.
  • Good corrosion resistance.
  • Good thermal shock resistance.
  • Smooth surface and good adherence resistance.
  • Quick installation.
Technical Specifications
Size (mm) LxWxTSize (inch)
50x25x32"x1"x1/8"
50x50x132"x2"x1/2"
150x100x256"x4"x1"
150x100x506"x4"x2"
228x114x209"x4.5"x0.75"
Physical Properties
Specific gravity (g/cc)>3.60
Flexural Strength (Mpa)280
Compressive strength (Mpa)850
Rockwell hardness (HRA)80
Moh's hardness≥9
Frequently Asked Questions
What is the primary material used in these wear plates?
The plates are made from 92% or 95% high-quality Alumina Ceramic, designed for extreme wear resistance.
In which industries can these ceramic liners be applied?
They are widely used in mining, power plants, cement industries, steel plants, and coal processing for lining hoppers, chutes, and pipes.
What is the hardness level of the alumina ceramic?
The material features a Rockwell hardness (HRA) of 80 and a Moh's hardness scale rating of ≥9.
What are the standard delivery and shipping methods?
Samples are usually shipped via express (DHL/UPS/FedEx), while bulk orders are sent by sea. Lead time is typically 20-30 working days.
Are custom sizes available for the ceramic plates?
Yes, we provide standard sizes and engineering ceramic sizes tailored to specific industrial equipment needs.
