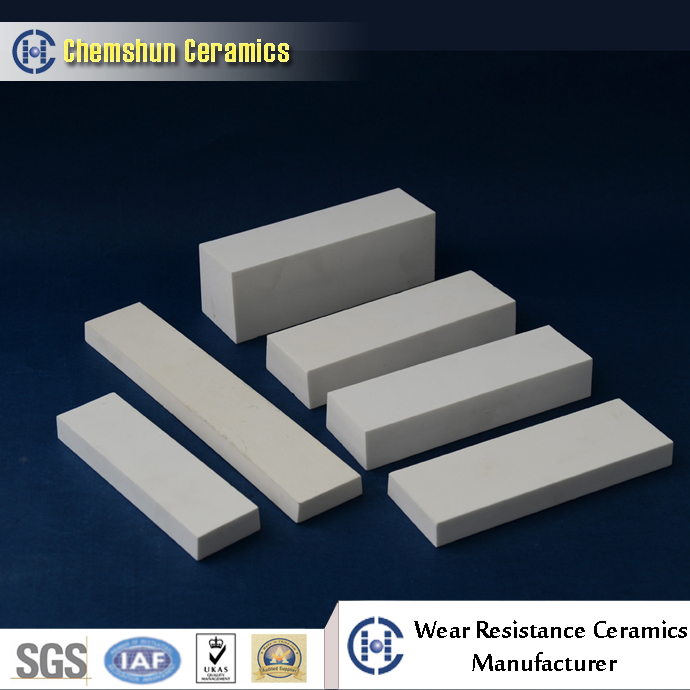

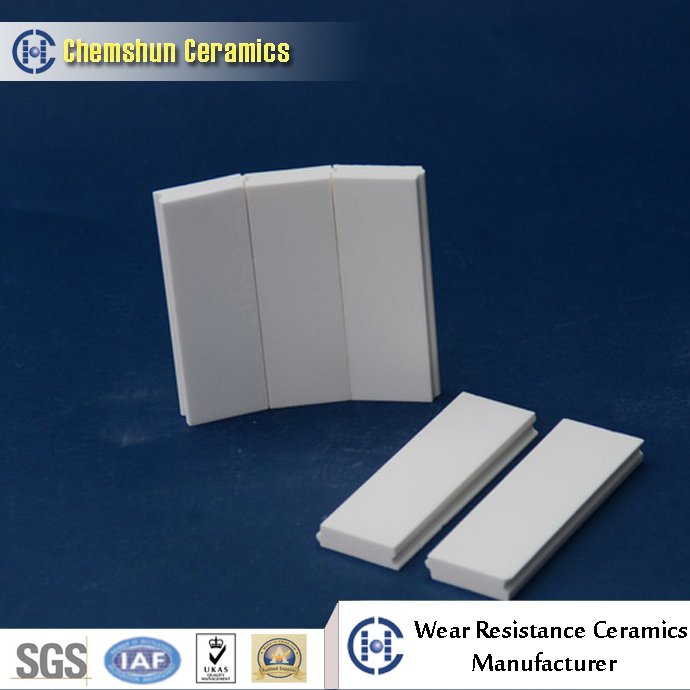

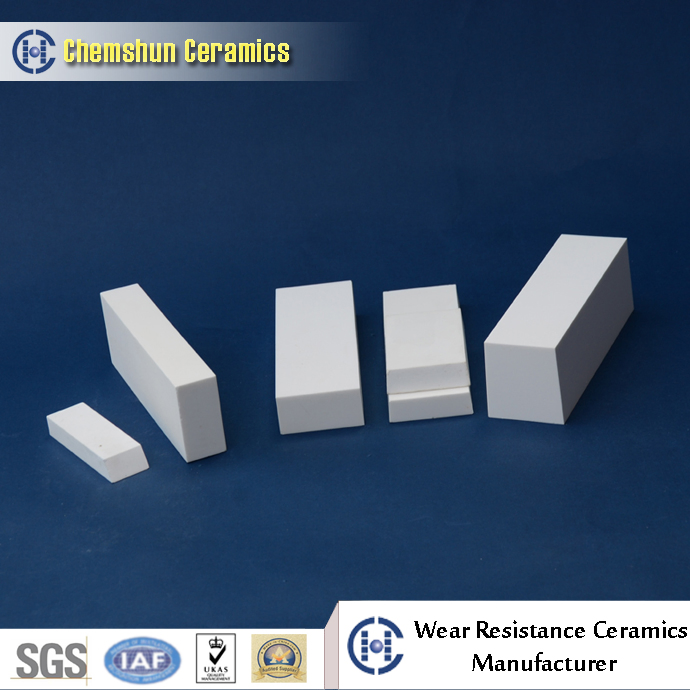

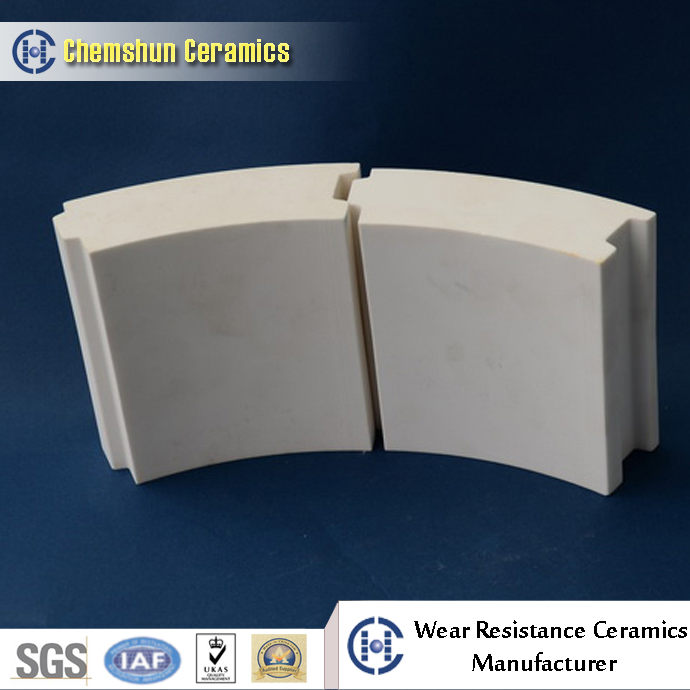

Alumina ceramic pipe tile liner is pasted or welded to the steel pipe's inner or outer wall using high-temperature resistant adhesive epoxy resin glue, forming a solid anti-wear layer after heating and curing. Ceramic Tile Lined Pipe features a uniform coating of specially formulated ceramic material, providing an exceptionally smooth surface.
While standard metal pipes struggle against chemical corrosion and wear, this hybrid solution utilizes a metal outer pipe for strength and ceramic segments for the inner lining. This combination offers superior wear resistance, corrosion protection, and anti-scaling properties, making it ideal for heavy-wear industrial conditions.
| Chemical Composition | ||||
|---|---|---|---|---|
| Al2O3 | SiO2 | CaO | MgO | Na2O |
| 92~93% | 3~6% | 1~1.6% | 0.2~0.8% | 0.1% |
| Physical Property | Value |
|---|---|
| Specific gravity (g/cc) | >3.60 |
| Apparent porosity (%) | 0 |
| Flexural Strength (20ºC, Mpa) | 280 |
| Compressive strength (20ºC, Mpa) | 850 |
| Rockwell hardness (HRA) | 80 |
| Vickers hardness (hv) | 1050 |
| Moh's hardness (scale) | ≥9 |
| Thermal Expansion (20-800ºC, x10-6/ºC) | 8 |
