Abrasion Resistant Alumina Ceramic Lined Ash Handling Systems

Abrasion Resistant Alumina Ceramic Lined Ash Handling Systems

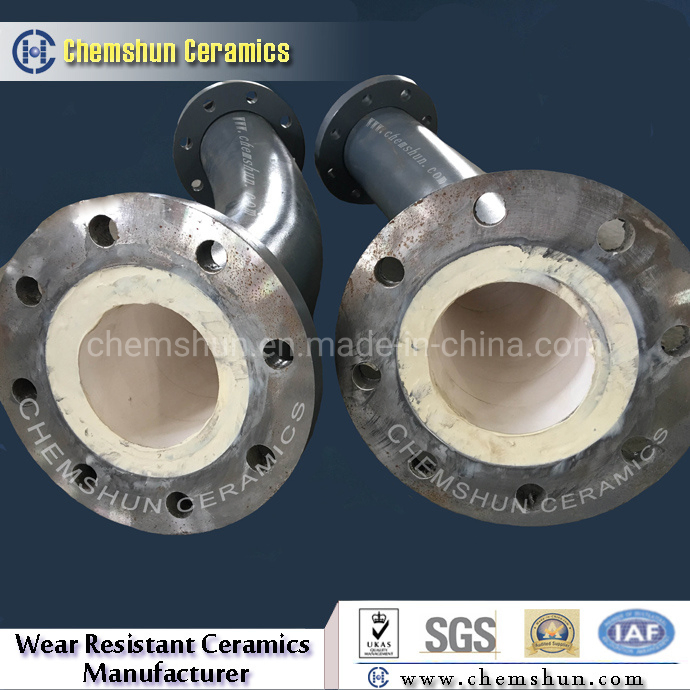

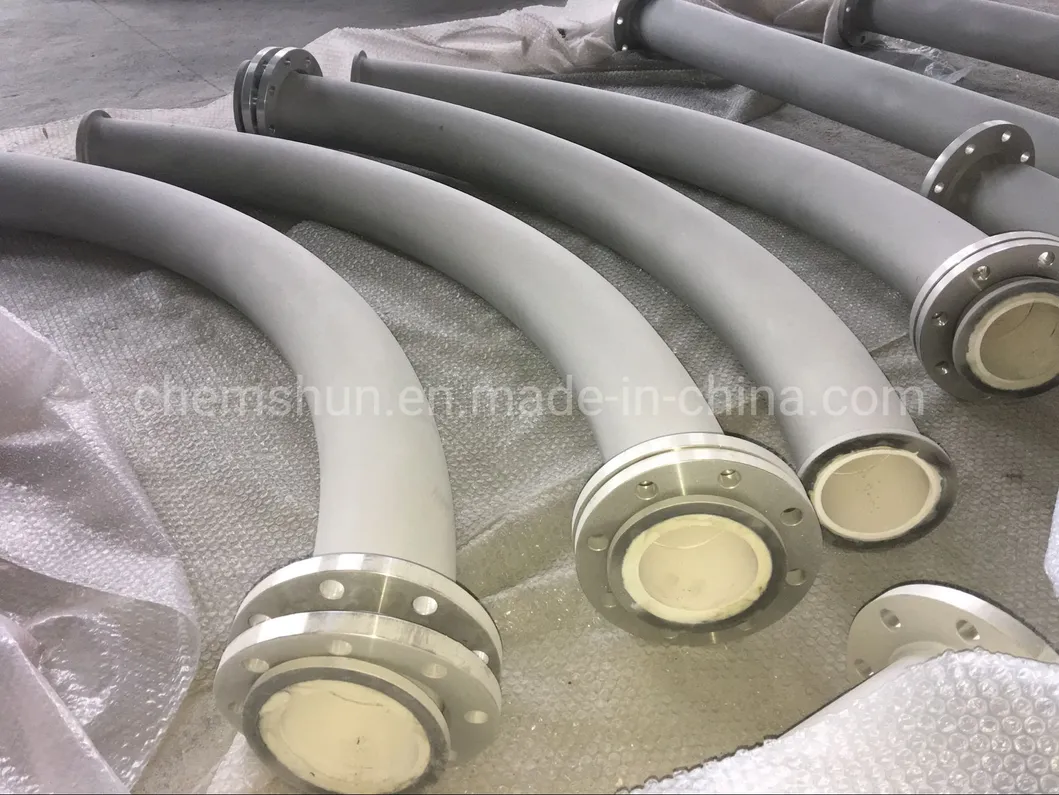

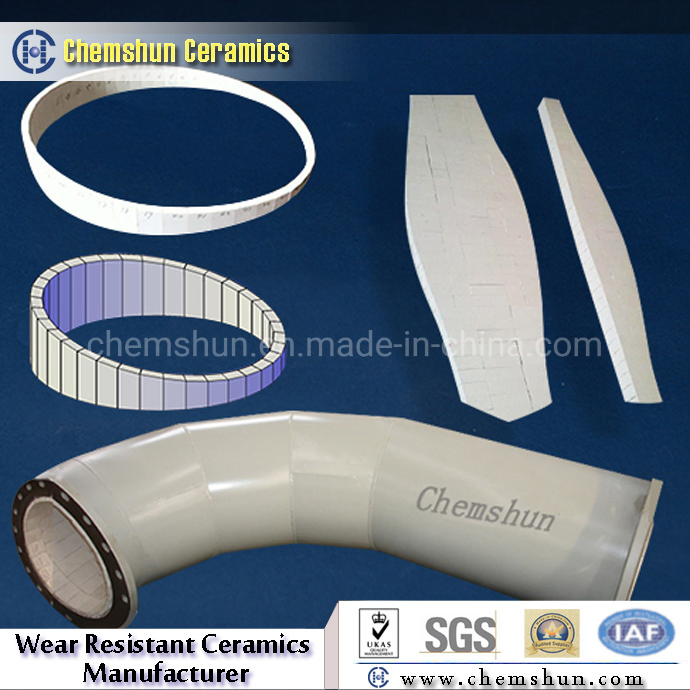

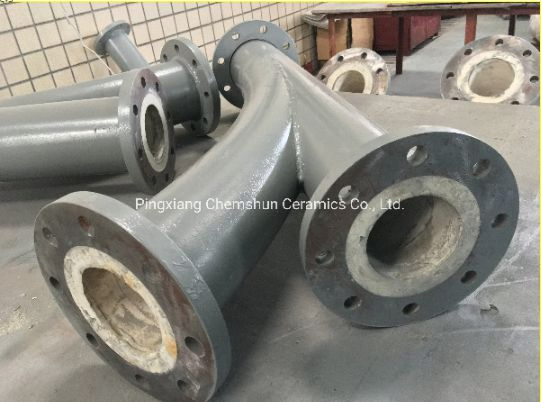

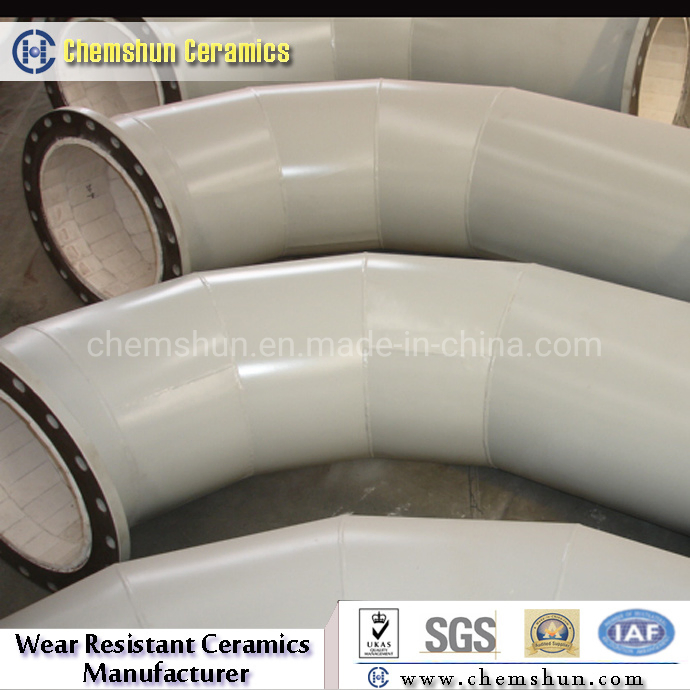

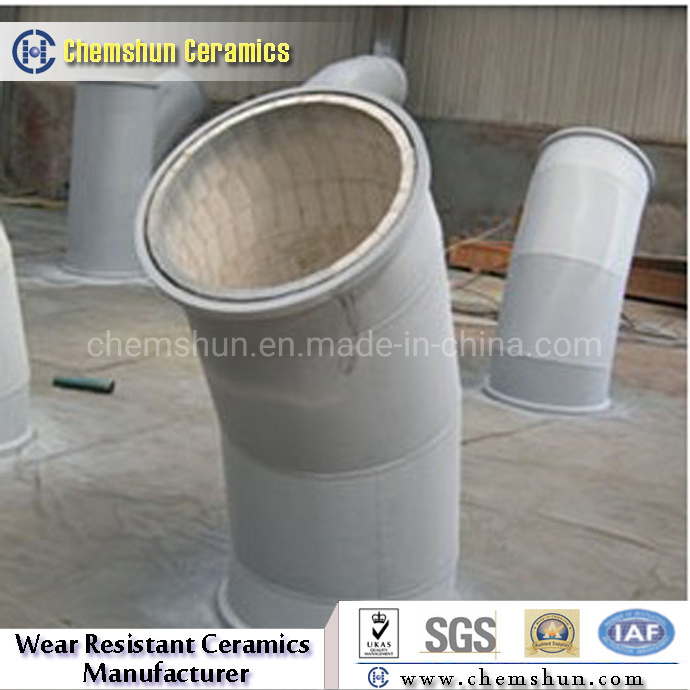

Ceramic cylinder and segment lined steel pipe are designed with the same internal diameter as the unlined existing pipe, the cylinder for the lining can be made from various grade of high alumina ceramics that best address your operating environment. During production segmented cylinder liners are laid out in preparation for installation. and each joint is coated with a specially formulated epoxy. The ceramic liner is inserted into the steel elbow. The space between the liner and the pipe is filled with a ceramic mortar specified for your operating environment. This composite ceramic steel pipe is mainly used for conveying ores, sand, coal or chemical liquid.

• Alumina ceramic plain tile
• Ceramic weldable tile liner
• Ceramic curved pipe tile liner
• Ceramic arc pipe tile linings
• Ceramic tile with inter-locking
• Alumina brick linings
• Ceramic square / rectangle / hexagonal tile

• Long Lifetime: Maintenance-free operation without production losses.
• Contamination Free: No contamination of conveyed materials due to abrasion or oxidation.
• Flow Efficiency: Smooth surface to achieve good flowability and avoid plugs.
• Wear Resistance: Approx 10 times stronger than common pipes under same conditions.
• Integrated Molding: Big size ceramic tubes with complicated shapes ensure density and integrity.
• Easy Installation: Simple shapes reduce installation time and maintenance frequency.
