📊 Basic Information
📦 Packaging & Delivery
Package Size:
120.00cm * 60.00cm * 100.00cm
📝 Product Description
Product Structure:

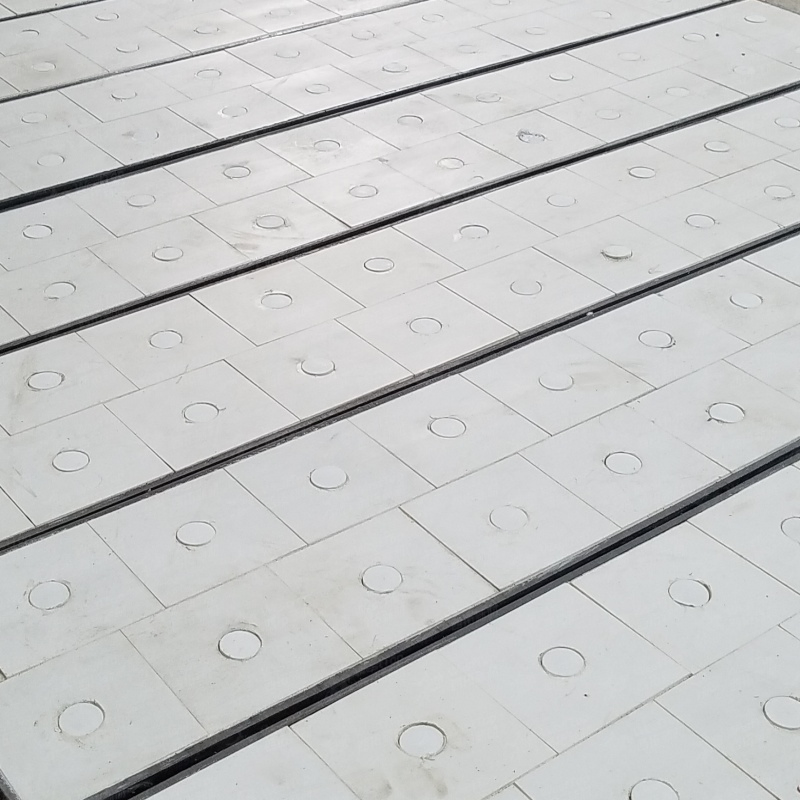

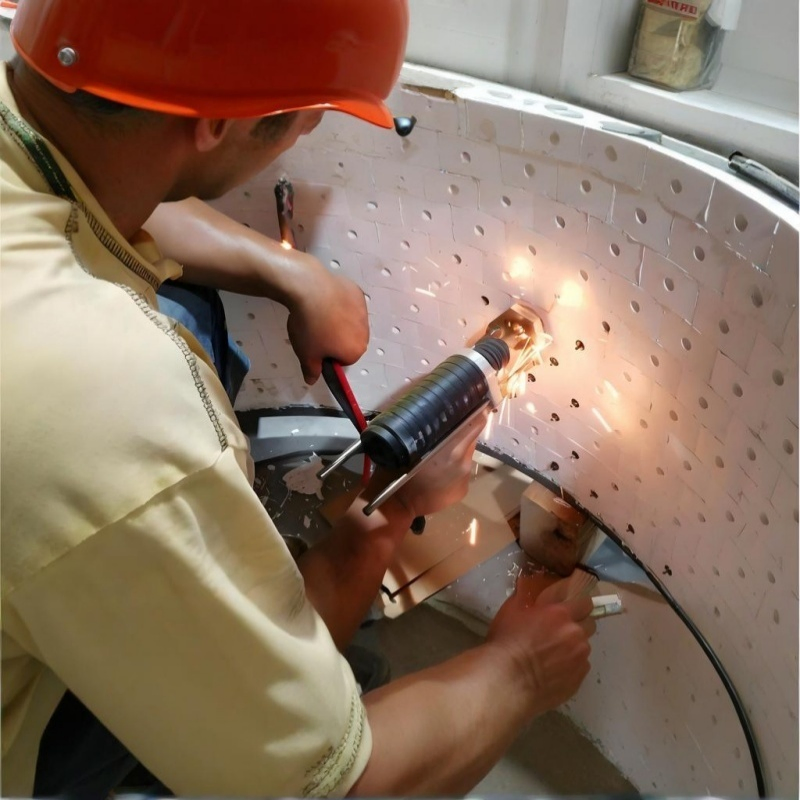

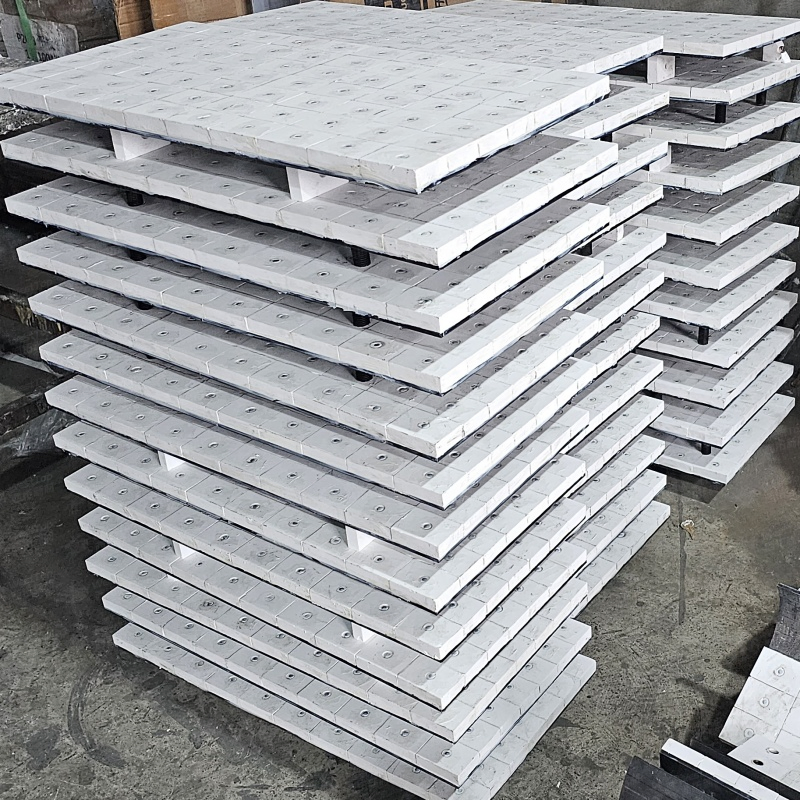

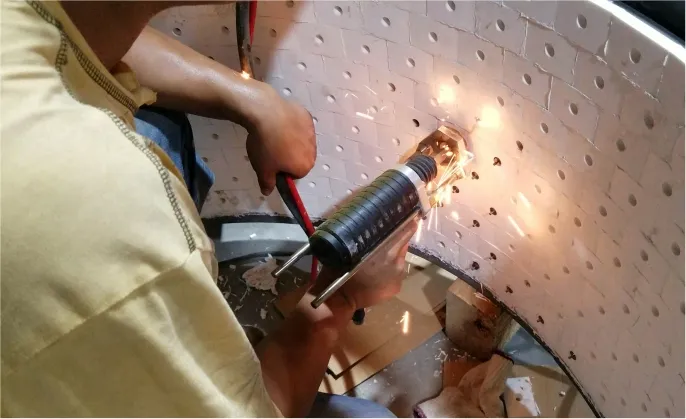

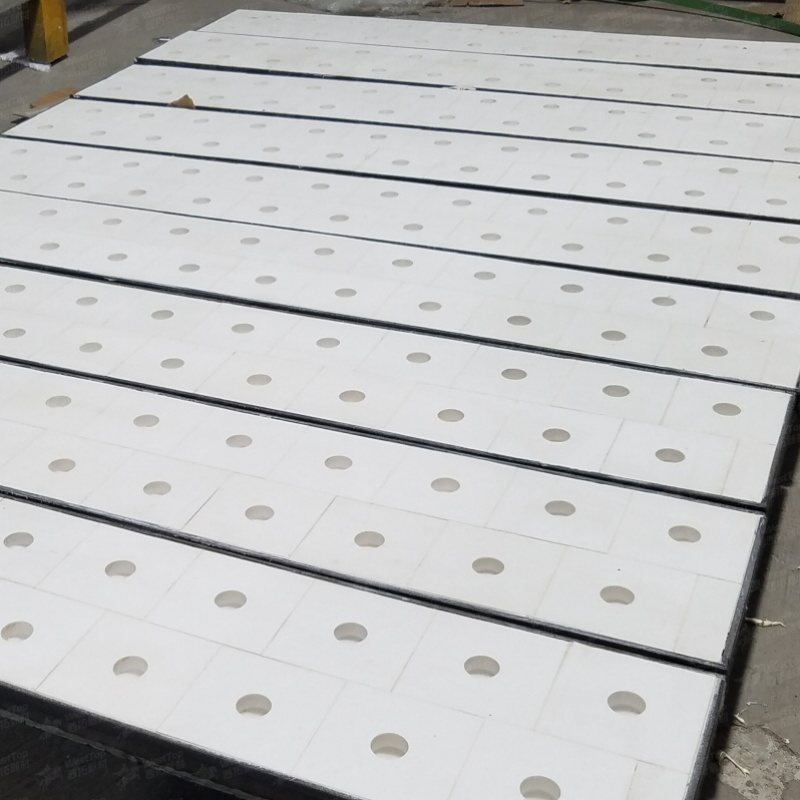

The WT-W welded product is a German technology introduced to address wear protection in high-temperature pneumatic conveying system equipment. Its primary structure involves welding wear-resistant ceramics onto the inner walls of the equipment using advanced stud welding technology, forming a robust anti-wear layer.
🔹 Optional materials: Ceramics: STC Wear-Resistant Ceramics / ZTA Zirconia-Toughened Alumina Ceramics; Adhesive: WTHV-800
🔹 Service temperature: 300°C - 800°C
🔹 Applicable medium: Solid powdery particles (coal powder, limestone, clinker, cement) and slurries (furnace ash, slag, gypsum).
📋 Selection Principle
| Item |
Code |
Temp(ºC) |
Medium |
Pellets(mm) |
Range Of Application |
| Paste Type | WT-P | 300 | Powder/Slurry | ≤3 | Pneumatic conveying below 300°C |
| Welded | WT-W | 300-800 | Powder/Slurry | ≤10 | Pneumatic conveying of larger particles below 800°C |
| Swallow-tailed | WT-S | ≤800 | Powder/Slurry | ≤200 | Large particle or high-speed rotating equipment |
| Impact resistant | WT-T | ≤800 | Particle/Slurry | ≤200 | Bulk material conveying, hard bulk mixtures |
| Ceramic rubber | WT-R | -50~150 | Particle/Slurry | ≤200 | Pure soft bulk material, resists large impact |
| Repair agent | CRA | -30~200 | Slurry | ≤10 | Corrosive slurry conveying equipment lining |
⚙️ Performance Characteristics
1. Ultra-high wear resistance: Vickers hardness up to 1800, offering 20 times the wear resistance of ordinary carbon steel.

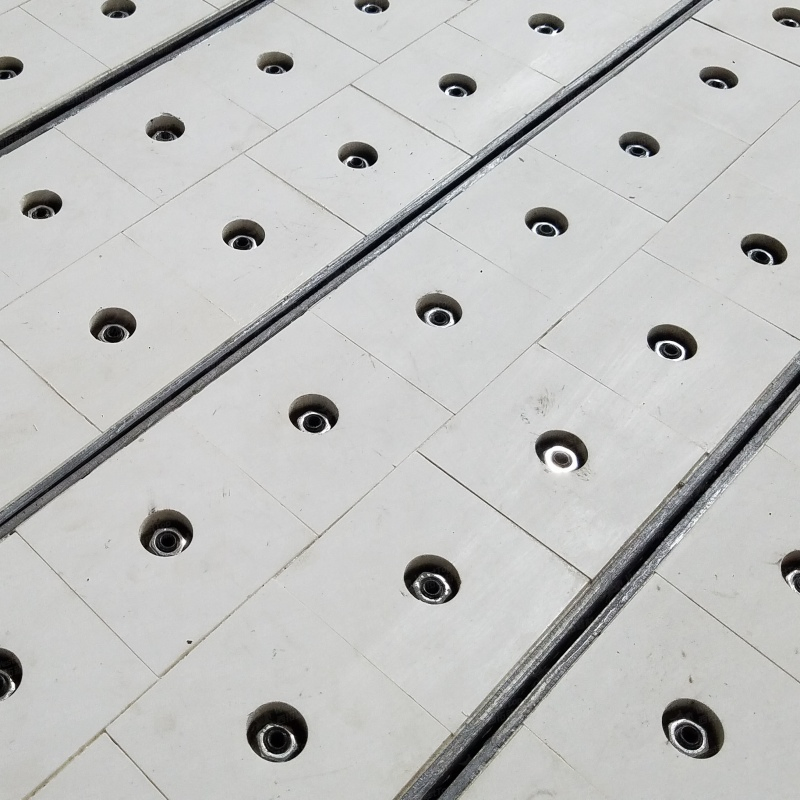

2. High-temperature resistant, non-detachable: Each ceramic piece is welded to the bottom steel plate with high-strength, wear-resistant bolts.

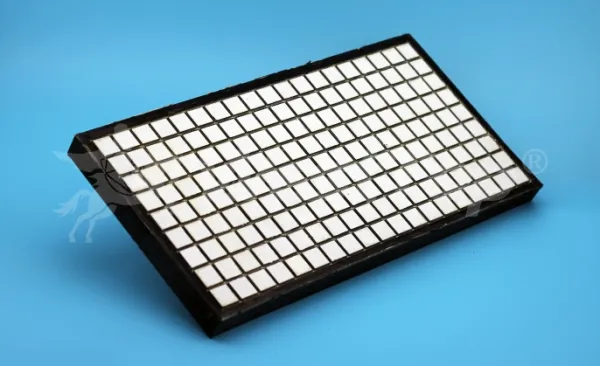

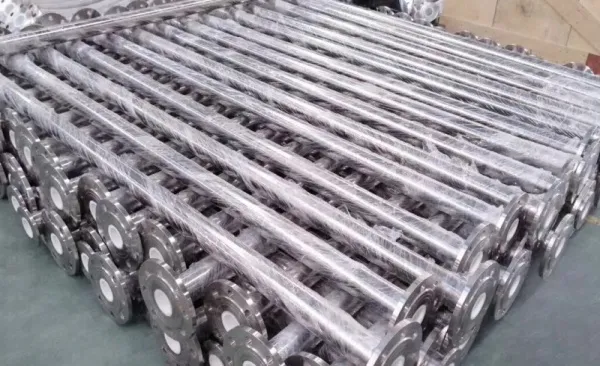

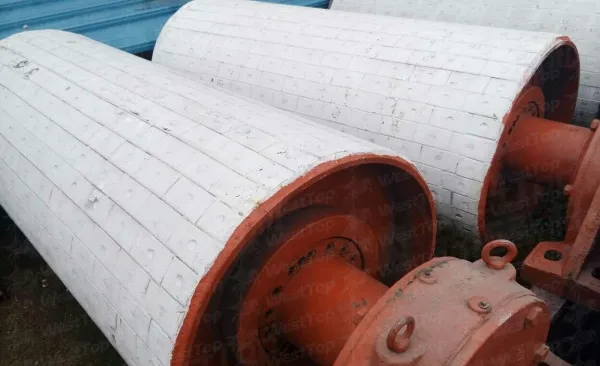

💡 Typical Application
🚢 Packaging & Our Advantages
🏢 Company Profile & Certifications
We are a leading provider of advanced anti-wear and energy-saving technologies, serving critical industries including steel, thermal power, cement, coal, ports, petrochemicals, mining, and machinery. We have gained ISO9001, ISO14001, and ISO45001 Certificates.
❓ FAQ
Q: Are you a manufacturer?
A: Yes, we are a professional factory specializing in industrial wear-resistant solutions.
Q: Do you provide OEM or ODM services?
A: Yes, we supply both OEM & ODM services including design, manufacturing, and shipping.
Q: What is your typical delivery time?
A: Generally, it ranges from 15 to 45 days, depending on quantity and customization requirements.
Q: What are your terms of payment?
A: 30% T/T in advance, with the balance due against the B/L copy.
Q: Do you provide customized processing?
A: Yes, we offer a one-stop solution for all wear-resistant industrial needs.
Q: What certifications do your products hold?
A: Our processes and products are certified under ISO9001, ISO14001, and ISO45001 standards.
