Alumina Ceramic Lined Cyclone Separators Pre-Fabricated Tile

Customization:	Available
Application:	Wear-resistant Lining, Wear-Resistant Lining, Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard, as Wear Resistance Part for Protection Equipments
Environment:	Abrasive, Abrasive

Send Inquiry

Product Description

Basic Information

Model NO.:

Chemshun Ceramics

Installation:

Adhesive Bonding

Material:

Alumina Ceramic

Shape:

Custom Shape

Surface Finish:

Smooth

Type:

Wear Resistant Pipe

Alumina Content:

92% Al2o3 or 95% Al2O3

Density:

3.60g/cm3

HS Code:

69091200

Capacity:

5000tons/Year

Product Description

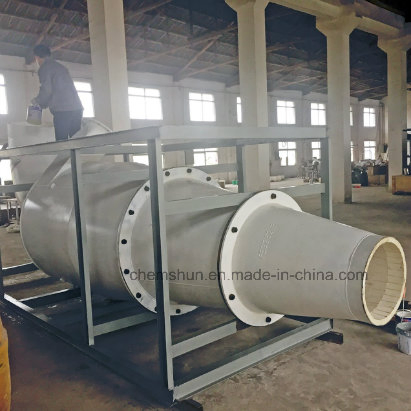

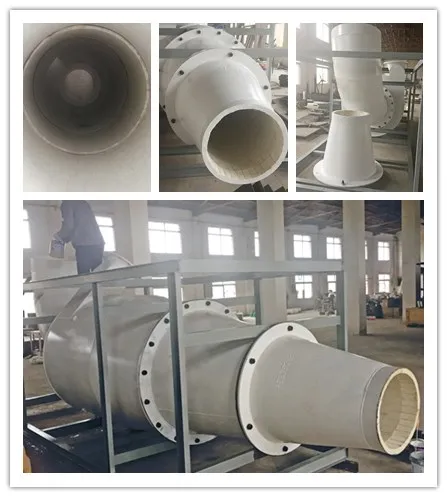

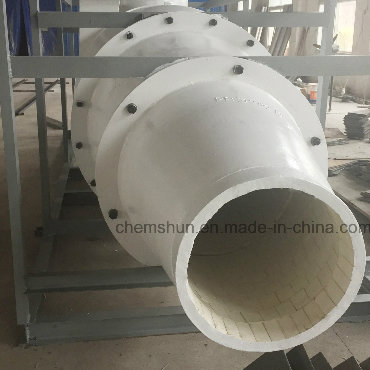

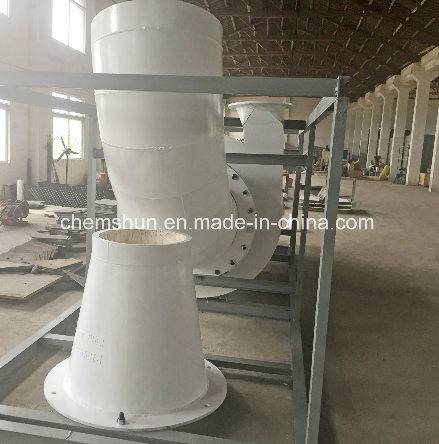

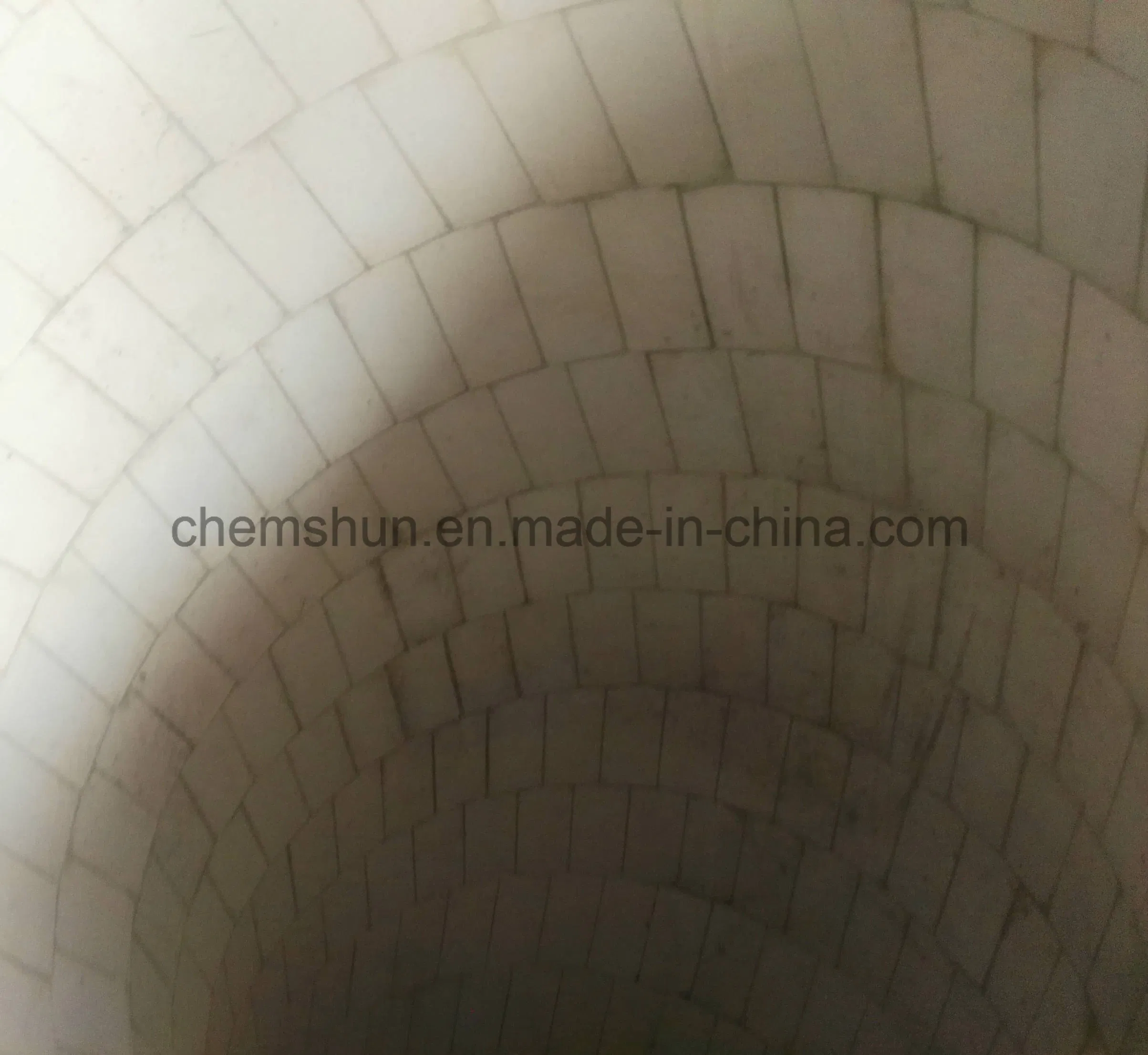

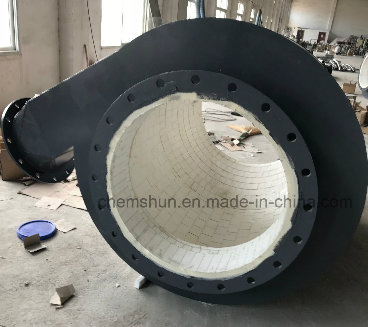

Alumina Ceramic Lined Cyclone Separators Pre-Fabricated

Cyclones are widely used in mining, cement, power generation plants, and other industries. With 15 years of experience in producing alumina wear-resistant ceramics, our professional engineering team helps clients choose the right wear-resistance products and provides CAD design drawings for pre-engineered tiles to suit specific equipment. Designed layout drawings and professional installation ensure all ceramic lining tiles are 100% suitable for the application demand.

Key Advantages

Precision Engineering: CAD design and precision-controlled tailoring guarantee all pre-engineered tiles maintain perfect geometric dimensions.
Easy Installation: Easily and exactly fixed onsite. Installation can be performed according to drawings directly without the need to measure or cut tiles on-site.
Enhanced Longevity: Optimize the equipment's geometric dimensions and improve the lining life, making it most suitable for complex equipment devices.

Technical Specifications

Attributes	Unit	92% Alumina	95% Alumina
Alumina Content	%	92	95
Density	g/cc	3.60	3.68
Color	-	White	Pale Ivory
Flexural Strength	Mpa	280	300
Moh's Hardness	Grade	9	9
Vickers Hardness	Kg/mm2	1050	1190-1220
Max Temp	oc	1250	1250

Frequently Asked Questions

Q1: What are the main applications for Alumina Ceramic Lined Cyclones? A: They are widely used for wear protection in mining, cement plants, power generation, and steel industries, specifically for hoppers, chutes, and conveyor systems.

Q2: Can the ceramic tiles be customized for specific equipment? A: Yes, we provide CAD design and pre-engineered tiles tailored to the exact geometric dimensions of your equipment.

Q3: What is the difference between 92% and 95% Alumina content? A: 95% alumina offers higher density, flexural strength, and hardness, making it suitable for more extreme wear environments.

Q4: How are the ceramic linings installed? A: The common method is adhesive bonding. Since the tiles are pre-engineered, they can be fixed directly following the layout drawings.

Q5: What is the maximum operating temperature for these ceramics? A: Both our 92% and 95% alumina ceramic linings can withstand a maximum operation temperature of up to 1250°C.
