92% Alumina Ceramic Lined Steel Pipe with Trapezoidal Ceramic Tiles

1 / 5

92% Alumina Ceramic Lined Steel Pipe with Trapezoidal Ceramic Tiles

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Ceramic Cylinder

Material

Aluminum

Type

Wear Resistant Plate

Color

White

Al2O3

>92%

Usage

Lining of Equipment and Pipe

Wear Rate ‰

<0.25

Ceramic Mohs Hardness

Size

Customized

Function

Wear Solution

HS Code

6909120000

Production Capacity

7000 Tons Per Year

Product Description

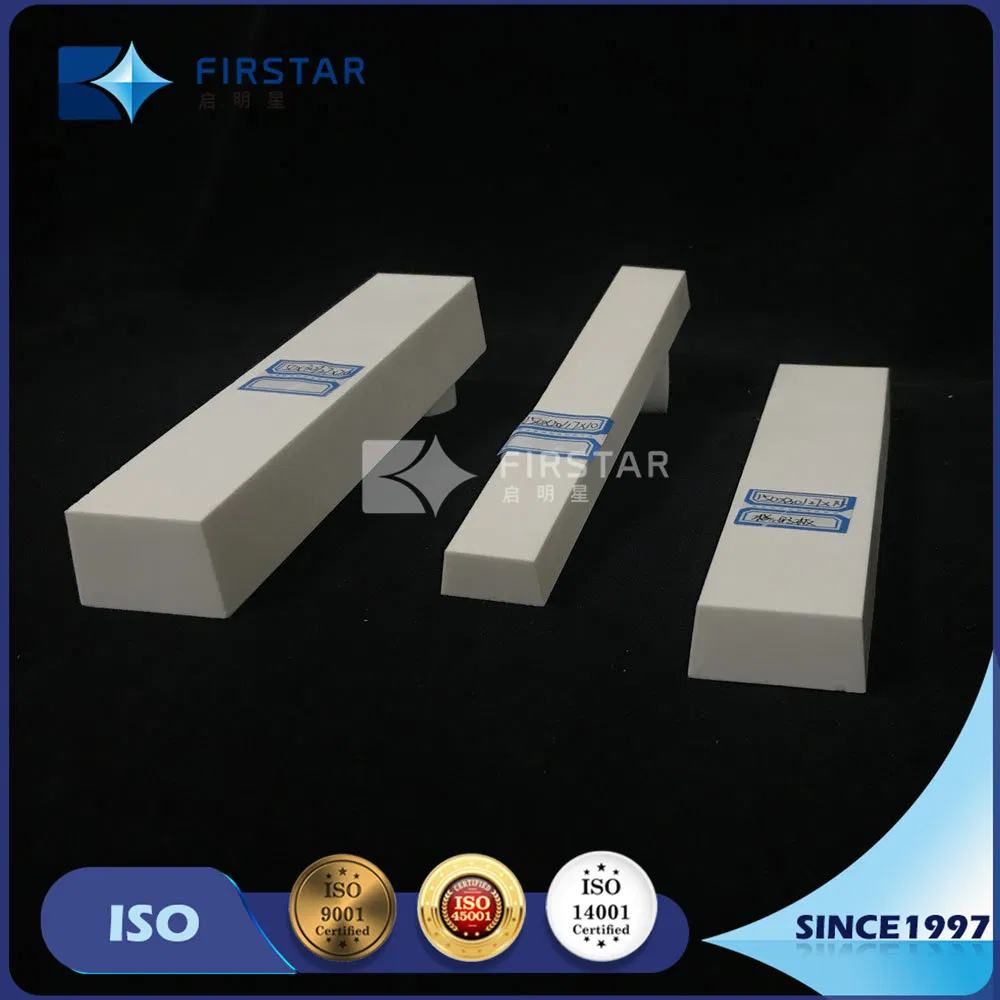

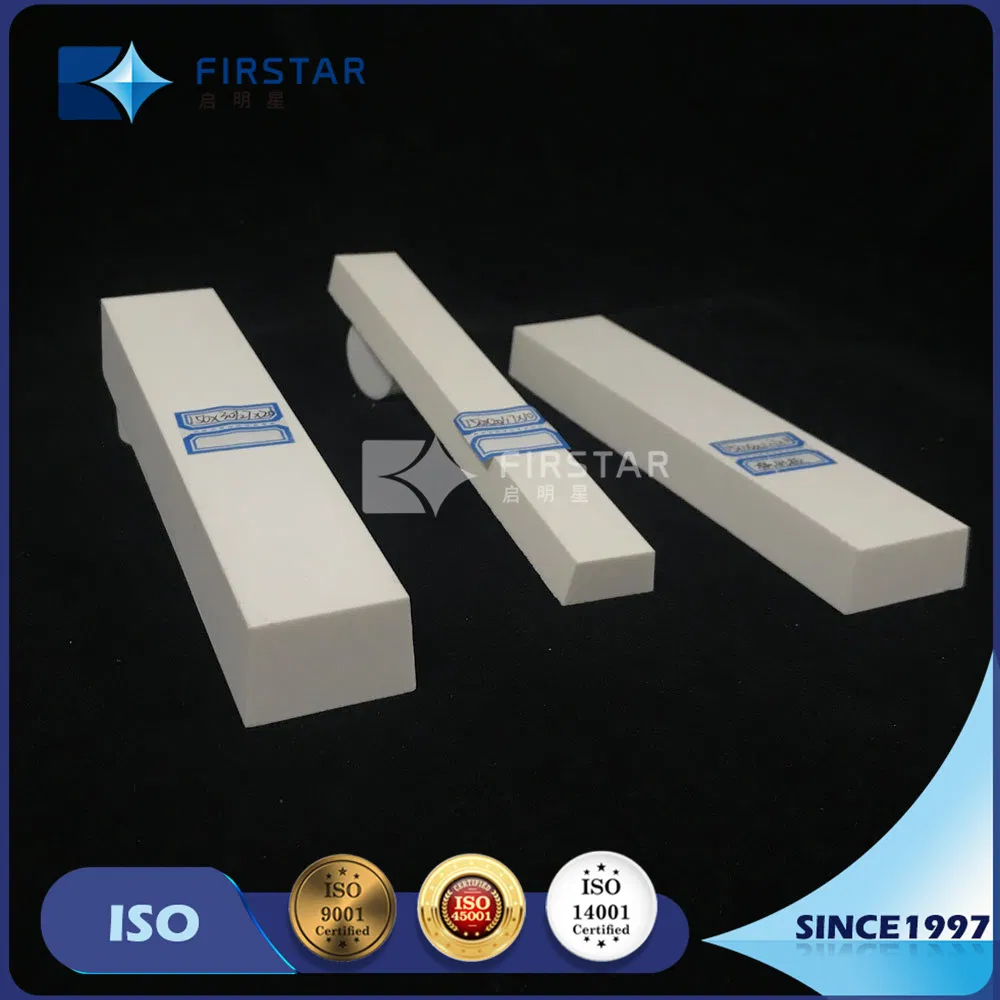

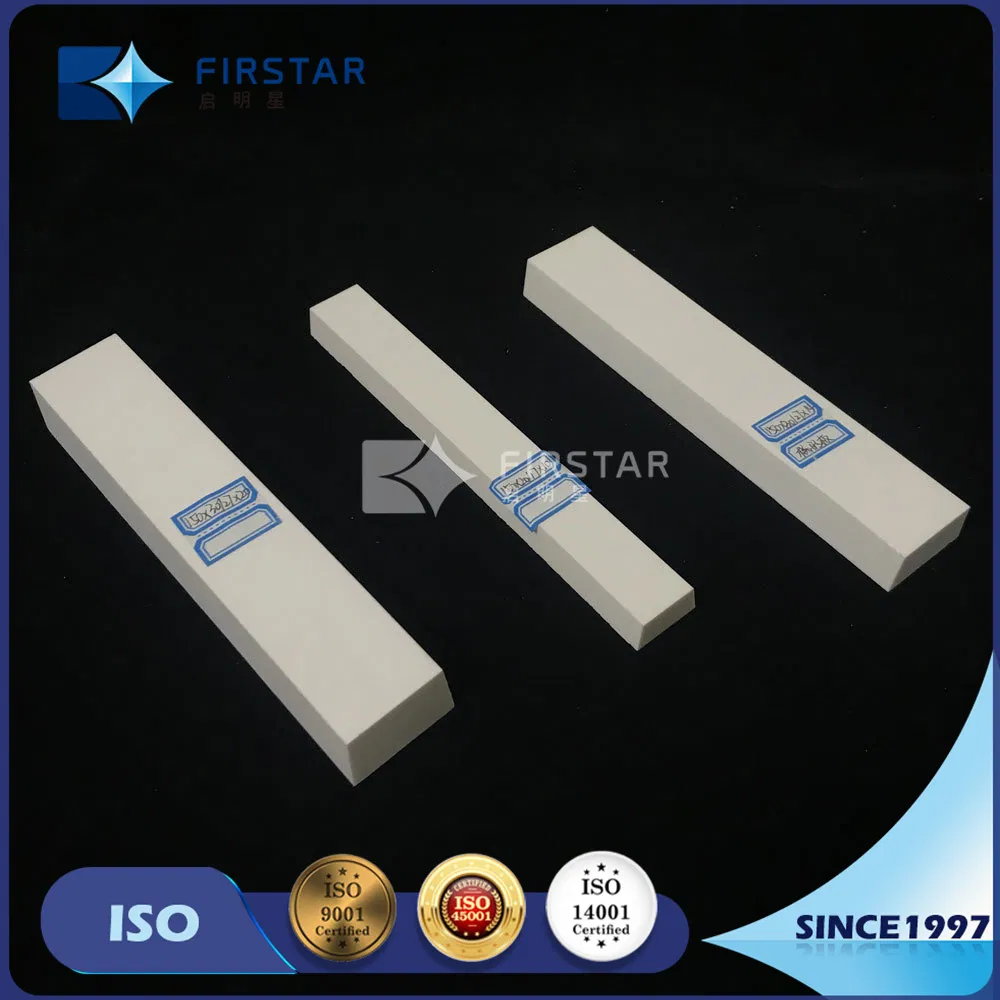

92% Alumina Ceramic Lined Steel Pipe with Trapezoidal Ceramic Tiles

Category	CH92
Density	≥3.60
Al2O3	≥92%
Bending Strength MPa	≥220
Compression Strength MPa	≥1050
Fracture Toughness MPam 1/2	≥3.7
HV Hardness N/mm2(MPa)	≥950
Wear Volume	≤0.25

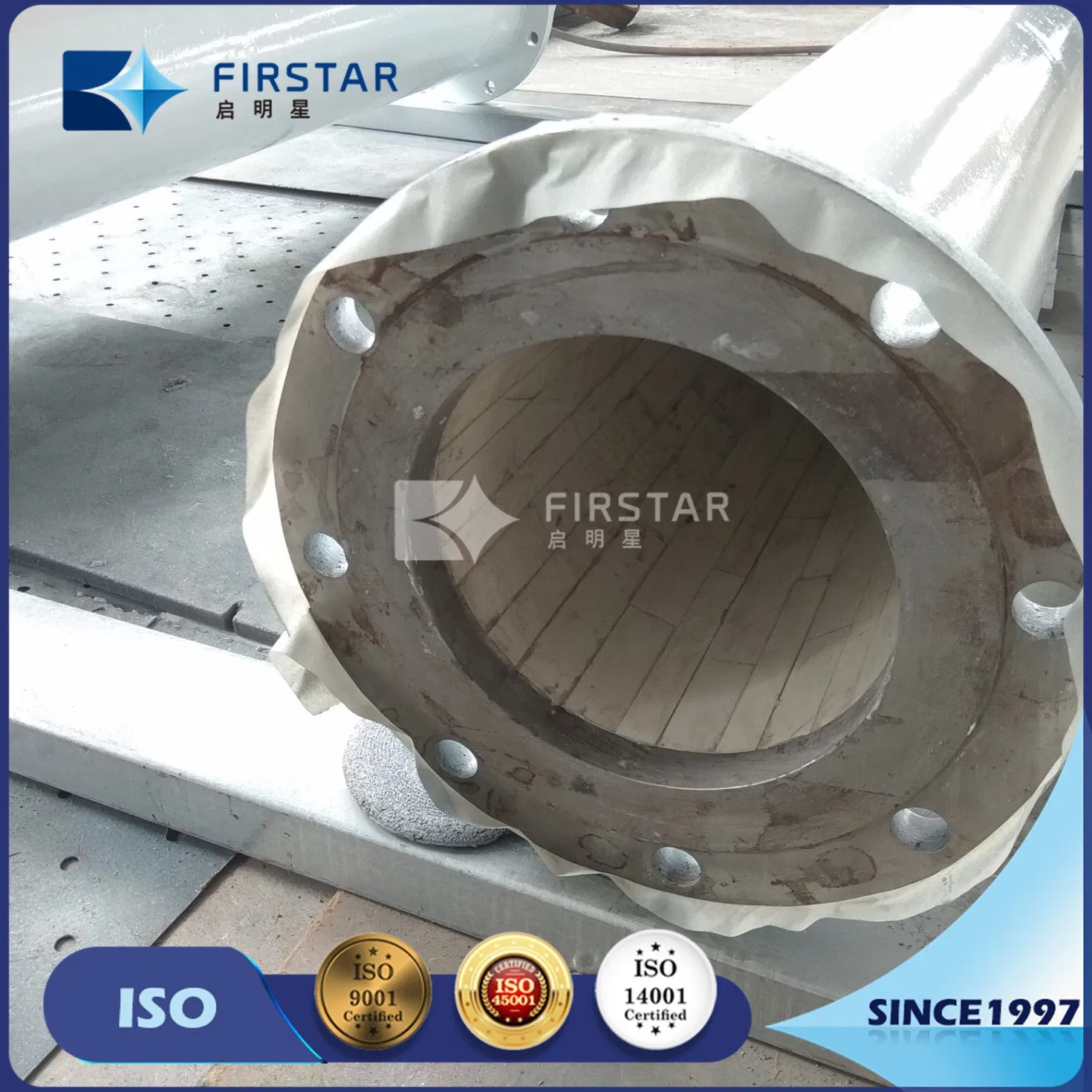

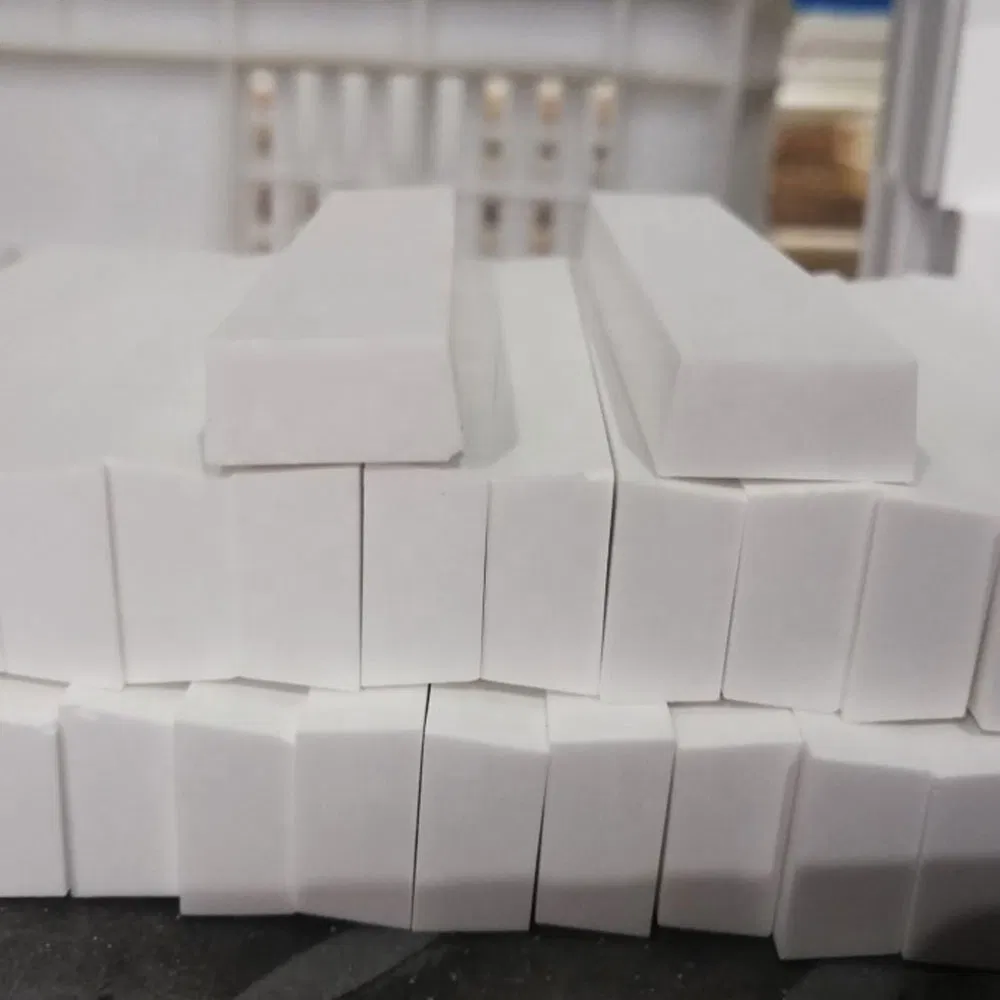

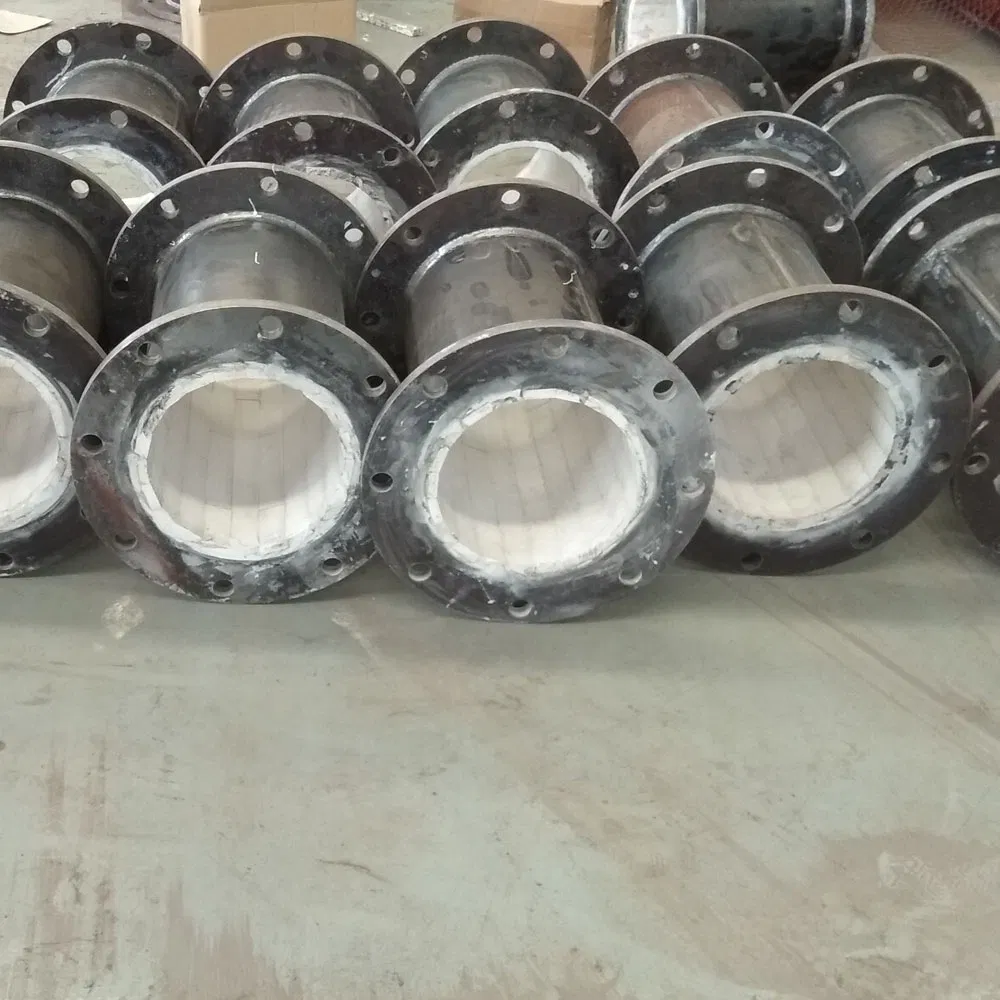

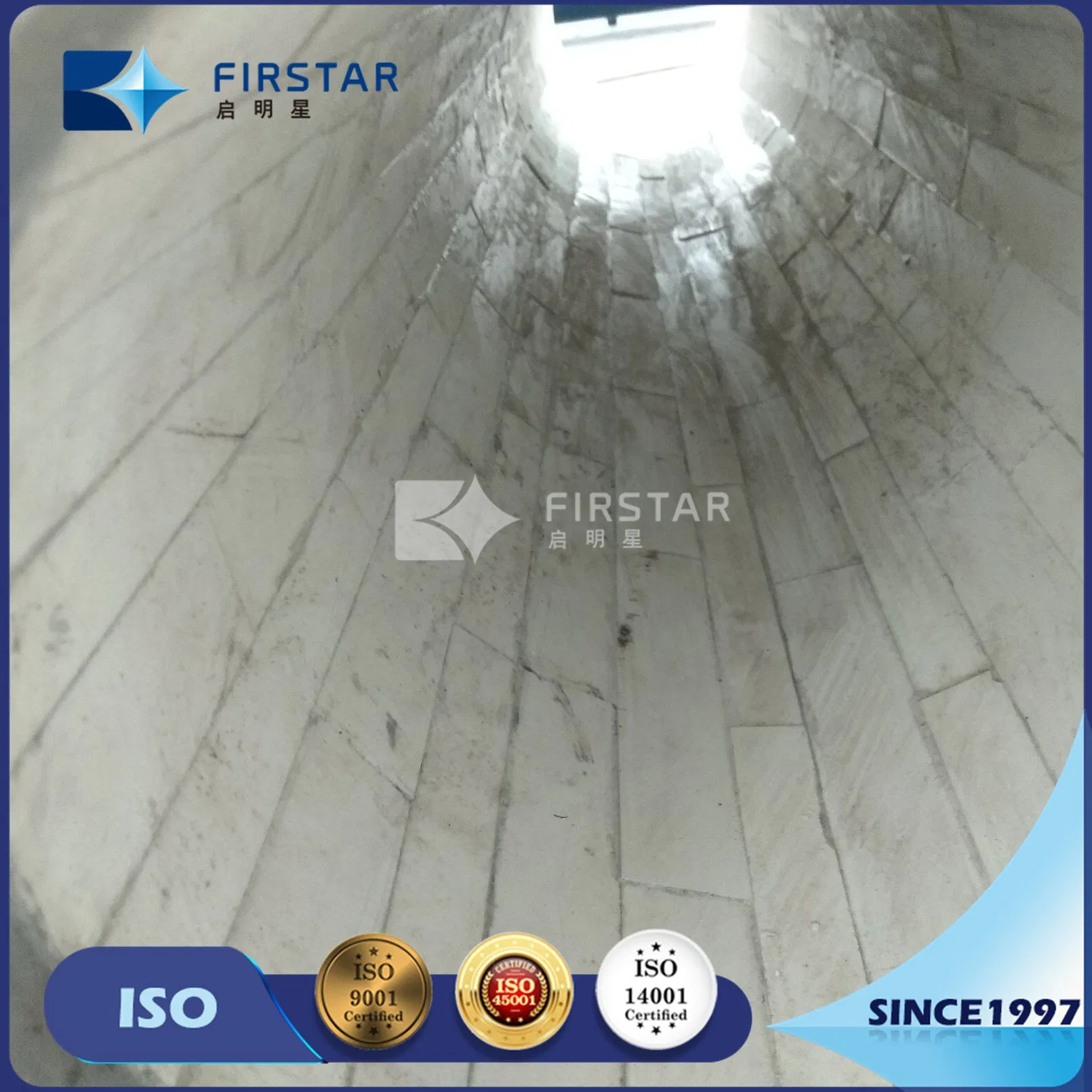

The wear-resistant ceramic composite pipes and elbows are designed using the arching principle. The ceramic block forms a 360-degree mechanical self-supporting structure. All ceramic blocks adopt a tapered design and are interlocked to ensure they remain securely in place.

The gap between the porcelain block and the inner wall of the steel pipe is filled with high-temperature wear-resistant cement, allowing the elbow to withstand significant impact and high-temperature conditions.

Key Features

Superior Wear Resistance: Alumina ceramic hardness is 7 times that of stainless steel and 6 times that of cast steel.
Structural Integrity: 360-degree arched structure with self-locking porcelain plates for firm installation.
Low Running Resistance: Smooth inner surface prevents corrosion and reduces operating costs by minimizing friction.
Corrosion & Anti-Scaling: Alpha-Al2O3 provides excellent acid, alkali, and seawater corrosion resistance.
Impact Resistance: 8-16 times better impact resistance than cast stone.

Our Product Range

Main Products include: 92/T95/ZTA wear-resistant ceramic liners, Rubber wear liners, Steel pipes with ceramic lining, PU lining, and various Ceramic grinding balls (Alumina, ZTA, Zirconium silicate).

Packaging & Logistics

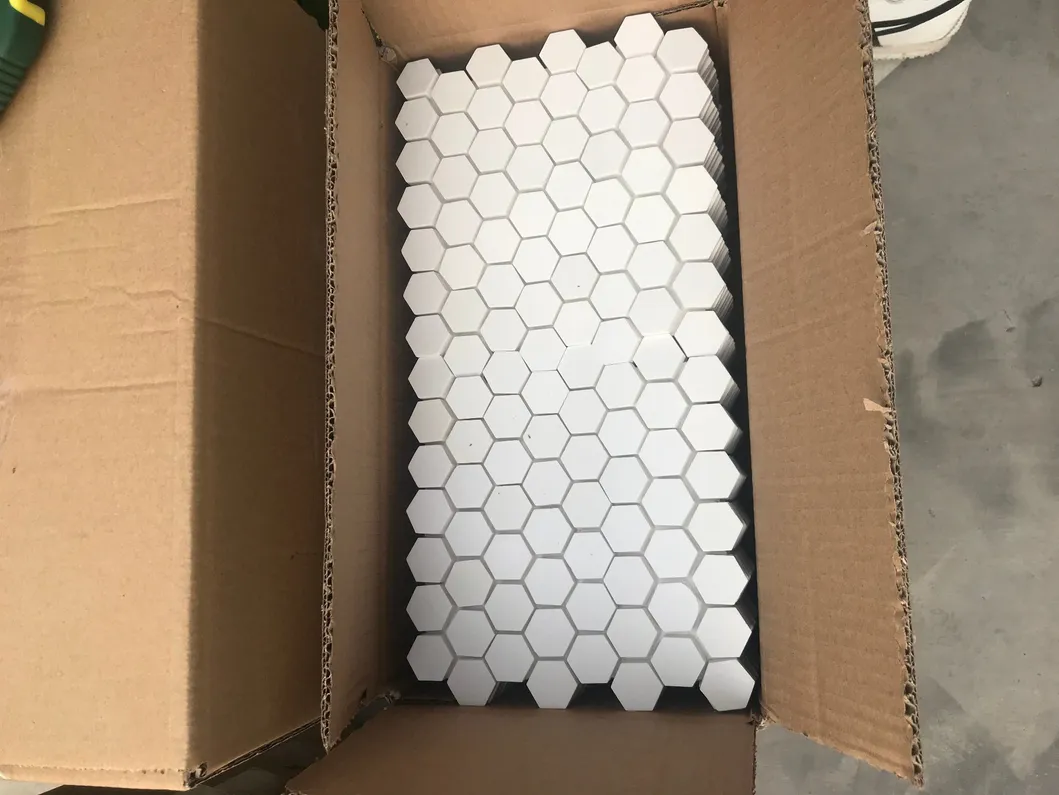

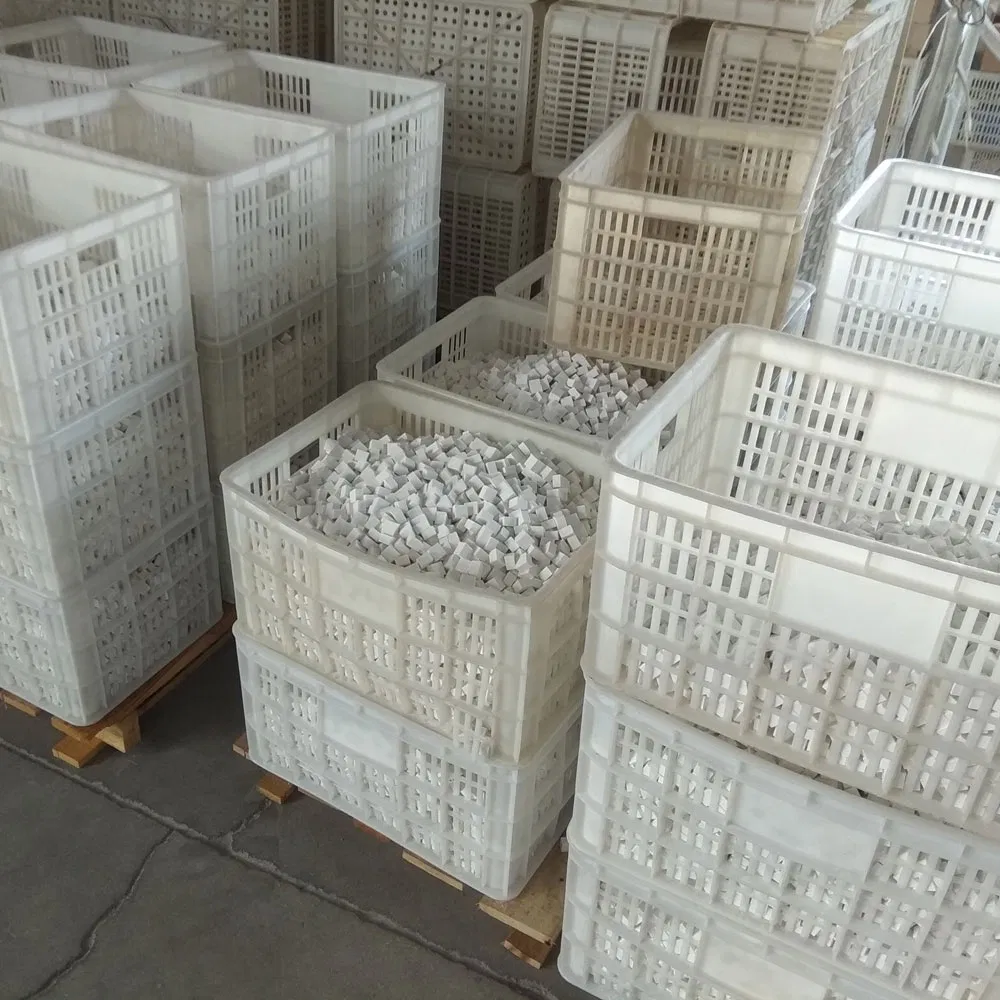

1. Packaged in sturdy carton boxes with internal compartments to prevent friction.
2. All packaging and shipping marks can be customized according to requirements.

Frequently Asked Questions

What is the alumina content in your ceramic lined pipes?

Our standard wear-resistant ceramic lining contains ≥92% Al2O3, ensuring high hardness and excellent wear resistance.

Can the size and shape of the ceramic lining be customized?

Yes, we provide fully customized solutions including square, cylinder, and trapezoidal shapes to fit your specific equipment and piping requirements.

What is the typical delivery time for orders?

For in-stock items, delivery takes 1-2 days. For bulk orders or customized products, the lead time is generally between 15 to 30 days.

Are samples available for quality testing?

Yes, we offer free samples so you can verify the material quality and technical specifications before placing a bulk order.

What are the main advantages of ceramic lining over metal pipes?

Ceramic linings offer significantly higher Mohs hardness (9), much lower wear rates (<0.25‰), better corrosion resistance, and a longer service life compared to traditional steel pipes.

What are your standard payment terms?

Our standard terms are 30% T/T in advance as a deposit, with the remaining balance due before shipment.
