Wear resistance silicon carbide ceramic lining /Sisic Cyclone liner

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

According to customer needs

Shape

Pipe

Type

Refractory Material

Colour

Dark-gray

Model Number

SISIC

SiC Content (%)

83.66%

Density

under 3.02 g/cm3

Open Porosity

<0.1%

Bending Strength

250MPa/280MPa

Hardness (Mohs)

9.15

Material

Silicon Carbide (SiC)

Production Capacity

5000PCS/Month

Product Overview

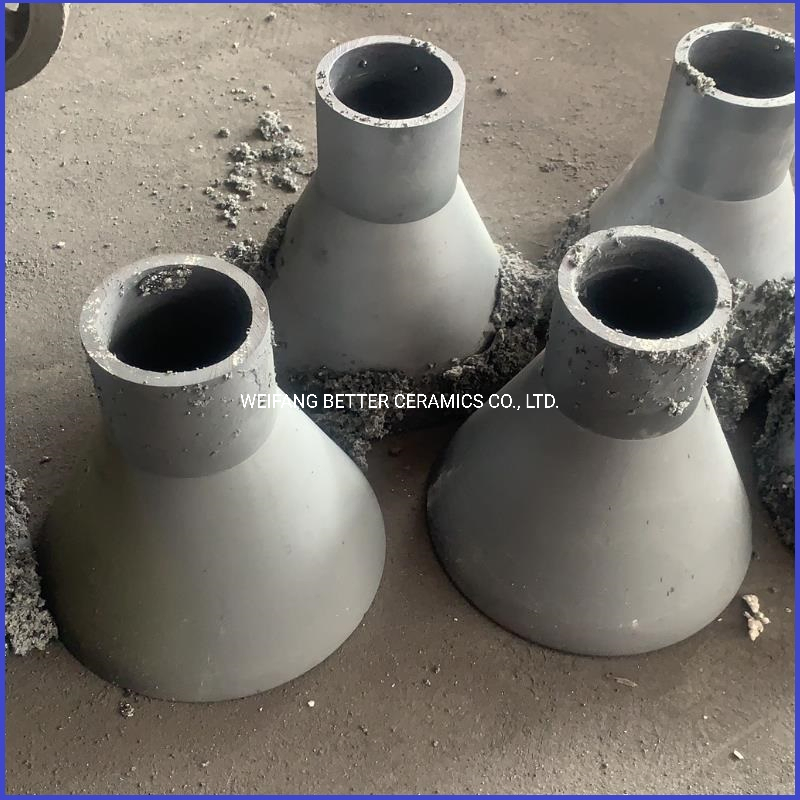

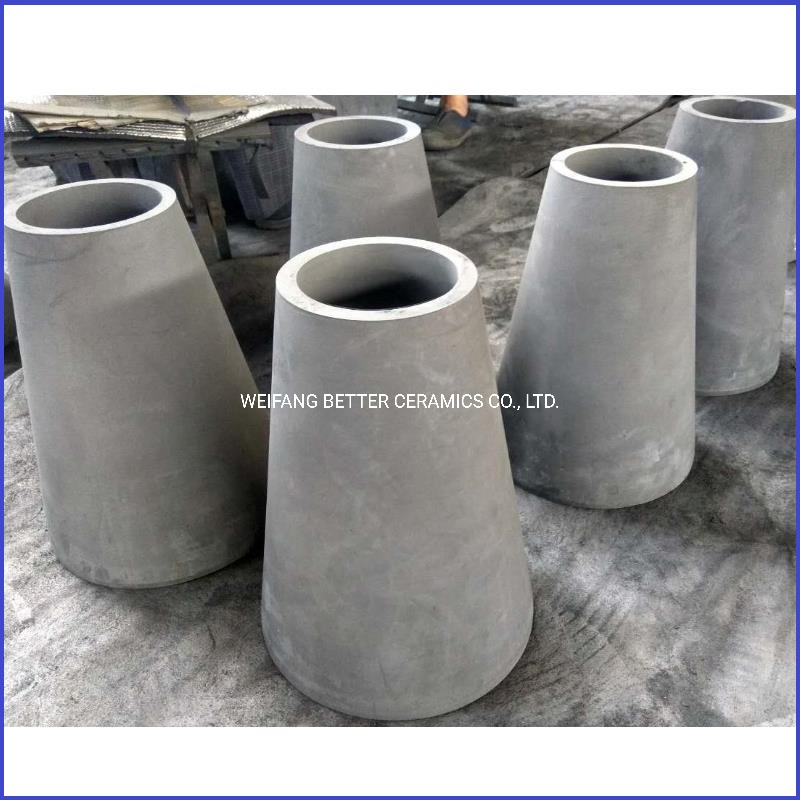

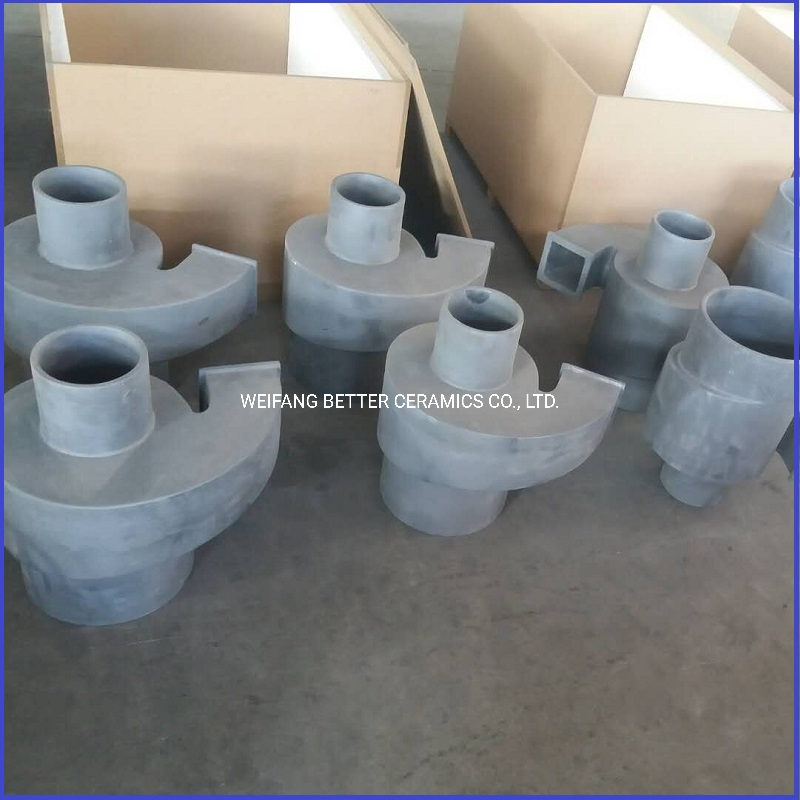

Wear resistance RBSIC silicon carbide ceramic lining / SISIC Cyclone liner

Key Properties:

Superior wear, impact, and corrosion resistance
Excellent flatness and temperature resistance up to 1380ºC
Excellent oxidation resistance
Good dimensional control of complex shapes
Longer service life (approx. 5x more than alumina, 6x more than polyurethane)

Application:
RBSiC (SiSiC) silicon carbide parts with high hardness are widely used for wear-resisting lining of hydraulic cyclones, flue gas desulphurization pipes, and coal slurry conveyor pipelines due to their abrasion and acid-alkali resistance.

Thickness available: 6mm - 25mm

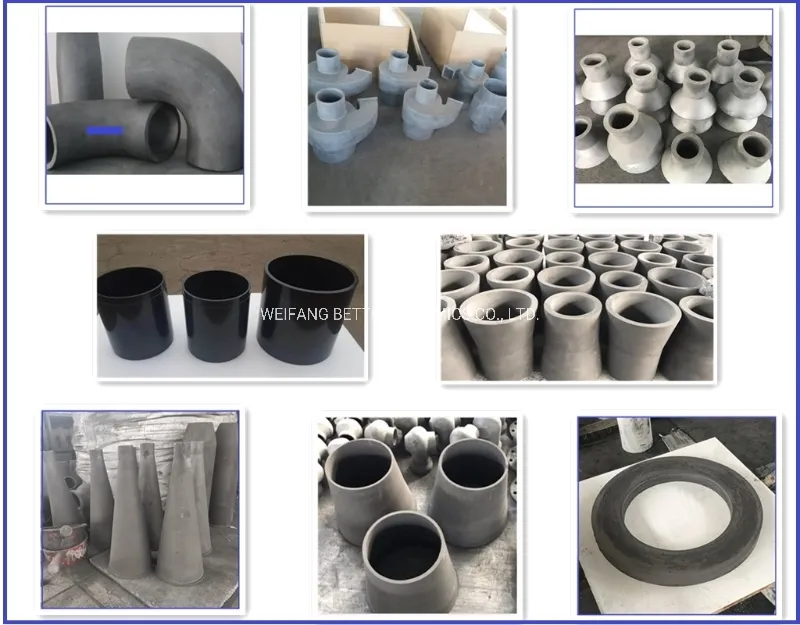

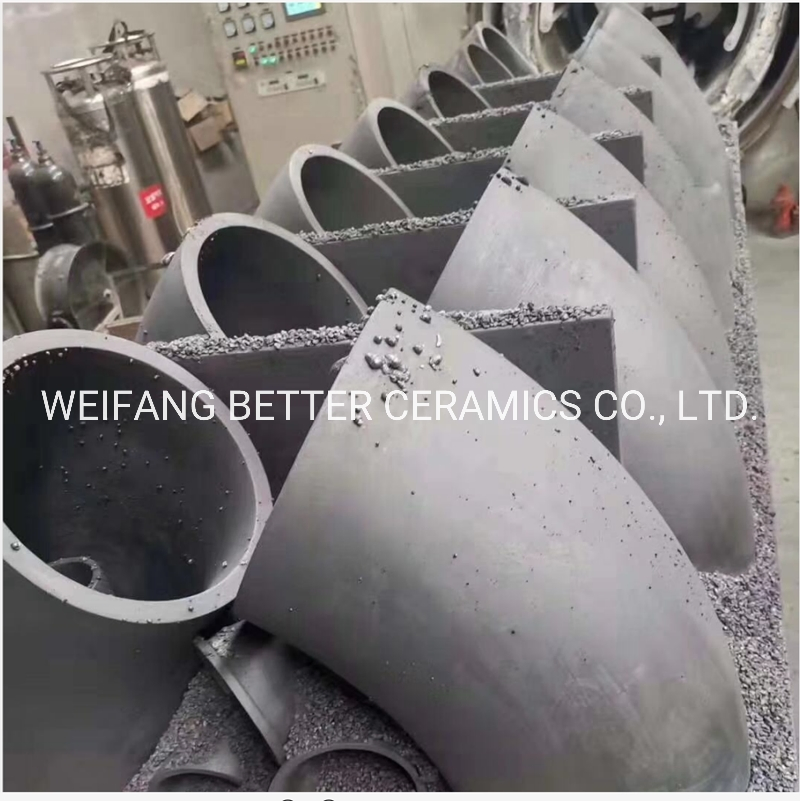

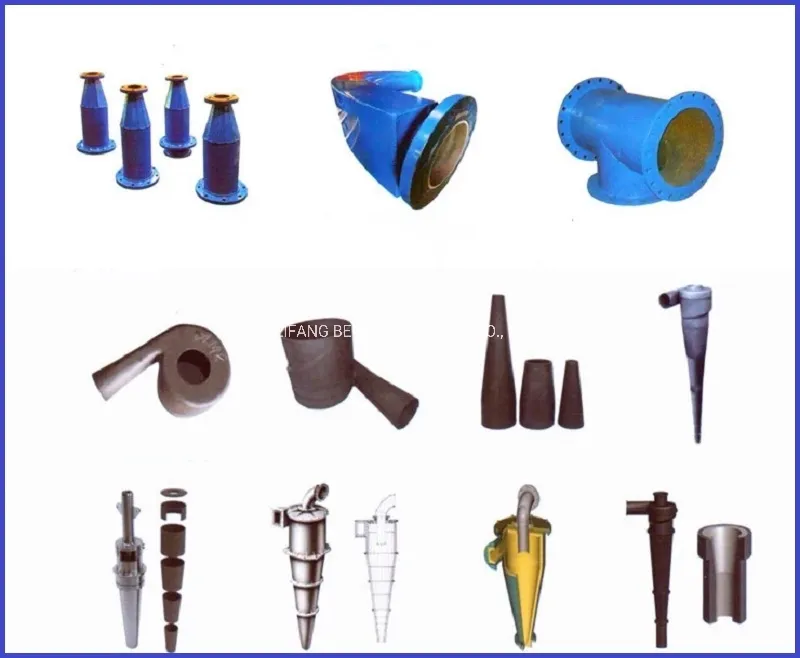

Can be customized into pipes, cones, spray nozzles, elbows, wear resistant lining tiles, seals, and rings.

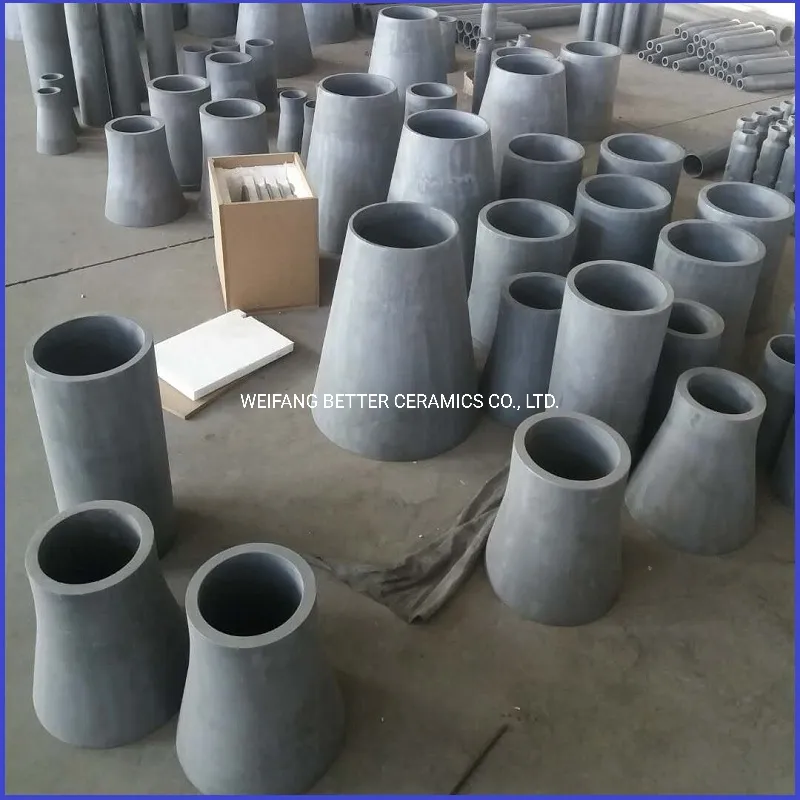

Product Showcase

Technical Parameters

ITEM	UNIT	DATA
Temperature	ºC	1380
Density	g/cm³	≥3.02
Open Porosity	%	<0.1
Moh's Scale of Hardness	-	13
Bending Strength (20ºC/1200ºC)	MPa	250 / 280
Modulus of Elasticity (20ºC/1200ºC)	GPa	330 / 300
Thermal Conductivity (1200ºC)	W/m.k	45
Coefficient of thermal expansion	k⁻¹×10⁻⁶	4.5
Acid Alkaline-proof	-	Excellent

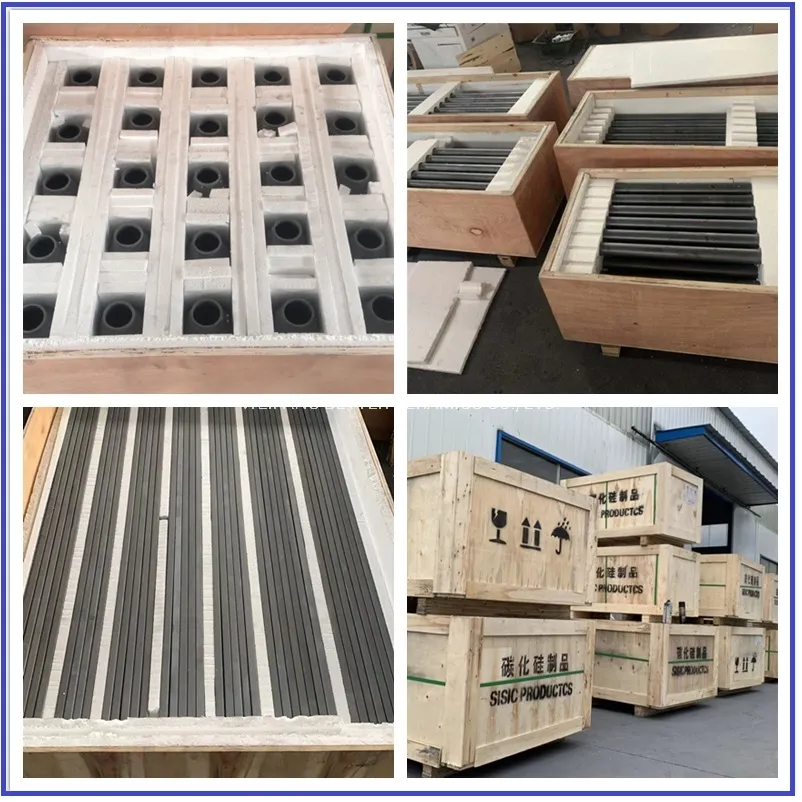

Packing & Delivery

Packaging Details:

Export safe wooden box
Inner boxes with filler
High quality outer cartons
Custom package options available

Delivery Time: Within 5 days after full payment for stock items.

Our Team & Production

Our members have many years of silicon carbide technology research. We are a dedicated team focused on high-level loyalty and commitment to ensure successful production and customer trust.
