High-Durability Composite Rubber Ceramic Liner Plates for Chutes

Basic Information

Model NO.	Steel Rubber Ceramic Liner
Material	Aluminum
Type	Wear Resistant Plate
Adhesive Between Tile and Rubber	>3.5 MPa
Density	1.4G/Cm3
Tensile Strength at Break	>14MPa
Elongation at Break	>250%
Shore Hardness	48-65
Production Capacity	18000 Tons/Years
HS Code	6909120000

Product Description

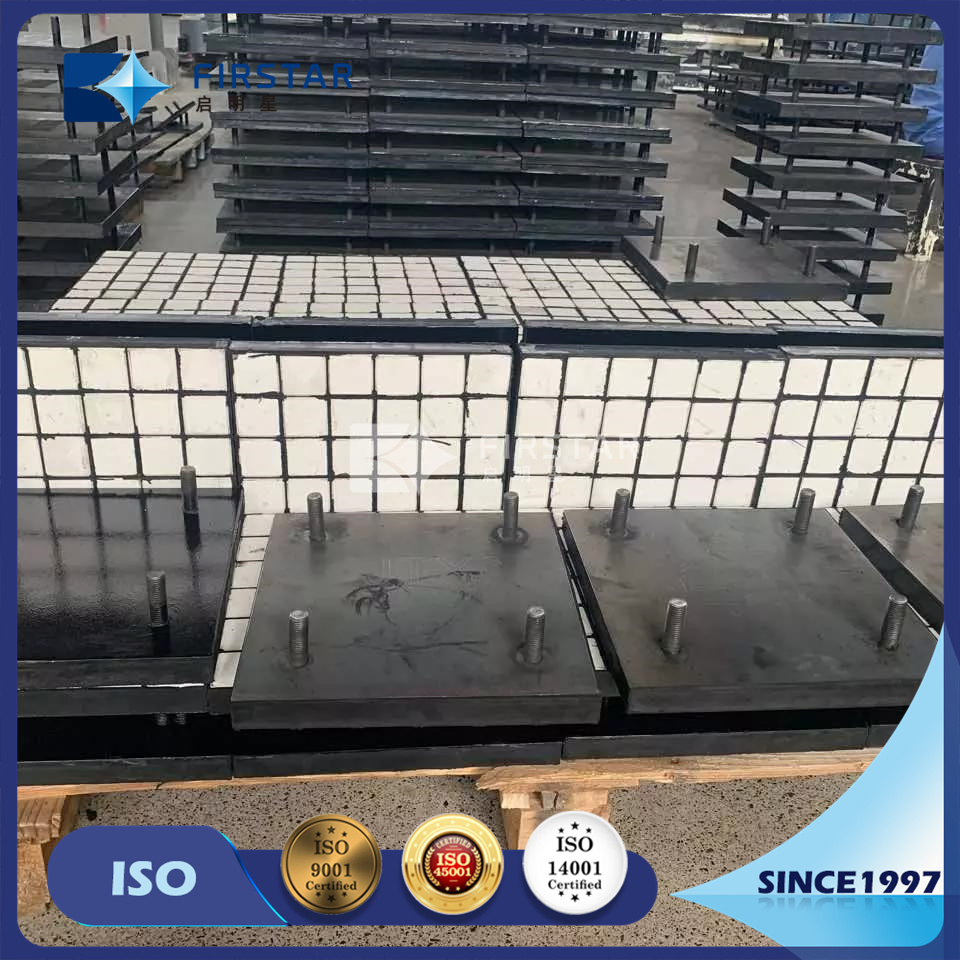

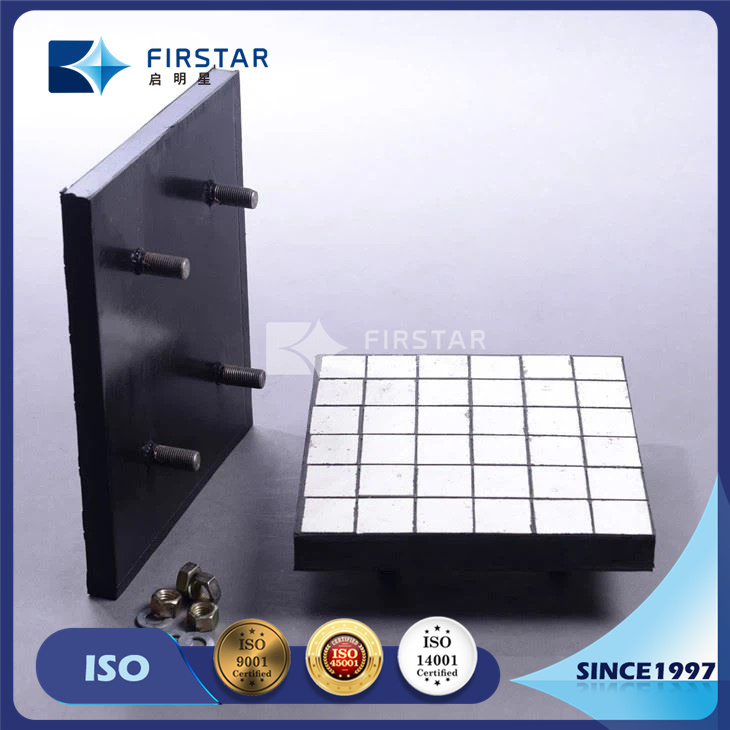

Composited Rubber Ceramic Liner Plates With Steel backing plate for Conveyor Chute

Ceramic rubber composite pads & plate utilize a rubber vulcanization process to embed wear-resistant ceramic into rubber. This can be bonded to equipment inner surfaces using adhesive paste. Depending on requirements, it can also be vulcanized with a steel plate, featuring optional bolt attachments.

Key Features

Combines the high wear-resistance of ceramics with the impact-resistance of rubber. Ideal for conveying systems operating under normal temperatures with significant impact requirements.

Applications

Pipes and tanks
Deflectors and Launders
Spill Face Sloping Walls & Loading Chutes
Bins & Hoppers
Mill feed components

Technical Parameters

Component	Attribute	Value/Properties
Ceramic Tiles	Material	92%, 95%, T95%, 96%, ZTA
Rubber	Density	~1.4g/cm3
	Tensile strength	≥15Mpa
	Working Temp	-50ºC - 200ºC
Steel Plate	Material/Thickness	Q235A / 5-6mm

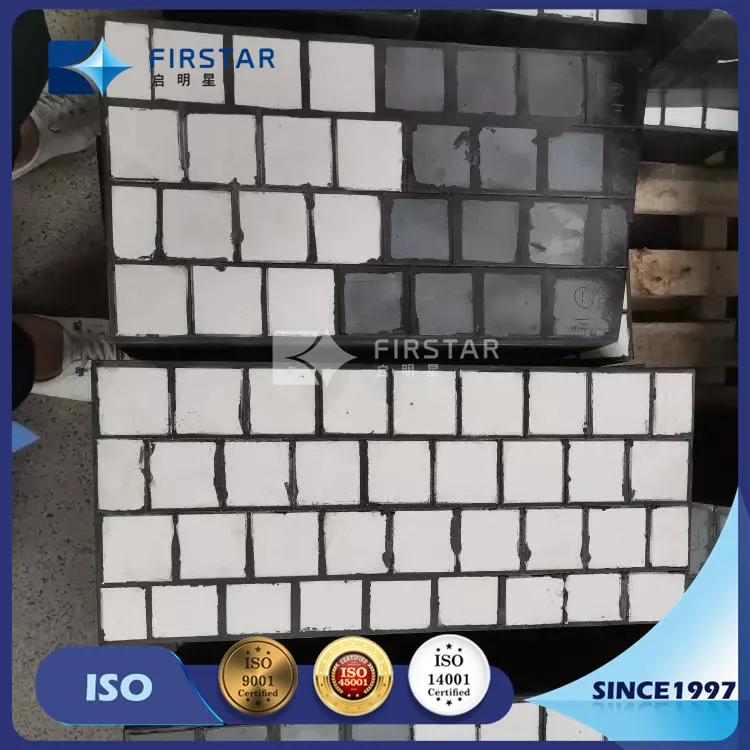

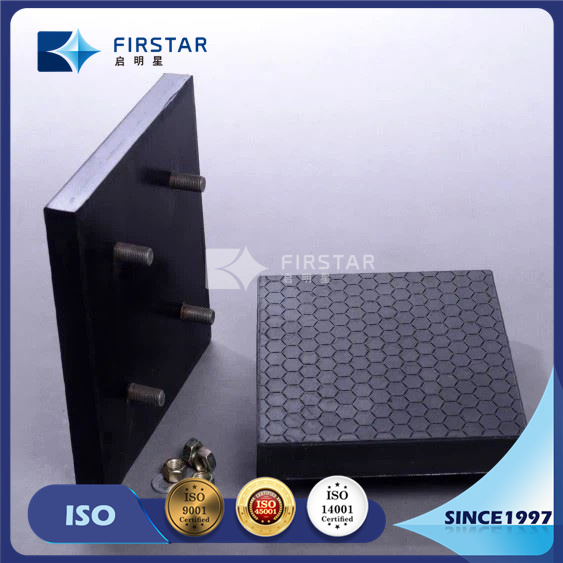

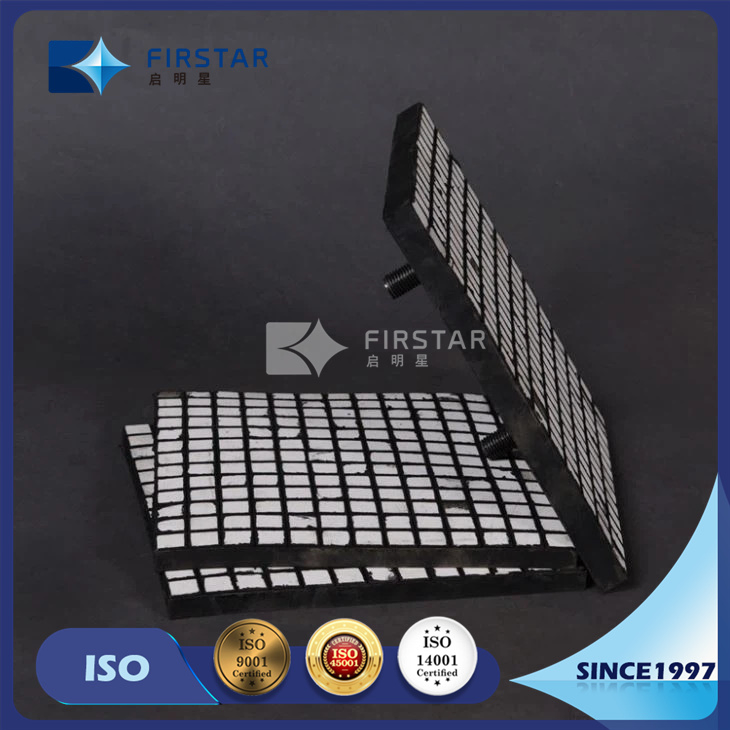

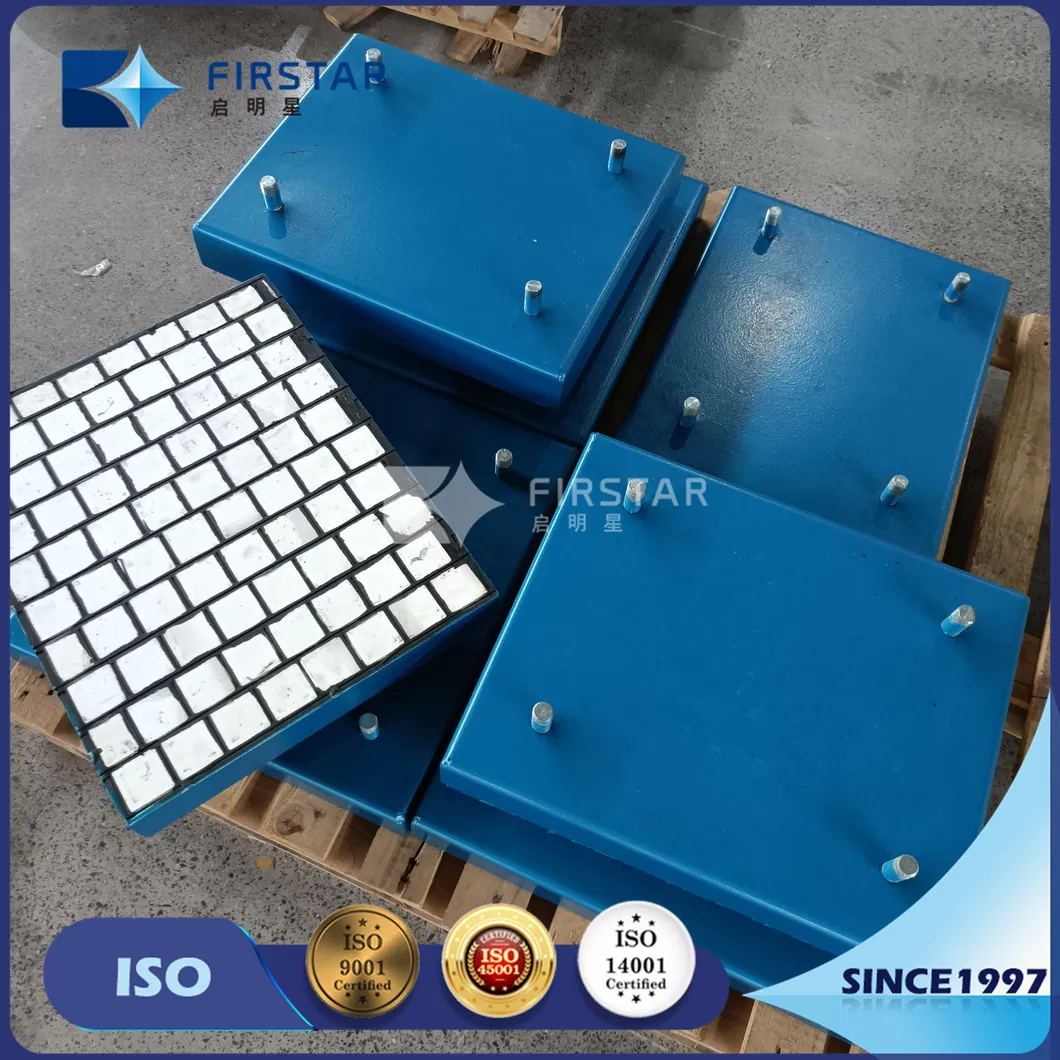

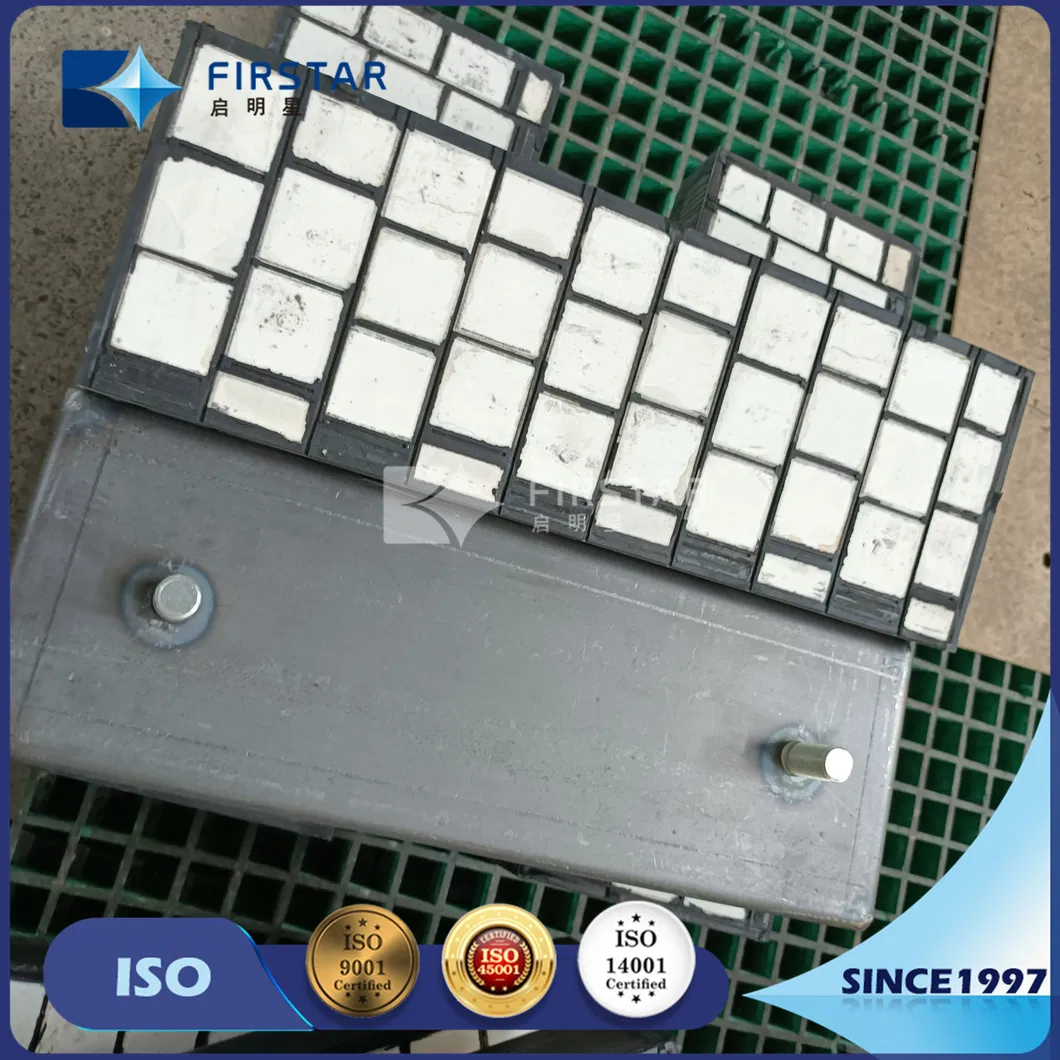

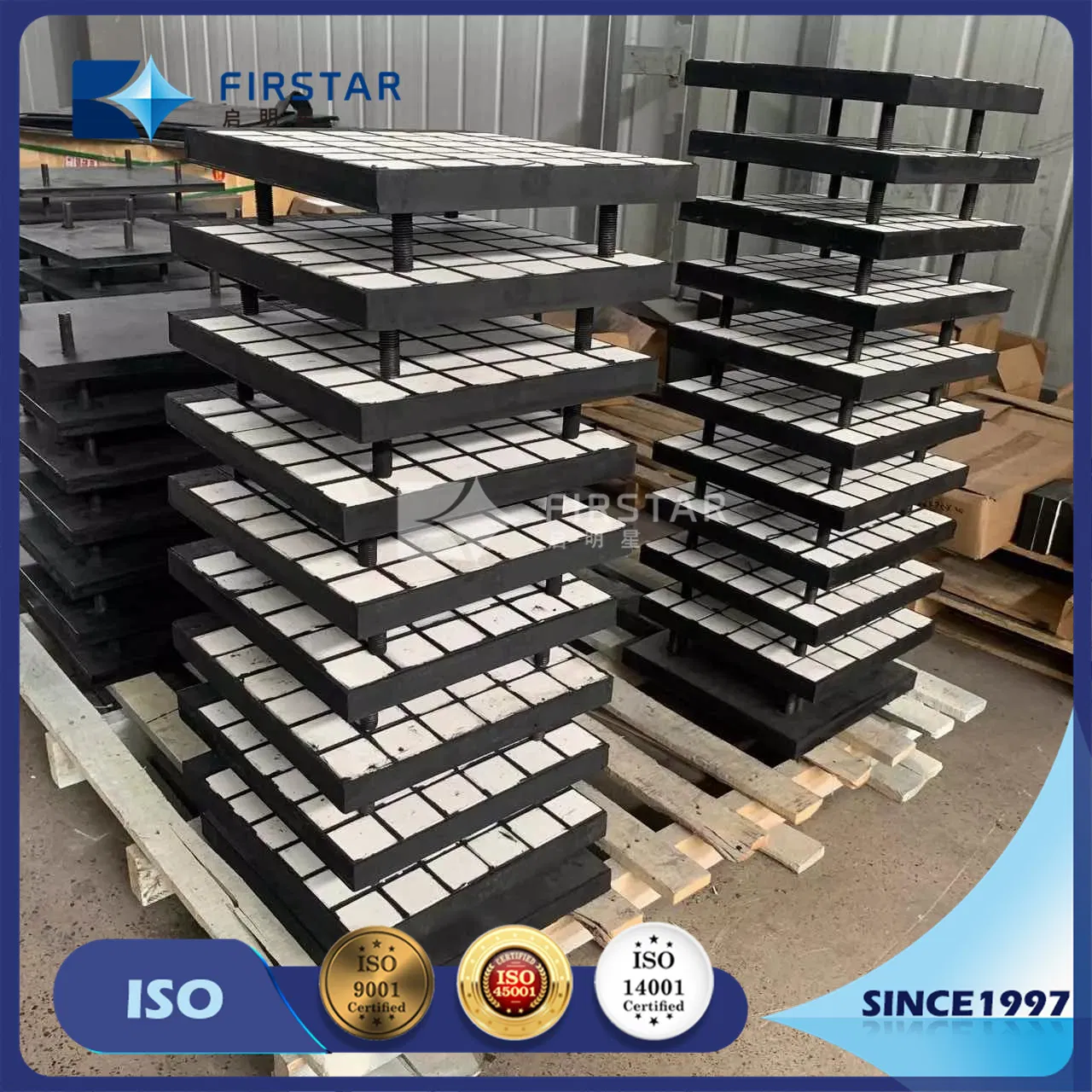

Detailed Photos

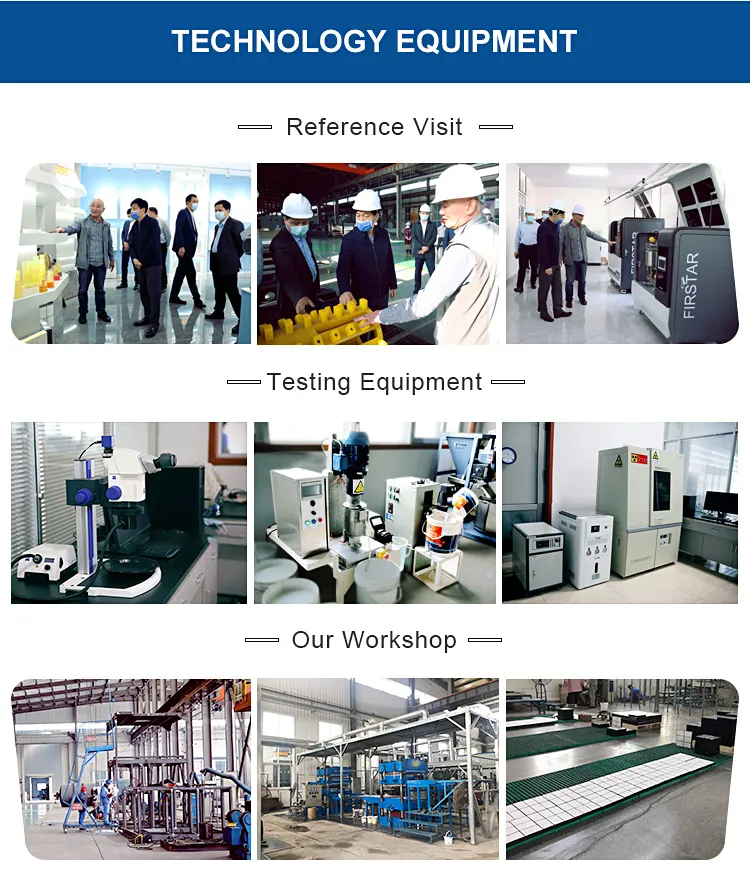

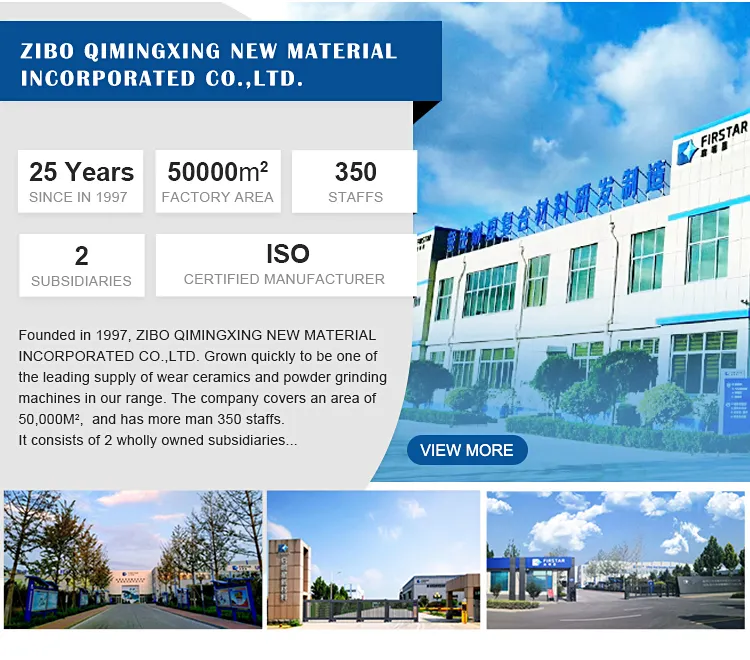

Production Facility

Frequently Asked Questions

1. Are you a direct manufacturer?

Yes, we were founded in 1997 and have developed into a group company with three factories manufacturing alumina powder, grinding media, and wear-resistant liners, including a dedicated vulcanizing plant.

2. Can you provide samples for quality testing?

Free samples in small quantities can be provided for quality inspection. Express fees can typically be deducted from subsequent bulk orders.

3. What is the standard delivery time?

Since most rubber-backed panels are customized, delivery generally ranges from 7 to 30 days depending on the specific order quantity and requirements.

4. What are your payment terms?

We accept T/T and L/C at sight. Other payment methods can be negotiated based on the order requirements.

5. Do you accept small or bulk orders?

We accept both. With an annual production capacity of 18,000 tons, we are fully equipped to handle large-scale bulk orders while valuing the trust of small-order clients.

6. How is your customer service availability?

We provide 7*24 service with a professional team fluent in English to ensure prompt replies to all inquiries within a short timeframe.
