Steel Lined Ceramic Pipe

Basic Specifications

Diameter

720mm

Material

Alloy Steel

Pressure

~0.6MPa

Rotation Speed

320/360/380/400/500/730/980

Temperature

~200 Degree

Head

1.5~7.0m

Capacity

~15000m3/H

Classification

High Temperature / Low Pressure Piping

Standard

ASTM, GB, API, DIN, JIS

Medium

Liquid

Cross-Section

Round

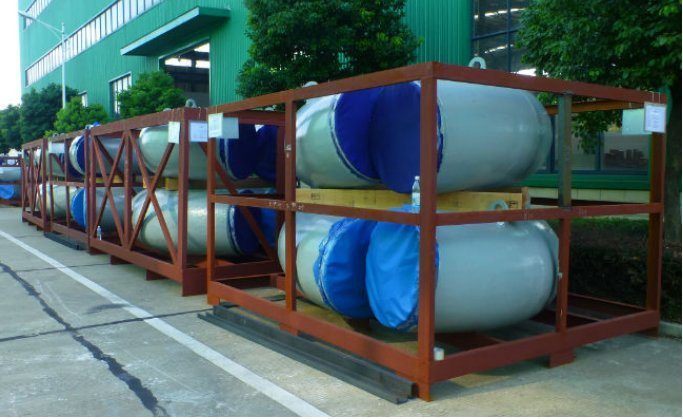

Transport Package

Plywood Box

HS Code

8413709990

Production Capacity

1,000,000 pieces/Year

Product Description

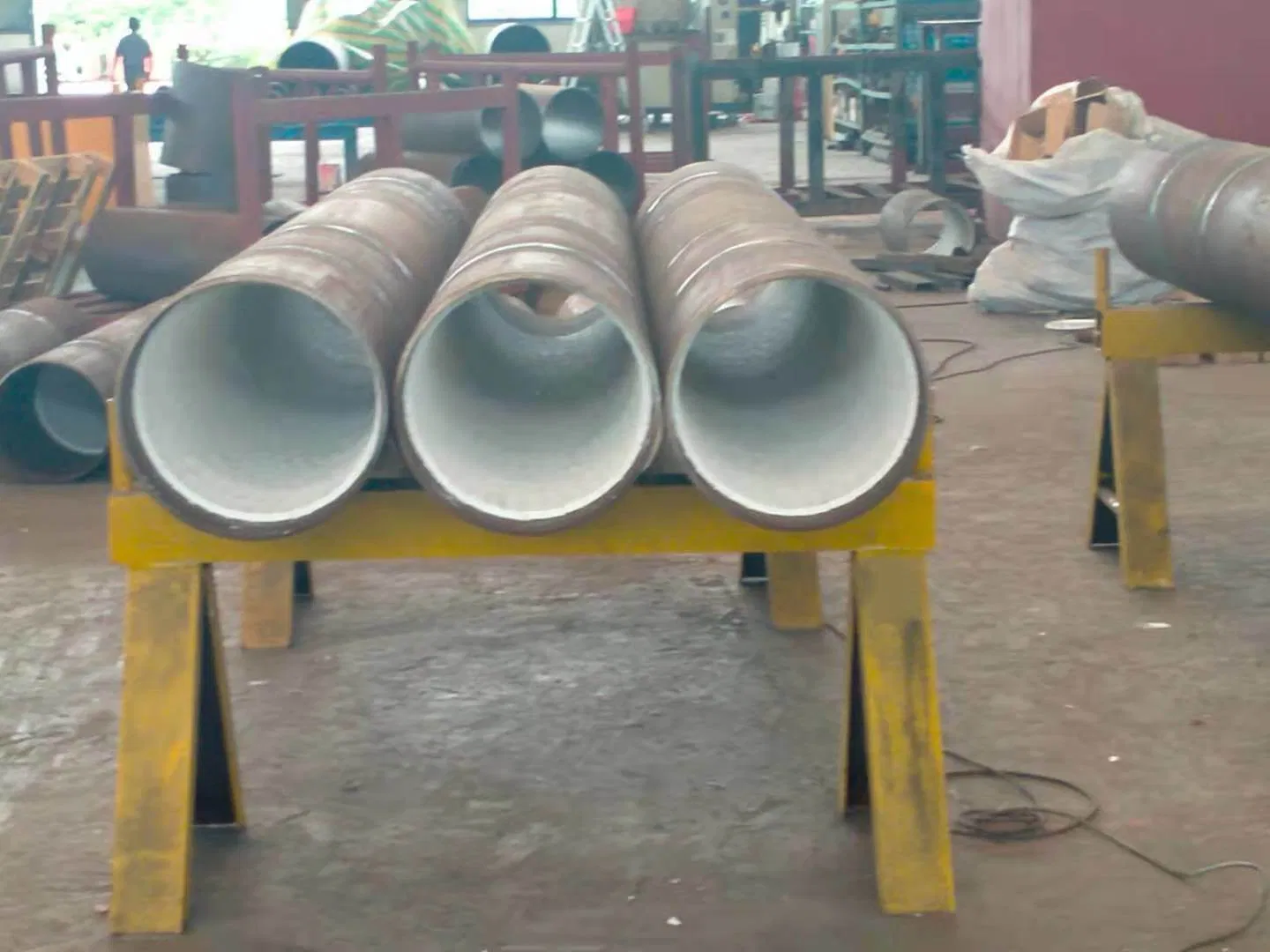

Ceramic lined composite pipe is mainly used to transport a variety of pulp, tailings slurry, coal slurry and corrosive slurry. It is highly suitable for larger particle material transport across various industries including thermal power, steel, smelting, machinery, mining, chemical, cement, and port operations.

Superior Durability: Wear resistance is more than 20 times higher than standard carbon steel pipes.

Heat & Corrosion Resistance: Excellent performance under mechanical and thermal shock.

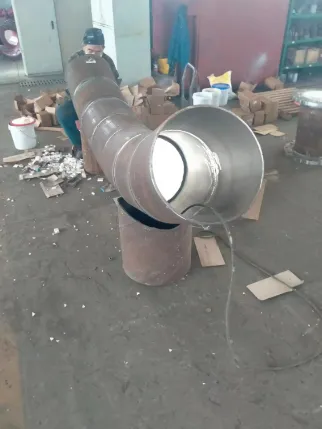

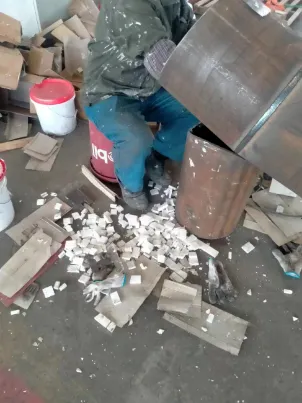

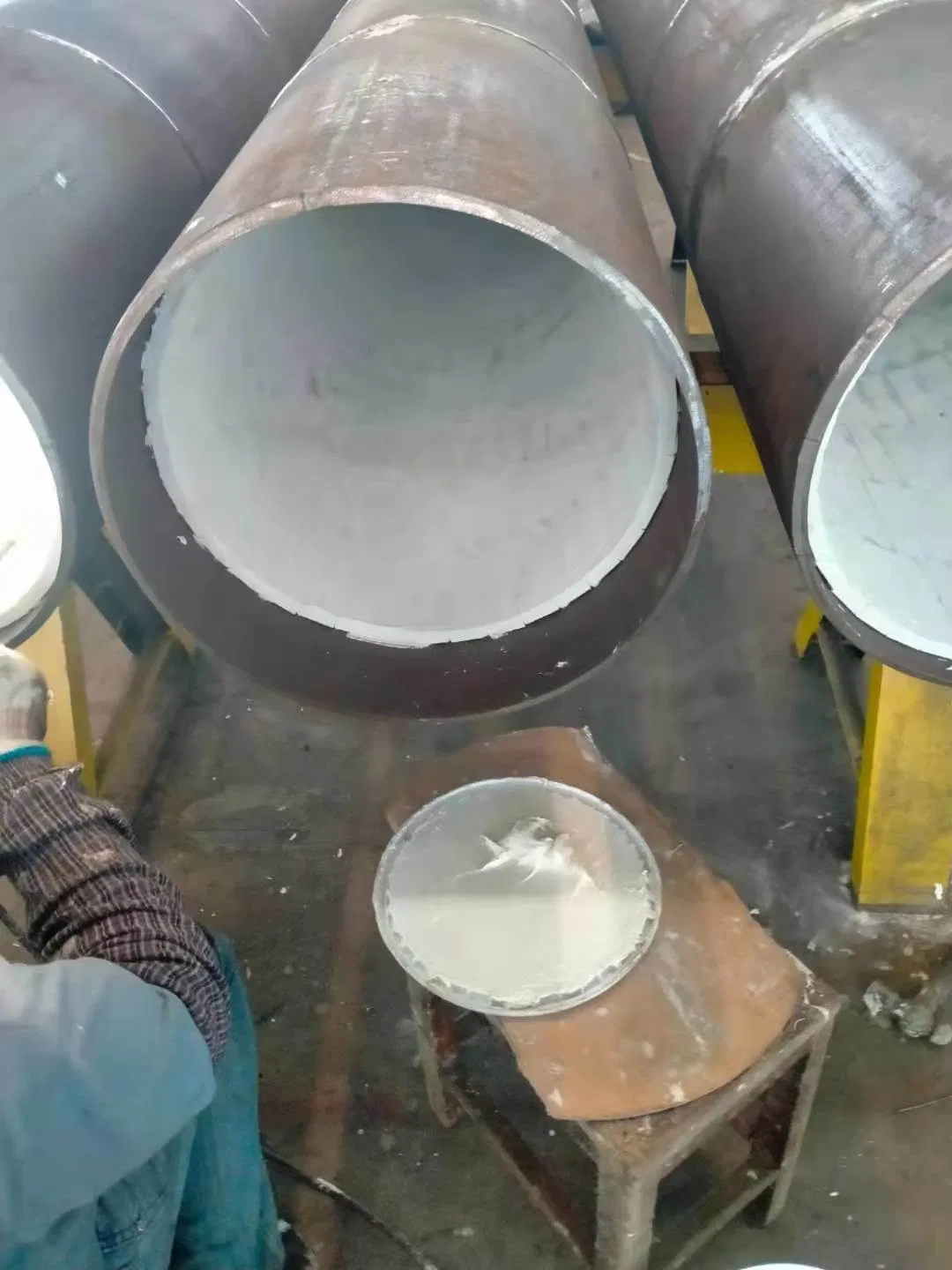

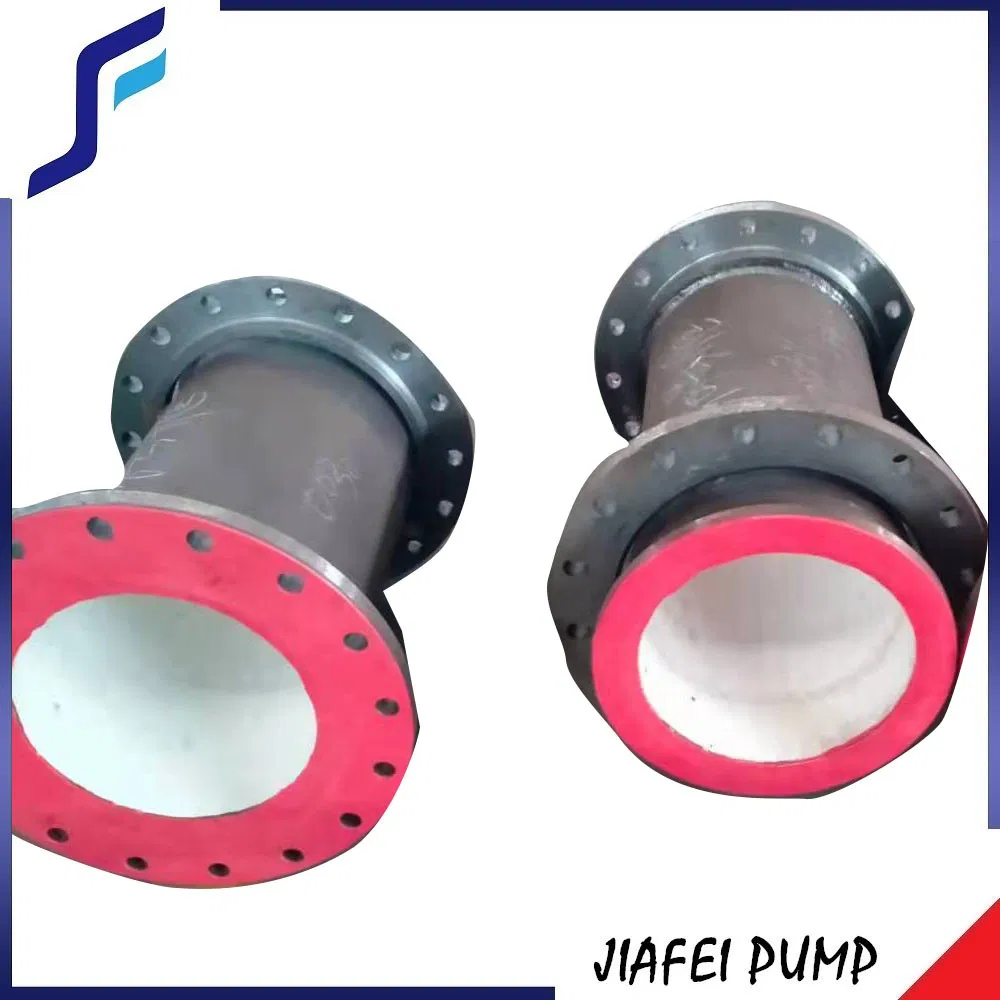

Advanced Composition: Outer layer is high-grade steel; inner layer is premium corundum.

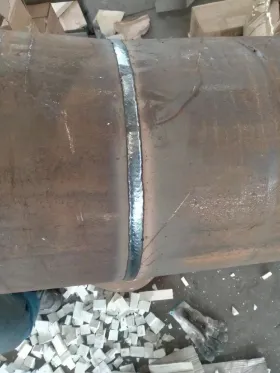

Easy Installation: Direct welding methods can be used for secure pipeline connection.

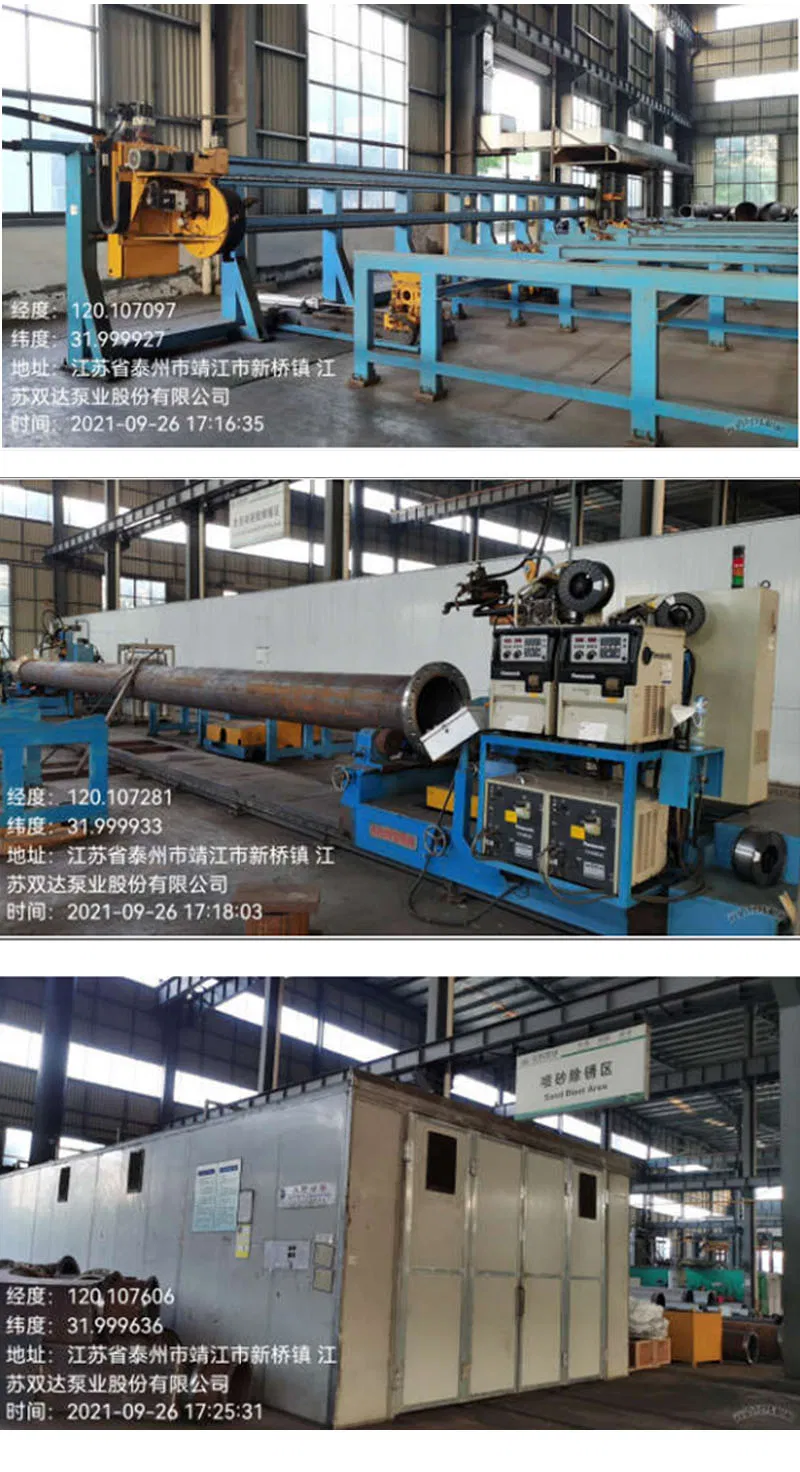

Production Range & Technical Scope

Nominal Diameter: DN20mm - DN1200mm (Large-diameter pipes can reach up to 4m).

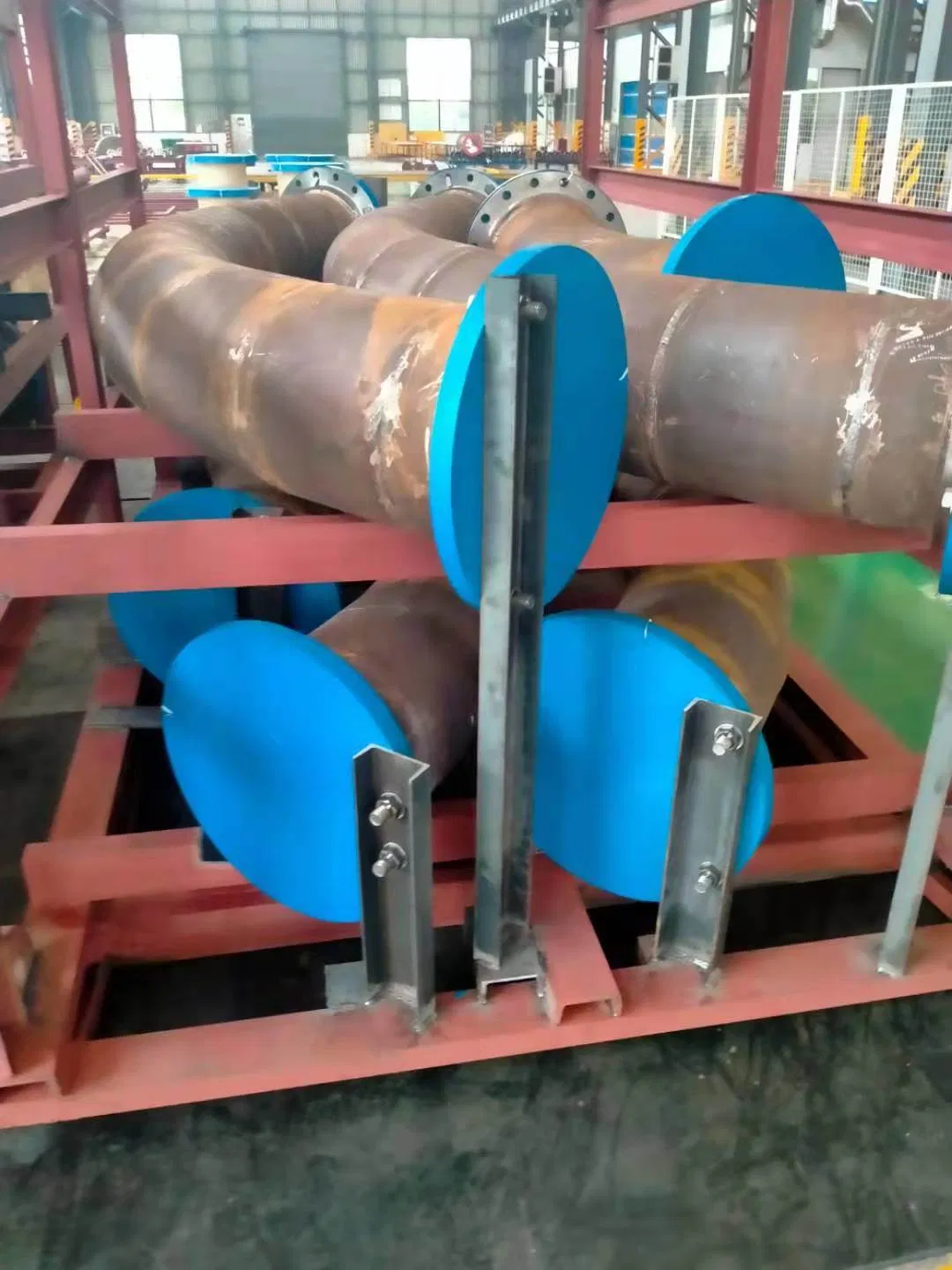

Components: All types of non-standard elbows, tees, and reducing pipes.

Customization: Fully prefabricated according to specific user requirements.

Core Product Solutions

Pumping Systems: Chemical process pumps (BB1~BB5, VS1~VS6 series) compliant with the latest API610 editions. Specialized solutions include residual heat removal, forced circulation, and seawater desalination pumps.

Advanced Piping: Shop-fabricated pipes using nano polyester, solvent-free epoxy resin, plastic-lined, tetrafluoroethylene-lined, and glass-lined composite steel technologies.

Frequently Asked Questions

Are you a specialized manufacturer?

Yes, we are a specialized manufacturer focused on chemical pumps, wear-resistant pipes, and associated production lines.

Can products be customized for OEM orders?

Absolutely. We supply a wide variety of sizes and can prefabricate components according to specific user requirements and technical drawings.

How is quality control managed?

Quality is our priority. We maintain strict quality control protocols throughout the entire manufacturing process, from material selection to final inspection.

What materials are used for extreme wear resistance?

We use a composite structure with a steel outer layer and a corundum ceramic inner layer, which provides 20x higher wear resistance than standard carbon steel.

What is the diameter range for your piping solutions?

Our standard range covers DN20mm to DN1200mm, though large-diameter pipes can be fabricated up to 4 meters.

What are the standard transport packages?

Most products are securely packed in plywood boxes to ensure safety during international transport. Contact us for specific packaging photos and details.

Product Description

Basic Specifications

Product Description

Production Range & Technical Scope

Core Product Solutions

Frequently Asked Questions
