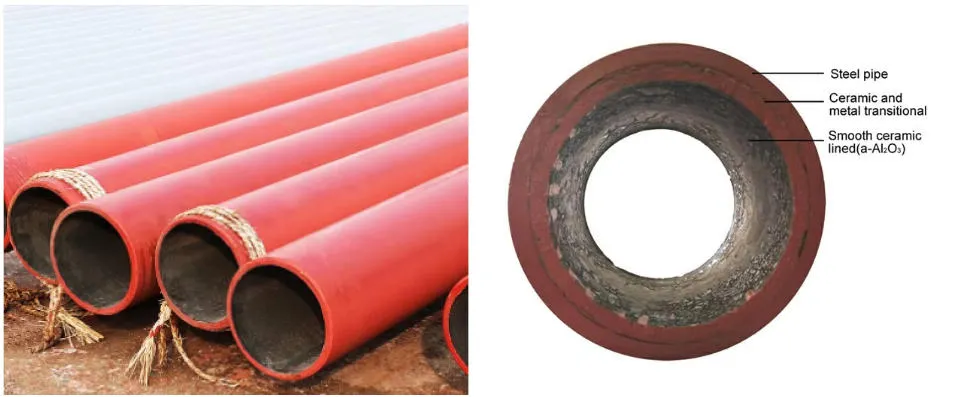

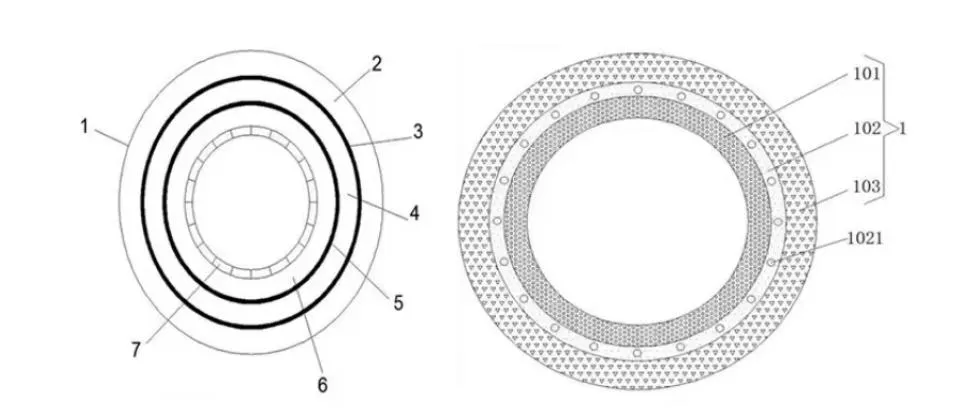

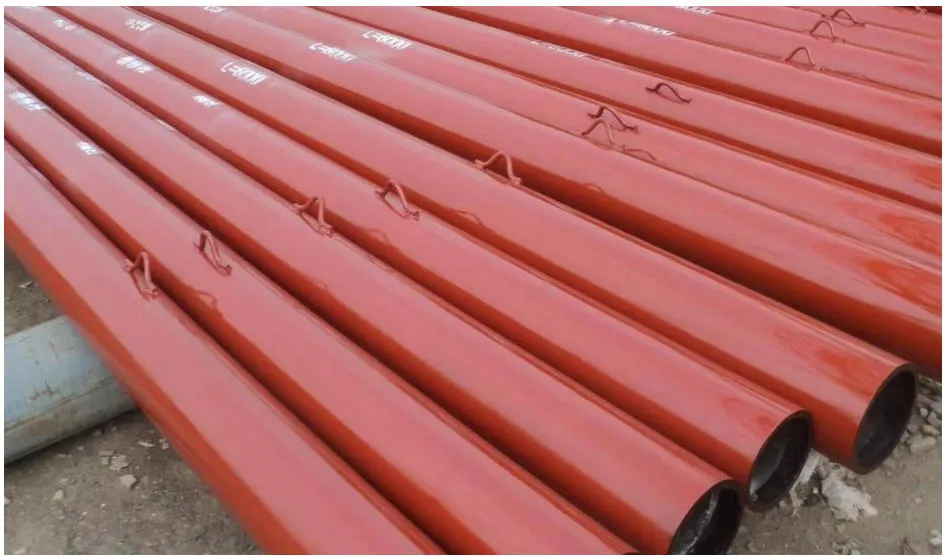

Composite ceramic steel pipe is a new type of composite material manufactured by the self-propagating high-temperature synthesis method (SHS). The product uses the aluminothermic reaction to exothermicly melt the reactants, separating Al2O3 and Fe under centrifugal force. It consists of a corundum ceramic layer, a transition layer, and a steel pipe layer, forming a firm metallurgical bond at temperatures above 2000 ℃.
Key Features: It possesses excellent corrosion resistance, wear resistance, high strength, and toughness. It is highly resistant to mechanical and thermal shock and supports turning, grinding, and welding processing.
| Pipe Diameter (mm) | Wall Thickness (mm) | Wear Layer (mm) | Pipe Diameter (mm) | Wall Thickness (mm) | Wear Layer (mm) |
|---|---|---|---|---|---|
| 68 | 8-10 | 4 | 168 | 8-10 | 4 |
| 89 | 8-10 | 4 | 219 | 10-12 | 4-5 |
| 114 | 8-10 | 4 | 325 | 12-14 | 5-6 |
| 159 | 8-10 | 4 | 630 | 12-14 | 5.5-6 |
Ceramic lined pipes are essential in industries like mining, power generation, oil & gas, and chemical processing. They protect systems from abrasion and corrosion in the harshest environments.

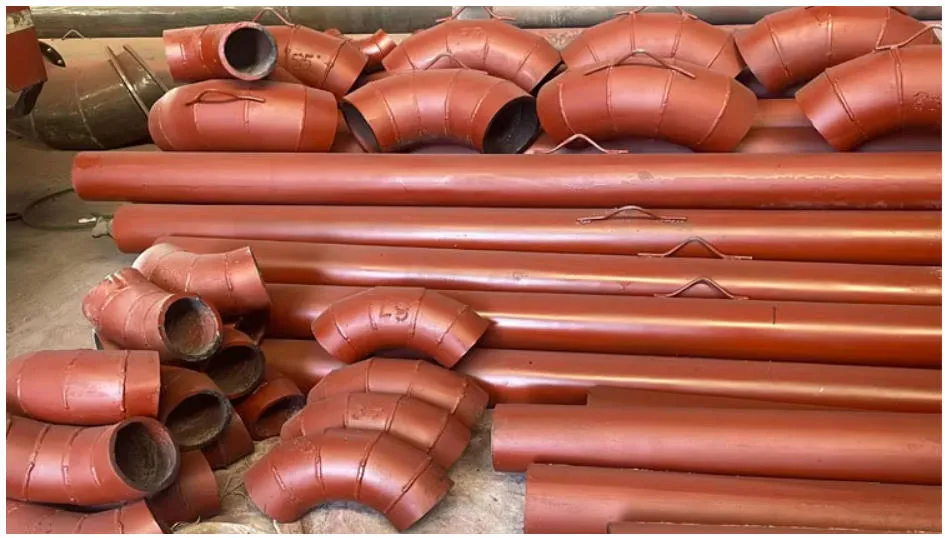

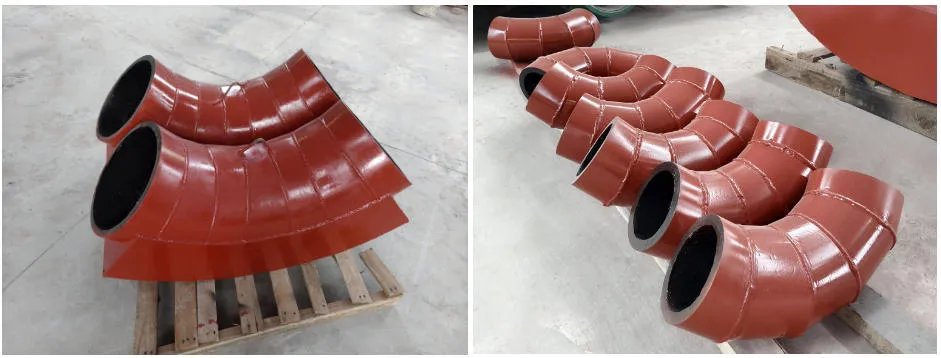

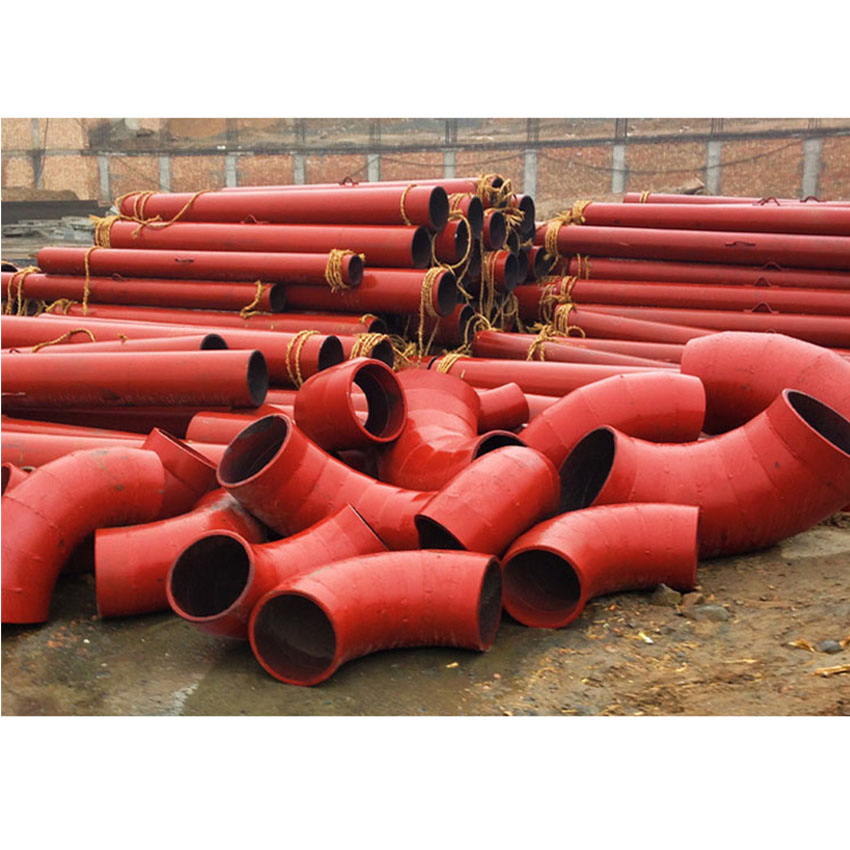

They are also used where hygiene and chemical neutrality are required, as the ceramic lining is non-toxic and non-reactive. Shapes include elbows, tees, and reducers to fit specific engineering needs.
