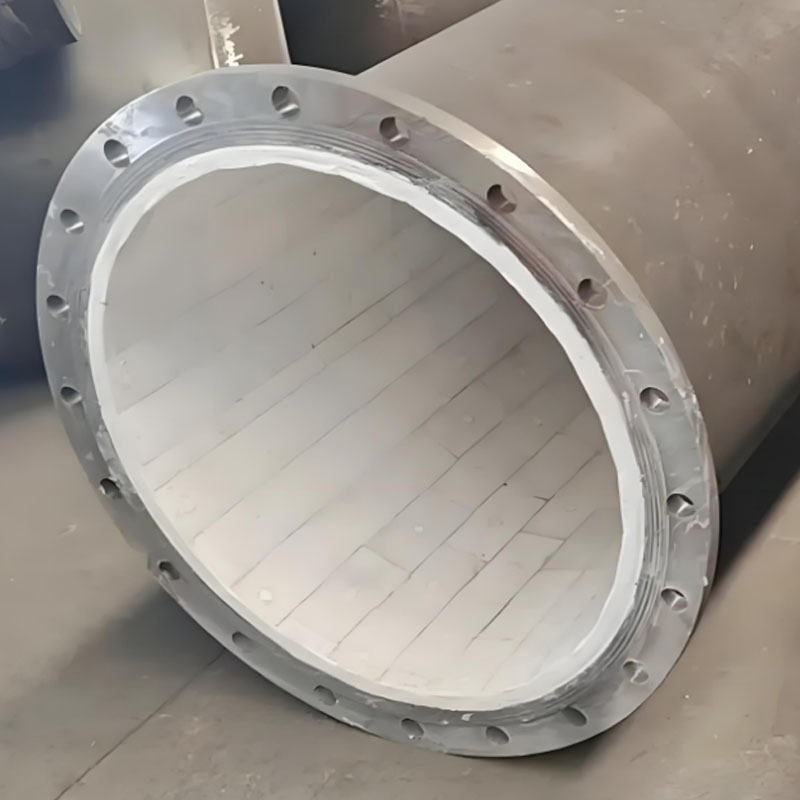

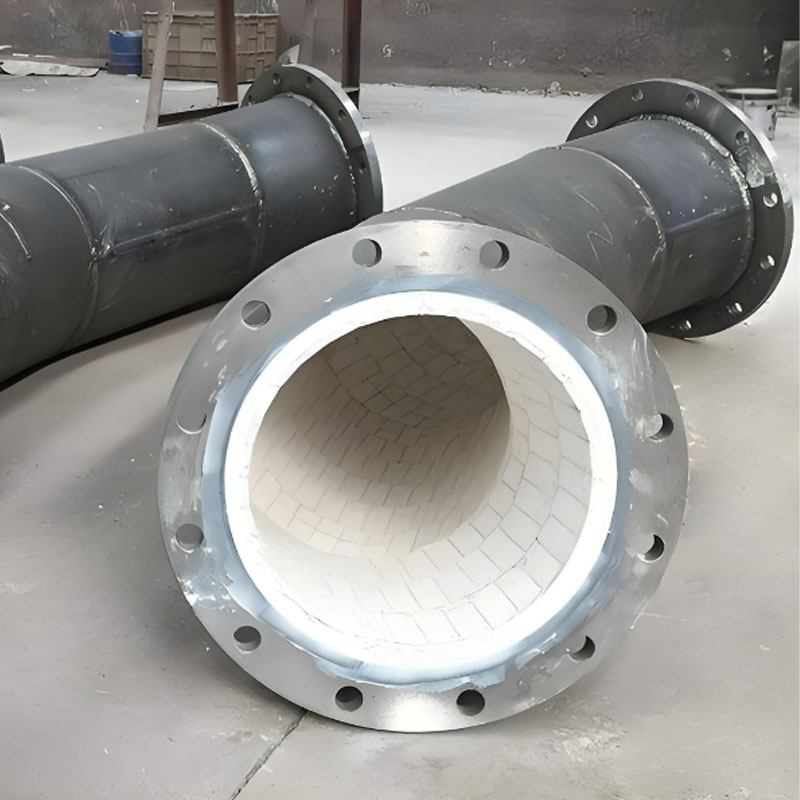

Hot Selling Alumina Ceramic Lining Plate Ceramic Patch Wear Resistant Tube

1 / 5

Hot Selling Alumina Ceramic Lining Plate Ceramic Patch Wear Resistant Tube

Customization:	Available
Standard:	GB
Application:	Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard

Send Inquiry

Product Description

Basic Information

Model NO.	ceramic tile lined pipe
Material	Stainless steel
Type	Wear Resistant Pipe
Raw Material	95%Al 2o3
Ceramic Material	α—al 2o3
Lining Thickness	4-25mm
HRC	≥85
Refractoriness	1650℃
Transport Package	Wooden Box

Product Description

Ceramic Patch Wear Resistant Tube Banner

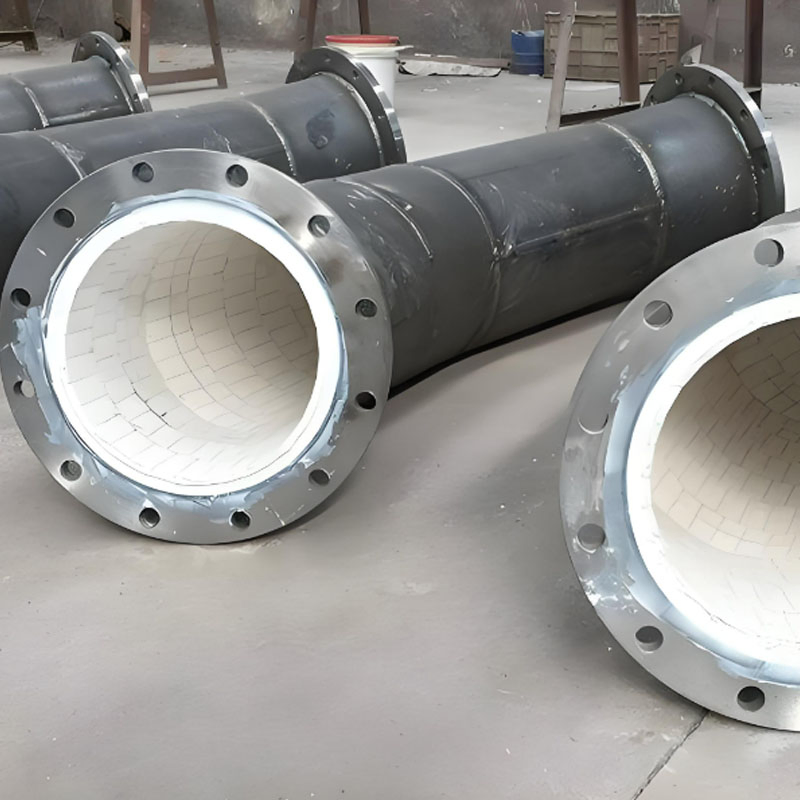

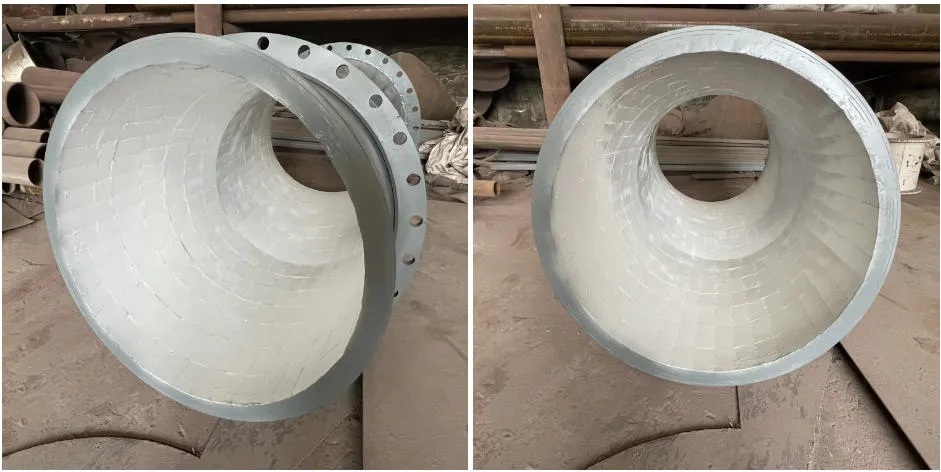

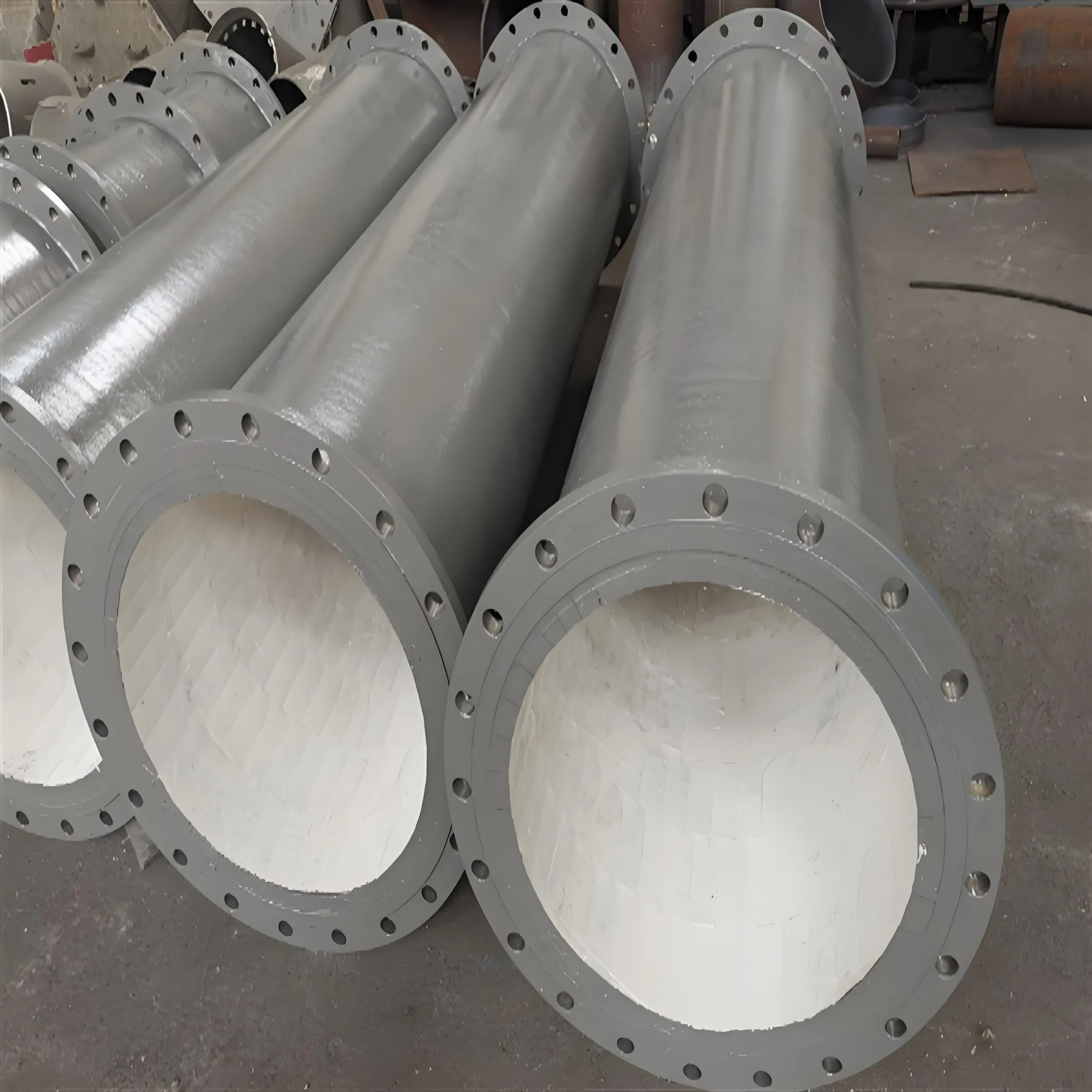

Alumina ceramic patch wear-resistant pipe is a composite pipe product developed specifically to address the wear challenges faced by industrial pipes. It utilizes a dual-layer composite structure consisting of a high-strength ceramic patch and a metal matrix. The core wear-resistant layer is made of alumina ceramic (AlO2) with a purity exceeding 92%, sintered at high temperatures.

Specification	Outer Diameter	Inside Diameter	Wall Thickness	Steel Pipe Thick
DN100	132~152	100	10~14	6~12
DN200	236~264	200	10~20	6~12
DN300	336~364	300	10~20	6~12
DN500	542~584	500	15~30	6~12
DN1000	1046~1088	1000	15~30	8~14
Note: customized according to customer needs.

Core Features

1. Ultra-Wear-Resistant Alumina ceramics offer 20 times the wear resistance of ordinary seamless steel pipes and 5 times that of cast stone pipes. Service life can be extended from months to 3-5 years.

2. Corrosion-Resistant Exceptional chemical stability, withstanding acidic, alkaline, and salt solutions (pH 1-14) and high-temperature flue gases up to 800°C.

3. Low Resistance and High Efficiency Smooth surface with a low friction coefficient (0.15-0.2), reducing energy consumption by 15%-20% for the same conveying volume.

4. Safe and Reliable High-strength bonding (>15MPa shear strength) ensuring patches remain secure even under impact and vibration.

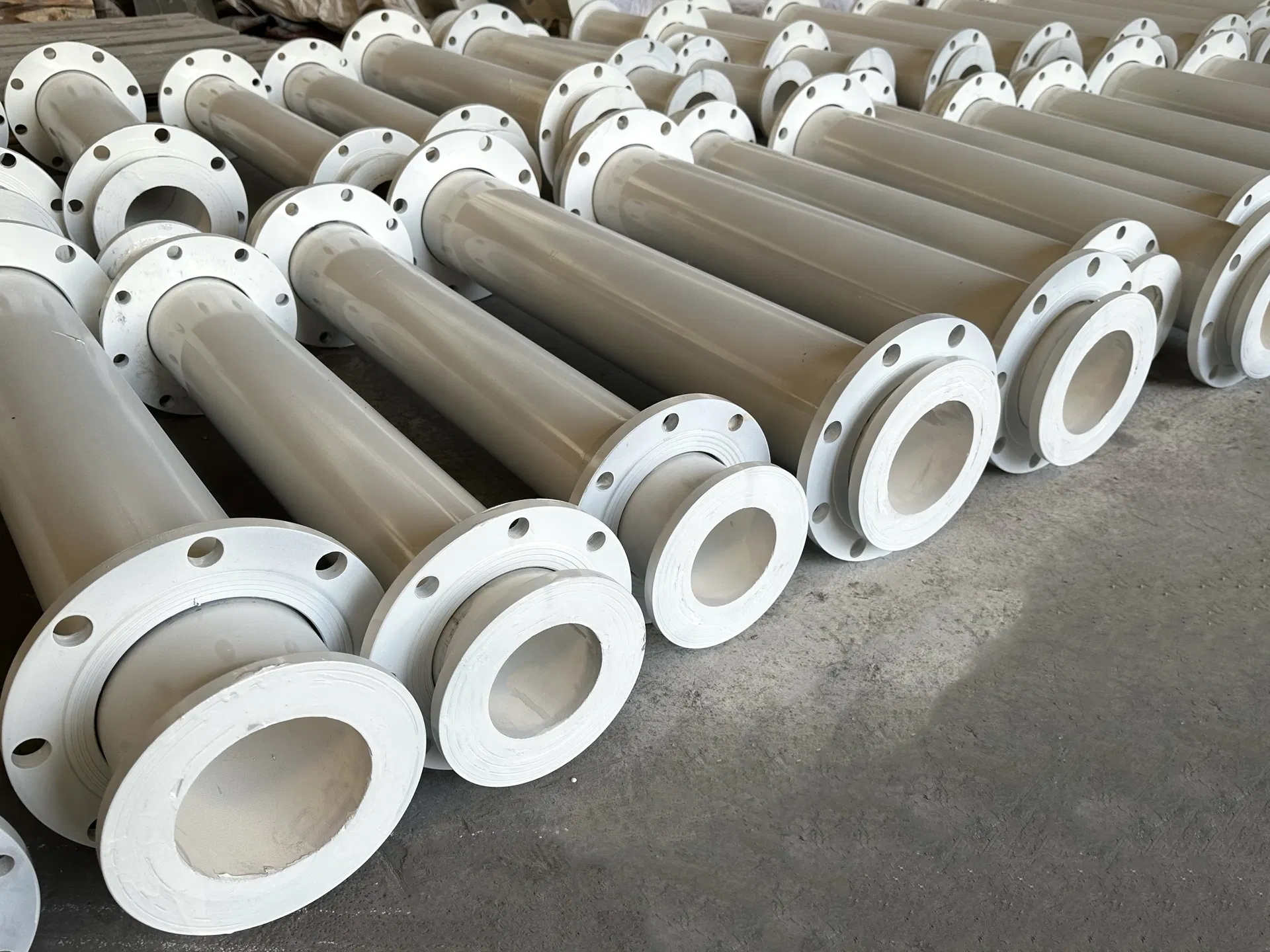

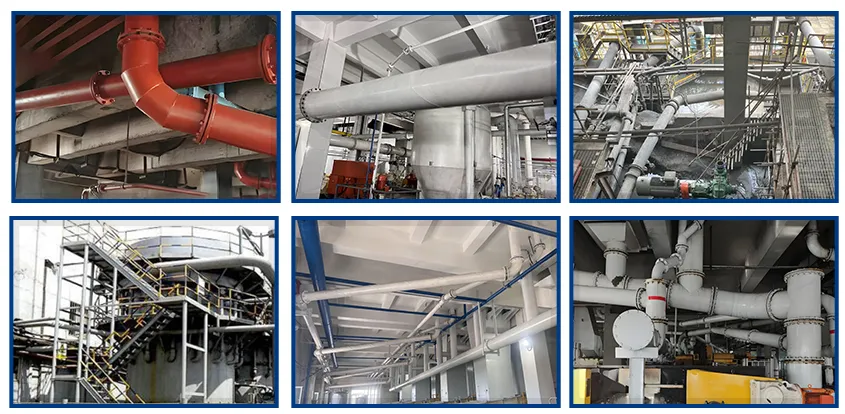

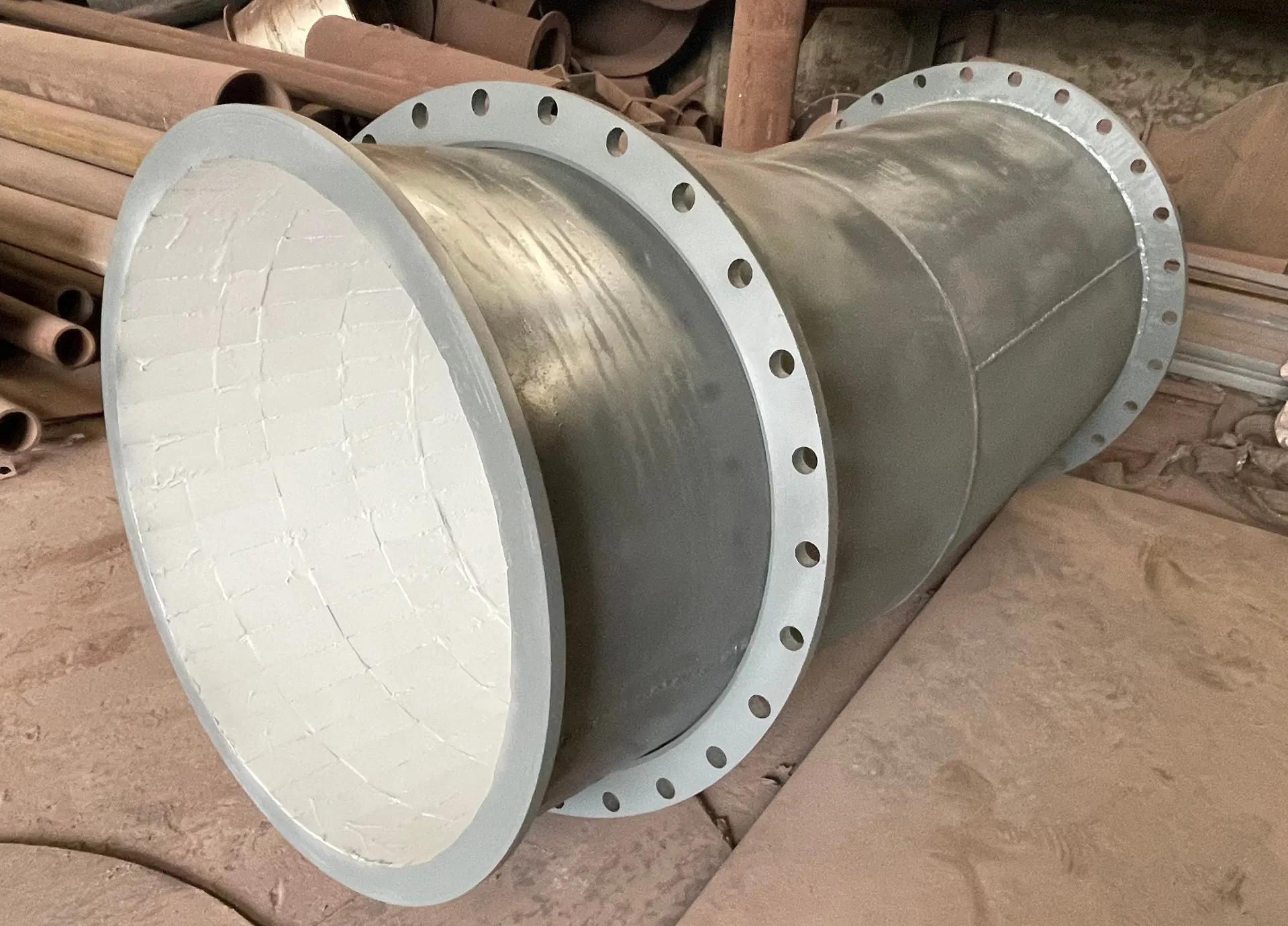

Projects Display

Related Product Parameters

Alumina content	≥95%
Density	≥3.6 g/cm3
Rockwell hardness	≥85 HRA
Compressive strength	≥850 MPa

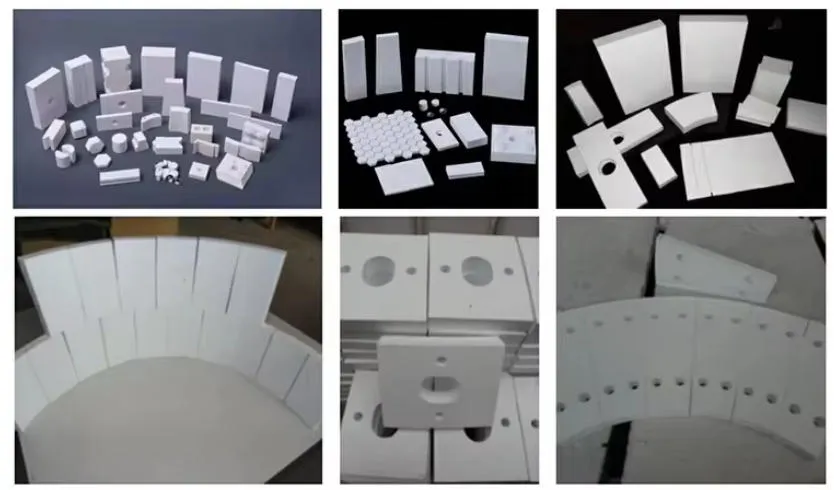

Ceramic sheet thickness	1.5-25mm

Q1: What is the main material of the wear-resistant layer? A: The core wear-resistant layer is made of high-purity alumina ceramic (Al2O3 ≥92%) sintered at high temperatures.

Q2: How much does it improve service life compared to steel pipes? A: Alumina ceramic lining offers approximately 20 times the wear resistance of ordinary seamless steel pipes.

Q3: Can the pipe withstand high temperatures? A: Yes, the ceramic material can withstand high-temperature flue gases up to 800°C.

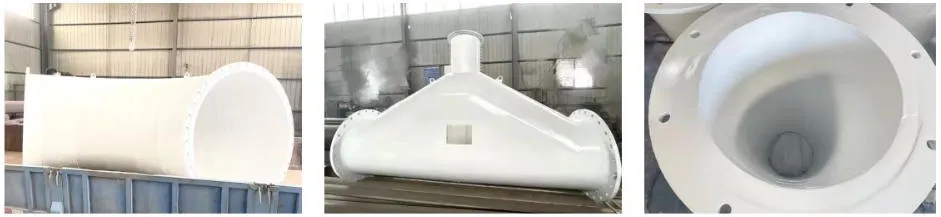

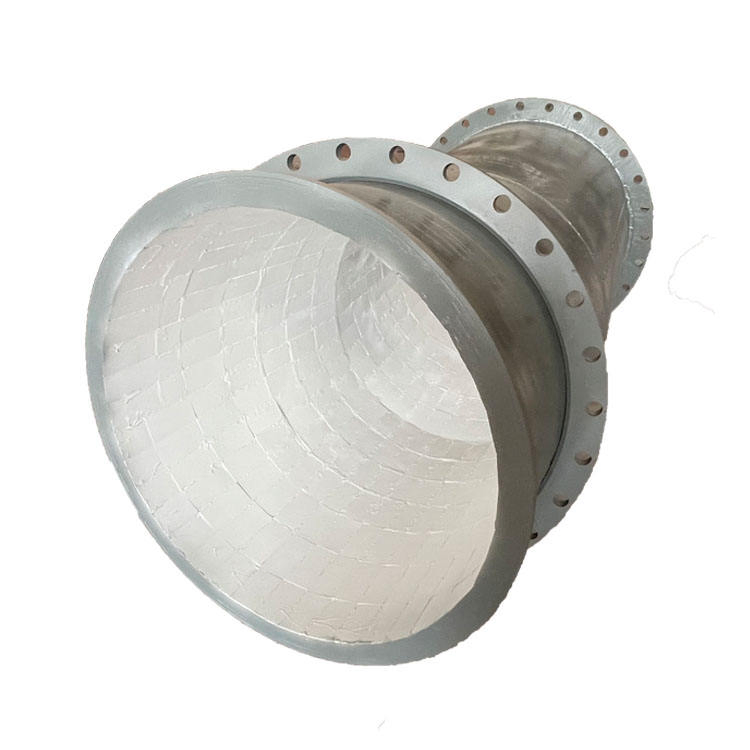

Q4: Are custom sizes available for these pipes? A: Yes, we support customization for various diameters (DN50 to DN2000) and shapes including elbows, tees, and reducers.

Q5: How is the ceramic patch attached to the steel pipe? A: The patches are bonded using a high-strength, high-temperature-resistant adhesive with a shear strength exceeding 15MPa.

Q6: What industries typically use these ceramic lined pipes? A: They are widely used in coal washing, steel plants, thermal power, chemical environmental protection, and cement industries.
