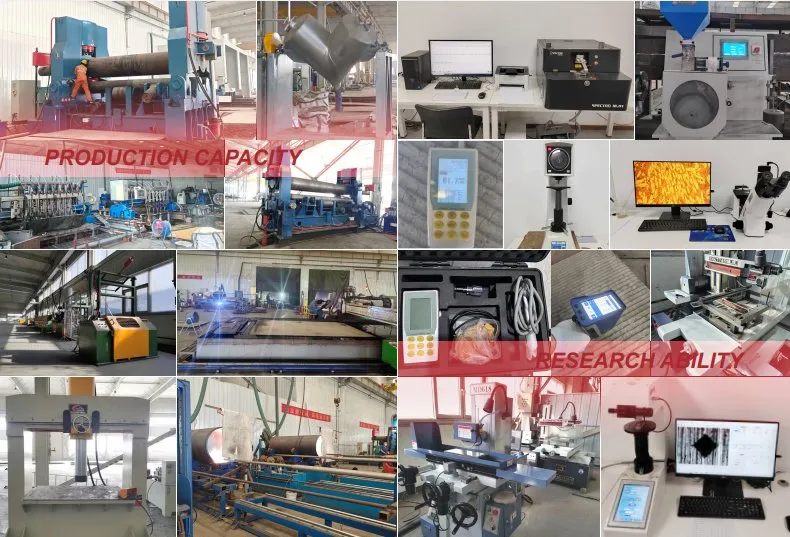

Our company specializes in the production of chromium carbide overlay wear resistant plates, wear resistant ceramics, wear resistant castings, overlay wear pipes, welding wires and abrasion resistant steel plates. Our products are resistant to wear, erosion, high temperature, stress, impact and other factors that cause wear. With the leading R & D team, we continuously break through technical barriers, improve products, and develop more professional wear resistant solutions to make products much more durable.

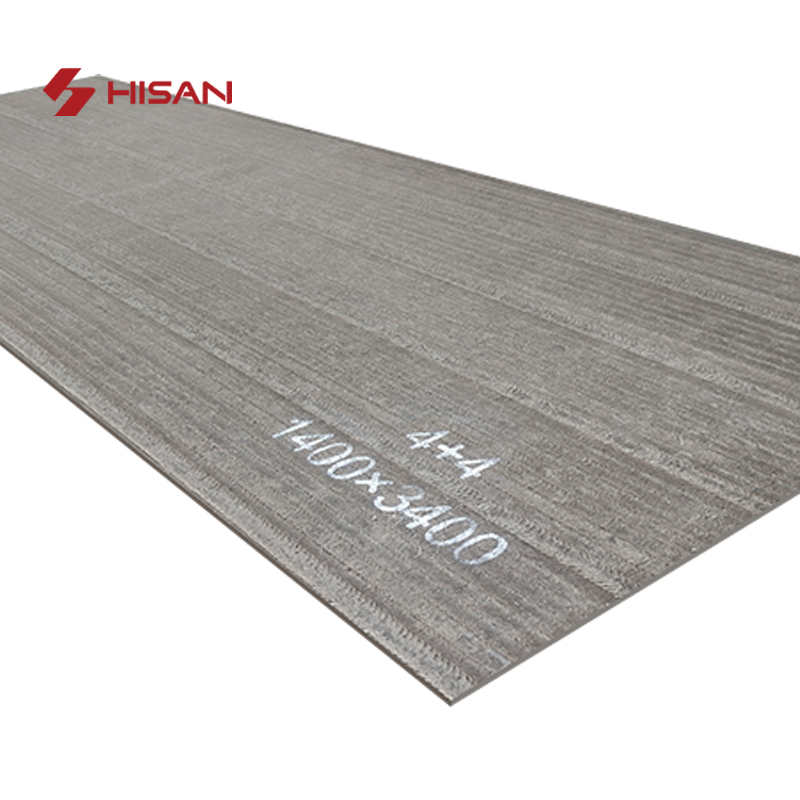

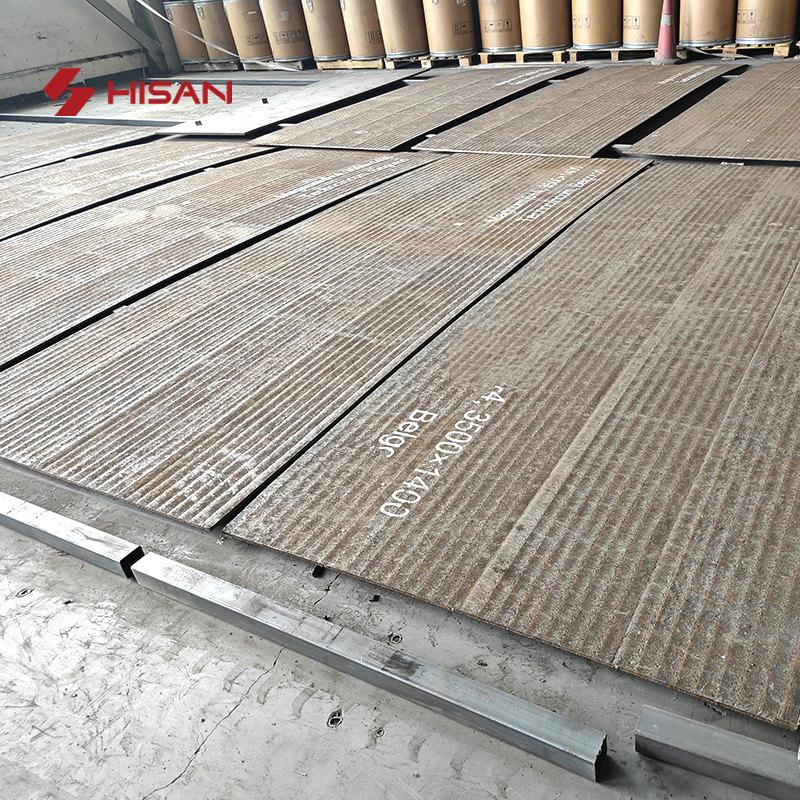

| Thickness (Backing + Overlay) | L x W (mm) |
|---|---|
| 4+4, 5+5 | 1,400 x 3,000 |
| 6+6, 8+5, 8+6, 8+8 | 1,400 x 3,500 |
| 10+8, 10+10, 12+12... | 1,400 x 3,500 / 2,100 x 3,500 |
| Carbon | Silicon | Manganese | Chromium | Iron |
|---|---|---|---|---|
| 3.5-7.5% | 1.0-3.0% | 1.0-3.0% | 28-45% | Balance |

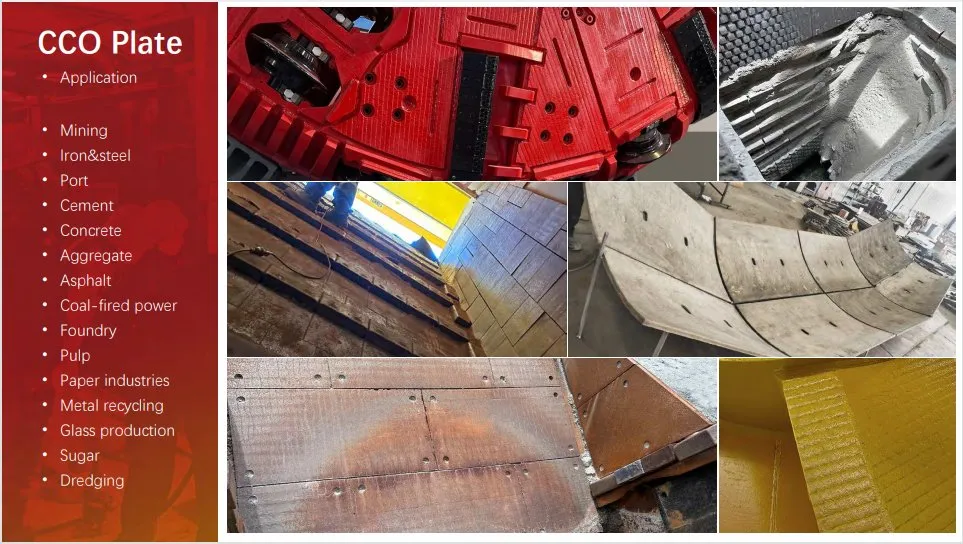

Typical applications include: Bin and hopper liners, Slurry pipes and bends, Chute and feeders liners, Belt conveyors, and Mining equipment.
A: The hardness ranges from 58 to 65 HRC (600 BHN), which is approximately five times harder than unplated mild steel.

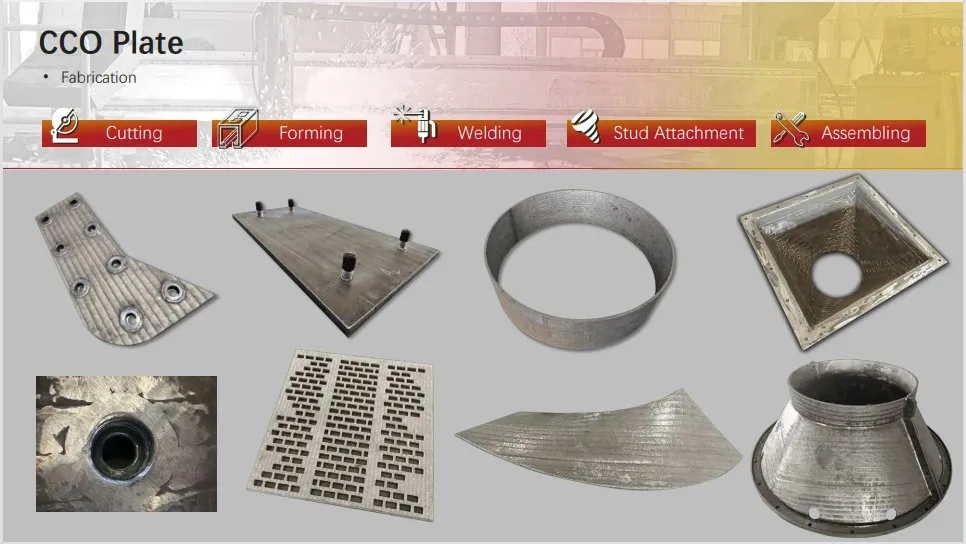

A: Yes, they can be cut using plasma, waterjet, or laser. They can also be cold formed or rolled with a radius greater than 20 times the plate thickness.
A: Standard base materials include Q235, A36, NM400, HARDOX450, and other weldable alloy steels.
A: Complex carbides contain additional alloys like Nb, Mo, V, and W, providing 3-5 times longer service life and better resistance at temperatures up to 600°C.

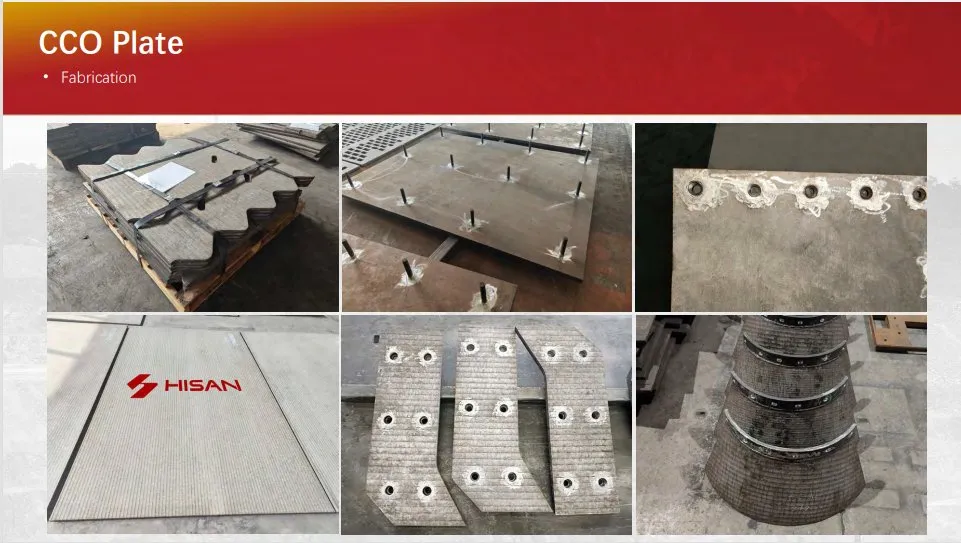

A: Yes, plates can be fabricated with studs (M12 to M24) welded to the backing plate for easy installation.

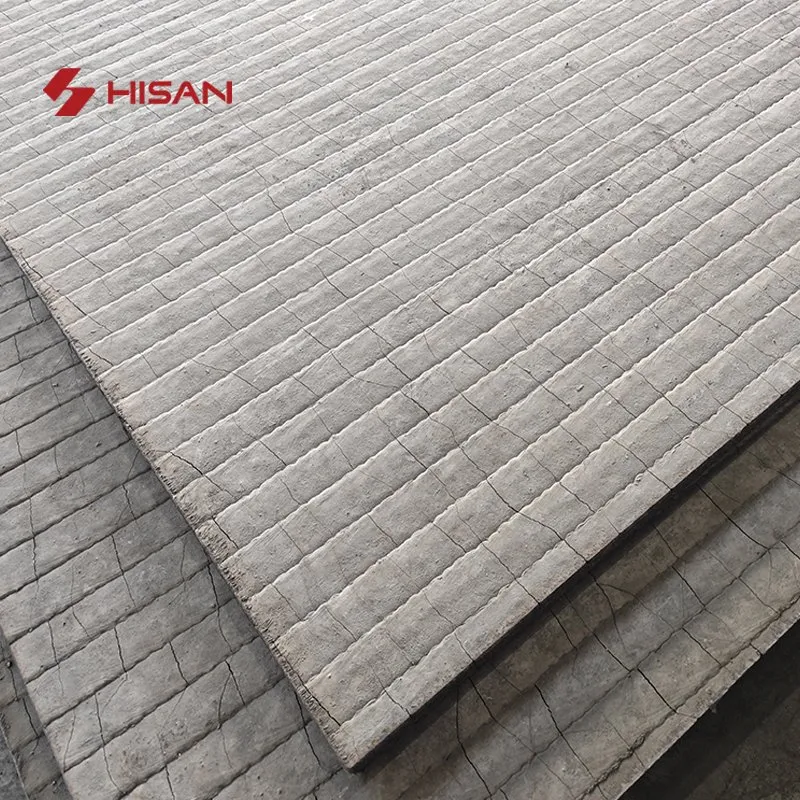

A: Yes, fine cracks perpendicular to the welding bead are normal and result from natural stress relieving in the very hard matrix.
