Overview
| Model NO. | ceramic lined pipe |
| Material | Stainless steel |
| Type | Wear Resistant Pipe |
| Capabilities | ODM, OEM |
| Ceramic Lining Composite Steel Pipe | 96-98% |
| Steel Pipe Diameter(mm) | 68-630 |
| Steel Pipe Wall Thickness(mm) | 8/10 |
| Transport Package | Sealed Packaging |
| Trademark | Huazhan |
| Origin | Shanxi |
| Production Capacity | 5000ton/Year |

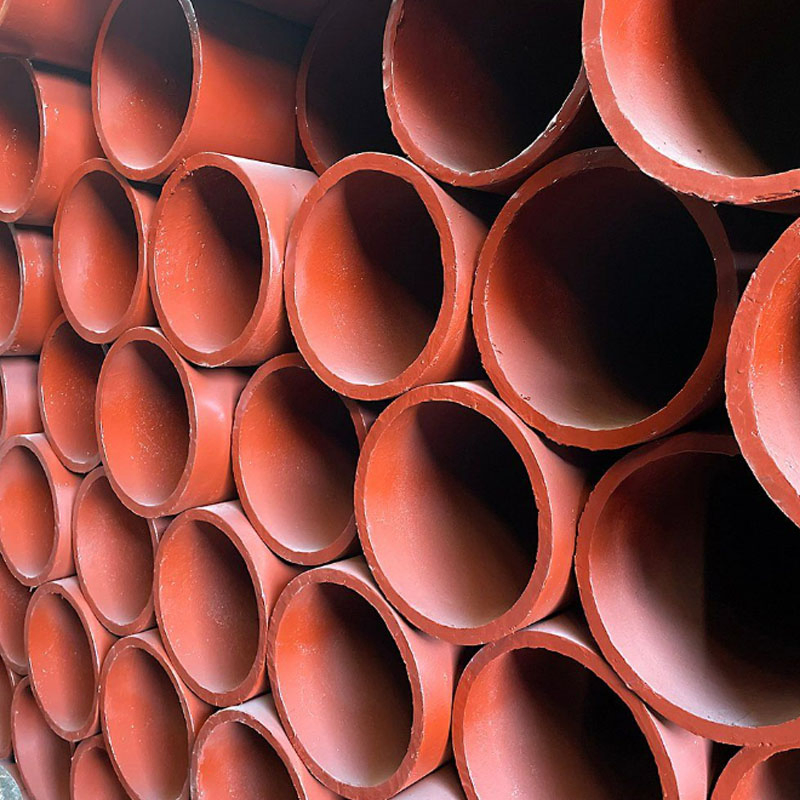

Composite Ceramic Steel Pipe
Product Description

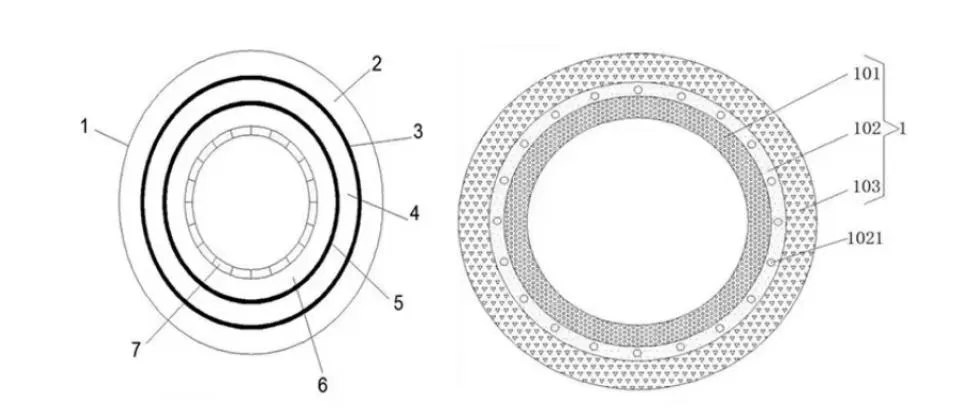

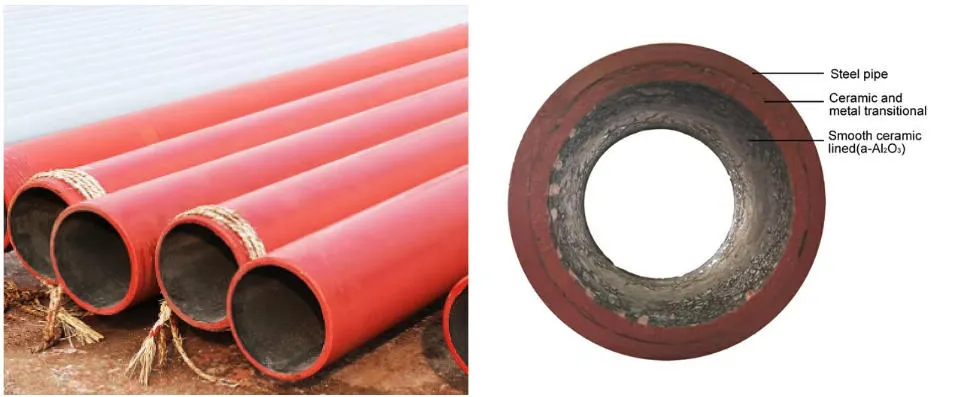

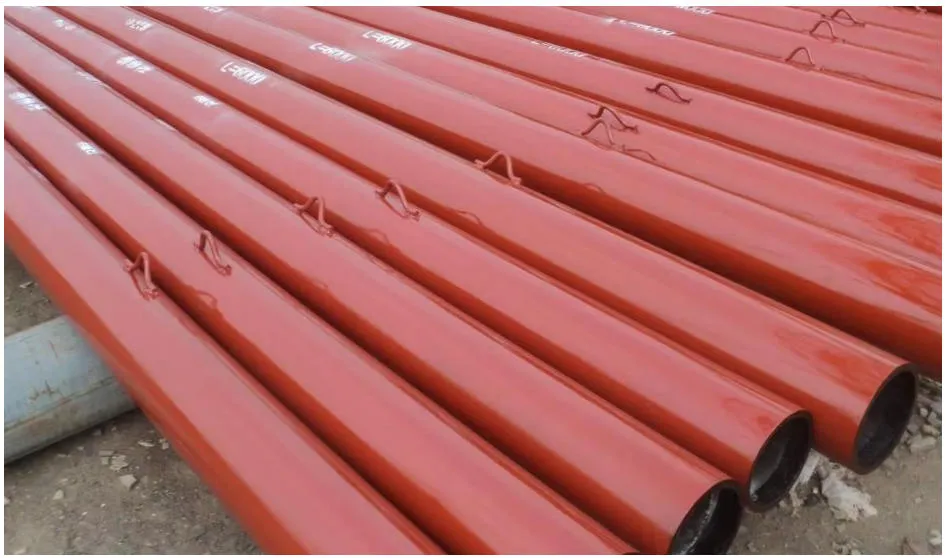

Composite ceramic steel pipe is a new type of composite material with international advanced level. The product is manufactured by the self-propagating high-temperature synthesis method (SHS), which uses the aluminothermic reaction to exothermicly melt the reactants, and separates Al2O3 and Fe under the action of centrifugal force. The composite tube consists of a corundum ceramic (AL2O3) layer, a transition layer, and a steel pipe layer.
Key Feature: It has good corrosion resistance, wear resistance, high strength, toughness, and strong resistance to mechanical shock and thermal shock. It supports turning, grinding, and welding processing.
| Ceramic-lined composite straight tube parameters |
| No. | Pipe Diameter | Wall Thickness | Layer Thickness |
No. | Pipe Diameter | Wall Thickness | Layer Thickness |
| 1 | 68 | 8/10 | 4 | 18 | 168 | 8/10 | 4 |
| 2 | 70 | 8/10 | 4 | 19 | 180 | 8/10 | 4 |
| 5 | 83 | 8/10 | 4 | 22 | 219 | 10/12 | 4/5 |
| 10 | 114 | 8/10 | 4 | 27 | 351 | 12/14 | 5/6 |
| 17 | 159 | 8/10 | 4 | 34 | 630 | 12/14 | 5.5/6 |
Support customization of various sizes.
If you have any other requirements, please contact us.
Advantages
- Good wear resistance: Extremely hard corundum layer for long-lasting use.
- Low running resistance: Smooth internal surface reduces friction.
- Cost-effective: Light weight reduces support, handling, and installation costs by 20-30%.
- Anti-corrosion and anti-scaling: Ideal for chemical and scale-heavy environments.
- Temperature resistance: Operates normally from -50°C to 900°C.

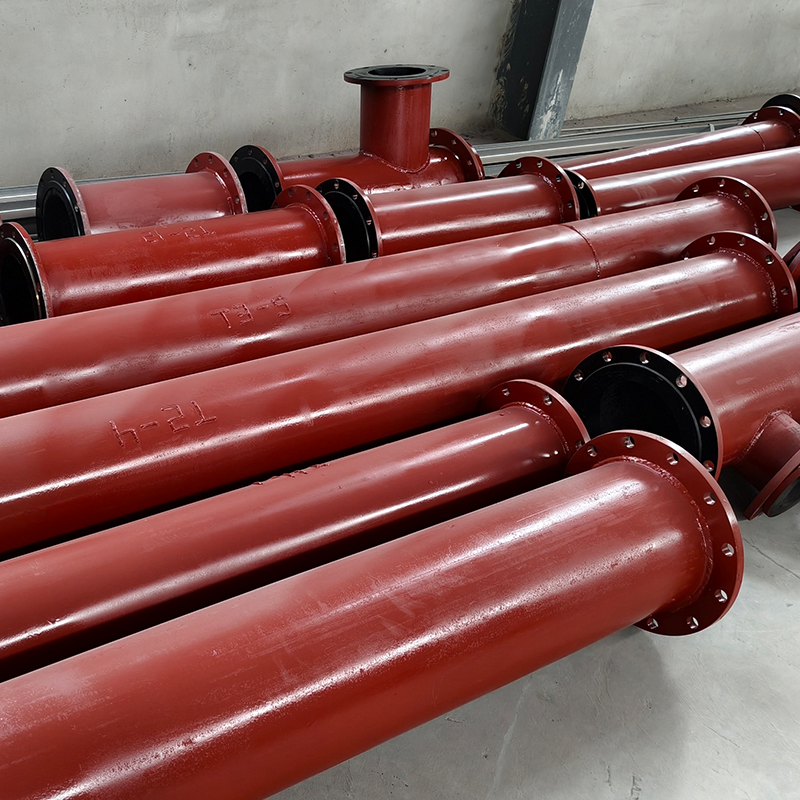

- Easy installation: Can be connected by welding or flanges, saving 20-30% steel.
Application
Ceramic lined pipes are commonly used in industrial applications such as mining, power generation, oil and gas, and chemical processing. They provide exceptional wear resistance, protecting pipes from abrasion and corrosion. They are also non-toxic and suitable for hygienic applications.
Manufacturing Excellence
Frequently Asked Questions
1. What is the temperature range for ceramic lined pipes?
They can operate normally in a wide temperature range from -50°C to 900°C.
2. Can these pipes be welded?
Yes, ceramic-lined composite steel pipes support conventional welding, flanges, and mechanical joining.
3. How does it compare to wear-resistant steel pipes?
The engineering cost is typically reduced by 20-30% compared to traditional wear-resistant steel pipes.
4. What industries use ceramic lined pipes?
They are widely used in mining, coal-fired power plants, chemical processing, and conveying pipeline systems.
5. Is customization available for different pipe sizes?

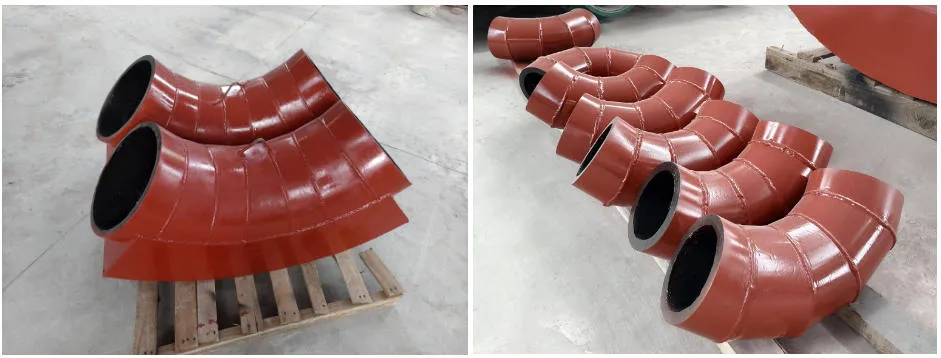

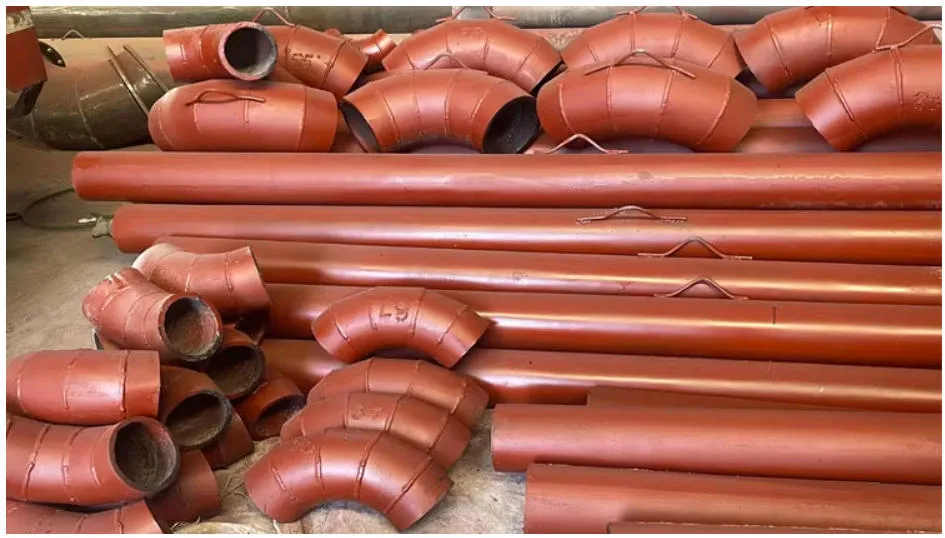

Yes, we support customization for various diameters, wall thicknesses, and shapes including elbows and tees.
