| Model NO. | EOG enamel tube |
| Dielectric Material | Enamel Tube |
| Cooling Method | Water-Cooling |
| Gas | Air or Oxygen |
| Frequency | 50-60Hz |
| Installation | Portable |
| Type | High Pressure Discharge Type |
| Ozone Output | 20-400g |
| Origin | China |
| Production Capacity | 10000PCS/Year |

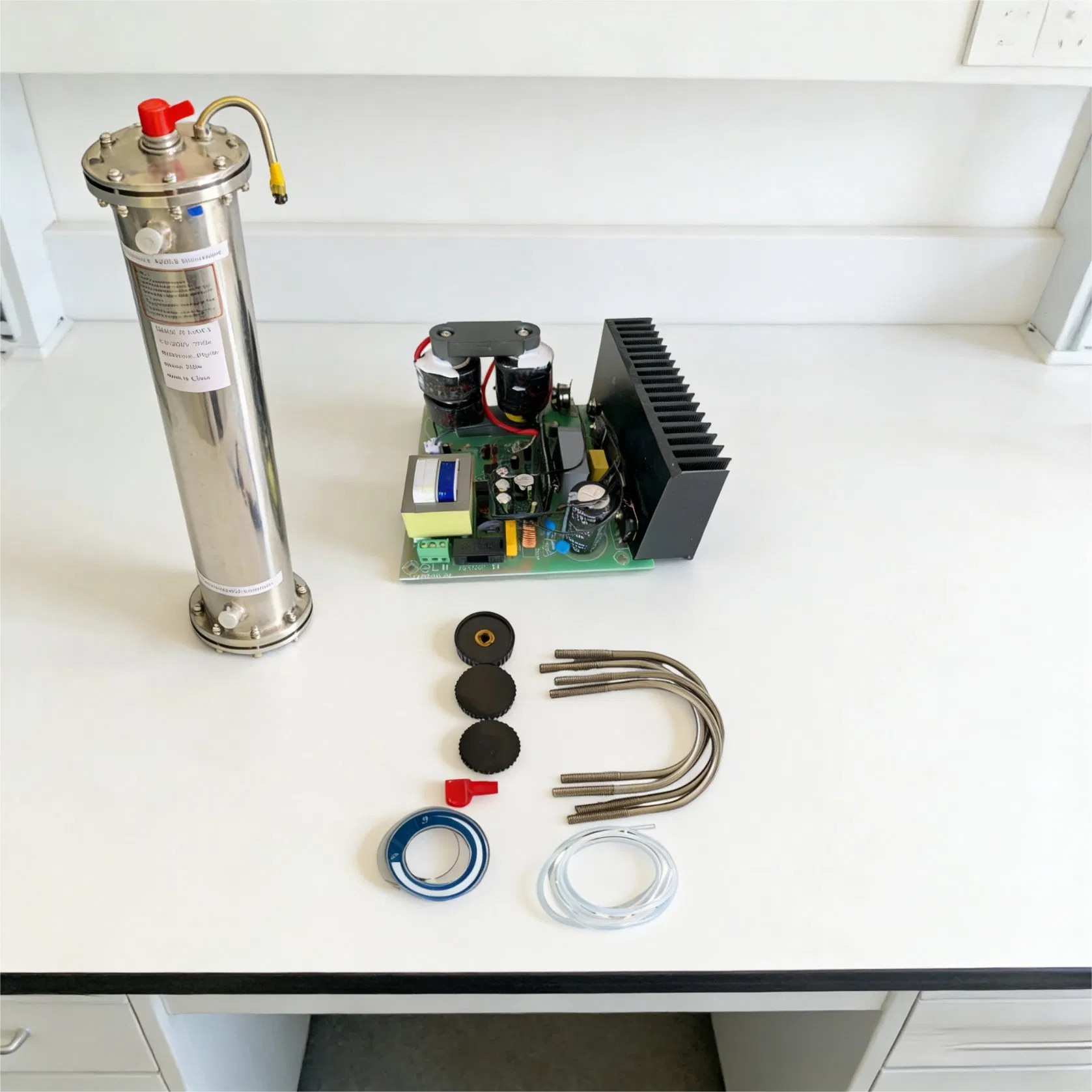

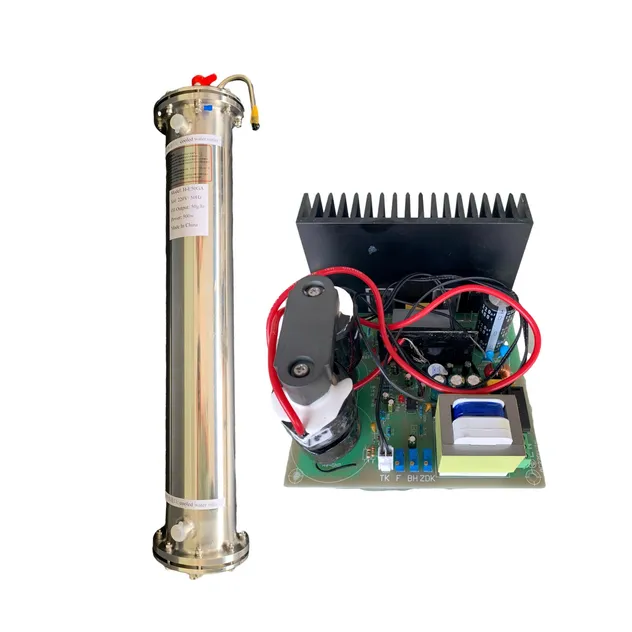

LEJ-YU 10G~40G/HR Quartz Ozone Generator Tube Parts

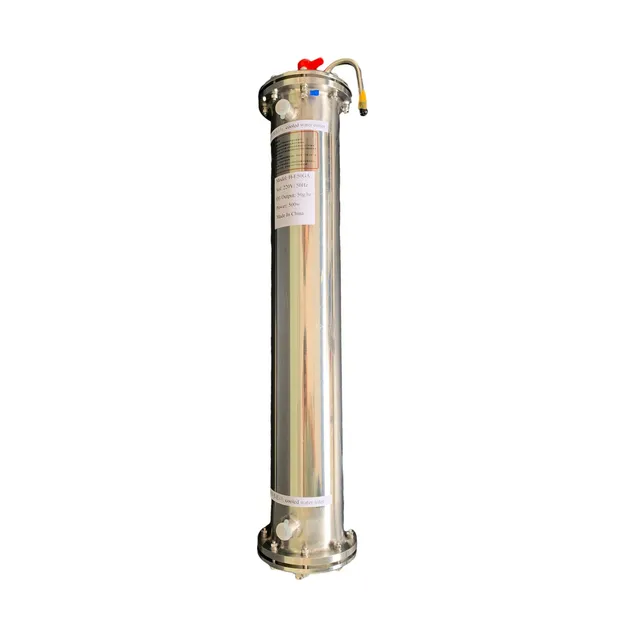

The LEJ-EOG series is a breakthrough in ozone tech, using advanced enamel-coated tubes for durability, efficiency, & precision. With outputs from 20G to 400G, these water-cooled tubes meet industrial ozone needs, including water treatment, air purification, & oxidation processes.

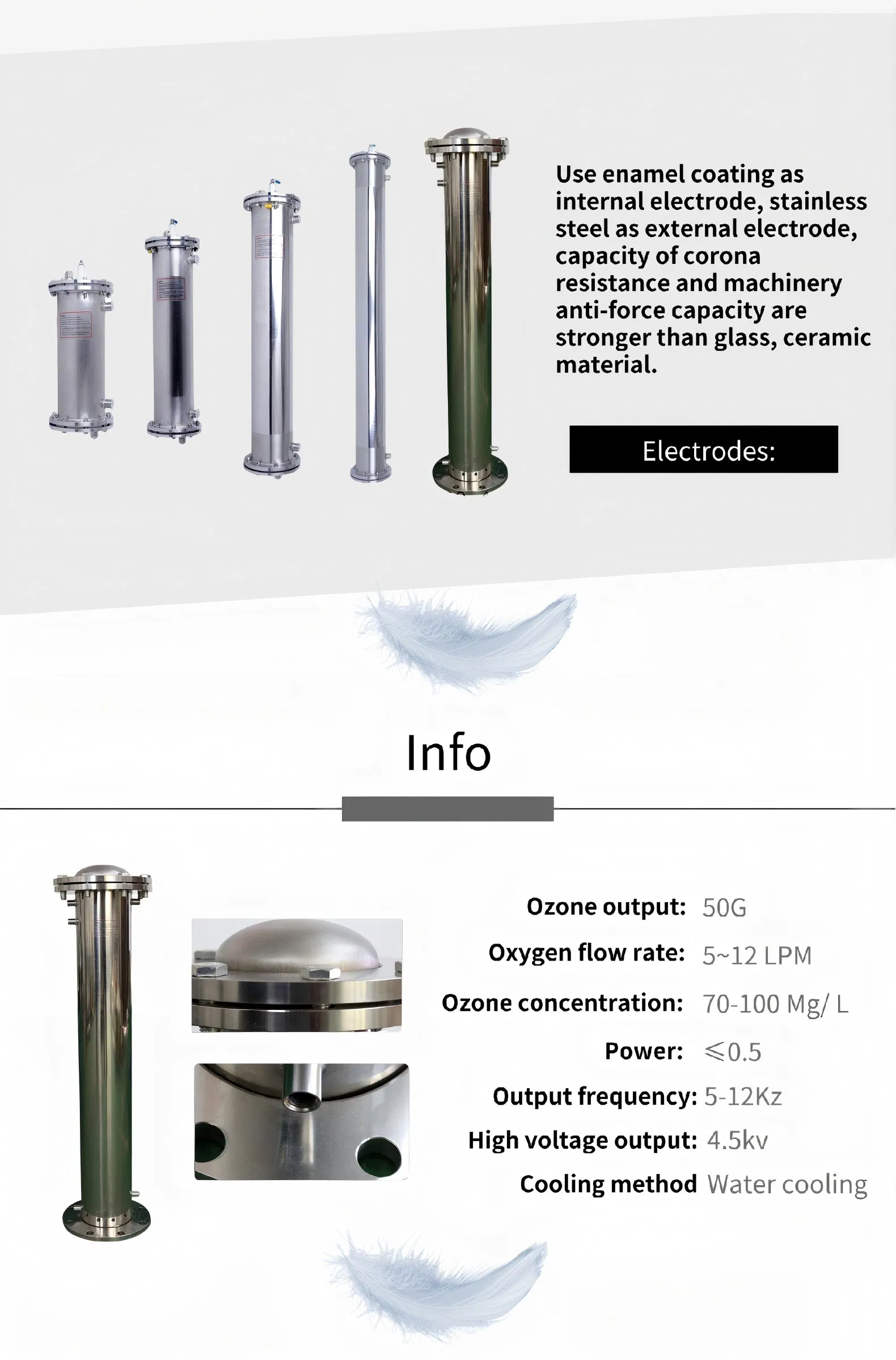

Superior Material Construction: At the LEJ-EOG series core is enamel as the internal electrode, unlike glass or ceramic. It offers excellent corona resistance & mechanical strength, ensuring long-term reliability in high-voltage use. The external high-grade stainless steel electrode provides conductivity & corrosion resistance. This robust combo withstands stress & fatigue, extending service life & reducing maintenance.
Efficient Water Cooling System: Efficient thermal management is key for ozone efficiency & tube longevity. The LEJ-EOG series' water-cooling system maintains stable temps, ensuring consistent output & preventing thermal degradation. This method is ideal for high-duty applications where air cooling falls short.
Application Versatility: With robust construction & high output, the LEJ-EOG enamel tubes suit diverse applications like municipal water treatment, wastewater processing, aquaculture sanitation, & large-scale disinfection. It delivers high-concentration ozone reliably, preferred by engineers seeking durable, high-performance solutions.
| Model | 20G | 30G | 50G | 70G | 80G |
|---|---|---|---|---|---|
| Ozone output | 20g/hr | 30g/hr | 50g/hr | 70g/hr | 80g/hr |
| Oxygen flow (LPM) | 3~5 | 3~8 | 5~12 | 5~16 | 8~20 |
| Concentration (Mg/L) | 35-60 | 40-70 | 70-100 | 80-110 | 80-120 |
| Power (Kw) | ≤0.2 | ≤0.3 | ≤0.5 | ≤0.7 | ≤0.8 |
| Cooling Water | 2L/MIN | 3L/MIN | 5L/MIN | 6L/MIN | 6L/MIN |
LEJ Ozone Solutions offers comprehensive ozone systems for industrial, environmental, and commercial uses. Our UV-based ozone analyzers, combined with custom solutions, serve water purification, air sanitation, and odor control needs. With real-time monitoring and automated functions, our systems deliver reliable performance continuously. We serve water facilities, food plants, pharmaceutical cleanrooms, and research sites globally.
