Product Description

Basic Information

Material:

Alumina, Alumina Ceramics

Type:

Wear Resistant Ceramic

Standard:

ISO9001

Alumina Content:

92% Al2o3 or 95% Al2O3

Density:

3.60-3.70 g/cm3

Features:

Plain Plate, Plain Tile, Smooth

Production Capacity:

5000 Ton/Year

Product Description

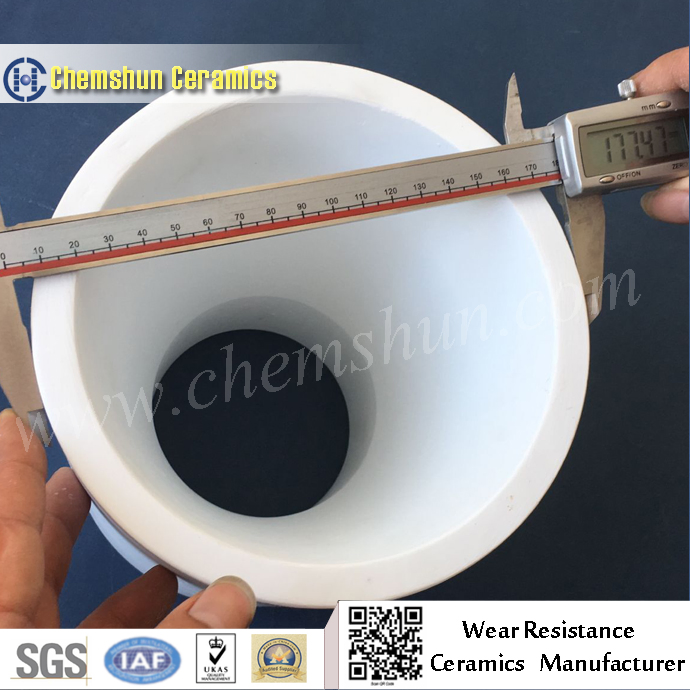

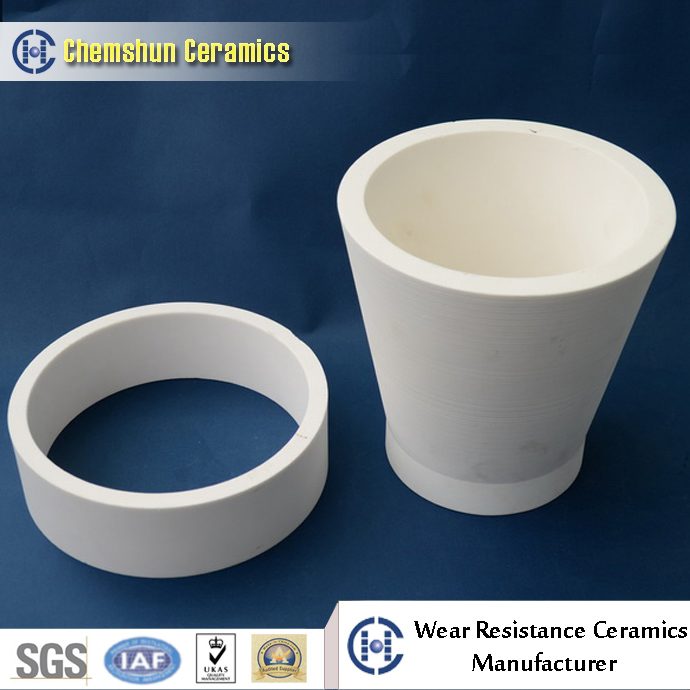

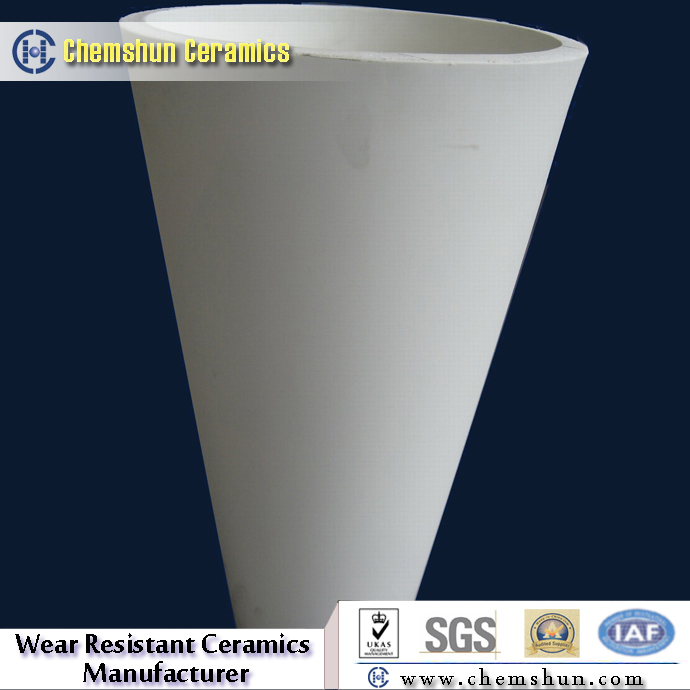

Customized Ceramic Lined Cyclone

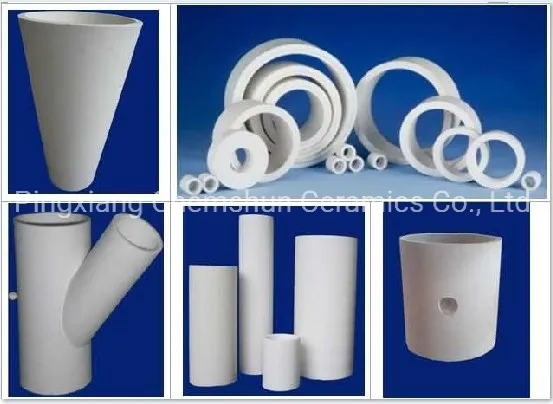

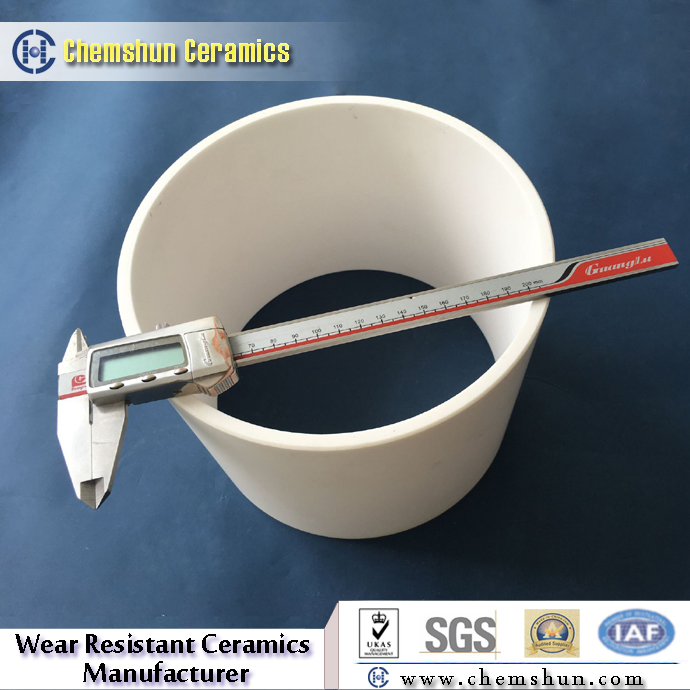

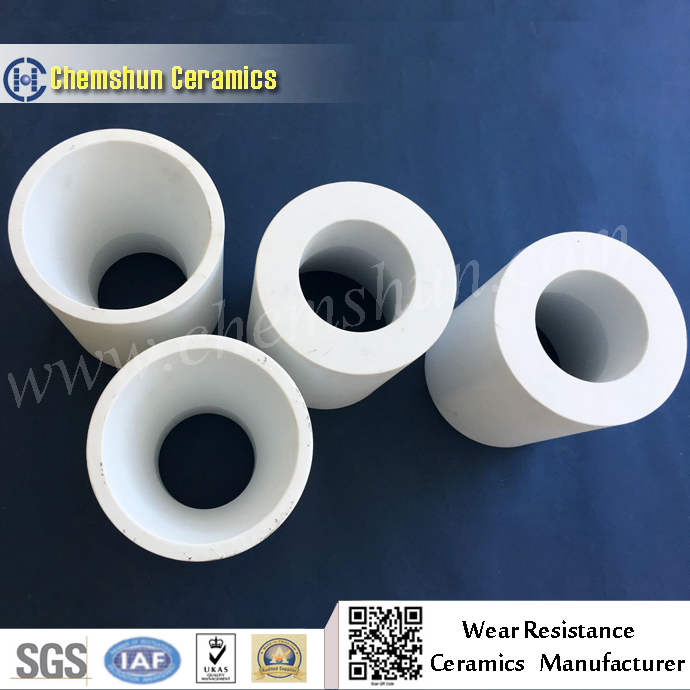

Alumina ceramic tube, bend and elbow have exceptional hardness and strength, resistance to wear and chemical attack. It is especially used as the ceramic pipe liner of the pipeline and can protect the steel pipe for excessive wear and extend the use life. This kind of ceramic tube is easy for installation and diameter can be varied from 10mm to 500mm. Shape can be straight tube, bend tube or Y-piece with the properties of smooth surface, no gap and good abrasion and impact resistant ability.

Key Features

Wear resistant

Impact resistance

High hardness

Corrosion & chemical resistance

Low maintenance cost

Good fluidity & Smooth surface

Technical Dimensions

Product	ID(mm)	OD(mm)	Thickness(mm)	Length(mm)	R(mm)	Degree
Straight Tube	76	106	15	150-250	/	/
Straight Tube	100	140	20	305	/	/
Straight Tube	150	185	17.5	150-250	/	/
Bend	76	106	15	/	400	7.5
Bend	150	185	17.5	/	1500	3

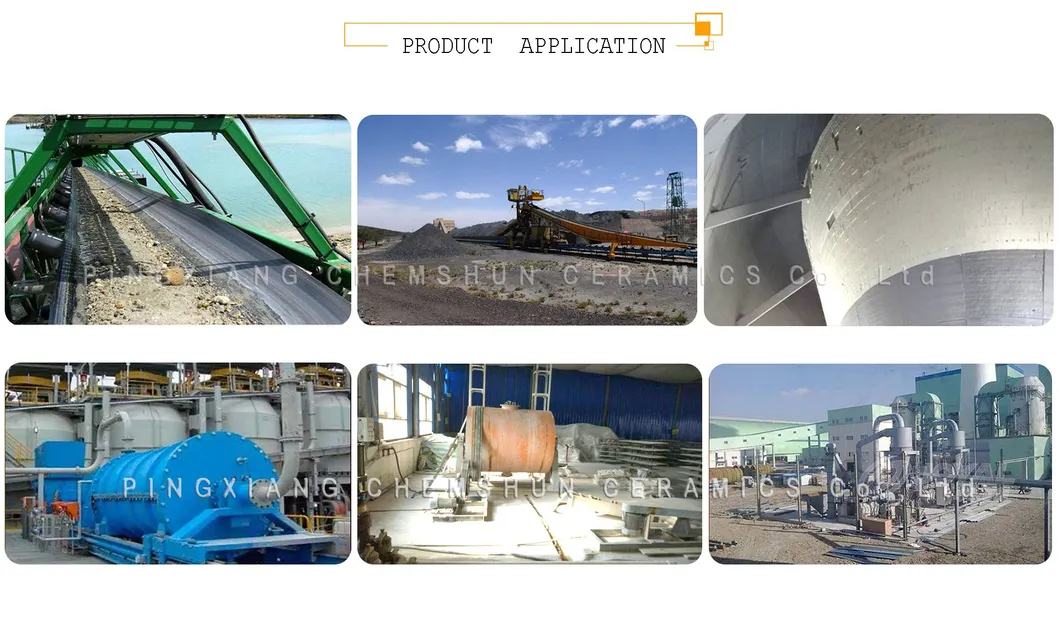

Industry Applications

Industry	Equipment system	Equipment parts
Cement	Raw mill system	Feed chute, cyclone, powder concentrator body
Steel	Batching system	Mixing bunker, mixing barrel, disk pelletizer
Thermal power	Coal handling system	Coal hopper, coal feeder, orifice
Mining	Transporting material system	Hopper, silo

Technical Data Sheet

Attributes	Unit	92 Alumina I	95 Alumina
Alumina Content	%	92	95
Density	g/cc	≥3.60	>3.65
Rock Well Hardness	HRA	80	87
Compressive strength	Mpa	850	870

Product Showcase

Frequently Asked Questions

Q1: What are the primary benefits of using alumina ceramic linings? A1: Alumina ceramic linings provide exceptional wear and impact resistance, significantly extending the lifespan of steel pipes and equipment while reducing maintenance costs and downtime.

Q2: Can the ceramic tubes be customized to specific sizes? A2: Yes, the diameter can vary from 10mm to 500mm, and we can design various shapes including straight tubes, bends, and Y-pieces based on customer requirements.

Q3: Which industries commonly use these ceramic solutions? A3: They are widely used in the mining industry, power plants, steel plants, cement plants, and chemical industries for handling abrasive bulk materials.

Q4: How does the smooth surface of the ceramic help in production? A4: The smooth surface ensures excellent fluidity, allowing materials to flow freely without blocking, which maintains a consistent production rate.

Q5: What is the maximum operation temperature for these ceramics? A5: Depending on the alumina content (92% or 95%), the maximum operation temperature ranges between 1450ºC and 1500ºC.

Q6: Are samples available for testing? A6: Yes, samples are available for quality evaluation and store testing.
