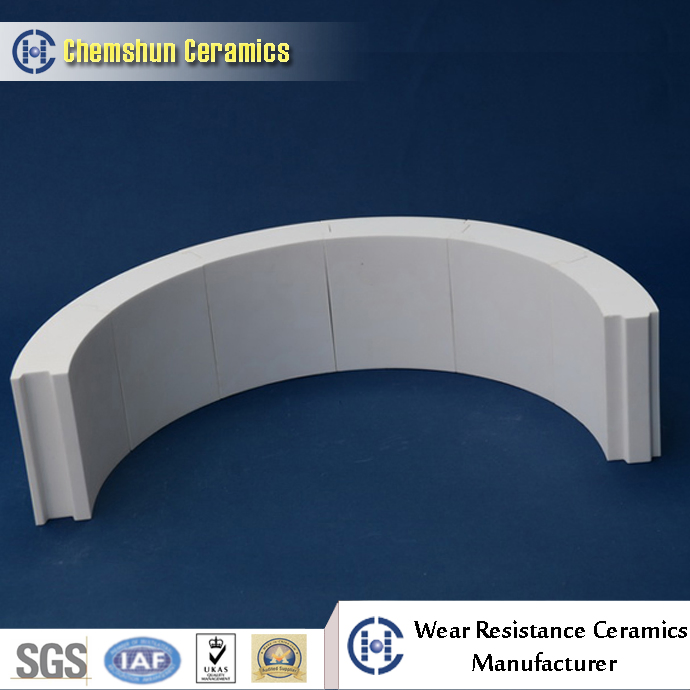

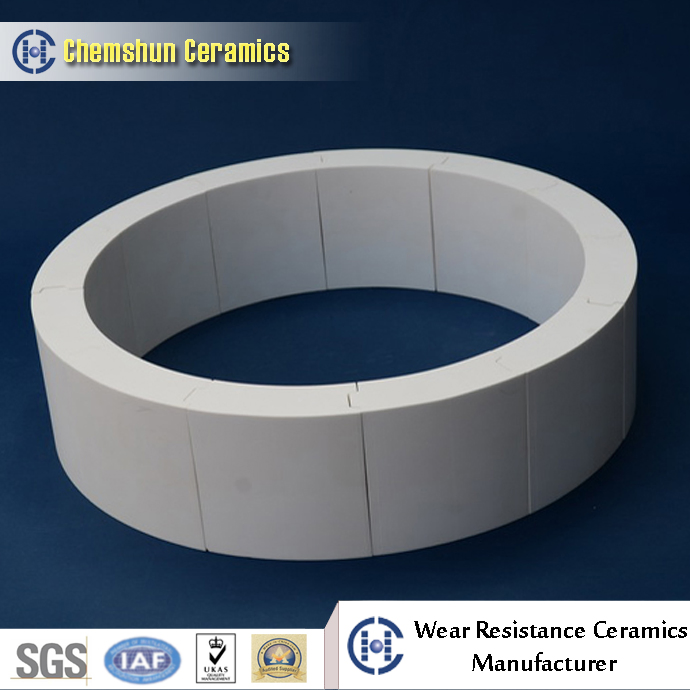

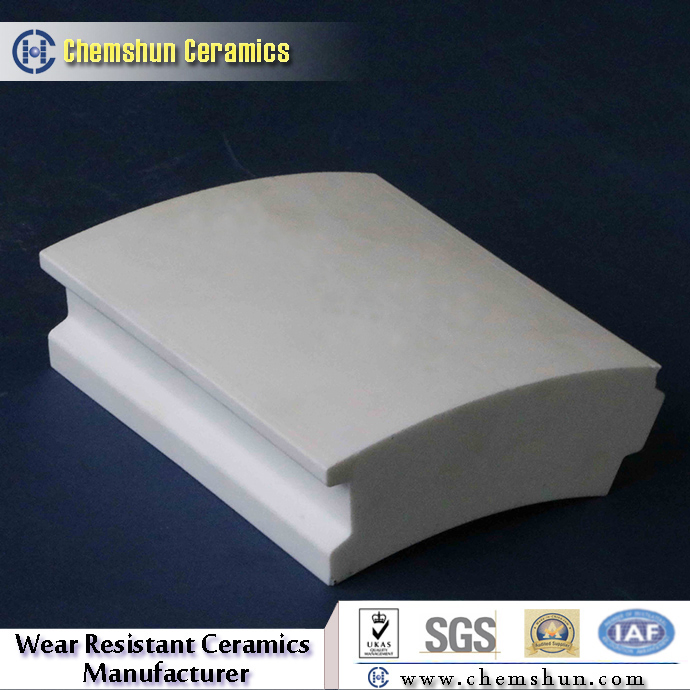

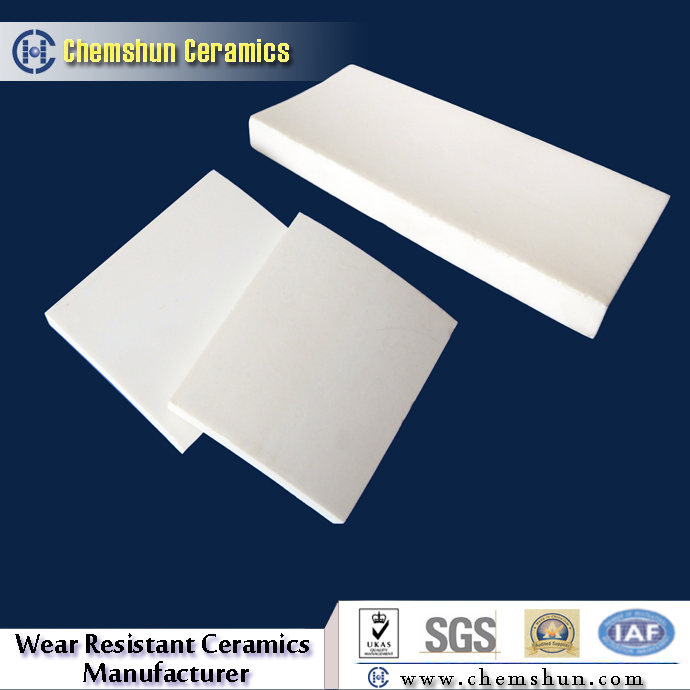

Ceramic wear resistant cone tiles (Al2O3: 92% 95%)

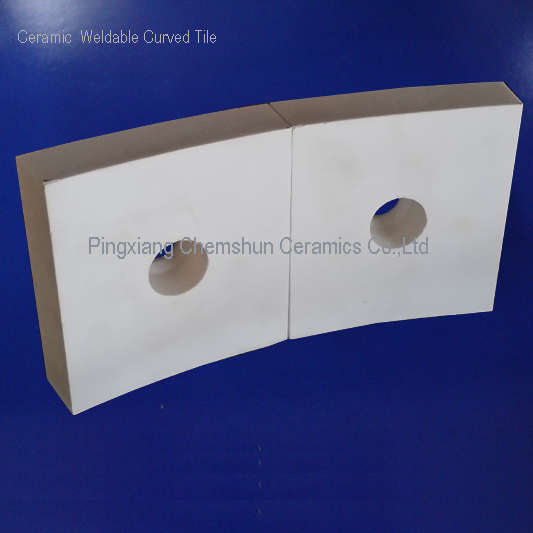

Wear resistant curved tile with interlocking / Alumina pipe tile with hole
Basic Information
Model NO.
chemshun ceramics
Shape
Custom Shape, Tile with Hole
Thickness
Customized Thickness
Alumina Content
92% or 95%
Installation
Welding, Bonded or Bolt Fastening
Product Description
These Alumina Ceramic Tiles with hole and dot are used as lining with advantages of wear-resisting, impact resisting, and easy operation. It is an ideal surface wear-resisting material for equipment in iron & steel works, thermal & power plants, and mines, effectively extending the operating life of equipment.
| Feature |
High purity; High hardness; Weldable |
| Benefit |
Excellent anti-resistant and corrosion resistance; Excellent anti-impact; Easy to pack and install; Abrasion resistance is 266 times that of manganese steel. |
| Application |
Used for ceramic rubber plate for anti-wear lining; Component of ceramic bearings; Chutes, hoppers, bunkers, conveyors. |
Technical Specifications
| Technical Property |
Unit |
92% AL |
95% AL |
| Density | g/cc | 3.60 | 3.68 |
| Flexural Strength | Mpa | 275 | 300 |
| Rockwell Hardness | R45N | 75 | 78 |
| Vickers Hardness | Kg/mm2 | 1050 | 1120 |
| Max. Use Temp. | ºC | 1250 | 1250 |
Available Sizes (Length*Width*Thickness)
| 150*100/95.63*50mm | 150*100/95.34*50mm | 150*50/46*25 mm |
| 157*100*48/35 mm | 100/68*102/70*50 mm | 125/62.2*102*50mm |
| 80*23.9/22.1*20 mm | 80*25.5/22.7*10mm | 25.4*25.4/24.4*12.7mm |
| Note: More sizes and customized dimensions are acceptable. |
Product Gallery

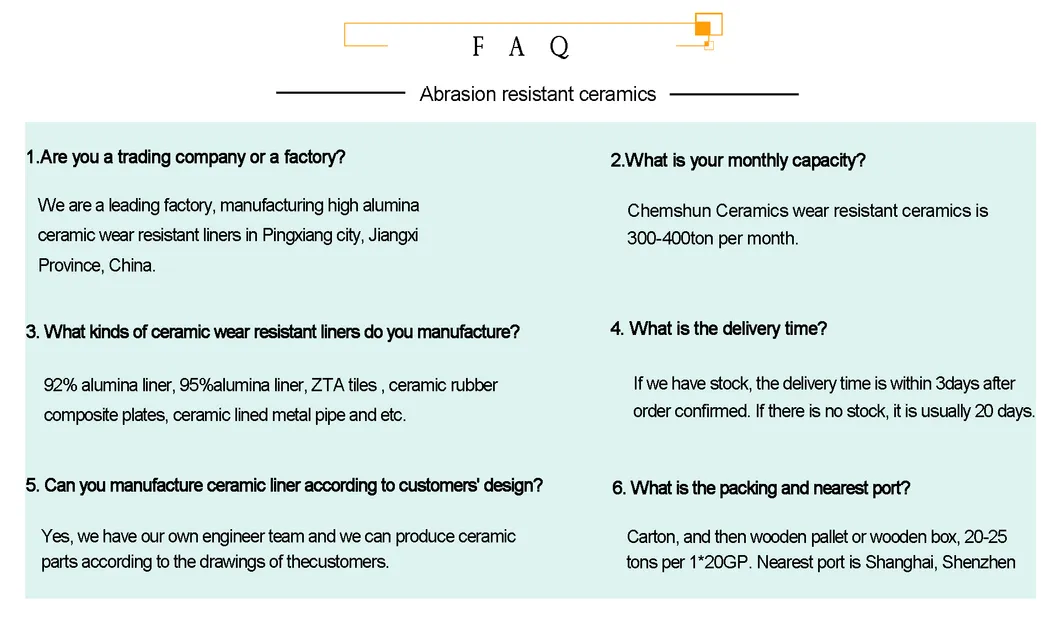

Frequently Asked Questions
What are the primary benefits of using Alumina Ceramic Tiles?
They offer extreme hardness and wear resistance (266 times higher than manganese steel), excellent corrosion resistance, and are easy to install, which reduces maintenance downtime.
What industries commonly use these ceramic linings?
They are widely used in steel plants, power plants, refineries, cement plants, and the mining industry for material handling equipment.
Can the tiles be customized for specific equipment?
Yes, we provide custom shapes and sizes, including curved tiles and tiles with holes, to fit various equipment like chutes, hoppers, and pipes.
What is the difference between 92% and 95% Alumina content?
95% Alumina has higher density (3.68 g/cc), higher flexural strength (300 Mpa), and better Vickers hardness compared to the 92% series, making it suitable for even more demanding environments.
How are these ceramic tiles installed?
They can be installed using welding, high-strength bonding agents, or bolt fastening methods depending on the application and equipment type.
What is the annual production capacity for these products?
The facility has a production capacity of 5,000 tons per year, ensuring stable supply for large industrial projects.
