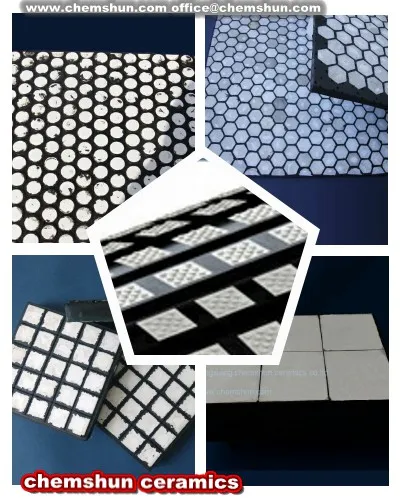

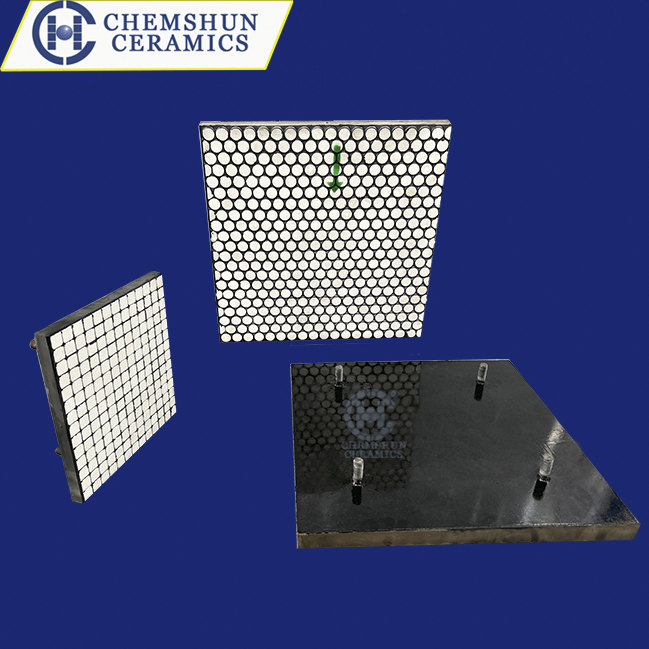

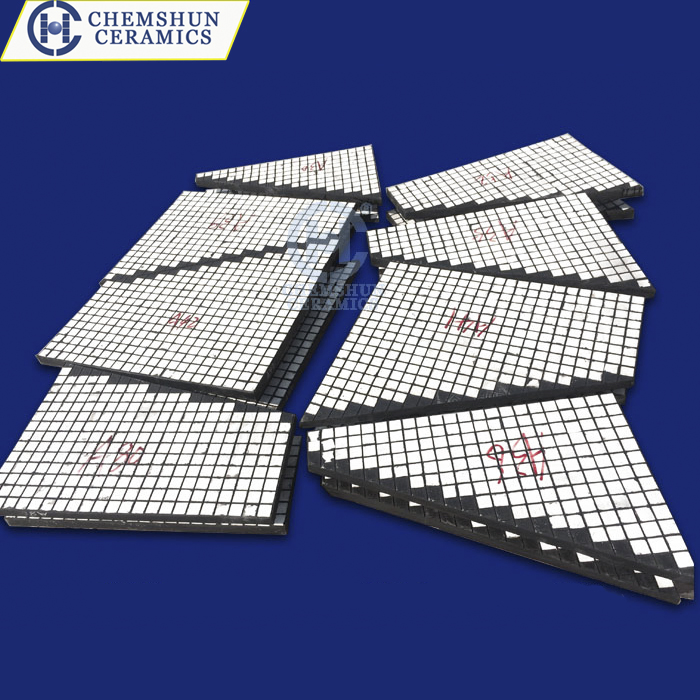

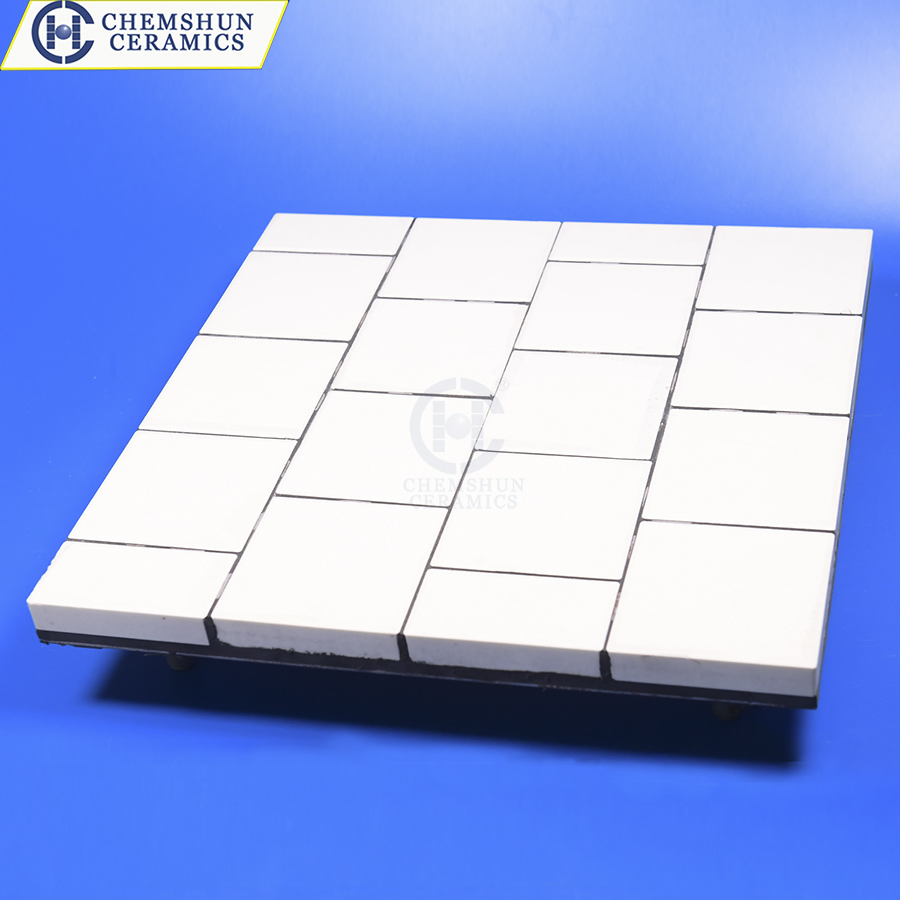

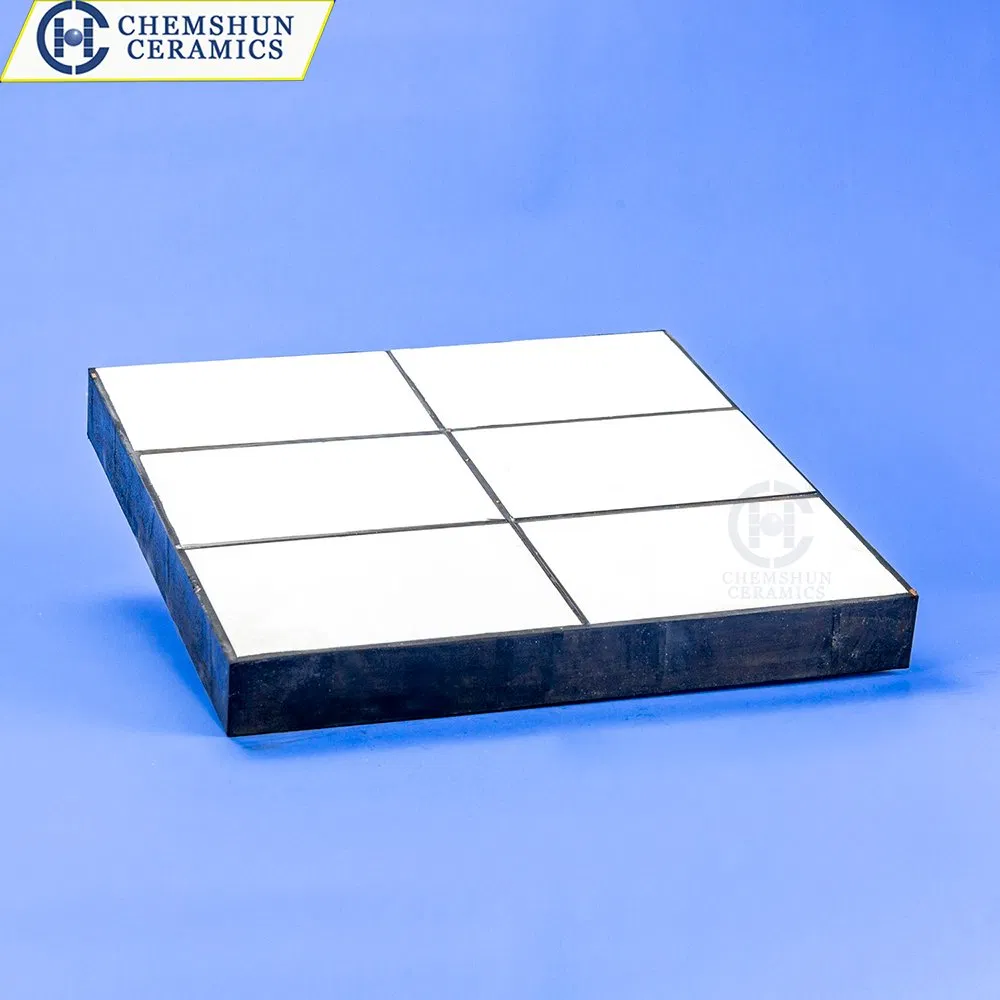

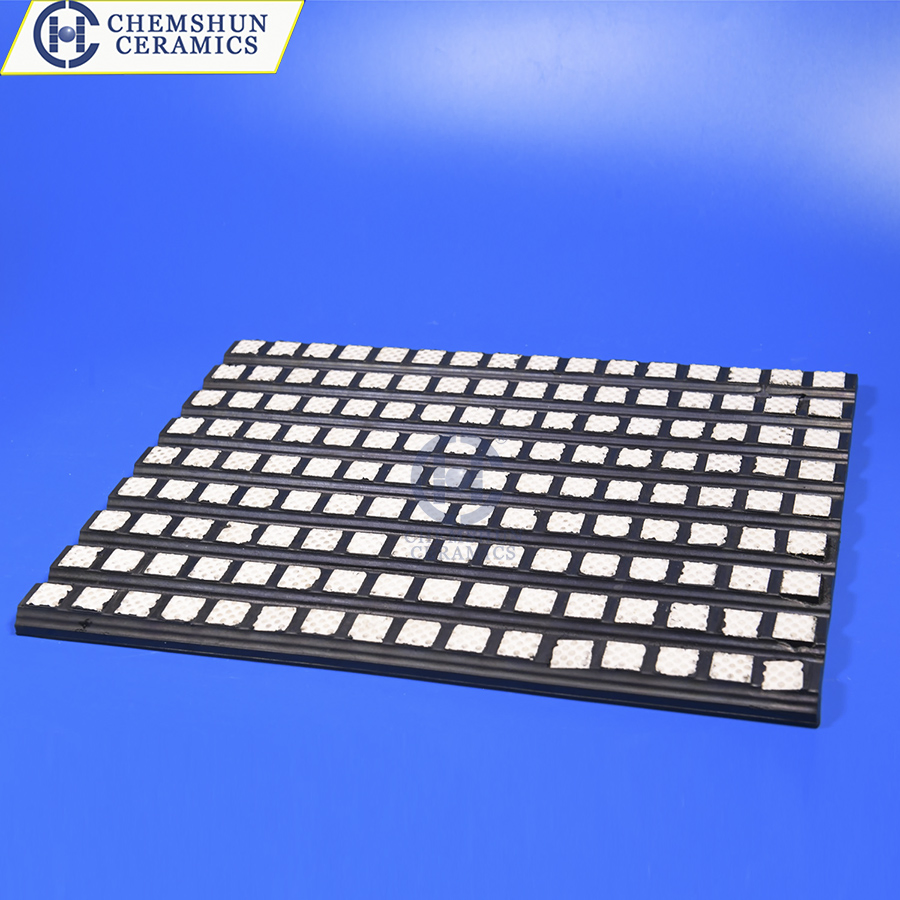

Alumina Ceramic Lining Tile is a high-performance wear liner plate designed for mining and cement plants. The ceramic rubber compound lining plate combines high alumina ceramics with excellent natural rubber through a specialized process. This combination provides exceptional damping performance, significantly reducing noise during material transportation while solving issues related to impact and abrasion.
| TYPE | SIZE (mm) | CERAMIC TYPE | CERAMIC (mm) | RUBBER (mm) | STEEL (mm) |
|---|---|---|---|---|---|
| Ceramic Wear Liner | 300 x 300 x 25 | Cylinder/Hex/Block | 13 | 6 | 6 |
| Ceramic Wear Liner | 300 x 300 x 37 | Cylinder/Hex/Block | 25 | 6 | 6 |
| Ceramic Wear Liner | 300 x 300 x 50 | Cylinder/Hex/Block | 38 | 6 | 6 |
| Ceramic Wear Liner | 510 x 510 x 30 | Cylinder/Hex/Block | 20 | 5 | 5 |
| Ceramic Wear Liner | 600 x 600 x 25 | Cylinder/Hex/Block | 20 | 5 | 0 |

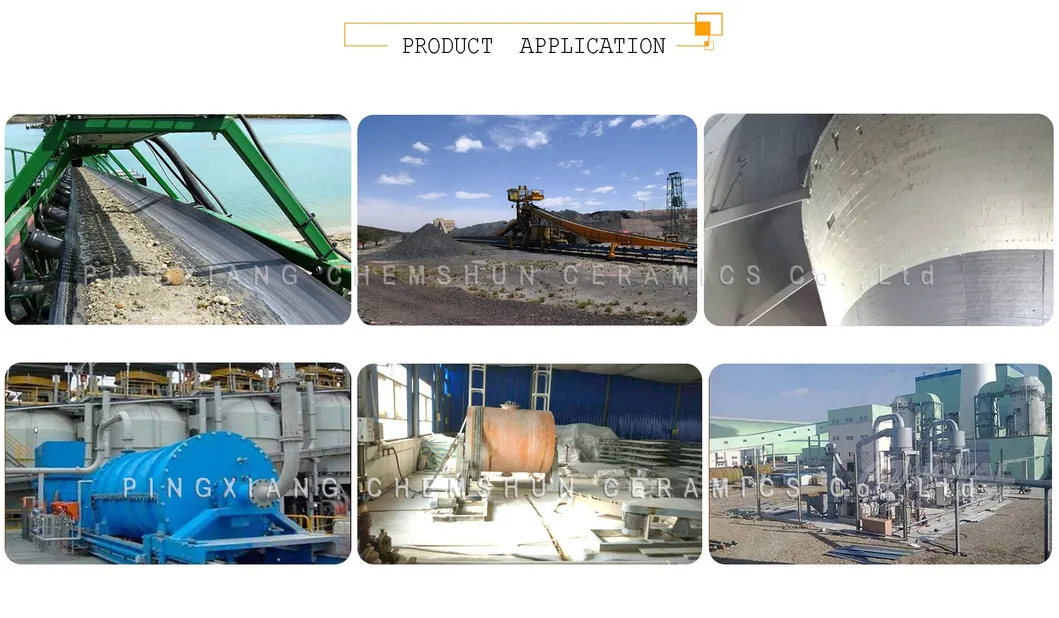

| Industry | Equipment System | Parts Protected |
|---|---|---|
| Cement | Raw/Cement Mill System | Feed Chute, Bunker, Silo |
| Steel | Sintered Material Transport | Hoppers, Coking Systems |
| Thermal Power | Coal Handling System | Coal Hopper, Coal Feeder |
| Mining | Transporting Material System | Transfer Point Chutes, Bins |
| Chemical | Material Handling | Silos, Batching Hoppers |
| Property | Unit | 92% Al2O3 | 95% Al2O3 | ZTA |
|---|---|---|---|---|
| Density | g/cm³ | 3.60 | 3.65 | 4.20 |
| Vickers Hardness | Kg/mm² | 1150 | 1200 | 1300 |
| Rubber Tensile Strength | Mpa | 25 | ||
| Rubber Hardness | Shore A | 60±5 | ||
| Working Temp | ºC | -20 to 100 | ||
