Home > Steel-Ceramic Composite Wear Sleeves > Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining

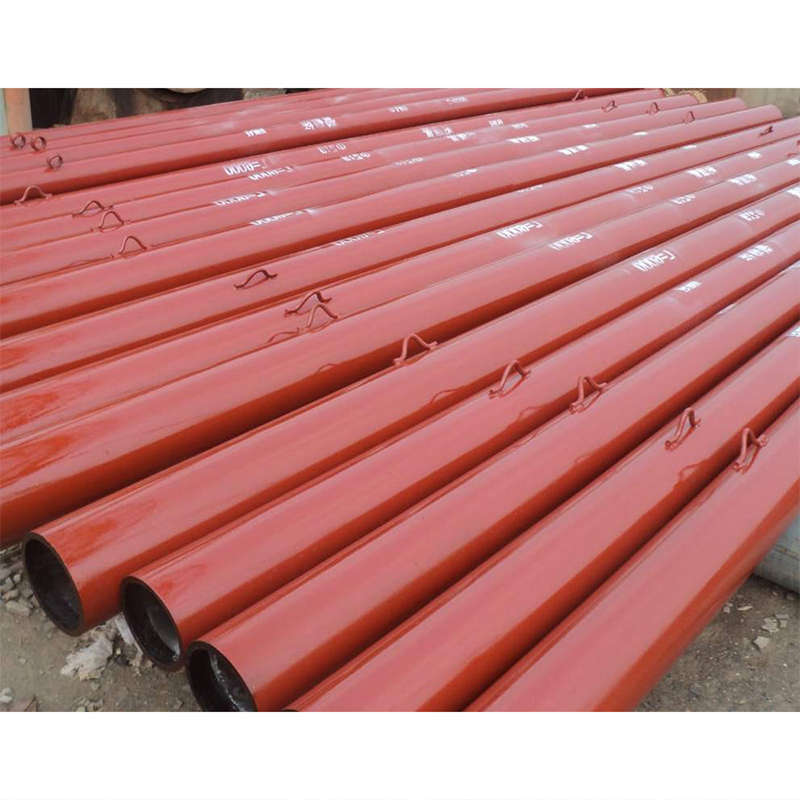

Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining
Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining
Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining
Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining
Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining
1 / 5
Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining
Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining
Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining
Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining
Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining

Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining

Customization: Available
Standard: GB, Hg, Jb, Yb
Application: Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard, Metallurgy, Mining, Coal, Cement
Send Inquiry

Product Description

Industrial Wear-Resistant High Strength Composite Carbon Steel Pipe with Ceramic Lining

Huazhan Composite Ceramic Steel Pipe

Basic Information
Model NO.Ceramic Lined Pipe
MaterialStainless steel
TypeWear Resistant Pipe
CapabilitiesODM, OEM
Pipe ClassNot Rated
ShapeEqual / Round Head Code
Production Capacity5000ton/Year
Product Description
Composite ceramic steel pipe is a new type of composite material manufactured by the self-propagating high-temperature synthesis method (SHS). It forms a dense corundum ceramic (AL2O3) layer at temperatures above 2000 ℃, creating a firm metallurgical bond with the steel pipe through a transition layer.

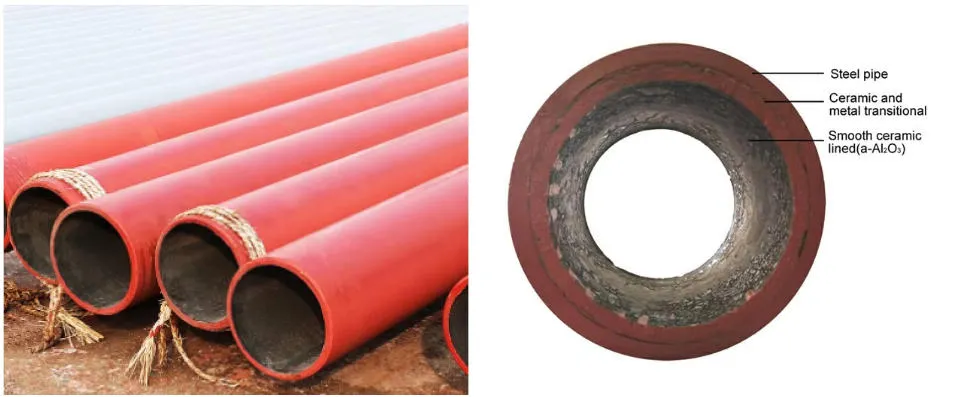

Ceramic Lining View

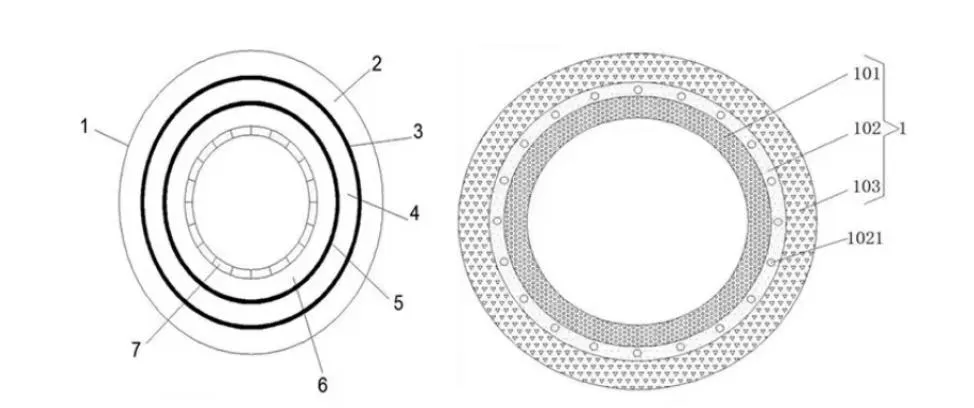

Pipe Details

Key Features:

  • Good corrosion and wear resistance.
  • High strength and toughness.
  • Strong resistance to mechanical and thermal shock.
  • Full processing capabilities: turning, grinding, and welding.
Technical Parameters
No.Pipe Dia.Wall ThicknessWear Layer No.Pipe Dia.Wall ThicknessWear Layer
1688/104181688/104
2708/104191808/104
5838/1042221910/124/5
101148/1042735112/145/6
Support customization of various sizes.

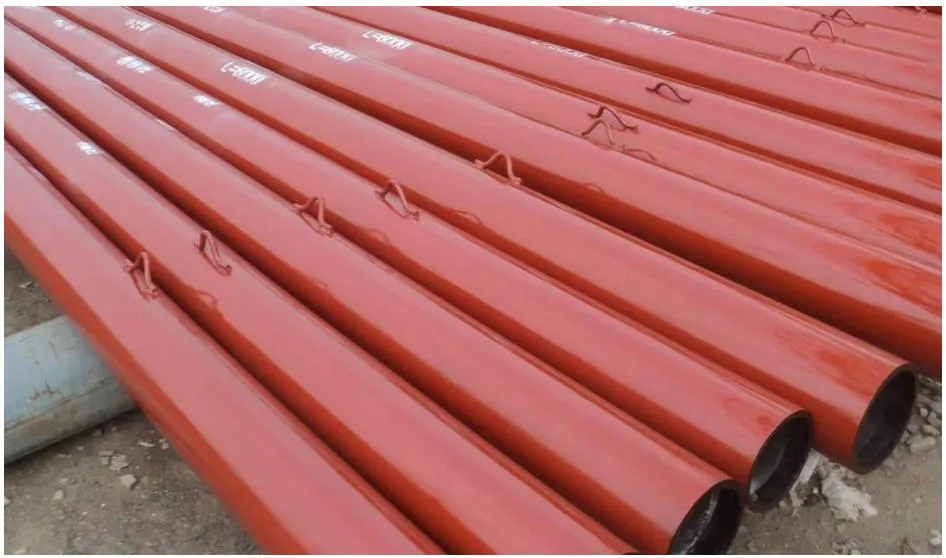

Product Gallery 1

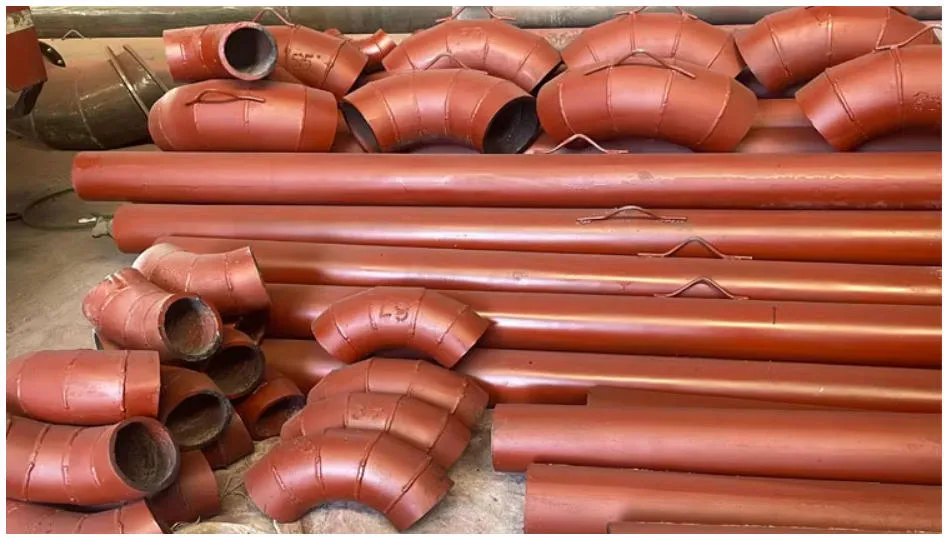

Product Gallery 2

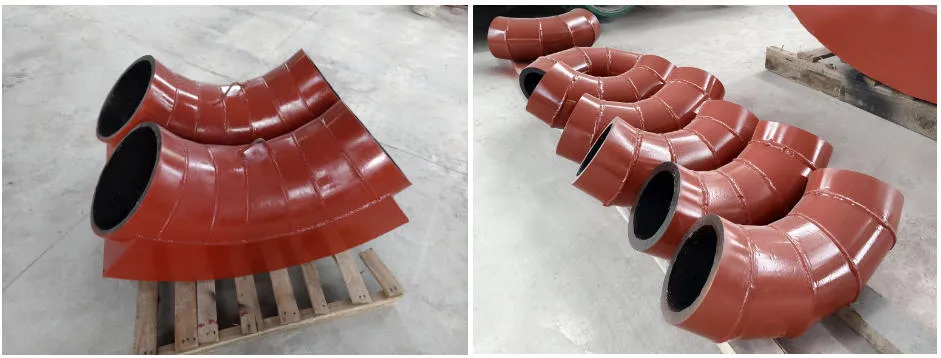

Product Gallery 3
Advantages
  • Low running resistance: Smooth inner surface ensures efficient flow.
  • Cost-Effective: Reduces engineering costs by 20-30% compared to wear-resistant steel pipes.
  • Temperature Resistance: Operates normally from -50°C to 900°C.
  • Easy Installation: Lightweight design allows for welding or flange connections.
Industrial Application
Industrial Application

Ceramic lined pipes are essential in mining, power generation, oil and gas, and chemical processing. They provide exceptional protection against abrasion and corrosion while maintaining non-toxic hygiene standards for chemical handling.

Production Facility
Company Facility

Frequently Asked Questions

What is a ceramic lined composite steel pipe?
It is a pipe consisting of an inner corundum ceramic layer, a transition layer, and an outer steel pipe layer, bonded through high-temperature synthesis for extreme wear resistance.
What temperature range can these pipes withstand?
These pipes can operate efficiently in temperatures ranging from -50°C to 900°C.
How are the pipes installed?
They are lightweight and can be connected using conventional methods such as welding or flanges, making construction convenient.
In which industries are these pipes used?
They are widely used in mining, coal-fired power plants for ash removal, oil and gas, and chemical processing plants.
Do you support custom sizes?
Yes, we support customization for various diameters, wall thicknesses, and shapes like elbows and tees.
Why is the project cost lower with these pipes?
Despite the high-tech material, their light weight reduces support costs, handling fees, and installation time, resulting in a 20-30% saving over traditional wear-resistant steel.
