Model NO.:DB-TCM
Material:Ceramic, Rubber/Polyurethane and Steel Mild Plate
Type:Composite Wear Liner
Process:Hot Vulcanizing Process
Al2O3:92%
Certificate:ISO9001:2008, SGS
HS Code:6902200000
Capacity:10000 PCS/Month
Product Description

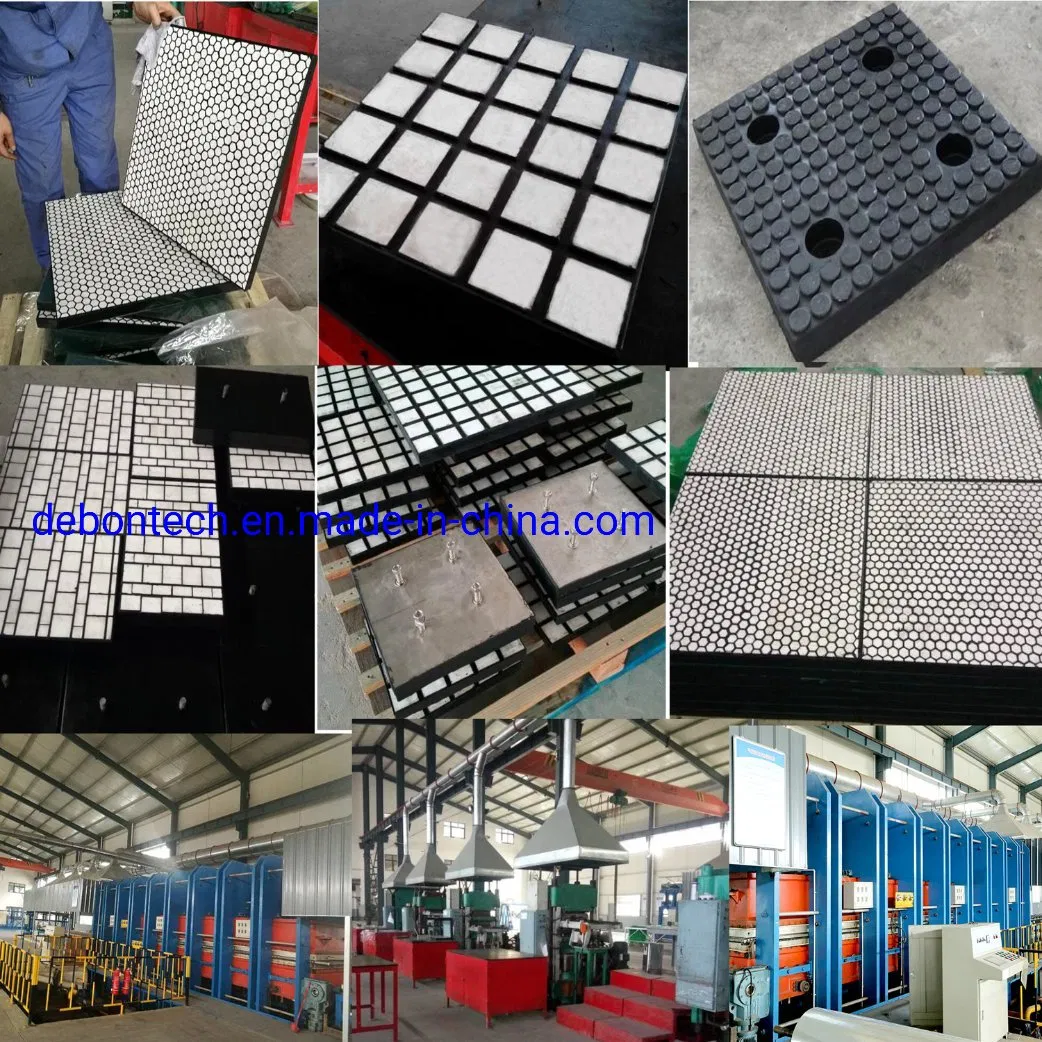

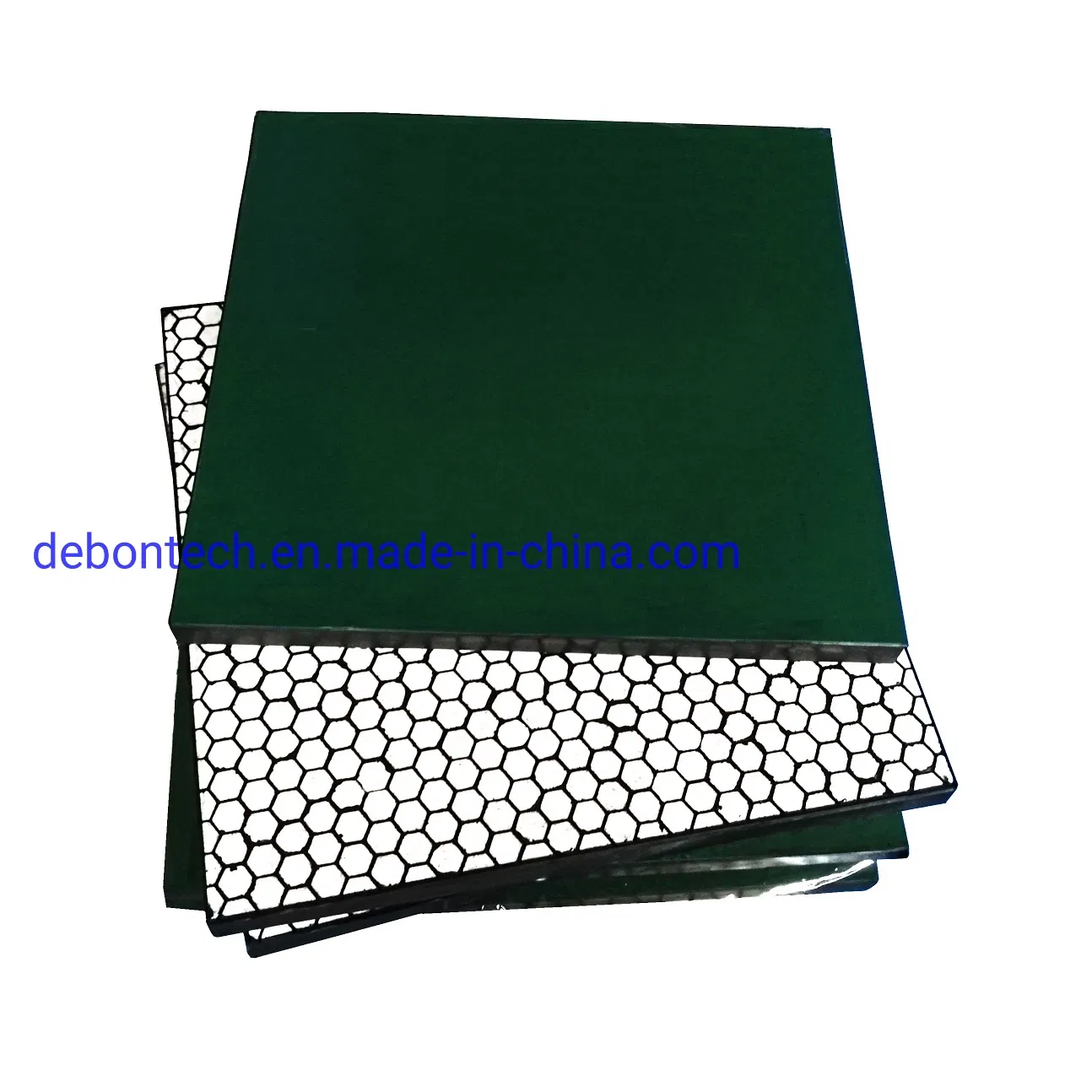

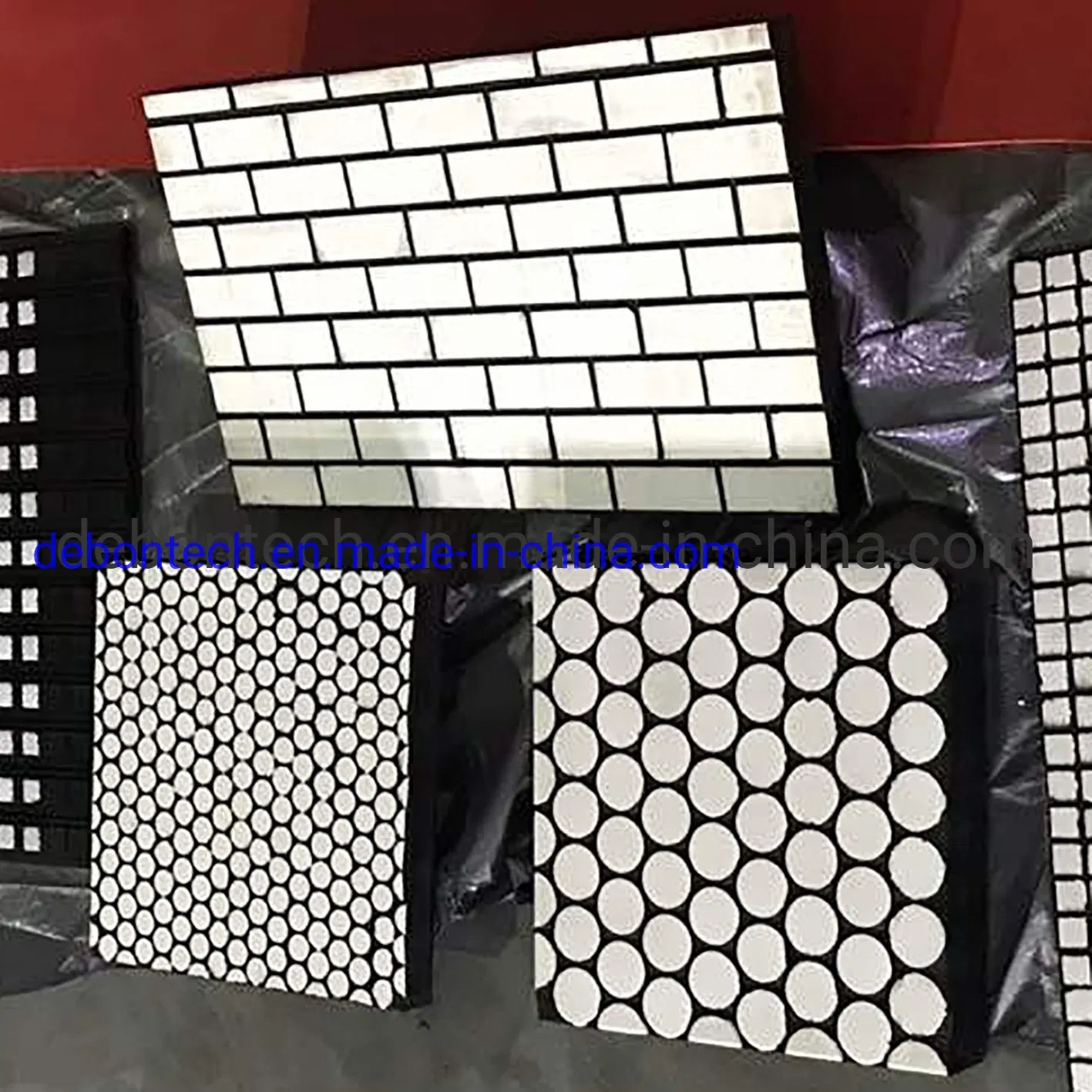

Composite cylinder liner ceramic lining plate rubber embedded ceramic liner
Our Advantages:
✓
Manufacturer dedicated to producing wear liner plates
✓
SG audited supplier
✓
Proven quality standards
✓
Standard and custom-made wear liner to fit your facility

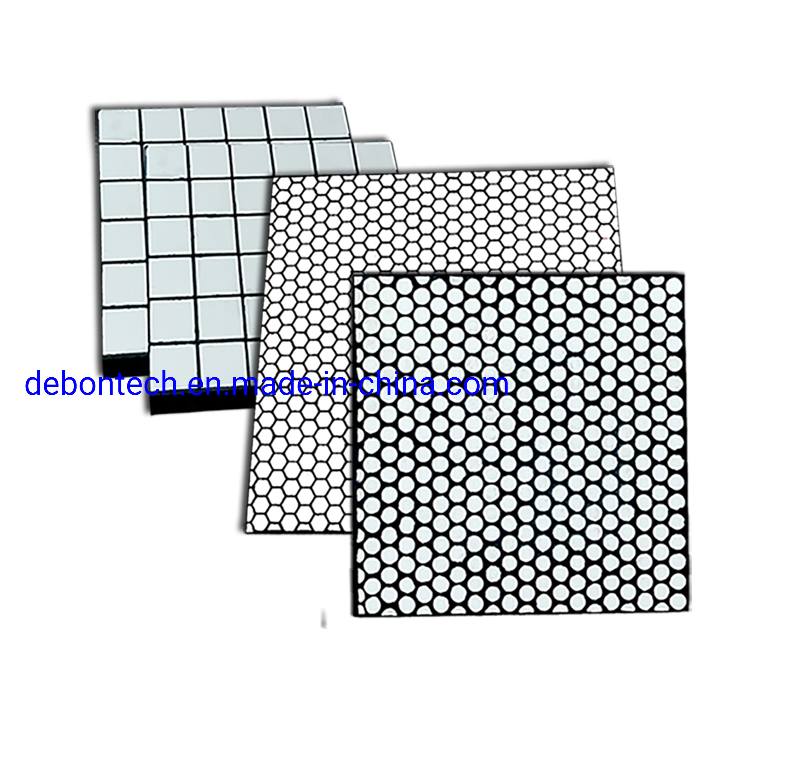

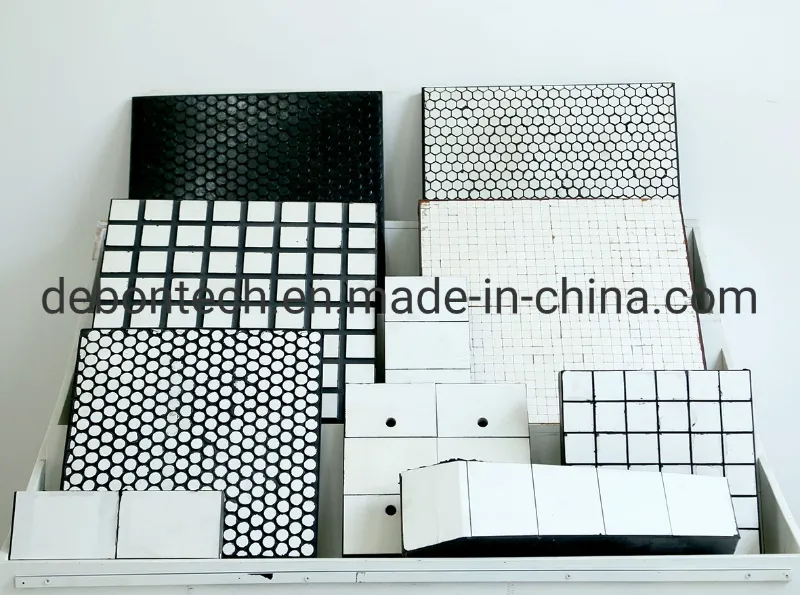

Ceramic Rubber Chute Liners (square, circular, hexagon):
Features & Structure
🔹
High Performance: 92% or 95% Al2O3 ceramic offers excellent wear resistance.
🔹
Shock Absorption: Rubber layer prevents ceramic tiles breakage.
🔹
Easy Installation: Available with stud bolt and weldable installation methods or CN bonding layer.
🔹

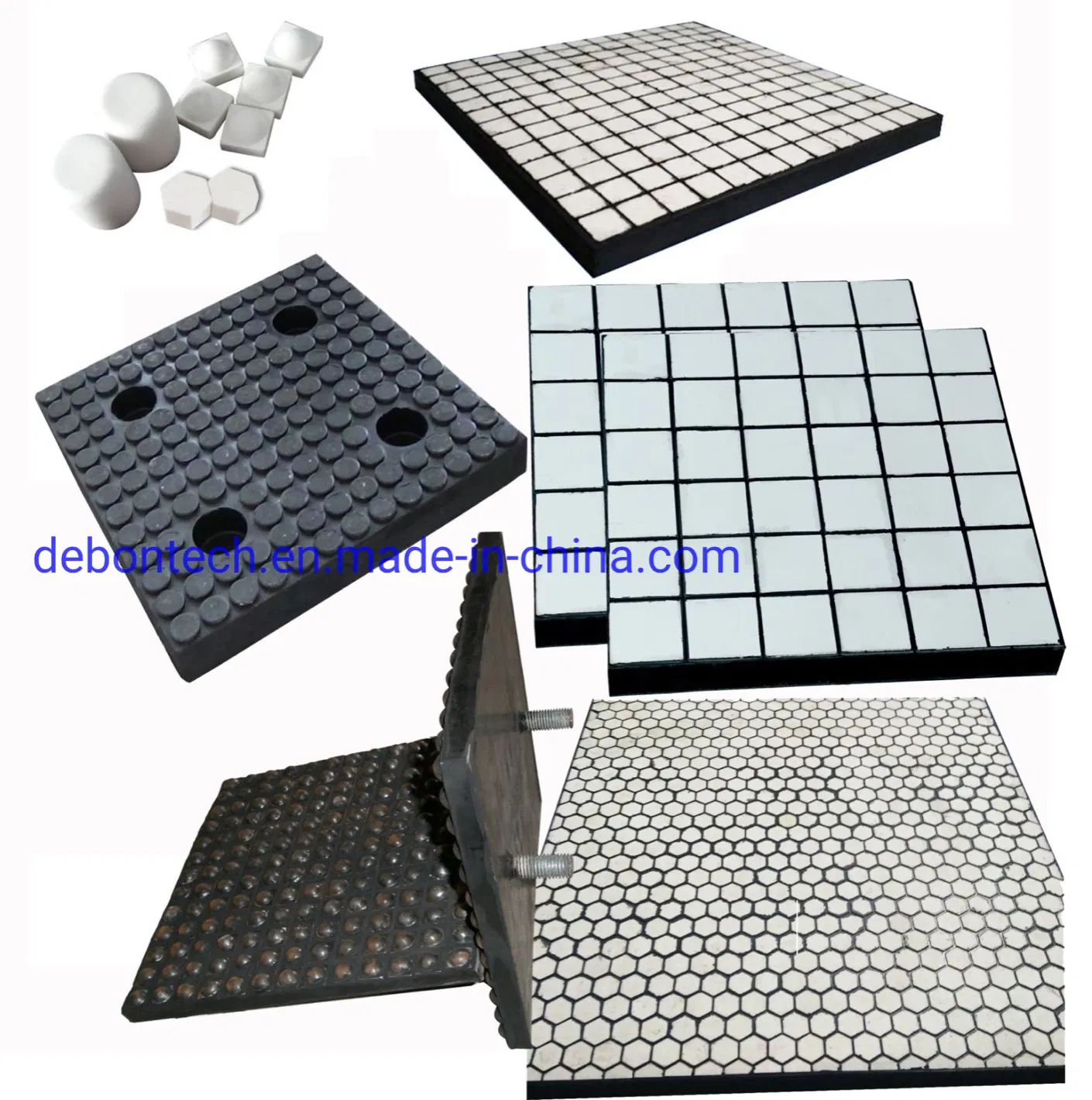

Versatility: Various shapes and sizes of ceramic, bricks, cylindrical, etc.

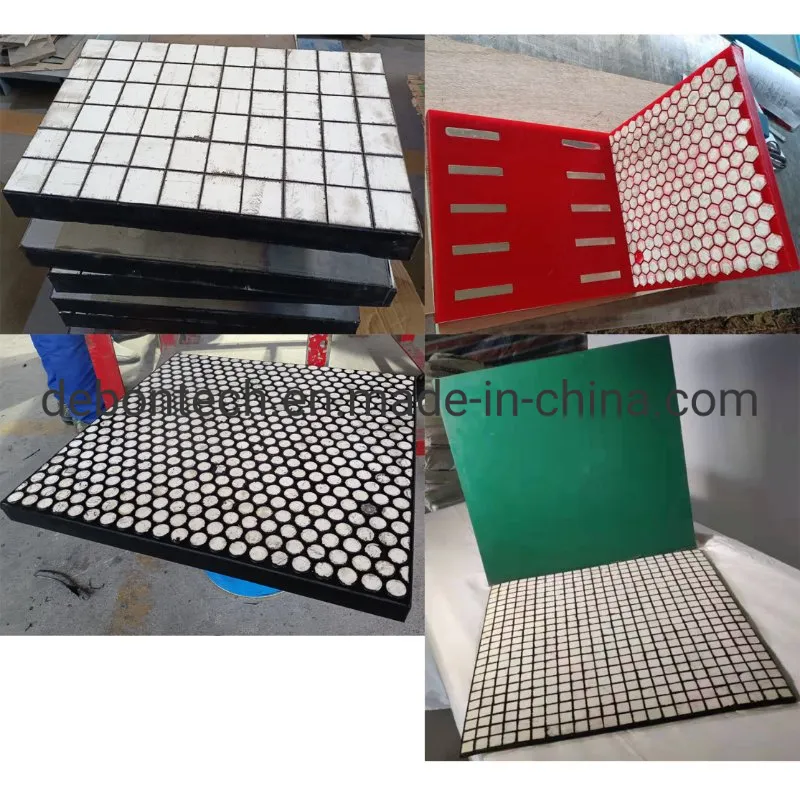

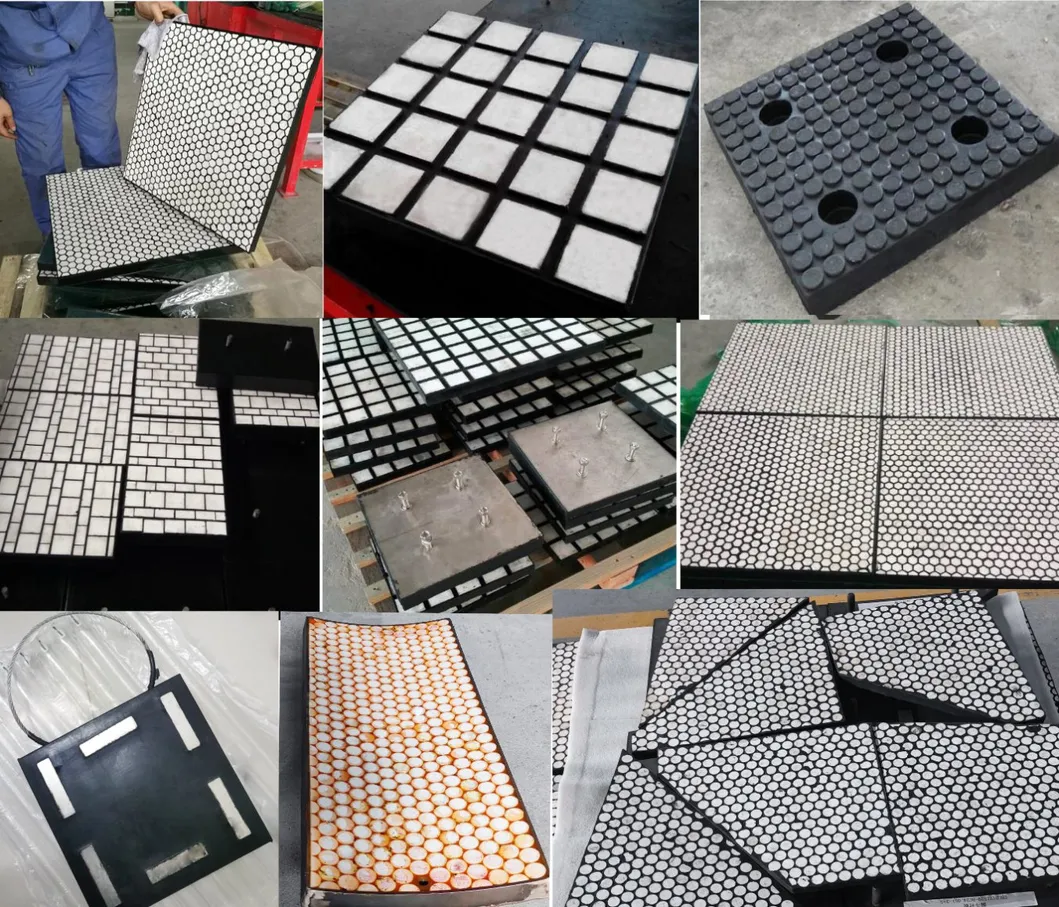

Structure of Ceramic Rubber Liner:
Alumina ceramic + rubber / polyurethane + steel backing plate / CN bonding layer + studs
Standard Specifications
Size of Cylinder Ceramic: Φ20 x 20
Steel backing plate thickness: 6mm
Total thickness: 36mm
Available size: 250 x 250 x 36, 300 x 300 x 36
Size of Cylinder Ceramic: Φ31 x 31
Total thickness: 51mm
Available size: 250 x 250 x 51, 300 x 300 x 51, 500 x 500 x 51
Alumina ceramic available with square, rectangular, cylindrical, or hexagonal shapes. Thickness is determined based on application, handled materials, lump size, and fall height.
Manufacturing Excellence
Specialized in polyurethane and rubber products, wear-resistant liners, and other conveyor accessories for material handling equipment. Equipped with advanced production lines and testing equipment for rubber, polyurethane, and ceramic products to provide custom wear solutions.
Frequently Asked Questions
Q1: What is the main composition of the composite wear liner?
The liner is composed of high-alumina ceramic tiles (92% or 95% Al2O3) embedded into a resilient rubber or polyurethane matrix, often with a steel backing plate for structural support.
Q2: How does the rubber layer help in impact applications?
The rubber layer acts as a cushion that absorbs the kinetic energy of falling materials, preventing the brittle ceramic tiles from cracking or shattering under high impact.
Q3: Can the liners be customized for specific equipment?
Yes, we provide both standard and custom-made wear liners. The size, shape, and thickness can be tailored to fit your specific facility and application requirements.
Q4: What installation methods are available for these plates?
The liners can be installed using stud bolts, weldable methods, or a CN bonding layer for cold vulcanizing adhesion to the equipment surface.
Q5: What are the typical shapes for the ceramic inserts?
We offer a variety of shapes including square, rectangular, cylindrical, and hexagonal tiles to suit different wear patterns and flow requirements.
Q6: In which industries are these liners most commonly used?

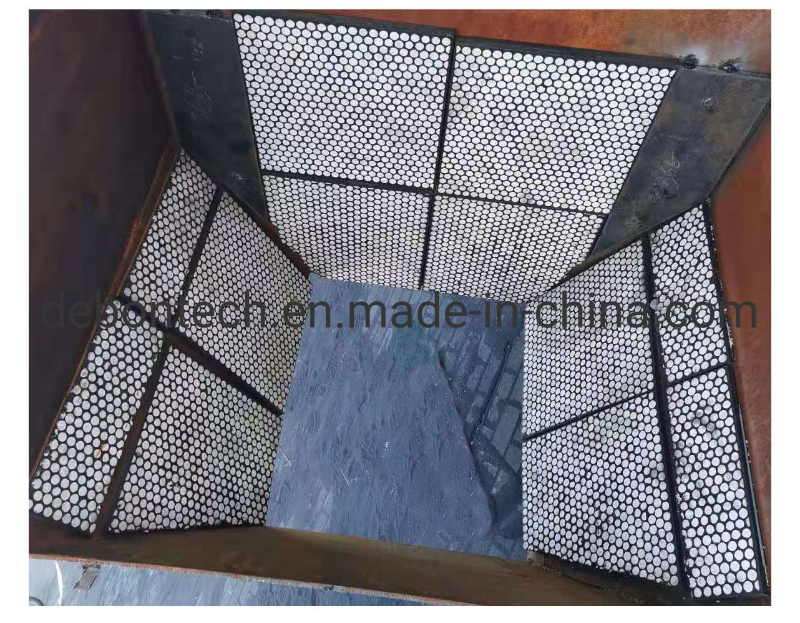

They are widely used in mining, cement, power generation, and bulk material handling industries, specifically for chutes, hoppers, bins, and conveyor transfer points.
