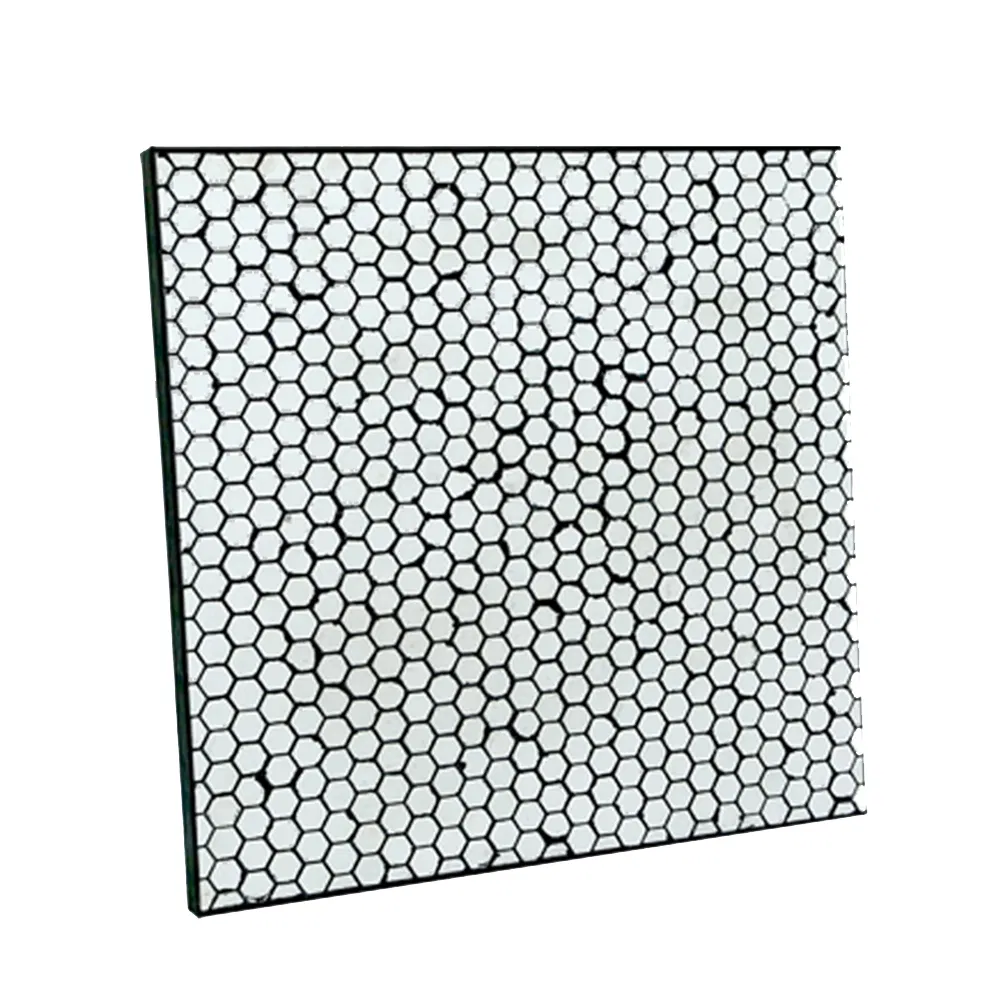

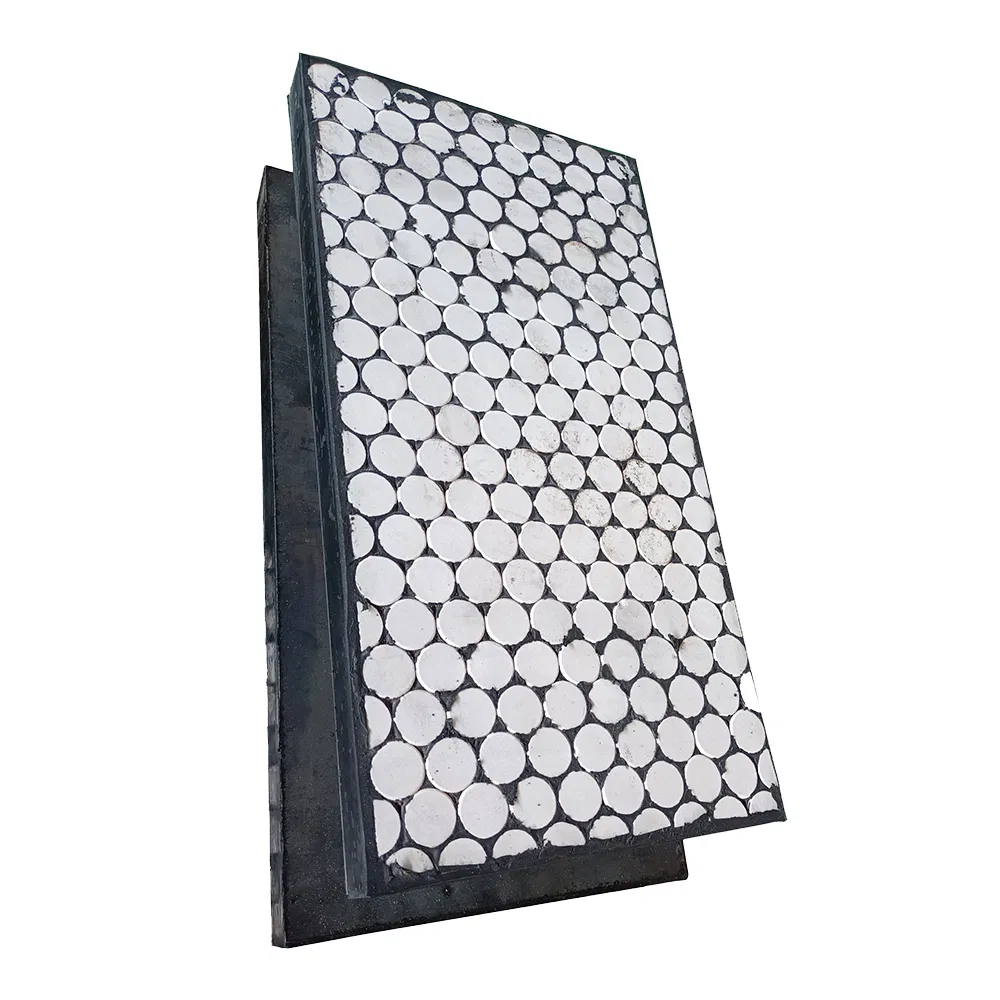

Abrasion Resistant Ceramic Cylinder Liner Alumina Ceramic Rubber Composite Wear Plates

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

DB-TCM

Installation Method

Adhesive Bonding

Material

Alumina Ceramic + Rubber + Cn Layer / Steel Plate

Shape

Cylindrical, Hexagonal, Square, Spherical

Thickness

3-75mm

Install Method

with Steel Plate and Studs, or Bonding Layer

Certificate

ISO9001: 2008, SGS, CE

Process

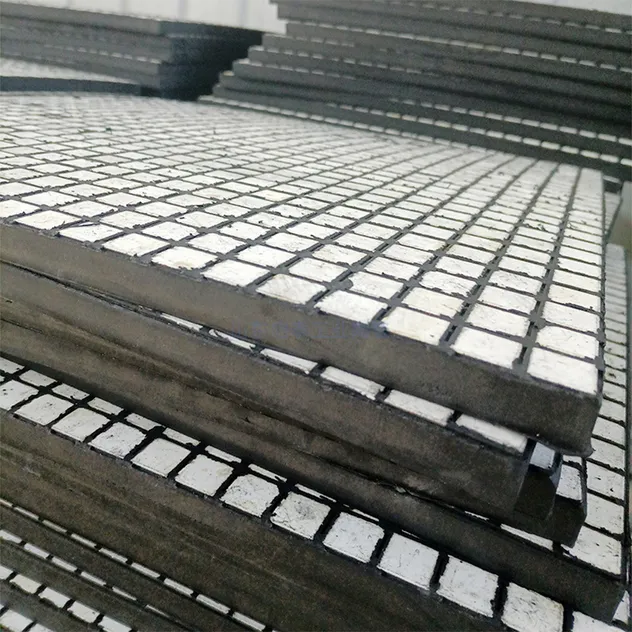

Hot Vulcanizing

Performance

Wear and Impact Resistant Liners

Standard Size

300*300, 500*500, Customized

Product Description

Wear Resistant Conveyor Chute Ceramic Rubber Wear Liner Sheets

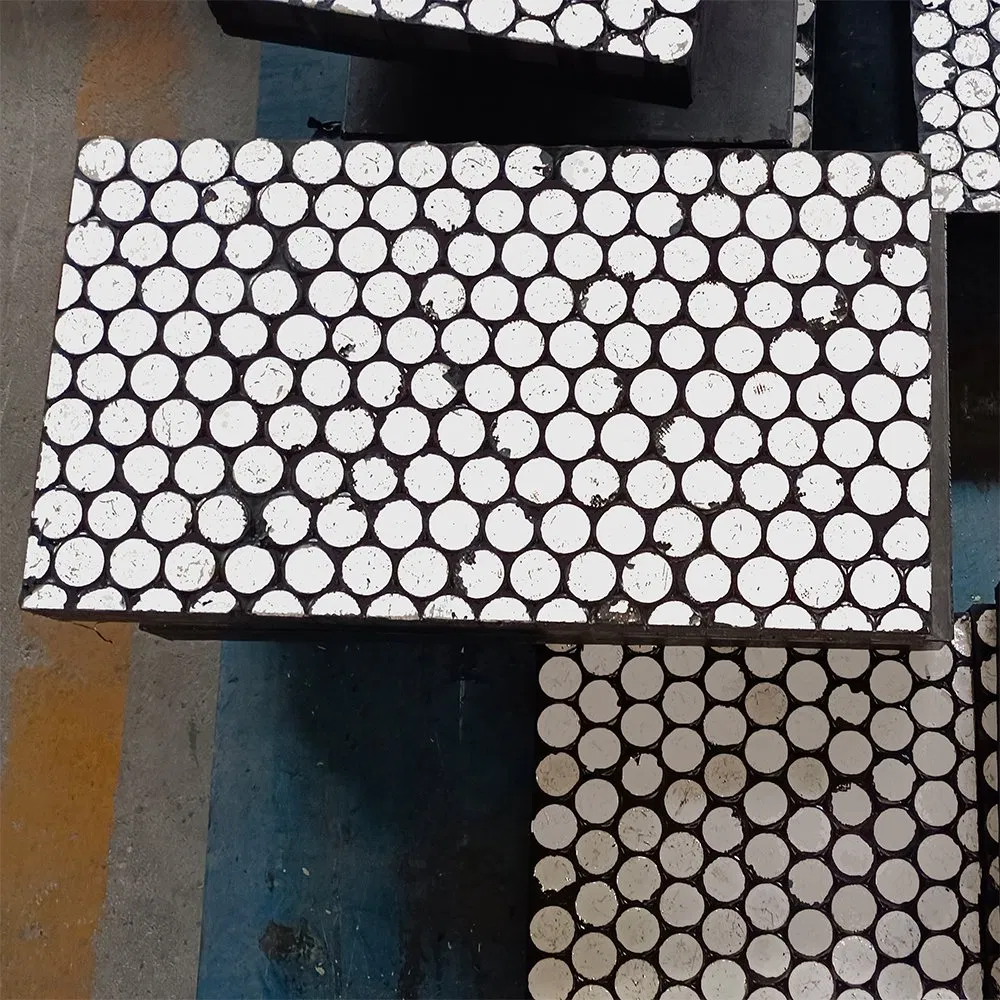

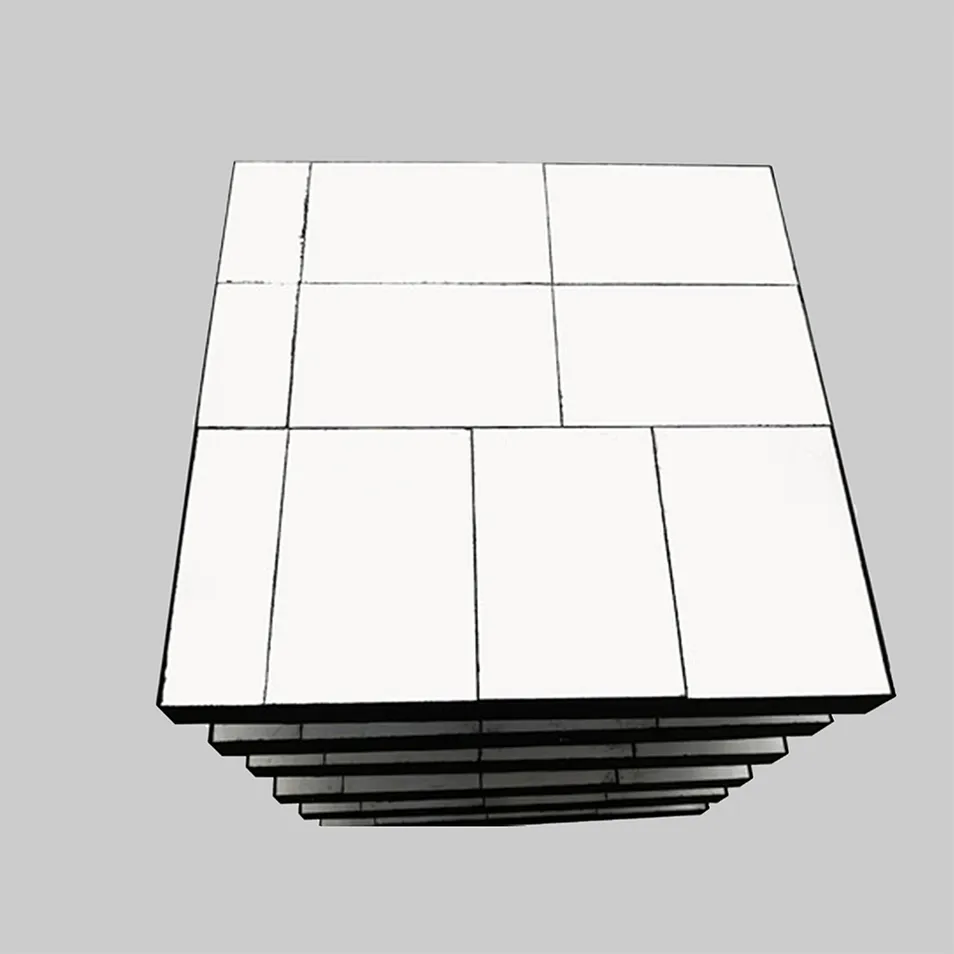

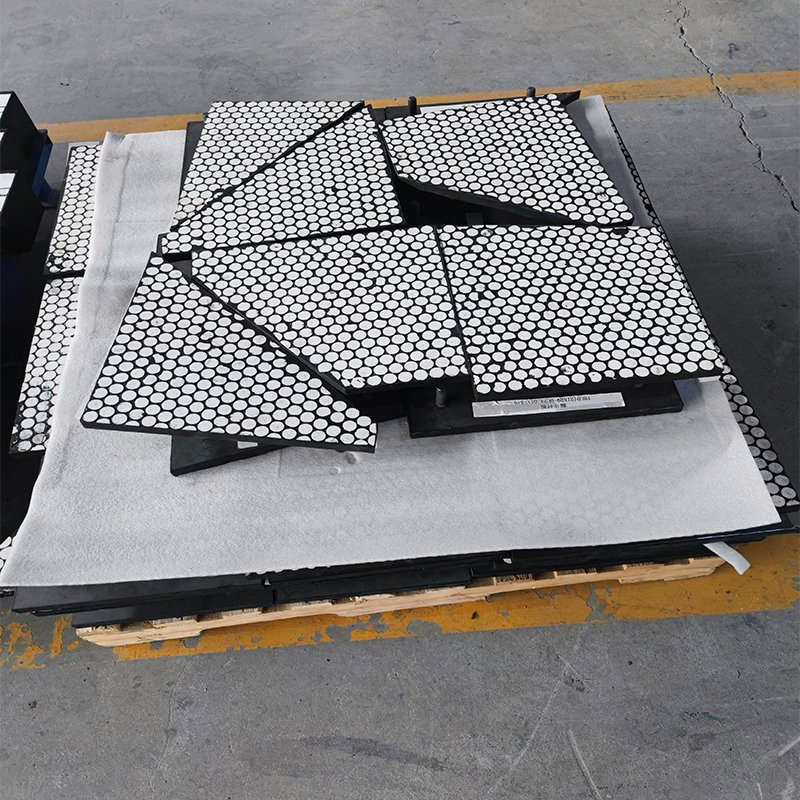

Ceramic rubber liners are made of hard ceramic for unparalleled resistance to abrasion, while the rubber effectively cushions the impact forces that could cause the ceramic rods to fracture. The elastic rubber matrix surrounding the ceramic rod is heat vulcanized for excellent adhesion.

✔ High Alumina Ceramics: 92% or 95% Alumina content for superior durability.

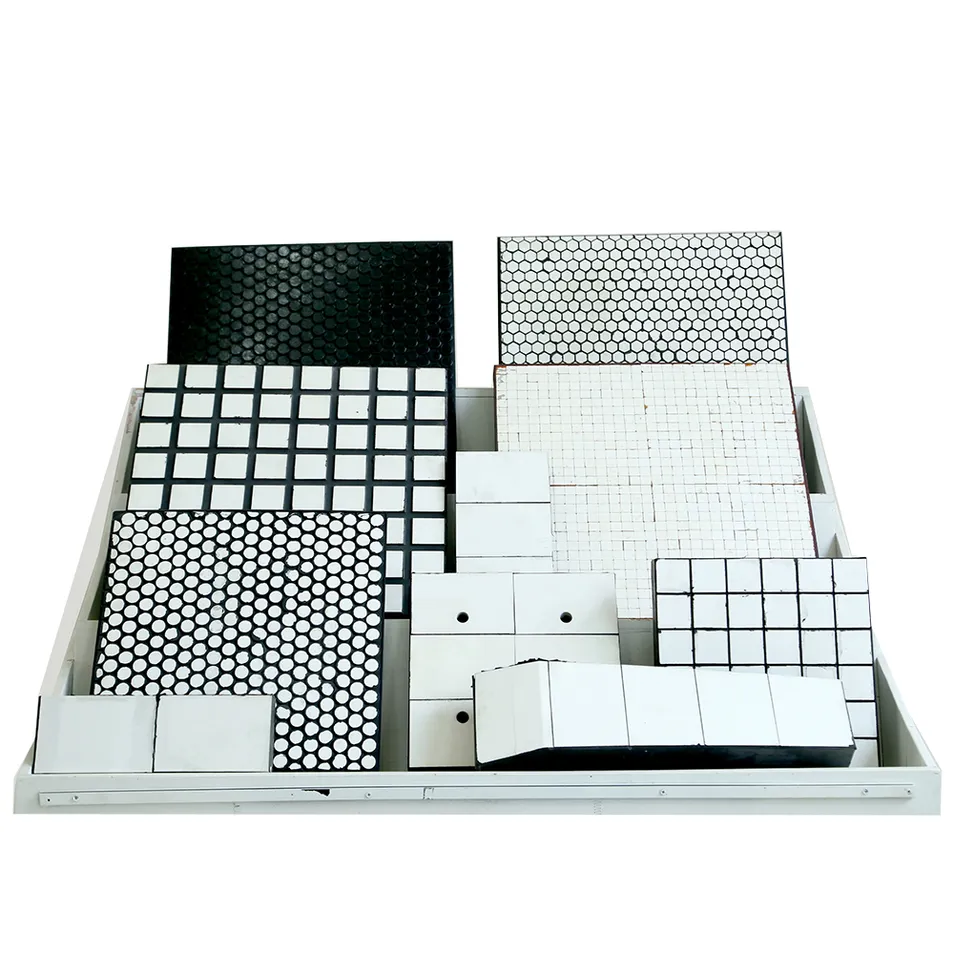

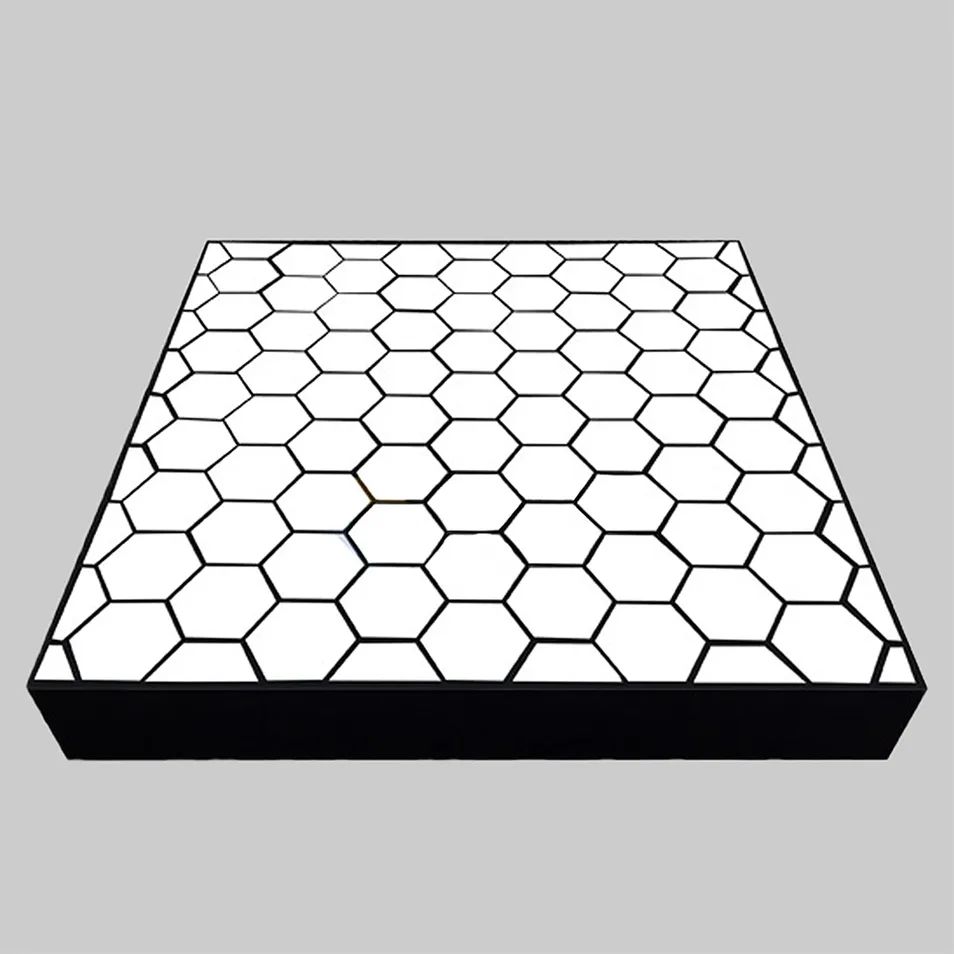

✔ Versatile Shapes: Available with square, rectangular, cylindrical, hexagonal, etc.
✔ Customized Engineering: Thickness, size and shape are determined on the basis of application requirements.

Technical Specifications

Applications & Features

It is used as a wear-resistant lining on equipment that transports bulk materials where surfaces are severely worn and subject to strong impact in normal temperature environments.

Ceramic liner Size(mm)	Ceramic Shape	Structure	Overall Thickness(mm)
500x500x8	Square, Cylindrical or Hexagonal	4mm ceramic on 4mm rubber	8
500x500x10	Square, Cylindrical or Hexagonal	6mm ceramic on 4mm rubber	10
500x500x14	Square, Cylindrical or Hexagonal	10mm ceramic on 4mm rubber	14
500x500x20	Square, Cylindrical or Hexagonal	13mm ceramic on 7mm rubber	20
500x500x25	Cylindrical or Hexagonal	20mm ceramic on 5mm rubber	25
500x500x30	Cylindrical or Hexagonal	25mm ceramic on 5mm rubber	30

Product Types

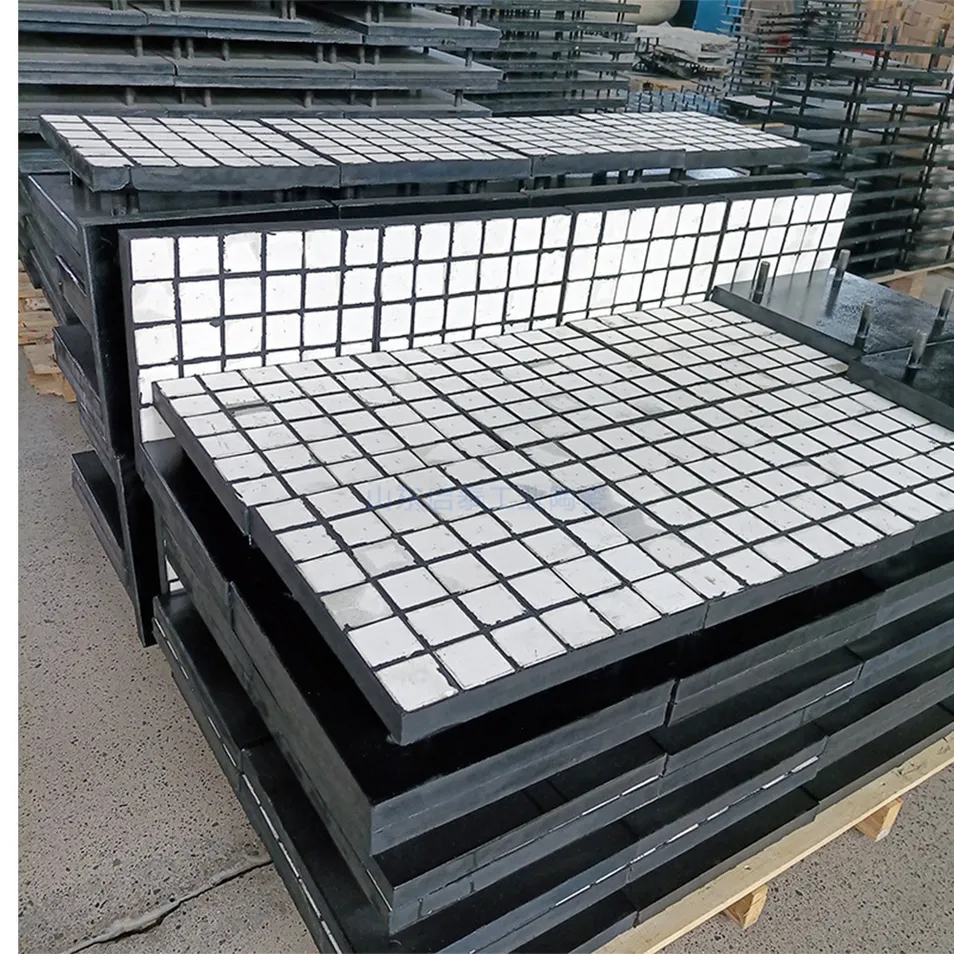

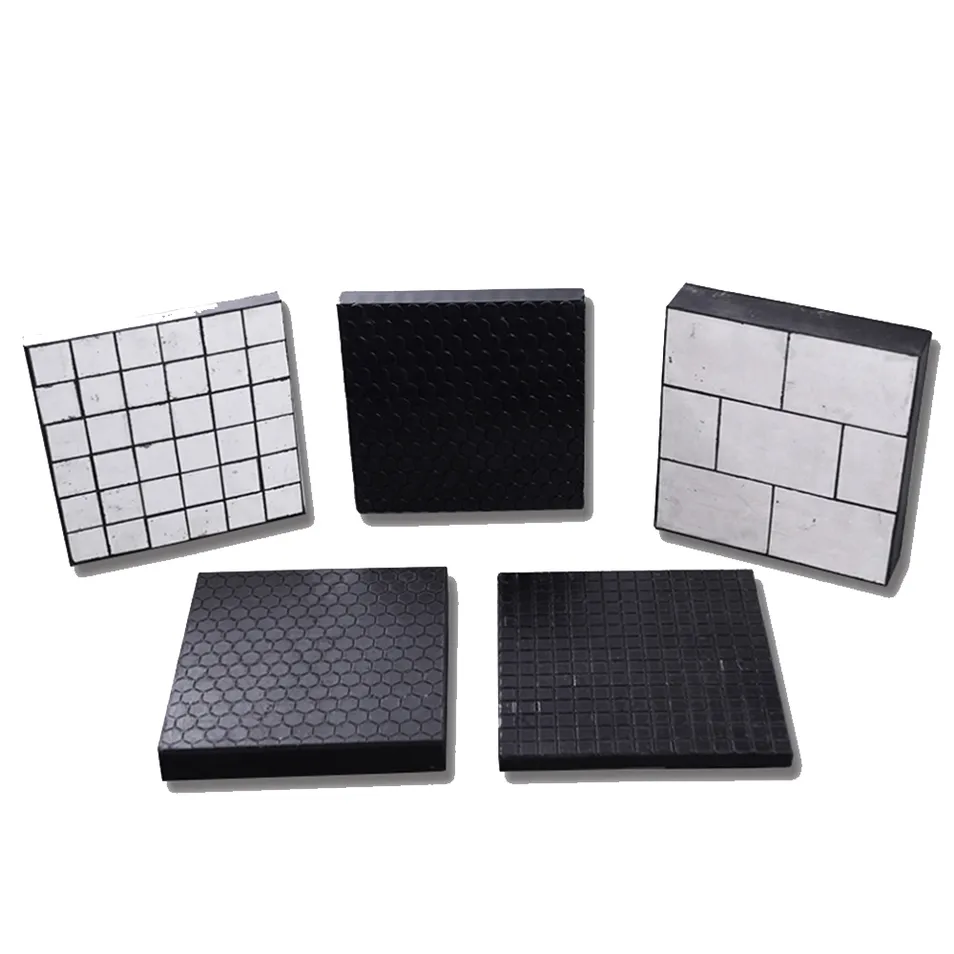

1. Composite Lining with Steel Backing Plate and Studs

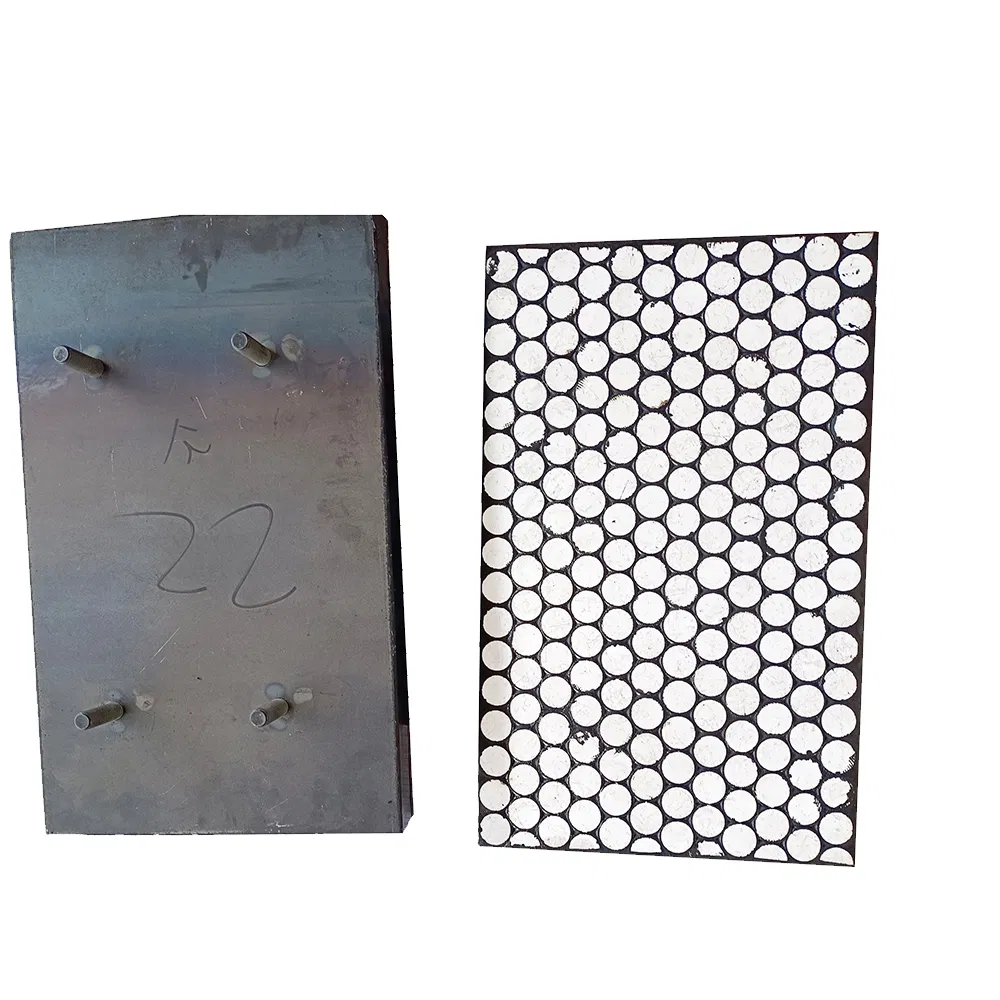

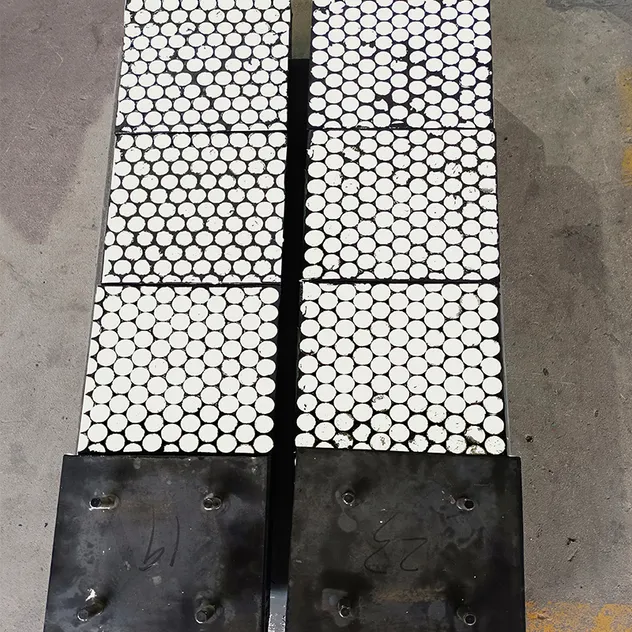

Ceramic rubber lining can be produced with steel backing plate and studs, allowing the lining to be bolted directly to facilities.

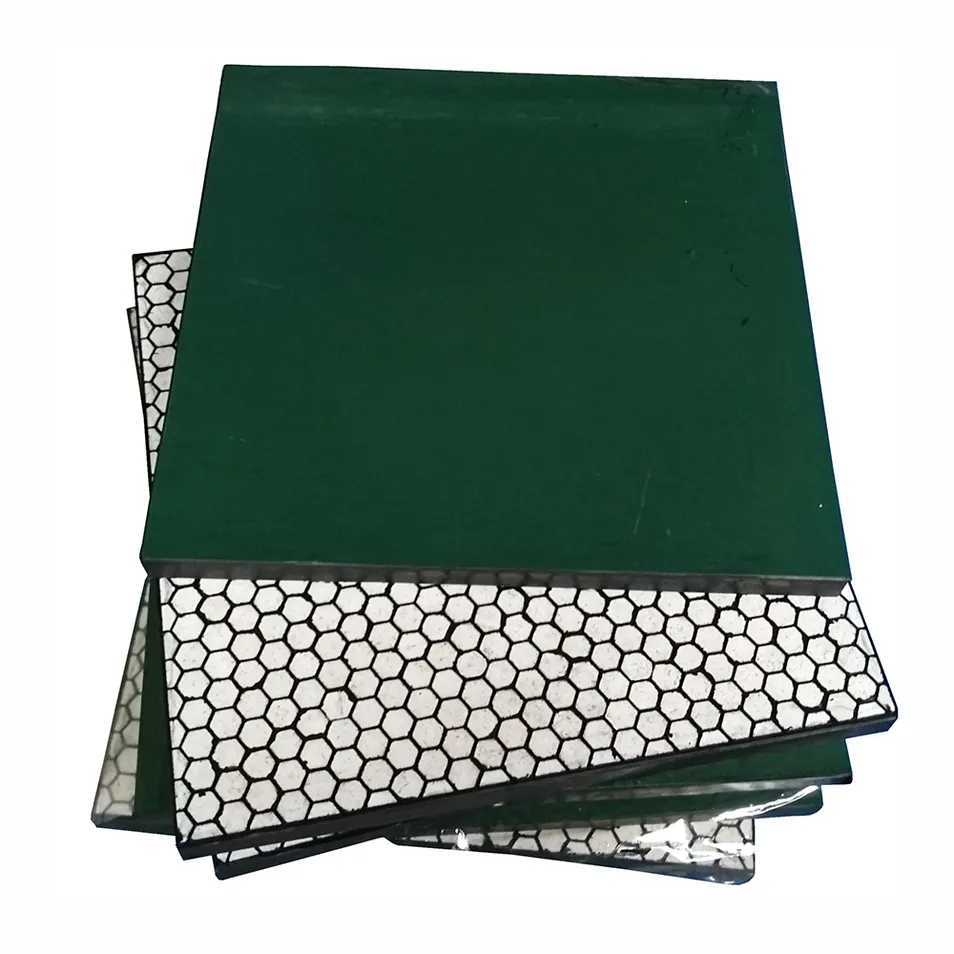

2. Composite Lining with CN Bonding Layer

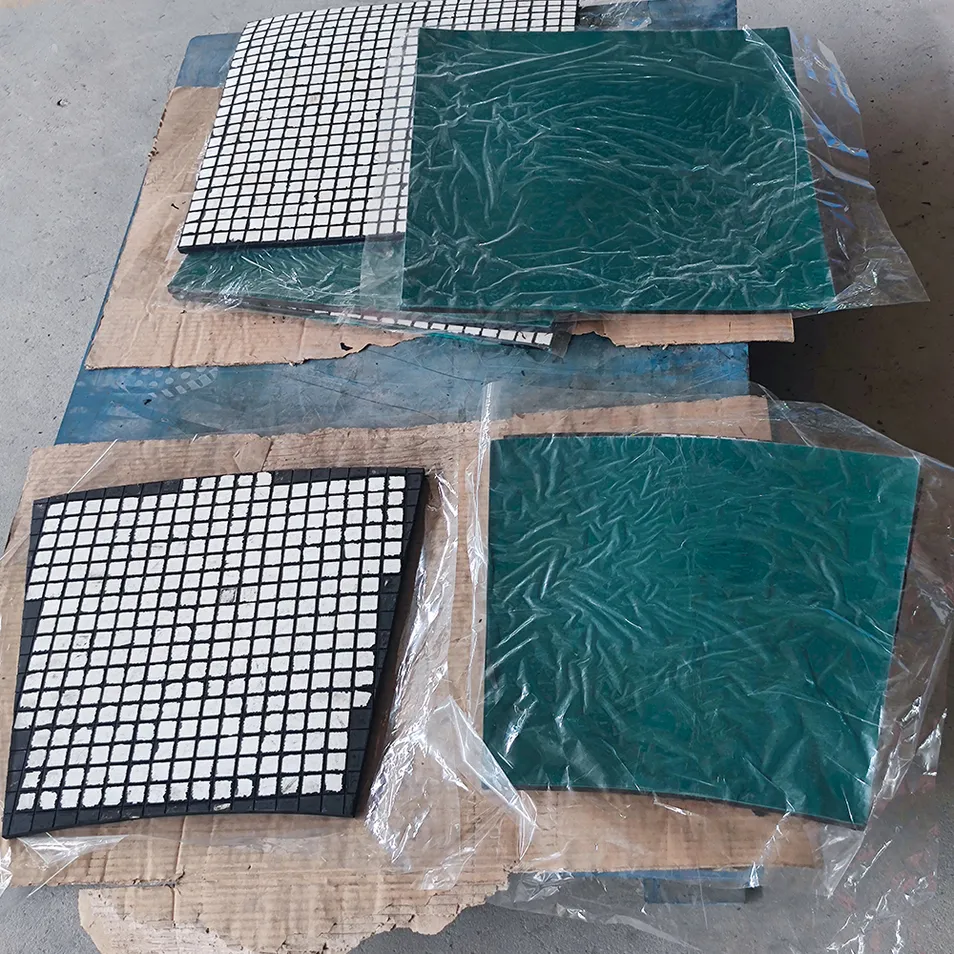

Ceramic rubber lining with a bonding layer can be bonded to equipment directly by adhesive. Options without a bonding layer are also available.

Manufacturer Profile & Experience

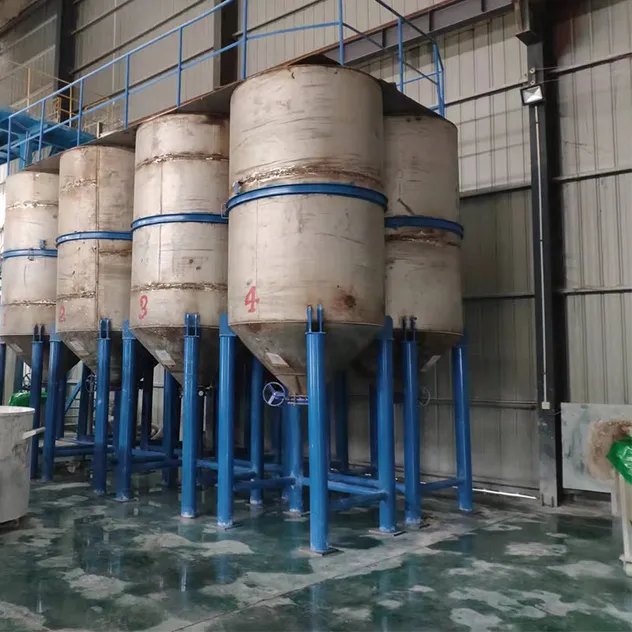

23 Year Manufacturer: Specialized in designing and manufacturing industrial conveyor belt related products since 1996.

11 Year Exporter: Products have been exported to Australia, Chile, USA, Russia, UK, Canada, France, New Zealand, South Africa, Indonesia, Thailand, Vietnam, and more.

Quality Certifications

Certified to ISO 9001:2008 Quality Management System. Rubber products are certified for mining safety standards. SGS audited supplier and ISO9001 certified factory.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a professional manufacturer with over 23 years of experience in industrial wear-resistant products.

Can you provide free samples for testing?

Yes, we can offer free samples if the items are in stock, although courier fees are typically collected from the recipient.

Do you accept customized production based on specific drawings?

Yes, we offer both OEM and ODM services. If you have a drawing, we can manufacture to your exact specs. If not, we can help design based on your ideas.

What is your typical delivery time?

Standard products usually ship within 7 working days, while customized products take approximately 30 days.

What is the Minimum Order Quantity (MOQ)?

There is no strict limit to the quantity. We provide the best proposals and solutions based on your specific operational conditions.

What payment terms do you accept?

We accept T/T, L/C, Western Union, and MoneyGram.
